Product Type	In-dash Installation Kit for Aftermarket Radios
Vehicle Compatibility	1996-1999 Ford Taurus and Mercury Sable with Rotary Climate Controls
Kit Contents	Installation panel, mounting clips, screws, FD12 speaker extension (18 ft), FDA-18 antenna extension, FD22 harness adapter (for 1998-99 models)
Mounting Type	DIN front load or DIN ISO (brackets and trim ring included)
Panel Functionality	Retains factory rotary climate control knobs and vacuum controls
Wiring Requirements	Uses factory 8-pin power and 16-pin defroster harnesses; aftermarket radio connects via supplied pigtails
Power Supply	12V DC (vehicle battery); constant, accessory, ground, and illumination wires provided
Speaker Wiring	Connects to factory amplifier/tuner in trunk via FD12 extension (bare wire ends)
Antenna Connection	Standard male antenna lead; uses FDA-18 extension to reach rear module
Tools Required for Installation	DIN removal tools, T-15 Torx screwdriver, small flathead screwdriver, volt/ohm meter
Safety Precautions	Disconnect negative battery terminal; avoid air bag wiring; use volt/ohm meter instead of test light
Installation Difficulty	Moderate; includes minor modification for console model (shaded area in manual)
Dimensions (Approximate)	Double DIN width, standard depth (exact dimensions not specified, fits factory opening)
Weight	Approximately 1.5 lbs (0.7 kg) including cables
Material	Plastic with metal mounting brackets
Color	Charcoal gray (typical for factory match)
Warranty	Scosche limited lifetime warranty (standard for accessories)
Spare Parts Availability	Replacement screws, clips, and harnesses may be ordered from Scosche

Frequently Asked Questions - FD134030 Scosche

What vehicles is the Scosche FD134030 compatible with?

The FD134030 is designed for 1996-1999 Ford Taurus and Mercury Sable models equipped with rotary climate controls. It does not fit vehicles with electronic climate controls.

Does the kit include everything needed for installation?

Yes, it includes the installation panel, mounting clips, screws, speaker extension (FD12), antenna extension (FDA-18), and a harness adapter (FD22) for 1998-1999 models. You will need standard installation tools and the aftermarket radio.

How do I connect the aftermarket radio to the factory wiring?

Use the supplied pigtails: connect the radio's constant, accessory, ground, and dimmer wires to the matching wires from the kit's 8-pin plug. For speaker output, connect to the bare wires of the FD12 extension. For antenna, connect to the male end of the FDA-18 cable.

Where is the factory amplifier and tuner located?

In sedans, the amplifier and tuner are in the left side of the trunk. In wagons, they are behind the left rear panel behind the spare tire. The extension cables (FD12 and FDA-18) run from the dash to this rear module.

Can I install the kit myself?

Yes, but it requires moderate mechanical skill. You must disconnect the battery, remove the factory stereo/climate panel, reassemble knobs and switches onto the new panel, and run extension cables to the trunk. Refer to the manual for detailed steps.

What is the FD22 harness used for?

The FD22 adapter is required for 1998-1999 models. It adapts the kit's 8-pin and 16-pin plugs to the different wiring configuration of these later vehicles. For 1996-1997 models, the kit connects directly.

How do I remove the factory stereo/climate panel?

Insert DIN removal tools into the slots on the factory panel to release it. Unplug all electrical connectors and vacuum lines. Remove the three control knobs and the screws holding the switches from the back, then transfer them to the new FD134030 panel.

Are there any modifications needed for certain console models?

Some console models may require minor trimming in the shaded area shown in the manual. This is usually a small plastic ridge that can be cut or filed down for a perfect fit.

What safety precautions should I take during installation?

Always disconnect the negative battery terminal to prevent short circuits. Avoid any air bag wiring as accidental deployment can cause injury. Use a volt/ohm meter instead of a test light to avoid damaging the vehicle's computer.

Does the kit work with aftermarket radios that have a different size?

Yes, the kit supports both DIN front load and DIN ISO mounting. It includes ISO brackets and a trim ring. For single-DIN radios, use an optional adapter sleeve. The opening is designed for standard aftermarket chassis sizes.

USER MANUAL FD134030 Scosche

IN-DASH INSTALLATION KIT FOR

1996-99 FORD TAURUS

1996-99 MERCURY SABLE

WITH ROTARY CLIMATE CONTROLS

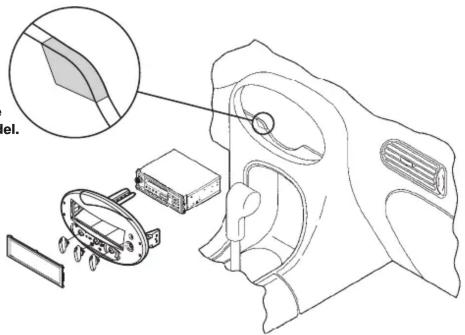

Minor modification may be necessary on console model. See shaded area.

FACTORY WIRING CODES

NOTE: • All wire codes are viewed as looking at the front of the plug with the wires exiting the rear.

- Use these wiring codes as a guide. Your vehicle might differ.

BLACK 14- SPEAKER INPUT *

*Located in trunk

1996-97 VEHICLES

1 = Illumination
2 = Ground
3 = Battery +12V
4 = Open
5 = Open
6 = Ground
7 = Open
8 = Accessory +12V

GRAY PLUG 8-PIN

BLACK 16-PIN

1 = Led Defrost On +12V
2 = Open
3 = Not Used
4 = Not Used
5 = Not Used
6 = Not Used
7 = Not Used
8 = Not Used

9 = Open
10 = Momentary Defrost on
11 = Open
12 = Open
13 = Not Used
14 = Open
15 = Not Used
16 = Not Used

Not Used = Substitute

"Not for aftermarket use"

1998-UP VEHICLES

1. = White/Pink = Not Used
2. = Blue/White = Not Used
3. = Black = Not Used
4. = Green/Violet = Defroster on Indicator
5. = Black/Pink = +12V Accessory
6. = Empty
7. = Light Green/Black = Not Used
8. = Empty
9. = Light Blue/Black = Not Used
10. = Black (Larger Gauge) = -12V Chassis Ground
11. = Brown/Light Green = Not Used
12. = Gray = Not Used
13. = Empty
14. = Blue/Orange = Defroster Switch Wire
    (Momentary Ground)
15. = Red/Yellow = Not Usec
16. = Gray/Red = Not used
17. = Ian = Not Used
18. = Light Blue/Pink = Not Used

19. = Black/Light Green = Not Used

20. = White = +12V Constant

POWER AND SPEAKER

INTRODUCTION

Thank you for purchasing the Scosche FD134030 installation panel. The FD134030 replaces the factory radio/integrated control panel, while maintaining the original Rotary Climate Controls and hardware. The factory radio dash panel is a control unit only, the amplifier and tuner sections of the radio are remote located in left side of trunk on sedans, or left rear behind the spare tire in wagons (see illustration "C"). The antenna cable is also located at the rear module. The Scosche FD12 (18ft. speaker connector extension), FDA-18 (antenna extension), and FD22 (FD10 to FD20 adapter) are included for aftermarket radio installations.

CAUTION: Disconnect your vehicle's negative battery terminal before the installation to help prevent electrical damage. We recommend the use of a volt/ohm meter over a test light to check wiring. A test light or grounded wire probe can cause damage to the vehicle's computer and/or diagnostic systems. Avoid all factory air bag wiring - air bags can accidentally deploy causing serious injury or death.

FACTORY STEREO REMOVAL

1. Insert DIN removal tools to release factory stereo/climate control panel. Unplug all electrical connectors and vacuum lines, remove panel.

FD134030 KIT PREPARATION

CLIMATE CONTROL KNOB HOUSING REMOVAL:

1. Align the control knobs to vertical position, then carefully pull off three rotary control knobs from the face of the factory radio/control panel.
2. From the back side of the factory control panel, extract one (1) 5mm screw from the FAN switch, twist out (counter clockwise) to remove. Repeat this procedure (clockwise) for the TEMPERATURE switch.
3. From the back side of the factory control panel, loosen the three (3) torx head panel retention screws located next to the switches removed. Carefully release the tape covering the bottom edge of the control panel (the tape will be refitted). Carefully separate bottom of panel about 1/4". Use a small screwdriver to release vacuum control retention clips.
4. Reattach all switches to the back side of the Scosche FD134030 installation panel in the corresponding slots using the factory screws.
5. Reattach rotary control knobs.

MOUNTING CLIPS

1. Extract one (1) T-15 torx screw holding the factory mounting clip from each side. Remove clips and reattach to the Scosche FD134030 using the factory screws.

AFTERMARKET RADIO WIRING CONNECTION

1. Use the supplied connectors constant, ignition, dimmer, and ground wires for Aftermarket radio installation.
2. Connect the new radio's speaker outputs to the bare wire ends of the FD12 18 ft. speaker extension harness.
3. Connect the new radio's antenna lead to the standard male end of the 18 ft. antenna extension cable.
4. Run extension cables to the rear of the vehicle to connect at the tuner/amp unit.

KIT INSTALLATION:

1996-1997 MODELS

The FD134030 installation kit comes prepared for 1996-1997 Ford Taurus/Mercury Sable applications. Connect both the 8 pin Radio power harness and the 16 pin defroster harness into the factory plugs.

1998-1999 MODELS

Use the supplied FD22 harness to adapt the FD134030 for 1998-1999 models. Connect the 8 pin power plug from the FD22 with the corresponding plug on the kit panel. Connect the 16 pin defroster harness with the corresponding plug on the kit panel. See picture to the right.

STEREO INSTALLATION:

1. DIN front load installation. See Illustration "A".
2. DIN ISO installation.
3. Attach ISO mount brackets (left and right) to the slots on kit opening, and secure radio chassis to brackets using hardware supplied with radio. See Illustration "B".
4. Snap iso trim ring to kit opening.
5. Scosche recommends rear support on all installations, by attaching the support strap, (supplied with the radio), to the kit top support mount. See Illustrations.

*Bend strap as illustrated for maximum mounting depth.
