IBA4-W - Wall socket Peerless-AV - Free user manual and instructions

Product Type	Wall Socket (Wall Plate/Outlet)
Brand	Peerless-AV
Model	IBA4-W
Color	White
Material	Steel and high-impact plastic
Dimensions (W x H x D)	4.5 x 4.5 x 0.5 inches
Weight	0.5 lbs (0.23 kg)
Mounting Type	Flush mount into standard single-gang box
Compatibility	Standard J-box (1-gang, 2-gang with adapter)
Power Outlets	1 x AC outlet (NEMA 5-15R)
Data Connectivity	Pass-through openings for HDMI, USB, etc.
Voltage Rating	125 VAC, 15A
Safety Certifications	UL Listed, cUL Listed
Installation	Requires standard electrical box; includes mounting screws
Maintenance	Wipe with a soft dry cloth; do not use liquids
Spare Parts	Screws are included; contact Peerless-AV for replacement
Repairability	Non-serviceable; replace entire unit if defective
Warranty	5-year limited warranty
Application	In-wall cable management for flat panel displays

Frequently Asked Questions - IBA4-W Peerless-AV

How do I install the Peerless-AV IBA4-W wall socket?

Installation requires a standard single-gang electrical box (not included). Feed power and data cables through the openings, secure the socket to the box with the provided screws, and attach the faceplate.

What is the load capacity of this wall socket?

This wall socket is designed for cable management and low-voltage data; it does not support mechanical loads. The AC outlet is rated for up to 15A (125V).

Can I use this socket with a HDMI cable?

Yes, the IBA4-W has pass-through openings that accommodate HDMI, USB, and other cables up to 0.5 inches in diameter.

Is the IBA4-W compatible with a 2-gang box?

It is designed for a 1-gang box. For 2-gang applications, use an adapter plate (not included) or two separate units.

Does this wall socket include a power cord?

No, the socket provides a built-in AC outlet; you need to connect wiring from a junction box (hardwired). Professional installation is recommended.

What tools are needed for installation?

A screwdriver, wire strippers, and voltage tester are typically required. Ensure power is off before installation.

Is the IBA4-W UL listed?

Yes, it is UL and cUL listed for safety.

How do I clean the wall socket?

Wipe the exterior with a soft dry cloth. Do not use water or cleaning liquids to avoid electric shock.

Can I paint the IBA4-W to match my wall?

Yes, the white plastic faceplate can be painted with standard acrylic paint. Ensure the paint does not block any openings.

What is the warranty on the IBA4-W?

Peerless-AV offers a 5-year limited warranty against defects in materials and workmanship.

USER MANUAL IBA4-W Peerless-AV

Peerless Industries, Inc.

2300 White Oak Circle

Aurora II 60502

800 865 8870

708.865.2110

www.peerlessmounts.com

Parts Included

1. One (1) Easy Mount Recessed Low Voltage Cable Plate

Tools Needed

1. Drywall saw
2. 6 Ft. tape measure
3. Pencil
4. Screwdriver

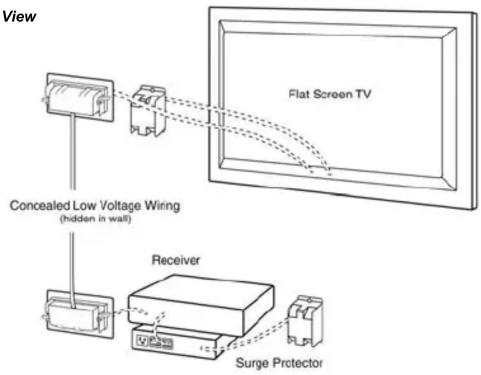

Use Peerless Industries, Inc.'s Easy Mount Recessed Low Voltage Cable Plates to install low voltage cables behind your flat panel TV, (see Figures 2 & 3), your amplifier or other audio and video devices. These recessed low voltage cable plates are designed for use with Low Voltage / Data Cables "ONLY".

Easy Mount Recessed Low Voltage Cable Plates are designed with the low voltage mounting brackets molded to the back of the plate (see Figure 1). The wall plate can be installed upright or upside down (see Figures 2 & 3 for upright installation).

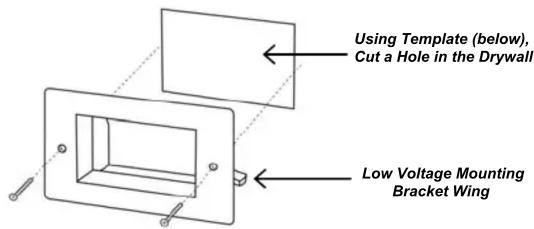

Determine the location of your flat panel TV, amplifier or audio/video device. Use the enclosed template to cut a hole in the drywall. When cutting the hole in the drywall, allow for the location of the stud. Now simply pull your audio/video cables through the wall and through the opening in the Easy Mount Recessed Low Voltage Cable Plate (to help insert larger cables through the opening in the wall plate, the back scoop of the wall plate is removable). Now insert the Easy Mount Recessed Low Voltage Cable Plate flush into the wall. Next, screw down the wall plate screws with wings. The wings will fasten tightly against the back of the drywall (see Figure 3) and your installation is complete.

These Recessed Cable Plates are Designed for Use with Low Voltage / Data Cables "ONLY".

Do Not Run or Pull the TV Cord or Other Electrical Cords Inside the Drywall. National Electrical Code (NEC) Does Not Allow the Installation of the TV Power Cord or an Extension Cord Behind the Wall.

CAUTION

• Never install low voltage wiring during lightning storms.
• Never install low voltage wiring in wet locations unless the wire is specifically designed for wet locations.
• Never touch un-insulated low voltage wires or terminals unless the wire has been disconnected at its source.
• Use caution when installing low voltage cables.

IMPORTANT INSTRUCTIONS

• Read and understand all instructions.
• Follow all warning and instructions marked on the product.
• Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.
  ■ SAVE THESE INSTRUCTIONS.

This product is patent protected by U.S. Patent number 7390964

RoHS Compliant

3026001

IBA4-W – Front View

IBA4-W - Back View

Figure 1

Figure 2 - Front View

Figure 3 - Back View

4-1/16"

TEMPLATE

IBA4-W

Easy Mount Recessed Low Voltage Cable Plate

ACTUAL SIZE

CUT ALONG DOTTED LINE ✗
