Circular RS 120/2 - Irrigation Control KARCHER - Free user manual and instructions

Product Type	Circular Sprinkler
Brand	KÄRCHER
Model	Circular RS 120/2
Category	Irrigation Control
Adjustable Spray Angle	Yes
Maximum Coverage Area (at 4 bar)	113 m²
Sprinkling Diameter (2 bar)	≤ 8 m
Sprinkling Diameter (4 bar)	≤ 12 m
Sprinkling Area (2 bar)	50 m²
Sprinkling Area (4 bar)	113 m²
Water Flow Rate	16 l/min
Net Weight	0.18 kg
Gross Weight	0.22 kg
Dimensions (L x W x H)	200 × 248 × 110 mm
Order Number	2.645-020.0
EAN Code	4039784289031
Material	Plastic
Connection Type	Garden hose (1/2")
Recommended For	Medium-sized gardens
Operating Pressure	2 - 4 bar
Warranty	2 years

Frequently Asked Questions - Circular RS 120/2 KARCHER

What is the maximum coverage area of the Kärcher Circular RS 120/2?

The maximum coverage area is 113 m² at 4 bar water pressure.

Is the spray angle adjustable?

Yes, the spray angle is adjustable for customized watering.

What is the water flow rate?

The water flow rate is 16 l/min.

What is the sprinkling diameter at 2 bar?

At 2 bar, the sprinkling diameter is ≤ 8 m.

What are the dimensions and net weight?

Dimensions are 200 × 248 × 110 mm (L x W x H) and net weight is 0.18 kg.

What type of hose connection does this sprinkler use?

It uses a standard 1/2 inch garden hose connection.

Is the Kärcher Circular RS 120/2 suitable for small gardens?

It is designed for medium-sized gardens; for small gardens, you may consider a model with smaller coverage.

How do I clean the sprinkler?

Clean the sprinkler with water and a soft brush. Ensure the nozzles are free from debris for optimal performance.

Can I use this sprinkler with a pressure washer?

No, this is an irrigation sprinkler designed for standard garden hose pressure (2-4 bar). Do not connect to a pressure washer.

Where can I find spare parts for the Circular RS 120/2?

Spare parts are available from Kärcher service centers or authorized dealers. Use the order number 2.645-020.0 for reference.

USER MANUAL Circular RS 120/2 KARCHER

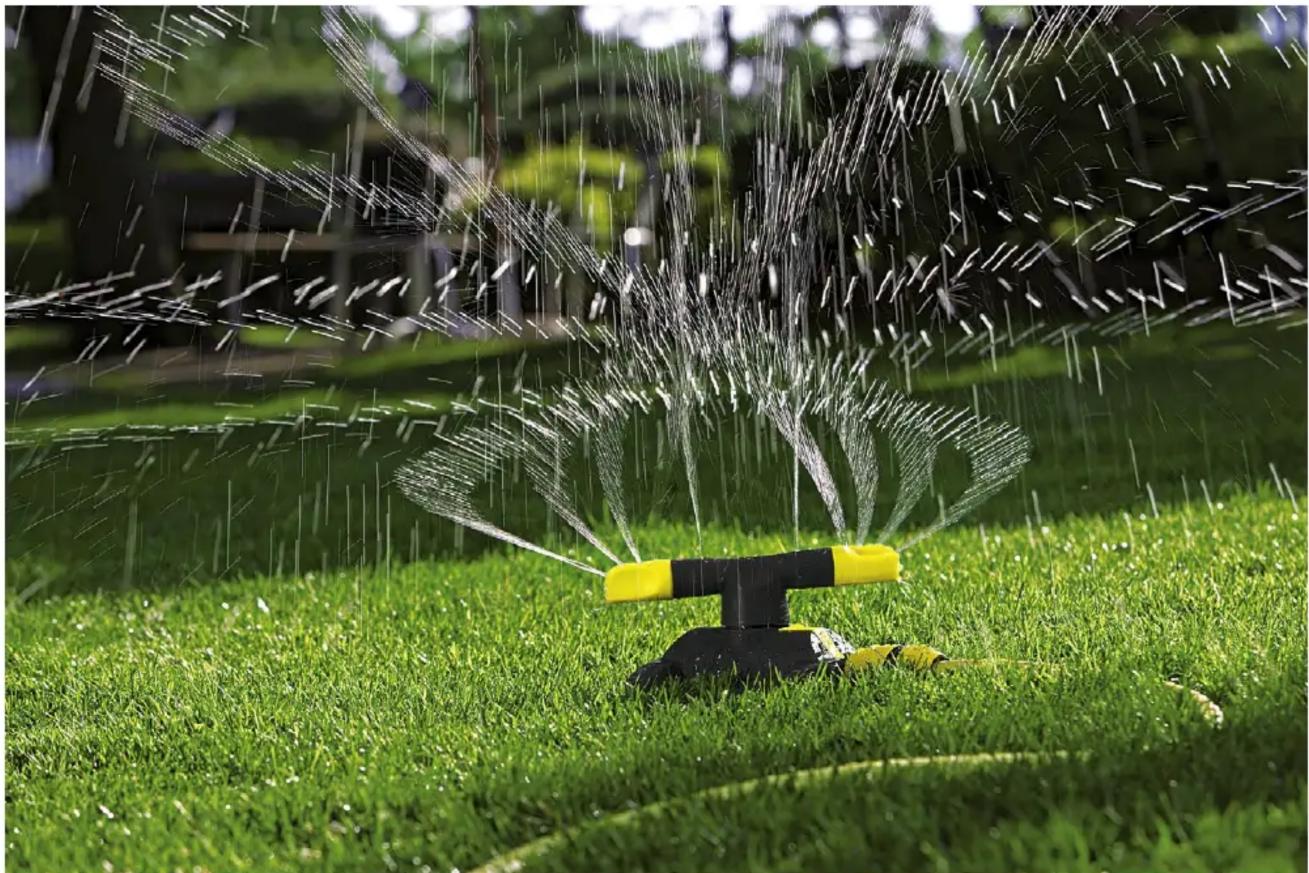

Circular sprinkler RS 120/2

Circular sprinkler RS 120/2 with adjustable spray angle ideal for watering medium-sized areas and gardens. Covers up to 113 m2.

1 Adjustable spray angle

For watering as required

Circular sprinkler RS 120/2

For medium-sized surfaces and gardens
- Adjustable spray angle
Max. area coverage 113 m

Technical data

Order no. 2.645-020.0
EAN code	4039784289031
Water volume	16 l/min
Sprinkling diameter (2 bar)	≤ 8 m
Sprinkling diameter (4 bar)	≤ 12 m
Sprinkling area (2 bar)	50 m2
Sprinkling area (4 bar)	113 m2
Weight kg	0.18
Weight incl. packaging kg	0.22
Dimensions (L x W x H) mm	200 × 248 × 110

		Order no. Price	Description
Hoses
PrimoFlex® hose 1/2" - 20 m	1	2.645-138.0 The PrimoFlex® (1/2") flexible garden			hose is 20 m long,			temperature-resistant, comes with pressure-resistant reinforcement technology and contains no substances that are harmful to health. Bursting pressure: 24 bar.	☐
Hose connection systems
Universal Hose Connector with Aqua Stop	2	2.645-192.0 Universal hose coupling with Aqua Stop. Ergonomic design						for convenient handling.	☐
Universal Hose Connector	3	2.645-191.0 Economically designed universal hose coupling for convenient handling.						☐

□ Available accessories.
