DCH313 - Range hood Defy - Free user manual and instructions
Find the device manual for free DCH313 Defy in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Range Hood |
| Brand | Defy |
| Model | DCH313 |
| Installation Type | Under-cabinet / Wall-mounted |
| Dimensions (W x D x H) | 600 mm x 500 mm x 150 mm |
| Weight | Approximately 8 kg |
| Power Supply | 220-240 V ~ 50 Hz |
| Rated Power | 150 W |
| Number of Speeds | 3 |
| Extraction Capacity | 650 m³/h |
| Noise Level | 55 dB (max speed) |
| Lighting | 2 x 40 W halogen bulbs |
| Filter Type | Aluminum grease filter, charcoal filter (optional) |
| Control Type | Push buttons |
| Ducting | 120 mm diameter, recirculation or vented |
| Maintenance | Clean grease filter monthly, replace charcoal filter every 3-6 months |
| Safety Features | Overheat protection, auto shut-off (if applicable) |
| Spare Parts | Filters, bulbs, switches available from Defy service centers |
| Warranty | 2 years |
Frequently Asked Questions - DCH313 Defy

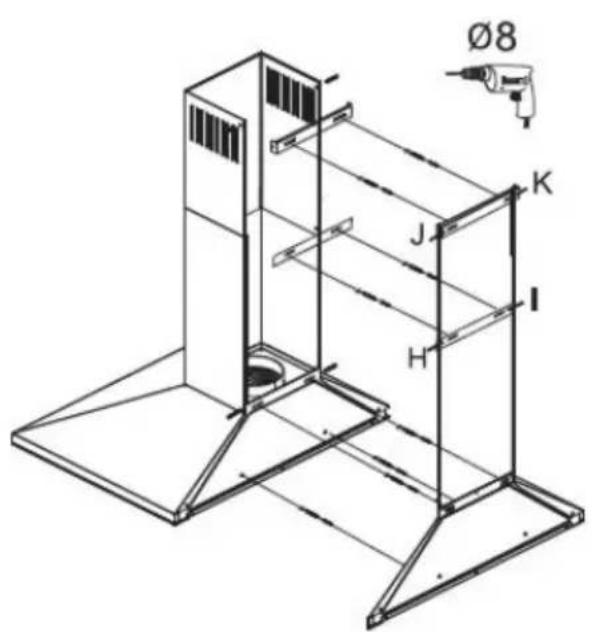

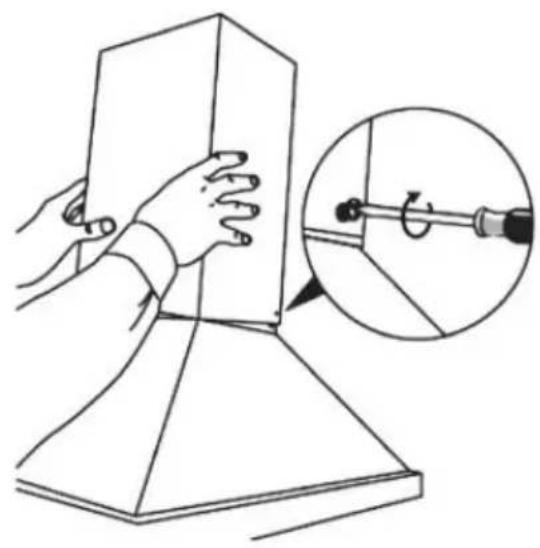

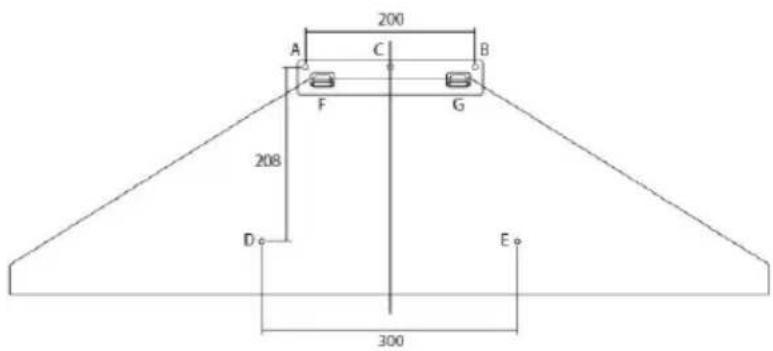

How do I install the Defy DCH313 range hood?

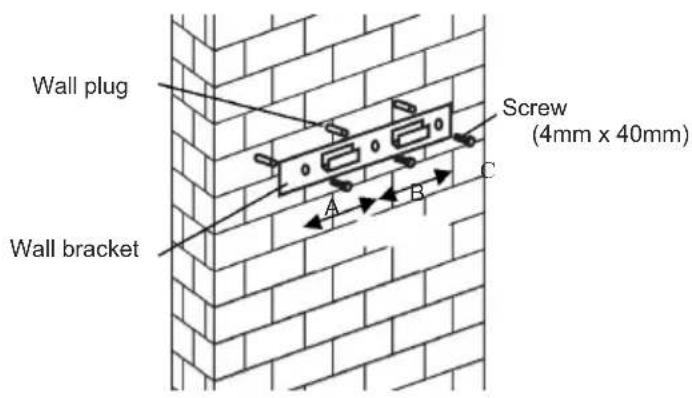

Installation requires mounting under a cabinet or on a wall. Ensure the unit is securely fixed with the provided screws and connect the ducting (vented) or use the charcoal filter for recirculation mode. Refer to the manual for detailed steps.
How often should I clean the grease filter?
Clean the aluminum grease filter monthly using warm soapy water or a dishwasher. A dirty filter reduces efficiency and may cause fire hazard.
How do I replace the charcoal filter?
If using recirculation mode, replace the charcoal filter every 3-6 months. Remove the grease filter, slide out the old charcoal filter, insert a new one, and reassemble.
Why is my range hood making loud noise?
Loud noise can be caused by loose parts, a blocked fan, or worn bearings. Check for obstructions and tighten screws. If persists, contact customer service.
How do I change the light bulbs?
Disconnect power, remove the bulb cover, unscrew the old halogen bulb (40W max), and replace with a new one. Use the same type and wattage.
What is the maximum extraction capacity?
The Defy DCH313 has an extraction capacity of 650 m³/h on the highest speed setting, suitable for medium-sized kitchens.
Can I use the range hood without ducting?

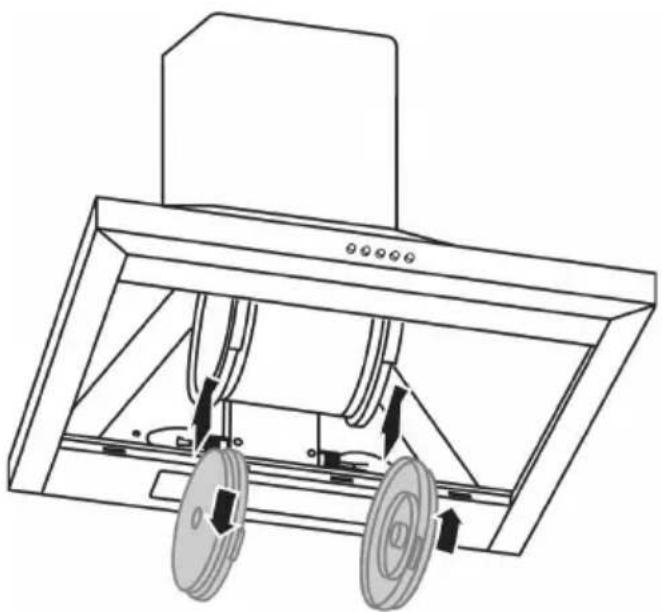

Yes, you can use it in recirculation mode by installing a charcoal filter. The air is filtered and returned to the kitchen.
How do I reset the filter alarm?
If equipped, the filter indicator light may reset by pressing and holding the speed button for 3-5 seconds. See your manual for exact procedure.
What are the dimensions of the DCH313?
The dimensions are approximately 600 mm wide, 500 mm deep, and 150 mm height. Ensure your cabinet gap matches.
Is the Defy DCH313 energy efficient?
Yes, it is designed to meet energy standards. Use lower speeds for everyday cooking to save energy.
