PM8907 - Battery charger FLUKE - Free user manual and instructions

Brand	Fluke
Model	PM8907
Product Type	Power Adapter / Battery Charger
Category	Battery Charger
Versions	PM8907/801 (230V EU plug), PM8907/804 (240V UK plug), PM8907/806 (100V JP plug), PM8907/807 (240V AU plug), PM8907/808 (115/230V switchable), PM8907/813 (120V NA plug)
Input Voltage	100–240 VAC depending on version (see specs)
Line Frequency	50, 60, and 400 Hz ±10%
Output Voltage	15 V DC
Output Current	300 mA
Power Consumption	7 W maximum
Output Connector	5 mm power jack (DIN 45232)
Polarity	Outer contact positive (+), inner negative
Operating Temperature Range	0 to +40 °C (32 °F to 104 °F)
Protection Class	Double Insulation (Class II)
Compliance	CE (Conformité Européenne), RoHS (implied)
Warranty	1 year from date of shipment (limited)
Intended Use	Power and charge Fluke ScopeMeter test tools
Safety Instructions	Connect to AC outlet before connecting to device; do not open; observe polarity
Disposal	Do not dispose as unsorted municipal waste; recycle via Fluke website

Frequently Asked Questions - PM8907 FLUKE

Can the PM8907 be used worldwide?

The PM8907 is available in multiple versions with different line plugs and voltage ratings (100–240 VAC, 50/60/400 Hz). Choose the correct version for your region or use the switchable version PM8907/808.

How do I charge the battery of my ScopeMeter with the PM8907?

Connect the PM8907 to an AC outlet first, then plug the 5 mm power jack into the ScopeMeter. The output is 15 V DC at 300 mA, and the outer contact is positive.

What is the polarity of the output jack?

The outer contact of the 5 mm power jack is positive (+), and the inner contact is negative.

Can I use the PM8907 with any Fluke device?

The PM8907 is designed for Fluke ScopeMeter test tools. Check your device's power requirements; output is 15 V, 300 mA.

How do I select the correct voltage on the PM8907/808?

Before connecting the PM8907/808 to the mains, check the preselected voltage setting on the unit and switch to either 115 V or 230 V as needed using the voltage selector.

What do the symbols on the PM8907 mean?

The symbols include: Double Insulation (square within square), CE (Conformité Européenne), and Do not dispose as municipal waste (crossed-out wheeled bin). See the instruction sheet for details.

Is the PM8907 repairable?

No, the PM8907 is not serviceable. Do not open the unit. If defective, contact Fluke authorized service center for warranty or replacement.

What is the warranty period for the PM8907?

Fluke warrants the PM8907 for one year from shipment date against defects in materials and workmanship. This warranty applies to the original buyer or end-user from a Fluke authorized reseller.

Can I use the PM8907 in high-temperature environments?

The operating temperature range is 0 to +40 °C (32 °F to 104 °F). Using it outside this range may damage the unit or reduce performance.

How do I properly dispose of the PM8907?

Do not dispose of the PM8907 as unsorted municipal waste. Follow local regulations for electronic waste or visit Fluke's website for recycling information.

USER MANUAL PM8907 FLUKE

LIMITED WARRANTY & LIMITATION OF LIABILITY

Each Fluke product is warranted to be free from defects in material and workmanship under normal use and service. The warranty period is one year and begins on the date of shipment. Parts, product repairs and services are warranted for 90 days. This warranty extends only to the original buyer or end-user customer of a Fluke authorized reseller, and does not apply to fuses, disposable batteries or to any product which, in Fluke's opinion, has been misused, altered, neglected or damaged by accident or abnormal conditions of operation or handling. Fluke warrants that software will operate substantially in accordance with its functional specifications for 90 days and that it has been properly recorded on non-defective media. Fluke does not warrant that software will be error free or operate without interruption.

Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers only but have no authority to extend a greater or different warranty on behalf of Fluke. Warranty support is available if product is purchased through a Fluke authorized sales outlet or Buyer has paid the applicable international price. Fluke reserves the right to invoice Buyer for importation costs of repair/replacement parts when product purchased in one country is submitted for repair in another country.

Fluke's warranty obligation is limited, at Fluke's option, to refund of the purchase price, free of charge repair, or replacement of a defective product which is returned to a Fluke authorized service center within the warranty period.

To obtain warranty service, contact your nearest Fluke authorized service center or send the product, with a description of the difficulty, postage and insurance prepaid (FOB Destination), to the nearest Fluke authorized service center. Fluke assumes no risk for damage in transit. Following warranty repair, the product will be returned to Buyer, transportation prepaid (FOB Destination). If Fluke determines that the failure was caused by misuse, alteration, accident or abnormal condition of operation or handling, Fluke will provide an estimate of repair costs and obtain authorization before commencing the work. Following repair, the product will be returned to the Buyer transportation prepaid and the Buyer will be billed for the repair and return transportation charges (FOB Shipping Point).

THIS WARRANTY IS BUYER'S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. FLUKE SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, INCLUDING LOSS OF DATA, WHETHER ARISING FROM BREACH OF WARRANTY OR BASED ON CONTRACT, TORT, RELIANCE OR ANY OTHER THEORY.

Fluke Corporation Fluke Industrial B.V. P.O. Box 9090 P.O. Box 90

Everett 7600 AB Almelo

WA 98206-9090 The Netherlands

USA

Since some countries or states do not allow limitation of the term of an implied warranty, or exclusion or limitation of incidental or consequential damages, the limitations and exclusions of this warranty may not apply to every buyer. If any provision of this Warranty is held invalid or unenforceable by a court of competent jurisdiction, such holding will not affect the validity or enforceability of any other provision.

PM8907

Power

Battery

Ada

Cha

Instruction

s

SPECIFICATIONS

- Versions:

PM8907/801 Universal European line plug 230V ±10%.

PM8907/804 United Kingdom line plug 240V ±10%.

PM8907/806 Japanese line plug 100V ±10%.

PM8907/807 Australian line plug 240V ±10%.

PM8907/808 Universal switchable adapter 115V ±10% or 230V ±15% with plug EN60320-2.2G.

PM8907/813 North American line plug 120V ±10%.

● Line frequency: 50, 60, and 400 Hz ±10%.
● Output voltage: 15V.
● Output current: 300 mA.
● Power consumption: 7W maximum.
- Output plug: 5-mm power jack per DIN 45232.
● Plus (+) voltage connected to outer contact of the 5-mm power jack.
- Operating temperature: 0 to +40 °C (32 °F to 104 °F).

Sep 1996, Rev.4 8/08

© 1996-2008 Fluke Corporation. All rights reserved. Printed in The Netherlands.

All product names are trademarks of their respective companies.

482287200777

OPERATION

Please read these instructions carefully before using the Power Adapter/Battery Charger.

To avoid electrical shock, connect the PM8907 Power Adapter to the AC outlet before connection to the ScopeMeter® test tool.

• The Power Adapter/Battery Charger operates the ScopeMeter® test tool from the local line.
  ● The Power Adapter/Battery Charger charges the internal Battery Pack of the test tool.
• Observe the polarity 5-mm power jack; the outer contact is plus (+) polarity.
• Do not open the PM8907, it is not serviceable.

SYMBOLS

International electrical symbols used are explained below.

	See explanation on Instruction Sheet
	DOUBLE INSULATION (Protection Class)
	Conformité Européenne
	Do not dispose of this product as unsorted municipal waste. Go to Fluke's website for recycling information.

Figure 1. PM8907/801

Figure 4. PM8907/807

Figure 2. PM8907/804

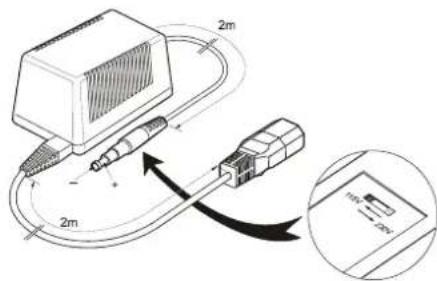

Figure 5. PM8907/808

Figure 3. PM8907/806

Figure 6. PM8907/813

Caution Before you connect the PM8907/808 to the local line, first check the preselected voltage setting on this unit. (see Figure 5.)

For connection to the mains outlet, use a power cord that complies with national standards.
