IC7-LRS - NAS Tenda - Free user manual and instructions

Product Type	Network Attached Storage (NAS) Enclosure
Brand	Tenda
Model	IC7-LRS
Dimensions (W x D x H)	200 x 150 x 50 mm
Weight	1.2 kg
Power Supply	12V DC, 2A external adapter
Drive Bays	1 x 3.5" SATA (or 2.5" with bracket)
Supported File Systems	EXT4, FAT32, NTFS (read-only)
Network Interface	1 x Gigabit Ethernet RJ-45
USB Ports	1 x USB 2.0 Type-A
Key Functions	File sharing, backup, media streaming, FTP server, print server
Management	Web-based interface, mobile app (iOS/Android)
LED Indicators	Power, network, HDD activity
Cooling	Passive (fanless) or small fan (estimated)
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% non-condensing
Maintenance	Keep in dry, ventilated area; clean with soft cloth; avoid dust
Safety	CE, FCC compliant; use only supplied power adapter
Spare Parts	Power adapter, Ethernet cable, screws for HDD
Repairability	User-replaceable HDD; no internal batteries; limited disassembly
Package Content	IC7-LRS unit, power adapter, Ethernet cable, quick install guide, warranty card

Frequently Asked Questions - IC7-LRS Tenda

How do I set up my Tenda IC7-LRS NAS for the first time?

Connect the NAS to your router via Ethernet, insert a SATA hard drive, power it on, and use the web interface (default IP 192.168.1.100) or mobile app to complete initial configuration.

What hard drive types are supported?

The IC7-LRS supports 3.5-inch SATA hard drives (HDD) and also 2.5-inch drives with an optional bracket. Maximum capacity depends on the drive, typically up to 14 TB.

Can I access my files remotely?

Yes, after enabling remote access in the web interface, you can access your files via the Tenda cloud service or FTP over the internet. Ensure your router supports port forwarding.

How do I back up my computer to the NAS?

The NAS supports Windows backup via SMB/CIFS. You can configure backup jobs in the NAS web interface or use third-party software like Acronis. Also, macOS Time Machine is supported.

What if the NAS is not recognized on the network?

Check the Ethernet cable connection, ensure the NAS is powered on, and verify that your router's DHCP is working. Try using the Tenda Discovery Tool (available on the support website) to find the device.

Can I use the NAS as a media server?

Yes, the IC7-LRS supports DLNA and iTunes server, allowing you to stream music, photos, and videos to smart TVs, game consoles, or other media players on the same network.

How do I reset the NAS to factory defaults?

Locate the reset button (usually a pinhole) on the back of the device. Press and hold it for 10 seconds while the NAS is powered on until the LEDs blink. This will erase all settings but not the hard drive data.

Is the NAS compatible with Windows, Mac, and Linux?

Yes, the NAS uses standard network protocols (SMB, AFP, NFS) and works with all major operating systems. No additional software is required for basic file access.

How do I update the firmware?

Download the latest firmware from the Tenda support website. In the web interface, go to System > Firmware Update, upload the file, and wait for the device to reboot. Do not power off during update.

What should I do if the hard drive fails?

Replace the failed drive with a new compatible SATA drive. Since this NAS has a single bay, you will need to restore data from a backup. The device does not support RAID or automatic redundancy.

USER MANUAL IC7-LRS Tenda

Orange and white circular logo with a stylized camera icon (no text or symbols)

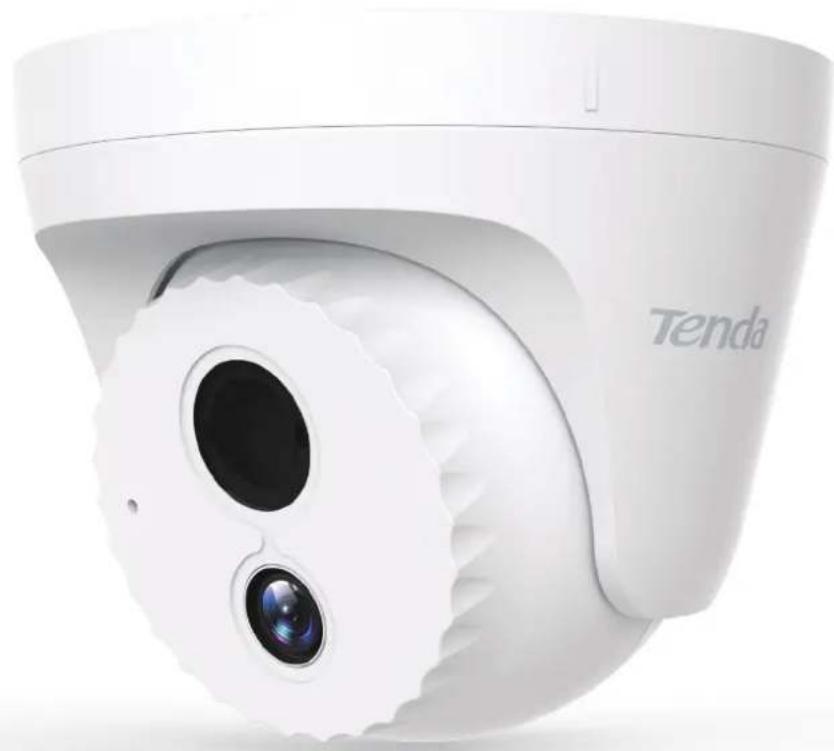

IC7-LRS

4MP Conch Security Camera

White Tenda security camera with dual lens and circular head (no visible text or symbols)

IC7-LRS

4MP Conch Security Camera

Product Description

The Conch Security Camera IC7-LRS is a high-performance 4MP (2560*1440) engineering camera that integrates such functions as infrared night vision, motion detection and remote audio pickup. It is commonly used in factories, courtyards, shops, buildings, and some large-and small-scale engineering monitoring scenarios where contractors can use their mobile phones for remote real-time monitoring.

Selling Points

Interior view of a modern industrial factory with robotic arms and conveyor systems (no visible text or symbols)

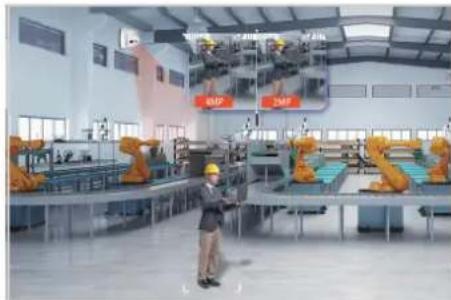

Clear monitoring details from 4MP UHD images

Equipped with a high-performance image sensor, the camera can display 4MP UHD images (2560x1440) with more monitoring details.

Two warehouse interior photos showing tall shelving units and green flooring, with no visible text or symbols.

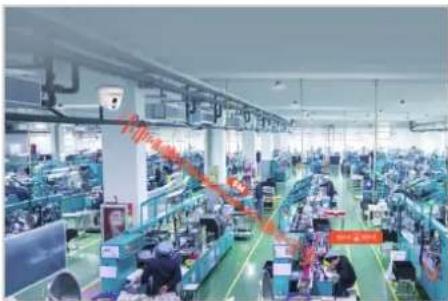

Starlight night vision with good low-light performance at the price of infrared night vision

With starlight night vision offered by the wide-aperture lens and highly sensitive sensor, the camera is more light-sensitive than common cameras and can display finer images than common infrared cameras.

Interior view of a large electronics assembly factory floor with workers at stations and overhead conveyor lines (no visible text or symbols)

Remote audio pickup over 5 m supported by the inbuilt highly sensitive microphone

With an inbuilt highly sensitive microphone which supports remote audio pickup over 5 m, the camera can sync audio and video.

Display of surveillance cameras and a computer monitor in an indoor setting (no visible text or symbols)

Multi-terminal real-time monitoring for light of heart

The camera supports remote monitoring on the PC and app, with easy and convenient operations and management.

Selling Points

H.265 coding technology for smooth video and efficient data storage

Compared with H.264, the new-generation H.265 saves 50% in video data size, which further smoothes the videos with band width saved and saves the data storage space.

Intelligent WDR and 3D DNR for clear images

The camera uses WDR technology which compensates for backlighting on backlit images and 3D noise reduction technology which reduces image noise to display clear monitoring video.

Easy network connection in merely three steps

Interior view of a modern hallway with white walls and ceiling-mounted sensors (no visible text or symbols)

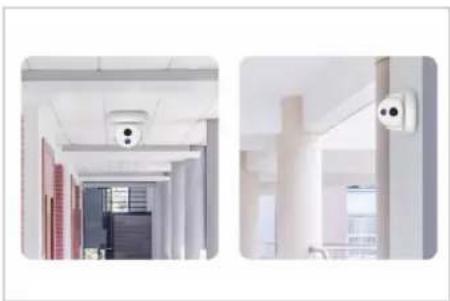

Wall-mounted or surface-mounted installation

The camera can be either wall-mounted or surface-mounted, quite flexible and convenient.

Hardware Specifications
Ports	Power: DC 12V 1A Ethernet: 1*RJ45 100M Ethernet port on tail line
Lens	4mm@F2.2
	106.8mm*90.5mmProduct Size
Video Specifications
Resolution	2560*1440
Coding standard	H.265/H.264
Day and Night Shift Mode Built-in IR-CUT double filter
Noise Reduction	3D digital noise reduction
DWDR Support
Backlight Compensation	Support
ROI	Support
Others
Smart Alarm S-motion detection&Human Shape detection&Customized area detection
Audio	Built-in microphone(Five meters pickup)
Network protocol	RTSP、HTTP、DHCP、DDNS
Internet Network protocol IPV4
Add device method	Wired
Infrared Night Vision Distance	30 Meters
Temperature	Operating temperature: -10°C~50°C Storage temperature: -40°C~70°C
Humidity	Operating humidity: 10%-95%RH (non-condensing) Storage humidity: 3% ~ 95%RH (non-condensing)
Certification	CE、RoHs、FCC
Package Contents	Security Camera, Quick installation guide
