SWIT BN-S8823 - Rechargeable Battery JVC - Free user manual and instructions

Product Type	Battery Pack
Brand	JVC
Model	SWIT BN-S8823
Battery Chemistry	Lithium-Ion (Li-ion)
Voltage	7.2 V
Capacity	52 Wh (approx. 7200 mAh)
Dimensions (W x H x D)	2.0 x 1.5 x 3.0 in (51 x 38 x 76 mm)
Weight	0.5 lbs (227 g)
Charging Time	Approx. 3.5 hours with standard charger
LED Indicator	Yes (charge level and status)
Compatibility	Select JVC camcorders and professional video equipment
Protection Features	Overcharge, over-discharge, short circuit, and temperature protection
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	14°F to 86°F (-10°C to 30°C)
Maintenance	Wipe with a dry cloth; avoid moisture and extreme temperatures
Certifications	UN38.3, CE, RoHS
Warranty	1 year limited

Frequently Asked Questions - SWIT BN-S8823 JVC

What is the capacity of the JVC SWIT BN-S8823 battery?

The battery has a capacity of 52 Wh (approximately 7200 mAh) at 7.2 V.

How long does it take to fully charge the BN-S8823?

Using the standard JVC charger, it takes about 3.5 hours for a full charge.

Is the BN-S8823 compatible with all JVC camcorders?

It is compatible with many JVC professional camcorders that accept 7.2 V battery packs with the same connector. Check your device manual for specific compatibility.

How do I check the battery level?

The battery has an LED indicator that shows the approximate charge level. Press the button on the battery to activate it.

Can I use the BN-S8823 while it is charging?

It is not recommended to use the battery while charging to avoid overheating and to ensure optimal charging performance.

What safety protections does this battery have?

It includes protection against overcharge, over-discharge, short circuit, and over-temperature conditions.

How should I store the BN-S8823 when not in use?

Store it in a cool, dry place at around 50% charge, between 14°F to 86°F (-10°C to 30°C). Avoid direct sunlight and moisture.

What is the expected lifespan of this battery?

Typically, Li-ion batteries last 300-500 charge cycles before noticeable capacity loss.

Can I replace the BN-S8823 with a third-party battery?

While third-party batteries may work, we recommend using an original JVC battery to ensure compatibility and safety.

What should I do if the battery does not charge?

First, check the charger and connections. If the issue persists, the battery may have entered protection mode. Try a reset by disconnecting and reconnecting after a few minutes. If still not charging, contact JVC support.

USER MANUAL SWIT BN-S8823 JVC

1. High performance Li-ion battery pack, rechargeable.
2. Battery digital information readable by cameras.
3. 4-step LED power indicator.
4. 5.5mm Pole DC output and charging socket.
5. Build-in multiple protective circuit design.

Caution

1. Never attempt to open the battery pack.
2. Use SWIT charger or the chargers recommended by SWIT.
3. Keep the battery pack terminals clean.
4. Never short-circuit the battery pack terminals.
5. Never expose the battery pack to rain, fire or moisture.
6. Never expose the battery pack to temperature above 60^ C.
7. Avoid strong mechanical shock.
8. The battery pack may become warm in use or while being charged. This is normal.

Charging

1. The battery pack is not fully charged when it is purchased. Charge the battery before use.
2. Use SWIT charger or the chargers recommended by SWIT.
3. The battery pack should be charged within a temperature range of 0-40°C

Discharging

1. Fully charged battery pack will discharge naturally and please use it as soon as it gets charged.
2. At low temperature, the running time of battery pack usually decreases.
3. The internal impedance of battery pack will be greater at low temperature, which may cause the automatically circuit cutting.

LED indicator

The four-step LEDs indicate the remaining capacity when press the "CHECK" button.

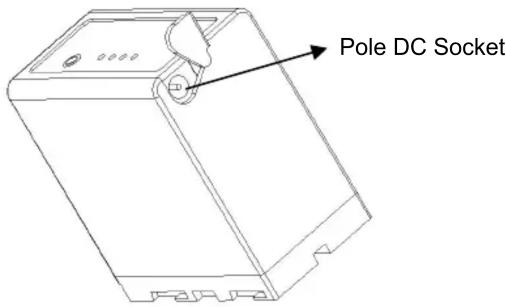

DC socket

The 5.5mm pole socket can be used as 7.2V DC output or charging input. (By SWIT S-3010D)

1. Open the rubber cover and plug in 5.5mm pole lead to DC output or charge.
2. Close the rubber cover when disconnected, to keep the socket away from dust.

Storage

Please keep in cool, dry and clean place.

Specifications

Model	Nominal voltage	Capacity Max output Original battery Dimension Mass
S-8972 7.	2V 47Wh 66	00mAh		30W 4A	SONY NP-F970 71×39×70mm	300g
S-8D62 7.	2V 47Wh 66	00mAh		30W 4A	Panasonic CGA-D54S	66×37×82mm	300g
S-8BG6 7.	2V 36Wh 51	00mAh		30W 4A	Panasonic VW-VBG6 66×36×82mm	244g
S-8823 7.	2V 18Wh 25	00mAh		15W 2A	JVC BN-VF823	53×32×72mm	130g
S-8845 7.	2V 47Wh 66	00mAh		30W 4A	Canon BP-970G	71×39×70mm	300g
