USER MANUAL 48-22-8221 MILWAUKEE

SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS

ROLLING BAGS

REVISED BULLETIN

DATE

July 2017

CATALOG NO. 48-22-8220 24" HARDTOP™ Rolling Bag

48-22-8221 18" Rolling Bag

00 0

EXAMPLE:

Component Parts (Small #) Are Included When Ordering The Assembly (Large #).

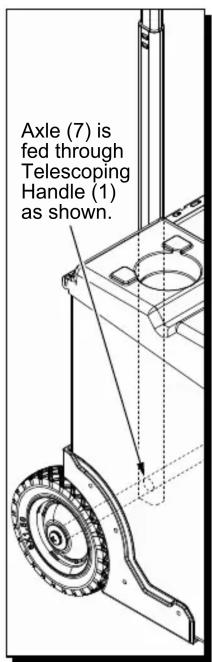

Clamp a locking pliers at this point on axle (7) to aid with the installation and removal of axle screws (4). NOTE: Axle is also used to secure the Telescoping Handle (1).

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

1 14-34-8220 Telescoping Handle Svc. Kit (For both models) (1)
2 45-94-8220 Wheel with 24" Axle Service Kit (For 48-22-8220) (1)
2 45-94-8221 Wheel with 18" Axle Service Kit (For 48-22-8221) (1)
3 31-70-8220 Bag Support Service Kit (For both models) (1)
4 ---- Axle Screw (2)

5 ____
6
7 ____
8

Wheel
Washer
Axle
Washer

(2)
(2)
(1)
(2)

9 ---- Front Bag Support (1)

10 ---- Hex Socket Cap Screw (2)
