Product Type	GPS Navigation Device
Brand	Uniden
Model	iGO430
Display Size	4.3 inches
Display Resolution	480 x 272 pixels
Dimensions	4.8 x 3.0 x 0.7 inches
Weight	5.6 oz
Power Source	Built-in rechargeable lithium-ion battery
Battery Life	Up to 2 hours
Maps	Preloaded with detailed maps of North America
Voice Guidance	Turn-by-turn voice directions
Points of Interest	Built-in database with millions of POIs
Route Planning	Fast, easy route planning with multiple waypoints
Language Support	Multiple languages including English, Spanish, French
Mounting	Windshield suction cup mount included
Connectivity	USB 2.0 for map updates
Memory	Internal flash memory
Maintenance	Clean with a soft, dry cloth; avoid harsh chemicals
Safety Warning	Do not mount where it obstructs driver's view
Spare Parts	Not user-serviceable; contact Uniden support
Manual Availability	Free PDF download at notice-facile.com

Frequently Asked Questions - iGO430 UNIDEN

How do I update the maps on my Uniden iGO430?

Connect the GPS to your computer via USB and download the Uniden Map Updater software from the official website. Follow the on-screen instructions to install the latest maps.

Why won't my iGO430 turn on?

First, ensure the battery is charged by connecting to a power source for at least 30 minutes. If it still doesn't turn on, try a reset by pressing the reset button with a paperclip.

Can I use the GPS without mounting it?

Yes, but for safe driving, it is recommended to use the included suction cup mount on the windshield or dashboard. Never place it where it obstructs your view.

How do I set a home address?

Go to Menu > Settings > Home Address. Enter your address or select it from the map. You can then navigate home with one tap.

What should I do if the touchscreen is unresponsive?

Clean the screen with a soft cloth to remove any dirt. If still unresponsive, perform a soft reset by turning the device off and on. If the problem persists, contact support.

How can I avoid toll roads on my route?

When planning a route, select Route Options and check the box for 'Avoid Tolls'. The GPS will then prioritize toll-free routes.

Does the iGO430 support voice commands?

No, the iGO430 does not have voice command capabilities. It provides voice guidance for turn-by-turn directions but does not accept voice input.

What type of power adapter does it use?

It uses a mini USB connection. A car charger and AC adapter are typically included. You can also charge via a computer's USB port.

Can I add custom points of interest?

Yes, you can save custom locations as Favorites. Go to the desired location on the map and select 'Add to Favorites'. You can also import POI files via USB.

How do I restore factory settings?

Go to Menu > Settings > System > Factory Reset. Confirm the reset. Note that this will erase all user data and custom settings.

USER MANUAL iGO430 UNIDEN

For more exciting new products please visit our website:

Australia: www.uniden.com.au

New Zealand: www.uniden.co.nz

OWNER'S MANUAL

Thank you for purchasing this Uniden product. Read the Quick Start Guide first and start using your device right away. This document is the detailed description of the navigation software. You can easily discover your device while you are using it; however, we still recommend that you read this manual to fully understand the screens and the features of your software.

3 Year Map Updates Subscription\* via Redemption

Go to the GPS Navigation web page on www.uniden.com.au for Australia or www.uniden.co.nz for New Zealand and download the redemption form to claim your updates subscription.

*Map updates are for Australia and New Zealand and are provided through www.naviextras.com

Table of Contents

What Do I Do First? 6

Make Sure These Items Arrived in the Box 6

Plug it in 7

Hardware Keys 8

How Do I Put It in My Car? 9

Safety considerations 9

Attaching the Windshield Mount 10

Adjusting the Windshield Mount 11

Mount to the Windshield 11

Removing the Windshield Mount 11

1 Warnings and Safety information 12

2 Getting started 13

2.1 Startup screen: the Map and Navigation menu 15
2.2 Buttons and other controls on the screen 16

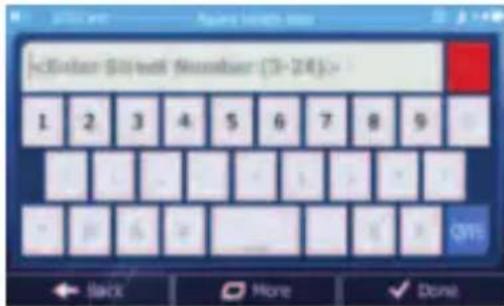

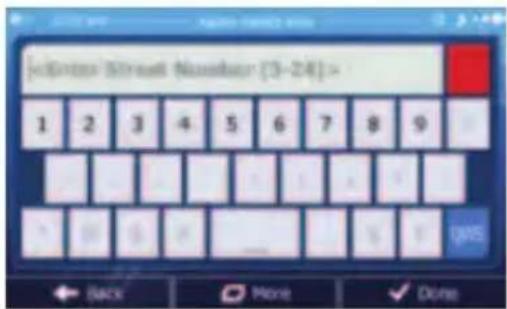

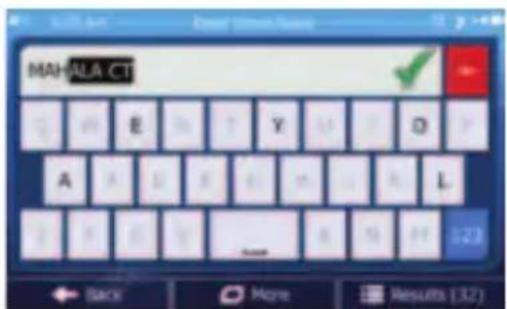

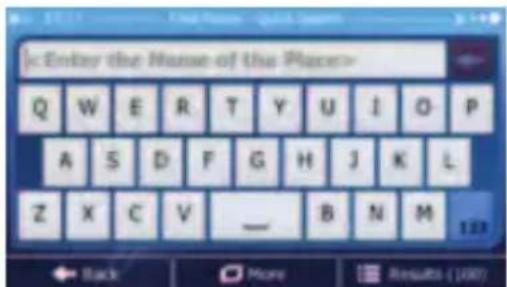

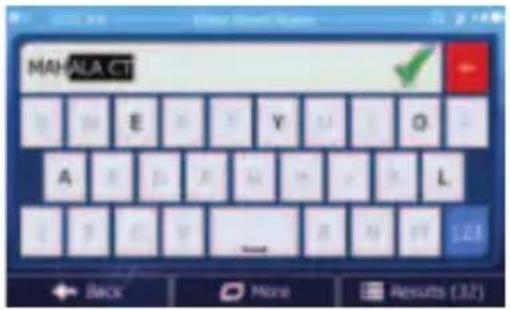

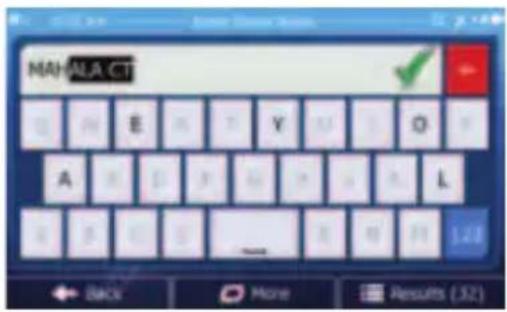

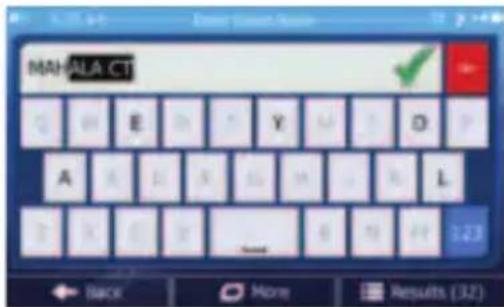

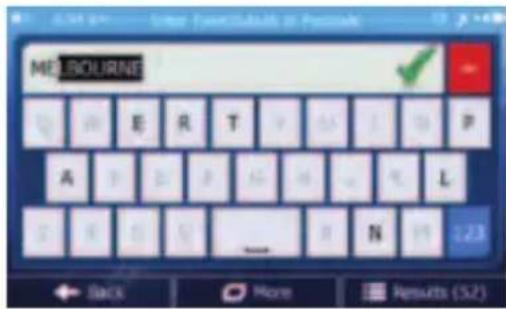

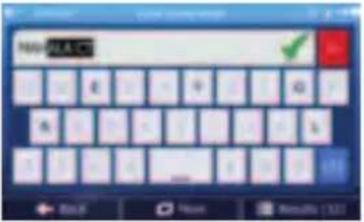

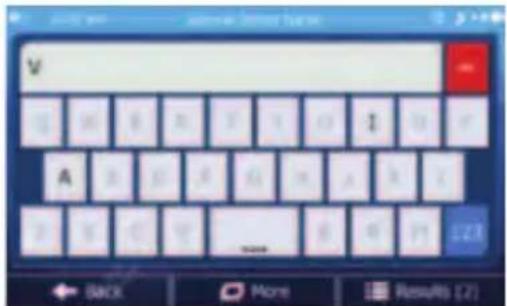

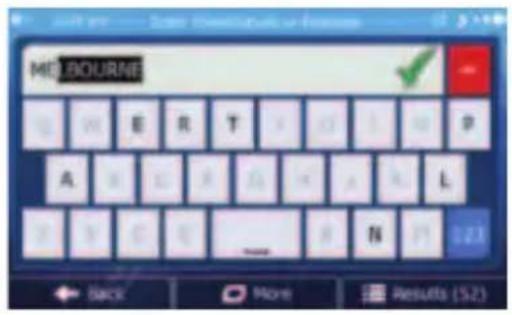

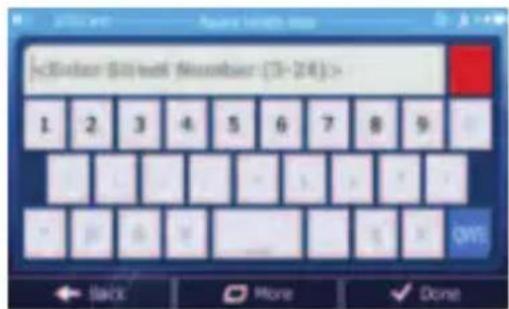

2.2.1 Using keyboards 18
2.2.2 Beyond single screen tap 19

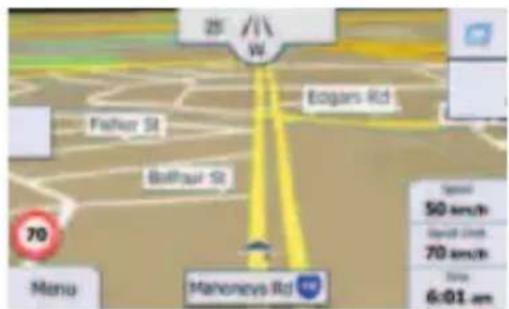

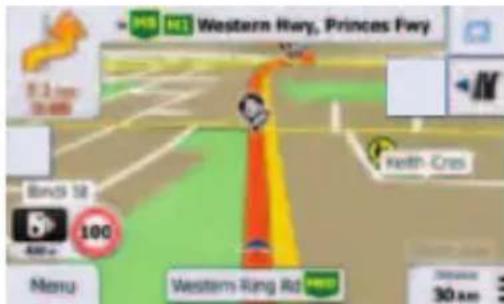

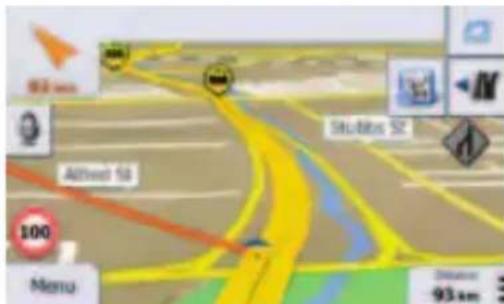

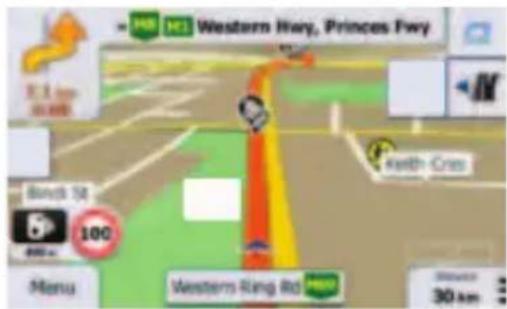

2.3 Map screen 20

2.3.1 Navigating on the map 20
2.3.2 Position markers 22

2.3.2.1 Vehimarker and Lock-on-Road 22
2.3.2.2 Selected Map location (Cursor) and selected map object 23

2.3.3 Objects on the map 23

2.3.3.1 Streets and roads 23

2.3.3.2 Turn preview and Next street 24

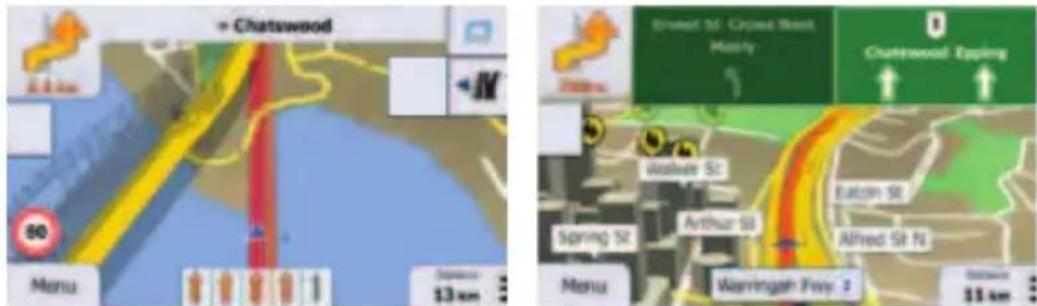

2.3.3.3 Lane information and Signposts 25

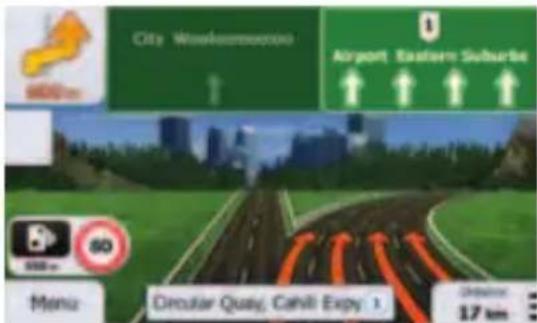

2.3.3.4 Junction View 26

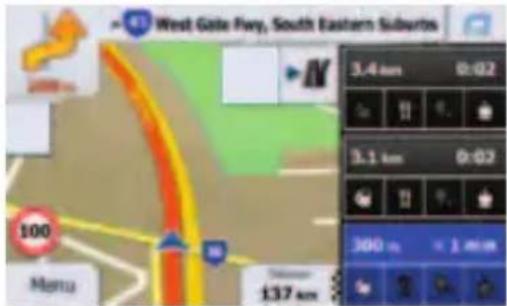

2.3.3.5 Motorway exit services 26
2.3.3.6 3D object types 27
2.3.3.7 Elements of the active route 28

2.3.4 Manipulating the map 28

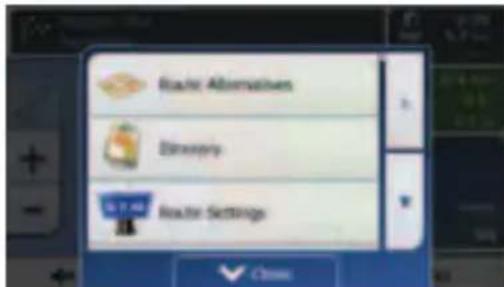

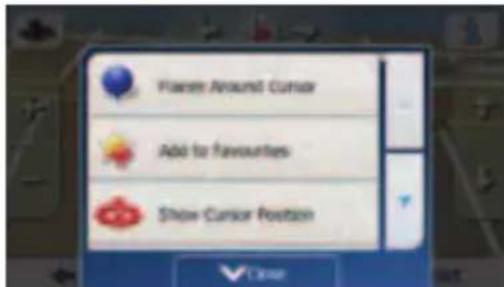

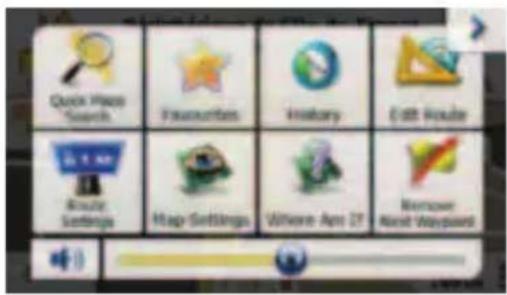

2.3.5 Quick menu 30

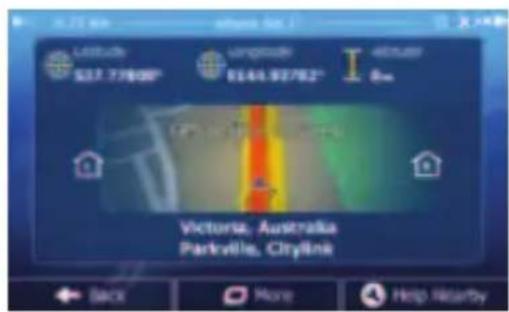

2.3.6 Checking the details of the current position (Where Am I?) 34

3 Navigating

36

3.1 Selecting the destination of a route 36

3.1.1 Entering an address or part of an address 37

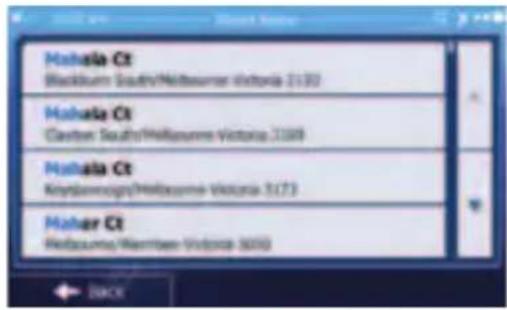

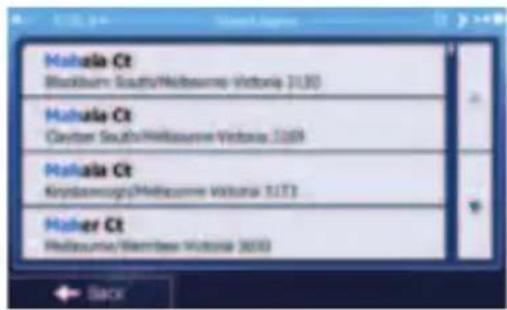

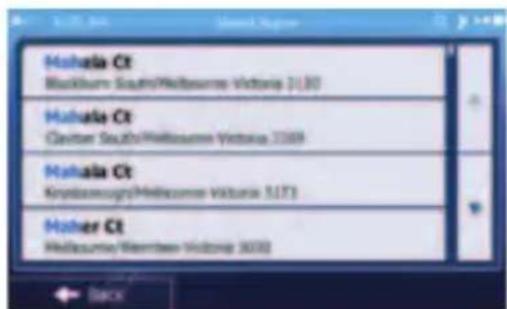

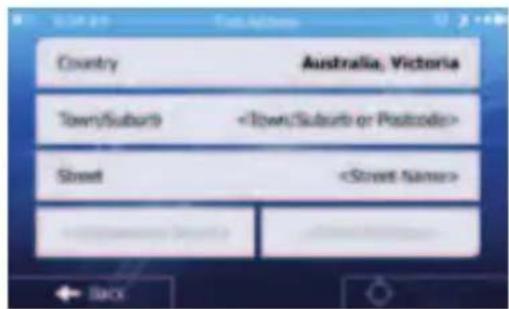

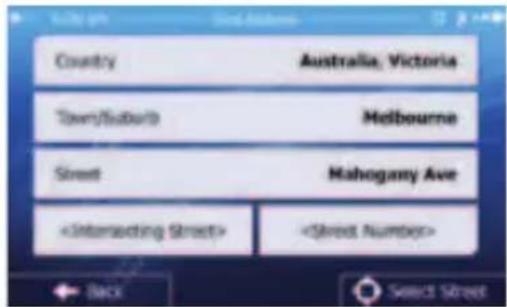

3.1.1.1 Entering an address 37

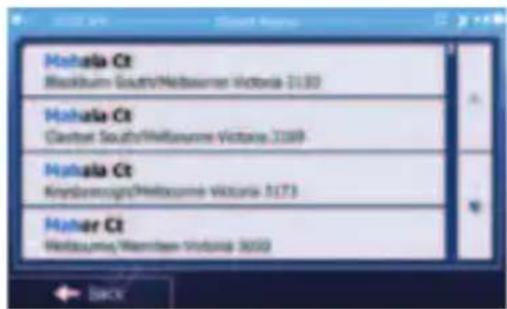

3.1.1.2 Entering an address starting with the street name 40

3.1.1.3 Entering the midpoint of a street as the destination 42

3.1.1.4 Selecting an intersection as the destination 44

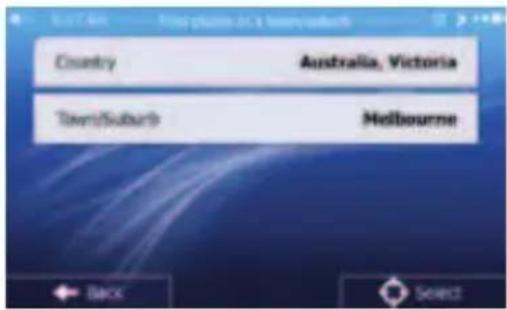

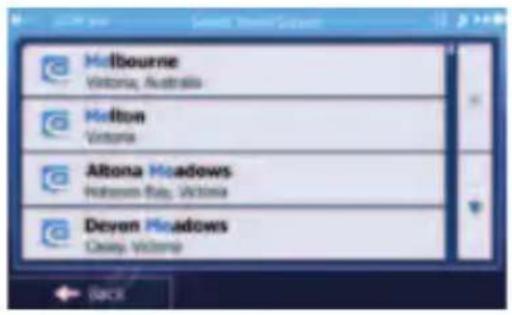

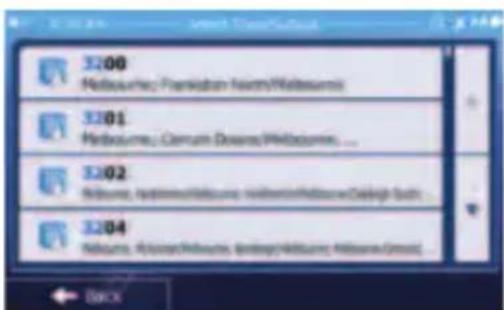

3.1.1.5 Selecting a town/suburb centre as the destination 46

3.1.1.6 Entering an address with a postal code 48

3.1.1.7 Tips on entering addresses quickly 50

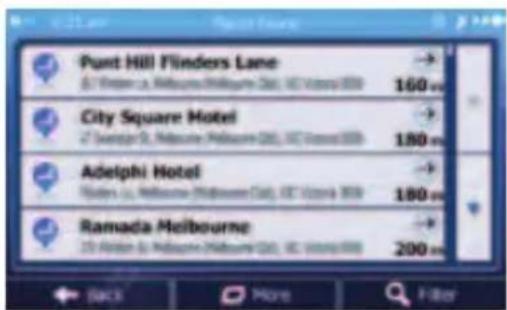

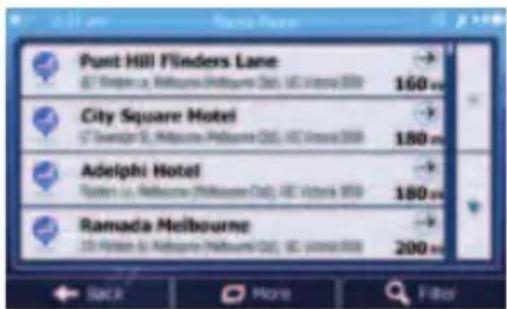

3.1.2 Selecting the destination from the Places of Interest 51

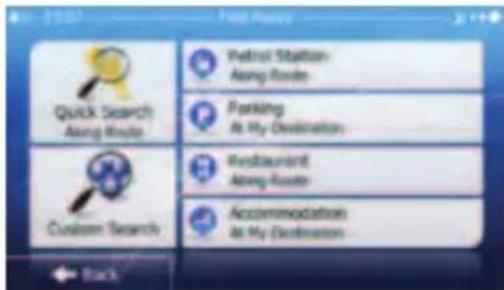

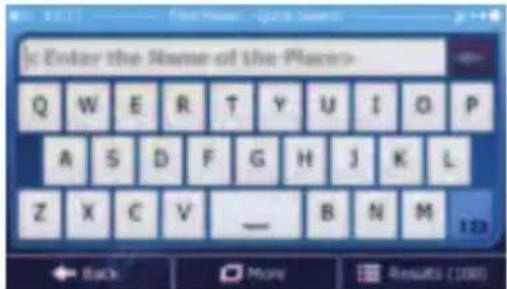

3.1.2.1 Quick search for a Place of Interest 52

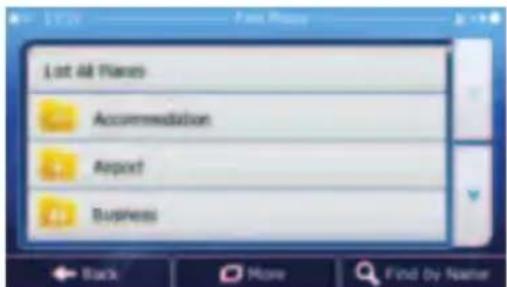

3.1.2.2 Searching for a Place of Interest using preset categories 53

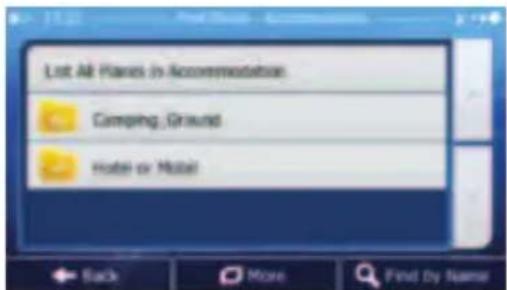

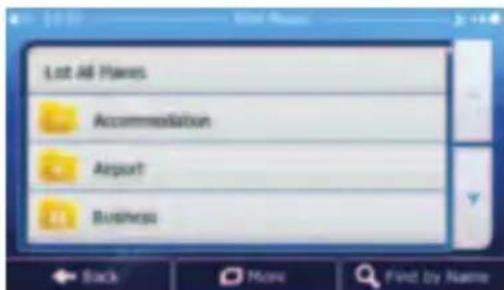

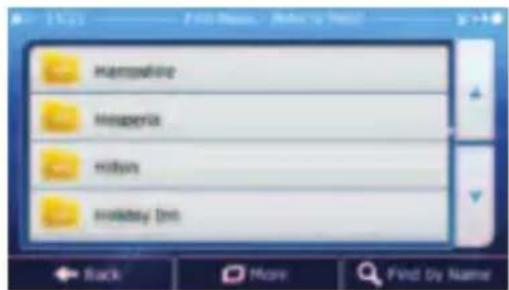

3.1.2.3 Searching for a Place of Interest by category 56

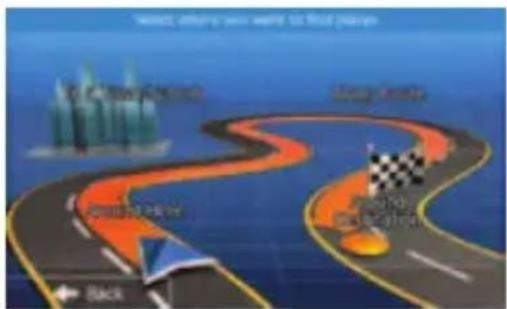

3.1.2.4 Searching for a Place of Interest by name 60

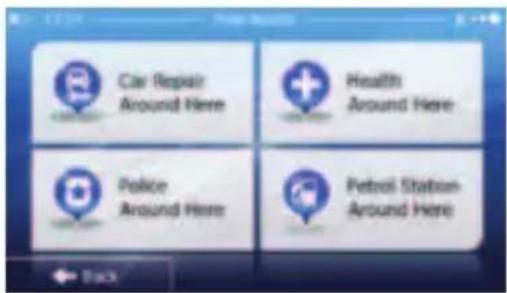

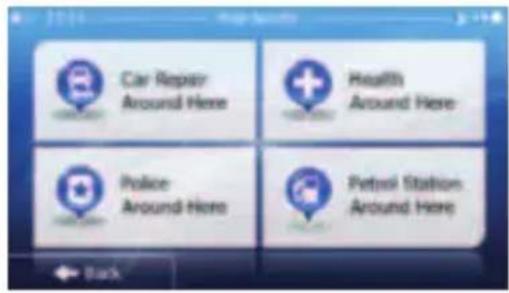

3.1.2.5 Selecting nearby assistance from 'Where Am I?' 63

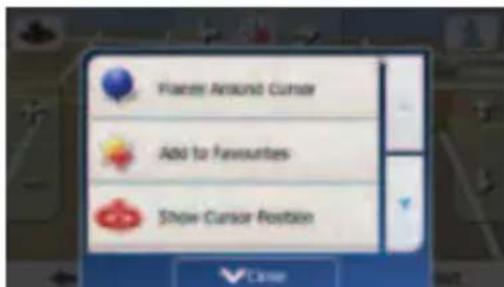

3.1.3 Selecting a map location as the destination 65

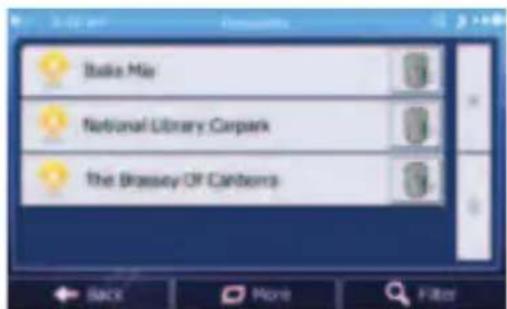

3.1.4 Selecting the destination from your Favourites 66

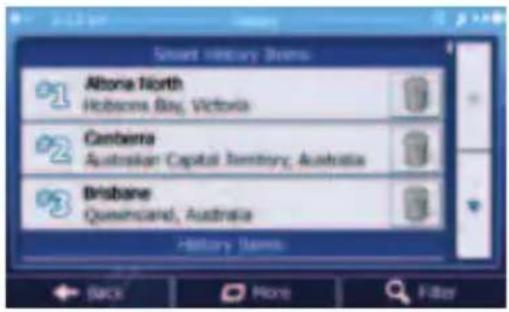

3.1.5 Selecting the most likely destination (Smart History) 68

3.1.6 Selecting the destination from the History 69

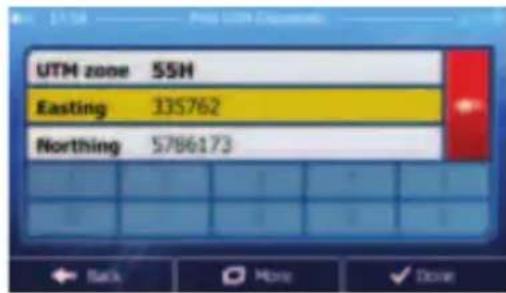

3.1.7 Entering the coordinate of the destination 70

3.1.8 Navigate to a location stored in a photo 71

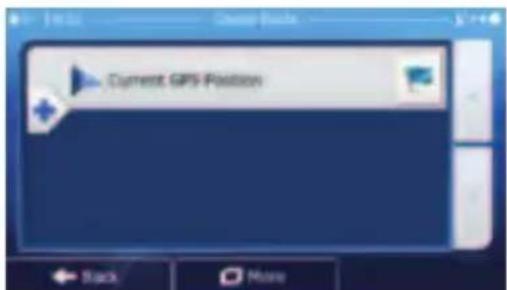

3.1.9 Building the route from the list of destinations (Create Route) 72

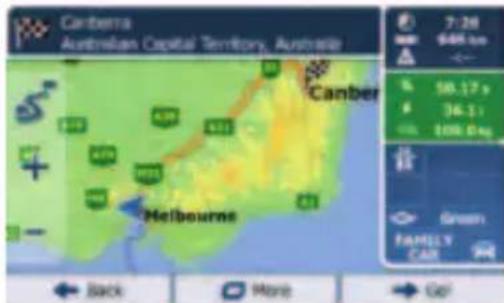

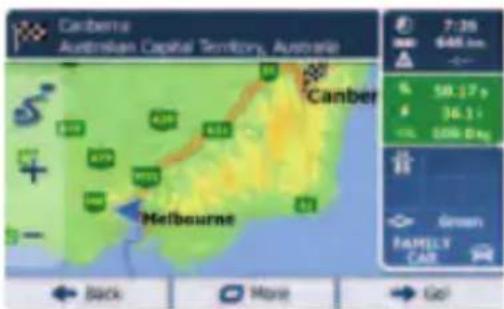

3.2 Viewing the entire route on the map 74

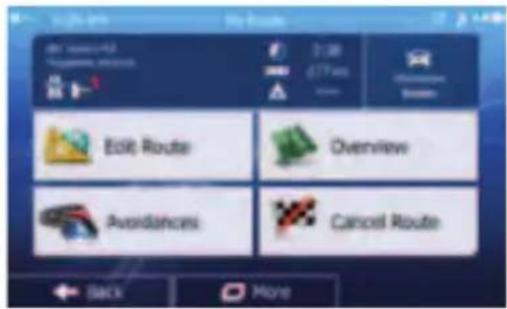

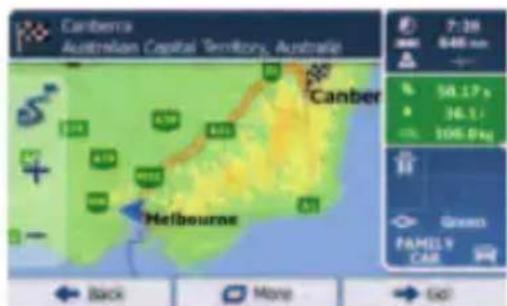

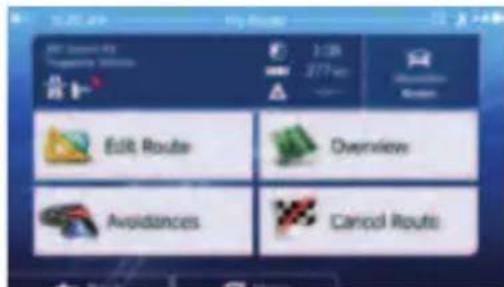

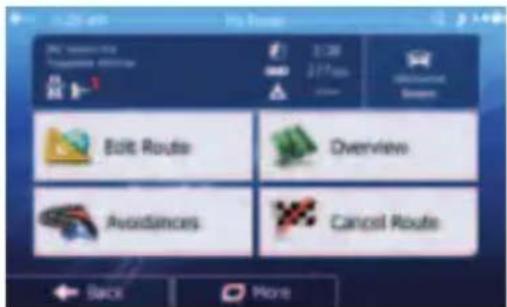

3.3 Checking route parameters and accessing route related functions 74

3.4 Modifying the route 75

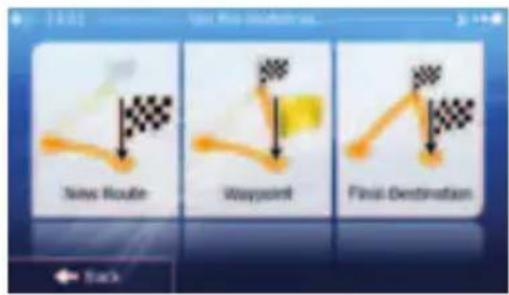

3.4.1 Selecting a new destination when already having a route: New Route, Waypoint of Final Destination 75

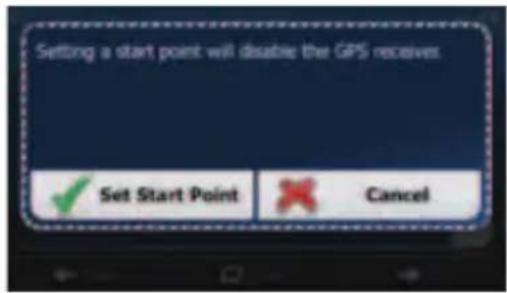

3.4.2 Setting a new starting position for the route 76

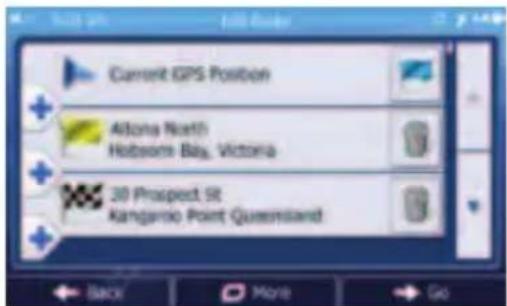

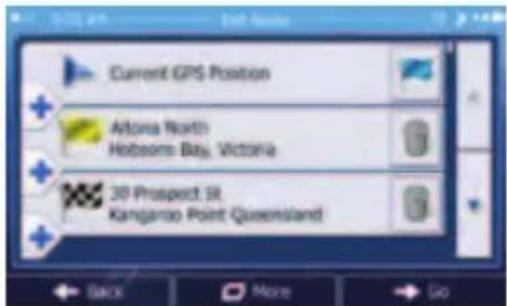

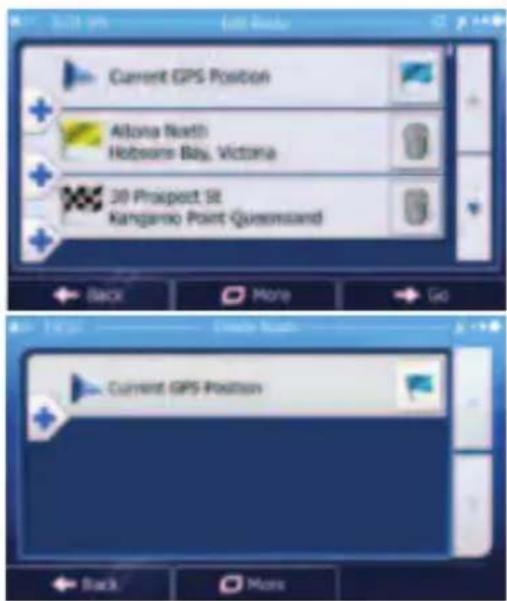

3.4.3 Editing the list of destinations (Edit Route) 78

3.4.4 Pausing the active route 79

3.4.5 Cancelling the active route 79

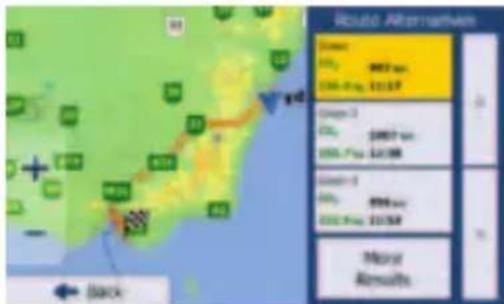

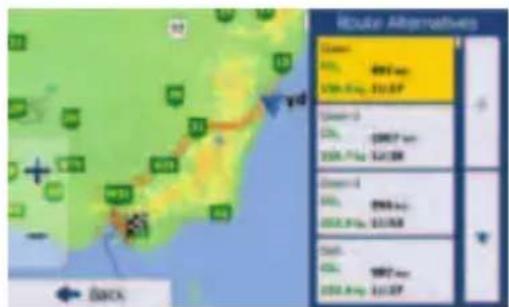

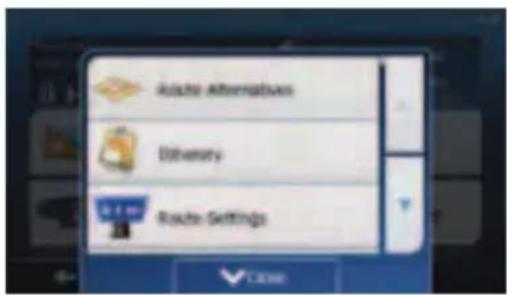

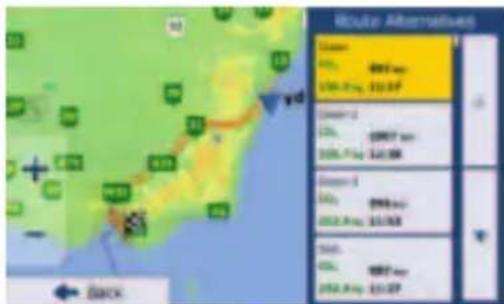

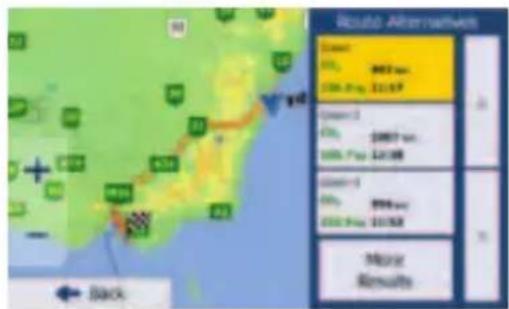

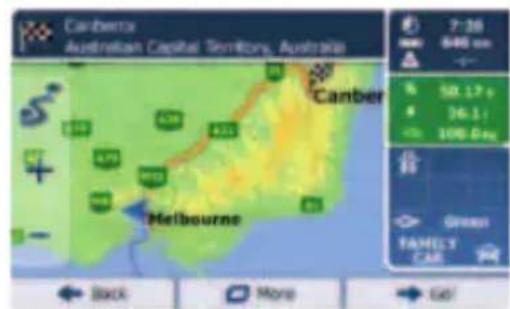

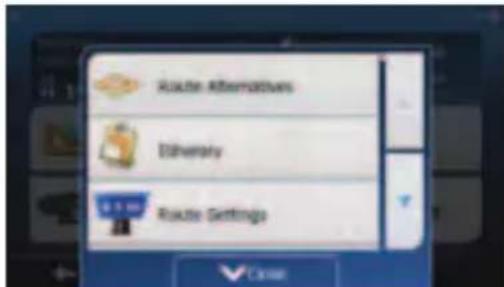

3.4.6 Checking route alternatives when planning the route 79

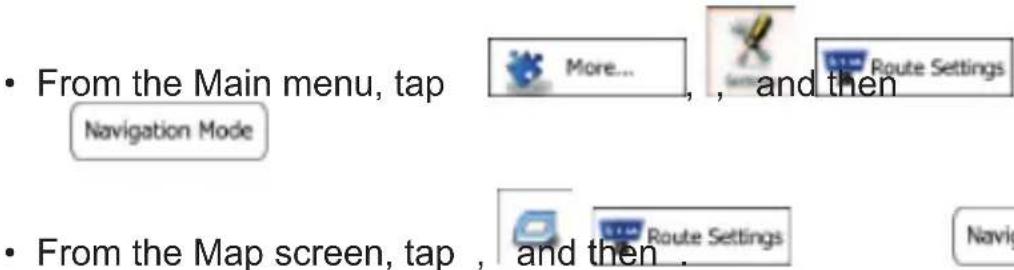

3.4.7 Changing the route planning method (route alternatives) 81

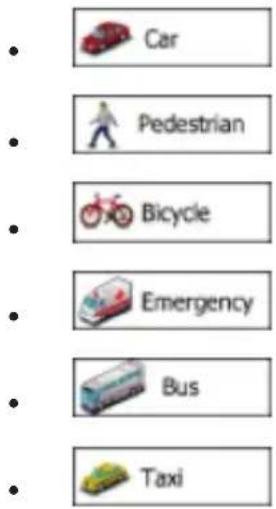

3.4.8 Changing the vehicle used in route planning 82

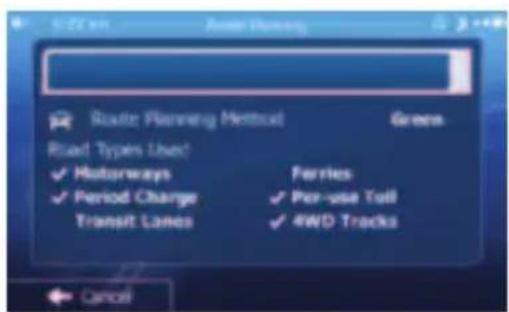

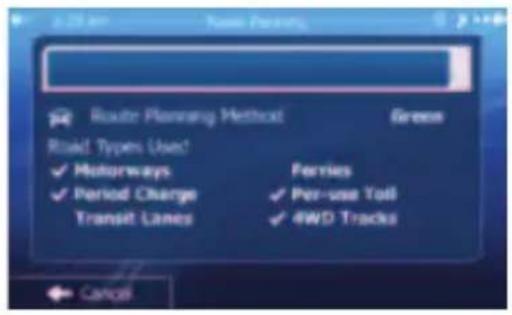

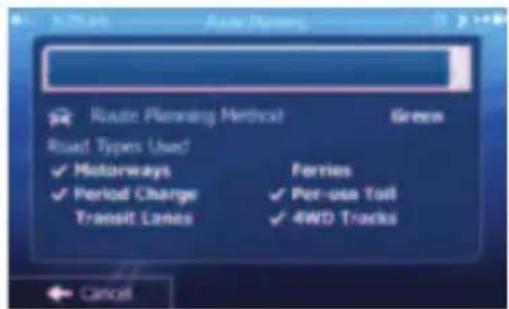

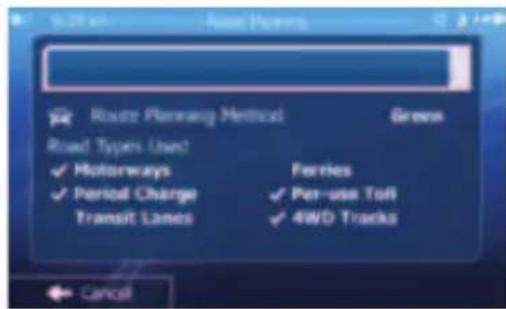

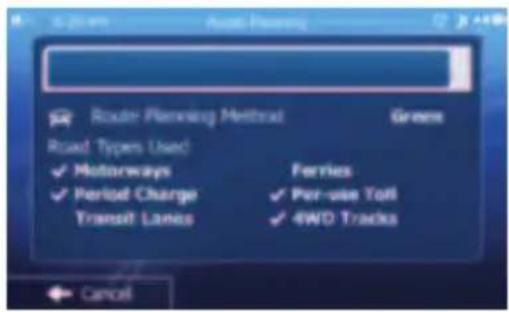

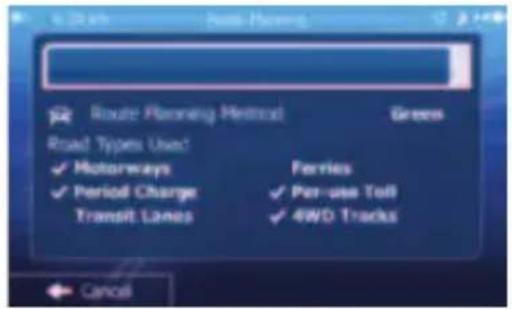

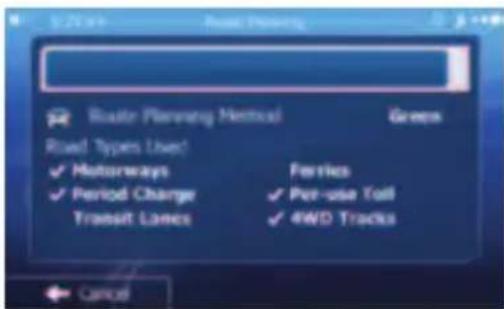

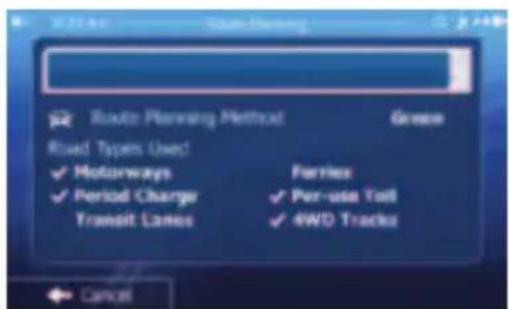

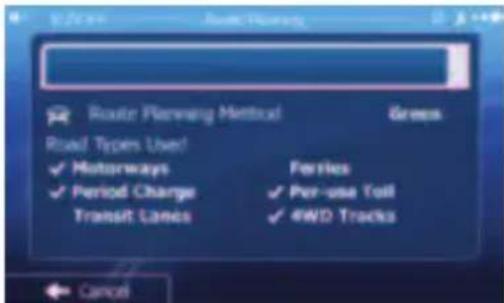

3.4.9 Changing the road types used in route planning 83

3.5 Saving a location as a Favourite destination 84

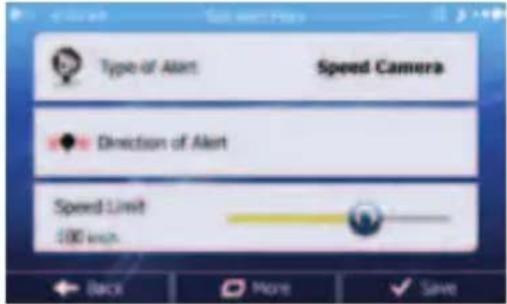

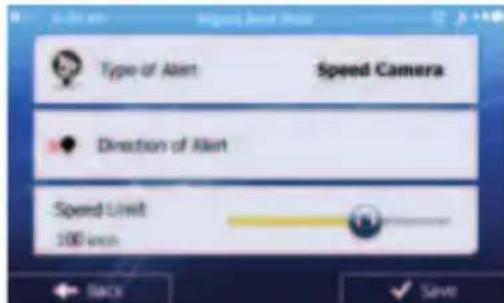

3.6 Saving a location as an alert point 85

3.7 Editing an alert point 86

3.8 Watching the simulation of the route 87

4 Off-road navigation 89

4.1 Selecting the destination of the route 89

4.2 Navigating in off-road mode 89

5 Reference Guide 91

5.1 Concepts 91

5.1.1 Smart Zoom 91

5.1.2 Daytime and night colour themes 91

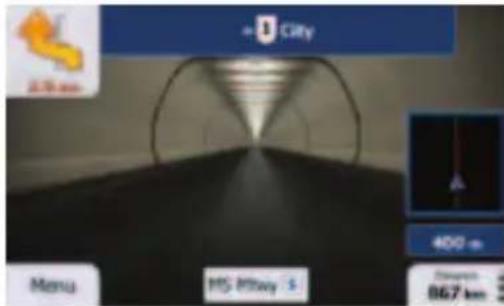

5.1.3 Tunnel View 91

5.1.4 Route calculation and recalculation 92

5.1.5 Green routing 95

5.1.6 Road Safety Cameras and Other Proximity Alerts Points 96

5.1.7 Speed limit warning 97

5.1.8 Battery and GPS position quality indicators 98

5.1.9 Traffic information in route planning 99

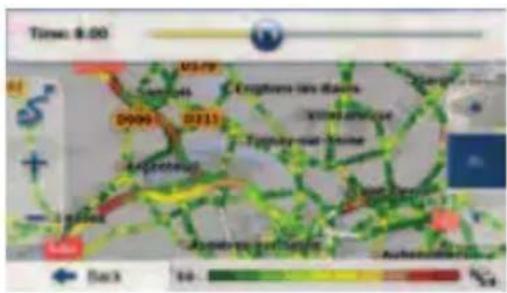

5.1.9.1 Historical traffic 99

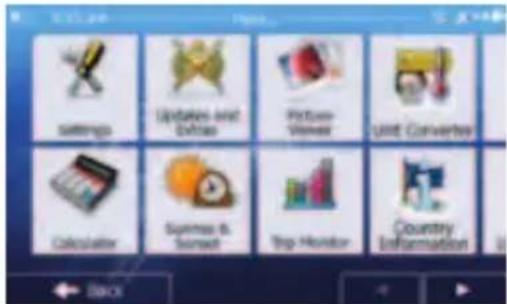

5.2 'More' menu 100

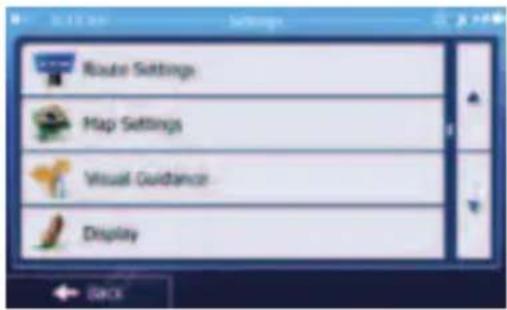

5.3 Settings menu 102

5.3.1 Sound and Warnings 103

5.3.2 Customise Quick menu 107

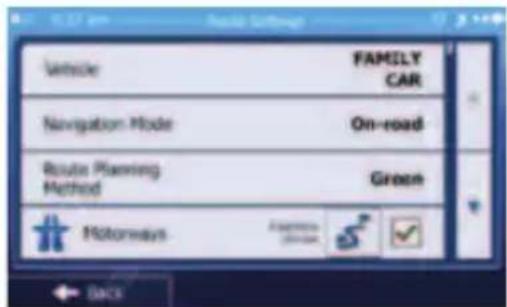

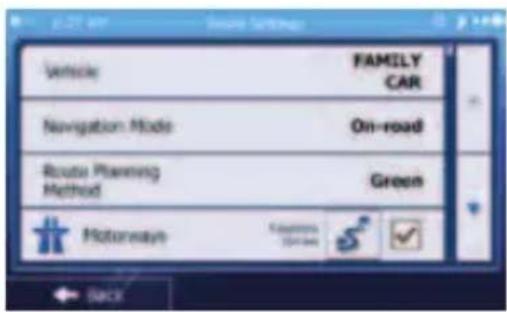

5.3.3 Route Settings 107

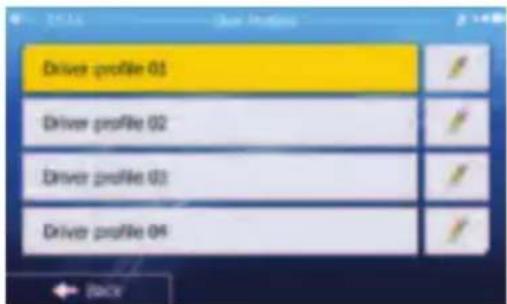

5.3.4 User profiles 113

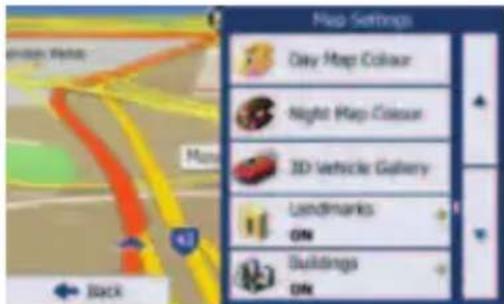

5.3.5 Map Settings 114

5.3.6 Visual guidance settings 116

5.3.7 Display settings 118

5.3.8 Regional settings 118

5.3.9 Trip monitor settings 119

5.3.10 Log Collection settings 119

6 Glossary 121

7 End User Licence Agreement 123

8 Limited One Year Warranty 129

What Do I Do First?

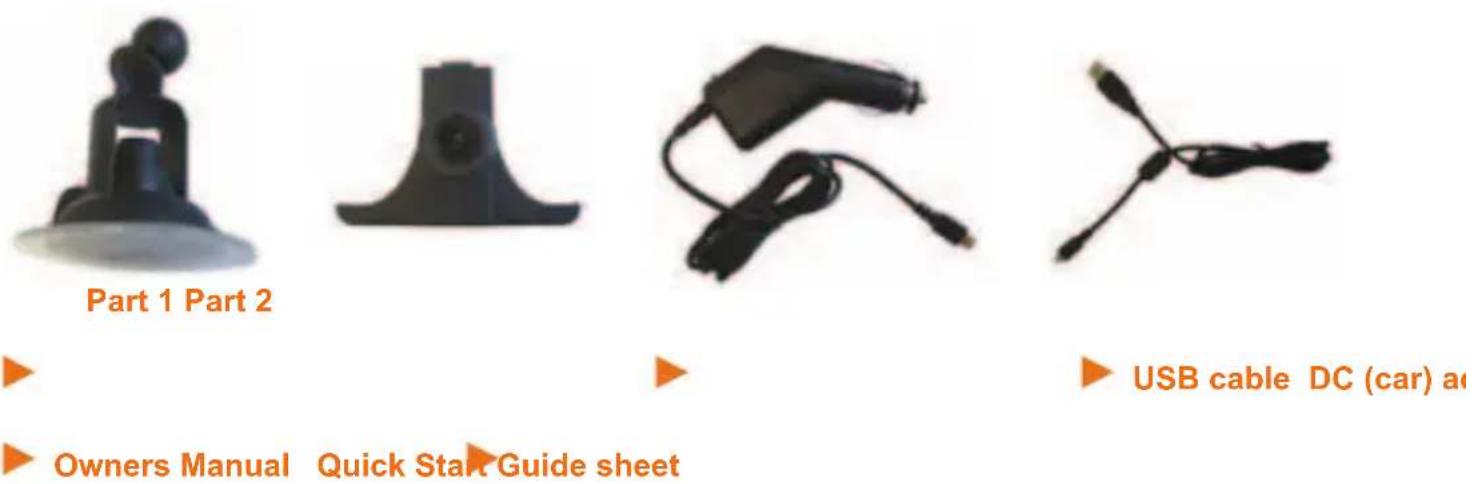

Make Sure These Items Arrived in the Box

If anything listed here is missing or damaged, contact your place of purchase immediately.

▶ IGO500 or IGO430 GPS navigation device

Press and hold the power button at the TOP of the device to start or resume the navigation programme.

Black rectangular tablet device with a blank screen, isolated on white background (no text or symbols visible)

Owners Manual Quick Start Guide sheet

Plug it in

Connect the power adapter to the power connector on the lower left side of the device.
Plug the other end into your car's cigarette lighter (or any standard 12VDC - 24VDC outlet).
Only use the power adapter that comes with your device. Any other adapter might damage the device.
▶ Press and hold the power button at the top of the device to turn it on/off.
Whenever it senses power coming in the LCD screen turns on and the device resumes from it's last status. You can turn the LCD screen on/off anytime you want: just momentarily push the power button.

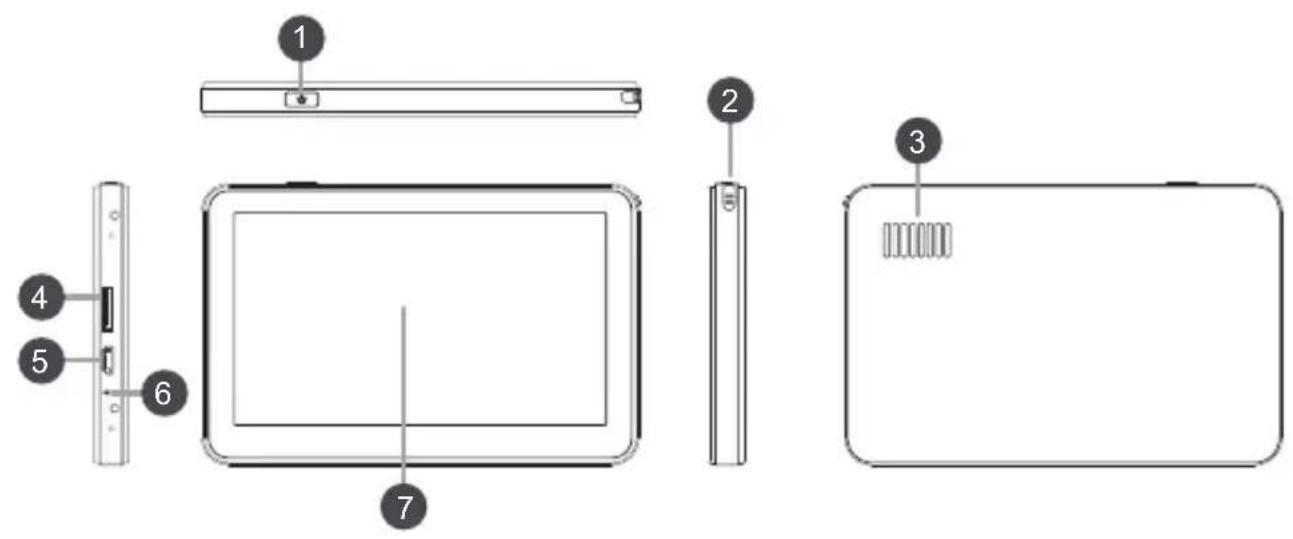

IGO500 / IGO430 model

Ref	Component Description
1	Power Key Power on/off/sleep
2	Touch-pen* Touch-pen
3	Speaker Speaker
4	micro SD card slot micro SD card slot
5	micro USB power/charge port	Charge the GPS device by connecting the DC Adaptor (car charger) or USB cable.
6	Reset If the device fails to operate properly, try resetting the device. Press the reset button by using the touch pen or a similar tool.
7	LCD Display Screen	LCD Display Screen

*IGO500 touch-pen location is shown. IGO430 touch-pen is fitted on the windshield mount.

How Do I Put It in My Car?

Safety Considerations

Don't install any device where it will block your view (including your mirrors!) while you're driving.
Keep your attention on the road! Don't try to operate or focus on any device while you're driving. If you have to concentrate on a device, pull off the road for a few minutes.
It's a good idea to take valuable items with you when you leave you car—that includes GPS devices. If you can't take the device with you, lock it in the glove compartment or hide it somewhere. And don't forget to take down the windshield mount: you don't want to remind any potential thieves that you might have some valuable mobile electronics in the car.

Don't leave the device in direct sunlight for a long period of time or where the temperature could go above 60^ C ( 140^ F).

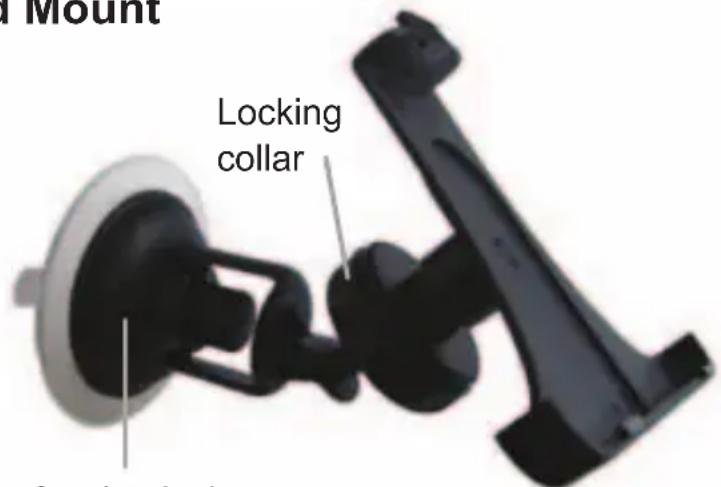

Attaching the Windshield Mount

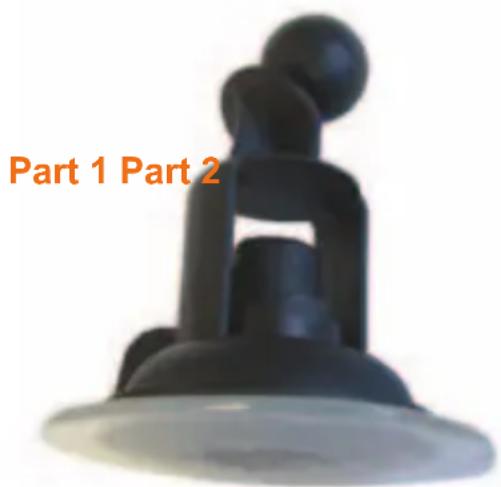

1) Loosen the locking collar on part 2.
2) Push the ball joint of Part 1 through the locking collar into part 2.

Close-up of a black mechanical component with a circular recess and tapered body (no text or symbols visible)

Locking collar

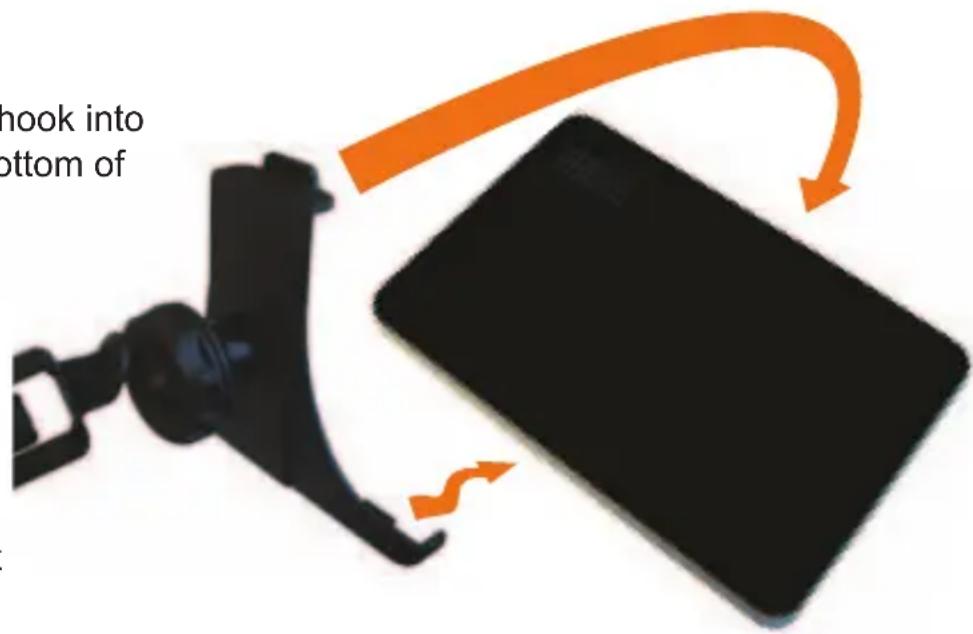

Insert the bracket hook into the notches at the bottom of the device.

Rotate the bracket up so the head fits into the gap.

Adjusting the Windshield Mount

▶ Turn the windshield mount arm to a suitable angle for mounting.

Suction lock

Mount on the Windshield

Make sure the device does not block your view of the road or your mirrors.

Once you decide where you want the device, hold the suction cup in that position, then adjust the mount so you have the best view of the device.

1) Press the suction cup flat against the windshield.
2) Push the suction lock up (clockwise) until it snaps into place.
3) Adjust the unit & bracket to a final position. Tighten the locking collar to secure.
4) Gently pull on the mount to make sure it is secure.

If you have trouble getting the suction cup to stick:

Clean the spot with an ammonia-free cleanser.
Dry the spot completely (use a lint-free cloth, if possible).
Make sure the spot is smooth and flat (suction cups won't stick well on a curved or textured surface).

Removing the Windshield Mount

When you release the suction latch, make sure you're holding or somehow supporting the device.

Lift the suction lock and use the plastic pull tab to pull the suction cup off of the glass.

1 Warnings and Safety information

The navigation system helps you find your way to your destination with the built-in GPS receiver. The software does not transmit your GPS position; others cannot track you.

If you accept this when first using the application, it collects usage information and GPS logs that may be used for improving the application and the quality and coverage of maps. The data is processed anonymously; no one will be able to track any personal information. If you change your mind later, you can enable or disable the log collection in Log Collection settings (page 119).

It is important that you look at the display only when it is safe to do so. If you are the driver of the vehicle, we recommend that you operate your software before you start your journey. Plan the route before your departure and stop if you need to change the route.

You must obey the traffic signs and follow the road geometry. If you deviate from the recommended route, your software changes the instructions accordingly.

Never place your device where it obstructs the driver's view, where it is in the deployment zone of an airbag or where it might cause injuries in an accident.

For more information, consult the End User Licence Agreement (page 123).

2 Getting started

The software is optimised for in-car or pedestrian use. There is no need to use a stylus. You can use it easily by tapping the screen buttons and the map with your fingertips.

When using the navigation software for the first time, an initial setup process starts automatically. Do as follows:

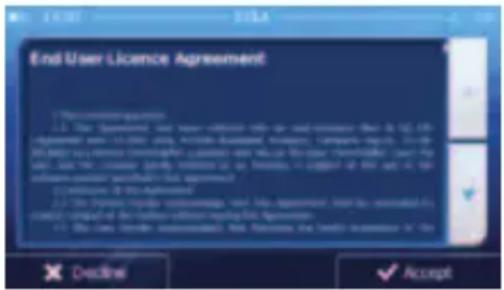

1. Read the End User Licence Agreement. Tap

to continue.

1. You are now asked whether you allow the software to collect usage information and GPS logs that may be used for improving the application

and the quality and coverage of maps. Tap

to allow the

anonymous statistics or

to disable this function. Later you can

turn them on or off individually in Log Collection settings (page 119)

1. Please take a moment to initially set up your new device to your preferences. Later on you can run this configuration wizard, or change these (and some

more) settings under the More / settings menu. Tap

to continue.

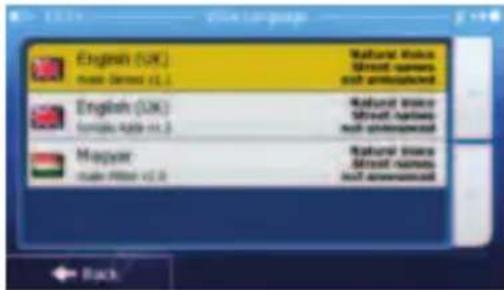

1. Select the language and speaker used for voice guidance messages. Later you can change it in Regional settings (page 118).

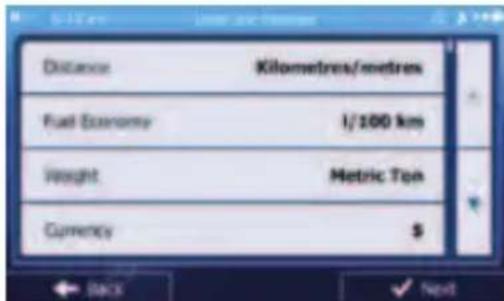

1. If needed, modify the time format and unit settings. Later you can change them in Regional settings (page 118).

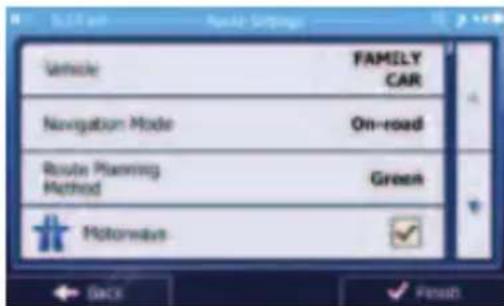

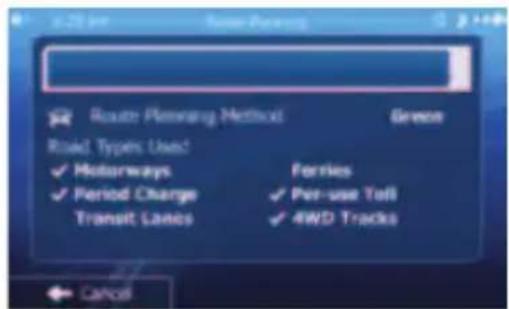

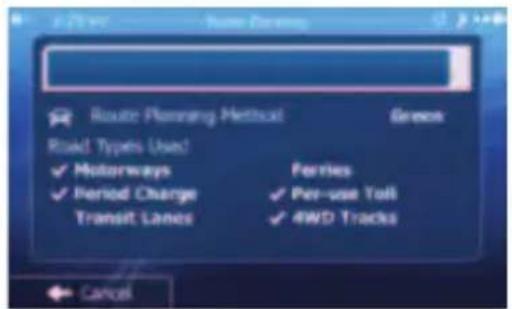

1. If needed, modify the default route planning options. Later you can change them in Route settings (page 106).

1. The initial setup is now complete. Tap ☑ Finish The Configuration wizard can be restarted later from the Settings menu (page 102).

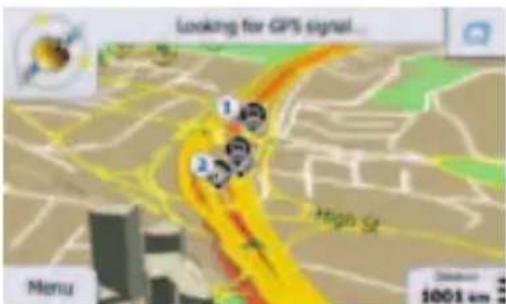

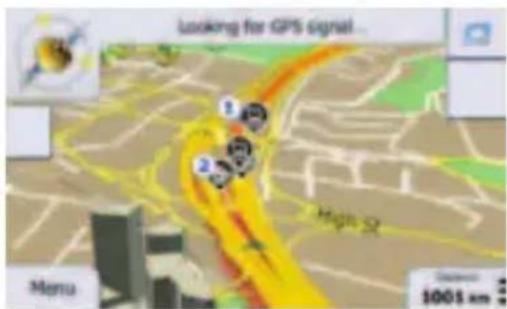

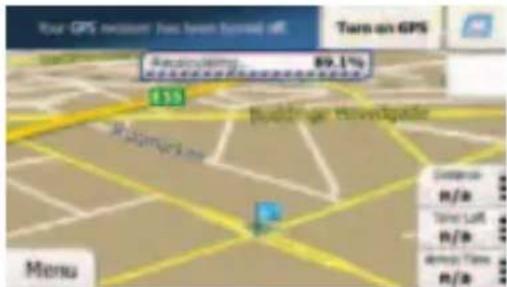

After the initial setup, the Map screen appears and the device looks for GPS signal. A view of the sky is required to lock onto GPS. For the initial start this may take a few minutes. you can start using the software. This is the screen you see every time navigation starts.

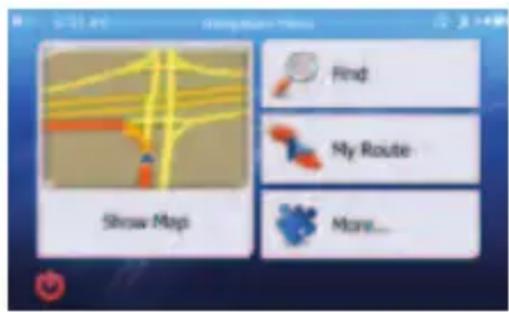

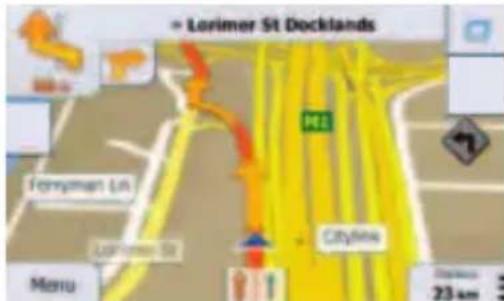

2.1 Startup screen: the Map and Navigation menu

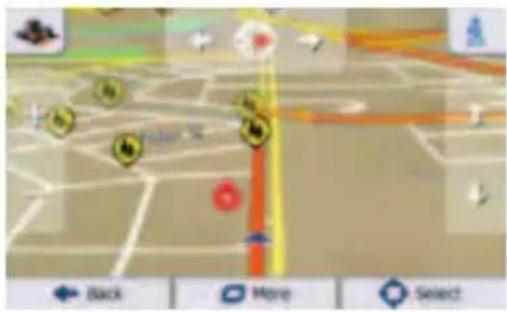

The software starts with the map screen. For first time users touch to open the Navigation menu.

Menu

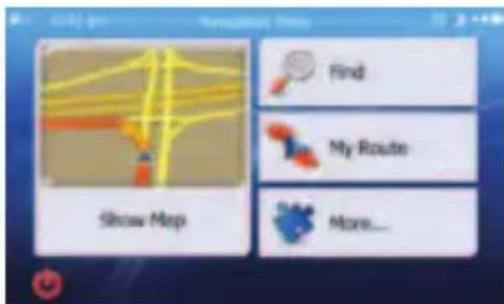

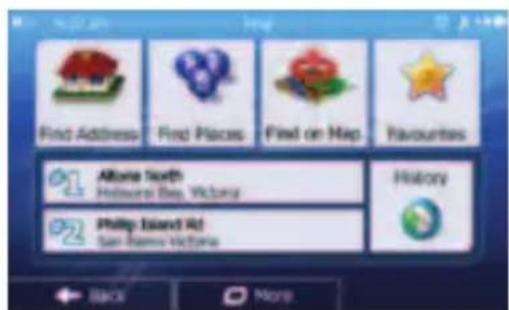

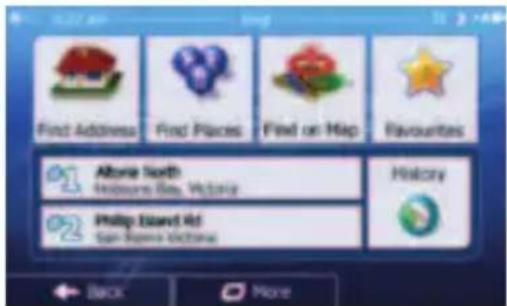

From the Navigation menu you can reach all parts of the software.

You have the following options:

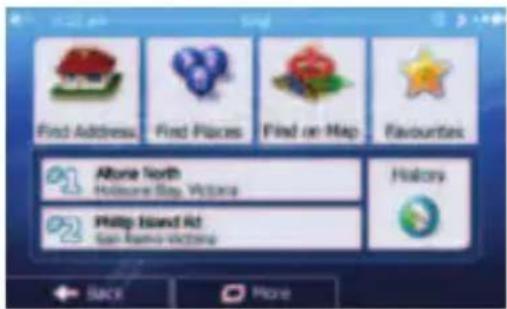

- Tap to select your destination by entering an address or selecting a place of interest, a location on the map or one of your Favourite destinations. You can also look up your recent destinations from the Smart History, enter a coordinate or use the location saved in a photo.

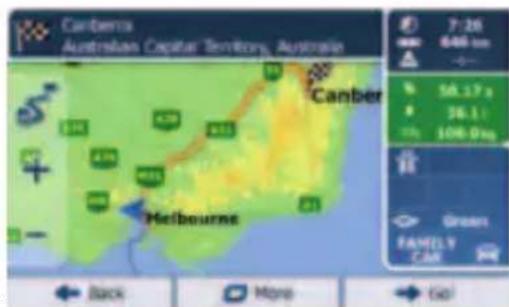

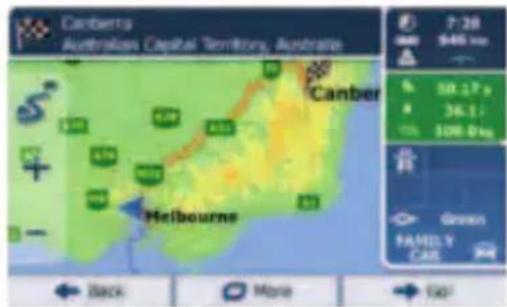

- Tap to display the route parameters and the route in its full length on the map. You can also perform route-related actions such as cancelling your route, picking route alternatives, simulating navigation or adding the destination to your Favourites.

- Tap to customise the way the navigation software works, watch the Tutorial, simulate demo routes, or to run some additional applications.

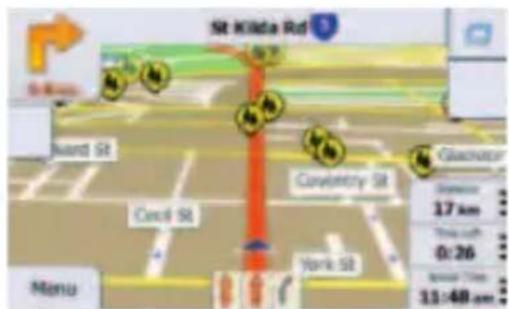

• Tap to start navigating on the map. The button itself is a miniature live map that shows your current position, the recommended route and the surrounding map area. Tap the button to enlarge the map to the full screen.
• Tap
  to stop navigation and exit the software.

Show Map

2.2 Buttons and other controls on the screen

When you are using the software, you usually tap buttons on the touch screen.

You only need to confirm selections or changes if the application needs to restart, it needs to perform a major reconfiguration, or you are about to lose some of your data or settings. Otherwise, the software saves your selections and applies the new settings without confirmation as soon as you use the controls.

Type Example Description How to use it
Button		Tap it to initiate a function, to open a new screen, or to set a parameter.	Tap it once.
Button with value		Some buttons display the current value of a field or setting. Tap the button to change the value. After the change, the new value is shown on the button.	Tap it once.
Icon		Shows status information.	Some icons also function as a button. Tap them once.

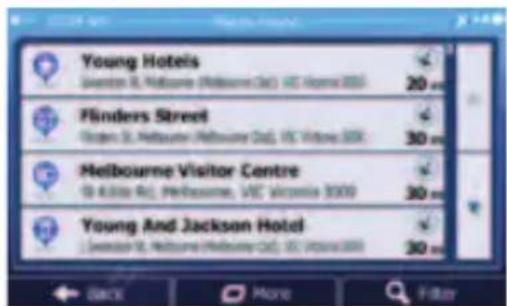

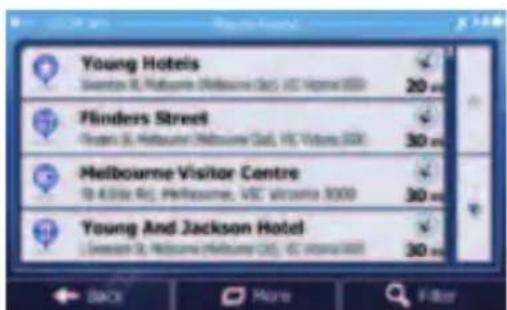

List		When you need to select from several options, they appear in a list.	Grab the list anywhere and slide your finger up or down. Depending on the speed of the sliding, the list will scroll fast or slow, only a bit or till the end. Alternatively, move between pages with the and buttons and tap the value that you want.
Slider		When a feature can be set to different values in a range, the software shows an indicator on a gauge that displays and sets the value.	• Drag the handle to move the slider to its new position.• Tap the slider where you want the handle to appear; the thumb jumps there.
Radio Button		When there are only a few choices, radio buttons may be used instead of lists. Only one value can be selected.	Tap one of the buttons to select a new value.
Switch		When there are only two choices, a checkmark shows whether the feature is enabled.	Tap it to turn the switch on or off.

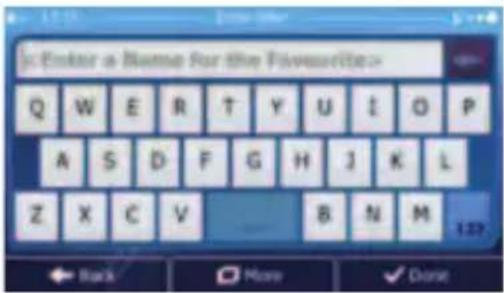

Virtual keyboard		Alphabetic and alphanumeric keyboards to enter text and numbers.	Each key is a touch screen button.

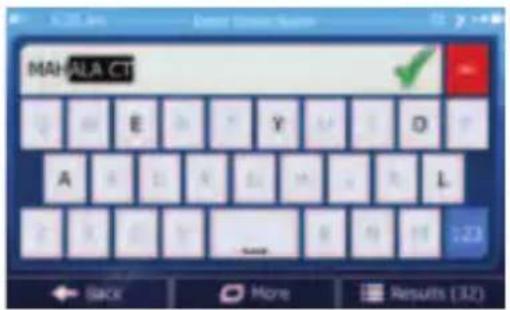

2.2.1 Using keyboards

You only need to enter letters or numbers when you cannot avoid it. You can type with your fingertips on the full-screen keyboards and you can switch between various keyboard layouts, for example English, Greek or numerical.

Task Details
Switching to another keyboard layout, for example from an English keyboard to a Greek keyboard	Tep the button and select the new keyboard layout from the list.
Correcting your entry on the keyboard	Tap to remove the unneeded character(s). Tap and hold the button to delete several characters or the entire input string.
Entering a space, for example between a first name and a family name or in multi-word street names	Tap the button at the bottom centre of the screen.
Entering upper and lower case letters	When entering a text, the first character appears in upper case while the rest of the text is in lower case. Tap to enter an upper case letter or tap twice to turn on Caps Lock. Tap again and lower case letters return.
Entering numbers and symbols	Tap to switch to a keyboard offering numeric and symbol characters.
Finalising the keyboard entry (accepting the suggested search result)	Tap
Finalising the keyboard entry (opening the list of search results)	Tap
Finalising the keyboard entry (saving your input)	Tap
Cancelling the keyboard entry (returning to the previous screen)	Tap

2.2.2 Beyond single screen tap

You usually need to tap the screen only once. However, some useful features can be accessed with combined touch screen tapping. Those are the following:

Action Details
Tapping and holding the screen	Tap and keep pressing the following buttons to reach extra functions:• Tap and hold on list and menu screens: the Map screen appears.• Tap and hold any of the buttons on the Map screen: you can rotate, tilt or scale the map continuously.• Tap and hold on keyboard screens: you can delete several characters quickly.• Tap and hold ▲ or in long lists: you can scroll pages continuously.
Gestures (drag&drop)	You need to drag and drop the screen only in cases like:• Moving the handle on a slider.• Scrolling the list: grab the list anywhere and slide your finger up or down. Depending on the speed of the sliding, the list will scroll fast or slow, only a bit or till the end.• Moving the map in map browsing mode: grab the map, and move it in the desired direction.

2.3 Map screen

2.3.1 Navigating on the map

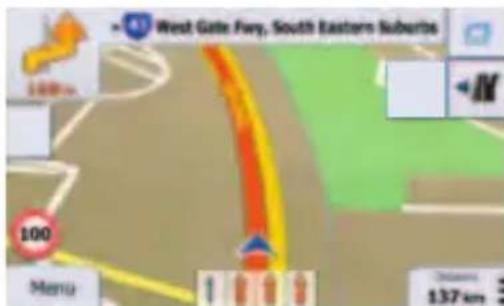

The Map screen is the most frequently used screen of the software.

A small live map is displayed on the Navigation menu, as a part of the button. Show Map

To enlarge this small map and open the Map screen, tap. Show Map

The map is displayed in black and white when there is no GPS position:

This map shows the current position (the Vehimarker, a blue arrow by default), the recommended route (an orange line), and the surrounding map area.

When there is no GPS position, the Vehimarker is transparent. It shows your last known position.

You see coloured dots circling around a satellite symbol in the top left corner. The more green dots you see, the closer you are to get the valid GPS position.

When GPS position is available, the Vehimarker is displayed in full colour, now showing your current position.

There are screen buttons and data fields on the screen to help you navigate. During navigation, the screen shows route information.

By default, only one data field is displayed in the bottom right corner. Tap this field to see all route data fields.

Tap any of the data fields to suppress others and display only the selected one. The data fields are different when you are navigating an active route and when you have no specified destination (the orange line is not displayed).

Default data fields when cruising without a destination (tap and hold any of the fields to change its value):

Field Description
Speed61 km/h	Shows your current speed given by the GPS receiver.
Speed Limit70 km/h	Shows the speed limit of the current road if the map contains it.
Time17:11	Shows the current time corrected with time zone offset. The accurate time comes from the GPS satellites, and the time zone information comes from the map or it can be set manually in Regional settings.(The current time is always displayed in the top left corner of the high level menu screens.)

Default data fields when navigating a route (tap and hold any of the fields to change its value):

Field Description
Distance16.9 km	Shows the distance you need to travel on the route before reaching your final destination.

Time Left0:16	Shows the time needed to reach the final destination of the route based on information available for the remaining segments of the route. Historical traffic data or traffic patterns are also taken into account whenever such information exists.
Arrival Time17:22	Shows the estimated arrival time at the final destination of the route based on information available for the remaining segments of the route. Historical traffic data or traffic patterns are also taken into account whenever such information exists.

2.3.2 Position markers

2.3.2.1 Vehimarker and Lock-on-Road

When your GPS position is available, the software marks your current position with the Vehimarker. By default, this marker is a blue arrow, but you can change this icon in Settings.

The exact location of the Vehimarker depends on the vehicle type used for route calculation. The vehicle type can be selected in Route settings (page 107).

• If you choose pedestrian: The Vehimarker is at your exact GPS position. The direction of the icon shows your current heading.
• In all other cases: The Vehimarker may not show your exact GPS position and heading. If roads are near, it is aligned to the nearest road to suppress GPS position errors, and the direction of the icon is aligned to the direction of the road.

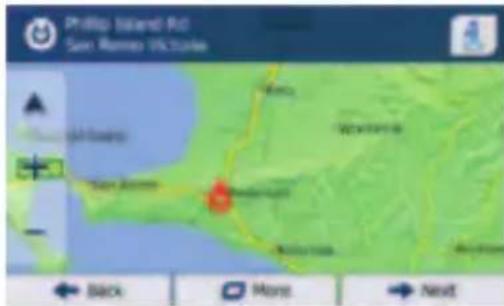

2.3.2.2 Selected map location (Cursor) and selected map object

You can mark a map location in the following ways:

• Tap the map when navigating,
• Tap the map when you are asked to confirm the destination at the end of a search, or
• Tap the map in Find on Map (page 65)

When a map location is selected, the Cursor appears at the selected point on the

map. The Cursor is displayed with a radiating red dot ( ) to make it visible at all zoom levels.

The location of the Cursor can be used as the destination of the route, you can search for Places around it, or you can save this location as one of your Favourite destinations.

You can also select some of the objects on the map. If you tap the map at the icon of a Place of Interest or an alert point, the object will be selected (you see a red circling border around the object), and you can get information about this object or use it as a route point.

2.3.3 Objects on the map

2.3.3.1 Streets and roads

The software shows the streets in a way that is similar to how the paper road maps show them. Their width and colours correspond to their importance: you can easily tell a motorway from a small street.

2.3.3.2 Turn preview and Next street

When navigating a route, the top section of the Map screen shows information about the next route event (manoeuvre) and the next street or the next city/town.

There is a field in the top left corner that displays the next manoeuvre. Both the type of the event (turn, roundabout, exiting motorway, etc.) and its distance from the current position is displayed.

A smaller icon shows the type of the second next manoeuvre if it is near the first one. Otherwise, only the next manoeuvre is displayed.

Most of these icons are very intuitive. The following table lists some of the frequently shown route events. The same symbols are used in both fields:

Icon Description
	Turn left.
	Turn right.
	Turn back.
	Bear right.
	Turn sharp left.
	Keep left.
	Continue straight in the intersection.
	Go left on the roundabout, 3rd exit (next manoeuvre).
	Enter roundabout (second next manouvre).
	Enter motorway.
	Exit motorway.
[cZX3]	Board ferry.
	Leave ferry.
	Approaching a waypoint.
	Approaching the destination.

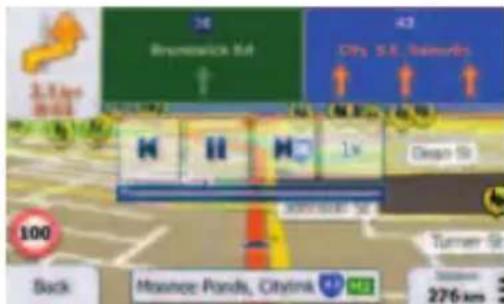

2.3.3.3 Lane information and Signposts

When navigating on multilane roads, it is important to take the appropriate lane in order to follow the recommended route. If lane information is available in the map data, the software displays the lanes and their directions using small arrows at the bottom of the map. Highlighted arrows represent the lanes you need to take.

Where there is additional information available, signposts substitute arrows.

Signposts are displayed at the top of the map. The colour and style of the signposts are similar to the real ones you can see above road or by the roadside. They show the available destinations and the number of the road the lane leads to.

All signposts look similar when cruising (when there is no recommended route).

When navigating a route, only that signpost is displayed in vivid colours that points

to the lane(s) to be taken; all others are darker.

2.3.3.4 Junction view

If you are approaching a motorway exit or a complex intersection and the needed information exists, the map is replaced with a 3D view of the junction. The lanes you need to take are displayed with arrows. Signposts can also be present if information is available.

2.3.3.5 Motorway exit services

You may need a petrol station or a restaurant during your journey. This feature displays a new button on the map when you are driving on motorways.

Tap this button to open a panel with the details of the next few exits or service stations.

2.3.3.6 3D object types

Your software supports the following 3D object types:

Type Description
3D terrain 3D	terrain map data shows changes in terrain, elevations or depressions in the land when you view the map in 2D, and use it to plot the route map in 3D when you navigate. Hills and mountains are shown in the background of the 3D map, and illustrated by colour and shading on the 2D map.
Elevated roads	Complex intersections and vertically isolated roads (such as overpasses or bridges) are displayed in 3D.
3D landmarks	Landmarks are 3D artistic or block representations of prominent or well-known objects.
3D buildings (optional data)	3D block representation of full city building data containing actual building size and position on the map.

2.3.3.7 Elements of the active route

Your software shows the route in the following way:

Symbol	Name Description
	Current GPS position and Start point	Your current position displayed on the map.In pedestrian mode it is the exact GPS position.If a vehicle is selected for route calculation and roads are near, the symbol is snapped onto the nearest road.Normally if GPS position is available, the route starts from the current position. If there is no valid GPS position, your software uses the last known position as the start point.
[DSYK]	Waypoint (intermediate destination)	An intermediate destination of the route before reaching the final destination.
	Destination (end point)	The last point of the route.
	Route colour	The route always stands out with its colour on the map, both in daytime and in night colour mode.
	Streets and roads that are excluded from the navigation	You can choose whether you want to use or avoid certain road types (page 107). However, when your software cannot avoid such roads, the route will include them and it will show them in a colour that is different from the route colour.

2.3.4 Manipulating the map

Tap the map anywhere to browse it during navigation. The map stops following the current position (the Vehimarker, a blue arrow by default, is not locked in a fix position on the screen any more) and control buttons appear to help you modify the map view.

Action Button(s) Description
Moving the map with drag&drop	No buttons You can move the map in any direction: tap and hold the map, and move your finger towards the direction you want to move the map.
Zooming in and out		Changes how much of the map is displayed on the screen.Your software uses high-quality vector maps that let you examine the map at various zoom levels, always with optimised content. It always displays street names and other text with the same font size, never upside-down, and you only see the streets and objects that you need.Map scaling has a limit in 3D map view mode. If you zoom out further, the map switches to 2D view mode.Tap the button once to modify the view in large steps, or tap and hold the button to modify it continuously and smoothly.
Tilting up and down		Changes the vertical view angle of the map in 3D mode.Tap the button once to modify the view in large steps, or tap and hold the button to modify it continuously and smoothly.
Rotating left and right		Changes the horizontal view angle of the map.Tap the button once to modify the view in large steps, or tap and hold the button to modify it continuously and smoothly.
2D or 3D view		Tap this button to switch between the 3D perspective and 2D top-down map view modes.
Compass in 2D map view mode		The direction of the compass shows North. Tap the button to switch to North-up view, then tap again to rotate the map in the previous direction.
Compass in 3D map view mode		The direction of the compass shows North. Tap the button to switch to North-up view, then tap again to rotate the map in the previous direction.
Location information		Tap this button to open a new screen with information about the selected map point, the Cursor.
Return to normal navigation		Tap this button to move the map back to follow the current GPS position. Automatic map rotation is also re-enabled.The map manipulation buttons disappear and navigation continues.

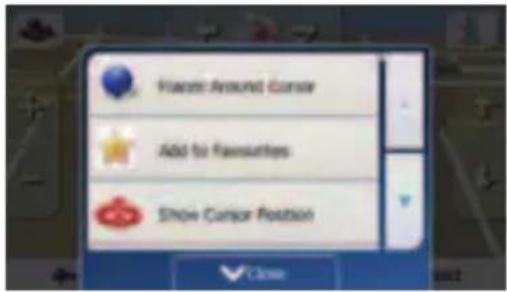

Additional options		Tap this button to open a list of additional features like saving the Cursor as a Favourite destination, or searching for Places around the Cursor.
Select destination		Tap this button to select the Cursor as a new destination. The route is automatically calculated.

2.3.5 Quick menu

The Quick menu is a selection of controls that are frequently needed during navigation. It can be opened directly from the Map screen by tapping .

The menu will close after a few seconds of inactivity or if you tap

The menu will also close if you initiate simple controls like muting the device. In other cases tapping a button will open a new screen with options.

Most of these functions are shortcuts. They are accessible from the menu system.

There are more functions available than the number of buttons in the menu. In Settings, you can choose the function of each button (page 105). The following options are available:

Button Description Shortcut for
Master Volume slider	Adjusts the sound volume of the device. All sounds of the application are affected.The loudness of your software is independent of your device settings.When you exit navigation, the device default settings return.	More / Settings /Sound and Warnings /Volume / Master slider(page 103)
,	Use the switch to mute all sounds of the device and then to re-enable them again.	More / Settings /Sound and Warnings /Volume / Master switch(page 103)
	Tap this button to search for a Place along your route or around your current location if there is no route calculated.	Find / Find Places /Quick Search (page 52)
	Tap this button to select one of your Favourite destinations.	Find / Favourite (page 66)
	Tap this button to select one of your previous destinations in the History list.	Find / History (page 69)
	Tap this button to edit the route. My Route / Edit Route
	Tap this button to change route related settings.	More / Settings / Route Settings (page 102)
	Tap this button to change map related settings.	More / Settings / Map Settings (page 114)
	This button opens a special screen with information about the current position and a button to search for nearby emergency or roadside assistance. For details, see the next chapter.	n/a
	Tap this button to cancel the route and stop navigating. This button is available when only one destination is given.	My Route / Cancel Route (page 79)
	Tap this button to skip the next waypoint from the route. This button replaces the previous one if more destinations are given.	n/a
	This function opens a 2D map scaled and positioned to show the entire route.	My Route / Overview (page 74)
	This function opens the Visual Guidance settings screen.	More / Settings / Visual Guidance (page 115)
	This function lets you bypass parts of the recommended route.	My Route / Avoidances
	This function opens the Trip Monitor screen where you can manage your previously saved trip logs and track logs.	More / Trip Monitor (page 101)
	This function opens the list of manoeuvres (the itinerary).	Tap the top of the Map screen during navigation.
	With this function you can save the active route for later use.	My Route / More / Save Route
	With this function you can replace the active route with a previously saved route.	My Route / More / Load Route
	With this function you can search for Places of Interest in various different ways.	Find / Find Places (page 51)
	This function opens the Map screen and starts simulating the active route.	My Route / More / Simulate Navigation (page 87)
	This function opens the GPS Information screen with satellite position and signal strength information.	Tap the top of the Map screen when there is no GPS reception
	This button opens the parameters of the selected Vehicle profile.	More / Settings / Route (page 107)

2.3.6 Checking the details of the current position (Where Am I?)

This screen contains information about the current position (or about the last known position if GPS reception is not available) and a button to search for useful Places nearby.

You can access this screen from the map in one of the following ways:

- If the current street is displayed below the Vehimarker (the current position on the map), tap it to open the Where Am I? screen.

- Open the Quick menu and tap the Where Am 17 button.

Information on this screen:

• Latitude and Longitude (coordinates of the current position in WGS84 format).

Altitude (elevation information coming from the GPS receiver - often rate).

: House number on the left.

• : House number on the right. • In the middle of the screen you can see whether the position is current, or the time left since it was last updated.

- Address details (when available) of the current position are also displayed at the bottom.

You can also perform some actions on this screen:

Tap

to save the current position as a Favourite destination.

You can search for assistance near your current position. Tap Help Nearby to open a new screen for the Quick search:

The following services can be searched around the current position or the last known position:

• Car Repair and roadside assistance services
• Health Around Here : Medical and emergency services
• Police Around Here : Police stations
• Petrol Station Around Here : Petrol Stations

Tap any of the buttons, select a Place from the list, and navigate to it.

3 Navigating

When first started, the software calculates routes using the road network of the high quality vector maps provided with the product.

You can set up your route in different ways:

• If you need a route for immediate navigation, you can select the destination and start navigating to it right away (normal navigation).
• You can also plan a route independently of your current GPS position or even without GPS reception (to achieve this, you need to turn off the GPS receiver and set a new starting point in My Route / Edit Route by tapping the flag icon at the current position).

You can plan routes with multiple destinations. Select the first destination. Then select a second destination ad add it to your route to create a multi-point route. You can add as many destinations to your route as you like.

You can also use the software for off-road navigation. For details, see page 68.

3.1 Selecting the destination of a route

The software offers you several ways of choosing your destination:

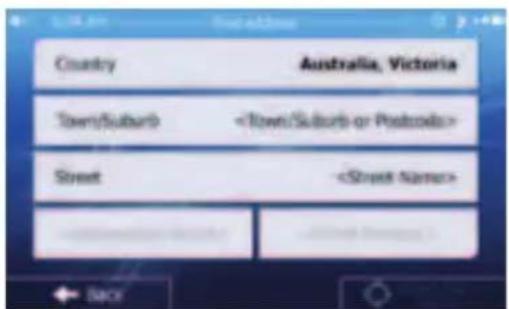

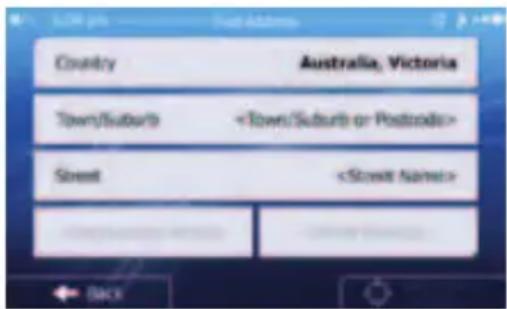

• Enter a full address or a part of an address, for example a street name without a house number or the names of two intersecting streets (page 44).
• Enter an address with postal code (page 48). This way you do not need to select the name of the settlement and the search for street names might be faster as well.
• Use a built-in Place of Interest as your destination (page 52).
• Select a location on the map with the Find on Map feature (page 65).
• Use a previously saved Favourite destination (page 66).
• Select a location from the History of previously used destinations (page 69).
• Enter the coordinate of the destination.
• Use the location where a photo was taken.

3.1.1 Entering an address or part of an address

If you know at least a part of the address, it is the quickest way to select the destination of the route.

Using the same screen, you can find an address by entering:

• the exact address, including house number
  • the centre of a city/town
• an intersection
  • the midpoint of a street
• any of the above, starting the search with the postal code (page 46)

3.1.1.1 Entering an address

To enter an address as the destination, do as follows:

1. If you are on the Map screen, tap Menu to return to the Navigation menu.
2. In the Navigation menu, tap the following buttons:
3. By default, the software proposes the country and settlement where you are. If needed, tap Country, enter the first few letters of the country name on the keyboard, and select a different one from the list of results. For quickest results choose the country with state if you know which state to search from.

1. If needed, select a new town/suburb (if you do not know the town/suburb then you can skip this selection and go to the street selection - this feature is only available when country with state is selected):

a. Tap Town/Suburb The town/suburb of your current location

is offered by default. For a local search, tap to accept it, otherwise continue with entering the destination town/suburb name.

b. Start entering the name of the town/suburb on the keyboard.

c. Find the town/suburb you need:

• The most likely town/suburb name is always shown in the input field.

To accept it, tap

- If the desired name does not show up, the names that match the string appear in a list after entering a couple of characters (to open the list of

results before it appears automatically, tap town/suburb from the list.

Select the

1. Enter the street name:

a. Tap

Street

b. Start entering the street name on the keyboard.

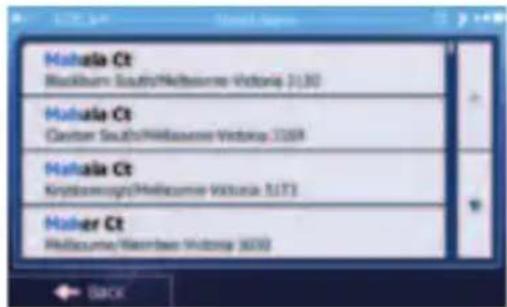

c. Find the street you need:

• The most likely street name is always shown in the input field. To

accept

it,

- If the desired name does not show up, the names that match the string appear in a list after entering a couple of characters (to open the list of

results before it appears automatically, tap ). Select from the list.

1. Enter the house number:

a. Tap

b. Enter the house number on the keyboard. (To enter letters, tap).

c. Tap √ Done to finish entering the address. (If the entered house number cannot be found, the midpoint of the street is selected as the destination.)

1. A full screen map appears with the selected point in the middle. If necessary,

tap the map somewhere else to modify the destination. The Cursor ( )

appears at the new location. Tap → Next to confirm the destination, or tap ← Back to select a different destination.

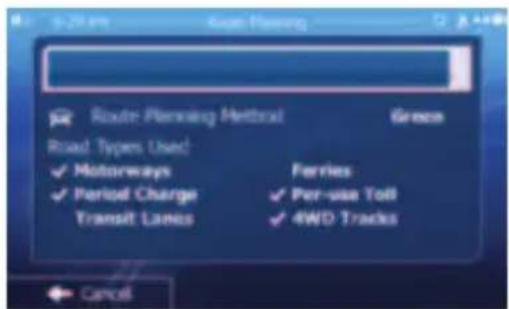

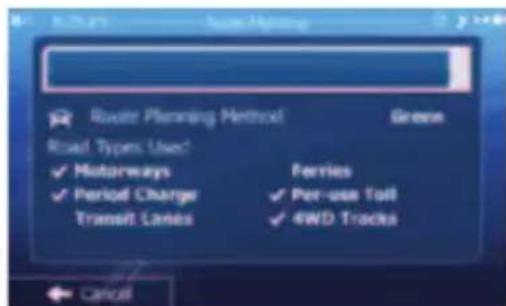

1. After a short summary of the route parameters, the map appears showing the

entire route. The route is automatically calculated. Tap

to modify route parameters, or tap and start your journey.

If you know that you will use this destination frequently, before tapping

to confirm the destination, put it on the list of your

Favourites first: tap More then , give a name for the new Favourite, and tap Done to save the location. The map with the destination returns automatically. Now you can start your journey.

3.1.1.2 Entering an address starting with the street name

You can leave the town/suburb/town/suburb name empty and start the search with the street name. This way you can search in all streets of a state. Do as follows:

1. If you are on the Map screen, tap Menu to return to the Navigation menu.
2. In the Navigation menu, tap the following buttons:
3. By default, the software proposes the country and state where you are. If needed, tap the button with the name of the country, enter the first few letters of the destination country or state on the keyboard, and select a country and state from the list. If you select the country without a state, this function cannot work.

1. Enter the street name:

a. Tap

b. Start entering the street name on the keyboard.

c. Find the street you need:

- The most likely street name is always shown in the input field. To

accept

it,

- If the desired name does not show up, the names that match the string appear in a list after entering a couple of characters (to open the

list of results before it appears automatically, tap the street from the list.

Select

1. Enter the house number:

a. Tap

b. Enter the house number on the keyboard. (To enter letters, tap

c. Tap √ Done to finish entering the address. (If the entered house number cannot be found, the midpoint of the street is selected as the destination.)

1. A full screen map appears with the selected point in the middle. If necessary, tap the map somewhere else to modify the destination. The Cursor ( ) appears at the new location. Tap Next to confirm the destination, or tap back to select a different destination.

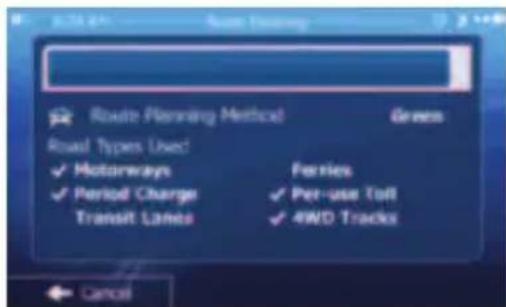

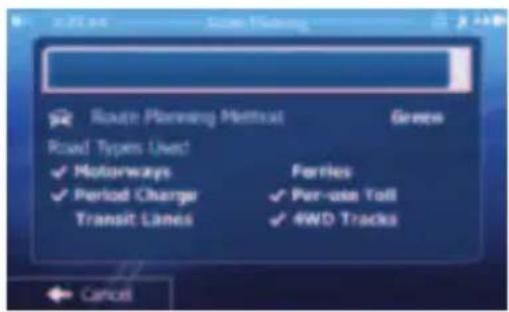

2. After a short summary of the route parameters, the map appears showing the entire route. The route is automatically calculated. Tap to modify route parameters, or tap Go! and start your journey.

3.1.1.3 Entering the midpoint of a street as the destination

You can navigate to the midpoint of a street if the house number is not available:

1. If you are on the Map screen, tap ☐ to return to the Navigation menu.

2. In the Navigation menu, tap the following buttons:

3. If necessary, modify the country and settlement as described earlier (page 37).

4. Enter the street name:

a. Tap

Street

b. Start entering the street name on the keyboard.

c. Find the street you need:

• The most likely street name is always shown in the input field. To

accept

it,

- If the desired name does not show up, the names that match the string appear in a list after entering a couple of characters (to open the

list of results before it appears automatically, tap the street from the list.

). Select

1. Instead of entering the house number, tap street is selected as the destination.

nt of the

1. A full screen map appears with the selected point in the middle. If necessary,

tap the map somewhere else to modify the destination. The Cursor ( )

appears at the new location. Tap

to confirm the destination, or tap

to select a different destination.

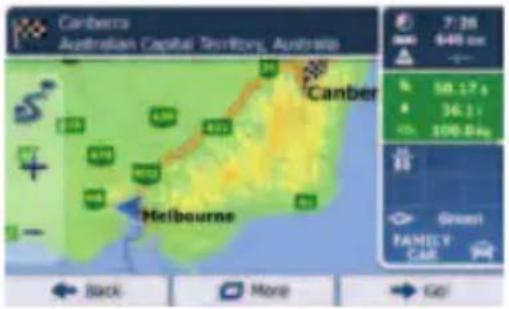

1. After a short summary of the route parameters, the map appears showing the entire route. The route is automatically calculated. Tap to modify route parameters, or tap → Go! and start your journey.

3.1.1.4 Selecting an intersection as the destination

To enter an address as the destination, do as follows:

1. If you are on the Map screen, tap ☐ Menu to return to the Navigation menu.

2. In the Navigation menu, tap the following buttons: Find, Find Active.

3. If necessary, modify the country, state and town/suburb as described earlier (page 37).

4. Enter the street name:

a. Tap Street

b. Start entering the street name on the keyboard.

c. Find the street you need:

- The most likely street name is always shown in the input field. To accept it, tap

• If the desired name does not show up, the names that match the

string appear in a list after entering a couple of characters (to open the

list of results before it appears automatically, tap the street from the list.

Select

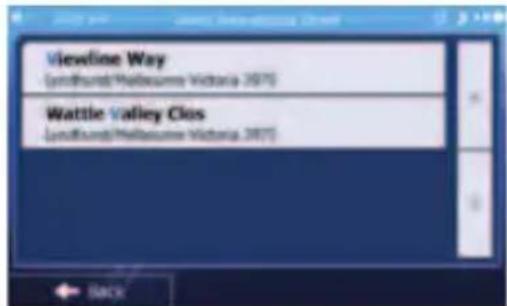

1. Enter the intersecting street name:

a. Tap

• If only a few intersecting streets exist, their list appears immediately.
• In case of a longer street, a keyboard screen appears. Start entering the name of the intersecting street on the keyboard. As soon as the street names that match the entered string can be shown on one screen, their list appears automatically. Select from the list.

1. A full screen map appears with the selected point in the middle. If necessary,

tap the map somewhere else to modify the destination. The Cursor ( ) appears at the new location. Tap Next to confirm the destination, or tap Back to select a different destination.

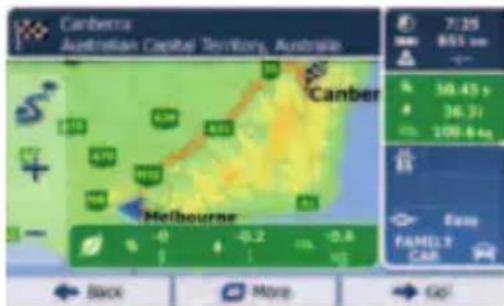

1. After a short summary of the route parameters, the map appears showing the

entire route. The route is automatically calculated. Tap to modify route parameters, or tap Go! and start your journey.

3.1.1.5 Selecting a town/suburb centre as the destination

The town/suburb centre is not the geometric centre of the settlement but an arbitrary point the map creators have chosen. In towns and villages, it is usually the most important intersection; in larger cities, it is one of the important intersections.

1. If you are on the Map screen, tap ☐ Menu to return to the Navigation menu.

2. In the Navigation menu, tap the following buttons: Find, First Additional.

3. If necessary, modify the country as described earlier (page 37).

4. Select the destination town/suburb:

a. Tap Town/Suburb

b. Start entering the name of the town/suburb on the keyboard.

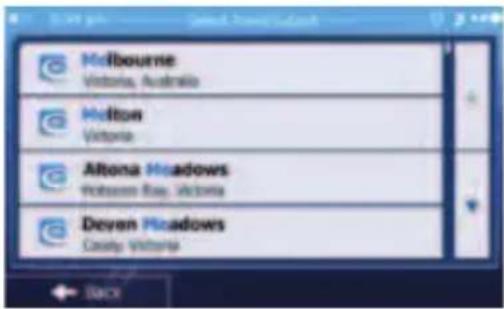

c. Find the town/suburb you need:

- The most likely town/suburb is always shown in the input field. To

accept it, tap

- If the desired name does not show up, the names that match the string appear in a list after entering a couple of characters (to open the

list of results before it appears automatically, tap the town/suburb from the list.

Results). Select

1. Instead of entering the street name, tap a map that the centre of the displayed town/suburb becomes the destination of the route.

1. A full screen map appears with the selected point in the middle. If necessary,

tap the map somewhere else to modify the destination. The Cursor ( )

appears at the new location. Tap

to confirm the destination, or tap

to select a different destination.

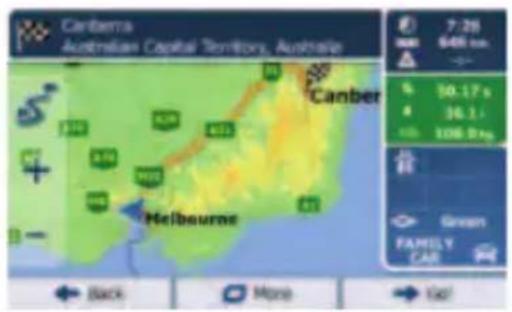

1. After a short summary of the route parameters, the map appears showing the

entire route. The route is automatically calculated. Tap

to modify route parameters, or tap

and start your journey.

3.1.1.6 Entering an address with a postal code

All of the above address searching possibilities can be performed with entering the postal code instead of the settlement name. Find below an example with a full address:

1. If you are on the Map screen, tap ☐ Menu to return to the Navigation menu.

2. In the Navigation menu, tap the following buttons: Find Find Attribute.

3. If necessary, select the country as described earlier (page 37).

4. Select the destination town/suburb:

a. Tap Town/Suburb

b. Tap 123 to open the numeric keypad.

c. Start entering the postal code.

d. Find the town/suburb you need:

- The most likely postal code is always shown in the input field. To accept it, tap

- If the desired number does not show up, open the list of results by tapping Results. Select the postal code from the list.

1. Enter the street name:

a. Tap

Street

b. Start entering the street name on the keyboard.

c. Find the street you need:

• The most likely street name is always shown in the input field. To

accept

it,

- If the desired name does not show up, the names that match the string appear in a list after entering a couple of characters (to open the

list of results before it appears automatically, tap the street from the list.

Select

1. Enter the house number:

a. Tap

b. Enter the house number on the keyboard. (To enter letters, tap

c. Tap to finish entering the address. (If the entered house number cannot be found, the midpoint of the street is selected as the destination.)

1. A full screen map appears with the selected point in the middle. If necessary,

tap the map somewhere else to modify the destination. The Cursor ( )

appears at the new location. Tap Next to confirm the destination, or tap Back to select a different destination.

1. After a short summary of the route parameters, the map appears showing the

entire route. The route is automatically calculated. Tap to modify route parameters, or tap Go! and start your journ

3.1.1.7 Tips on entering addresses quickly

- When you are entering the name of a town/suburb or a street:

• Only those letters are offered on the keyboard that appear in possible search results. All other characters are greyed out.
• As you are typing, the most likely result is always displayed in the input

field. If the guess is correct, tap

to select it.

- After entering a couple of letters, tap to list the words that contain the specified letters.

- You can speed up finding an intersection:

- Search first for the street with a less common or less usual name; fewer letters are enough to find it. - If one of the streets is shorter, search for that one first. You can then find the second one faster.

- You can search for both the type and the name of a road. If the same word appears in several names, for example in the name of streets, roads and avenues, you can obtain the result faster if you enter the first letter of the street type: For example, enter ‘PI A’ to obtain Pine Avenue and skip all Pine Streets and Pickwick Roads.

- You can also search in postal codes. As postal codes consist of only a few characters, this is usually faster than entering the name of the town/suburb.

3.1.2 Selecting the destination from the Places of Interest

You can select your destination from the Places of Interest included with your software.

Using the same screen, you can find a Place in different ways:

• with the Quick search feature, you can quickly find a nearby Place by its name
- with the Preset search feature, you can find frequently searched types of Places with only a few screen taps

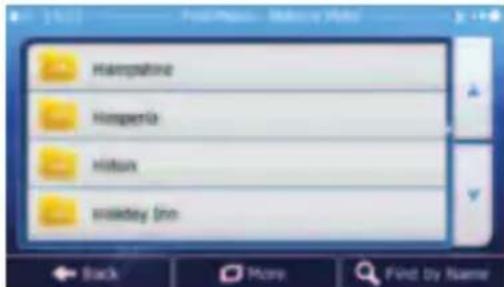

- you can search for a Place by its category
- you can search for a Place by its name

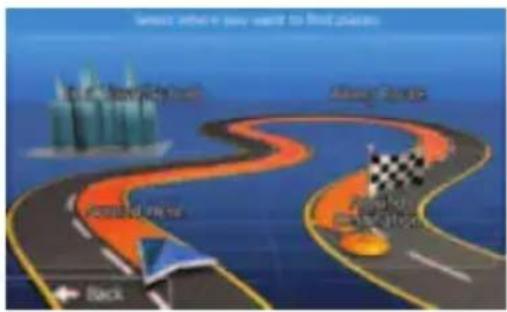

In addition, you can search for special services from the 'Where Am I?' screen.

3.1.2.1 Quick search for a Place of Interest

The Quick search feature lets you quickly find a Place by its name. The search is always carried out

• along the recommended route if it exists or
• around your current location if there is no destination given.

1. Start the Quick search function:

• If you are on the Map screen, tap
• If you are in the Navigation menu, tap

and then tap

1. Using the keyboard, start entering the name of the Place.

1. After entering a few letters, tap list of Places with names containing the entered character sequence.

1. (optional) The Places in the list are ordered by the length of the necessary detour (when navigating a route) or by their distance from the current position

(when no destination is given). If you need to reorder the list, tap

1. Browse the list if necessary and tap one of the list items. A full screen map appears with the selected point in the middle. The name and address of the Place is displayed at the top of the screen.

2. (optional) Tap return to the map. to see the details of the selected Place. Tap Back

3. If necessary, tap the map somewhere else to modify the destination. The

Cursor ( ) appears at the new location. Tap to confirm the destination, or tap Back to select a different destination.

1. After a short summary of the route parameters, the map appears showing the entire route. The route is automatically calculated. Tap to modify route parameters, or tap Go! and start your journey.

3.1.2.2 Searching for a Place of Interest using preset categories

The Preset search feature lets you quickly find the most frequently selected types of Places.

1. If you are on the Map screen, tap to return to the Navigation menu.

2. In the Navigation menu, tap the following buttons: Find, Find Pins

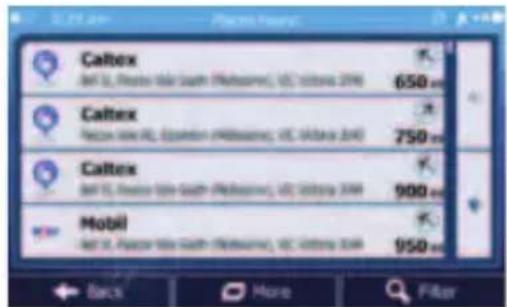

1. The preset search categories appear:

- If an active route exists, petrol stations are searched along the route.

- If there is no active route (destination is not selected), they are searched around the current position.

- If the current position is not available either (no GPS signal), they are searched around the last known position.

- If an active route exists, parking lots are searched around the destination of the route.

- If there is no active route (destination is not selected), they are searched around the current position.

- If the current position is not available either (no GPS signal), they are searched around the last known position.

- If an active route exists, restaurants are searched along the route.

• If there is no active route (destination is not selected), they are searched around the current position.
• If the current position is not available either (no GPS signal), they are searched around the last known position.

•

Accommodation At My Destination

• If an active route exists, accommodation is searched around the destination of the route.
• If there is no active route (destination is not selected), they are searched around the current position.

• If the current position is not available either (no GPS signal), they are searched around the last known position.

• Tap any of the quick search buttons to get an instant list of Places.

1. (optional) The Places in the list are ordered by their distance from the current or last known position, from the destination or by the length of the necessary

detour. If you need to reorder the list, tap

1. Browse the list if necessary and tap one of the list items. A full screen map appears with the selected point in the middle. The name and address of the Place is displayed at the top of the screen.

2. (optional) Tap return to the ma

to see the details of the selected Place. Tap

1. If necessary, tap the map somewhere else to modify the destination. The

Cursor ( ) appears at the new location. Tap to confirm the destination, or tap Back to select a different destination.

1. After a short summary of the route parameters, the map appears showing the entire route. The route is automatically calculated. Tap to modify route parameters, or tap Go! and start your journey.

3.1.2.3 Searching for a Place of Interest by category

You can search for Places of Interest by their categories and subcategories.

1. If you are on the Map screen, tap ☐ Menu to return to the Navigation menu.

2. In the Navigation menu, tap the following buttons: Find, Find Place

3. Tap

4. Select the area around which the Place should be searched for:

- Tap Around Here to search around the current position or if it is not available, around the last know position. (The result list will be ordered by the distance from this position.)

- Tap to search for a place within a selected city or town. (The result list will be ordered by the distance from the centre of the selected city/town.)

- Tap to search for a place around the destination of the active route. (The result list will be ordered by the distance from the destination.)

- Tap to search along the active route, and not around a given point. This is useful when you search for a later stopover that results in a minimal detour only, such as searching for upcoming petrol stations or restaurants. (The result list will be ordered by the length of the necessary detour.)

1. (optional) If you have selected, select the town/suburb to search in.

1. Select one of the main Place categories (e.g. Accommodation) or tap List All Places to list all Places around the selected location or along the route.

1. Select one of the Place subcategories (e.g. Hotel or Motel) or tap to list all Places in the selected main category around the selected location or along the route.

1. Sometimes the list of brands in the selected Place subcategory appears. Select one brand or tap List All Places to list all Places in the selected subcategory around the selected location or along the route.

1. Finally, the results appear in a list.

1. (optional) The Places in the list are ordered by their distance from the current or last known position, from the selected town/suburb, from the destination or by the length of the necessary detour. If you need to reorder the list, tap

1. Browse the list if necessary and tap one of the list items. A full screen map appears with the selected point in the middle. The name and address of the Place is displayed at the top of the screen.

2. (optional) Tap to see the details of the selected Place. Tap to return to the map.

3. If necessary, tap the map somewhere else to modify the destination. The

Cursor ( ) appears at the new location. Tap to confirm the destination, or tap Back to select a different destination.

1. After a short summary of the route parameters, the map appears showing the entire route. The route is automatically calculated. Tap to modify route parameters, or tap Go! and start your journey.

3.1.2.4 Searching for a Place of Interest by name

You can search for Places of Interest by their names. You can search around different locations or along your route in the whole Place database or in one Place category or subcategory only.

1. If you are on the Map screen, tap Menu to return to the Navigation menu.
2. In the Navigation menu, tap the following buttons: Find, Find Place.
3. Tap
4. Select the area around which the Place should be searched for:

- Tap Around Here to search around the current position or if it is not available, around the last know position. (The result list will be ordered by the distance from this position.)

- Tap In Town/Suburb to search for a place within a selected city/town. (The result list will be ordered by the distance from the centre of the selected city/town.)

- Tap Around Destination to search for a place around the destination of the active route. (The result list will be ordered by the distance from the destination.)

- Tap to search along the active route, and not around a given point. This is useful when you search for a later stopover that results in a minimal detour only, such as searching for upcoming petrol stations or restaurants. (The result list will be ordered by the length of the necessary detour.)

1. (optional) If you have selected , select the city/town to search in.

1. Tap Find by Name in all Places, or select one of the main Place categories (e.g. Accommodation) to search in.

1. Tap Find by Name in the selected Place category or select one of the Place subcategories (e.g. Hotel or Motel) to search in.

1. Tap Find by Name have not done it before.

1. Using the keyboard, start entering the name of the Place.

1. After entering a few letters, tap into the list of Places with names containing the entered character sequence.

1. (optional) The Places in the list are ordered by their distance from the current or last known position, from the selected city/town, from the destination or by the length of the necessary detour. If you need to reorder the list, tap

1. Browse the list if necessary and tap one of the list items. A full screen map appears with the selected point in the middle. The name and address of the Place is displayed at the top of the screen.

2. (optional) Tap to see the details of the selected Place. Tap to return to the map.

3. If necessary, tap the map somewhere else to modify the destination. The

Cursor ( ) appears at the new location. Tap to confirm the destination, or tap Back to select a different destination.

1. After a short summary of the route parameters, the map appears showing the entire route. The route is automatically calculated. Tap to modify route parameters, or tap Go! and start your journey.

3.1.2.5 Selecting nearby assistance from 'Where Am I?'

You can quickly search for nearby assistance from the 'Where Am I?' screen.

1. On the Map screen, tap ☐ to open the Quick men.

1. Tap (where An D, and then

1. The Quick search categories appear, all for searching around the current position (or around the last known position if the current position is not available):

• Car repair and roadside assistance services
• Health Around Here : Medical and emergency services
• Police Around Here : Police stations
• Petrol Station Around Here : Petrol stations

1. Tap any of the quick search buttons to get an instant list of that type of Places.

1. (optional) The Places in the list are ordered by their distance from the current or last known position, from the selected city/town, from the destination or by the length of the necessary detour. If you need to reorder the list, tap

1. Browse the list if necessary and tap one of the list items. A full screen map appears with the selected point in the middle. The name and address of the Place is displayed at the top of the screen.

2. (optional) Tap

to see the details of the selected Place. Tap

1. If necessary, tap the map somewhere else to modify the destination. The

Cursor ( ) appears at the new location. Tap to confirm the destination, or tap Back to select a different destination.

1. After a short summary of the route parameters, the map appears showing the entire route. The route is automatically calculated. Tap to modify route parameters, or tap Go! and start your journey.

3.1.3 Selecting a map location as the destination

1. If you are on the Map screen, tap ☐ Menu to return to the Navigation menu.
2. In the Navigation menu, tap the following buttons:
3. Locate your destination on the map: move and scale the map as needed.

1. Tap the location that you want to select as your destination. The Cursor ( ) appears.

2. Tap Select to select the Cursor as the destination.

3. After a short summary of the route parameters, the map appears showing the entire route. The route is automatically calculated. Tap to modify route parameters, or tap Go! and start your journey.

3.1.4 Selecting the destination from your Favourites

You can select a location that you have already saved as a Favourite to be your destination. Adding a location to the list of Favourite destinations is described on page 64.

1. Access the list of Favourites:

• If you are on the Map screen, tap

and then tap

- If you are in the Navigation menu, tap and then tap .

1. The list of Favourite destinations is displayed.

1. Tap the Favourite that you want to set as your destination. If necessary,

browse down to see more of the list or tap from the name of the Favourite destination.

1. A full screen map appears with the selected point in the middle. If necessary,

tap the map somewhere else to modify the destination. The Cursor ( )

appears at the new location. Tap Next to confirm the destination, or tap

1. After a short summary of the route parameters, the map appears showing

the entire route. The route is automatically calculated. Tap □ More to

modify route parameters, or tap Go! and start your journey.

3.1.5 Selecting the most likely destination (Smart History)

The destinations that you have set earlier appear in the History list. Two of those recent destinations are shown in the Destination menu for easy access. Smart History offers these locations based on your navigation habits, using parameters like the current time of day, the day of week, and the current location. The more you use the navigation software, the better it can guess your desired destination.

1. If you are on the Map screen, tap ☐ Menu to return to the Navigation menu.
2. In the Navigation menu, tap Find

1. Tap the or the destination in the History field.

2. A full screen map appears with the selected point in the middle. If necessary,

tap the map somewhere else to modify the destination. The Cursor ( )

appears at the new location. Tap Next to confirm the destination, or tap Back to select a different destination.

1. After a short summary of the route parameters, the map appears showing the entire route. The route is automatically calculated. Tap to modify route parameters, or tap Go! and start your journey.

3.1.6 Selecting the destination from the History

The destinations that you have set earlier appear in the History.

1. Access the History:

• If you are on the Map screen, tap

and then tap

- If you are in the Navigation menu, tap

1. The list of recent destinations appear. Smart History promotes three destinations to the first page based on your previous routes (most likely destinations). The rest of the destinations are ordered by time they were last selected. If necessary, scroll the list to see earlier destinations.

1. Select a destination from the list.

2. A full screen map appears with the selected point in the middle. If necessary,

tap the map somewhere else to modify the destination. The Cursor ( )

appears at the new location. Tap

to confirm the destination, or tap

to select a different destination.

1. After a short summary of the route parameters, the map appears showing the entire route. The route is automatically calculated. Tap to modify route parameters, or tap Go! and start your journey.

3.1.7 Entering the coordinate of the destination

You can also select a destination by entering its coordinate.

To enter an address as the destination, do as follows:

1. If you are on the Map screen, tap ☐ Menu to return to the Navigation menu.
2. In the Navigation menu, tap

1. Open the D More tab and tap

1. You can enter the latitude and longitude values in any of the following formats: decimal degrees; degrees and decimal minutes; or degrees, minutes and decimal seconds.

1. (optional) If necessary, tap or More enter the

coordinate in UTM format.

1. When finished, tap

1. A full screen map appears with the selected point in the middle. If necessary,

tap the map somewhere else to modify the destination. The Cursor ( ) appears at the new location. Tap Next to confirm the destination, or tap Back to select a different destination.

1. After a short summary of the route parameters, the map appears showing the entire route. The route is automatically calculated. Tap to modify route parameters, or tap Go! and start your journey.

3.1.8 Navigate to a location stored in a photo

You can also set the location stored in a photo as your destination. Do as follows:

1. If you are on the Map screen, tap ☐ Menu to return to the Navigation menu.

2. In the Navigation menu, tap Find

3. Open the

1. The list of photos stored in the device appears. Select one photo from the list.

2. A full screen map appears with the selected point in the middle. If necessary,

tap the map somewhere else to modify the destination. The Cursor ( )

appears at the new location. Tap Next to confirm the destination, or tap Back to select a different destination.

1. After a short summary of the route parameters, the map appears showing the entire route. The route is automatically calculated. Tap to

modify route parameters, or tap Go! and start your journey.

Only geotagged JPG files contain location information. That is why these kind of files can only be used in navigation. Other picture files do not appear in the list. Files must be located on an inserted SD card, either in the root folder or in a “pictures” folder.

3.1.9 Building a route from the list of destinations (Create Route)

You can also build your route destination by destination from the My Route menu.

1. If you are on the Map screen, tap ☐ Menu to return to the Navigation menu.

2. In the Navigation menu, tap My Route

3. Tap Create Route

1. There is only one line in the list of route points, the start point of the route, normally the current GPS position.

2. Tap to select the destination.

3. The Destination menu appears and you can select the destination of the route the same way as described in the previous sections.

1. When the new destination is selected, the list returns.

1. To add more destinations, tap where you want to insert the new route point in the list, and repeat the above procedure.

3.2 Viewing the entire route on the map

It is easy to get a map overview of the active route. Do as follows:

1. If you are on the Map screen, tap ☐ Menu to return to the Navigation menu.

2. In the Navigation menu, tap My Route

3. Tap Overview The active route is displayed it in its full length on the map together with additional information and controls.

3.3 Checking route parameters and accessing route related functions

You can check different parameters of the route recommended by the software.

1. If you are on the Map screen, tap ☐ Menu to return to the Navigation menu.

2. In the Navigation menu, tap My Route

3. The following pieces of information are displayed:

- The name and/or address of the destination.

- Warning icons (if any). They provide extra information about your route (e.g. unpaved roads or toll roads to be taken).

• The total time of the route.

• The total length of the route.

- The symbol of the vehicle type used in route calculation.

• The route planning method (e.g. Fast).

1. You have the following options on this screen (for detailed instructions on how to use them, see the next chapter):

- Tap Edit Route to edit the route: to add or remove destinations or change their sequence. You can also set a route start point other than your current location. This can be useful to plan and save a future trip.

- Tap Overview to display the entire route on the map.

- Tap Avoidances to bypass a part of the route.

- Tap Cancel Route to delete the active route.

- Tap to open a list with more options like selecting from route alternatives, changing route parameters, simulating the route, saving the active route or loading a previously saved route.

- Tap ← Back to return to the Navigation menu.

3.4 Modifying the route

When navigation is already started, there are several ways to modify the active route. The following sections show some of those options.

3.4.1 Selecting a new destination when already having a route: New Route, Waypoint or Final Destination

If you already have a recommended route and you select a new destination as described in the above sections, the application will ask you whether to start a new route, add a new waypoint (intermediate destination) to the route or append the newly selected destination at the end of the current route.

- Tap to plan a new route to the newly selected location. The previous destination and waypoint(s) are deleted.

- Tap to add the newly selected location as an intermediate destination to your route. The other destinations of the route remain intact. Note: the new waypoint is placed among destinations to keep the route optimal. To decide where a waypoint to appear, use the Edit Route feature.

- Tap to append the newly selected destination at the end of the route. The other destinations of the route remain intact. The previous final destination is now the last waypoint.

3.4.2 Setting a new starting position for the route

For normal navigation, all routes are planned from the current position. In order to check future routes, simulate them or see their length in time and distance, you can turn off the GPS receiver. Then you can set the starting point of the route to a different location than the current GPS position.

1. If you are on the Map screen, tap ☐ Menu to return to the Navigation menu.
2. In the Navigation menu, tap My Route
3. If you already have a route, tap Edit Route. If you are starting a new route, tap Create Route.

1. The first line is the start of the route, normally the current GPS position.

Tap

and confirm your action at the warning message.

1. The Destination menu appears and you can select the start point of the route the same way you select a destination.

1. When the new start point is set, tap

1. The map returns with a transparent Vehimarker (showing that there is no GPS reception). If an active route already existed, it is now recalculated starting from the selected location.

1. To return to normal navigation, tap . Turn on GPS

3.4.3 Editing the list of destinations (Edit Route)

You can edit the route by modifying the list of destinations. You can add or remove destinations, modify the start position or reorder the list.

1. If you are on the Map screen, tap ☐ Menu to return to the Navigation menu.

2. In the Navigation menu, tap My Route

3. Tap Edit Route

1. You have the following options:

- Tap

to add a new destination.

- Tap

to delete a destination.

- Tap to modify the start point of the route.

- Tap More to reorder the list. You can do it manually or you can let the application optimise the route for you.

3.4.4 Pausing the active route

You do not need to pause the active route: when you start driving again, the software restarts the voice instructions from your position.

3.4.5 Cancelling the active route

To cancel the navigated route, do one of the following:

- If you are on the Map screen, tap and then tap. (If you have a route with waypoints, you need to tap until all waypoints are deleted.)

- In the Navigation menu, tap route is deleted with all its waypoints.

3.4.6 Checking route alternatives when planning the route

You can select from different route alternatives or change the route planning method after you have selected a new destination. Do as follows:

1. Select a destination as explained earlier, and get to the route confirmation screen.

1. Tap More

3. Tap

1. You see the basic details of three route alternatives with the selected route planning method. Tap any of them to see it on the map.

1. Or if you cannot find a good alternative, tap and scroll down for routes with different routing methods.

1. Select one of the route alternatives and tap to return to the previous screen. The software recalculates the route. The orange line now shows the new recommended route.

3.4.7 Changing the route planning method (route alternatives)

To recalculate the active route with a different route planning method, you can modify the Route settings (page 106). Another way for this is to compare these alternatives. Do as follows:

1. If you are on the Map screen, tap ☐ Menu to return to the Navigation menu.
2. In the Navigation menu, tap My Route

1. Tap More

1. Tap Route Alternatives

2. You see the basic details of three route alternatives with the selected route planning method. Tap any of them to see it on the map.

1. Or if you cannot find a good alternative, tap and scroll down for routes with different routing methods.

1. Select one of the route alternatives then tap and hold for a few seconds to return to the Map screen. The software recalculates the route. The orange line now shows the new recommended route.

3.4.8 Changing the vehicle used in route planning

To recalculate the active route for a different vehicle, do as follows. These changes can also be made in Settings (page 101).

1. On the Map screen, tap

and then tap

1. Tap ____, and then tap one of the following:

1. The software recalculates the route optimised for the new vehicle type. The orange line now shows the new recommended route.

If you select and you forget to change it back to a vehicle later, the software warns you when you travel with a speed that is too high for a pedestrian. You are allowed to switch back instantly to Car.

3.4.9 Changing the road types used in route planning

To recalculate the active route with different road type preferences, do as follows. These changes can also be made in Settings (page 102).

1. On the Map screen, tap and then tap .

1. Tap any of the listed road types to modify the route. If needed, scroll the list for all road types. You have the following options (their order depends on the selected vehicle type):

- Motorways - You might need to avoid motorways when you are driving a slow car or you are towing another vehicle.

- Period Charge - Charge roads are pay roads where you can purchase a pass or vignette to use the road for a longer period of time. They can be enabled or disabled separately from toll roads.

- Per-use Toll - The software includes toll roads (pay roads where there is a per-use charge) in the routes by default. If you disable toll roads, your software plans the best toll-free route.

- Ferries - The software includes ferries in a planned route by default. However, a map does not necessarily contain information about the accessibility of temporary ferries. You might also need to pay a fare on ferries.

- Unsealed Roads - The software excludes unsealed roads by default: unsealed roads can be in a bad condition and usually you cannot reach the speed limit on them.

1. Tap ← Back to confirm the changes. The software recalculates the route. The orange line now shows the new recommended route.

3.5 Saving a location as a Favourite destination

You can add any location to Favourites, the list of frequently used destinations. Planning a route to one of the Favourite destinations is described on page 64.

1. Select a destination as described before. It can be an address, a Place, any location on the map, a previously used destination from History, a coordinate or a location where a photo was taken.
2. When the full screen map appears with the selected location in the middle, tap More.

3. Tap

1. (optional) Using the keyboard, you can change the name offered for the Favourite. Tap 123 to enter numbers or symbols.

5. Tap

the location as a new Favourite destination.

3.6 Saving a location as an alert point

You can save any map location as an alert point (for example a speed camera or a railway crossing).

1. Browse the map and select a location. The red Cursor appears there.

2. Tap

1. Scroll down the list and tap

1. On the newly opened screen, select the type of the alert point, the direction from which you expect the alert, and (if applicable) the speed limit for this alert point.

2. Tap ▼ Save to save the location as a new alert point.

3.7 Editing an alert point

You can edit a previously saved or uploaded alert point (for example a speed camera or a railway crossing).

1. Browse the map and select the alert point to edit. The red circle appears around the alert point.

2. Tap More

1. Scroll down the list and tap

1. On the newly opened screen, modify the type of the alert point, the direction from which you expect the alert, or (if applicable) the speed limit for this alert point.

1. Tap Save the changes to the alert point.

3.8 Watching the simulation of the route

You can run a simulated navigation that demonstrates the active route. Do as follows:

1. If you are on the Map screen, tap ☐ Menu to return to the Navigation menu.

2. In the Navigation menu, tap My Route

1. Tap More

1. Scroll down the list and tap

starting point of the route, and using a realistic speed, it leads you through the whole recommended route.

1. (optional) You have the following controls during the simulation (the control buttons disappear after a few seconds but you can open them again if you tap the map):

• : Jump to the next route event (manoeuvre).
• " : Pause the simulation.
• : Jump to the previous route event (manoeuvre).
- Tap to increase the speed of the simulation to 4, 8 or 16 times faster. Now tap again to return to the normal speed.

1. Tap Back to stop the simulation.

4 Off-road navigation

When first started, the software calculates routes using the road network of the high quality vector maps provided with the product. You can switch the application to off-road mode in Navigation settings in one of the following ways:

Most of the procedures described for on-road navigation also apply to off-road navigation. However, there are some that are not available in this navigation mode (for example you cannot open the itinerary as you have no manoeuvres just route points and straight lines between them).

Off-road navigation is a separate feature from and should not be confused with the optional (if content is available) 4WD tracks setting in Route settings.

4.1 Selecting the destination of the route

Selecting the start point or a destination (waypoint or final destination) is the same as described at onroad navigation. The only difference is that route points are linked to form a route with straight lines regardless of the road network and traffic regulations.

4.2 Navigating in off-road mode

The real difference between the on-road and off-road modes is the navigation itself. When you are on the Map screen with an off-road route:

• your position and heading is not aligned with the nearest road and
• there is no turn by turn navigation just a recommended direction.

You see a orange line drawn between your current position and the next destination to reach. The Turn Preview field in the top left corner shows a compass with your bearing and the distance of the next destination.

When you reach a waypoint, the orange line will show the direction to the next destination. (Future legs of the route are shown with orange lines.)

When you reach the final destination, navigation ends.

On the following pages you will find the description of the different concepts and menu screens of the software.

5.1 Concepts

5.1.1 Smart Zoom

Smart Zoom provides much more than just a usual automatic zoom feature:

- While following a route: when approaching a turn, it will zoom in and raise the view angle to let you easily recognise your manoeuvre at the next junction. If the next turn is at a distance, it will zoom out and lower the view angle to be flat so you can see the road in front of you.

- While driving without an active route: Smart Zoom will zoom in if you drive slowly and zoom out when you drive at high speed.

5.1.2 Daytime and night colour themes

The software uses different colour themes during the day and during the night for both the map and the menu screens.

• Daytime colours are similar to paper road maps, and the menus are bright.

- The night colour themes use dark colours for large objects to keep the average brightness of the screen low.

The software offers different daytime and night colour profiles. It can also switch automatically between the daytime and the night schemes based on the current time and GPS position a few minutes before sunrise, when the sky has already turned bright, and a few minutes after sunset, before it becomes dark.

5.1.3 Tunnel View

When entering a tunnel, the map is replaced with a generic tunnel image so that surface roads and buildings cannot distract you.

The top-down overview of the tunnel helps you orientate yourself. The remaining distance in the tunnel is also displayed. After leaving the tunnel, the original map view returns. This feature can be turned off in Settings (page 85).

5.1.4 Route calculation and recalculation

Your software calculates the route based on your preferences:

- Route planning methods:

• Fast: Gives a quick route if you can travel at or near the speed limit on all roads. Usually the best selection for fast and normal cars.

- Short: Gives a route that has the smallest total distance of all possible routes. It can be practical for slow vehicles.

- Green: Gives a quick but fuel efficient route based on the fuel consumption data given in Routing settings (page 107). Travel cost and Cmission calculations are estimations only. They cannot take elevations, curves and traffic conditions into account.

• Economical: For vehicle types where Green routing is not available, this method combines the benefits of Fast and Short: The software calculates as if it were calculating the Fast route, but it takes other roads as well to save fuel.

• Easy: Results in a route with fewer turns and no difficult manoeuvres. With this option, you can make your software to take, for example, the motorway instead of a series of smaller roads or streets.

- Vehicle types:

- Manoeuvre restrictions and directional constraints are taken into account when planning a route.

- Roads are used only if access for cars is allowed.

- Private roads and resident-only roads are used only if they are inevitable to reach the destination.

• Walkways are excluded from routes.

- Neither manoeuvre restrictions nor directional constraints are taken into account when planning a route.

- Roads are used only if access for pedestrians is allowed.

- Controlled-access roads are excluded from routes.

• A private road is used only if the destination is there.

- Speed limits are not used in route calculation and an average walking speed is used when calculating the estimated time of arrival.

- Manoeuvre restrictions and directional constraints (if they are applied to bicycles in the map data) are taken into account when planning a route.

- Roads are used only if access for bicycles or pedestrians is allowed.

- Controlled-access roads are excluded from routes.

- A private road is used only if the destination is there.

- Speed limits are not used in route calculation and an average cycling speed is used when calculating the estimated time of arrival.

Emergency

- All manoeuvres are available in intersections.

- Directional constraints are taken into account the way that opposite direction is allowed with a low speed.

- A private road is used only if the destination is there.

• Walkways are excluded from routes.

Bus

- Manoeuvre restrictions and directional constraints are taken into account when planning a route.

- Roads are used only if access for buses is allowed.

- Private roads, resident-only roads and walkways are excluded from routes.

Taxi

- Manoeuvre restrictions and directional constraints are taken into account when planning a route.

- Roads are used only if access for taxis is allowed.

- Private roads, resident-only roads and walkways are excluded from routes.

- Road types used or avoided in route calculation:

Whenever data exists, route calculation takes into account statistical traffic data for the given day of week and time of day.

Your software automatically recalculates the route if you deviate from the proposed itinerary.

For further information about Route settings, see page 106.

5.1.5 Green routing

Route calculation is not only about finding the quickest or shortest route. For some of the vehicle types, you can also check the fuel consumption and CO_2 emission when planning a route, and you can create cost effective routes with less effect on the environment.

In Route settings, you can edit the parameters of the selected vehicle. Enter the fuel consumption values and the price of the fuel. You can also select whether you want to see the difference between your route and the green route even if the selected routing method is not Green.

After the above parameters are set, select Green as route planning method to get a fast but also fuel efficient route. Note that travel cost and CO2 emission calculations are estimations only. They cannot take elevations, turns, curves and traffic conditions into account. Also, this routing is not meant to give you the "greenest" route of all. It is still important to travel quickly so the result is a fast route with low fuel consumption and CO2 emission.

With a vehicle type where green routing is selectable, whichever route planning method is selected, the Green details are also shown when you confirm the route:

If the selected route planning method is not Green, and you have allowed the application to show the green alternative, the price, fuel consumption and CO_2 emission differences between your selected route and the Green route are also shown on this screen:

Tap the field with these details to switch the route to Green immediately.

5.1.6 Road Safety Cameras and Other Proximity Alert Points

There is a special proximity warning for road safety cameras (like speed or red light cameras) and other proximity alert points (like schools or railroad crossings). These alert points are preloaded in the software.

The application can warn you when you approach road safety cameras like speed cameras or dangerous areas like school zones or railroad crossings. You can set up the different alert types individually in Sound and Warning settings (page 69).

The following alert types are available:

- Audio warning: beeps or the name of the alert type can be played while you are approaching the camera, or extra alert sounds if you exceed the speed limit while approaching one of these cameras.

- Visual warning: the type of the alert point, its distance and the related speed limit appear on the Map screen while you are approaching one of these cameras. The distance from the camera is also displayed.

For some of the alert points, the enforced or expected speed limit is available. For these points, the audio alert can be different if you are below or above the given speed limit.

• Only when speeding: The audio alert is only played when you exceed the given speed limit.
• When approaching: The audio alert is always played. In order to draw your attention, the alert can be different if you exceed the speed limit.

NOTE

The warning for road safety cameras is disabled when GPS position is not available or if you are in certain countries where road safety camera warning is prohibited.

5.1.7 Speed limit warning

Maps may contain information about the speed limits of the road segments. The software is able to warn you if you exceed the current limit. This information may not be available for your region (ask your local dealer), or may not be fully correct for all roads in the map. Speed warning can be fine-tuned in Sound and Warning settings (page 105).

You can set the relative speed above which the application initiates the warning.

The following alert types are available:

• Audio warning: you receive a verbal warning when you exceed the speed limit with the given percentage.
• Visual warning: the current speed limit is shown on the map when you exceed it (for example: 50).

You can also choose to see the speed limit sign on the map all the time.

5.1.8 Battery and GPS position quality indicators

You can find useful information in the top corners of menu screens.

The battery symbol in the top left corner, next to the current time shows information about the rechargeable battery of the device.

Icon Description
	The battery is charging. The device runs on external power.
	The battery is not charging but it is full.
	The battery is not full but it still has enough capacity.
	You need to recharge the battery.

In the top right corner, the GPS reception quality icon shows the current accuracy of the position information.

Icon Description
X···	The software has no connection to the GPS receiver: GPS navigation is not possible.Devices with a built-in GPS receiver are permanently connected. On such devices, the icon does not appear in normal circumstances.
X···	The software is connected to the GPS receiver, but the signal is too weak and the receiver cannot determine the GPS position.GPS navigation is not possible.
X···	Only a few satellites are received. Position information is available, but elevation (altitude) cannot be calculated.GPS navigation is possible, but the position error may be significant.Altitude information is available, the position is a 3D position. GPS navigation is possible.

5.1.9 Traffic information in route planning

The function is subject to data availability. The recommended route is not always the same between two points. Offline statistical traffic information (historical speed information or traffic patterns) can be taken into account in the route calculation based on the time of day and the day of week whenever suitable data exists.

You can display the historical traffic information on the map if you browse the map and select this option from the More menu. A 2D map is displayed with road segments coloured by the density of the traffic in the given period. The current information is shown when you open the screen. Modify the day of week and the time of day to see the desired period.

5.1.9.1 Historical traffic

The function is subject to data availability. If statistical traffic information is stored with the map data, the software can take them into account when planning a route. In normal cases, these statistics help you avoid usual traffic jams on the given day of week in the given hour but in some cases like on public holidays that fall on normal weekdays, they can be misleading.

You can display statistical traffic information on the map if you browse the map and select this option from the More menu.

5.2 'More' menu

The ‘More’ menu provides you with various options and additional applications.

Tap the following buttons:

Menu

More...

Button Description
	You can configure the program settings, and modify the behaviour of the software. Fine-tune route planning options, change the look of the Map screen, turn on or off warnings, or restart the Configuration wizard, etc.See the next chapter for details.
	Visit www.naviextras.com to get additional content, such as new maps or 3D landmarks and useful applications.
	Access the Picture Viewer application. View the pictures stored on your device. If coordinates are stored in your photos, you can start navigating to the place where the selected photo was taken.
	Access travel applications: the unit converter helps you convert between various different international units for temperature, speed, area or pressure, etc.
	Access travel applications: the clothing size converter helps you convert between various different international size units for men's or women's cloth types and shoes.The scientific calculator helps you in all your calculation needs. Tap the Mode button for additional functions and use the memory to save your results.
	The Fuel consumption monitor helps you keep track of the consumption of your car even if you do not use navigation for all your journeys. Set the initial odometer value and then record the distance taken and fuel filled in whenever you fill your car. You can also set reminders for regular car maintenance.
	Tap this button to see the sunlit and dark areas of the world. Your current location and route points are marked on the map. Tap the Details button to see the exact sunrise and sunset times for all your route points (your current location, all waypoints and the final destination).
	If you save your trip logs when you arrive at some of your destinations or let the application automatically save the trip logs for you, those logs are all listed here. Tap one of the trips to see the trip statistics, speed and altitude profile. If track log has also been saved, you can display it on the map with the selected colour. Track logs can be exported to GPX files for later use.
	Select a country from the list and see useful driving information about the selected country. Information may include speed limits on different road types, the maximum blood alcohol level and any compulsory equipment you need to show when stopped by the police.
	The About section provides you with product information. Read the Software and Database End User License Agreement, look up content licenses or check the unique identifier of the software. You can also access program usage statistics.

5.3 Settings menu

You can configure the program settings, and modify the behaviour of the software.

Tap the following buttons: Menu, More...

The Settings menu has several options. Tap ▼ or scroll with your finger to see the full list.

Button Description
	Adjust the sound volume, mute your device or change the voice guidance language. In addition, you can enable and set up different warnings and alerts.
	The content of the Quick menu (page 30) is fully customisable. Tap the button you want to change, and select its new function from the list.
	These settings determine how routes will be calculated. Select the type of vehicle you are driving, the road types used in route planning, and the route planning method.
	If more drivers use the software for navigating, their settings can be remembered by using one of the user profiles.
	You can fine-tune the appearance of the Map screen. Adjust the map view to your needs, choose suitable colour themes from the list for both daytime and night use, change the blue arrow to a 3D car model, show or suppress optional data of 3D buildings, turn track logging on or off, and manage you Place visibility sets (which Places to show on the map).
	Settings related to guidance on the map screen can be adjusted here.
	Display related settings include menu animations, separate skins for daytime and night use and the brightness of the display.
	These settings allow you to customise the application for your local language, measurement units, time and date settings and formats, as well as to choose the time zone.
	Trip logs and track logs contain useful information about your trips. Trip logs can be saved manually when you reach your destination or you can turn on the automatic saving here.
	The application collects usage information and GPS logs that may be used for improving the application and the quality and coverage of maps. Here you can enable or disable collecting these logs.
	Modify the basic software parameters set during the initial setup process. For details, see page 13.
	Delete all saved data and reset all settings to their factory defaults.

5.3.1 Sound and Warnings

Adjust the sound volume, mute your device or change the voice guidance language. In addition, you can enable and set up different warnings and alerts.

Button Description
Volume	Tap this button to adjust the volume of the different sounds in the application. A new screen shows the different sound types and their controls. See below for details.The loudness of your software is independent of your device settings. When you exit the program, the device default settings return.
Voice language	This button shows the current voice guidance profile. By tapping the button, you can select a new profile from the list of available languages and speakers. Tap any of these to hear a sample voice prompt. Just tap ← Back when you have selected the new spoken language.Different voice profiles are capable of different levels of service:Natural Voice: These prerecorded sounds can only tell you basic information about turns and distances.TTS Voice: These computed voices can tell you complex instructions, they can tell you the street names or read out the system messages for you.
TTS Pro	Tap this button to adjust the enhanced TTS features. The following settings are available:You can set the feature to read out traffic messages.Whenever a route is calculated, the software can read out the quick summary of the route.When you cross country borders, the application can read out the information about the country you have just entered.
Advanced Settings	Street names sound correctly only if you use a native voice profile for the country. You can decide whether the applicationtries to read the street names in a foreign country,use road numbers in your language orannounces the manoeuvre only.You can also decide whether you want an announcement for distance manoeuvres or it is enough to receive the information when the turn is near.
Verbosity Level	Tap this button to set the verbosity of the voice instructions: how much they tell and how often they speak.
Speed Warning Settings	Maps may contain information about the speed limits of the road segments. The software is able to warn you if you exceed the current limit. This information may not be available for your region (ask your local dealer), or may not be fully correct for all roads in the map. The maximum speed set in the vehicle profile is also used for this warning. The software alerts you if you exceed the preset value even if the legal speed limit is higher. This setting lets you decide whether you wish to receive visible and/or audible warnings.Adjust the slider to set the relative speed above which the application initiates the warning.The following alert types are available:Audio warning: you receive a verbal warning when you exceed the speed limit with the given percentage.Visual warning: the current speed limit is shown on the map when you exceed it.If you prefer to see the speed limit sign on the map all the time (normally it is shown only if your speed exceeds it), you can set it here.
Alert Point Settings	This feature allows you to receive a warning when approaching a Road Safety Camera or other alert points like school zones or railroad crossings. You must ensure on your own liability that using this feature is legal in the country where you intend to use it.You can choose what alert point sources you want to use.Provider alert points come with the application or can be updated dynamically like the community alert points. These point are refreshed less frequently but they are usually more accurate and reliable.You can set the alert for the different alert point categories individually. The following alert types are available:Audio warning: beeps can be played (natural voice) or the type of the alert can be announced (TTS) while you are approaching one of these points, and an extra alert can warn you if you exceed the given speed limit while approaching.Visual warning: the type of the alert point, its distance and the related speed limit appear on the Map screen while you are approaching one of these cameras.For some of the alert points, the enforced or expected speed limit is available. For these points, the audio alert can be different if you are below or above the given speed limit.Only when speeding: The audio alert is only played when you exceed the given speed limit.When approaching: The audio alert is always played when approaching one of these alert points. In order to draw your attention, the alert is different when you exceed the speed limit.
Warning Sign Alerts	Maps may contain driver alert information. Tap this button to turn on or off these warnings and to set the distance from the hazard to receive the warning at. These can be set individually for the different warning types.

You can control the volume of the following sound types:

Button Description
Master	This is the main volume control. These controls affect all below sounds. They can also be accessed from the Quick menu.
Guidance	These controls affect the volume of the guidance sounds (verbal instructions).
Ding	Turn off the attention tone preceding verbal instructions or adjust its volume.
Alerts	These controls affect the volume of the alert sounds (beeps).
Key Sounds	Key sounds provide audible confirmation of either pressing hardware buttons or tapping the touch screen. These controls affect key sounds.

Controls for each sound type:

Button Description
Volume slider Adjusts the volume of the related sound.
	Use the switch to mute the related sound. The slider becomes inactive. Tap again to re-enable.

5.3.2 Customise Quick menu

The content of the Quick menu (page 30) is fully customisable. Tap the button you want to change, and select its new function from the list.

The list of available functions and their descriptions are on page 31.

5.3.3 Route settings

These settings determine how routes will be calculated.

Button Description
Vehicle	You can set the type of vehicle you will use to navigate the route. Based upon this setting, some of the road types can be excluded from the route, or some of the restrictions may not be taken into account in route calculation.
Navigation Mode	On-road navigation creates a turn by turn itinerary using the road network on the map. Switch to off-road navigation to navigate between destinations in a straight line.
Route Planning Method	The route calculation can be optimised for different situations and vehicle types by changing the planning method. See below for details.
Calculate Green Alternative	If the selected routing method is not Green, you can have your route compared to the best green alternative on the screen when confirming the route. If this alternative is much better than the selected method, you can quickly switch to Green mode.

To let the route fit your needs, you can also set which road types are to be considered for or to be excluded from the route if possible.

Excluding a road type is a preference. It does not necessarily mean total prohibition. If your destination can only be accessed using some of the excluded road types, they will be used but only as much as necessary. In this case a warning icon will be shown on the My Route screen, and the part of the route not matching your preference will be displayed in a different colour on the map.

In the list of road types you can see in how many segments and what total length of the road type is used in the current route.

Button Description
	You might need to avoid motorways when you are driving a slow car or you are towing another vehicle.
	Charge roads are pay roads where you can purchase a pass or vignette to use the road for a longer period of time. They can be enabled or disabled separately from toll roads.
	The software includes toll roads (pay roads where there is a per-use charge) in the routes by default. If you disable toll roads, your software plans the best toll-free route.
	The software includes ferries in a planned route by default. However, a map does not necessarily contain information about the accessibility of temporary ferries. You might also need to pay a fare on ferries.
	The software excludes unsealed roads by default: unsealed roads can be in a bad condition and usually you cannot reach the speed limit on them.

Vehicle profiles:

When you first tap Vehicle, you see the list of default vehicle profiles. You have the following options:

Button Description
	You can edit the parameters of the vehicle profile.
	Tap this button to reveal the below options.
	Tap this button to create your own vehicle profile.
	Tap this button to reset all vehicle profiles to their default settings.

When creating a new vehicle profile, first you need to select the vehicle type. Then you need to set the following parameters (some of them may not exist for the selected vehicle type). You can modify the same parameters when you edit an existing profile:

Button Description
Name	Tap this button to rename the profile for something meaningful.
Fuel Consumption Urban	Enter the average consumption of your vehicle when used in built-up areas. The unit for consumption can be set in Regional Settings.
Fuel Consumption Rural	Enter the average consumption of your vehicle when used on highways. The unit for consumption can be set in Regional Settings.
Engine Type	Select the engine and fuel type of your vehicle. This helps in estimating the CO2 emission.
Fuel Price	Enter the average fuel price for travel cost calculation. The currency can be set in Regional Settings.
Max. Speed	Set the maximum speed you travel with the vehicle.
Use Extended Settings	Check this box to enable more settings for the below parameters.
Length	Set the total length of the vehicle.
Width	Set the width of the vehicle.
Height	Set the height of the vehicle.
Trailer	Set if there is a trailer attached to the vehicle.
Maximum Allowed Weight	Set the maximum allowed weight of the vehicle.
Actual Weight	Set the actual weight of the vehicle.

Freight

Select one or more hazard types if the vehicle carries dangerous material.

Vehicle types:

• Manoeuvre restrictions and directional constraints are taken into account when planning a route.
• Roads are used only if access for cars is allowed.
• Private roads and resident-only roads are used only they are inevitable to reach the destination.
• Walkways are excluded from routes.

• Neither manoeuvre restrictions nor directional constraints are taken into account when planning a route.
• Roads are used only if access for pedestrians is allowed.
• Controlled-access roads are excluded from routes.
• A private road is used only if the destination is there.
• Speed limits are not used in route calculation and an average walking speed is used when calculating the estimated time of arrival.

• Manoeuvre restrictions and directional constraints (if they are applied to bicycles in the map data) are taken into account when planning a route.
• Roads are used only if access for bicycles or pedestrians is allowed.
• Controlled-access roads are excluded from routes.
• A private road is used only if the destination is there.

- Speed limits are not used in route calculation and an average cycling speed is used when calculating the estimated time of arrival.

Emergency

- All manoeuvres are available in intersections.

- Directional constraints are taken into account the way that opposite direction is allowed with a low speed.

- A private road is used only if the destination is there.

- Walkways are excluded from routes.

Bus

- Manoeuvre restrictions and directional constraints are taken into account when planning a route.

- Roads are used only if access for buses is allowed.

- Private roads, resident-only roads and walkways are excluded from routes.

Taxi

- Manoeuvre restrictions and directional constraints are taken into account when planning a route.

- Roads are used only if access for taxis is allowed.

- Private roads, resident-only roads and walkways are excluded from routes.

Route Planning Method types:

Option Description
Fast	Gives a quick route if you can travel at or near the speed limit on all roads. Usually the best selection for fast and normal cars.
Short	Gives a short route to minimise the distance to travel. Usually practical for pedestrians, cyclists or slow vehicles. Searching for a short route regardless of the speed, this route type is rarely practical for normal vehicles.Gives a quick but fuel efficient route based on the fuel consumption data given in Green Routing settings (page 95). Travel cost and CO2 emission calculations are estimations only. They cannot take elevations, curves and traffic conditions into account.
	For vehicle types where Green routing is not available, this method combines the benefits of Fast and Short: The software calculates as if it were calculating the Fast route, but it takes other roads as well to save fuel.
	Results in a route with fewer turns and no difficult manoeuvres. With this option, you can make your software to take, for example, the motorway instead of a series of smaller roads or streets.

5.3.4 User profiles

If more drivers use the software for navigating, their settings can be remembered by using one of the user profiles. Rename the profiles after tapping the edit button on the right so that all users know which profile to use and switch between profiles by tapping its name. If you select a new profile, the application restarts so that the new settings can take effect.

5.3.5 Map settings

You can fine-tune the appearance of the Map screen. Adjust the map view to your needs, choose suitable colour themes from the list for both daytime and night use, change the blue arrow to a 3D car model, show or hide 3D buildings, turn track logging on or off, and manage you Place visibility sets (which Places to show on the map).

The map is always shown on the screen so that you can see the effect when you change a setting.

Button Description		Switch the map view between a 3D perspective view and a 2D top-down view.
	View Mode 3D
	Viewpoint Normal	Adjust the basic zoom and tilt levels to your needs. Three levels are available.
	Automatic Overview ON	When selected, the map zooms out to show an overview of the surrounding area if the next route event (manoeuvre) is far. When you get close to the event, the normal map view returns.
	Colours Auto	Switch between daytime and night colour modes or let the software switch between the two modes automatically a few minutes before sunrise and a few minutes after sunset.
	Day Map Colour	Select the colour scheme used in daytime mode.
	Night Map Colour	Select the colour scheme used in night mode.

	Replace the default position marker to one of the 3D vehicle models. You can select separate icons for different vehicle types selected for route planning. Separate icons can be used for car, pedestrian and the other vehicles.
	Show or suppress 3D landmarks, 3D artistic or block representations of prominent or well-known objects.
	Show or suppress optional data of 3D city models, 3D artistic or block representation of full city building data containing actual building size and position on the map.
	Show or suppress the 3D elevation of the surrounding terrain.
	Turn on or off track log saving, that is, saving the sequence of the locations your journeys go through.
	Select which Places to show on the map while navigating. Too many Places make the map crowded so it is a good idea too keep as few of them on the map as possible. For this, you have the possibility to save different Place visibility sets. You have the following possibilities: Tap the checkbox to show or hide the Place category. Tap the name of the Place category to open the list of its subcategories. Tap to save the current Place visibility set or to load a previously saved one. Here you can also revert to the default visibility settings.

5.3.6 Visual guidance settings

Settings related to guidance on the map screen can be adjusted here.

Data Fields	The data fields in the corner of the Map screen can be customised. Tap this button and select the values you want to see. The values can be different when you navigate a route from when you are just cruising without a given destination. You can select general trip data like your current speed or the altitude, or route data related to your final destination or the next waypoint on your route.
Junction View	If you are approaching a motorway exit or a complex intersection and the needed information exists, the map is replaced with a 3D view of the junction. You can turn this feature on or let the map be displayed for the whole route.
Facility Types	Select the service types displayed for the motorway exists. Choose from the POI categories.
Signpost	Whenever adequate information is available, lane information similar to the real ones on road signs above the road is displayed at the top of the map. You can turn this feature on or off.
Junction View	If you are approaching a motorway exit or a complex intersection and the needed information exists, the map is replaced with a 3D view of the junction. You can turn this feature on or let the map be displayed for the whole route.
Tunnel View	When entering tunnels, the surface roads and buildings can be disturbing. This feature shows a generic picture of a tunnel instead of the map. A top-down overview of the tunnel and remaining distance are also displayed.
Route Progress Bar	Turn on the route progress bar to see your route as a straight line on the left side of the map. The blue arrow represents your current position and moves up as you travel. Waypoints are also displayed on the line.When you slow down while driving on a motorway, there is a chance that you are in a traffic jam so the software offers you a detour using the next exit. The message shows you distance of the exit and the difference in distance and estimated time compared to the original route. You can choose from one of the following options:Tap Dismiss or just ignore the message if you want to keep the original route.Tap Preview to see the overview of the original route and the detour to make the decision. You can accept the detour as offered or increase the bypassed motorway segment before accepting.Turn to the suggested new direction and the route will be automatically recalculated.
	Similar to the above possibility, alternative routes can be suggested when driving on normal roads. The software will select a different turn in the upcoming intersection and offers you a different route for the next section of the route.Your options are the similar as above but you cannot modify the offered detour.
	Parking at the destination may not be easy in city areas. As you approach the destination, the software can offer parking category Places near your destination (if POI data is available). Tap the “P” button to open a top-down map with the destination and the offered parking Places. Select one and modify the route accordingly.
Offer Hints Upon Detour	If you leave the recommended route and suddenly exit the motorway, the application offers different alternatives near the exit like petrol stations or restaurants. Also, if there are avoidable parts of the original route ahead (like a tunnel, a toll road or a ferry), you will find them in the list in case you want to bypass them with the help of the software.

5.3.7 Display settings

Display related settings include menu animations, separate skins for daytime and night use and the brightness of the display.

Menu Animations	When animation is turned on, buttons on menus and keyboard screens appear in an animated way. Screen transitions are also animated.
Day Skin Theme	Select the style and colours of the application used in daytime mode.
Night Skin Theme	Select the style and colours of the application used in night mode.
Current Backlight	Adjust the display backlight.

5.3.8 Regional settings

These settings allow you to customise the application for your local language, measurement units, time and date settings and formats, as well as to choose the time zone.

Button Description
Program language	This button displays the current written language of the user interface. By tapping the button, you can select a new language from the list of available languages. The application will restart if you change this setting; you are asked to confirm this.
Units and Formats	You can set the distance units to be used by the program. Your software may not support all the listed units in some voice guidance languages.Select between 12 and 24 hours time display and the various international date display formats.
Time Zone	By default, time zone is taken from the map information and adjusted by your current location. Here you can set time zone and daylight saving manually.

5.3.9 Trip monitor settings

Trip logs and track logs contain useful information about your trips. Trip logs can be saved manually when you reach your destination or you can turn on the automatic saving here. You can access these logs in the Trip monitor. Trip monitor is available from the More menu.

Enable auto-saving	Trip monitor can record statistical data of your trips. If you need these logs later, you can let the application save them automatically for you.
Trip database size	This is not a button. This line shows the current size of the trip database, the sum of all trip and track logs saved.
Save track log	Track logs, the sequence of the positions given by the GPS receiver, can be saved together with trip logs. They can later be displayed on the map. You can let the application save the track log whenever it saves a trip.

5.3.10 Log Collection settings

If you accept this when first using the application, it collects usage information and GPS logs that may be used for improving the application and the quality and coverage of maps. The data is processed anonymously; no one will be able to track any personal information.

Here you can enable or disable collecting these logs.

	Anonymous statistical information on using the navigation software is collected for later development purposes. Understanding how different people use the application can help us improve the user interface and the program workflow.
	Anonymous track logs are collected for later development purposes. Your trips can help us improve the quality and coverage of maps.

2D/3D GPS reception

The GPS receiver uses satellite signals to calculate its (your) position and needs at least four signals to give a three-dimensional position, including elevation. Because the satellites are moving and because objects can block the signals, your GPS device might not receive four signals. If three satellites are available, the receiver can calculate the horizontal GPS position but the accuracy is lower and the GPS device does not give you elevation data: only 2D reception is possible.

Active route

The currently navigated route. Whenever the destination is set, the route is active until you delete it, reach your destination or you quit the software. See also: Route.

Colour theme

Your software comes with different colour themes for daytime or night use of the map and menu screens. Themes are custom graphic settings and they can have different colours for streets, blocks or surface waters in 2D and 3D modes, and they display shades or shadows in different ways in 3D mode.

One daytime scheme and one night scheme is always selected for the map and for the menus. The software uses them when it switches from day to night and back.

GPS accuracy

Several factors have impact on the deviation between your real position and the one given by the GPS device. For example, signal delay in the ionosphere or reflecting objects near the GPS device have a different and varying impact on how accurately the GPS device can calculate your position.

Map

The software works with digital maps which are not simply the computerised versions of traditional paper maps. Similarly to the paper road maps, the 2D mode of digital maps show you streets, roads, and elevation is also shown by colours.

In 3D mode, you can see the altitude differences, for example valleys and mountains, elevated roads, and in selected cities 3D landmarks and 3D buildings are also displayed.

You can use digital maps interactively: you can zoom in and out (increase or decrease the scale), you can tilt them up and down, and rotate them left and right. In GPS-supported navigation, digital maps facilitate route planning.

North-up map orientation

In North-up mode the map is rotated so its top always faces North. This is the orientation for example in Find on Map. See also: Track-up map orientation.

Road Safety Camera

Special alert points for speed, red light or bus lane cameras. Different data sources are available. You can configure the software to warn you when you approach one of these cameras.

Detecting the location of Road Safety Cameras is prohibited in certain countries. It is the sole responsibility of the driver to check whether this feature can be used during the trip.

Route

A sequence of route events, i.e. manoeuvres (for example, turns and roundabouts) to reach the destination. The route contains one start point and one or more destinations. The start point is the current (or last known) position by default. If you need to see a future route, the start point can be replaced with any other given point.

Town/Suburb Centre

The Town/Suburb centre is not the geometric centre of the settlement but an arbitrary point the map creators have chosen. In towns and villages, it is usually the most important intersection; in larger cities, it is one of the important intersections.

Track-up map orientation

In Track-up mode the map is rotated so its top always points in the current driving direction. This is the default orientation in 3D map view mode.

Vehimarker

The current position is shown with a blue arrow on the map by default. The direction of the blue arrow shows the current heading. This position marker can be replaced with different vehicle and pedestrian symbols. You can even specify different Vehimarkers for different route types (depending on which vehicle type is selected for route calculation).

7 End User Licence Agreement

1 The contracting parties

1.1 This Agreement has been entered into by and between Nav N Go Kft. (registered seat: 23 Bérc utca, H-1016 Budapest, Hungary; Company reg.no.: 01-09-891838) as Licensor (hereinafter: Licensor) and You as the User (hereinafter: User; the User and the Licensor jointly referred to as: Parties) in subject of the use of the software product specified in this Agreement.

2 Conclusion of the Agreement

2.1 The Parties hereby acknowledge that this Agreement shall be concluded by implicit conduct of the Parties without signing the Agreement.

2.2 The User hereby acknowledges that following the lawful acquisition of the software product constituting the object of this Agreement (Section 4), any degree of use, installation into a computer or other hardware, installation of such hardware into a vehicle, pressing of the “Accept” button displayed by the software during installation or use (hereinafter referred to as Use) shall mean that the User has accepted the terms and conditions of this Agreement as legally binding.

2.3 This Agreement shall by no means authorise use of the software product by those persons having unlawfully acquired the software product or having unlawfully installed it on a computer or in a vehicle.

3 Relevant laws and regulations

3.1 To all issues not regulated by this Agreement, the laws of the Republic of Hungary, with specific reference to Act IV of 1959 on the Civil Code and to Act LXXVI of 1999 on Copyrights shall apply.

3.2 The original language version of this Agreement is the Hungarian version. This Agreement has versions in other languages as well. In case of dispute the Hungarian version shall prevail.

4 Object of the Agreement

4.1 The object of this Agreement shall be the navigation guidance software product of Licensor (hereinafter referred to as the Software Product).

4.2 The Software Product shall include the operating computer program, its complete documentation, the map database pertaining thereto and any third-party content and services accessible through the Software Product (hereinafter: Database).

4.3 Any form of display, storage, coding, including printed, electronic or graphic display, storage, source or object code, or any other as yet undefined form of display, storage, or coding, or any medium thereof shall be deemed parts of the Software Product.

4.4 Error corrections, additions, updates used by the User following the conclusion of this Agreement shall also be deemed parts of the Software Product.

5 Rights under copyright

5.1 Unless otherwise provided by law or contractual provisions, the Licensor is the sole and exclusive owner of all material copyrights vested in the Software Product.

5.2 Copyrights extend to the whole Software Product and to its parts separately as well.

5.3 The owner(s) of the copyrights of the Database forming part of the Software Product is (are) the natural person(s) or corporate entity(ies) listed in the Appendix to this Agreement or in the “About” menu item of the operating computer programme (hereinafter referred to as Database Owner). The user’s manual of the Software Product includes the name of the menu option where all the owners of the Database items are listed. The Licensor hereby states that it has obtained sufficient usage and representation rights from the Database owners in order to utilise the Database, to offer it for utilisation and to transfer it for utilisation as set forth in this Agreement.

5.4 Pursuant to this Agreement, all rights vested in the Software Product shall remain in the ownership of the Licensor, except for those to which the User is entitled under law or by virtue of this Agreement.

6 Rights of the User

6.1 The User is entitled to install the Software Product into one hardware device (desktop, handheld, portable computer, navigation device), and to run and use one copy of the Software Product or a preinstalled copy of the Software Product

thereon.

6.2 The User undertakes and accepts that the Software Product and/or its certain elements and/or contents provided by third parties may require separate action (registration/activation) within the time period specified in the Software product to achieve its partial or full functionality.

6.3 The User is entitled to make one backup copy of the Software Product. However, if the Software Product operates after installation without the use of the original media copy, then the original media copy shall be deemed to be a backup copy. In all other cases, the User is only entitled to use the backup copy if the original media copy of the Software Product has been ascertainably and unequivocally rendered unsuitable for its lawful and intended use.

7 Limitations of use

7.1 The User is not entitled

7.1.1 to duplicate the Software Product (to make a copy thereof);

7.1.2 to lease, rent or lend it or to transfer it to a third person for any reason;

7.1.3 to translate the Software Product (including translation (compilation) to other programming languages);

7.1.4 to decompile the Software Product;

7.1.5 to evade the protection of the Software Product or to modify, circumvent or obviate such protection through technological or by any other means;

7.1.6 to modify, extend, transform the Software Product (in whole or in part), to separate it into parts, combine it with other products, install it in other products, utilise it in other products, not even for the purpose of achieving interoperability with other devices;

7.1.7 apart from using the computer program, to obtain information from the Database as a part of the Software Product, to decompile the Database, to use, copy, modify, extend, transform the Database in whole or in part or the group of data stored therein, or to install it in other products or otherwise, utilise it in other products or to transfer it, not even with the aim of achieving interoperability with other products.

7.2 The User acknowledges that the Software Product may prohibit or block partly or completely the use of the Software Product and/or its parts and/or third party contents if the separate action (activation/registration) as specified in Section 6 is not met within the time defined in the Software Product.

7.3 The User may only use the contents available through the Software Product and provided by third parties for his/her own personal benefit and at his/her own risk. It is strictly prohibited to store, to transfer or to distribute these data or contents or to disclose them in full or in part to the public in any format or to download them from the product.

8 No warranty or limitation of responsibility

8.1 The Licensor hereby informs the User that although the greatest care was taken in producing the Software Product, given the nature of the Software Product and its technical limitations, the Licensor does not provide a warranty for the Software Product being completely error-free, and the Licensor is not bound by any contractual obligation whereby the Software Product obtained by the User should be completely error-free.

8.2 The Licensor does not warrant that the Software Product is suitable for any purpose defined either by the Licensor or the User, and does not warrant that the Software Product is capable of interoperating with any other system, device or product (e.g. software or hardware).

8.3 The Licensor does not assume any responsibility for damages incurred due to an error in the Software Product (including errors of the computer program, the documentation and the Database).

8.4 The Licensor does not assume any responsibility for damages incurred due to the Software Product not being applicable for any defined purpose, or due to the error or incompatibility of the Software Product with any other system, device or product (e.g. software or hardware).

8.5 The Licensor also draws the attention of the User to the fact that, when using the Software Product in any form of vehicle, observing the traffic regulations and rules (e.g. use of obligatory and/or reasonable and suitable security measures, proper and generally expected care and attention in the given situation, and special care and attention required due to the use of the Software Product) is the exclusive responsibility of the User. The Licensor shall not assume any

responsibility for any damages occurred in relation to use of the Software Product in a motor vehicle.

8.6 By concluding the Agreement, the User shall, in particular, acknowledge the information stated in Section 8 above.

9 Sanctions

9.1 The Licensor hereby informs the User that, if the Licensor finds its rights under the Copyright Act to be breached, the Licensor may

9.1.1 seek judicial recognition of this breach;

9.1.2 demand that the breach cease and order the person in breach to refrain from continuing such actions;

9.1.3 demand that the person under breach give proper compensation (even by way of publicity at the expense of the person in breach);

9.1.4 claim the return of the increase of assets due to the breach;

9.1.5 demand the cease of the wrongful action and, demand restitution to its state before the breach was committed at the expense of the person in breach, and may demand the destruction of instruments and materials used to commit the breach as well as of the products created by the breach;

9.1.6 claim for damages.

9.2 The Licensor hereby also informs the User that the breach of copyrights and related rights is a crime under Act IV of 1978 on the Hungarian Criminal Code, which may be sentenced of two years in prison in basic cases and up to eight years in prison in aggravated cases.

9.3 Contents and services provided by third parties

The Licensor hereby excludes any liability of its own for the Database in the Software Product and for any content or service provided by a third party by using the Database. The Licensor does not warrant the quality, suitability, accuracy, fitness for a specific purpose or territorial coverage of the product or service or the availability of the service, and it specifically excludes any liability for the suspension of the service, and any damage arising in relation to the service or for complete cancellation of the service.

The relevant information and data in connection with the contents and services provided by third parties are available at www.navngo.com. The User hereby acknowledges that the contents and services provided by third parties may only be used at the risk of the User and for the personal benefit of the User.

9.4 Contents and services provided by the Licensor or an agent of the Licensor The Licensor or a contractual partner may offer various products and services to the User through www.naviextras.com. The User may only use these services when the User has read and understood the relevant end user licence agreement(s) at www.naviextras.com and the User is obliged to use the services in line with the terms and conditions thereof.

9.5 The parties hereby agree that - depending on the nature of the dispute - either the Pest Central District Court (Pesti Központi Kerületi Bíróság) or the Metropolitan Court of Budapest (Fővárosi Bíróság) will have exclusive jurisdiction to rule on any disputes arising in connection with this Agreement.

1. Anonymous data collection

10.1 The User hereby acknowledges that the Software Product may collect and store data connected to the usage of the Software Product by the User (e.g. movement/route data, user interaction data). Such data collection functions may be disabled or enabled by User any time from within the corresponding menu. The collected data is connected to the device type identifier of the device running the Software Product and not associated in any way with any personal information of the User or with the User itself.

10.2 The collected data may be uploaded to Licensor's database and used exclusively for the purpose of enhancing and improving the features and services of the Software Product and the Databases.

Uploading is executed through Licensor's special software or by the User navigation device, and the upload may be enabled or disabled by User. After successful data upload, the collected data is deleted from the Software Product storage media.

10.3 Collected data is transmitted, stored and handled anonymously and no connection of the data with the User shall be established by Licensor or any third party.

UNIDEN IGO500 and IGO430 IN CAR NAVIGATION

IMPORTANT Satisfactory evidence of the original purchase is required for warranty service

Please refer to our Uniden website for any details or warranty durations offered in addition to those contained below.

Warrantor: The warrantor is either Uniden Australia Pty Limited ABN 58 001 865 498 (“Uniden Aust”) or Uniden New Zealand Limited (“Uniden NZ”) as the case may be.

Terms of Warranty: Uniden Aust/NZ warrants to the original retail purchaser only that the IGO500 and IGO430 (“the Product”), will be free from defects in materials and craftsmanship for the duration of the warranty period, subject to the limitations and exclusions set out below.

Warranty period: This warranty to the original retail purchaser is only valid in the original country of purchase for a Product first purchased either in Australia or New Zealand and will expire one (1) year from the date of the original retail sale.

If a warranty claim is made, this warranty will not apply if the Product is found by Uniden to be:

(A) Damaged or not maintained in a reasonable manner or as recommended in the relevant Uniden Owner's Manual;
(B) Modified, altered or used as part of any conversion kits, subassemblies or any configurations not sold by Uniden Aust or Uniden NZ;
(C) Improperly installed contrary to instructions contained in the relevant Owner's Manual
(D) Repaired by someone other than an authorized Uniden Repair Agent in relation to a defect or malfunction covered by this warranty; or
(E) Used in conjunction with any equipment, parts or a system not manufactured by Uniden.

Parts Covered: This warranty covers the Product and included accessories.

User-generated Data: This warranty does not cover any claimed loss of or damage to user-generated data (including but without limitation phone numbers, addresses and images) that may be stored on your Product.

Statement of Remedy: If the Product is found not to conform to this warranty as stated above, the Warrantor, at its discretion, will either repair the defect or replace the Product without any charge for parts or service. This warranty does not include any reimbursement or payment of any consequential damages claimed to arise from a Product's failure to comply with the warranty.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

This warranty is in addition to and sits alongside your rights under either the COMPETITION AND CONSUMER ACT 2010 (Australia) or the CONSUMER GUARANTEES ACT (New Zealand) as the case may be, none of which can be excluded.

Procedure for obtaining warranty service: Depending on the country in which the Product was first purchased, if you believe that your Product does not conform with this warranty, you should deliver the Product, together with satisfactory evidence of your original purchase (such as a legible copy of the sales docket) to Uniden at the addresses shown below. You should contact Uniden regarding any compensation that may be payable for your expenses incurred in making a warranty claim. Prior to delivery, we recommend that you make a backup copy of any phone numbers, images or other data stored on your Product, in case it is lost or damaged during warranty service.

UNIDEN AUSTRALIA PTY LTD

Service Division

345 Princes Highway,

Rockdale, NSW 2216

Phone number: 1300 366 895

Email: [e-mail]

UNIDEN NEW ZEALAND LTD

Service Division

150 Harris Road, East Tamaki

Auckland 2013

Phone number: [phone]

Email: [e-mail]

Notes

THANK YOU FOR BUYING A UNIDEN PRODUCT.

Uniden®

© 2012 Uniden Australia Pty Limited. Uniden New Zealand Ltd. Printed in PRC.
