USER MANUAL FPS-1000 Peerless-AV

FEATURES

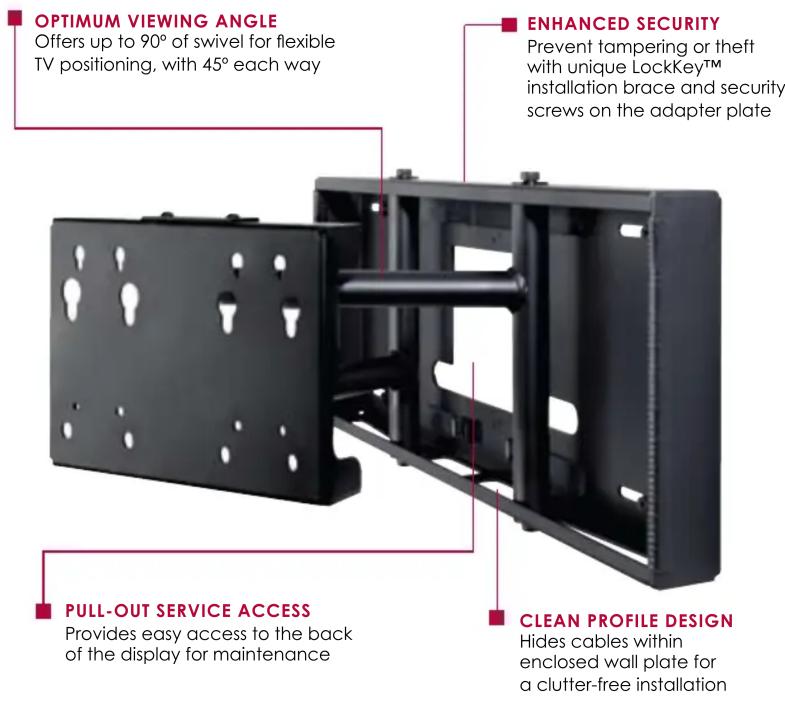

■ Built-in swivel up to 90° (45° each direction) allows for adjustable viewing angles
■ Easy pull-out swivel provides quick maintenance access
Built in adapter plate supports VESA ^® 100 x 100 and 200 x 100mm compatibility
■ Works with Peerless-AV dedicated and universal PLP mounting adapter plates
■ 2.18" (55.37mm) deep when closed, swivel arms extend to 10.52" (267.21mm)
■ Ideal for wall mount applications and attachment to false backsplashes
■ Roll can be adjusted 1° clockwise or counterclockwise
■ Clean profile design hides wiring and mount within enclosed wall plate
■ Includes security lock out screw to eliminate pull out ability
■ Security screws prevent tampering and theft
■ Mounts on 16" (406.4mm) studs, with up to 4" (101.6mm) of horizontal shift

* OSHPD Approval Pending

Pull-out Swivel Wall Mount

For 26" to 60" Flat Panel Displays

The FPS-1000 Pull-out Swivel Wall Mount combines the best features of a wall mount and a pivot arm in one. This mount is essential for on the wall, low-profile, single or multi-panel video wall installations or hospitality recessed applications. It comes standard with VESA 100/200mm compliant mounting hole pattern and is compatible with Peerless-AV PLP adapter technology to accommodate virtually any flat panel display. Installation and maintenance is made easy with 4" (101.6mm) of horizontal on the wall shift, LockKey™ safety feature and easy access to the back of the display for maintenance. Functionality, great looks and display compatibility options combined with versatile installation features make the FPS-1000 the ideal solution for any single or multi-display installation.

TV size: 26"-60" (66-152cm) Max load: 150lb (68kg)

Mechanical component with bracket and mounting bracket (no visible text or symbols)

LockKey™ installation tool

Exterior view of a wall-mounted computer monitor with black frame (no text or symbols visible)

Perfect for in-wall or recessed applications

FPS-1000 Pull-out Swivel Wall Mount for 26" to 60" (66 to 152cm) flat panel displays

Product Specifications

DIMENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITY FINISH AVAILABLE COLORS
FPS-1000	21" x 9.64" x 10.52"(533 x 245 x 267mm)	17.6lb (7.98kg) 150lb (68.04kg)		Scratch resistant fused epoxy	Black

Package Specifications

	PACKAGE SIZE (L x W x H)	PACKAGE SHIP WEIGHT	PACKAGE UPC CODE	PACKAGE CONTENTS	UNITS IN PACKAGE
FPS-1000	25" x 5.25" x 12"(635 x 133 x 305mm)	20lb (9.07kg)	735029239444	Wall mount assembly, LockKeyTM installation tool, locking swivel tab, cable management sleeve, fastener packet including VESA® 100 x 100 and 200 x 100mm display attachment	1

Accessories

ACC450 VESA ^® 200 x 200 mm Accessory Plate

Works with all PLP-style VESA ^® mounting hole adapter plates

WSP816 (-W) Metal stud wall plate, 16" on center

WSP820 (-W) Metal stud wall plate, 20" on center

WSP824 (-W) Metal stud wall plate, 24" on center

All dimensions = inch (mm)

Top View

Wall Bracket Detail

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

ISO View

Top-down schematic of a rectangular enclosure with internal compartments and mounting holes (no text or symbols)

Front View
+/-1° Roll

Side View Extended

Side View Collapsed

Bracket Detail

ARCHITECTS SPECIFICATIONS

The Flat Panel Pull-out Swivel Wall Mount shall be a Peerless-AV model FPS-1000 and shall be located where indicated on the plans.

It shall be constructed of heavy gauge steel. It shall feature up to 45° of swivel left and right depending on screen size.

It shall feature +/- 1° of roll. The finish shall be scratch resistant fused epoxy.

Assembly and installation shall be done according to instructions provided by the manufacturer.

Peerless Industries, Inc. ■ 2300 White Oak Circle ■ Aurora, IL 60502 ■ [phone] ■ [phone] ■ Fax: [phone] ■ www.peerless-av.com

Visit www.peerless-av.com to see the complete line of AV solutions from Peerless-AV, including flat panel mounts, projector mounts, carts/stands, furniture, cables, screen cleaners and a full assortment of accessories.
