Product Type	LED Television
Model	ELST5016S
Brand	Element
Screen Size (Diagonal)	50 inches
Display Resolution	4K UHD (3840 x 2160)
Refresh Rate	60 Hz
Smart TV Platform	Roku TV
Connectivity	3 HDMI, 1 USB, 1 Ethernet, Wi-Fi, Bluetooth
Audio Output	2 x 8W speakers
Power Consumption (Typical)	100 W
Standby Power Consumption	< 0.5 W
Dimensions (with stand)	44.1 x 9.2 x 26.7 inches
Dimensions (without stand)	44.1 x 2.7 x 25.6 inches
Weight (with stand)	24.5 lbs
Weight (without stand)	23.8 lbs
VESA Wall Mount Pattern	200 x 200 mm
Power Supply	AC 120V, 60Hz
Key Features	4K upscaling, HDR10, Voice control, Mobile app
Cleaning Instructions	Wipe with soft dry cloth; do not use liquids or cleaners
Safety Notice	Place on stable surface; ensure ventilation; unplug during storms
Spare Parts Availability	Contact Element support for remote, stand, power cord
Repairability Index	Not rated; consult manual for service

Frequently Asked Questions - ELST5016S Element

How do I set up my Element ELST5016S TV for the first time?

Connect the power cord, attach the stand, and plug in. Press the power button. Follow the on-screen Roku TV setup wizard to connect to Wi-Fi, activate the TV, and add streaming channels.

What should I do if the screen is black but the power light is on?

Press the Input button to cycle through sources. If using an external device, ensure it is powered on. Try a system restart by unplugging for 30 seconds.

How can I clean the TV screen safely?

Turn off and unplug the TV. Use a soft, dry microfiber cloth to gently wipe the screen. Do not use water, alcohol, or cleaning solutions to avoid damage.

Does the ELST5016S support wall mounting?

Yes, it is compatible with a VESA 200x200 mm wall mount. Ensure the mount supports the TV's weight (about 24 lbs) and follow the mount's instructions.

Why is the remote not working?

Check the batteries and replace if needed. Ensure no obstructions between remote and TV. If using a Roku remote, try pairing: press and hold the pairing button for 3 seconds.

How do I update the TV software?

Go to Settings > System > System update. Select Check now to install available updates. Keep the TV connected to the internet.

Can I connect Bluetooth headphones?

Yes, go to Settings > Remotes & devices > Bluetooth and pair your headphones. Some models may require a separate Bluetooth adapter.

What is the warranty period for this TV?

Element typically offers a 1-year limited warranty. Check your purchase receipt or contact Element support for warranty service.

How to restore factory settings?

Go to Settings > System > Advanced system settings > Factory reset. Enter the code displayed on screen. This erases all data and settings.

Why is the picture quality poor?

Adjust Picture mode in Settings. For 4K content, ensure the source device outputs 4K. Check HDMI cable quality. Disable noise reduction if needed.

USER MANUAL ELST5016S Element

50" FHD Digital LED TV

Large CRT television displaying a cityscape at dusk with illuminated skyscrapers and a sunset sky (no text or symbols visible)

INSTRUCTION MANUAL

Please read all the instructions carefully before using this TV, and keep the manual for future reference.

Important Safety Instructions 2

Additional Safety Information 3

Preparations 4

What's Included

Front/Side View

Rear View

Wall Mounting

Remote Control

Connecting External Devices 8

Customizing TV Settings 9

Turning On/Off Your TV

Setup Wizard

Navigating The On-screen Display

Streaming

Media

Viewing Photos

Listening To Music

Selecting The Input Source

Channel Selection

Volume Adjustment

Setup

Settings

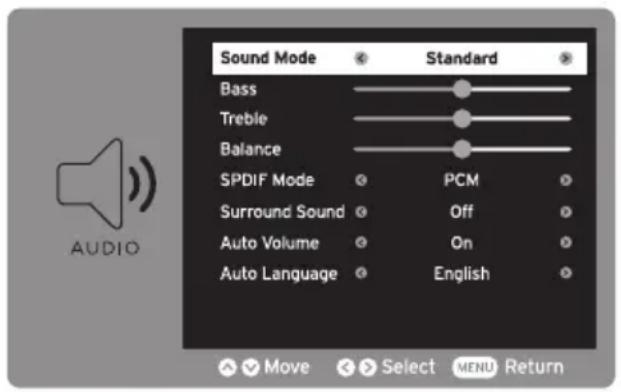

Audio Settings

Picture Settings

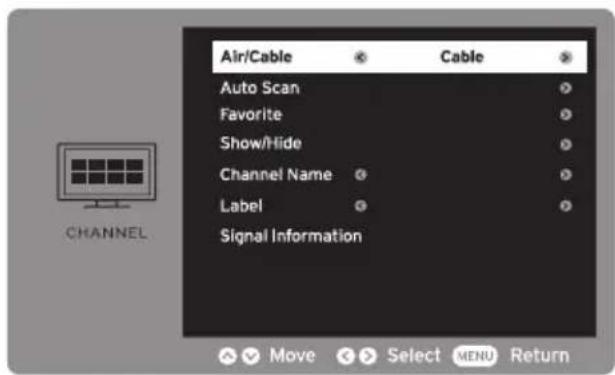

Channel Settings

Time Settings

Network Settings

Lock Settings

Parental Control

Troubleshooting 25

FCC Notes 28

Specifications 28

OTT APP Service 29

• Read these instructions – All the safety and operating instructions should be read before this product is operated.
• Keep these instructions – The safety and operating instructions should be retained for future reference.
• Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
• Follow all instructions – All operating and use instructions should be followed.
• Do not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool, and the like.
  • Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

- Unplug this apparatus during lightning storms or when unused for long periods of time.

• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
• Please keep the unit in a well-ventilated environment.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus should not be exposed to dripping or splashing. Objects filled with liquids, such as vases should not be placed on apparatus.

WARNING: The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.

WARNING: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside. Refer servicing to qualified personnel.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance.

This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

This product meets ENERGY STAR ^® guidelines for energy efficiency. ENERGY STAR ^® and the ENERGY STAR ^® mark are registered U.S. marks. ENERGY STAR ^® is a registered mark owned by the U.S. government.

To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below.

Electrical Safety

• The TV set should only be connected to a main power supply with voltage that matches the label at the rear of the product.
• To prevent overload, do not share the same power supply socket with too many other electronic components.
• Do not place any connecting wires where they may be stepped on or tripped over.
• Do not place heavy items on them, which may damage the leads.
• Hold the main plug, not the wires, when removing from a socket.
• During a thunderstorm, or when not using the television for extended period of time, turn off the power switch on the back of the television.
• Do not allow water or moisture to enter the TV or power adapter. Do NOT use in wet, moist areas, such as bathrooms, steamy kitchens or near swimming pools.
• Pull the plug out immediately, and seek professional help if the main plug or cable is damaged, liquid is spilt onto the set, if accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots or if the set does not work normally.
• Do not remove the safety covers. There are no user serviceable parts inside. Trying to service the unit yourself is dangerous and may invalidate the product's warranty. Qualified personnel must only service this apparatus.
• To avoid battery leakage, remove exhausted batteries from the remote control, or when not using for long period.
• Do not break open or throw exhausted batteries on a fire.
  • Do not mix old and new batteries.
• Do not mix Alkaline, Standard (Carbon-Zinc) or Rechargeable (Nickel Cadmium) or (Nickel Metal Hydride) batteries.

Physical Safety

• Do not block ventilation slots in the back cover. You may place the TV in a cabinet, but ensure at least 5cm (2") clearance all around.
• Do not tap or shake the TV screen, or you may damage the internal circuits. Take good care of the remote control.
  • To clean the TV use a soft dry cloth. Do not use solvents or petroleum based fluids.
• Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong, the wide blade, or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs.
  • Unplug the apparatus during lightning storms or when unused for long periods.
• Refer all servicing to a qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled, or objects have fallen into the apparatus, has been exposed to rain or moisture, does not operate normally, or has been dropped.
• Please always connect your television to a power outlet with protective ground connection.

What is Included?

Front view of a black flat-screen computer monitor with no visible text or symbols on the screen or side.

TV Set

Technical line drawing of two cylindrical mechanical components with mounting holes (no text or symbols)

Remote Control with Batteries

User Manual

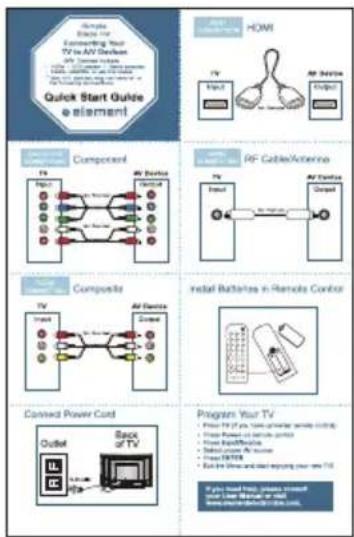

Quick Start Guide Warranty Card

Front/Side View

• ⏻ Switch the TV between On / Standby mode.
• SOURCE Press to select among different input signal sources.
• MENU Display the OSD (on screen display) menu.
• CH ^/V Press to select a channel.
  • VOL +/- Press to adjust the volume.
  • LED The LED light indicates when the TV is activated.
• IR Infrared Receiver.

Rear View

1. Headphone output

Connect to the Headphones.

2.USB Input

Connect to a USB storage device to play photo files. (USB mode)

1. LAN

Network connection port.

1. HDMI Inputs

Connect to a High-Definition (HD) signal input device.

1. VGA Input

Connect to a computer or other devices with a VGA interface.

1. PC Audio Input

Connect to a computer audio output.

1. Antenna Input (75Ω VHF/UHF)

Connect to the antenna (75Ω VHF/UHF) socket with the RF coaxial cable.

1. Optical Output

Connect a digital sound system to this jack.

1. COMPONENT/AV Input

Connect to AV devices with composite/component (Y/Pb/Pr) video and audio output sockets. COMPOSITE VIDEO and COMPONENT(Y/PB/PR) share with AUDIO IN (L/R).

Wall Mounting

The TV is provided with mounting holes for a VESA approved wall mounting bracket (Not Supplied). Remove the screws holding the base to the base bracket and lift the base away (do not remove the base mounting brackets). Mount the VESA bracket using 4 pcs isometric threaded screws (Not Supplied).

Your new TV is heavy, please consult with professional wallmount installer to perform this installation.

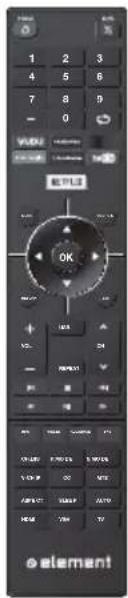

Remote Control

1. :Switch the TV between On and Standby mode.

2. Mute and restore TV sound.

3. 0\~9:Select a program.(ATV/DTV mode)

4. —:Enter multiple program channel number such as 2-1.

5. Return to the previous viewing channel.

6. APP:Press to select the desired APP.

7. MENU: Display the main menu.

8. SOURCE: Select among the different input signal sources: TV/AV/COMPONENT/HDMI1/HDMI2/HDMI3/VGA.

9. ◀▲▼▶: Allows you to navigate the on screen display menus and adjust the system settings to your preference.

10. OK: Confirm the selection.

11. RETURN: Return to previous menu.

12. EXIT: Exit the on screen display menu.

13. USB: Access into the USB directly.

14. VOL+/-:Adjust the volume.

15. CH: Select the channel

16. REPEAT: Press repeatedly to select the repeat mode.

17. ■top the playback.

18. Skip to the beginning of the previous chapter/track/photo.

19. Skip to the beginning of the next chapter/track/photo.

20. ◀◀Reverse playback rapidly.

21. ▶: Advance playback rapidly.

22. FREEZE: Freeze the picture.

23. ▶Start playback or pause.

24. ADD/ERASE:Add or delete Favorite channels.

25. FAV: Display the favorite channel list.

26. INFO: Display the present screen information such as the current channel and input source.

27. S.MODE: Select sound mode: standard/music/movie/user.

28. P.MODE: Select picture mode: dynamic/movie/energy saving/user/standard.

29. CH.LIST:Display program list.

30. V-CHIP: Set up parental control.

31. ASPECT: Select the aspect ratio.

settings:standard/wide/wide zoom/zoom/Just Scan (HDMI).

1. CC: Closed Caption selection: ON/OFF/CC On Mute.

2. MTS: Switch among different audio channels: STEREO/MONO/SAP.

3. AUTO: Press to adjust the picture automatically in VGA source.

4. SLEEP: Set the TV sleep timer: OFF/5/10.../180 / 240 min.

5. TV:Press to turn to TV mode.

6. HDMI: Access into the HDMI directly.

7. VGA: Access into the VGA directly.

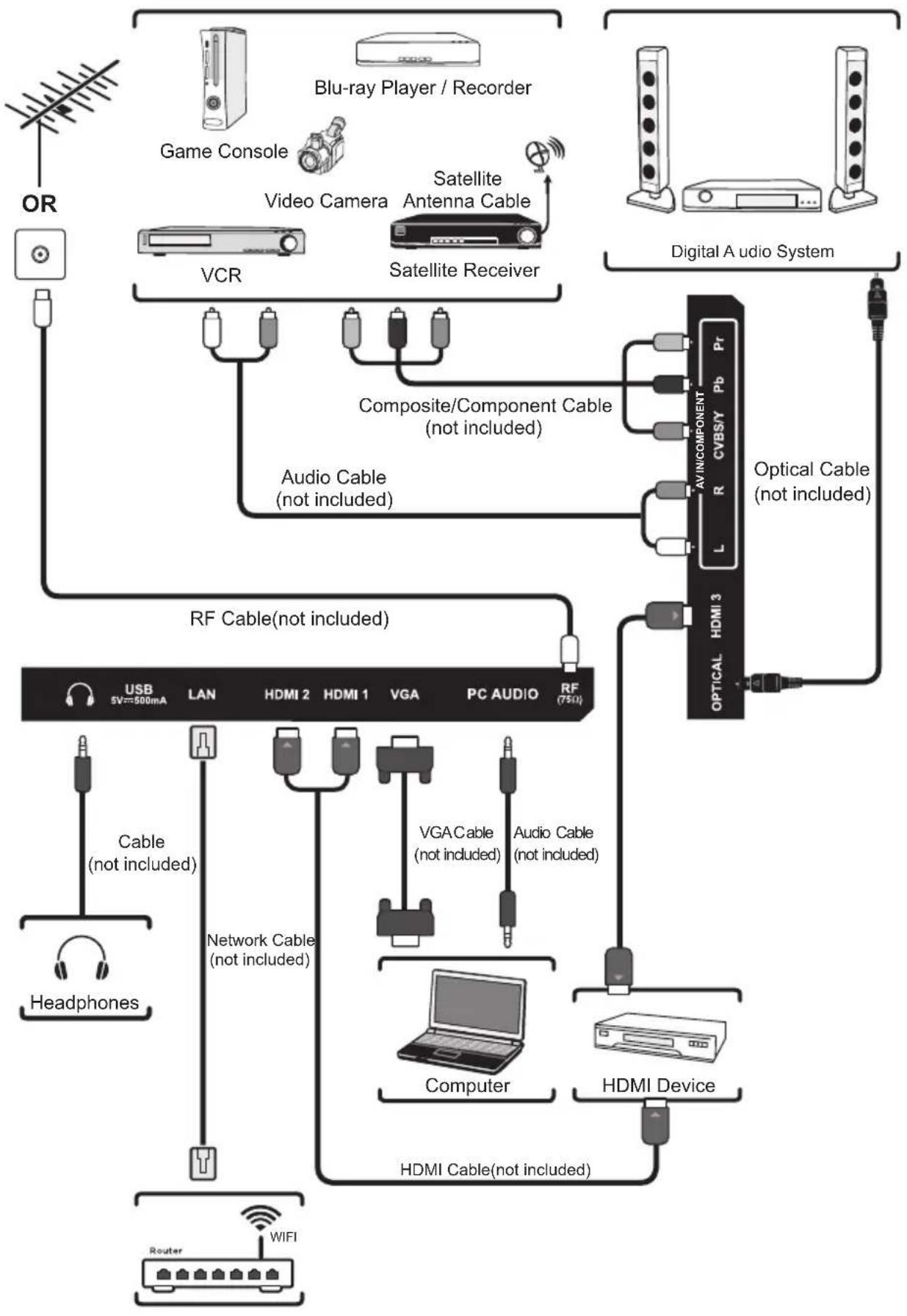


Turning On/Off Your TV

• Connect the power cord to the power socket after you have completed all the physical connections. At this stage, the TV will enter Standby Mode and the red LED indicator will illuminate.
• In Standby Mode, press the ⏻ button on the main unit or on the remote control to turn the TV on. The red LED indicator will turn blue.

The POWER button on the main unit or on the remote control can only switch the TV into standby. To completely turn off the TV, please disconnect the power cord from the power socket.

Setup Wizard

- The first time you turn the TV on; it will gointotheSetupWizard.Pressthe ▲/▼buttons to select your desired mode and press OK button to confirm.

Home Mode (Energy Saving) is the default as-shipped television configuration and settings. And Home Mode (Energy Saving) is the setting in which the product qualifies for ENERGY STAR ^® . Any changes to default as-shipped television configuration and settings would change the energy consumption. And enabling certain optional features and functionalities may increase energy consumption beyond the limits required for ENERGY STAR ^® qualification, as applicable.

Retail Mode: Select Retail Mode if you would like your picture to be brighter. At times this mode may use more energy to operate the Volume/Sound mode and the Picture Mode. In this setting, the power consumption may possibly exceed the limited requirement of the ENERGY STAR ^® qualification.

ENERGY STAR ^® is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy helping us all save money and protect the environment through energy efficient products and pratices.

The On-MODE Power under Home Mode should be less than 48 W. The SLEEP-MODE Power should be less than 0.5 W.

Setup Wizard

- Press Yes to confirm.

Note: If you want change the modes between Home Mode(Energy Saving) and Retail Mode, you can change the setting in the Setup Menu under Display Mode.

- Press the▲/▼buttons to select your desired mode and press OK button to confirm.

- Press the / buttons to select your desired mode and press OK button to confirm.

Menu Language	Select your desired language to be displayed on the menu. The default on-screen menu language is set as English.
Air/Cable Select antenna between Air and Cable.
Cable Select Cable system: Auto, STD, IRC, HRC.
Auto Scan	Search and store the available channels automatically.

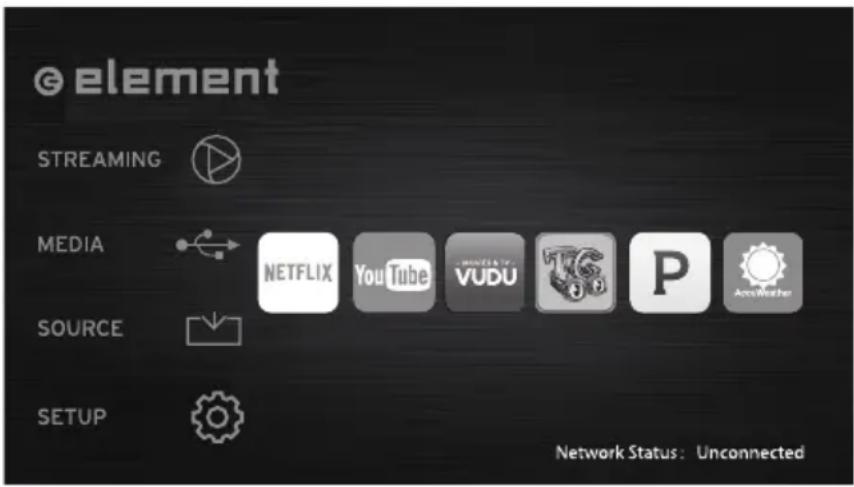

Navigating The On-screen Display

• Press the MENU button to display the main menu.
• Press the ▲/▼ buttons to navigate and select the available menus.

Streaming

- Press the MENU button on the main unit or on the remote control to display the STREAMING. Then press ◀/▶ buttons to select the desired APP and press OK button to view what you want. Or press the hotkey on the remote control to enter the APP directly.

Note: After the TV connects to network, the status Unconnected will alter to Connected.

NETFLIX	Enjoys TV shows & movies streamed instantly over the Internet.
YouTube YouTube your way on the best screen in your house.
VUDU	Discover, watch and collect the latest movies and TV shows in high quality 1080p. Free to sign up. No subscriptions, late fees or commitments.
Toongoggles	A subscription video on-demand platform that offers animated, fun and educational cartoons, engaging games and songs from all over the world and in many different languages to children.
Pandora	Free personalized radio that offers effortless and endless music enjoyment and discovery. Just start with the name of one of your favorite artists, songs, genres or composers and Pandora will do the rest. It's easy to create personalized stations that play only music you'll love.
AccuWeather	Displays the current weather conditions and the temperature anywhere in the world in centigrade or Fahrenheit.

Media

NOTE: Portable storage devices( USB disk or Hard disk) should be inserted.

- Press the MENU button on the main unit or on the remote control and then press ▲/▼ buttons to select the MEDIA, and then press OK button to enter.

Viewing Photos

Black-and-white photo of a blooming lotus flower with large leaves, no visible text or symbols

- After entering MEDIA, press ◀/▶ buttons to select PHOTOS and then select the disk type to enter. Then use ▲/▼buttons to navigate in the picture folder and then press OK button enter.

Note: File format supported: JPEG.

Listening To Music

- After entering MEDIA, press◀/▶ buttons to select MUSIC and then select the disk type to enter. Then use ▲/▼ / ◀buttons to navigate in the music folder and then press OK button enter.

Note: File format supported: MP3.

Selecting The Input Source

• Press the SOURCE button on the main unit or on the remote control to display the Input Source list.
• Press the◀/▶ buttons to select your desired input source among: TV/AV/ Component/HDMI1/HDMI2/HDMI3/VGA and then press OK button to confirm.

Channel Selection

• Press the CH^/CH▼ buttons on the main unit or on the remote control repeatedly to select the channel.
• Press the 0-9 buttons on the remote control to select the channel directly.

Press "4", and then press OK button to select channel 4.

Press "4" and "5", and then press OK button to select channel 45.

Press "1", "2" and "3", and then press OK button to select channel 123.

Volume Adjustment

• Press the VOL+/- buttons on the main unit or on the remote control to adjust the volume.
• If you wish to switch the sound off, press the Ⓧ MUTE button again or the VOL+ button to resume the sound.

Setup

- Press the MENU button on the main unit or on the remote control to display the main interface. Then press ▲/▼ buttons to select SETUP menu and press ◀/▶ button to select the desired option.

Settings

- Press◀/▶ buttons to select SETTINGS menu and then press OK button to enter. Press ▲/▼ buttons to select the following setting options and then press ◀/▶ buttons to adjust each option's setting.

Menu Language	Select menu language : English, French or Spanish.The default on-screen menu language is English.
Transparency Select to turn On/Off transparency function.
Zoom Mode	Select zoom mode : Wide/Wide Zoom/Zoom/Standard/Just Scan(HDMI).Note: Different input source, the zoom mode options may differ.
Noise Reduction	Reduce the noise level of the connected device: Off/Weak/Middle/Strong.
Advanced	Adjust advanced option's setting: H-POS, V-POS, Clock, Phase or Auto. (VGA source mode only)
Closed Caption	CC Mode Select CC mode : On, Off or CC on Mute.
	Basic Selection	Basic Selection: CC1, CC2, CC3, CC4, Text1, Text2, Text3, Text4.
	Advanced Selection	Advanced Selection: Service1, Service2, Service3, Service4, Service5, and Service6.
	Option	Options: Mode, Font, Size, Edge Effect, Edge Color, Text Color, Background Color Text Opacity, Background Opacity.
DLC Select to turn On/Off the dynamic luminance control.
Restore Default Restore the TV to factory default settings.

Audio Settings

• Press the MENU button on the main unit or on the remote control then press the ▲/▼ buttons to select AUDIO menu and then press the ▶ or the OK button to enter.
• Press the▲/▼buttons to select the following audio options and then press the ◀/► buttons to adjust each option's setting.

Sound Mode	Allow the selection of an audio-enhancement technique: Standard/Music/Movie/UserAlternative: you may press the S.MODE button to select the sound mode directly.
Bass	Control the relative intensity of lower-pitched sounds. (For User mode)
Treble	Control the relative intensity of higher-pitched sounds. (For User mode)
Balance	Adjust the relative volume of the speaker in a multiple speaker system.
SPDIF Mode	Select the digital audio output mode between RAW/PCM.
Surround Sound Provide an enhanced listening experience.
Auto Volume Volume levels are automatically controlled.
Audio Language	Select audio language among: English, French, Spanish

Picture Settings

• Press the MENU button on the main unit or on the remote control then press the ▲/▼ buttons to select PICTURE menu and then press the ▶ or the OK button to enter.
• Press the ▲/buttons to select the following picture options and then press the ◀/▶ buttons to adjust each option's setting.

Picture Mode	Cycle among picture mode: Dynamic/Movie/Energy Saving/User/Standard. Alternative: you may press the P.MODE button to select the picture mode directly.
Blue Screen	Allow the blue background to turn On/Off during weak or no signal conditions.
Brightness	Increase or decrease the amount of white in the picture. (For User mode)
Contrast	Adjust the difference between light and dark levels in the pictures. (For User mode)
Color Control the color	intensity. (For User mode)
Sharpness	Adjust the level of crispness in the edges between light and dark areas of the picture. (For User mode)
Tint Adjust the balance	between red and green levels.
Color Temp.	Cycle among color temperatures: Cool/Normal/Warm.

Channel Settings

• Press the MENU button on the main unit or on the remote control and then press the ▲/▼ buttons to select CHANNEL menu.
• Press▲/▼ buttons to select the following channel options and then press the ◀/▶ buttons to adjust each option's setting.

Air/Cable	Select antenna between Air and Cable.
Auto Scan	First, select your cable system from Auto/STD/IRC/HRC. Next, select the Auto Scan feature to scan your available cable channels. It will perform the auto scan if the Air antenna is selected.
Favorite Set the set	selected channel as favorite channels.
Show/Hide Show	Hide the selected channel.
Channel Name D	splay the current channel name.
Label Display the	current channel label.
Signal Information	Display the information of current signal.

Time SettingsTi

• Press the MENU button on the main unit or on the remote control then press the ▲/▼ buttons to select TIME menu and then press the ▶ or the OK button to enter.
• Press the▲/▼ buttons to select the following time options and then press the ◀ button to adjust each option's setting.

Sleep Timer	Select a period of time after which the TV automatically switches to standby mode: Off/5/10/.../180/240 min. Alternative: You may press the SLEEP button repeatedly to select the number of minutes directly.
Time Zone	Select a Time Zone: Hawaii/ Alaska/ Pacific/ Mountain/ Central/ Eastern/ Atlantic/ Newfoundland.
Daylight Saving Time	Select to turn On/Off daylight saving time.

Network Settings

• Press◀/▶ buttons to select NETWORK menu and then press OK button to enter.
• Press▲buttons to select the following network options and then press ◀buttons to adjust each option's setting.

Network Type	Select two types of network: Wireless or Lan.
Lan	Connect the TV to the wired Lan: Auto Get IP/Manual Get IP.
Wireless	Connect the TV to the wireless network through searching the available Wifi.
IP Address	Display the current IP information.
Deactivate Netflix	Deactivate Netflix and clear the account information.
Deactivate Vudu	Deactivate Vudu and clear the account information.
ESN	Electronic Serial Number

Auto Upgrade

• After the TV connects to network, the system will automatically detect software version.

CUSTOMIZING TV SETTINGS

- If there is a new version, it will be downloaded in the background. When you want to enter the app, a menu bar will pop up reminding you that upgrade software is downloading. Please try later...

• After the download completed, it can upgrade automatically after users press the standby button.

Note: This procedure is fully automatic, and remember not to cut off the power.

Reminder for internet connection:

• Below occasions are possible while your internet is connected to enjoy your OTT services.
  • 1. Please check your internet signal strength while internet is connected, signal strength below 50 may result bad connection and non-smooth picture.
  • 2. To enter OTT services, 30 second may be required for internet connection.

Recommended 10Mb above internet speed

Lock Settings

• Press the MENU button on the main unit or on the remote control and then press the ▲/▼ buttons to select LOCK menu.
• Use the 0-9 buttons to input 4-digit password to enter the LOCK menu.
• Press the ▲/buttons to select the following options and then press the ◀/▶ buttons to adjust each option's setting.

The default password is "0000".

Change Password	Use 0-9 buttons to input the old password and then input the new 4-digit password. Re-enter new password for confirmation.
System Lock	Select to turn On/Off system lock. The following options (USA, Canada, RRT Setting and Reset RRT) will only be accessible when you turn the system lock on.
USA	TV	TV RATING: Press OK button to lock or unlock TV rating.
	MPAA	Select MPAA rating : N/A,G, PG, PG-13, R, NC-17,or X.
Canada	Canada English	Select MPAA rating for English-speaking Canada : E, C, C8+, G, PG, 14+, 18+.
	Canada French	Select MPAA rating for Quebec Canada : E, G, 8 ans+, 13 ans+, 16 ans+, 18 ans+.
RRT Setting Set Rating Region Table.
Reset RRT Select to reset the RRT setting.
Clear Lock Clear all lock settings.

Parental Control

Press the MENU button on the main unit or on the remote control and then press the ▲/▼ buttons to select LOCK menu. Use the 0-9 buttons to input 4-digit password to enter the LOCK menu. If used, this option feature can "block" undesirable programming from appearing on the TV. Parental Control offers the user a wide variety of options and settings that restrict or "block" the programming that can appear on the TV. Parental Control allows the user the capability of defining which program rating they consider acceptable to the younger more sensitive viewer. It can be preset and turned either on or off by the user who specifies the secret 4-number code, the password. The number of hours blocked are specified. General audiences and children blocks should be both programmed into the TV's memory. Viewer ratings are specified for both TV and the motion picture Industry; both rating systems should be used, for complete coverage. The ratings are based on the ages of children.

Overview

To ensure complete coverage for all TV programs, (movies and regular TV shows) choose a rating for MPAA, from the selections below, as well as ratings from the TV Parental Guidelines Rating Systems below, using the Age Block option for General Audiences, and for children. In addition to those, you may wish to add additional restrictions from the content block menu, and submenus examples below.

Things to Consider before Setting up Parental Control

Determine which rating you consider acceptable to the viewer. (For example, if you choose TV-PG, more restrictive ratings will be automatically blocked; the viewer will not be able to see: TV-PG, TV-14, or TV-MA rated programming.) Do you want to block the auxiliary video source entirely? (Blocks the signal sent by the equipment, such as VCR, connected to the TV Audio/Video Input Jacks) Or leave unblocked, then choose allowable ratings. Block program "Content" based on individual parameters such as: Strong Dialog, Bad Language, Sex Scenes, Violence Scenes, or Fantasy. Violent Scenes; in Content Blk option. Select a secret password, in the Set Password option, using the numbers keys on the remote control. Do not forget the password, it is the only way you can access the Parental Control menu and change rating selections, or turn Parental Control off. Do you want the Parental Control to be active at all times? If not, you can turn it on or off with the Lock On/Off option.

• You can set different Parental Control viewing restrictions for general audiences and for children, both can be active at the same time.
• Simply specifying one content block such as Sex Scenes, will not automatically restrict the programming that appears from the video sources.
• Even If you choose to leave the AUX Inputs unblocked, the ratings you specify will automatically restrict the programming that appears from the video sources.
• You can not disable Parental Control by disconnecting the TV from power. Block hours will be automatically reset to the original block time setting specified if power is disconnected.

Motion Picture Association of America (MPAA) Rating System

Grade Meaning
G General Audiences Content not offensive to most viewers.
PG	Parental Guidance Suggested	Content is such that parents may not want their children to view the program.
PG-13	Parents Strongly Cautioned	Program is inappropriate for preteens, with a greater degree of offensive material suggested than a PG rated program.
R Restricted		Not for children under 17, strong element of sex and/or violence.
NC-17	No children under age 17	Not for children under 17 under any circumstances. Strong sexual content.
X Hard Core	Films Same as NC-17 rating.
No Rating No Rating MPAA Not Rated

TV Parental Guideline Rating System

Grade Meaning
TV-Y All Children Content not offensive to most viewers.
TV-Y7	Directed to Older Children	Considered suitable for children over 7, may contain fantasy violence scenes.
TV-G General Audience		Considered suitable for all audience; children may watch unattended.
TV-PG	Parental Guidance Suggested	Suggested unsuitable for younger children, may contain suggestive language, bad language, sex and violence scenes.
TV-14	Parents Strongly Cautioned	unsuitable for children under 14, may contain strong language, bad language, sex and violence scenes.
TV-MA	Mature Audience Only	Adults only, may contain strong language, bad language, sex and violence scenes.

Canadian Rating:

• Canadian English is used throughout all English-speaking Canada (C, C8+, G, PG, 14+, 18+).
  • Canadian French is used in Quebec (G,8 ans+, 13 ans+, 16 ans+, 18 ans+).

The V-Chip will automatically block certain categories that are "more restrictive". If you block TV-Y category, then TV-Y7 will be automatically blocked. Similarly, if you block TV-G category, then all the categories in the "young adult" will be blocked (TV-G, TV-PG, TV-14, and TV-MA).

If your TV does not operate normally or cannot be turned on, please check the following troubleshooting questions. Remember also to check any other connected electronic device, such as DVD or blu-ray player to pinpoint the problem. If the TV still fails to operate normally, please contact technical support (Refer to Warray page).

SYMPTOM POSSIBLE CAUSE REMEDY
Dead. No LED lit No power to the TV.		Check all connections to the TV's AC socket.
Dead. No LED lit red Set in standby mode.		Press either the Power button or the Standby button on the remote control.
Blue screen	No signal.	Press the SOURCE button to select the correct source.
	Incorrect source selected.
Noisy, snowy, ghosting picture (TV)	Poor antenna signal.	If using an indoor antenna, try adjusting the antenna position. Check antenna connections.
No sound	Sound "Mute". Turn sound "Mute" off.
	Volume set too low. Check volume settings.
	External leads not connected "if used".	Check that all external leads are connected properly.

Before contacting the service technician, perform the following simple checks. If any problem still persists, unplug the LED TV and call for assistance.

PROBLEM POSSIBLE SOLUTIONS
No sound and picture	Check that the main plug has been connected to a wall outlet.Check that you have pressed the POWER on the front of the TV set.Check the picture contrast and the brightness setting.
Red LED indicator lights	Set in standby mode. Press either the Power button or the Standby button on the remote control.
Normal picture but no sound	Check the volume.Sound muted? Press the MUTE button.Try another channel, the problem may be with the broadcast.Are the audio cables installed properly?
The remote control does not work	Check to see if there are any objects between the TV and remote control causing obstruction.Are batteries installed with correct polarity (+/-)?Correct remote operating mode set: TV, VCR, etc?Install new batteries.
Power suddenly turns off	Is the sleep timer set?Check the power connection, power may be interrupted.No broadcast on the station tuned.
Picture appears slowly after switching on	This is normal, the image is muted during the product start up process. Please contact a service provider if the picture has not appeared after 5 minutes.
Poor color or picture	Adjust the color in Menu option.Keep a sufficient distance between the product and the VCR.Try another channel, the problem may be with the broadcast.Are the VIDEO cables installed properly?Activate any function to restore the brightness of the picture.
Horizontal/vertical bars or picture shaking	Check for local interference, such as an electrical appliance or power tool.
Blue screen • Press the SO	URCE button to select correct source.
Poor reception on some channels	Station or cable experiencing problems. Tune to another station.Station signal is weak, reorient antenna for better reception.Check for sources of possible interference.
Lines or streaks in pictures	Check the antenna (change the direction of the antenna).
No output from one of the speakers	Adjust balance in the Menu option.

Note: When there is a problem in VGA mode ( only when VGA mode is applied).

PROBLEM POSSIBLE SOLUTIONS
The signal is out of range	Adjust resolution, horizontal or vertical frequency.Check whether the signal cable is connected or loose.Check the input source.
Vertical bar or strip on the background, horizontal noise and incorrect position	Set the auto configure or adjust clock, phase, or H/V position.
Screen color is unstable or is a single color	Check the signal cable.Reinstall the PC video card.

Maintenance

Early malfunction can be prevented. Careful and regular cleaning can extend the amount of time you will have with your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Do not use your TV in areas that are too hot or too cold, because the cabinet may warp or the screen may malfunction. Your TV works best in temperatures that are comfortable to you.

Storage temperatures are 32^ to 122^ F( 0^ to 50^ C).

Working temperatures are 32^ to 95^ F( 0^ to 35^ C).

Do not place your TV in direct sunlight or near a heat source.

Clean the screen

A great tip to dust off your screen: wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it's almost dry, and then use to wipe the screen.

Make sure the excess water is off the screen, then let air-dry before you turn on the TV.

Cleaning the cabinet

To remove dirt or dust, wipe the cabinet with a soft, dry, line-free cloth. Please be sure not to use a wet cloth.

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

For customer support: 1-888-338-5666

Please send all correspondence to:

Element TV Company, LP. Customer Service

15930 Valley Blvd., City of Industry, CA 91744

[e-mail]

SPECIFICATIONS

Panel Size 50 inches diagonally
Display Type LED
Panel Technology TFT
Panel 60 Hz Vs. 120 Hz 60 Hz
Display Resolution Up to 1080P
HDMI & Component Support 1080P
Panel Resolution 1920 x 1080
Aspect Ratio 16:9
Contrast Ratio-Panel 2400~3000:1
Brightness (Centre Typ.) Cd/M ^2 180
Response Time (G To G) 6.5 ms
Lamp Life (Typ. Hours) 30,000 hours
Horizontal Viewing Angle (At CR≥10)	178
Vertical Viewing Angle (At CR≥10)	178
TV System	ATSC/NTSC
Channel Range	VHF/UHF

Design and specifications are subjects to change without prior notice.

OTT APP SERVICE

If you want to know about these APP information or get more service. Please refer to following content.

- Netflix

NETFLIX

You can call the following telephone for more help: 866-579-7172

If your matter is regarding customer service, please refer to https://contactus.netflix.com/help for alternative contact information.

- YouTube

YouTube

You can browse the following website for more help:

https://productforums.google.com/forum/#!categories/youtube/smart-tvs

• VUDU

You can call the following telephone for more help: 888-554-8838

TG

You can call the following telephone for more help: 888-874-5411

- Pandora

P

You can send E-mail to Pandora for more help: [e-mail]

- AccuWeather

You can send E-mail to AccuWeather for more help: [e-mail]

This product contains electrical or electronic materials. The presence of these materials may, if not disposed of properly, have potential adverse effects on the environment and human health. Presence of this label on the product means it should not be disposed of as unsorted waste and must be collected separately. As a consumer, you are responsible for ensuring that this product is disposed of properly.
