TDX8SS-5 - Dishwasher Technika - Free user manual and instructions

Product Type	Dishwasher
Brand	Technika
Model	TDX8SS-5
Installation Type	Built-in / Integrated
Width	60 cm
Height	85 cm (adjustable)
Depth	55 cm
Weight	Approx. 35 kg
Power Supply	220-240V, 50Hz, 10A
Energy Rating	Class A+
Capacity	13 place settings
Number of Programs	6 (Eco, Intensive, Normal, Quick, Rinse, Soak)
Noise Level	49 dB(A)
Water Consumption	12 L per cycle (Eco)
Drying System	Condensation drying
Control Type	Electronic push buttons + LED display
Child Lock	Yes
Delay Start	Up to 24 hours
Safety Features	Anti-flood system, overheating protection
Cutlery Basket	Yes, removable
Rack Type	Adjustable upper basket
Maintenance	Clean filters and spray arms regularly
Repairability Index	Accessible parts, user replaceable filters

Frequently Asked Questions - TDX8SS-5 Technika

How do I install the dishwasher?

What detergents should I use?

How do I clean the filters?

Why is my dishwasher not draining?

How do I reset the dishwasher?

What do the error codes mean?

How do I adjust the upper rack height?

Can I use the dishwasher with half load?

How often should I run a maintenance wash?

Where can I get spare parts?

USER MANUAL TDX8SS-5 Technika

Instruction ManualIns

TDX8SS-5

14 place settings
Alt function

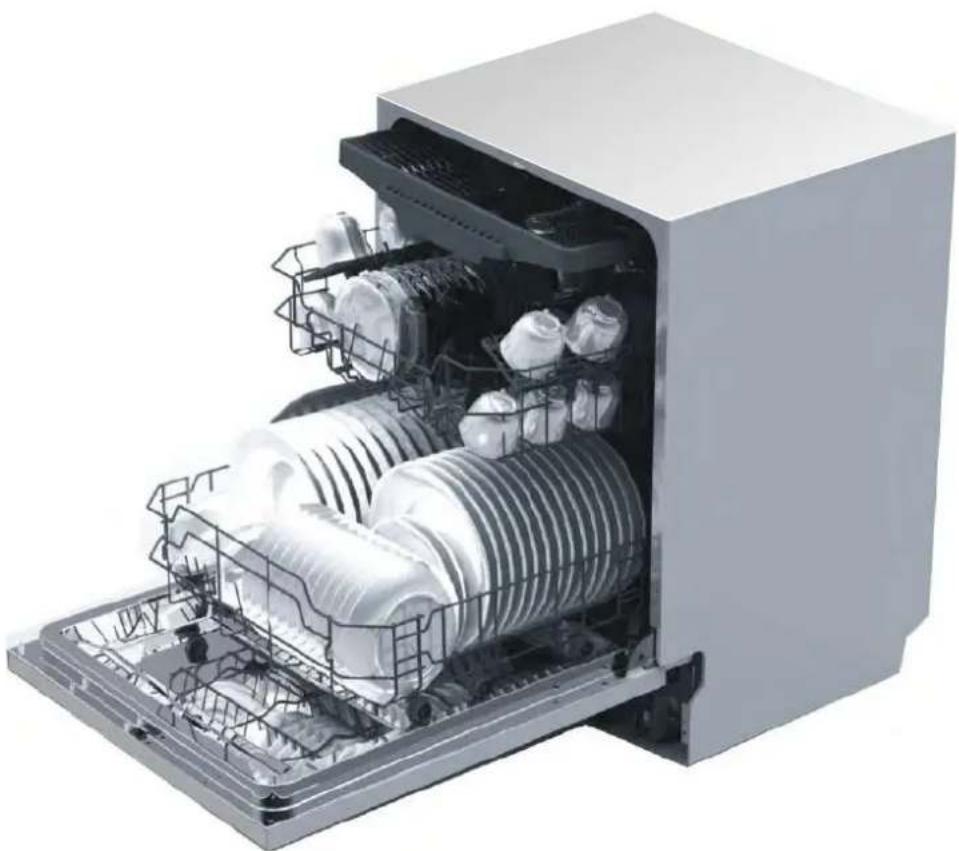

Dis h w a s h e r

Cutaway view of a white kitchen appliance showing internal components like dishwashers and fans (no text or labels visible)

Quick Operation GuideQuick Operation G

For detailed operating method read the corresponding content on the instruction manual.

Switch on the appliance	Open the door, press the On/Off button to switch on the appliance.
Fill the detergent dispenser	Compartment A:For each wash cycle.Compartment B:For programs with pre-wash only.(Follow the user instructions)
Check the rinse aid level	Mechanical indicator C.Electric indicator on control panel (if provided).
Load the baskets	Scrape off any large food particles. Soften remnants of burnt food in pans,then load the baskets. Refer to the dishwasher loading instructions.
[DSAA]
Select a program	Press the Program Button until the selected program lights up.(See the section entitled Operation instruction) **
Running the dishwasher	Turn on the water tap. Close the door. The machine will start working after about 10 seconds.
Changing the program	1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergentmay have already been released and the water already drained. If this is the case, the detergentdispenser must be refilled.2. Open the door. Press the program button more than 3s to cancel the current program.3. After cancel the current program, press the program button again to select a new program.4. Close the door, then the dishwasher will start work again.
Add forgotten dishes in thedishwasher.	1.Open the door a little to stop the dishwasher.2. After the spray arms stop working, you can open the door completely.3. Add the forgotten dishes.4. Close the door, the dishwasher will start running again after 10 seconds.	WARNING!Open the door carefully.Hot steam may escapewhen the door is opened!
If the appliance is switchedoff during a wash cycle.	If the appliance is switched off during a wash cycle, when switchedon again, please re-select the washing cycle and operate the dishwasheraccording to the original Power-on state).
Switch off the appliance	When the working cycle is finished, the buzzer of thedishwasher will sound 8 times, then stop.Turn off the appliance using the On/Off Button.Since the appliance is standing by, it will power off automatically after 30 minutes without any operation.
Turn of [cygc] water tap,iskets	Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid scald,asthe dishes and utensils are still hot and more susceptible to break.They could also dry better. Unload the appliance, starting from the lower basket.

Read this Manual

Dear Customer,

This appliance is intended to be used in domestic household applications only.

Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.
- Keep it for reference in future.
■ Pass it on to any subsequent owner of the appliance.

This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips etc.

Before Calling for Service

To review the section on troubleshooting Tips will help you to solve some common problems by yourself.

If youlf you can notcan not solve the resolve the problems byproble please contact Technika Customer Care on: 1300 333 244 or [e-mail]

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

This user manual shall also be got from the manufacturer or responsible vendor.

1) Safety Information...... 1

2) Operating Instructions....2

Control Panel....2

Dishwasher Features....2

3) Prior using for the first time....3

A Fill the Rinse Aid Dispenser.... 3
B、Function of Detergent 4

4) Loading the Dishwasher Basket......6

Attention before or after loading the Dishwasher Baskets 6

The Method

5) Starting a washing programme....8

Wash Cycle Table....8

Turning on the Appliance....8
Change the Programme....9
At the End of the Wash Cycle....9

6) Maintenance and cleaning....10
Filtering System....10
Caring for the Dishwasher....11

7) Installation instruction....12 ....Installation

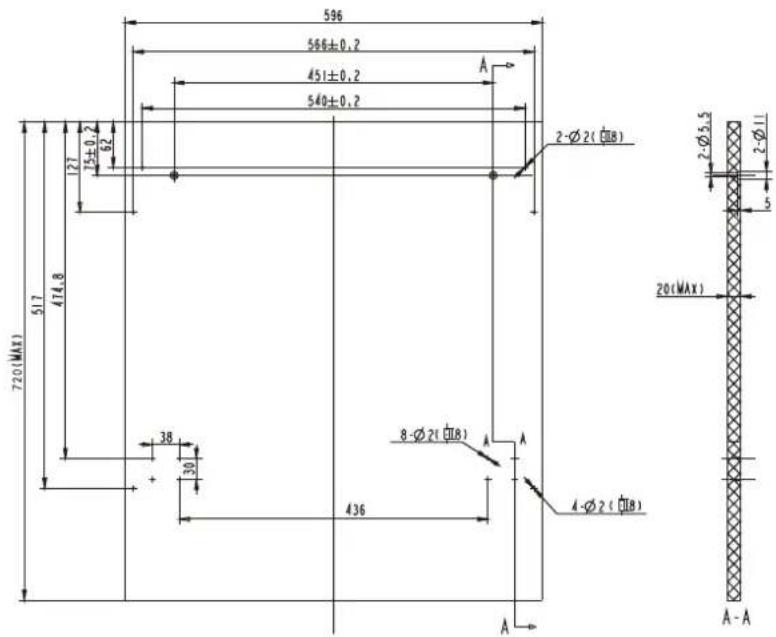

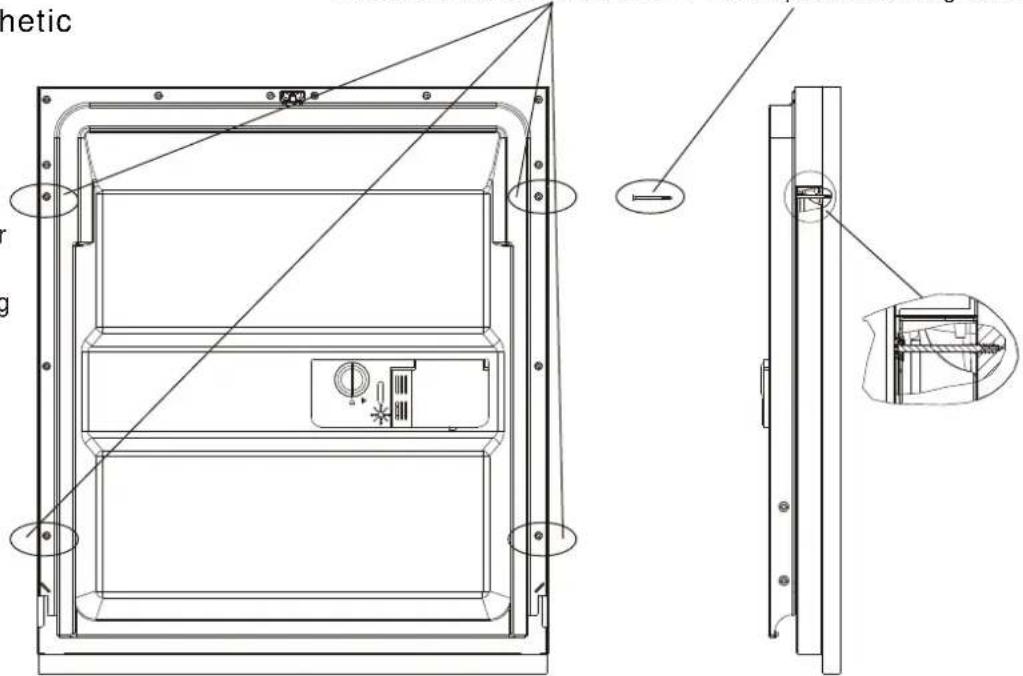

Aesthetic panel's dimensions and installation.....13

Tension adjustment of the door spring.... 15

ms by yourself yourself ....05nnectior Dishwasher installation steps....16

About Electricity Connecting.... 17

Cold Water Connection....18

8) Troubleshooting Tips.... 19

Before calling for service....19

Error codes....20

Technical information....21

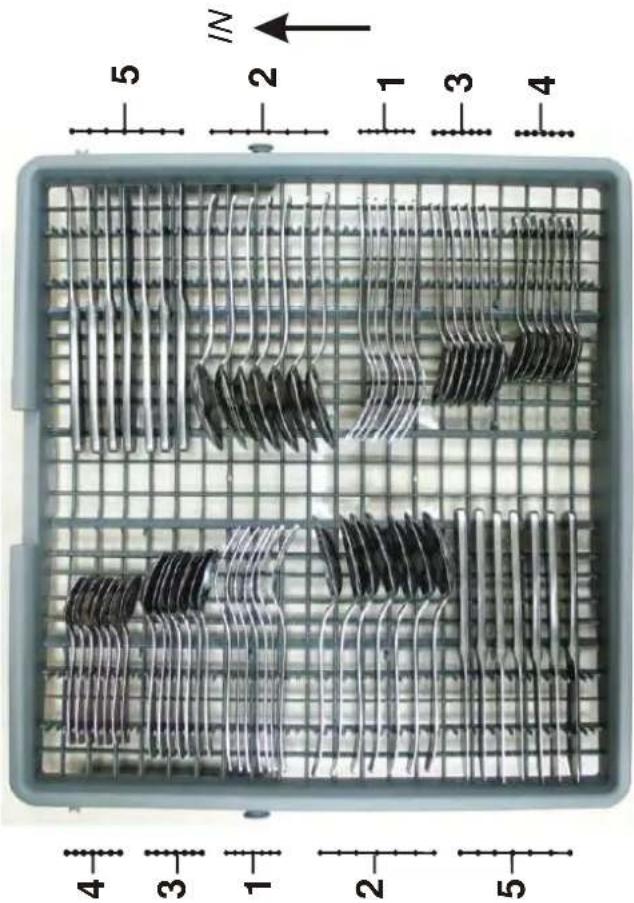

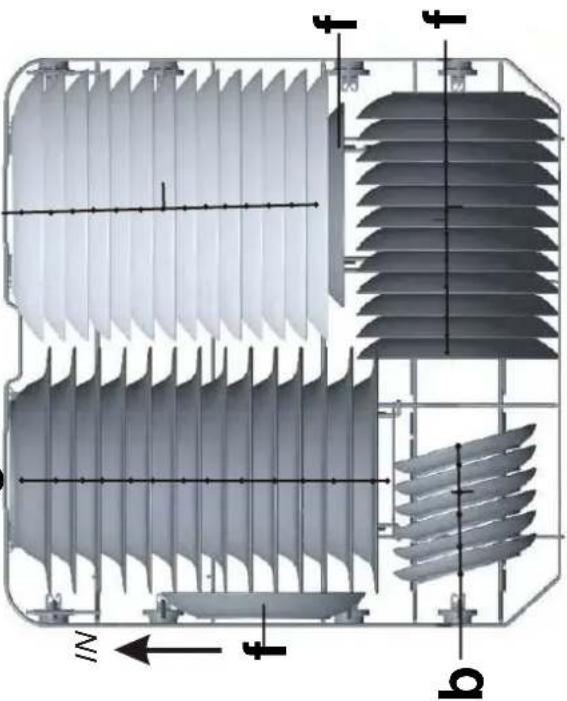

Loading the baskets according to (*AS/NZS 2007.1)

1. IMPORTANT SAFETY INFORMATION READ ALL OF THE INSTRUCTIONS BEFORE USING

WARNING!

When using your dishwasher, follow the precautions listed below:

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug.
■ The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

▲ WARNING!

■ Improper connection of the equipment-grounding conductor can result in the risk of an electric shock.
Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plugprovidedwiththeappliance;Ifitdoesnotfit the outlet. Have a proper outlet installed by a qualified electrician.

WARNING! PROPER USE

■ Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
■ Do not touch the heating element during or immediately after use. (This instruction is only applicable to machines with a visual heating element.)
■ Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
■ Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.
■ When loading items to be washed:
1) Locate sharp items so that they are not likely to damage the door seal;
2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
■ When using your dishwasher, you should prevent plastic items from coming into contact with the heating element.(This instruction is only applicable to machines with a visual heating element.)
- Check that the detergent compartment is empty after completion of the wash cycle.
■ Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
■ Use only detergent and rinse additives designed for an automatic dishwasher.
■ Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of children.

• Keep children away from detergent and rinse aid, keep children away from the open door of the dishwasher, there could still be some detergent left inside.
  This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ■ Children should be supervised to ensure that they do not play with the appliance.
  ■ Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.
  ■ The door should not be left open, since this could increase the risk of tripping.
  If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
  ■ Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.
• Please dispose of packing materials properly.
  ■ Use the dishwasher only for its intended function.
  ■ During installation, the power supply must not be excessively or dangerously bent or flattened. Do not tamper with controls.
  The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused.
  ■ The maximum number of place settings to be washed is 14.
  ■ The maximum permissible inlet water pressure is 1Mpa.
  ■ The minimum permissible inlet water pressure is 0.04Mpa.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY KEEP THESE INSTRUCTIONS

2. Operation Instruction

IMPORTANT To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

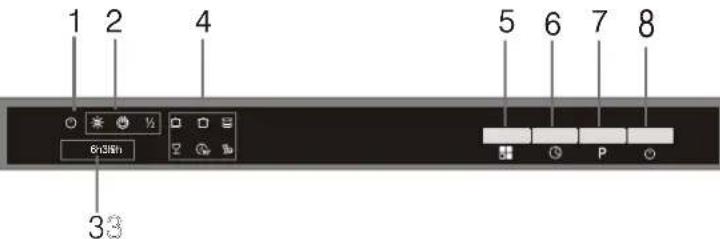

Control Panel Control Panel

1 2 4 5 6 7 8 33

1. Power indicator: To show when the power on.
2. Rinse aid warning indicator:*

To show when the dispenser need to be refilled.

Extra drying indicator:

To show when you select the extra drying function.

Half load indicator: 12

To show when you select the haft load function.

1. Delay indicators: to show the delay time (3h/6h/9h)

2. Program indicators: to show which program you have chosen;

3. Option function Button: To select Half load function and extra drying function. (With this Half load function you can only use it when you have only about or less than 6 place setting dish wave, and you will see less water and energy consumption. Extra drying function can improve the dry/less efficiency can only be used with Heavy, Intensive, Normal, Glass and 90 min.)
   6.Delay Button: To Press the button to delay.

4. Program Button: To Press the button to select a wash Program.
5. On/Off Button: To turn on/off the power supply.

Dishwasher Features

Front view

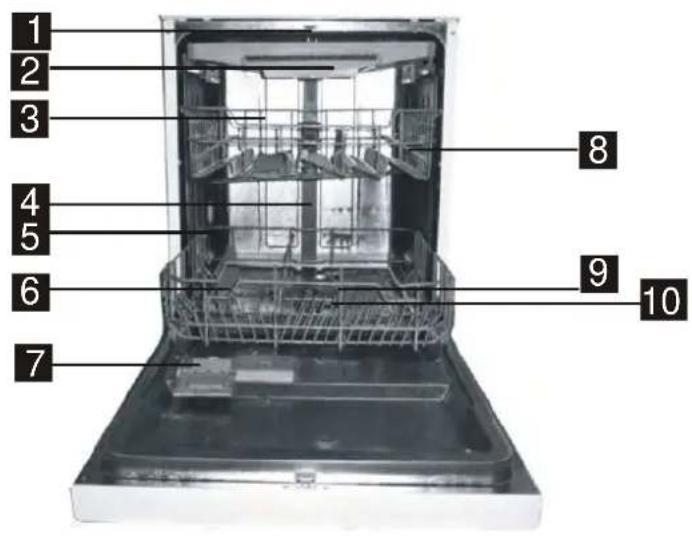

1 2 3 4 5 6 7 8 9 10

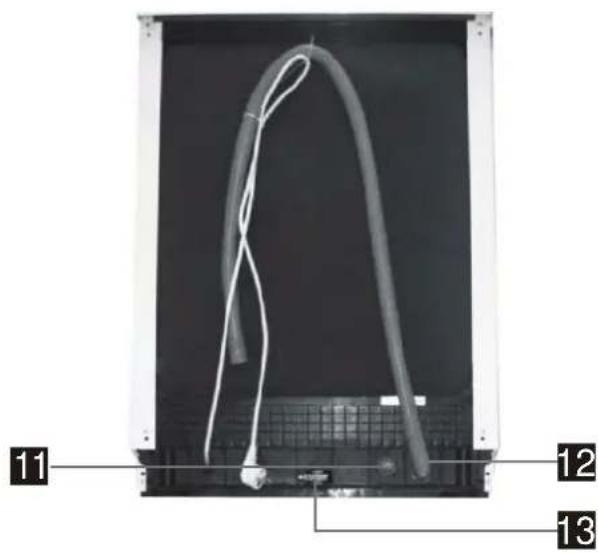

Back View

11 12 13

1 Top spray arm
2 Cutlery rack
3 Upper basket

4 Inner pipe
5 Lower basket
6 Salt container

7 Dispenser
8 Cup shelf
9 Spray arms

10 Filter assembly
11 Inlet pipe connector
12 Drain pipe

3.Prior to using for the first time

Before using your dishwasher for the first time:

A. Fill the rinse aid dispenser
B. Fill in detergent

A. Rinse Aid DispenserA. Rinse Aid Dispenser

Rinse Aid Dispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

Function of Rinse Aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1 / 4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full
3 / 4 full
1 / 2 full
- 1 / 4 full - Should refill to eliminate spotting
○ Empty

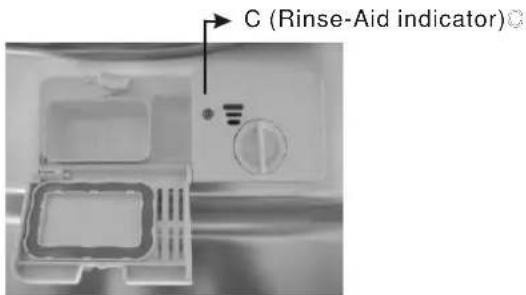

C (Rinse-Aid indicator)

How to fill the Rinse Aid Dispenser

Hand holding a circular control knob on a white appliance panel, with cables and tubing in the background (no visible text or symbols)

Close-up of a showerhead with a bulb and ventilation slots, no visible text or symbols

Close-up of a hand adjusting a white appliance panel with a circular button, surrounded by cables (no visible text or symbols)

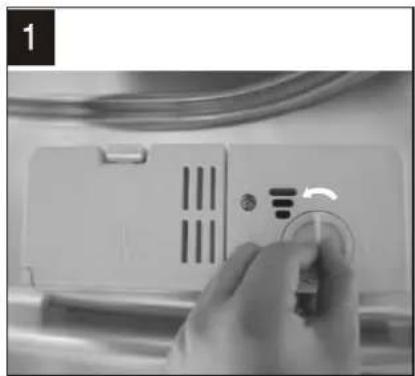

1 To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.

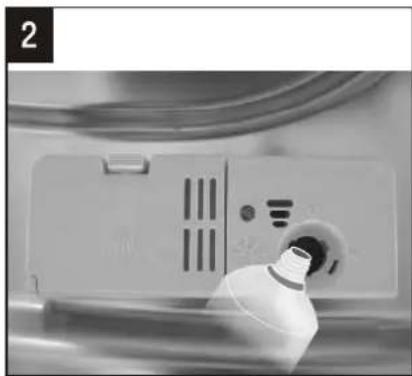

2 Pour the rinse aid into the dispenser, being careful not to overfill.

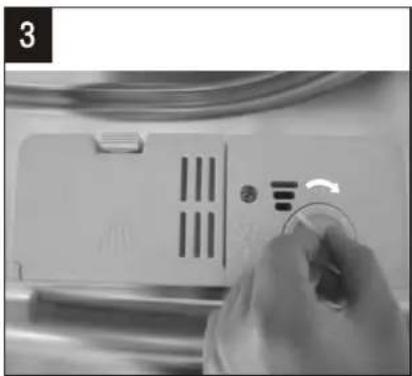

3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills with a damp cloth. Don't forget to replace the cap before you close dishwasher door.

Attention!

Clean up any rinse aid spill during filling with an absorbent cloth to avoid excess foaming during the next wash. ____ 3 ^2 ____

NOTE: No clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming

during the next wash. Don't forget to replace the cap before you close dishwasher door.

Adjusting Rinse Aid Dispenser

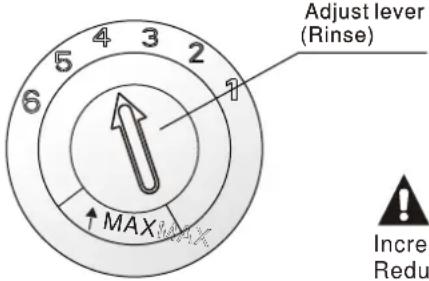

Adjust lever (Rinse) ↑ MAX Max Increase Reduce

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".)

NOTE:NOTE:

Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

B. Detergent B. Detergent

Detergents have chemical ingredients that are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

Detergents

There are 3 sorts of detergents

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split in two basic types:

■ Conventional, alkaline detergents with caustic components
■ Low alkaline concentrated detergents with natural enzymes

The use of normal washing programs in combination with concentrated detergents reduces pollution and is good for your dishes; these wash programs are specifically matched to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason

“normal” wash programs in which concentra te d dete rgents are use d can ache ve t he sa me results that can otherwise only be achieved using “Intensive” programs.

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

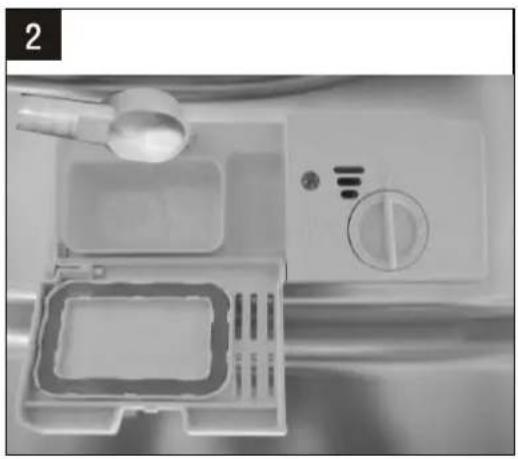

Adding detergent to dispenser

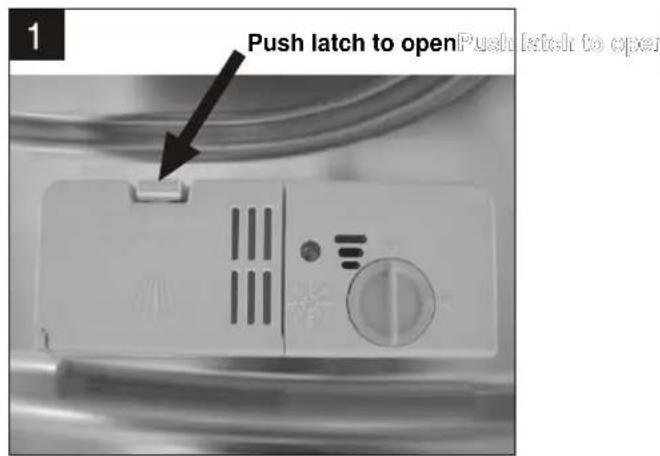

1 Push latch to openPush latch to open

Close-up of a kitchen appliance with a washer and control panel (no visible text or symbols)

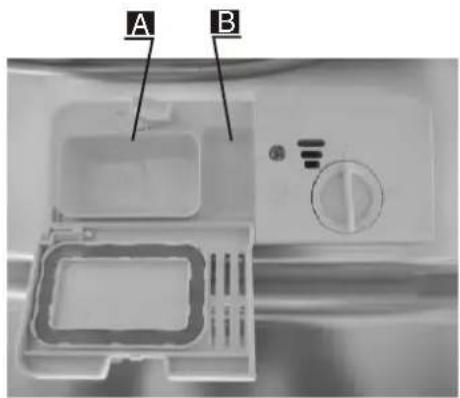

Fill in Detergent

Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrated on the right:

A Location of main wash cycle detergent.
B Location of pre-wash cycle detergent.

Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.

A B

Close the lid and press until it locks in place.

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

Proper Use of Detergent

Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry. Don't put powdered detergent into the dispenser until you're ready to wash dishes.

WARNING!

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

NOTE:NOTE:

■ You see information about the amount of detergent for the single programme on page 8.
■ Please be aware that soiling levels and water hardness can effect wash results.
■ Please observe the manufacturer's recommendations on the detergent packaging.
■ If the lid is closed: push the latch to open.
■ Always add the detergent just before starting each wash cycle.
■ Only use branded detergent and rinse aid for dishwasher.

4. Loading the Dishwasher Baskets

Recommendation Recommendation

■ Consider buying utensils which are identified as dishwasher-proof.
■ Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers.
■ For particular items, select a program with as low temperature as possible.
■ To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended.

Suitability of use in the dishwasher Suitability of use in the dishwa

Not suitable for use

• Cutlery with wooden, horn china or mother-of-pearl handles.
  ■ Plastic items that are not heat resistant.
  ■ Older cutlery with glued parts that are not temperature resistant.
  ■ Bonded cutlery items or dishes.
  ■ Pewter or cooper items.
  ■ Crystal glass.
  ■ Steel items subject to rusting.
  ■ Wooden platters
  ■ Items made from synthetic fibres.

Limited suitability

■ Some types of glasses can become dull after a large number of washes.
■ Silver and aluminum parts have a tendency to discolour during washing.
■ Glazed patterns may fade if machine washed frequently.

Attention before or after loading the Dishwasher Baskets

(For the best performance of the dishwasher, follow these loading guidelines.

Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large food particles. Soften remnants of burnt food in pans.

It is not necessary to rinse the dishes under running water.

Place objects in the dishwasher in following way:

1. Items such as cups, glasses, pots/pans, etc. are faced downwards.
2. Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.

NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
  ■ Dishes and items of cutlery must not lie inside one another, or cover each other.
  ■ To avoid damage to glasses, they must not be touched.
• Load large items which are most difficult to clean into the lower basket.

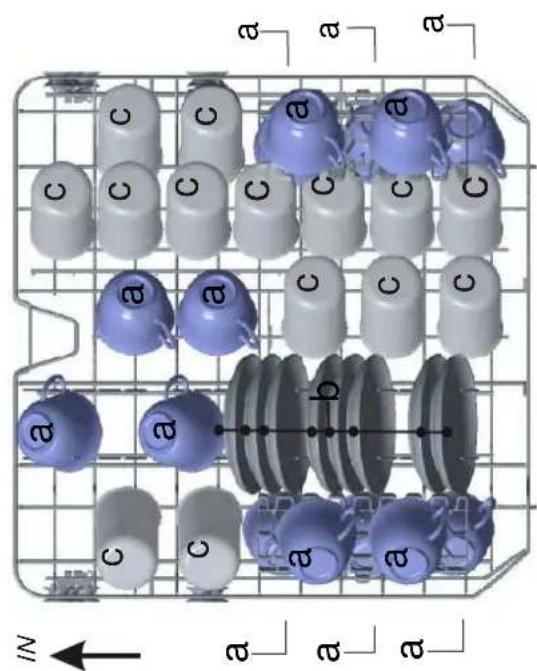

  The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups.
  ■ Long bladed knives stored in an upright position are a potential hazard!
  ■ Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
  ■ Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

Removing the DishesRemoving the Dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

The Method Loading Normal Dishware The Method Lo

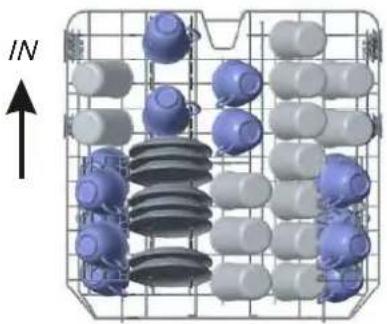

Loading the Upper Basket Loading the Lower Basket Loading

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

3D diagram of a grid structure with blue and gray components, no text or symbols present

Please be reminded that:

We suggest that you place large items and the most difficult to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

Illustration of a basket with various kitchen utensils and a directional arrow labeled 'IN' (no text or symbols on the objects)

Pots, serving bowls, etc, must always be placed top down.
■ Deep pots should be slanted to allow water to flow out.

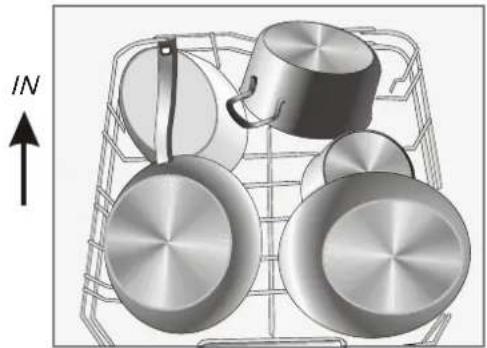

The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.

Adjusting the Upper Basket

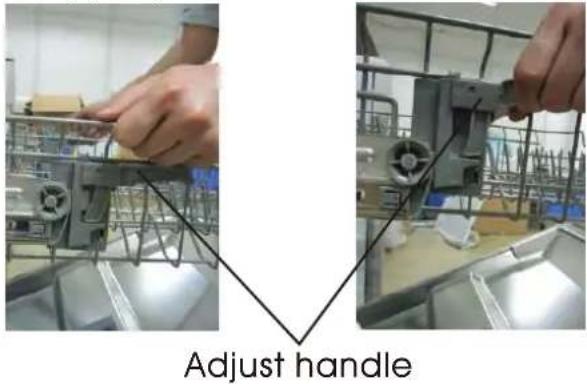

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper /lower basket. The height of the upper basket can be adjusted by lift up the basket for the upper position, and up press the handle to lower the upper basket, see the picture below:

Lift the basket for upper position

Adjust handle

Up press the handle to lower the basket

Folding back the cup shelves

For better stacking of pots and pans, the spikes can be folded down as show in the picture right.

Architectural wireframe diagram of a building facade with structural beams and supports (no text or symbols)

Technical line drawing of a mechanical assembly or ladder system (no text or symbols visible)

Folding Spikes of Lower Basket

For better stacking of pots and pans, the spikes can be folded down as show in the picture right.

Hand holding a wire mesh in a grid notebook (no text or symbols visible)

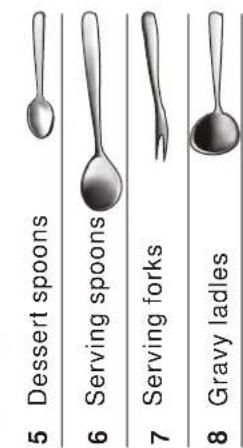

Cutlery Basket Cutlery Basket

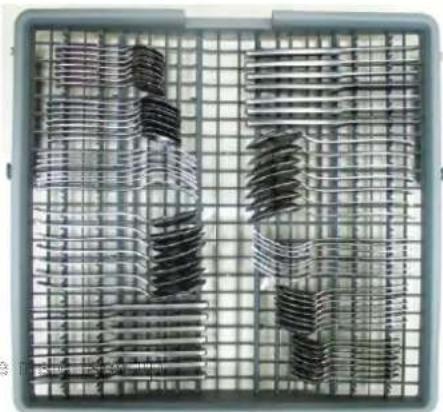

Cutlery should be placed into the cutlery rack separately from each other in the appropriate positions, and do make sure the utensils do not nest together, this may cause bad performance.

For a top quality cleaning, place the silverware in the basket making sure that:

■ They do not nest together. They do not nest together.
■ Silverware is placed with the male face up. Silverware is placed with the
■ Long utensils in the middle.

Grid-patterned mechanical component with coiled springs, no visible text or symbols

5. Starting a washing program 5

Wash Cycle Table Wash Cycle Table

NOTE: (O) Means: need to fill rinse aid into the Rinse-Aid Dispenser.

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (L)	Rinse Aid
Intensive	For the heaviest soiled loads, such as pots, pans, casserole dishes and dishes that have been sitting with dried food on them for a while.	Pre-wash(50°C)Wash (60 °C)RinseRinseRinse(65°C)Drying	5/27.5g(Or All in 1)	170	1.5	17.5
Heavy[7800]	For heavily soiled loads, such as pots, plates, glasses and lightly soiled pans.	Pre-wash(45 °C)Wash (55 °C)RinseRinse (65°C)Drying	5/27.5g(Or All in 1)	160	1.3	13.5
Normal(*AS/NZS 2007.1)	For normally soiled loads, such as pots, plates, glasses and lightly soiled pans. standard daily cycle.	Pre-washWash (45 °C)Rinse(48°C)Drying	5/27.5g(Or All in 1)	170	0.7	12
Glass	For lightly soiled loads, such as glasses, crystal and fine china.	Pre-washwash(42°C)RinseRinse(60°C)Drying	5/27.5g(Or All in 1)	125	0.8	13
90 min	For lightly soiled crockery and glass.	Wash(65°C)RinseRinse (65°C)Drying	25g(Or All in 1)	90	1.2	11.5
Rapid[ABDO]	A shorter wash for lightly soiled loads that do not need drying.	Wash (40 °C)RinseRinse (45 °C)	25g	30	0.6	11.5	/

NOTE:NOTE:

*ASTN2S2007am is the test cycle. The information for comparability test in accordance with AS/N3901007st

■ Capacity: 14 settings
■ Position Upper basket: upper wheels on rails
■ Rinse aid setting: 6
■ Open the door slightly 50mm to assist in drying of the dishes after every wash

Turning On the Appliance Turning On the Appliance

Starting a cycle wash

1 Draw out the lower and upper basket, load the dishes and push them back.
It is commended to load the lower basket first, then the upper one (see the section entitled "Loading the Dishwasher").

Pour in the detergent (see the section entitled 'Detergent and Rinse Aid').

3 Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.

4 Press the On/Off button to switch on the machine

5 Press the program button, the wash program will be changed as follows direction:

Normal->Glass->90min->Rapid->Intensive->Heavy;

If a program is selected, the response light will light on. Then close the door, the dishwasher begins to start.

If you want to improve the drying efficiency, you can press the Extra Drying button to select extra drying function before the dishwasher begins to start.(Rapid exclusion)

Change the Program Change the Program

Premise:

A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the Detergent").
2 Open the door ,press the Program button more than 3 seconds , the machine will be in standby state, then you can change the program to the desired cycle setting (see the section entitled " Starting a wash cycle ).

NOTE:NOTE:

If you open the door during a wash cycle, the machine will pause. The program light will stop blinking and the buzzer will mooing every minute unless you close the door. After you close the door, the machine will keep on working after 10 seconds.

Forgot to Add a Dish Forgot to Add a Dish

A forgotten dish can be added any time before the detergent cup opens.

1 Open the door a little.

4 Close the door

2 After the spray arms stop working, you can open the door completely.

5 The dishwasher will run after 10 seconds.

3 Add forgotten dishes.

At the End of the Wash Cycle At the End of the Wash Cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

■ Switch Off the Dishwasher

The program light is on but is not blinking, only in this case the programme has ended.
1. Switch off the dishwasher by pressing the ON/OFF button.
2. Turn off the water tap!

■ Open the door carefully.

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance. Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

■ Unloading the dishwasher

It is normal that the dishwasher is wet inside. Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

WARNING!

It is dangerous to open the door when washing, because the hot water may scald you.

6. Maintenance and Cleaning

Filtering System Filtering System

The filter prevents larger remnants of food or other objects from getting inside the pum. The residues may block the filter, in this case they must be removed.

2 1 3

The filter system consists of a coarse filter, a flat (Main filter) and a microfilter(Fine filter).

Main filter 1

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

Coarse filter 2

Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by this filter, gently squeeze the tap on the top of this filter and lift it out.

Fine filter 3

This filter holds soil and food residues in the sump area and prevents it from being redeposit on the dishes during wash cycle.

Filter assembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction.

WARNING!

The dishwasher must never be used without the filters.

Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

Close-up of a transparent plastic tray with a curved handle and a central button, labeled 'Open' below (no other text or symbols)

Step 1: Turn the filter in anti-clockwise direction.

Mechanical component diagram showing a housing with internal components and an upward arrow indicator (no text or symbols)

Step 2: Lift the filter assy up.

NOTE: Now when following this procedure from step 1 to step 2, the filter system will be removed; when following it from Step 2 to Step 1, the filter system will be installed.

Notes:

• Inspect the filters for blocking after every time the dishwasher has been used.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.

NOTE: The entire filter assembly should be cleaned once a week.

Cleaning the Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.

WARNING!WA

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.

Caring for the Dishwasher Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth.

After cleaning, make sure to dry it thoroughly.

For the exterior, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning The Door

Interior view of a computer case with a black arrow pointing to a component (no visible text or symbols)

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

WARNING!WARD

Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.

Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

Protect Against Freezing

please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows

1. Cut off the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE: If your dishwasher cannot work because of the ice, please contact professional service persons.

Cleaning the Spray Arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.

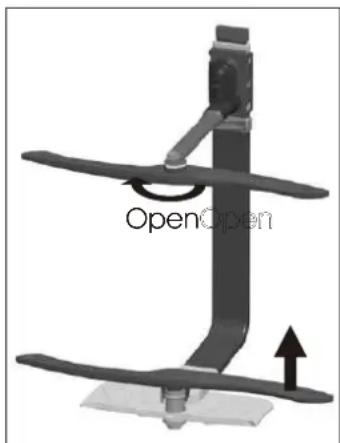

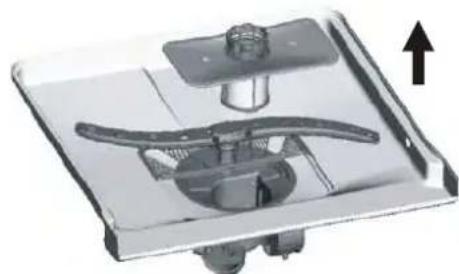

To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it.

To remove the lower spray arm, pull out the spray arm upward.

Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

OpenOpen

How to Keep Your Dishwasher in Shape

■ Remove the Plug

Before cleaning or performing maintenance, always remove the plug from the socket.

■ No Solvents or Abrasive Cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water.

To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

■ When not in Use for a LongTime

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

■ Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

7. Installation instruction 7. Insta

Warning

Electrical Shock Hazard Disconnect electrical power before installing dishwasher.

Failure to do so can result in death or electrical shock.

Attention:

The installation of the pipes and electrical equipments should be done by professionals.

• Installation preparation

The installation position of dishwasher should be near the existing inlet and drain hoses and power cord.

One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of the dishwasher.

Note: please check the accompanying installation accessories(hook for aesthetic panel,screw)

Please carefully read the installation instruction.

Illustrations of cabinet dimensions and installation position of the dishwasher. Preparations should be made before moving the dishwasher to the installation place.

1 Choose a place near the sink to facilitate the installation of inlet and drain hoses (see figure 1).
2 If dishwasher is installed at the corner of the cabinet, there should be some space (illustrated in figure 2) when the door is opened.

【Figure1】

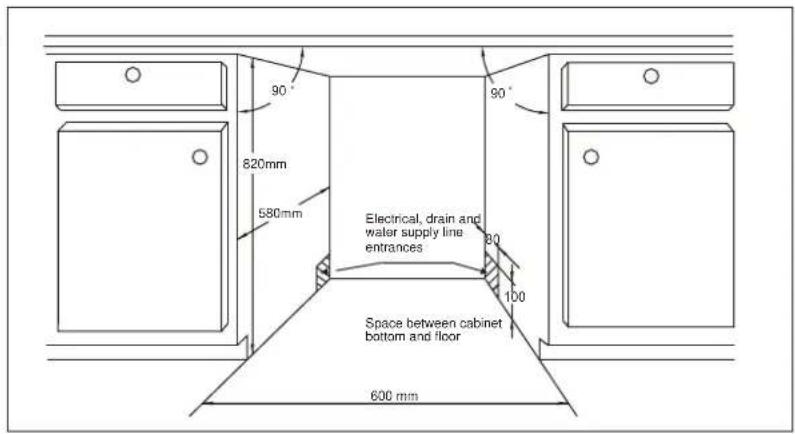

Cabinet dimensions Less than 5mm between the top of dishwasher and cabinet and the outer door aligned to cabinet.

90° 820mm 580mm Electrical, drain and water supply line entrances Space between cabinet bottom and floor 600 mm 90° 80 100

【Figure2】

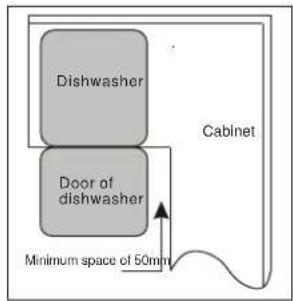

Minimum space when the door is opened

Dishwasher Door of dishwasher Cabinet Minimum space of 50mm

● Aesthetic panel's dimensions and installation

1 The aesthetic wooden panel could be processed according to the Figure 3.

【Figure3】

The aesthetic panel should be processed in accordance with the illustrated dimensions

(Unit: mm)

596 566±0.2 451±0.2 540±0.2 A 127 15±0.2 62 720(MAX) 517 474.8 38 30 436 2-Ø2(∅B) 2-Ø5.5 2-Ø11 5 20(MAX) A-A 8-Ø2(∅B) A A 4-Ø2(∅B)

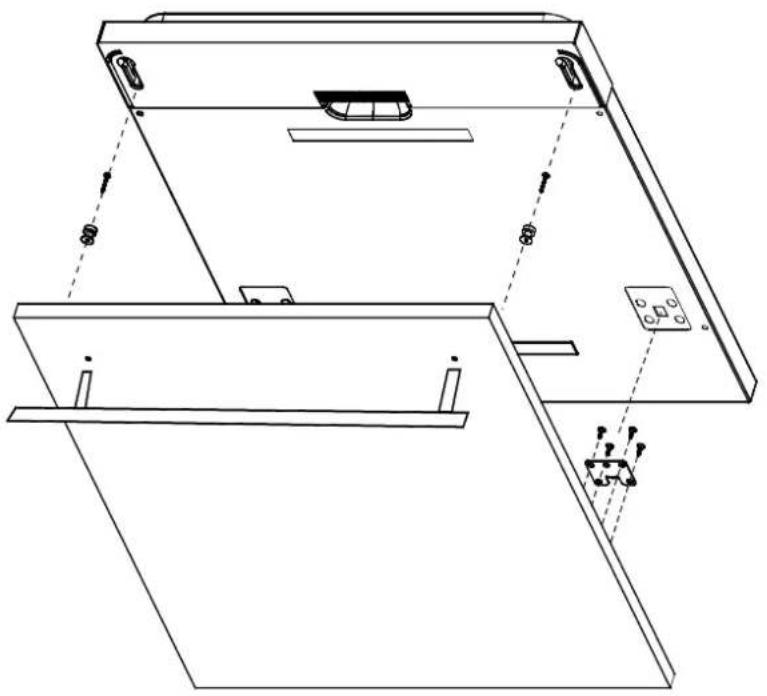

2 Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door of dishwasher(see figure 4a). After positioning of the panel, fix the panel onto the outer door by screws and bolts(See figure 4b).

【Figure4a】

Installation of aesthetic panel

Technical line drawing of a mechanical assembly with no visible text or symbols

【Figure4b】

Installation of aesthetic wooden panel

1. take away the four short screws
2. pin up the four long screws

Take away the four short screws T Pin up the four long screws pin up

netic g

- Tension adjustment of the door spring

The door springs are set at the factory to the proper tension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable (see figure 5).

Door spring tension is correct when the door remains horizontal in the fully opened position, yet rises to a close with the slight lift of a finger.

Technical line drawing of a front-loading washing machine with an inset close-up showing internal components (no text or labels)

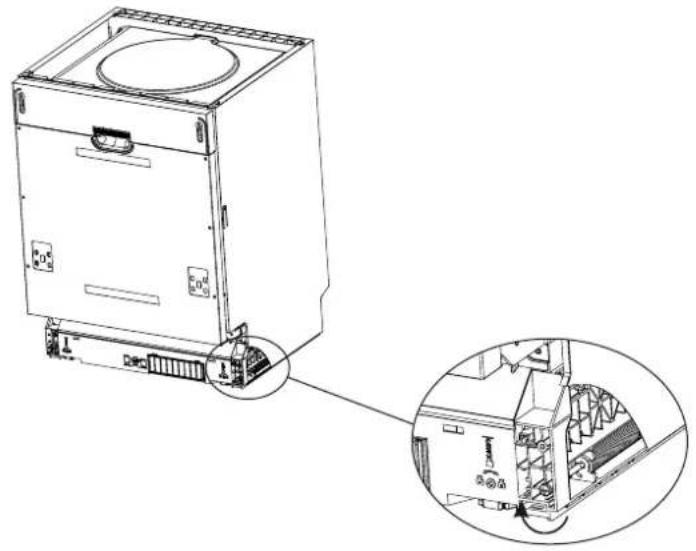

【Figure5】

Tension adjustment of the door spring

- Connection of drain hoses

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.

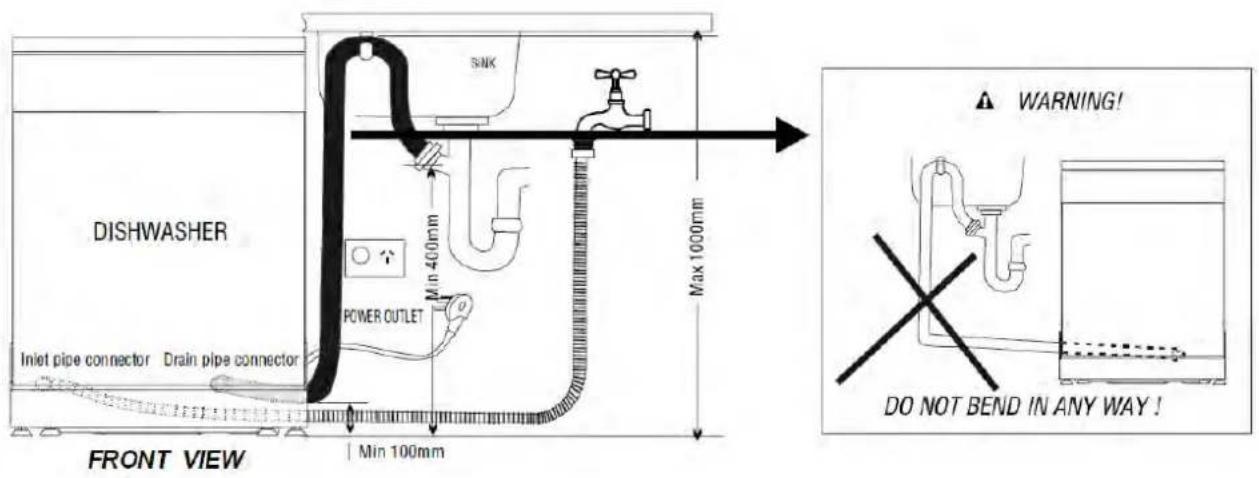

DISHWASHER Inlet pipe connector Drain pipe connector FRONT VIEW MIN 100mm SNK Power OUTLET Min 400mm Max 1000mm WARNING! DO NOT BEND IN ANY WAY!

- Dishwasher installation steps

1 Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the template for positioning of the brackets.
2 Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to tighten the left and right door springs. Failure to do this could cause damage to your dishwasher (Illustration 2).
3 Connect the inlet hose to the cold water supply.
4 Connect the drain hose. Refer to diagram.(Figure 6)
5 Connect the power cord.
6 Affix the condensation strip under the work surface of cabinet. Please ensure the condensation strip is flush with edge of work surface.
7 Place the dishwasher into position.(Illustration 4)
8 Level the dishwasher. The rear food can be adjusted from the front of the dishwasher by turning the Allen screw in the middle of the base of dishwasher use an Allen key (Illustration 5A). To adjust the front feet, use a flat screw driver and turn the front feet until the dishwasher is level (Illustration 5B).
9 The dishwasher must be secured in place. There are two ways to do this:
A. Normal work surface: Put the installation hook into the slot of the side plane and secure it to the work surface with the wood screws (Illustration 6).
B. Marble or granite work top: Fix the side with Screw. (Illustration 7).

Condensation stop Furniture door 【Figure 7】

Dishwasher must be level for proper dish rack operation and wash performance.

1 Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level.
2 level the dishwasher by adjusting the three levelling legs individually.
3 When level the dishwasher, please pay attention not to let the dishwasher tip over.

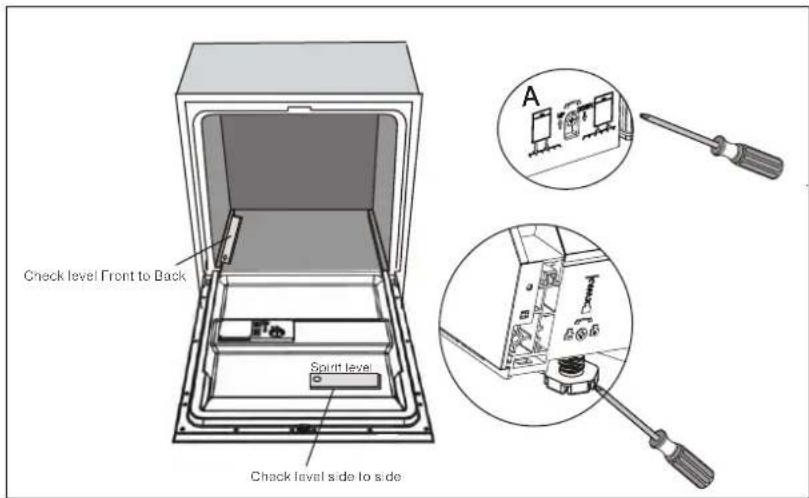

【Figure 8】

Illustration of feet adjustment

NOTE:

The maximum adjustment height of the feet is 50 mm.

Check level Front to Back Spartt level Check level side to side

About Electricity Connecting

WARNING! WARNING!

For personal safety:

Do not use an extension cord or an adapter plug with this appliance.

Do not, under any circumstances, cut or remove the earthing

Connection from the power cord.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

⚠️ Insure proper ground exists before use

Electrical Connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

Line drawing of a hand holding a pipe fitting (no text or symbols)

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.

WARNING! WAR Please close the hydrant after using.

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

How to Drain Excess Water From Hoses

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water Outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water inlet hose is not kinked or squashed.

Extension Hose

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

Syphon Connection

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.

Start of Dishwasher Start of Dishwasher

The following things should be checked before starting the dishwasher.

1 The dishwasher is level and fixed properly
2 The inlet valve is open
3 Inlet hose connections are fully tightened and not leaking
4 The wires are tightly connected
5 The power is switched on
6 The inlet and drain hoses are knotted

7 All packing materials and printings should be taken out from the dishwasher

Attention: After installation, please make sure to keep this manual.

The content of this manual is very helpful to the users.

Before Calling for Service Before Calling for Service

Review the charts on the following pages may save you from calling for service.

Problem Possible Causes What To Do

Technical problems	Dishwasher doesn't start	Fuse blown, or the circuit breaker acted	Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher
		Power supply is not turned on	Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket.
		Error code:E1;Water pressure is low	Check that the water supply is connected properly and the water is turned on.
		Door of dishwasher not properly closed.	Make sure to close the door properly and latch it.
	water not pumped from dishwasher	Kink in drain hose	Check drain hose.
		Filter clogged	Check coarse the filter(see section titled "Cleaning The Filter")
		Kitchen sink clogged	Check the kitchen sink to make sure it is draining well.If the problem is the kitchen sink not draining ,you may need a plumber rather than a serviceman for dishwashers.
General problems	Suds in the tub	Improper detergent	Use only the special dishwasher detergent to avoid suds.If this occurred, open the dishwasher and let suds evaporate.Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then select any cycle. Dishwasher will drain out the water at the first step. Open the door after draining is stop and check if the suds is disappeared.Repeat if necessary.
		Spilled rinse-aid	Always wipe up rinse-aid spills immediately.
	Stained tub interior	Detergent with colourant was used	Make sure that the detergent is the one without colourant.
	White film on inside surface	Hard water minerals	To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves.Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.
	There are rust stains on cutlery	The affected items are not corrosion resistant.	The items should be corrosion resistant.
Noise	Knocking noise in the wash cabinet	A spray arm is knocking against an item in a basket	Interrupt the program, and rearrange the items which are obstructing the spray arm.
	Rattling noise in the wash cabinet	Items of crockery are loose in the wash cabinet	Interrupt the program,and rearrange the items of crockery.
	Knocking noise in the water pipes	This may be caused by on-site installation or the cross-section of the piping.	This has no influence on the dishwasher function.if in doubt, contact a suitably qualified plumber.

Problem Possible Causes What To Do

Unsatis-factory washing result	The dishes are not clean	The dishes were not loaded correctly.	See notes in " Loading the Dishwasher Baskets ".
		The program was not powerful enough.	Select a more intensive programme.See" Wash Cycle Table ".
		Not enough detergent was dispensed.	Use more detergent, or change your detergent.
		Items are blocking the path of spray arms.	Rearrange the items so that the sprayer can rotate freely.
		The filter combination is not clean or is not correctly fitted.This may cause the spray arm jets get blocked.	Clean and/or fit the filter combination correctly.Clean the spray arm jets. See "Cleaning the Spray Arms".
	Cloudiness on glassware	Combination of soft water and too much detergent.	Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them clean.
	Black or gray marks on dishes	Aluminum utensils have rubbed against dishes.	Use a mild abrasive cleaner to eliminate those marks.
	Detergent left in dispenser cups	Dishes block detergent cup opens.	Re-loading the dishes properly.
Unsatis-factory drying result	The dishes are not drying	Improper loading	Load the dishwasher as suggested in the directions.
		Too little rinse-aid	Increase the amount of rinse-aid/refill the rinse-aid dispenser.
		Dishes are removed too soon	Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can escape. Begin unloading the dishwasher only once the dishes are barely warm by touching. Empty the low basket first. This prevents water form dropping off dishes in the upper basket.
		Wrong program has been selected	In short program the rinse temperature is lower.This also lowers cleaning performance. Choose a program with a long high rinse temperature.
		Use of cutlery with a low-quality coating	Water drainage is more difficult with these items.Cutlery or dishes of this type are not suitable for washing in the dishwasher.

Error Codes Error Codes

When some malfunctions occur, the appliance will display error codes to warn you:

Codes	Meanings	Possible Causes
Rapid	Longer inlet time.	Faucet is not opened, or water intake is restricted,or water pressure is too low.
90min+Rapid	Not reaching required temperature	Malfunction of heating element.
Glass	Overflow.	Some element of dishwasher leaks.
Normal	Failure of orientation of distributary valve.	Open circuit or break of distributary valve.

WARNING

If overflow occurs, turn off the main water supply before calling a service. If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

WARNING!

If overflow occurs, turn off the main water supply before calling a service.

If there is water in the base pan because of an overfill or small leaks, the water should be removed before restarting the dishwasher.

Technical Information Technical Information

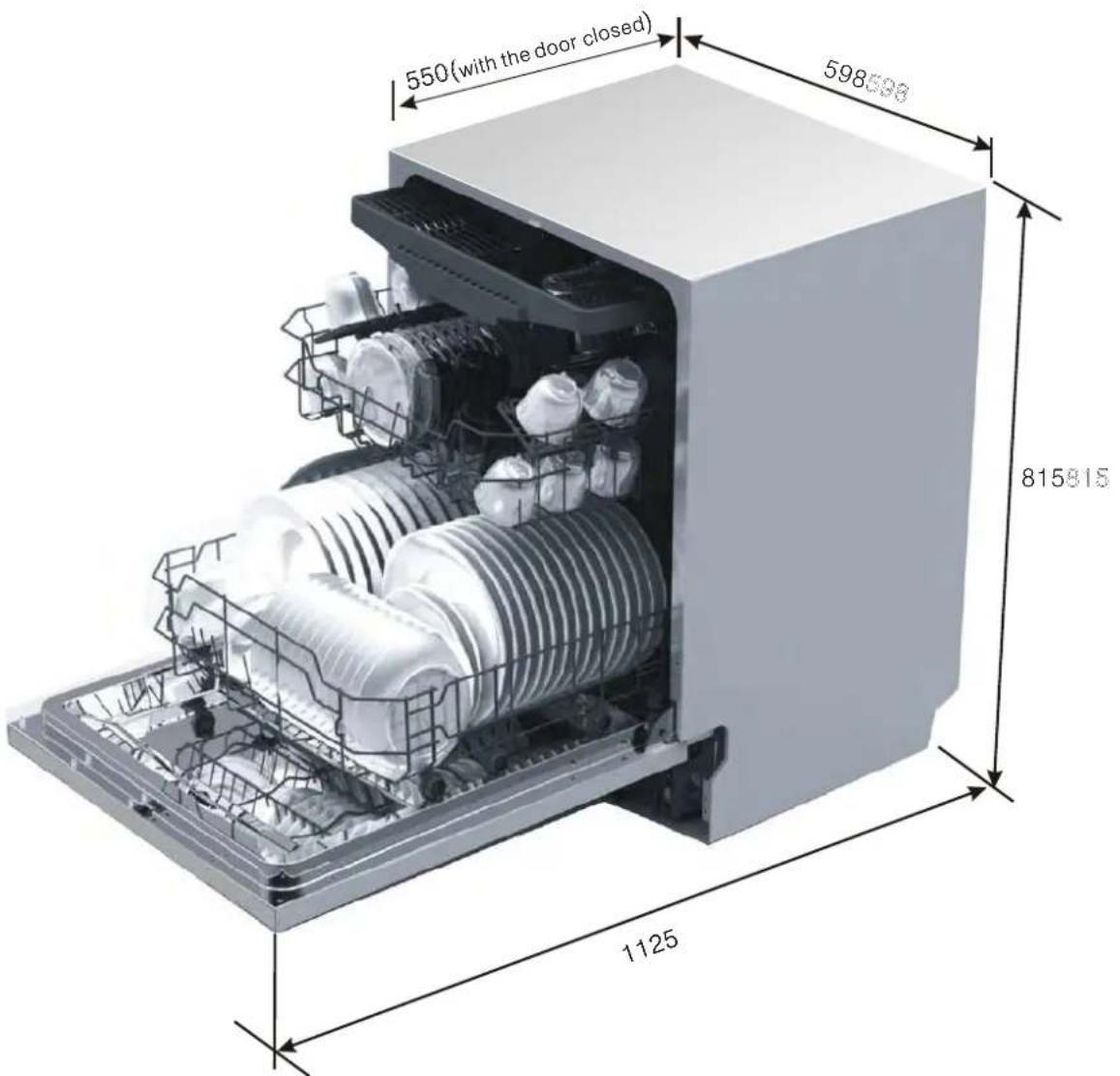

550(with the door closed) 598 815 1125

Height: 815mm
Width: 598mm
Depth:	550mm(with the door closed)
Water pressure: 0.04-1.0MPa
Power supply: see rating label
Capacity: 14 place settings

IN a b c c c c c c a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a c c c c c c c c c c c c c c c

1. Lower basket: 2. Lower basket:

Dinner plates

Soup plates

Dessert dishes

5 Dessert spoons 6 Serving spoons 7 Serving forks 8 Gravy ladles

Information for comparability tests in accordance with (*AS/NZS 2007.1)
Voltage:220\~240V/50Hz
Capacity: 14 place settings
Position of the upper basket: lower Position of t Programme: Normal Programme: Normal
Detergent(Pre/main): 5 g/27.5 g
Rinse aid setting: 6 Rinse aid setting: 6
Door is open at the end of the drying
cycle for the drying performance test
(Door position: Open 50 mm)

4 3 1 2 5 5 2 IN 1 3 4

1 Soup spoons
2 Forks
3 Knives
4 Teaspoons

2 Forks
3 Knives
4 Teaspoons
Information for comparability tests in accordance with (*AS/NZS 2007.1)
■ Voltage:220\~240V/50Hz
Capacity: 14 place settings
Position of the upper basket: lower Position of t
Programme: Normal Programme: Normal
Detergent(Pre/main): 5 g/27.5 g
Rinse aid setting: 6 Rinse aid setting: 6
Door is open at the end of the drying
cycle for the drying performance test
(Door position: Open 50 mm)

1 Soup spoons

Cups a b Saucers c Glasses

Dessert dishes

1. Lower basket: 2. Lower basket:
   a


IN f b f f

READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE.

The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance.

The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this handout. In addition, the appearance of the figures reported is also purely indicative.

The manufacturer reserves the right to make changes to its products when considered necessary and useful, without affecting the essential safety and operating characteristics.

Technika constantly seeks ways to improve the specifications and designs of their products.

Whilst every effort is made to produce up to date literature, this document should not be regarded as an infallible guide.

Actual product only should be used to derive cut out sizes.

All Technika Appliances must be installed by a qualified person/s with adherence to the relevant electrical, plumbing and AGA codes, with compliance being issued as required by state or national legislation.

Additionally all Technika Upright cookers must have chains installed correctly in adherence to the relevant AGA, and plumbing codes by the Licenced installer.

For maximum effectiveness and efficiency all rangehoods should be installed with the use of ductwork, by a licenced installer with adherence to the relevant state and national building codes and regulations.

All Technika appliances are for Domestic use only, and must be installed by a licence installer into Domestic Applications only, without exception and to the required Authorities guidelines. Any installation outside of this will VOID warranty.

Alfresco areas are not a Domestic application.

TECHNIKA

TECHNIKA PTY LTD ACN 069 686 326

77 Fillo Drive Somerton Victoria 3062

General: 1800 649 969 - Service & Spare Parts: 1800 333 244

Technika After Sales Service - P.O. Box 543 SOMERTON VIC 3062
