KT460 - Toaster Kambrook - Free user manual and instructions

Type de produit	Grille-pain 4 tranches
Marque	Kambrook
Modèle	KT460 (également KTA465)
Matériau extérieur	Acier inoxydable
Nombre de fentes	4, avec auto-centrage pour pain épais
Commandes	Boutons poussoirs et molette de brunissage
Réglage de brunissage	7 niveaux (1 = clair, 7 = foncé)
Fonctions spéciales	Annulation, décongélation, réchauffage, extra-lift
Extra-lift	Lève le pain plus haut pour retirer facilement les petites pièces
Alimentation électrique	230-240 V, 50 Hz
Puissance	Environ 1500 W (estimation)
Dimensions (approx.)	28 × 20 × 18 cm (estimation)
Poids (approx.)	2 kg (estimation)
Longueur du câble	Environ 1 m (estimation)
Pieds antidérapants	Oui
Rangement du câble	Sous la base
Type de commande	Boutons poussoirs (annulation, décongélation, réchauffage) et molette de brunissage
Arrêt automatique	Oui, via bouton d'annulation ou fin de cycle
Fonction réchauffage	Réchauffe le pain grillé sans le brûler
Fonction décongélation	Grille le pain congelé en ajustant le cycle
Nettoyage	Bac à miettes amovible (à nettoyer régulièrement)
Entretien	Essuyer l'extérieur avec un chiffon humide ; ne pas immerger
Sécurité	Ne pas utiliser avec des couteaux pour décoincer ; ne pas laisser sans surveillance
Utilisation prévue	Pain, muffins, crumpets uniquement
Service client	Kambrook Australia : 1300 139 798 ; Nouvelle-Zélande : 0800 273 845
Garantie	Voir manuel (non spécifié dans le texte)

Frequently Asked Questions - KT460 Kambrook

Comment régler le brunissage sur le grille-pain Kambrook KT460 ?

Utilisez la molette de contrôle du brunissage (7 niveaux). Pour une première utilisation, réglez sur 3. Plus le chiffre est élevé, plus le pain est grillé. Ajustez selon le type de pain (pain blanc léger = niveau bas, pain de seigle dense = niveau élevé).

Que faire si le grille-pain ne s'allume pas ?

Assurez-vous que la fiche est bien branchée sur une prise 230-240 V et que l'interrupteur mural est allumé. Le grille-pain est électronique : le levier ne s'enclenche que si l'appareil est alimenté. Vérifiez également que le bac à miettes est bien en place.

Comment utiliser la fonction décongélation ?

Placez le pain congelé dans les fentes, sélectionnez le niveau de brunissage désiré, abaissez le levier, puis appuyez sur le bouton DÉCONGÉLATION. Le bouton s'allume. Le cycle s'adapte pour décongeler et griller le pain.

Comment utiliser la fonction réchauffage ?

Placez le pain déjà grillé dans les fentes, abaissez le levier, puis appuyez sur le bouton RÉCHAUFFAGE. Le bouton s'allume. Le grille-pain réchauffe le pain sans le brunir davantage. Ne combinez pas avec la fonction décongélation.

Comment nettoyer le grille-pain Kambrook KT460 ?

Débranchez l'appareil et laissez-le refroidir. Retirez le bac à miettes en le tirant vers l'arrière, videz-le et essuyez-le avec un chiffon humide. Retournez le grille-pain au-dessus d'un évier pour secouer les miettes restantes. Nettoyez l'extérieur en acier inoxydable avec un chiffon doux et humide. Ne jamais immerger le grille-pain.

Que faire si le pain reste coincé dans le grille-pain ?

Ne jamais utiliser un couteau ou un objet métallique pour décoincer le pain, car vous risquez un choc électrique. Débranchez l'appareil, attendez qu'il refroidisse, puis essayez de retirer délicatement le pain. Si nécessaire, retournez le grille-pain et secouez-le. Si le problème persiste, contactez le service client.

Puis-je griller des muffins ou des crumpets ?

Oui, le grille-pain est conçu pour le pain, les muffins et les crumpets. Utilisez la fonction extra-lift (soulevez le levier d'environ 10 mm après le cycle) pour retirer facilement les petites pièces. Ne placez pas d'aliments avec des garnitures (beurre, confiture) dans le grille-pain.

Pourquoi mon pain brûle-t-il même à un réglage faible ?

Cela peut venir du type de pain (pain frais ou très sucré) ou d'un mauvais réglage. Pour moins de 4 tranches, réduisez le niveau de brunissage. Assurez-vous que le bac à miettes est propre ; des miettes accumulées peuvent surchauffer. Si le problème persiste, le grille-pain peut nécessiter une réparation.

Comment ranger le grille-pain ?

Débranchez-le, laissez-le refroidir complètement. Enroulez le câble sous la base. Rangez-le debout sur une surface plane, dans un placard. Ne posez rien dessus.

Où trouver les pièces de rechange ou le service après-vente ?

Contactez Kambrook au 1300 139 798 (Australie) ou 0800 273 845 (Nouvelle-Zélande). Visitez www.kambrook.com.au ou www.kambrook.co.nz. Les réparations doivent être effectuées par un centre agréé.

USER MANUAL KT460 Kambrook

Kambrook - Australia

Ground Floor, Suite 2, 170-180 Bourke Rd

Alexandria NSW 2015, Australia

Locked Bag 2000

Botany NSW 1455

Customer Service Line 1300 139 798

Customer Service Fax [phone]

www.kambrook.com.au

Kambrook - New Zealand

Private Bag 94411

Botany, Manukau

Auckland 2163

New Zealand

Customer Service Line/

Spare Parts 0800 273 845

Customer Service Fax [phone]

www.kambrook.co.nz

KAMBROOK

THE SMARTER CHOICE

Modern stainless steel four-tan sit-up toaster with control buttons and dials (no visible text or symbols)

For all KT460/KTA465 models INSTR

Important

Please retain your instruction book for future use.

In the event that you need some assistance with your Kambrook appliance, please contact our Customer Service Department on 1300 139 798 (Australia) or 0800 2738 45 (New Zealand). Alternatively, visit us on our website at www.kambrook.com.au or www.kambrook.co.nz

Contents

Kambrook Recommends p4

Safety First

Your Kambrook 4 Slice Toaster p7

Using Your Kambrook Toaster p8

Care, Cleaning and Storage p10

Kambrook Recommends Safety First

IMPORTANT: Please retain your instruction book for future use.

At Kambrook, we believe that safe performance is the first priority in any consumer product, so that you, our valued customer can confidently use and trust our products. We ask that any electrical appliance that you use be operated in a sensible fashion with due care and attention placed on the following important operating instructions.

Important Safeguards For Your Kambrook 4 Slice Toaster

• Carefully read all instructions before operating the Kambrook 4 slice Toaster for the first time and save for future reference.
• Remove and safely discard any packaging material and promotional labels before using the toaster for the first time.
• To eliminate a choking hazard for young children, remove and safely discard the protective cover fitted to the power plug of this toaster.
• Do not place the toaster near the edge of a bench or table during operation. Ensure the surface is level, clean and free of water and other substances.
• Do not operate the toaster on a sink drain board.
• Do not place the toaster on or near a hot gas or electric burner, or where it could touch a heated oven.
• Keep the toaster clear of walls and other heat sensitive materials such as cloths and curtains.
• Always ensure the toaster is properly assembled before use. Follow the instructions provided in this book.
• The toaster is not intended to be operated by means of an external timer or separate remote control system.
• Bread may burn, therefore this toaster must not be used near or below curtains or other combustible material and it must be supervised at all times when in use.

- Ensure that bread to be toasted is the correct size for the toaster and does not protrude above the bread slice opening. Ensure the bread is not too thick or long that it will jam or wedge in the bread carriage.

- Never cover the toaster when it is plugged into the power outlet or while hot.

- Do not place cold toast directly on top of toasting slots to warm toast as this may prevent correct air circulation and damage the toaster.

- Do not move the toaster whilst in operation or when hot.

- The temperature of accessible surfaces may be high when the toaster is in operation and also for some time after use.

- Never operate toaster on its side. Never add any food substance to the bread, muffins or crumpets as this can lead to electrocution or fire. This toaster is for toasting bread, crumpets and muffins only. Placing other items in the toaster can lead to electrocution or a fire.

- Do not leave unattended when in use as toast may jam or wedge in the bread carriage. Never attempt to extract toast or any other item that has jammed or wedged in the toaster with a knife or any other object as contact with live elements may not only damage the element but cause electrocution.

• Do not touch hot surfaces. Use side areas and oven mitt for lifting and carrying the toaster.
• Do not leave the toaster unattended when toasting.
• Always turn the power off at the power outlet and then remove the plug from the power outlet before attempting to move the toaster, when the toaster is not in use and before cleaning or storing.

• Do not operate the toaster without the removable crumb tray in place.

• The crumb tray should be regularly cleaned. Do not allow breadcrumbs to accumulate in the bottom of the toaster. Failure to clean the crumb tray regularly may result in a fire hazard. To clean any additional crumbs, turn the toaster upside down over a sink and shake crumbs free.

• Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts creating an electric shock hazard.
• Keep the toaster clean. Follow the cleaning instructions provided in this book

Important Safeguards For All Electrical Appliances

• Fully unwind the power cord before use.
• Connect only to 230V or 240V power outlet.
• Do not let the power cord hang over the edge of a bench or table, touch hot surfaces or become knotted.
• To protect against electric shock, do not immerse the power cord, power plug or appliance in water or any other liquid, unless it is recommended in the cleaning instructions.
• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance, by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• It is recommended to inspect the appliance regularly. Do not use the appliance if the power supply cord, plug, connector or appliance becomes damaged in anyway. Return the entire appliance to the nearest authorised Kambrook Service Centre for examination and/or repair.

• Any maintenance other than cleaning should be performed at an authorised Kambrook Service Centre.

• This appliance is for household use only. Do not use this appliance for other than its intended use. Do not use in moving vehicles or boats. Do not use outdoors. Misuse may cause injury.

• The installation of a residual current device (safety switch) is recommended to provide additional safety protection when using electrical appliances. It is advisable that a safety switch with a rated residual operating current not exceeding 30mA be installed in the electrical circuit supplying the appliance. See your electrician for professional advice
• Always turn the appliance to the OFF position, switch off at the power outlet and unplug at the power outlet when the appliance is not in use.
• Before cleaning, always turn the appliance to the OFF position, switch off at the power outlet, unplug at the power outlet and remove the power cord, if detachable, from the appliance and allow all parts to cool.
• Do not place this appliance on or near a heat source, such as hot plate, oven or heaters.
• Position the appliance at a minimum distance of 20cm away from walls, curtains and other heat or steam sensitive materials and provide adequate space above and on all sides for air circulation.

Important Safeguards For All Electrical Appliances continued

NOTE: This Kambrook 4 Slice Toaster is electronically controlled and will not operate until the toaster is plugged into a 230V or 240V power point, switched on and the lever latched down.

WARNING: Never operate toaster on its side. Never add any food substance to the bread, muffins or crumpets as this can lead to electrocution or fire. This toaster is for toasting bread, crumpets and muffins only. Placing other items in the toaster can lead to electrocution or fire.

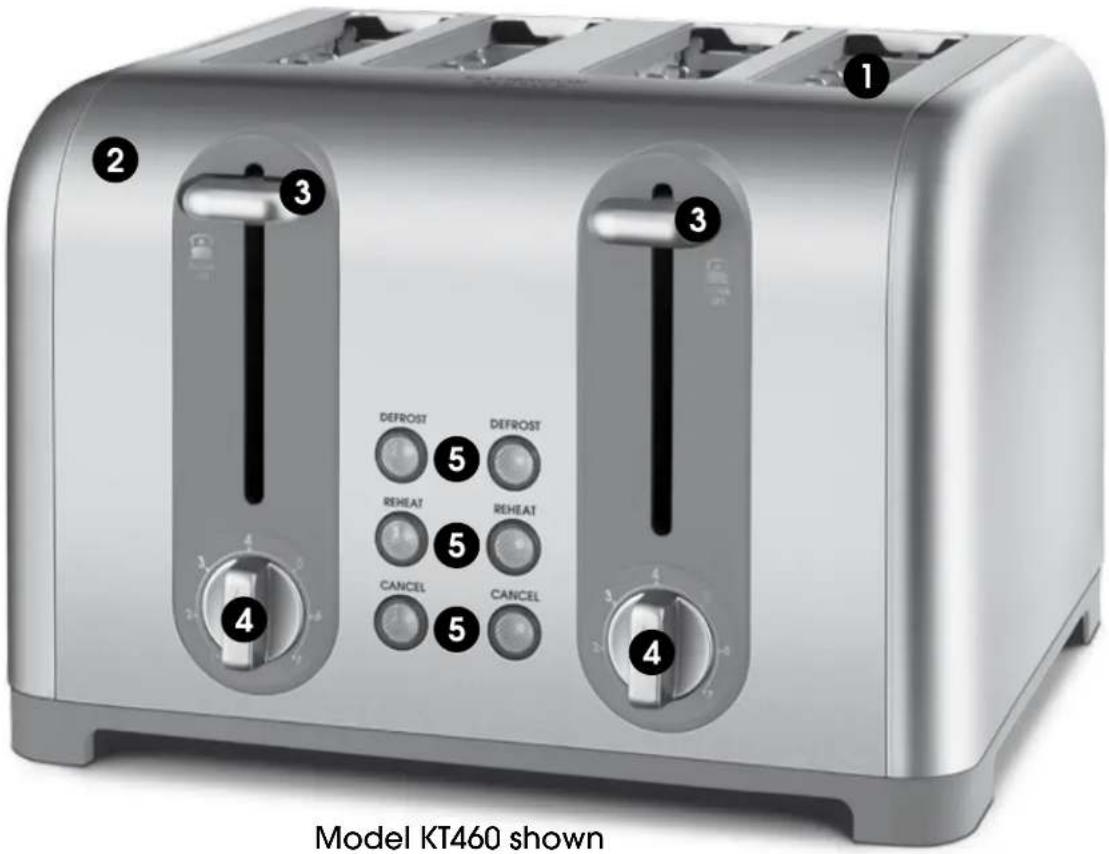

Your Kambrook 4 Slice Toaster

1. Self centring extra thick toasting slots
2. Stylish stainless steel design
3. Carriage control levers with extra lift, making it easy to remove toasted items
4. 7 stage browning control
5. Cancel, reheat and defrost settings

Not Shown

• Removable crumb tray (rear side of base)
• Cord wrap (under base)
• Sturdy non-slip feet

Using Your Kambrook Toaster

Before First Use

Before first use, remove any packaging material and promotional labels before using your toaster for the first time.

1. Place the toaster on a dry, level heat resistant surface.
2. Fully unwind the power cord and insert power cord into a 230V or 240V power outlet and switch on at the power outlet.
3. Place 1 slice of bread into each toasting slot.
4. Select the desired browning setting using the variable browning control dial. Settings range from '1' being the lightest to '7' being the darkest. It is recommended for first time use, that the control is to be set to setting number '3'. If toasting less than 4 slices of bread, the browning setting may need to be reduced to avoid burning the toast.
5. Press the carriage control lever down, ensuring it is locked in position.
6. Once the browning process is complete and desired toast colour is achieved, the carriage control lever will automatically raise the toast.

NOTE: The toasting process can be stopped at any time by pressing the CANCEL button or switching off at the power outlet.

NOTE: Depending on personal preference and bread types, a different browning setting may be required. For light-textured breads such as raisin toast and white breads this may require a lighter setting, whilst heavier textured breads such as rye bread may require a darker setting.

WARNING: The toaster is electronically controlled and will not lock down in the toasting position until the toaster is plugged into a 230V or 240V power outlet, switched on and the control lever is latched down in the locked position.

Cancel Button

The CANCEL button can be selected during operation to cancel the toasting process. The CANCEL button illuminates when the carriage control lever is locked down into position and the toasting process is in operation.

Pressing the CANCEL button any time during operation will cause the carriage lever to raise the toast and cancel the toasting process.

Defrost Button

The DEFROST button is used to toast frozen bread. Place the frozen bread into the bread slots, select the desired browning setting and press the carriage control lever down and lock into position, then press the DEFROST button. The DEFROST button illuminates during the toasting process.

Reheat Button

The REHEAT button can be selected at the beginning of the toasting process to reheat the toast, if required. Place the toast into the bread slots and press the carriage control lever down, ensuring it is locked into position. Press the REHEAT button; the REHEAT button illuminates during toasting process.

NOTE: The DEFROST button and REHEAT button cannot be selected at the same time.

Extra Lift

The toaster carriage control lever features EXTRA LIFT. EXTRA LIFT is ideal for removing smaller items such as crumpets or English muffins. Once the browning process is complete, the lever will automatically raise the toast.

For easier removal of toasted items, lift carriage control lever upwards approximately 10mm from the lever starting position.

WARNING: Do not leave toaster unattended when in use as toast may jam or wedge in the bread carriage. Never attempt to extract toast or any other item that has jammed or wedged in the toaster with a knife or any other object, as contact with live elements may not only damage the elements, but cause electrocution.

Care, Cleaning and Storage

1. Before cleaning the toaster, switch the power OFF at the power outlet and remove the power plug from the power outlet.
2. The crumb tray will need to be cleaned regularly to avoid breadcrumbs, dried fruits, crusts etc. accumulating in the bottom of the toaster.
3. To remove the crumbs from the toaster, slide the crumb tray out from under the toaster carriage by pulling outwards away from the toaster.
4. Discard the crumbs and wipe tray over with a soft, damp cloth and dry thoroughly.
5. To remove any additional crumbs that have accumulated in the toasting carriages, turn the toaster upside down over a sink or bin and shake crumbs free.
6. Ensure crumb tray is dried thoroughly. Place crumb tray back into position by sliding the tray back and push in until completely locked into place.
7. The stainless exterior of the toaster can be wiped over with a soft, damp cloth and dried thoroughly.
8. To store the toaster, always switch off at the power outlet, remove the power plug from the outlet and allow to cool completely before storing. Store the toaster in the upright position on a flat surface on your bench top or in a cupboard. Do not store anything on top of the toaster.

WARNING: Do not immerse the toaster or power cord in water or any other liquid.

WARNING: Do not operate the toaster without the removable crumb tray in place. The crumb tray should be regularly cleaned. Do not allow crumbs to build up in the crumb tray.

Notes
