Product Type	Power Supply Unit for Audio Mixers
Brand	Behringer
Model	PSU3-KR
Input Voltage	100-240V AC, 50/60Hz
Output Voltage	12V DC
Output Current	2A
Output Connector	2.1mm center positive plug
Dimensions (approx.)	100 x 60 x 40 mm
Weight (approx.)	200 g
Color	Black
Compatibility	Behringer mixers requiring 12V DC (e.g., Xenyx series)
Safety Features	Overcurrent protection, short circuit protection
LED Indicator	Power on indicator
Cable Length	Approx. 1.5 m
Operating Temperature	0-40°C
Storage Temperature	-20-60°C
Certifications	CE, RoHS
Included Accessories	Power cord (country specific)
Maintenance	Keep dry, clean with dry cloth. Unplug before cleaning.
Repairability	Not user-serviceable. Contact authorized service center.
General Information	Designed for professional audio use. Ensure proper ventilation.

Frequently Asked Questions - PSU3-KR BEHRINGER

What is the output voltage of the Behringer PSU3-KR?

The output voltage is 12V DC with a current rating of 2A.

Can I use this power supply with any Behringer mixer?

It is compatible with Behringer mixers that require 12V DC and draw 2A or less. Always check your mixer's specifications.

What should I do if the power supply gets hot?

Ensure proper ventilation and do not cover the unit. If it becomes excessively hot, disconnect immediately and contact Behringer support.

Is the PSU3-KR compatible with 220V outlets?

Yes, it accepts a wide input voltage range of 100-240V AC, 50/60Hz, making it suitable for use worldwide with the appropriate plug.

Does it come with a replacement fuse?

No, but the unit has built-in overcurrent protection. If it fails, it should be replaced by a qualified technician.

How long is the power cable?

The cable from the power supply to the mixer is approximately 1.5 meters long.

Can I use an extension cord with this power supply?

Yes, but ensure the extension cord is rated for at least 2A and has proper grounding.

Is there a warranty for this product?

Yes, it is covered by the standard Behringer warranty. Refer to the warranty card or contact your dealer for details.

What does the LED indicator mean?

The green LED illuminates when the power supply is connected and delivering power to the mixer.

How should I clean the power supply?

Unplug the unit and wipe it with a dry, soft cloth. Do not use liquids or abrasive cleaners.

USER MANUAL PSU3-KR BEHRINGER

Replacement Power Supply for MX602A, UB502, UB802, UB1002, XENYX (502, 802, 1002), Q502USB, Q802USB, Q1002USB
3-Year Warranty Program*
Conceived and designed by BEHRINGER Germany

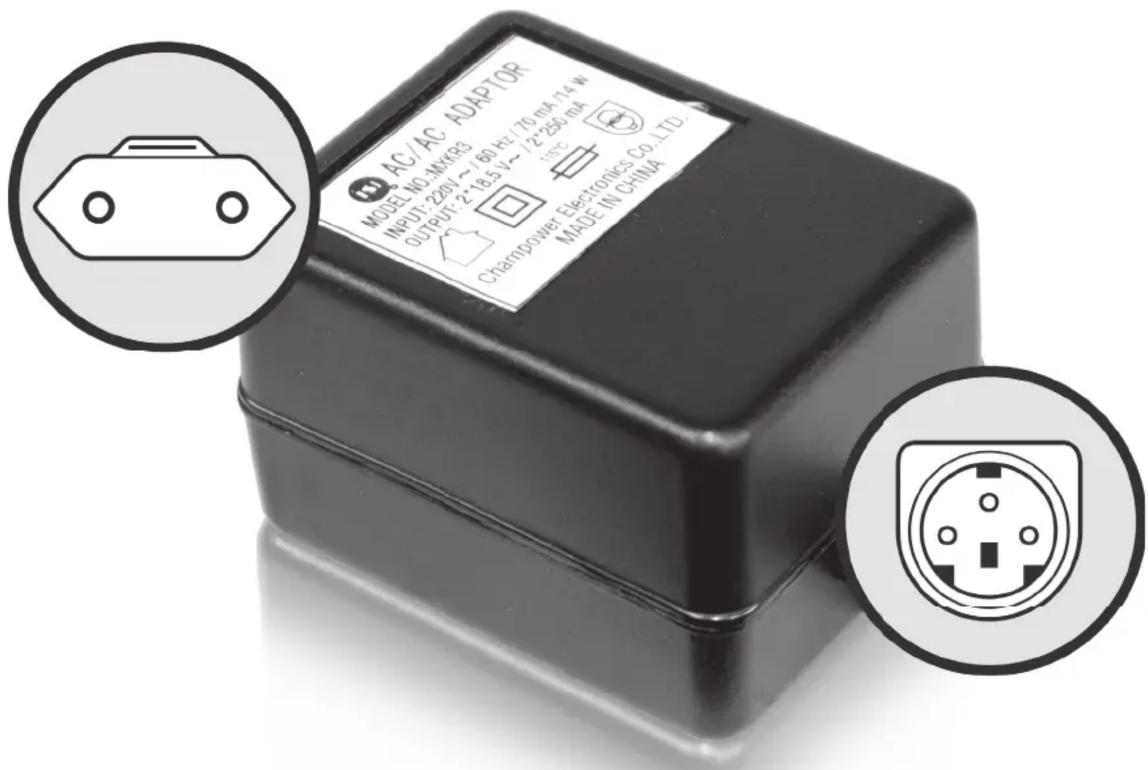

The PSU3-KR power supply is identical to the one that came with the products listed above, and is required for proper operation in your part of the world. We offer a wide range of region-specific Replacement Power Supplies designed specifically for your BEHRINGER device.

3D rendering of a black audio workstation with multiple knobs and buttons (no visible text or labels)

You Are Covered

We always strive to provide the best possible Customer Experience. Our products are made in our own MUSIC Group factory using state-of-the-art automation, enhanced production workflows and quality assurance labs with the most sophisticated test equipment available in the world. As a result, we have one of the lowest product failure rates in the industry, and we confidently back it up with a generous 3-Year Warranty program.

PSU3-KR

220V KR Replacement Power Supply

MX602A, UB502, UB802, UB1002,

XENYX (502, 802, 1002), Q502USB,

Q802USB and Q1002USB
