Product Type	Freezer
Brand	Mitsubishi
Model	MR-LX630EM
Total Capacity	630 liters
Freezer Net Capacity	630 liters
Energy Efficiency Class	E (EU 2019)
Annual Energy Consumption	350 kWh
Freezing Capacity	25 kg per 24h
Storage Time During Power Failure	48 hours
Noise Level	42 dB(A)
Climate Class	SN-T (subnormal to tropical)
Dimensions (W x D x H)	1795 x 750 x 845 mm
Weight	75 kg
Power Supply	220-240 V, 50 Hz, 1.5 A
Refrigerant	R600a (isobutane)
Defrost Type	Manual
Fast Freeze Function	Yes
Temperature Control	Mechanical thermostat
Lock	Yes, with key
Castors	Yes, 4 castors
Interior Light	LED
Warranty	2 years

Frequently Asked Questions - MR-LX630EM MITSUBISHI

What is the ideal temperature setting for my Mitsubishi MR-LX630EM freezer?

For optimal food preservation, set the thermostat to -18°C. This temperature ensures safe storage and maintains food quality. Adjust if necessary based on ambient conditions.

How do I defrost the MR-LX630EM freezer?

The MR-LX630EM requires manual defrosting. When frost exceeds 5 mm, unplug the freezer, remove food, and leave the door open to allow ice to melt. Clean and dry interior before restarting.

What is the annual energy consumption of this freezer?

The Mitsubishi MR-LX630EM consumes approximately 350 kWh per year under standard conditions. Actual consumption may vary based on usage and environment.

Can I use an extension cord with my freezer?

It is not recommended to use an extension cord. Plug the freezer directly into a properly grounded wall outlet to avoid voltage drops and potential safety hazards.

What does the Fast Freeze function do?

The Fast Freeze function rapidly lowers the temperature to quickly freeze fresh items. Activate it 24 hours before adding large amounts of unfrozen food to preserve texture and nutrients.

What should I do if the freezer is not cooling properly?

First, check the thermostat setting and ensure the door is fully closed. Clean the condenser coils if dusty, and verify that the freezer has adequate ventilation. If the issue persists, contact a qualified technician.

How do I clean the interior of my freezer?

Unplug the freezer and remove all food. Wash interior surfaces with a mild detergent and warm water. Avoid abrasive cleaners. Dry thoroughly before plugging back in and restocking.

How much food can I store in the MR-LX630EM?

With a capacity of 630 liters, this freezer can hold up to approximately 220-250 kg of frozen food, depending on packaging and arrangement.

Is the freezer lock available if I lose the key?

The lock is designed to keep the door securely closed. If the key is lost, contact Mitsubishi customer service for a replacement. Do not attempt to force the lock open.

What is the noise level of the MR-LX630EM?

This freezer operates at a noise level of about 42 dB(A), which is comparable to a quiet conversation. It is suitable for most home environments.

USER MANUAL MR-LX630EM MITSUBISHI

Contents
Page

Before use0	For your safety, please be sure to follow these instructions	2-3
	From installing to running your refrigerator	4-5
	How to Use the Operation Panel	6-7
	Using each compartmentRefrigerator/Sliding case/Vegetable and Freezer Compartments	8-10
	Automatic Ice-Maker	11-12
	Energy Saving Mode/PerformingTemperature Adjustment/Rapid Cool	13-15
	How to remove and clean accessories	16-17
	How to maintain your automatic ice-maker	18
Other Issues/Troubleshooting		19-26
Accessories		27
MEMO		28

Non-Freon Refrigerators

This refrigerator uses non-Freon refrigerant (isobutane) and non-Freon foam insulation (cyclopentane). These materials are harmless to the environment and do not affect the ozone layer and global warming.

Please read this manual carefully and follow the information contained within. In particular, be sure to read the safety precautions before using this refrigerator.
■ Be sure to receive your copy of the warranty from the retailer and confirm that the purchase date and retailer name are written on the warranty.
■ Store this operating instructions manual and the warranty in a safe place.
This refrigerator was manufactured for refrigerating and freezing of foods in general households. For commercial use, please use a commercial refrigerator-freezer.
■ The principal plastic components indicate the material name to facilitate recycling.

Cleaning Instruction - Important!

It is strongly recommended to use only lukewarm water and a soft cloth when cleaning. Cleaning agents can cause cracking to the plastic components of your refrigerator.

For your safety, please be sure to follow these instructions

The types of danger that can result from improper handling are explained in the sections below.

Warning

Mishandling can lead to serious injury or death.

Caution

Mishandling can lead to bodily injury or loss of home and household contents.

■ The symbols illustrated below have the following meanings.

Do not do

Always follow instructions

Do not get wet

Always connect an earth wire

Caution

Always unplug electrical plug from socket

Warning

When installing your unit

Do not get wet

Do not install in an outdoor area where water can get on it or where there is a lot of moisture.

Due to insulation failure, it may cause an electric shock or fire. → Page 4

Always follow instructions

Allow some space around the refrigerator.

If the refrigerant (gas) leaks, it can remain in the area and there's a risk that it may cause a fire or explosion. → Page 4

To be prepared for an earthquake, affix to a strong wall or column.

Not doing so may cause injuries from the refrigerator toppling over. → Page 5

Always connect an earth wire

Attach ground wire and earth leakage breakers when used in a humid or moist area.

(Please consult with the shop). ⇒ Page 4 It may cause electric shock when electric leakage. And the following ground connection may cause electric shock, explosion and fire.

• Water pipe/gas pipe.

• Telephone ground lines and lightning rod.

About the electrical outlet and electrical plug

Do not do

Do not push the electrical plug with the back of the refrigerator.

Do not damage the electrical cord.

If the plug is pressed by the refrigerator, or if the cord is bent, bundled, or a heavy object is placed on it, it can cause an electric shock or a fire.

Do not use damaged cords or plugs or loose outlets. Using them can result in an electric shock or injury.

Do not remove the electrical plug by pulling the cord. The cord can become damaged and can cause an electric shock or a fire.

Do not plug or unplug the electrical plug with wet hands. It can cause an electric shock.

Always follow instructions

Use a dedicated outlet for the power supply that meets the rating specified on the rating label. (The rating label is located on the door-liner of the refrigerator compartment.)

Using an extension cord or plugging in too many power cords into the outlet can cause heat buildup or a fire. → Page 4

Keep the electrical plug cord facing downwards and insert the plug in fully.

If it is plugged with the cord facing upward, extra pressure gets exerted on it which can cause it to heat up or ignite.

If the power cord is damaged.

If the power cord is damaged call Mitsubishi Electric Service Centre for a technician to replace power cord. The power cord should be designed for this model.

About the electrical outlet and electrical plug

Remove dust from the electrical plug.

Always follow instructions

Not doing so can cause a fire from insulation failure.

When replacing the interior refrigerator light or when taking care of the unit, pull out the electrical plug.

Always unplug electrical Not doing so can result in an electric shock plug from socket or injury.

About using your refrigerator

Do not do

Do not damage the refrigerant circuit (piping) of the refrigerator; do not drive in screws.

Because a flammable refrigerant (gas) is used, there is the danger of igniting or explosion.

Do not use electrical products inside the refrigerator unit.

If the refrigerant (gas) is leaking inside the unit, there is a risk that a spark from the electrical product's contact can be a source for ignition or explosion.

Do not store volatile products that can easily ignite. Benzine, cosmetics and hair styling products can be the cause for igniting fires and explosion.

Do not store pharmaceuticals or scientific test material. Anything that needs strict supervision must not be stored in a home-use refrigerator.

Do not place items on top of the refrigerator. Items may drop from opening and closing the door and can cause injury.

Do not hang on the door or door handle, and

do not get on compartment drawer-type doors. The refrigerator can topple over causing injury.

Do not add a strong impact on the glass shelf.

The glass will broke and it may cause injury.

Do not put your hands in the mechanical part of the automatic ice-maker (the upper part of the ice storage box). Doing so will cause injury.

Do not use flammable sprays nearby.

A spark from the electrical contact can ignite and cause a fire.

- This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely.

- Young children should be supervised to ensure that they do not play with the appliance.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Warning

About using your refrigerator

Do not do

Do not use in a shed or a garage.

If small animals damage the wiring, it can cause an electric shock or a fire.

Do not encapsulate refrigerant other than our specification.

It may cause rupture, explosion, fire, etc. when using, repairing, disposal, etc.

Do not get wet

Do not put any vessels, jars, etc. that contain water on top of the refrigerator.

If water gets onto electrical parts, it will cause an electric shock or a fire.

Do not wash with water or spill liquid food items on the unit.

If water and food liquids get on the unit, it can cause an electric shock or a fire. If that happens, dry off immediately.

Always follow instructions

If you sense a gas leakage, do not touch the refrigerator. Open the window and ventilate the room.

A spark from the electrical contact can cause an explosion or a fire.

When the doors are opened or closed, beware not to hit any furniture.

The door or furniture may be damaged and cause any injury.

About Malfunctions / Long Term Care

Do not do

Do not take apart, repair or convert. Do not continue to use with damaged parts.

This can cause injury, an electric shock or a fire.

Always follow instructions

If the refrigerant circuit (piping) is damaged, do not touch the refrigerator, open the window and ventilate the room.

When the refrigerant circuit is damaged, please consult the store in which the unit was purchased.

If you will not be using the refrigerator for a long period of time, after pulling out the electrical plug, open the door and let the interior dry out.

If it is not dried adequately, the cooling unit may corrode causing the refrigerant (gas) to leak which can then cause the danger of ignition or explosion

Always unplug electrical plug from socket

If something abnormal occurs (such as a burning smell), pull out the electrical plug and stop the refrigerator from running.

If it continues to run in an abnormal state, it can cause an electrical shock or a fire.

When Recycling

Always follow instructions

If there is a possible danger of a child getting trapped inside while the refrigerator is not in use, please pull off the door seal.

It is dangerous if the child gets shut inside.

When disposing of the unit, transfer it to the store that you purchased it or to the municipality.

If it is neglected and refrigerant (gas) leaks, ignition or an explosion may be caused due to heat from a fire.

When something abnormal or unusual occurs, turn off immediately and consult with "the store where you purchased the unit" or with a "Mitsubishi Electric repair counter."

Caution

Installing and Transporting

Always follow instructions

Install on a strong level floor and adjust the adjustable legs to fix firmly.

The refrigerator may move and cause injury. → Page 4\~5

When carrying, use the handles made for carrying.

If other parts are held while carrying, it can cause injury. → Page 21

Be careful not to damage the floor or injure yourself when moving the refrigerator.

Lay a protective sheet on the floor and move the refrigerator slowly.

About using your refrigerator

Do not do

Do not force food items into the refrigerator. Do not use force to pull out shelves.

Food items may fall out, causing injury.

Do not store bottles in the freezer compartment.

If the center freezes and bottles crack, it will cause injury.

Do not place your hands or feet under the refrigerator.

You can get injured from something such as the steel plate.

Do not eat food that has a bad smell or is discoloured.

Doing so may cause food poisoning or other illnesses.

Observe the following when opening and closing the doors.

- Do not open or close the doors when another person is touching the refrigerator.

- Do not put your fingers on the top edge of a drawer type door while closing it.

- Do not open or close the doors with excessive force. (Food may fall out and cause injury.)

- Be careful not to trap your fingers or any other part of your body.

- Be careful not hit a part of your body.

- Do not trap your feet with the bottom drawer. (Danger of your toes caught by the drawer.)

Not doing this may cause injury.

Do not touch foods or containers in the freezer compartment with wet hands.

Doing so can cause freezer burn.

Caution

Please take care when removing ice from the ice box.

Built-up frost may cause injury when removing.

Always follow instructions

Make sure that glass shelves or pockets are attached properly.

If insufficiently attached, it may fall out and may cause injury.

① Installation

Where to install your fridge

● Install in a place where there is no direct sunlight or heat, and with good ventilation.

This protects against a decrease in cooling power and saves on electricity bills.

● Install in a place with low humidity.

This prevents rust, electric shock or fires from occurring.

● Install on a solid and level floor.

This prevents vibrations, noise, and partially open doors or doors left ajar.

Prevent changes or discoloring by its mass or heat.

※ If the refrigerator adjustment feet sink easily into the flooring material, please lay a strong board on top of the flooring.

● Install away from other appliances.

This prevents noise or image disturbances to the television, etc.

● Leave a space of more than 2 cm to the left and right, and more than 10 cm from the ceiling, and more than 5 cm from the back.

This is to allow heat to escape from the top, the back and sides.

※ If refrigerator is too near to the wall, it will cause the sound. Please care to remove the dust within the gap.

Do not get wet

Do not install in an outdoor area where water can get on it or where there is a lot of moisture.

Due to insulation failure, it may cause an electric shock or fire.

Always follow instructions

Allow some space around the refrigerator.

If the refrigerant (gas) leaks, it can remain in the area and there's a risk that it may cause a fire or explosion.

② Turning on the power

● Turn on the power of the refrigerator as soon as possible.

The refrigerator will not be damaged even if you turn on the power immediately after the installation.

Use a dedicated outlet for the power supply that meets the rating specified on the rating label.

How to remove the energy label

• Remove the energy label carefully. A glue residue may remain, particularly if the label has been in place for a long period of time.
• Apply either Eucalyptus or Tea Tree oil directly on any residue.
• Do not allow the oil to run or drip onto plastic parts as it may cause the plastic to degrade and potentially crack over time.
• Allow the oil to sit for approximately 1-2 minutes, or until the glue residue has softened.
  ● Wipe off with a damp cloth.
• If any residue remains, repeat the above process.
• Rinse with clear water.
• Dry thoroughly.

③ Adjustment and affixing

(to provide half-opened door/noise/move/vibrate)

Turn the adjustable legs to get them to touch the floor, then affix.

Insert the blade of the screwdriver Turn the adjustable supports in the arrow direction until they touch the floor.

Caution

If the supports are not adjusted properly, the refrigerator may move and cause injury.

※Before adjusting, please pull the leg cover to the front and remove it.

- Please fix the tilt by adjusting the legs.

Please adjust the adjustable leg as the following picture to level the refrigerator.

If the left side of the door is sagging

If the right side of the door is sagging

Keep the front at a slightly higher angle. This makes closing the door easier and prevents the door from partially opening.

Raise the right side Raise the left side

※After several days from installing, it may sink to the floor by weight. Please re-adjust the adjustable legs again.

When the tilt cannot be corrected with the adjustable legs.

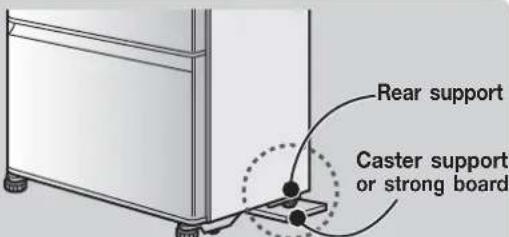

If installed in a corner of a room, there are times when one side of the back legs sinks into the floor. When that happens, please make adjustments in the rear with caster support (separately sold) or a strong board underneath (normally, the thickness of the board should be 2 - 3 mm.)

For the caster support, please contact to the shop where you purchased.

Model No.: MRPR-03CS

● After adjusting please insert the toe grille.

(Toe grille included in the refrigerator)

Start using

● It takes time to cool down.

- Put in warm food items or ice cream after the refrigerator has been adequately cooled down.

- Keep opening and closing of the door for to a minimum, and open in a short time.

• In the summer, it will take approx. 24 hours to make the first batch of ice.

It may smell of plastic.

- The smell will gradually disappear. Please ensure that the room is adequately ventilated.

- When the refrigerator is in cooling mode the following may occur (also occurs during summer).

•The side will be hot to radiate outside of the refrigerator for cooling.

- Operating noise may be loud due to the compressor running at a high speed operation.

Do not do

Do not damage the refrigerant circuit (piping) of the refrigerator; do not drive in screws.

Because a flammable refrigerant (gas) is used, there is the danger of igniting or explosion.

Use in hot spring areas

Corrosion control treatment must be applied for the refrigerant circuit (pipe) due to generation of corrosive gases. Contact the retail store where you purchased the refrigerator.

How to Use the Operation Panel

Touching will cause the operable icons to light up.

To save power, all displays other than 300 are usually turned off (it turns off if there is no operation for about 30 seconds).

When operating, be sure to touch the buttons with your fingers.

ECO icon

When ENERGY SAVING is set, and the refrigerator is running efficiently,

ECO icon mark will light up. → Page 13

Child Safety Lock → Page 20

Detail Setting

Touch ☐ to go to compartment selection; Touch ☐ to go to various settings.

Example: When setting the refrigerator compartment to "COLD"

Touch an icon to display its setting details.

When turning ON or OFF settings, touch one of these.

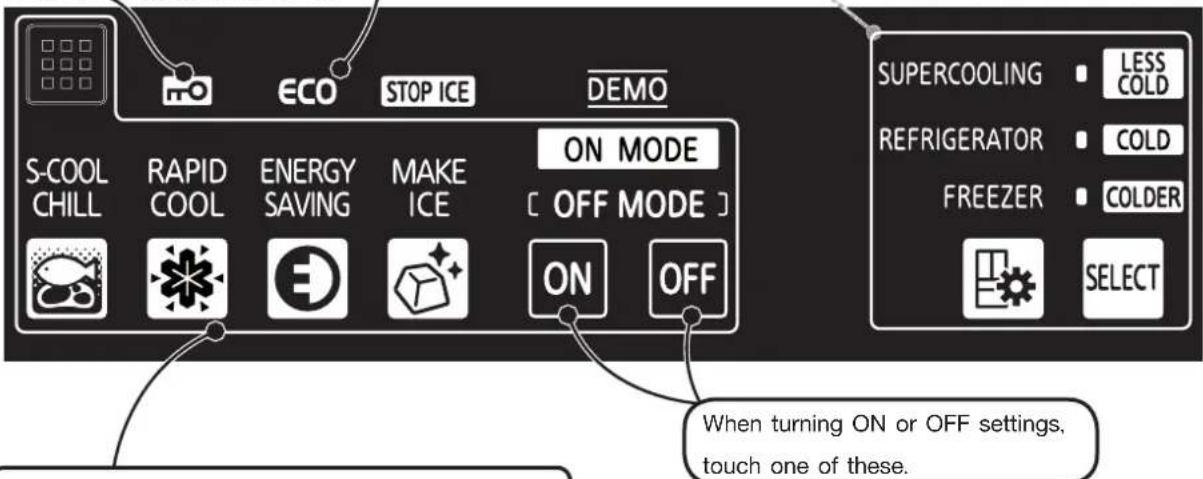

If you touch the operation panel, icons will be displayed. You can select the setting that you prefer.

Supercool Chilling To preserve meat or fish below freezing

Rapid cool To protect a large amount of the food's freshness

Energy Saving Mode To successfully save power

Ice making To start or stop ice making

Operation Example (When Setting Supercool Chilling)

②and

3touching

returns the display to the previous state.

To Cancel the Setting/Cancel in the Middle

In the following cases, the display may not change even when you touch it.

The operation panel or your fingers are wet or dirty.

You are wearing gloves or have sticking plaster on your finger.

The interval between touches is too short. (Pressing repeatedly may cause a misdetection)

• Wipe the moisture and dirt off your fingers.
  Perform operations with your hands. After you have touched an icon, confirm that the display has changed before touching again.
  The response may vary, depending on the surrounding temperature, humidity, the health condition of the person who operates it, and the operating condition of neighboring electric appliances.

Insert drinks or immediately used foods in refrigerator compartment. Sliding case can store meats, fish, dairy products, processed foods, etc. at a lower temperature than the refrigerator compartment.

Refrigerator Approx. 0°C\~6°C

How to remove shelf, pocket, case → Page 17

Rotating Partition

Open and close the doors slowly.

If you open or close the doors with force, the rotating partition may open to the front.

Return the partition to its regular position before closing the door.

(Otherwise it may be damaged.)

To prevent odors?

We recommend you wrap or store the foods in airtight containers.

Foods with strong odor

Kimchi, dumplings, sardine (seafood), beef, etc.

Foods that easy to absorb odor

Rice, potato salad, etc.

Air blowing outlet

Food items with a lot of moisture may freeze if put near air blowing outlet. (Especially canned beer or carbonated drink, there is a risk of rupture when freezing.)

Air blowing outlet

Door alarm will inform when the door is left open.

→ Page 20

Sliding Cases About -3°C to 3°C

At the time of purchase, the lower case is not set to Supercool Chilling. When setting Supercool Chilling, use the following settings.

• Processed food such as sausage, ham and dairy products can be preserved.
• Do not store food that is easily frozen.
• The temperature cannot be adjusted.

Sliding Case(Lower)

Supercool Chilling can be set with

• Food will not freeze, even below the freezing point (about -3°C to 0°C )
• The freshness of meat and fish can be prolonged without freezing.

Preserving Meat or Fish Below Freezing

Supercool Chilling

Supercool Chilling stores and preserves meat or fish for a longer time at a temperature lower than the refrigerator compartment or upper case without freezing them.

Once it has been set, Supercool Chilling will be the default setting until it is disabled.

To Set

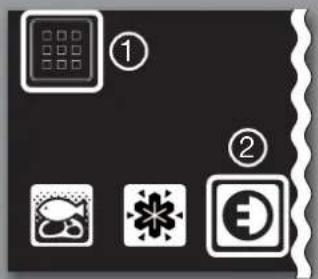

1 Touch on the operation panel
2 Touch
The text above the icon will light up.

3 Touch ON

The settings are finished.

It doesn't matter whether you put food in before or after the settings.

To cancel the setting → Page 7

* If you disable the setting, the lower case can be used in the same way as the upper case.

Supercool Chilling Is Very Useful

Tastes good

Because the food doesn't freeze, the fresh flavor lasts longer!

Keep fresh

Meat and fish last longer and are fresher than in the refrigerator compartment or upper case!

Estimated Preservation Period

Tips

Do not leave food hanging over shelves or pockets.
- Do not place bottles that cannot fit all the way to the bottom of the bottle pocket.
Do not attach a case that you purchased separately onto the outside of a pocket.
- Do not heat the glass surfaces of the glass shelves or place hot objects on them.

Do not close the door while food is in front of the upper case or the lower case.

- Fully stow away the cases. Otherwise they may keep a door ajar and reduce the cooling performance, or food may fall and cause damage to a case.

Do not pile food to the top. Leave a gap so that cold air can flow to the ceiling and between food.

Notice

Because sliding cases cannot guarantee the quality of foods that easily freeze (such as tofu, konjac, raw eggs, vegetables, etc.), storing such foods is not suitable. Depending on the type and amount of food, as well as its condition at the time it is placed in the refrigerator, food may freeze.
The temperature of the lower case (when Supercool Chilling is set) may exceed 0° C depending on the time of door opening/closing and the amount of food.

Please insert fruit, vegetables and drinks.

If you wrap fruit and vegetables, they will stay fresh longer.

Sliding Case

For smaller items that get damaged easily such as tomatoes and fruit.

Vegetables Case

LED light in the vegetable compartment

The LED light with specially selected light spectrum installed in the Vegetable compartment can increase the Vitamin C and preserve freshness in green vegetables by introducing photosynthesis process.

Please note

Do not put tall items in the sliding case.

● It can damage food items or damage the sliding case.
- If the sliding case is taken out and used separately, the vegetable compartment will become dry.

Suggestions

● Store vegetables using transparent containers or wrappings to enable exposure to the LED light.
● With exposure to the LED light, photosynthesis process for green vegetables will be enabled, the effect will depends on the initial freshness of the vegetables stored.
- Do not use any sharp objects to scratch or adjust the LED light to prevent damage which may affect its normal operation and effectiveness.
- If the LED light is damaged or not operating, do not adjust or repair, please seek technical assistance from the authorized service center.

Freezer compartment

Approx. -21°C \~ -17°C

You can store frozen food, ice cream, bread, meat, fish, etc.

Notice

Put foods in the Freezing Case to below the embossed line level seen at the front.

• When closing the door, food can get in the way causing the door not to close properly. This can cause frost to form in the inside, or improper freezing, and will cause a malfunction.
  ● This may damage food and the freezing case, as well as the automatic ice-maker.

Automatic Ice-Maker

You can make ice cubes by putting water in the water supply tank of the refrigerator compartment. Please do periodically maintain to make a good ice cube by cleaning. Please drain the water in the water supply tank when you do not make ice.

Water to Use for Your Auto Ice-Maker. We recommend that you use water such as tap water which contains less bacteria. If you use mineral water or water from a filtering machine, please increase the number of cleaning times, and be sure to clean it thoroughly. → Page 18

1 Take out the water supply tank, remove the tank plug, and fill with water.

Fill water to the "full line" mark.

How to remove the tank plug. Turn to the "Open" position and lift off.

2 Put the tank plug on the water supply tank, carry carefully without tilting it, and return to its original position.

How to put in the tank plug.

Warning Fill with potable water only.

- When carrying the water supply tank, make sure that the “▶” symbol is in the closed position.

● If the tank is tilted, water will spill out.

- If the water supply tank is not properly in position, ice cannot be made. Make sure that there is nothing blocking the tank receiving area.

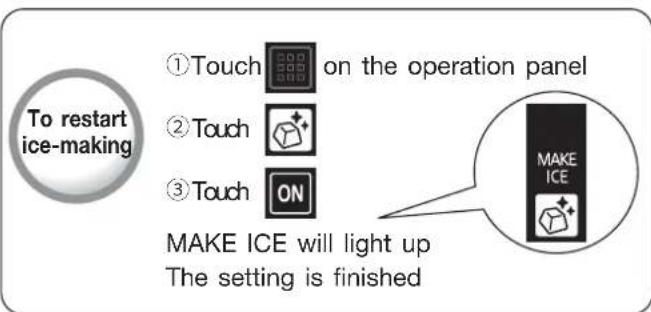

When you will not make ice for a long time ※ Also do this when moving or transporting unit.

Empty the ice-making tray by taking out the ice or by forcing water to go into the ice storage box.

Take out the water supply tank, close the freezer door.

Press 📋 for about 5 seconds. (Press until it makes a beeping sound.)

MAKE ICE and STOP ICE will blink for about 1 minute. (It drops down the ice-making tray's water or ice.)
● When the light stops blinking, it will return to the previous indication.

Take out the freezing case (upper) and the ice storage box. And discard water or ice.

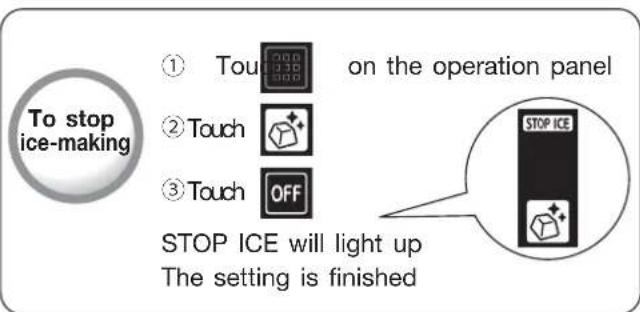

Stop making ice.

● I MAKE ICE light is on, to do ice-making stop procedure and check to confirm that STOP ICE light is on.

Wash with water, dry, and put back in place: the water supply tank (water supply pump, pipe, water filter), freezing case (upper), ice storage box and the noise reduction mat. → Page 18 To restart ice-making, to do ice-making restart procedure and check to confirm that light is on.

Put the water supply tank back in place.

Please note

● Do not put the food items when making ice.
- Please do not store anything above the level on the side of the freezing case (upper).
(The door may half-open and it may cause failure/damage).
- Do not insert any drinks such as hot water, juice, tea, soft drink, etc. other than water in water supply tank (heatproof temperature 60°C). It may cause failure.
● Ice-making will stop when the amount of storage ice is given quantity. Ice cube will flat when it thick some, please insert ice server horizontally in front side of ice storage corner as the left figure.
- Please gently close the door of freezing compartment. Ice cube may get dirty.
- Do not insert water over full water mark in water supply tank. Water channel in the ice tray may freeze, ice cube may connect together, and convex may come out, if insert water over the mark or pour water by kettle.

About the ice

● Ice made with water containing a lot of mineral substances such as mineral water, can cause to ice to form with a white sediment (white crystals). These are only mineral substances that have become crystallized. It is harmless.
- If ice is stored for a long period of time, the ice cubes may cling together or become smaller. (This is known as the phenomenon of sublimation.)

● Ice-making may take longer with frequent opening/closing of the door, or depending on the ambient temperature.

Caution

Please pay enough attention when crush the ice which stuck in ice storage corner.

It may cause injuries.

Energy Saving Mode

This mode learns each family's method of use and operates with the optimal state for each compartment.

Energy Saving Mode

An appropriate timing is selected for each compartment and the energy saving mode is performed automatically with a slightly high temperature setting.

To Set

1 Touch on the operation panel

2 Touch

The text above the icon will light up.

3 Touch ON

The settings are finished.

To cancel the setting → Page 7

If Energy Saving Mode is set, ENERGY SAVING is displayed.

If switched to power saving operation while

Energy Saving Mode is set, ECO is displayed.

Tips for using the refrigerator wisely

Temperature settings

Setting each compartment to a relatively low operation reduces the consumption of electricity.

Opening and closing compartment doors

The refrigerator consumes more electricity if you open and close the compartment doors frequently or leave the doors open for a long time.

Energy Saving Mode

In this mode, the refrigerator automatically operates in an energy saving fashion when the temperatures are stable in the compartments. The refrigerator is not set in this mode when newly installed.

Storing foods

Do not stuff the compartments with too much food or do not place foods in manner to cover the cold air outlets. Or else, cold air does not flow through optimally in the compartments, causing the foods to take time getting cool or frozen and increase electric power consumption.

ECO Lights-Out

In the following cases, energy saving mode will be cancelled and the light will turn off.

• When the doors are frequently opened and closed
• When Rapid Cool is operating
• After defrosting
• When set to Supercool Chilling.
  (After the freezer compartment is sufficiently cold and stable, energy saving mode will automatically restart.)

Detail Setting

Performing Temperature Adjustment

The temperature of each compartment can be adjusted.

Use the refrigerator and freezer to "COLD" usually.

Temperature Adjustment

At the time of purchase, the settings are as follows.

Refrigerator and Freezer Compartments

....."COLD"

1 Touch on the operation panel
2 Repeatedly touch 📄 to light up the compartment that you want to set the temperature for.

The display changes in the order shown in the right each time the button is touched.

When a compartment is displayed, that compartment's temperature setting will also be displayed.

3 Repeatedly touch set the temperature.

In 2 and 3, touching 📄 or not performing any operations for about 30 seconds will return the display to its initial state. ➔ Page 6

* 1 Can only be selected when Supercool Chilling is set.

→Page 9

Refrigerator/Freezer Compartment Temperature

The display changes each time is touched and the temperature can be set to 5 different levels.

Sliding Case(lower)(When Supercool Chilling is set) Temperature

Can be adjusted to ☐Less only when Supercool Chilling is set. →Page 9

Make this setting when food freezes.

The display changes each time SELECT is touched.

When food freezes

When the surrounding

temperature is 5°C or less

Normally

When the Sliding Case(lower)

does not cool well

Notice

The temperatures described here are measured in the lower centre of the refrigerator after the temperature has stabilized when the surrounding temperature is 30°C and the doors are closed without any food inside. The temperature fluctuates with factors such as food storage conditions and how often the doors are opened and closed.
Before and after defrosting, the temperature inside the refrigerator may drop or rise temporarily.
When food freezes in the refrigerator compartment or lower case, set the refrigerator temperature setting to COLD - LESS COLD and the lower case temperature setting (when Supercool Chilling is set) to LESS COLD.

Rapid Cool

When storing a large amount of food, protect the food's freshness by rapidly cooling it.

RAPID COOL

Swiftly cool compartments (Refrigerator and Freezer) when their doors are opened and closed

To Set

1 Touch on the operation panel
2 Touch

The text above the icon will light up.

3 Touch ON

The settings are finished.

This ends automatically about 2 hours after setting.

It doesn't matter whether you put food in before or after the settings.

To cancel the setting → Page 7

Notice

The sound of the refrigerator running gets louder during Rapid Cool, because it is operating at high speed.

Always unplug electrical plug from socket

Unplug the electrical plug.

If it is not unplugged, it will cause an electric shock.

Do not do

Do not take apart, repair or convert. Do not continue to use with damaged parts.

This can cause injury, an electric shock or a fire.

※ Wait 10 minutes or more before you replug the electrical plug into the outlet. If you plug it in immediately after unplugging it, the refrigerator will not run.

How to maintain Q&A

Q. If dirt is noticed.

A. Please wipe as soon as possible.

● Wipe with a soft towel soaked in warm water.
● For hard to remove dirt, please use a kitchen detergent (neutral type) and wipe off with water.
● Wipe off oil stain or citrus juice immediately.
● Door packing may cause damage or cold air leakage if you leave the dirt. Please wipe off the moisture with dry towel after wipe off with soft and soak towel.

Q. Can the shelf, case and pocket be removed?

A. For removable parts,

please see →Page 17

Please take heed

- Do not use the following items.

Alkalinity or alkalescent kitchen detergent, polishing powder, soap powder, alcohol, benzine, thinner, petroleum, acid, scrub brush, hot water, etc. Plastic parts (door handle, cap, case, etc.) will crack, and glass shelf or painted surface may damage or rust.

Power Plug

For safety, please periodically check the power plug and cords.

① Unplug the electrical plug from the outlet and inspect.
② Is there any damage or abnormal heat coming from the plug or cord?
③ Wipe away dust from the plug and around the plug area with a dry cloth.
4 Insert the electrical plug fully into the outlet.

Change

Maintain

Always follow instructions

Wipe out the dust in power plug periodically.

It may cause fire or insulation failure.

Refrigerator rear side and floor

Dust and dirt can accumulate in the ventilation space behind the refrigerator. Please clean periodically for energy saving purposes.

① Remove the toe grille.
② Turn the adjustable supports to raise them from the floor, and pull out the refrigerator. We recommend laying out protective material on the floor to prevent the floor from being damaged. Also, be careful not to injure yourself.

③ Remove the dust from the rear panels, walls and floor, and wipe off any dirt.

④ Check for water dripping on the floor.

Soot and dust

Do not do

Do not put your hands or feet under the refrigerator.

It may cause injury.

Use reverse procedures to put accessories back in place.

Glass shelf

① Lift up the front side by both hands.

② Pull forward and take out.

※ If forcefully pulled outward damage may occur to door side. Please slowly pull and take out.

Always follow instructions

To ensure that glass side is attached or removed.

If the glass is not attached properly, it will out and falls which may cause injury.

Vegetable Compartment

① Open the drawer-door fully.

② Lift out the case.

③ Take out the small vegetables case. While lifting the drawer-door slightly, draw out and tilt downward.

4 Lift out the case.

Freezer Compartment

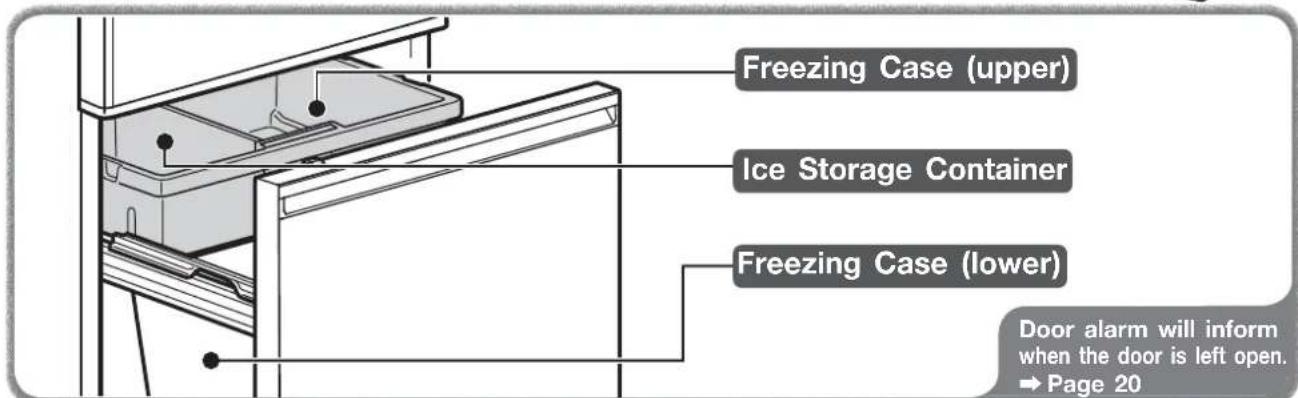

① Open the drawer-door fully.

② Lift up the freezing case (upper) towards you.

③ Take out the freezing case (upper), and while slightly lifting up the door draw out and tilt downwards.

4 Lift up the freezing case (lower) towards you.

Adjustable Leg cover

① Remove by pulling forward on both sides.

Free pocket (large), (small) / Bottle pocket / Capsule door pocket

① Lift upward holding right and left sides.

※The piece is attached quite firmly.

② Draw forward to remove.

Bottle pocket

Always follow instructions

Make sure that you removed and attached properly.

It may fall if not attached properly, and may cause injury.

Sliding case (upper), (lower)

① Pull forward.

Sliding case lid

Sliding case (upper) Sliding case (lower)

※ Wide chilled case lid cannot be removed.
※ If difficult to take out, please remove wide chilled case after removing the bottle pocket.

Liquid-Catching Indentations

Wipe away any dirt, liquid or condensation.

Liquid catchers

Please periodically clean to prevent the occurrence of water scale, mold, etc. Please remove water when not making ice.

※ Do not use a dishwasher or dryer because it may cause deformation.

For once-a-week

Water supply tank / Purification filter

If mold forms easily in the certain types of water, clean about 2 or 3 times a week.

Take off the lid and wash with water.

(Temperature tolerance approx 60 °C)

Remove and wash with water. Normally, it does not need replacing. Please replace for the following reasons:

● If something other than water was put in and the opening got blocked.

- If it is damaged. - If mold, etc. is forming. To buy another filter, please inquire at the store where you bought your unit.

For once-a-month

Water supply pump

Remove it from tank.

Turn the pump and take out.

Take out the pipe, Turn the cap and remove, Take out the impeller and wash with water.

※ The impeller is made with a magnetic material. Clean thoroughly with water, making sure there are no substances on it.

4 Return parts by following the reverse procedure.

Pointers for assembling the water supply pump

If it is not assembled properly, it may not make ice or it may make a loud sound. Please check on the following.

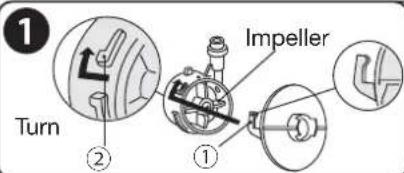

The claw on the cap (①) is turned to put onto the protruding part (②) of the water supply pump.

※Check to make sure that the impeller is inside.

Attach the water supply pump properly to the water supply tank by turning and attaching.

Insert the pipe into the water supply tank opening, Connect the pipe to the water supply pump.

※ Check to make sure that there are no substances at the connection point of the two pipes.

For once-a-month

Water supply pipe

Take out the water supply tank.

Take out the water supply pipe and wash with running water.

Water receptacle The water receptacle and hose part cannot be removed.

Return back to original positions.

Make sure to insert the water supply pipe properly so that there's no difference in surface level between facet A and facet B is.

Return the water supply tank and, if does not sit in properly, re-set the water supply pipe. If removal or assembly are not done correctly, a problem such as a water leakage will occur.

Cleaning the ice-making tray (rinsing)

1 Take ice out of the ice storage container, close the freezer door.

2 Fill water supply tank with water, put back in original position.

3 Touch for about 5 seconds. MAKE ICE and STOP ICE will blink for about 1 minute.

- The stop ice-maker light (red) will blink for about 1 minute. (It rinses the ice-maker tray with water from the water supply tank.) - When light stops blinking, it will return to the previous indication.

5 Freezing Case (upper)

4 Repeat 3 2 or 3 times.

5 Remove the Freezing Case (upper) discard water and ice. Do not throw out noise reduction mat (same as p.11)

Notice

● Do not use washing agents such as kitchen detergents, benzene or bleach to clean the water filter. It will cause ice to have an odor.
● If you use a bleach to clean your water supply tank or lid, please follow product directions carefully.
● Assemble the water supply pump properly and firmly. If it is not assembled properly, it may not make ice or it may make a loud sound.
● Please attach the lid of water supply tank securely. If the lid is not attached properly, the lid may be out and the water supply tank will fall.

Other Issues (Power Outages, Child Safety Lock, Setting Reset, When DEMO Lights Up)

Power Outages

• Minimize the frequency of opening the doors, and avoid adding more food.
• Operation panel settings other than the temperature settings may change. Check the settings. (Child Safety Lock, etc.)

To Prevent Accidental Button Operation (Child Safety Lock)

Locks the operation panel to prevent accidental icon operation by children.

① Touch 📋 or about 5 seconds or more when the door is closed (until the buzzer sounds).

mO lights up when the setting is finished.

- Setting cannot be changed during Child Safety Lock.

To Cancel

① Again, touch 📋 for about 5 seconds or more when the door is closed (until the buzzer sounds).

0 goes off when the setting is cancelled.

To Reset Settings

Returns the settings to their initial conditions (at the time of purchase), for example if you have forgotten the settings.

① Touch 📁 light up an icon.
② Touch ☐ for about 10 seconds (until the buzzer sounds twice).

The following settings will be reset.

- Energy Saving Mode

• Supercool Chilling

- Rapid Cool

- The "ICE STOP" setting for ice making will not be reset.

When DEMO

Lights Up

When IFRIO is up, the refrigerator is in demonstration mode. The refrigerator does not cool in this mode. Contact the retail store where you purchased the refrigerator, or cancel the demonstration operation with the following procedure.

To Cancel

① Keep the doors of the freezer compartment open.

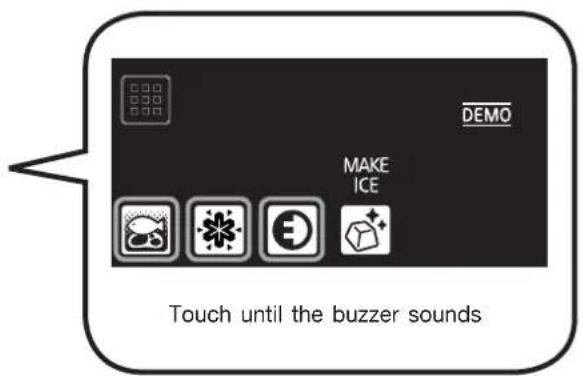

② Light up the icons and pres 🎨, ⚙️, and Ⓔ at the same time for at least 5 seconds.
③ Check that DEMO is turned off.
● The demonstration mode was not cancelled if it lights up.

Other Issues (Door Alarm, 📄 Mark, When Not Using the Refrigerator for a Long Time)

When the Door Alarm Sounds and the Interior Light of the Refrigerator Compartment Blinks (Door Alarm)

The door alarm (with alarm sound, interior light, and compartment display) is activated when a door is open for 1 minute or longer.

The pattern of the door alarm sound and the action of the interior light and compartment display area are as follows depending on how long the door has been left open.

Time for which the door left open	1 minute	2 minutes	3 minutes	4 minutes	5 minutes or longer	60 minutes or longer
Alarm sound	4 short beeps, then 2 beeps	4 short beeps, then 3 long beeps	4 short beeps, then 4 long beeps	After 4 short beeps, Continuous long beeps	Continuous short beeps
Interior light	On			Blinks twice per minute		Off

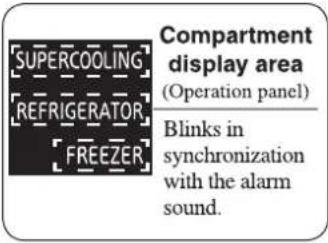

Compartment display area	The compartment display area will blink in synchronization with the alarm sound

• Check that the doors are not left ajar or do not have any food trapped (the packing, the back of the drawer cases). (Check at least once a month.)
  ● Refrigerator and Freezer doors have an opening and closing sensor.
• Check the refrigerator compartment door rotating partition. → Page 8

When the Alarm Cannot be Turned Off

Check that there are no gaps between the door.

When the alarm cannot be turned off, there may be a malfunction and an inspection is required.

Contact the retail store where you purchased the refrigerator.

To Stop the Alarm (Continuous Short Beeps)

The alarm can be temporarily stopped in the time before the refrigerator is repaired.

Press for at least 5 seconds.

* If performing the above operation does not turn off the alarm, or the alarm periodically sounds, check peripheral machinery as well.

When the Mark Blinks Rapidly (About 5 Times per Second)

When the refrigerator will not cool, there may be a malfunction and an inspection is required.

Contact the retail store where you purchased the refrigerator.

When Not Using the Refrigerator for a Long Time (When the Power Plug Is Unplugged)

① Set to the "STOP" ice making mode. ➔ Pages 12
- Check that STOP ICE is lit. Clean the auto ice-maker → Pages 18
② Remove the power plug.
③ Empty any water or ice from the water tank, ice tray, and ice storage box and clean.

Wash the water tank, water supply pump, tank pipe, tank cap, lid, water supply pipe, ice storage box, soundproof mat, and ice server, dry them completely, and then return them to their original positions.

→ Pages 18

- Do not dispose of noise reduction mat.

4 Clean the interior of the refrigerator and open the doors for 2 to 3 days to dry the inside.

* If the refrigerator is not dried sufficiently, it may cause mold, odors, or refrigerant (gas) leaks due to condenser corrosion.

Notice

- Wash the water tank, water supply pipe, and before making ice for the first time, or if you have not made ice for more than a week. Odors or dust may be adhering to the parts.

Other Issues (To Move or Transport the Refrigerator)

To Transport the Refrigerator

① Empty any water or ice from the water tank, ice tray, and ice storage box. ➔ Pages 18
② Wear protective gear (gloves).
③ Remove the adjustable support cover, and then rotate and raise the adjustable supports. ➔ Page 5
④ Remove the power plug.
⑤ Lay towels under the drainage port and the lower rear edge of the refrigerator, and position a container or tray with a height of about 3 cm on the towels to collect the water.

* The towels prevent floor damage, and water from being spilled on the floor.

⑥ Tilt the refrigerator slowly to the rear by about 30 degrees, and drain the water from the evaporation tray via the drainage port on the lower rear side. (The evaporation tray is not visible from the outside.)
* Because the refrigerator is heavy, the work must be performed by at least 4 people.
* The work must not be performed by small children or people who are not capable of doing heavy work. Ask a specialist transportation company.
⑦ 4 or more people should hold the hand-holds on the bottom and the upper part of the rear side and the hand-holds on the lower inside part of the front side and the upper side of the rear, and carry the refrigerator slowly.
- Do not lay down the refrigerator on its side. (The compressor may be damaged.)

Bottom handles * Only the MR-WX743Y has the bottom handles

Hand-holds on the rear upper side

When the Transportation Time Is Long, for Example When Moving House

- Frost from the condenser inside the freezer compartment will melt, and may spill water when the refrigerator is transported. It may take 1 day to defrost after unplugging the power plug.

Prohibited

Do not damage the refrigerator's refrigerant circuit (pipes).

Because combustible refrigerant is used, this may result in fire or an explosion.

To Move the Refrigerator in Forward and Backward Directions

① Remove the adjustable support cover, and then rotate and raise the adjustable supports cover.→ Page 5
② Lay protective material under the casters and rear supports to prevent damaging the floor.
③ Move the refrigerator in the forward and backward directions.
* Moving in any direction other than forward and backward may damage the floor. Please make sure to lay protective material such as a plate or board on the floor.

Other Issues (Temperature Fine Adjustment Mode)

To Control the Temperature More Precisely (Temperature Fine Adjustment Mode)

The temperature can be set to 19 different levels for the refrigerator compartment and freezer compartment,

- When temperature fine adjustment mode is set, the compartment display blinks about every 10 seconds.

Setting the Temperature Fine Adjustment Mode

① Touch 📋 to light up icons.

② Touch 📋 and select the compartment you would like to set to temperature fine adjustment mode.

③ Touch SELECT for at least 5 seconds (until the buzzer sounds).

● The refrigerator compartment, freezer compartment, can all be set with a single operation.

To Cancel

The same operation as above.

- If the setting is reset, it will be cancelled.

Performing the Temperature Fine Adjustment

① Touch 📋 to light up icons.
② Touch 📋 to select the compartment to perform temperature fine adjustment.
③ Repeatedly touch SELECT to perform temperature fine adjustment.

Display Example: When the refrigerator compartment is set to Temperature Setting 5.

Refrigerator Compartment / Freezer Compartment

	Temperature setting
1
2
3

4
5
6

7
8
9

10
11

* represents a blinking display.

Troubleshooting

Before contacting MITSUBISHI ELECTRIC SERVICE CENTRE or its service agent or making a repair request, check the following.

If the problem persists, contact the retail store where you purchased the refrigerator as soon as possible.

Frequently asked questions in the initial period and in summer

The refrigerator does not cool at all!

● The refrigerator takes time to cool when you first start using it. In summer, it may take up to 24 hours for the inside to be fully cooled. ➔ Page 5
- If DEMO is shown on the operation panel, cancel demonstration mode. → Page 19
- Check if the power plug is disconnected or the circuit breaker has tripped.

The outer walls heat up!

● A heat discharging fan is located under the refrigerator. Warm air may be discharged from here.

● The outer walls heat up significantly (to about 50 to 60°C) immediately after installation and in summer. This is because the heat discharging and condensation prevention pipes are located on the sides and the top of the refrigerator. They are required for cooling and the heat is not an abnormality.
● The refrigerator compartment rotating partition also has a condensation prevention heater that heats up.

Heat discharging

Condensation Prevention Pipes

The operation panel turns off automatically!

- If 30 seconds pass without any operation panel button operations, the display turns off. When lighting,

touch

→ Page 6

	Problem	Check	Explanation and Action
Cooling Performance	Does not cool wellNot much ice is madeIce melts	1 Has enough time passed after installation?	It takes 4 to 5 hours for the refrigerator to cool, and may take 24 hours in summer to fully cool.
		2 Is the temperature setting set to “LESS COLD”?Is the compartment set to Power Save Mode?	Set to “COLD or COLDER” or to the setting of your likin ➔ Page 14
		3 Is the flow of cold air being blocked?Are the doors being opened frequently, or left ajar? Is food blocking them?	Make space between foods and remove any food that is sticking out of shelves or touching the ceiling of the drawers. Avoid opening and shutting the door for a while.
		4 Is heat discharging being blocked?Check if there is no gap around the refrigerator and the refrigerator is exposed to direct sunlight.	Check that there is enough space around the refrigerator and that it is properly installed. ➔ Page 4
	Food freezes in the refrigerator and vegetable compartments	1 Is the temperature on the operation panel set to “COLDER”?	Set the temperature to “COLD”. Also, the temperature with each setting may temporarily decrease.
		2 Is food with a lot of moisture stored at the rear of the shelf?	Place drinks and food containing a lot of water, such as tofu, vegetables and fruits, at the front of the shelf or in a door pocket.
		3 Is the surrounding temperature 5°C or less?	Food in the refrigerator compartment or vegetable compartment may freeze. Freezing is less likely when the temperature settings are set to "LESS COLD". ➔ Page 14
Supercool Chilling	Food in the lower case freezes	1 Is the surrounding temperature 5°C or less?	Set the temperature of the lower case (when Supercool Chilling is set) to "LESS COLD". ➔ Page 14
		2 Is the refrigerator compartment's temperature set to “COLDER”?	Set the temperature of the refrigerator compartment to "COLD" or "LESS COLD" or set the temperature of the lower case (when Supercool Chilling is set) to "LESS COLD". ➔ Page 14
		3 Have you placed easily frozen food containing a considerable amount of moisture in the compartment?	Place food containing a lot of water at the front of the refrigerator compartment or in a door pocket.
		4 Are you piling frozen food onto other food?	Food that touches frozen food may freeze.

Troubleshooting (Continued)

Problem			Check		Explanation and Action
Automatic Ice Making	Cannot make ice Water in the tank stays at the same level	1	Has enough time passed after installation?	It takes 4 to 5 hours for the refrigerator to cool, and 24 hours or more in summer to make ice.
		2	Has food, the ice server, or another object been left in the ice storage box? Also, has the ice been leveled?	Remove food or other objects from the ice storage box. The ice storage box is judged to be full of ice. Also, spread the ice out flat all the way to the front.
		3	Is the ice making setting for the ice making compartment set to “STOP ICE”?	Set the ice making compartment's setting toMAKEICE.→ Page 12
		4	Is the water supply pipe installed correctly in the tank holder area?	Remove any foreign objects creating gaps and install the pipe so that it is not loose.→ Page 18
		5	Are the water supply pump and tank pipe installed correctly onto the water tank?	Check that they are correctly installed. In particular, ensure that the opening of the tank pipe inside the tank is installed firmly to the tank.→ Page 18
	Water tank or water supply pipe freezes	1	Are the water supply pipe and water tank installed to the refrigerator without any gaps? Additionally, is the tank pipe installed to the water tank without any internal gaps?	Check the installation around the water tank. If there are gaps, the cold air may escape and water may freeze.→ Page 18
	Ice is small or joined together	1	Has ice been stored inside the ice storage box for a long time?	Ice stored inside the ice storage box for a long time may shrink or join together (due to a phenomenon called sublimation).When not using ice, it is recommended that you remove the water and stop the ice making.

SoundDoor	Problem	Check	Explanation and Action
	There is a rattling sound	1 Are any nearby objects in contact with the refrigerator?	Leave space around the refrigerator. When objects or walls are in contact with the refrigerator. sounds may be heard.
		2 Make sure that the water tank and water supply pipe are properly installed.	Push in the water tank until it touches the rear side. If it is out of position, the sound of the water supply pipe can grow loud. If there are any gaps or looseness, the water may freeze, causing sounds to be heard.
	Loud noises Worrisome noises (Noises described on the right are normal)	1 The noise gets louder suddenly or the tone changes.	Immediately after beginning use, when the weather is hot, when the doors are frequently opened and closed, and in similar situations, the refrigerator switches to high-speed operation and cools with high power.
		2 A whistling sound is made after closing a door.	This is the sound of the cooling fan motor starting.
		3 A whipping or dripping sound is sometimes heard from inside the refrigerator after a door is opened.	This is the creaking sound as warm air enters and expands the plastic.
		4 Sometimes the sound of flowing or boiling water can be heard.	This is the sound of the refrigerant (gas) flowing.
		5 A rattling or squeaking sound is made sometimes (every 1 to 2 hours).	This is the sound of the automatic ice maker. Even when there is no water in the water tank, the automatic ice maker and pump make a sound about every 100 minutes.
		6 After turning on the power, a thumping or creaking sound may be heard in the ice making "STOP ICE" mode (every 1 to 2 hours).	This is the sound of the operation check. The check is performed even in the "STOP ICE" ice making mode.
	Doors do not closeDoors open easily	1 Is a door making contact with food or a case? Is too much food packed inside?	Store food so that the door does not make contact with the food when closed. In the refrigerator compartment, store food on the shelves and in the drawer doors store food so that it does not make contact with the ceiling when doors are shut and opened.
		2 Has food fallen behind a case in a drawer door, or is the power cord or another object trapped between the refrigerator and a door?	Remove any objects. Make sure that the door does not trap objects such as food, power cords or plastic bags.
		3 Is the refrigerator installed stably?Are the adjustable supports making contact with the floor?	Lower the adjustable supports to raise the front side slightly and make the doors easier to close. ➔ Page 5
	The alarm will sound	1 Check if the doors are closed.	Refer to "When the door alarm sounds" and "When the alarm cannot be turned off".
Operation Panel	The operation panel does not respond	1 Is ➔	Cancel the Child Safety Lock. ➔ Page 19
		2 Are the user's fingers or the operation panel wet or dirty?	Wipe off the moisture and dirt on the operation panel and fingers.
		3 Are you repeatedly touching it?	Let your finger off the operation panel once and then touch it again. It will respond when you let you finger off.
		4 Are seals and tapes put on the operation panel?	Remove the seals and tapes.
	Reacts without a touch	1 Are there any towels, plastic bags, papers, etc. over the operation panel?	Remove the towel, plastic bag, paper, etc.
Condensation/ Frost	Condensation forms on the outer walls and inside the refrigeratorFrost forms in the freezer compartmentWater drips onto the floor	1 Are the doors being opened frequently, or are there any gaps?	Close the doors so that there are no gaps.When moisture in the air cools, it forms frost or condensation.When there is high humidity, condensation or frost will form even in very small gaps.Regarding the Vegetable Compartment ➔ Page 10
		2 Is the humidity high, for example is it raining?	Condensation may form temporarily. Wipe off with a dry cloth. Condensation may cause frost to form in the freezer compartment. Please minimize the time when doors are kept open.

Troubleshooting (Continued)

Problem			Check		Explanation and Action
Others	There are lines like scratches on the clear parts	1 Is it a thin line without level difference on its both sides?		This is a mark created at the time the plastic is molded. It is created at the joint where resin flows. This is not a flaw.
	There are holes in the door and the refrigerator walls	1 Are there small holes in the door or in the refrigerator walls?		These are holes that let air escape for the injection of foam heat insulating materials in the manufacturing process. These are not flaws or abnormalities.
	The surface of the sides or doors is warped	1 Does the light reflected on the surface appear distorted?		Warping and surface waviness occurs in the manufacturing process. When light hits the surface, it may appear warped, but this is not an abnormality.
	Noise interferes with televisions or other devices	1 Is the refrigerator installed near an electronic device such as a television?		Install the refrigerator away from electronic devices such as televisions.
		2 Is the power to the refrigerator supplied from a socket near the entry hole of the antenna cable?		Use separate power. When using a 2 pin plug, use grounding.
	There is a bothersome smell (Food / Ice)	1 Have you placed food with strong odor inside the refrigerator without sealing it in a container?		Store food with strong odor in packaging. The odor may not be removed with a deodorizing apparatus.
		2 Do you periodically clean the water tank?		Clean periodically. ➔ Page 18

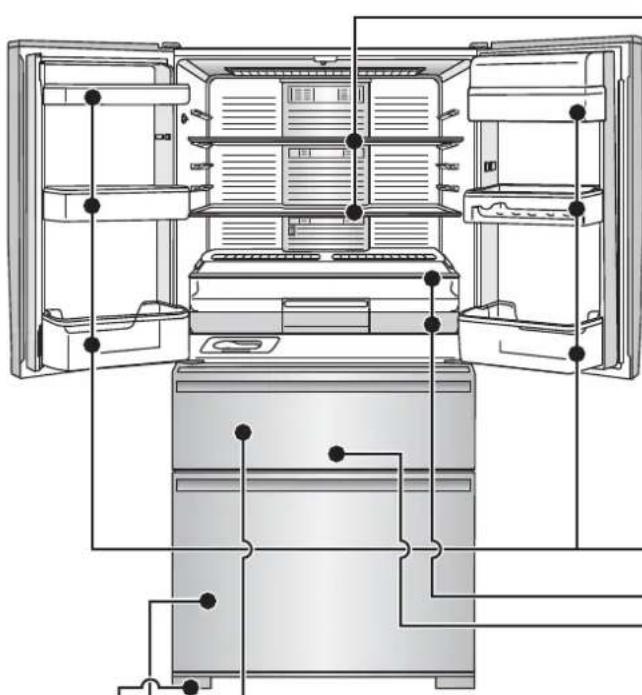

Accessories

	Model name	MR-LX630EM
	Accessories	Quantity
Refrigerator compartment	Glass shelf	2
	Sliding case (upper)	1
	Sliding case (lower)	1
	Water supply tank (including purification filter)	1
	Free pocket (large)	2
	Free pocket (small)	2
	Free egg tray	1
	Bottle pocket	2
	Capsule door pocket	1
Vegetable compartment	Vegetable case	1
	Sliding case	1
Freezer compartment	Freezing case (upper)	1
	Freezing case (lower)	1
	Ice case	1
	Noise reduction mat	1
	Ice server	1
	Leg support cover (Right and Left)	1

This appliance is designed for use in Australia and New Zealand only and cannot be used in any other country. No service is available outside of Australia and New Zealand."

MODEL NAME COUNTRY NAME
MR-LX630EM-A AUSTRALIA / NEW ZEALAND

When you hear noise from the lower rear of the refrigerator

- Part of the cooling system is the compressor, which operating, does create a more noticeable increase in noise level. This is normal. However, if the noise is quite loud, this could be because the refrigerator is not installed correctly on a hard level surface, or there may be a problem that may need service.

CAUTION

1. This appliance is designed for use in ambient temperature listed below.

MODEL NAME AMBIENT TEMPERATURE RANGE CLIMATIC CLASS
MR-LX630EM-A 16	°C ~ 43 °C	T

The internal temperatures could be affected by such factors as the location of the refrigerating appliance, ambient temperature and the frequency of door opening, and, if appropriate, a warning that the setting of any temperature control device might have to be varied to allow for these factors.

1. A rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.

2. Food to be frozen is not to be placed in direct contact with food in storage and, if appropriate, that it could be necessary to reduce the quantity to be frozen if freezing every day is anticipated.

3. The electrical power failure for 1-2 hour will only slightly affect the inside temperature. However, opening and closing the door results in temperature loss. In case there is more than 24 hours electrical power failure, the food should be taken out from the fridge.

4. In case you are leaving or there is no food in the fridge for more than 3 weeks. The fridge should be unplugged and cleaned.

MEMO

■ The appliance is not intended for use by young children or infirm persons without supervision.
■ Young children should be supervised to ensure that they do not play with the appliance.
■ WARNING - Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
■ WARNING - Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
■ WARNING - Just in case of having damaged the refrigerant circuit, do not use electric items or fire equipments near by, and open the window to ventilate the room. And contact the retail store at which you purchased it or the following MITSUBISHI SERVICE CENTER.

■ The refrigerator contains flammable refrigerant (R600a: iso-butane).
■ The refrigeration system behind and inside the refrigerator contains refrigerant. Do not allow any sharp objects to come into contact with the refrigeration system.
■ Do not block the openings on the circumstances of the refrigerator.
The user manual should be handed over to any person who would use or handle the refrigerator whenever the refrigerator would be transferred to another location and delivered to a recycling plant.
■ This refrigerator uses flammable foaming gas for insulation.
Please deliver the unit to specialized industrial waste dealer when you do away it.
Please follow the rules in your country.

R600a Refrigerant Warning

• This appliance contains a small quantity of R600a refrigerant which is flammable.
• During transportation and installation, ensure that the tubing of the refrigerant circuit is not damaged.
• Leaking refrigerant can ignite and may damage the eyes.
• In the event any damage does occur, avoid exposure to open fires and any device which creates a spark. Disconnect the appliance from the mains power.
• Thoroughly ventilate the room in which the appliance is located for several minutes.
• Notify Mitsubishi Electric Australia Pty Ltd. for necessary action and advice.
• The room for installing the appliance must be at least 1 cubic metre per 8 grams of refrigerant. The refrigerant quantity contained in this appliance is noted on the Rating Label of the appliance.
• If your Mitsubishi Electric Refrigerator should require service, please contact Mitsubishi Electric Australia Pty Ltd see back page of this user manual for contact details.

NOTE: MITSUBISHI ELECTRIC AUSTRALIA PTY LTD. DO NOT ALLOW SERVICE TO THE REFRIGERATION CIRCUIT OF THIS APPLIANCE.

If an abnormality or malfunction occurs, stop operation immediately and contact the retail store where you purchased the refrigerator or MITSUBISHI ELECTRIC SERVICE CENTRE or its service agent.

SOLE AGENT in Australia

MITSUBISHI ELECTRIC AUSTRALIA PTY LTD.

(Incorporated in New South Wales) ABN 58 001 215 792

348 Victoria Road, Rydalmere NSW 2116

For more information and support contact

www.mitsubishielectric.com.au

Call 1300 651 808

SOLE AGENT in New Zealand

BLACK DIAMOND TECHNOLOGIES LIMITED (BDT)

Wellington Office (Head Office)

1 Parliament Street Lower Hutt PO Box 30772 Phone: [phone], Fax: [phone]

Auckland Office

Unit 1, 4 Walls Road Penrose PO Box 12726 Phone: [phone], Fax: [phone]

Christchurch Office

44 Halwyn Drive Hornby PO Box 16904 Phone: [phone], Fax: [phone]

MITSUBISHI ELECTRIC CORPORATION
