Product Type	Video Tripod
Model	VPH-20
Brand	Magnus
Maximum Height	170 cm (67 in)
Minimum Height	50 cm (19.7 in)
Folded Length	80 cm (31.5 in)
Weight	3.5 kg (7.7 lbs)
Load Capacity	8 kg (17.6 lbs)
Leg Sections	3
Leg Lock Type	Flip Locks
Material	Aluminum Alloy
Head Type	Fluid Head
Bubble Level	Yes
Quick Release Plate	Included
Spike Feet	Retractable
Power Supply	Not applicable
Main Functions	Supports cameras for stable video and photo shots; adjustable height and angle; fluid head for smooth pan and tilt
Care and Cleaning	Wipe with dry cloth; avoid solvents; store in dry place
Safety Precautions	Do not exceed load capacity; ensure locks are tight; avoid use on unstable surfaces
Spare Parts	Replacement quick release plates, feet, and screws available from manufacturer
Repairability	User replaceable parts: leg locks, feet, plate; professional service for head mechanism
Warranty	1 year limited warranty

Frequently Asked Questions - VPH-20 Magnus

How do I attach the quick release plate to my camera?

Screw the plate into the camera's tripod socket (1/4 inch screw). Tighten firmly. Then slide the plate into the head's clamp until it clicks.

What is the maximum load capacity of the VPH-20?

The VPH-20 can support up to 8 kg (17.6 lbs). Ensure your camera and lens combination does not exceed this weight to avoid instability.

Can I use this tripod for DSLR and mirrorless cameras?

Yes, the VPH-20 is suitable for most DSLR and mirrorless cameras, as well as camcorders. The fluid head provides smooth movement for video.

How do I adjust the leg angles?

Pull the leg lock lever to unlock, then spread the legs to the desired angle. The legs have three position stops: narrow, medium, and wide.

How do I clean and maintain the tripod?

Wipe the legs and head with a dry, soft cloth. Avoid using water or solvents. For sand or dirt, use a brush. Lubricate moving parts sparingly with silicone grease.

What is the folded length of the tripod?

The VPH-20 folds down to 80 cm (31.5 in), making it portable for travel. The included carrying case helps protect it during transport.

How do I level the tripod?

Use the bubble level located on the head or center column. Adjust the leg lengths or head tilt until the bubble is centered.

Can I replace the quick release plate if lost?

Yes, replacement quick release plates are available from Magnus or authorized dealers. Use the model specific to the VPH-20 head.

Is the tripod compatible with a smartphone adapter?

Yes, you can attach a smartphone adapter to the quick release plate. Ensure the combined weight is under the load limit.

What should I do if the leg lock becomes loose?

Tighten the lock mechanism with a screwdriver if adjustable. If damaged, contact Magnus support for replacement parts.

USER MANUAL VPH-20 Magnus

Black tripod-mounted camera with a flat-screen top, no visible text or symbols on the device itself

MAGNUS™

Video Tripod Head

Thank you for choosing Magnus.

Congratulations on your purchase of the VPH-20 Video Pan Head by Magnus.

All Magnus Video Heads are designed to balance features professionals want with the affordability they need. They're durable enough to provide many years of trouble-free service and enjoyment. Please carefully read these instructions before setting up and using your Video Pan Head.

Box Contents

• VPH-20 Video Pan Head
  • 3/8" and 14 "-20 reducing bushing
• Quick-release plate

Key Features

Image is for illustration purposes only. Features vary by model

Attaching the VPH-20 to Your Tripod

1 Your VPH-20 comes with a bushing that adapts the 3/8 tripod mount to use with 1/4-20 screws.

2 Choose the bushing that fits your tripod. Screw one side into the base of the VPH-20, and then attach the VPH-20 onto the tripod. If you're using a very

Close-up of a black tripod-mounted camera with a green circular motion indicator (no text or symbols visible)

small tripod, you may find it easier to hold the VPH-20 steady and screw on the tripod.

Mounting Your Camera on the VPH-20

1 Firmly grasp the quick-release lever and rotate it 180^irc so the flat side is against the quick-release plate, and it locks into place. This will release the plate, and it will pop up. Slide the plate forward and pull up on it to remove from the VPH-20.

Close-up of a camera module with a mounted sensor and directional arrow (no text or symbols visible)

Hand holding a small square object mounted on a tripod, with a green arrow indicating direction (no text or symbols visible)

2 Use the thumbscrew on the quick-release plate to attach it to your camera. Many video cameras have an additional space that accommodates the retractable alignment pin on the plate. Take care that it fits into place. Make sure the thumbscrew is flush against the bottom of the plate.

Close-up of a black camera module with a hand adjusting a clip, no visible text or symbols

Close-up of a black camera body with a green circular arrow indicating rotation (no text or symbols)

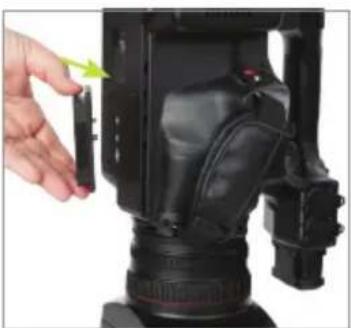

3 Once you have securely tightened the quick-release plate to your camera, replace the plate (with the camera) into the VPH-20 by sliding it back in under the

Close-up of a camera lens mounted on a tripod stand with a cable, no visible text or symbols

guides until it cannot go in any further. Then push down firmly until the quick-release lever snaps into the locked position. Be sure to position the plate so that the lens faces away from the Tilt/Pan bar.

Using the VPH-20

There are two controls for adjusting/locking the movements on the VPH-20.

1 The Pan-Lock knob controls the panning movement. Turning it clockwise tightens the tension until it locks completely. Turning it counterclockwise loosens the tension for greater freedom of motion.

Close-up of a camera lens assembly with green directional arrows indicating rotation (no text or symbols)

2 The Tilt-Lock knob controls the tilting movement. Turning it clockwise tightens the tension until it locks completely. Turning counterclockwise loosens it for greater freedom of motion.

Close-up of a camera lens assembly with green directional arrows indicating motion (no text or symbols)

3 For panning while shooting, turn the Pan-Lock knob counterclockwise to release tension and loosen movement. Use Tilt/Pan bar to adjust camera position. Turn knob clockwise to tighten and lock.

4 For tilting while shooting, turn Tilt-Lock knob counterclockwise to release tension and loosen movement. Use Tilt/Pan bar to adjust camera position. Turn knob clockwise to tighten and lock.

5 For tightening or adjusting the Tilt/Pan bar, use the knob on the front of the VPH-20 clockwise to tighten and, counterclockwise to loosen and adjust. Once loosened, the Tilt/Pan bar can be rotated to a more convenient or comfortable position.

The VPH-20 also features two separate Tension adjustment knobs that control the tension for the Tilt/Pan movement. This allows you finer manipulation over the camera motion.

Close-up of a black industrial pump with control knobs and buttons, no visible text or symbols

Unmounting Your Camera from the VPH-20

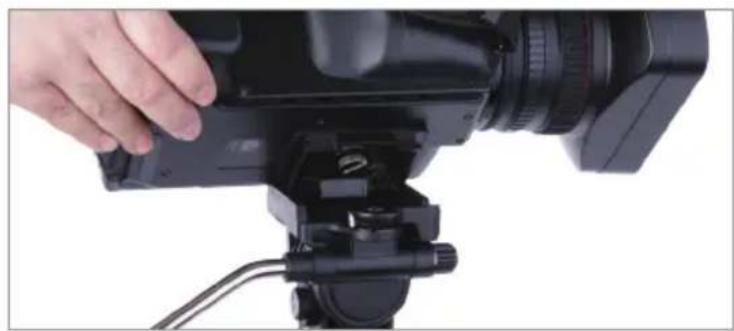

To unmount your camera, grasp the quick-release lever and rotate it 180° so that the flat side presses against the quick-release plate, and it locks into place. This will release the plate, and it will pop up. Slide the plate forward and pull up on it to remove from the VPH-20. Release the thumbscrew on the bottom of the plate and remove your camera. Replace the plate on the VPH-20 by sliding it back in place under the guides and pressing down firmly until the lever snaps into the locked position.

Close-up of a black digital camera with a hand adjusting the lens (no visible text or symbols)

Specifications

• H x W x L 4" x 5.2" x 14" (10.2 x 13.2 x 35.6 cm)
  • Weight: 1.8 lb. (816 g)
  • Max. Load: 11 lb. (5 kg)
• Mount: 3/8" Tripod Mount (1/4"-20 bushing included)

ONE (1) YEAR LIMITED WARRANTY

This MAGNUS product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY

OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Magnus Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Magnus along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information or to arrange service, visit www.MagnusTripods.com or call Customer Service at 212-594-2353.

MAGNUS™

A Gradus Group Brand

Product warranty provided by the Gradus Group.

www.Gradusgroup.Com

Magnus is a registered trademark of the gradus group.

© 2014 Gradus Group LLC. All rights reserved.
