| Type | Digital Wireless Receiver |
| Brand | Lectrosonics |
| Model | DSQD/AES3 |
| Frequency Range | 470 - 614 MHz (varies by region) |
| Number of Channels | 256 |
| Modulation | Digital (DSP-based) |
| Audio Output | AES3 (XLR) and Analog (XLR) |
| Antenna Inputs | 2 x BNC (50 Ohms) |
| Power Requirement | 11-18 VDC, 600 mA |
| Dimensions (HxWxD) | 1.75 x 8.5 x 6.5 in (4.4 x 21.6 x 16.5 cm) |
| Weight | 2.1 lbs (0.95 kg) |
| Frequency Agility | Yes, user-selectable |
| Scan Function | Auto-scan for clear frequencies |
| Encryption | 256-bit AES |
| Compatibility | All Lectrosonics DSQD transmitters |
| Display | Backlit LCD |
| Remote Control | Via USB or Ethernet (optional) |
| Firmware Update | Via USB |
| Operating Temperature | -20°C to 50°C |

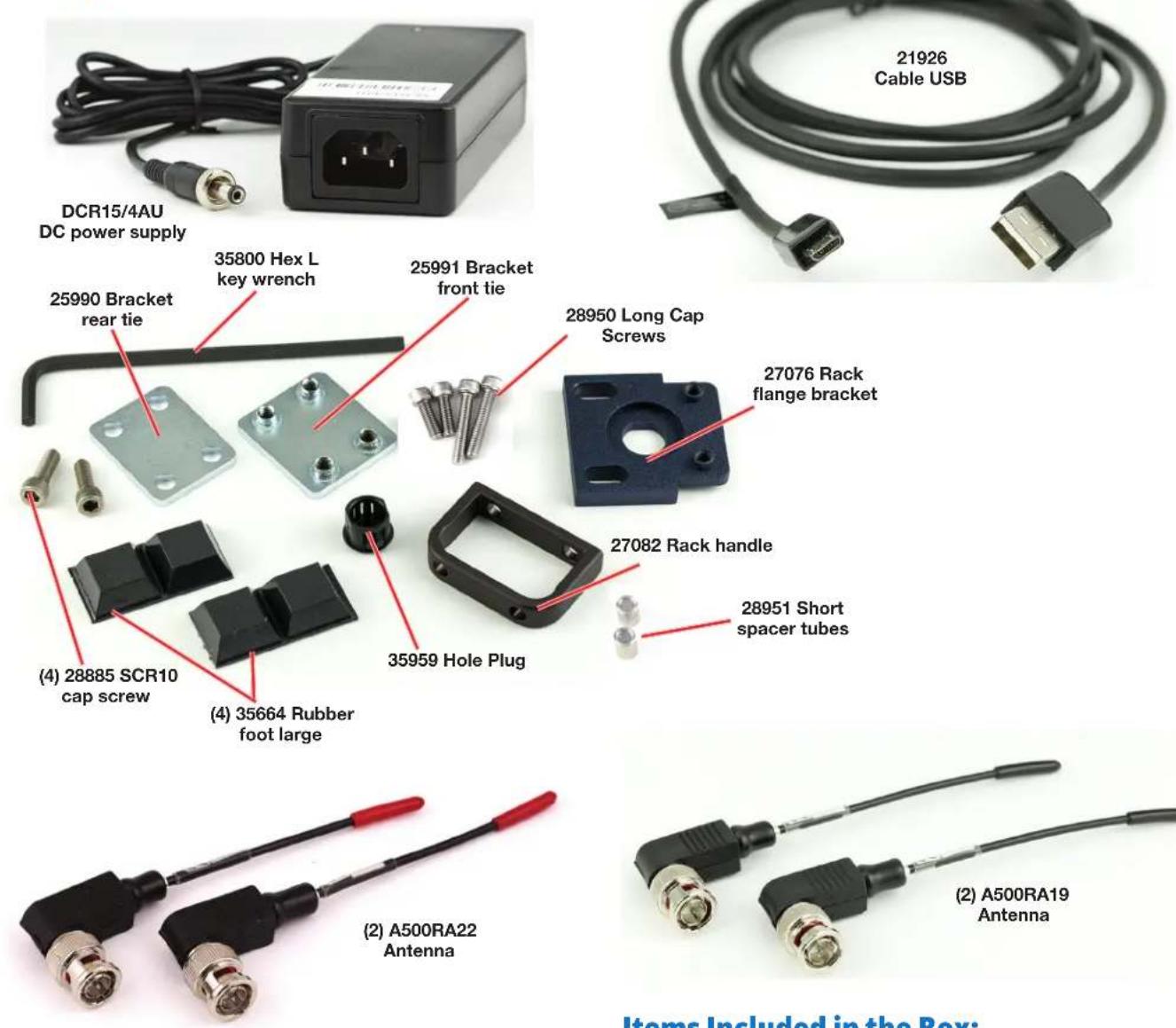

| Included Accessories | Power supply, mounting bracket, antennas |
Frequently Asked Questions - DSQD/AES3 Lectrosonics
What is the difference between the DSQD/AES3 and standard DSQD?
The DSQD/AES3 includes an AES3 digital audio output in addition to analog outputs, allowing direct connection to digital mixers and recorders.
Can the DSQD/AES3 be used with analog transmitters?
No, the DSQD/AES3 is designed exclusively for digital transmitters (e.g., Lectrosonics DSQD series). Analog transmitters are not compatible.
What antenna connectors does the receiver use?
It uses two BNC female connectors (50 Ohm) for diversity operation. Standard antennas with BNC plugs are recommended.
How do I update the firmware on the DSQD/AES3?
Connect the receiver to a computer via USB and use Lectrosonics' software. Download the latest firmware from their website and follow the instructions.
What is the maximum number of channels I can use simultaneously?
The number depends on available frequency spectrum and potential interference. In optimal conditions, up to 40+ channels can be used with proper coordination.
Does the receiver support encryption?
Yes, it offers 256-bit AES encryption for secure transmission, compatible with Lectrosonics digital transmitters with encryption capability.
What power supply is required?
The receiver requires 11-18 VDC at 600 mA. An included power supply is provided, but it can also be powered via external sources such as batteries.
How do I perform a frequency scan?
Press the SCAN button on the front panel. The receiver will search for clean frequencies and display the best options. You can then assign one to the current channel.
Can I output both AES3 and analog simultaneously?
Yes, the receiver provides simultaneous analog (XLR) and AES3 (XLR) outputs, allowing connection to both analog and digital systems at once.
What is the typical range of the DSQD/AES3?
Range depends on environment and antenna placement. In clear line-of-sight, up to 300 feet (90 meters) is achievable; indoor range may be less.
