Product Type	Large Diaphragm Condenser Microphone
Brand	MXL
Model	440
Polar Pattern	Cardioid
Frequency Response	30 Hz – 20 kHz
Sensitivity	15 mV/Pa
Impedance	200 ohms
Equivalent Noise Level	20 dB (A-weighted)
Signal-to-Noise Ratio	80 dB (Ref. 1 Pa A-weighted)
Maximum SPL	130 dB
Power Requirements	48V Phantom Power (±4V)
Diaphragm Material	Gold-sputtered
Dimensions (Diameter x Length)	53 mm x 180 mm (2.08 in x 7.08 in)
Weight	544.3 g (1.2 lbs)
Finish	Black with gold print
Included Accessories	Hard mount, Mic stand adapter
Warranty	1 year (defects in materials and workmanship)
Care and Maintenance	Store in case when not in use; use mesh pop-filter to avoid moisture; avoid dust and foreign material
Safety Precautions	Ensure phantom power is switched on; set gain low initially to avoid feedback and damage; do not expose to moisture
Spare Parts and Repairability	Not user-serviceable; contact manufacturer or authorized dealer for any issues

Frequently Asked Questions - 440 MXL

What type of microphone is the MXL 440?

The MXL 440 is a large diaphragm condenser microphone with a fixed cardioid polar pattern. It uses a gold-sputtered diaphragm for detailed sound reproduction.

Does the MXL 440 require phantom power?

Yes, it requires 48V phantom power (±4V). Make sure phantom power is enabled on your mixer or audio interface.

What is the frequency response of the MXL 440?

The frequency response is 30 Hz to 20 kHz, providing a wide range for capturing both low and high frequencies.

What comes in the box with the MXL 440?

The package includes the MXL 440 microphone, a hard mount, and a mic stand adapter.

How should I care for my MXL 440 microphone?

Store it in its case when not in use to protect against dust and moisture. Use a mesh pop-filter to prevent moisture damage to the capsule.

What is the maximum SPL the MXL 440 can handle?

The maximum sound pressure level is 130 dB, making it suitable for loud sources like drums or guitar amps.

What is the warranty period for the MXL 440?

MXL offers a one-year warranty against defects in materials and workmanship from the date of purchase. Keep your sales receipt.

Can I repair the MXL 440 myself?

No, the microphone is not user-serviceable. Contact the seller or MXL's service department for any repairs.

What is the weight and size of the MXL 440?

It weighs 544.3 g (1.2 lbs) and measures 53 mm in diameter by 180 mm in length.

How do I avoid feedback when using the MXL 440?

Start with low gain and experiment with placement. Condenser microphones can pick up sounds outside the pattern, so use isolation and monitoring.

USER MANUAL 440 MXL

MXL microphones are guaranteed against defects in materials and workmanship for one year from the date of purchase. If you encounter any problem with this unit, promptly contact the company from which you purchased it for assistance. The original dated sales receipt will be necessary for any warranty claim. Do not send any unit directly to us without prior authorization from our service department. Warranty coverage is limited to repair or replacement (at our option) of the microphone, and does not cover incidental damages due to use of this unit, nor damage caused by accidental misuse of this product.

A Division of Marshall Electronics

310-333-0606 ■800-800-6608 ■Fax: [phone]

www.mxlmics.com ■ [e-mail]

440

Large Diaphragm

Condenser Microphone

Thank you for choosing the MXL 440 Large Diaphragm Condenser Microphone. For best results, please take a few moments to read this manual and familiarize yourself with proper operation and care of this microphone.

Contents

Unpack your MXL microphone package carefully and verify that all of the following items are included:

• MXL 440 Mic
• Hard Mount
• Mic Stand Adapter

If any of these items are missing or damaged, contact the company from which you purchased the microphone.

General Characteristics

This microphone has a gold-sputtered diaphragm and a fixed cardioid pickup pattern. Condenser microphones are very sensitive, readily revealing very subtle sonic details. They also tend to pick up sounds outside the pattern more than some designs, which can lead to powerful feedback if you are not careful. We strongly advise experimentation with placement and isolation requirements with the gain initially set low to avoid equipment (and ear) damage. It is strongly advised to use a mesh pop-filter to avoid moisture from damaging the capsule.

Power Requirements

IMPORTANT - The MXL 440 requires 48V phantom power ( ± 4V). If no sound is picked up by the microphone, make sure that the phantom power on your mixer or separate power supply is switched on.

Microphone Cable

The microphone cable can have a profound effect on the sound of any microphone. Even the finest microphone will sound poor if the interconnect cable allows noise to enter or causes distortion and loss of information. We recommend that you use the best microphone cable that your budget will allow.

Care

Dust and foreign material can reduce the performance of a microphone over time, so you should store the MXL 440 in its case when not in use.

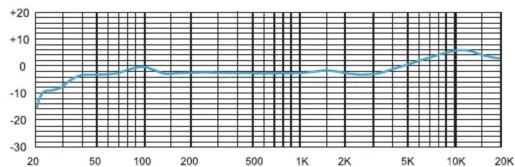

Frequency ChartPolar Pattern

Technical Specifications

Type: Condenser microphone

Frequency response: 30 Hz - 20 kHz

Polar Pattern: Cardioid

Sensitivity: 15mV/Pa

Impedance: 200 ohms

Equivalent Noise: 20dB (A-weighted IEC 268-4)

S/N Ratio: 80 dB (Ref. 1Pa A-weighted)

Max SPL:....130 dB

Power Requirements: 48V Phantom power

Size & Weight: 53mm x 180mm / 2.08 in. x 7.08in. 544.3g / 1.2 lbs

Metal Finish: Black with gold print
