Product Type PCIe 4x video capture/playback card
Video Inputs 2 independent channels: 3G/HD/SD-SDI (SMPTE-259/292/296/424)
Video Outputs 2 independent channels: 3G/HD/SD-SDI (SMPTE-259/292/296/424)
Audio Inputs/Outputs 16-channel 24-bit SDI embedded audio (48 kHz synchronous) per channel
Supported Video Formats SD: 525i 29.97, 625i 25; HD: 720p (50/59.94/60), 1080i (25/29.97/30), 1080PsF (23.98/24/25/29.97/30), 1080p (23.98/24/25/29.97/30/50/59.94/60); 2K: 2048x1080p/PsF (23.976/24/25)
Reference Input Analog color black or HD tri-level sync
Additional I/O 2 independent LTC in/out, 2 independent RS-422
Keying 2 mixer/keyer widgets; supports simultaneous video/key pairs over 3G and downstream keying
Form Factor PCI Express 4-lane card
Dimensions (approx.) 6.6 x 4.2 x 0.5 inches (168 x 107 x 13 mm)
Weight (approx.) 0.5 lbs (230 g)
Power Consumption (estimated) 10 W (typical)
Operating System Support Windows 7, Vista, XP; Linux 32/64-bit
Included Accessories 5-pack of 1.0/2.3-to-BNC pigtail adapters; optional breakout cable (102953-00)
Warranty 3-year warranty
Maintenance Keep clean and free of dust; no user-serviceable parts inside
Safety Standard electrostatic discharge precautions; install in grounded chassis
Spare Parts & Repairability Contact AJA for support; no user-replaceable components
General Information Professional-grade 2-channel SDI I/O card for uncompressed video/audio; AJA SDK and unified API for development

Frequently Asked Questions - Corvid 22 AJA

What operating systems does the Corvid 22 support?
The Corvid 22 supports Windows 7, Vista, XP (all platforms) and Linux 32-bit and 64-bit via AJA's SDK.
Does the Corvid 22 support 4K video?
No, the Corvid 22 supports up to 2K (2048x1080) and 1080p60. It does not support 4K.
What cables are included with the Corvid 22?
The card includes a 5-pack of 1.0/2.3-to-BNC pigtail adapters. An optional breakout cable (model 102953-00) is available for LTC and RS-422 I/O.
Can the Corvid 22 output two independent video streams simultaneously?
Yes, it features two independent channels, each with its own SDI input and output, LTC, and RS-422.
How many audio channels does the Corvid 22 support?
Each channel supports 16 channels of 24-bit SDI embedded audio at 48 kHz, for a total of 32 audio channels.
What is the maximum video resolution supported?
The maximum resolution is 2048x1080p at 25 fps (2K) and 1080p at 60 fps.
Does the Corvid 22 support dual-link SDI?
No, dual-link is not supported. It uses 3G-SDI for 1080p50/60 and video/key pairs.
Is the Corvid 22 compatible with AJA's SDK?
Yes, it uses AJA's unified SDK, compatible with Windows and Linux, and shares a common API with other AJA cards.
What type of sync reference does the Corvid 22 accept?
It accepts analog color black or HD tri-level sync.
How do I install the Corvid 22 card?
Install the card into an available PCIe 4-lane or higher slot. Ensure proper grounding and attach the provided adapters or breakout cable as needed. Drivers and SDK can be downloaded from AJA's website.

User questions about Corvid 22 AJA

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Expansion card in PDF format for free! Find your manual Corvid 22 - AJA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Corvid 22 by AJA.

USER MANUAL Corvid 22 AJA

PCIe 4x Card for 8/10-bit Uncompressed with 2 Independent Channels I/O Digital 3G, HD, SD-SDI I/O

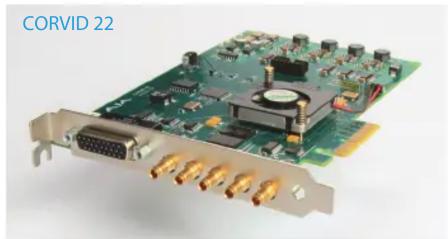

AJA Corvid 22 - 1

natural_image Green PCI card with gold connectors and I/O ports, no visible text or symbols on the card surface

TWO INDEPENDENT CHANNELS OF RELIABLE AJA-QUALITY I/O

Corvid 22 is AJA's answer for independent 2-channel capture or playback of digital uncompressed audio and video I/O with separate LTC, metadata and RS-422 for each channel. Corvid 22 is compatible with Windows and Linux via our robust and proven SDK environments. Corvid 22 is built to the highest specifications offering true broadcast-level performance within your systems and applications. Each Corvid 22 board comes with a 5-pack of 1.0/2.3-to-BNC pigtail adapters. An optional breakout cable supports the LTC and RS-422 I/O.

Major Features • PCI Express 4 lane

• 2 Channels 3G, HD-SDI or SD-SDI Input, 2 Channels 3G, HD-SDI or SD-SDI Output
• All SD/HD/2Kx1080 Video Formats
• 3G Input/Output for 1080p50/60 and Video/Key (dual-link not supported)
• 8/10 Bit YCbCr and RGB frame buffer formats
- 2 Mixer/Keyer widgets. This allows output of two simultaneous video/key pairs over 3G. It also allows for up to two simultaneous downstream keyers.
• 2 Independent 16-ch 48khz SDI Embedded Audio I/O engines
- Analog Color Black or HD Tri-Level Sync
• 3-year warranty

ORDER INFORMATION

Z-OEM-CRV22-NC1 (no cable or bracket)

Z-OEM-CRV22-RO (comes with bracket, but no cable)

102953-00 — Corvid 22 Break-out Cable

MULTIPLE OS SUPPORT, COMMON API, ROBUST SDK

Corvid 22 is compatible with Windows and Linux via our SDK (Software Development Kit), sharing one unified API (Application Programming Interface). This common API means less time developing if you are developing on multiple platforms and even multiple AJA cards. Our SDK's are feature rich and proven through the years.

Our SDK supports multiple OS's, including:

• All Windows 7 platforms
• All Windows Vista platforms
- All Windows XP platforms
- Linux 32-bit
- Linux 64-bit

SPECIFICATIONS

Corvid 22

PCI Express 4 lane

2 Video Inputs

Digital:

3G/HD/SD-SDI, SMPTE-259/292/296/424

2 Video Outputs

Digital:

3G/HD/SD-SDI, SMPTE-259/292/296/424

2 Audio Inputs

Digital:

16-channel 24-bit SDI embedded, 48KHz synchronous

2 Audio Outputs

Digital:

16-channel 24-bit SDI embedded, 48KHz synchronous

2 Independent LTC In/Out

2 Independent RS-422

Video Formats

SD:

525i 29.97

625i 25

HD:

720p 50

720p 59.94

720p 60

1080i 25

1080i 29.97

1080i 30

1080PsF 23.98

1080PsF 24

1080PsF 25

1080PsF 29.97

1080PsF 30

1080P 23.98

1080P 24

1080P 25

1080P 29.97

1080P 30

1080P 50

1080P 59.94

1080P 60

2K:

2048 x 1080P 23.976

2048 x 1080PsF 23.976

2048 x 1080P 24

2048 x 1080PsF 24

2048 x 1080P 25

2048 x 1080PsF 25

Reference

Analog Color Black

or HD Tri-level sync

CORVID 22 CARD CONNECTIVITY
Breakout Cable: LTC 1 In LTC 2 In LTC 1 Out LTC 2 Out RS422 Channel 1 RS422 Channel 2 3G Input 1 3G Input 2 3G Output 1 3G Output 2 Reference Input

About AJA Video Systems, Inc.

Since 1993, AJA Video has been a leading

manufacturer of high-quality and cost-

effective digital video interface, conversion and

Desktop solutions supporting the professional

broadcast and post-production markets.

AJA is headquartered in Grass Valley, California,

For further information, please see our

website at www.aja.com

Copyright ©2010 AJA Video Systems, Inc

AJA Corvid 22 - About AJA Video Systems, Inc. - 1

VIDEO SYSTEMS

www.aja.com

530.274.2048
