Dual Hinge II - Docking Station HP - Free user manual and instructions

Product Type	Docking Station
Brand	HP
Model	Dual Hinge II
Dimensions (W x D x H)	Approx. 30 x 8 x 3 cm
Weight	Approx. 500 g
Power Supply	120 W AC adapter (included)
Input Voltage	100-240 V AC, 50-60 Hz
Output Ports	USB-C (x2), USB-A (x2), HDMI (x2), DisplayPort (x1), Ethernet (RJ-45), 3.5mm audio combo
Video Output	Up to 4K at 60 Hz via HDMI or DisplayPort
Dual Monitor Support	Yes, up to two external displays
Max Power Delivery	Up to 100 W via USB-C to host laptop
Ethernet	Gigabit Ethernet (10/100/1000)
Compatible Operating Systems	Windows 10, Windows 11, macOS (limited)
Dual Hinge Design	Adjustable viewing angles for ergonomic setup
Maintenance	Clean with a soft, dry cloth. Avoid liquids.
Safety	Do not expose to water or extreme temperatures. Use only with provided power adapter.
Spare Parts	Power adapter and USB-C cable available via HP support
Warranty	Standard HP limited warranty (1 year)
Additional Information	Supports HP Quick Docking; firmware updates via HP Support Assistant

Frequently Asked Questions - Dual Hinge II HP

Is the HP Dual Hinge II docking station compatible with any laptop?

It is designed primarily for HP laptops with USB-C support, but may work with other USB-C laptops if they support standard docking protocols. Check your laptop's specifications for USB-C with alternate mode and power delivery.

What is the maximum power delivery to the laptop?

The docking station can deliver up to 100 watts of power via the USB-C connection, which is sufficient to charge most laptops, including high-performance models.

How many external monitors can I connect?

You can connect up to two external monitors using the HDMI and DisplayPort outputs. The maximum resolution supported is 4K at 60 Hz per monitor.

Does it have an Ethernet port?

Yes, it includes a Gigabit Ethernet RJ-45 port for wired network connectivity.

Can I use the docking station with a MacBook?

It is officially supported for Windows laptops. MacBooks may have limited compatibility due to driver differences. It is recommended to check HP's compatibility list.

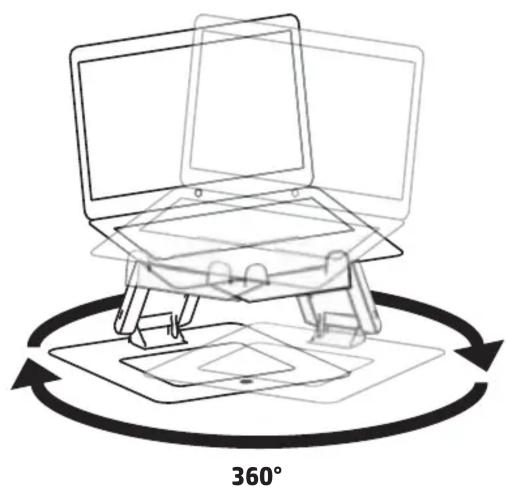

What is the dual hinge design for?

The dual hinge allows you to adjust the angle of the docking station to match your laptop's height and tilt, providing an ergonomic and clutter-free workspace.

How do I clean the docking station?

Use a soft, dry cloth to wipe the surface. Do not use any liquids, sprays, or abrasive materials that could damage the finish or electronic components.

My laptop is not charging when connected. What should I check?

Ensure the power adapter is properly connected to the docking station and to a working wall outlet. Also verify that your laptop supports USB-C power delivery and that the cable is firmly inserted.

Can I update the firmware of the docking station?

Yes, firmware updates are available through HP Support Assistant software on your HP laptop. Connect the docking station and run the tool to check for updates.

What safety precautions should I follow?

Keep the docking station away from water and heat sources. Do not cover the ventilation vents. Use only the supplied power adapter to avoid damage.

USER MANUAL Dual Hinge II HP

CAUTION: This stand is intended for use only within the weight ranges indicated. Use with products heavier than the maximum weights indicated may result in instability causing person injury or equipment damage.
