Product Type	Passive 2-way loudspeaker
Woofer	12-inch (305 mm) EVS-12S, 2.5-inch voice coil
Compression Driver	1-inch (25.4 mm) titanium diaphragm
Frequency Response (-3 dB)	55 Hz – 20 kHz
Power Handling (Continuous)	300 W
Power Handling (Peak)	1200 W
Impedance	8 ohms
Sensitivity (1W/1m)	95 dB SPL
Maximum SPL (Calculated)	125 dB SPL
Coverage (H x V)	90° x 50°
Connectors	2 x NL4 Speakon, 2 x binding posts
Enclosure Material	High-density birch plywood with EVCoat finish
Grille	16 GA steel with weatherized backing
Rigging	M10 threaded points, optional U-bracket
Dimensions (H x W x D)	24.6 x 15.3 x 15.1 in (624 x 389 x 384 mm)
Net Weight	48.5 lb (22 kg)
Color	Black (standard)
Ingress Protection	IP55 with optional cover
Safety Compliance	CE, UL, EAC
Maintenance	Wipe with dry cloth; inspect grille and drivers periodically

Frequently Asked Questions - Zx3-60PI ELECTRO-VOICE

What is the power handling of the Electro-Voice Zx3-60PI?

The Zx3-60PI handles 300 W continuous and 1200 W peak with an 8 ohm impedance.

How do I connect the speaker to an amplifier?

Use the NL4 Speakon connectors or binding posts. Wire pin 1+ / 1- for the full-range signal. Ensure amplifier output matches speaker impedance (8 ohms).

What is the frequency range of this speaker?

The frequency response is 55 Hz to 20 kHz (-3 dB), making it suitable for full-range PA and monitoring applications.

Can the Zx3-60PI be used outdoors?

Yes, with the optional IP55 cover it can withstand weather exposure. The grille is weatherized, but the speaker is not fully submersible.

How do I mount or rig the speaker?

The enclosure has M10 threaded inserts for suspension or mounting. Use compatible hardware or an optional U-bracket. Never suspend from handles.

What is the coverage pattern?

The constant-directivity horn provides a 90° horizontal x 50° vertical coverage, ideal for medium-throw applications.

How should I clean and maintain the speaker?

Wipe the cabinet with a soft, dry cloth. Do not use solvents. Check the grille and drivers for debris periodically to ensure optimal performance.

What is the maximum SPL of this speaker?

Calculated maximum SPL is 125 dB at 1 meter (with peak power). Actual level depends on program material and amplifier.

Can I use this speaker as a floor monitor?

Yes, the Zx3-60PI can be used as a wedge monitor when placed on its side. The rotatable horn allows coverage pattern adjustment.

What is the weight and size of the speaker?

It weighs 48.5 lb (22 kg) and measures 24.6 x 15.3 x 15.1 inches (624 x 389 x 384 mm).

USER MANUAL Zx3-60PI ELECTRO-VOICE

HA-3 Handle Mounting Kit

The Electro-Voice HA-3 Handle Mounting Kit features a threaded attach point that allows for a Zx3 loudspeaker to be flown using a VSA-1 Strong-Arm (sold separately) to obtain desired orientation and sound coverage.

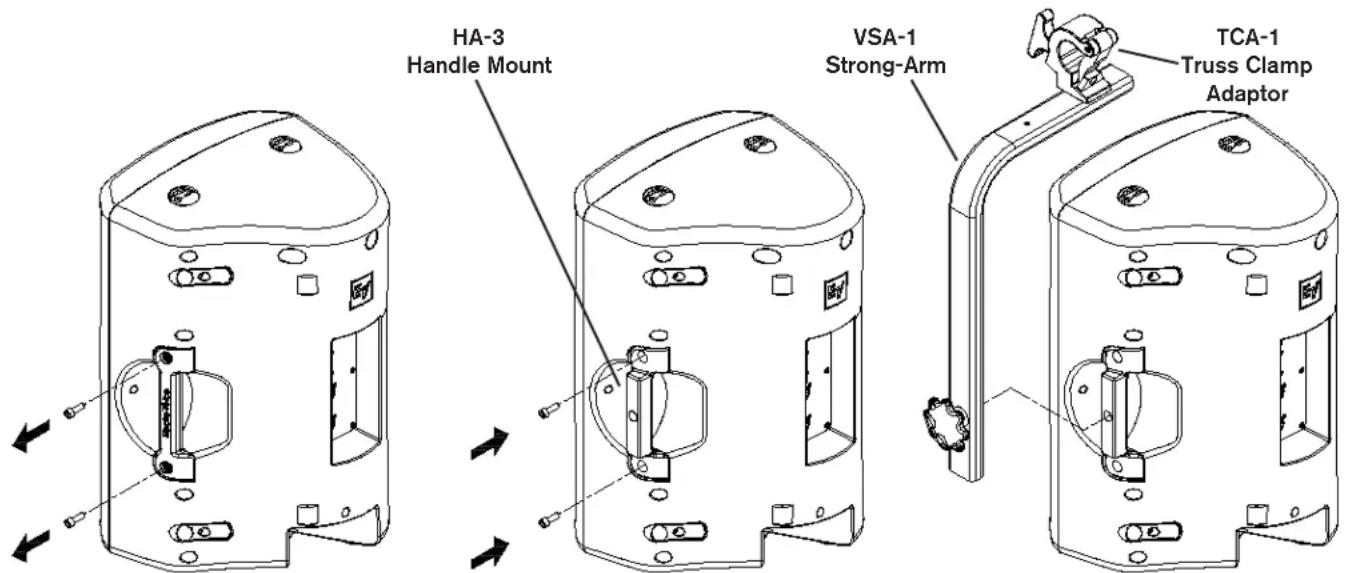

Step 1: Remove Handle Bolts and Handle
Step 2: Attach HA-3 and Handle Bolts Step 3: Attach VSA-1 Strong-Arm Mount

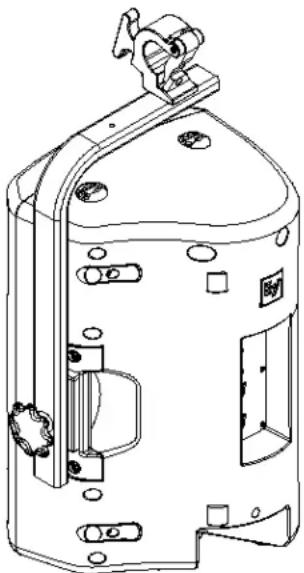

Fully Assembled with HA-3 Handle Mount and VSA-1 Strong-Arm Mount

Technical line drawing of a mechanical device with mounting holes and internal components (no text or symbols)

WARNING: Suspending any object is potentially dangerous and should only be attempted by individuals who have a thorough knowledge of the techniques and regulations of rigging objects overhead. Electro-Voice strongly recommends

that Zx3 speakers be suspended taking into account all current national, federal, state and local regulations. It is the responsibility of the installer to ensure that Zx3 speakers are safely installed in accordance with all such regulations. If Zx3 speakers are suspended, Electro-Voice strongly recommends that the system be inspected at least once a year. If any sign of weakness or damage is detected, remedial action should be taken immediately.

Electro-Voice

12000 Portland Avenue South, Burnsville, MN 55337

Phone: [phone], Fax: [phone]

www.electrovoice.com

© Bosch Communications Systems 11/2010

Part Number LIT000160 Rev B

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: [phone]

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other International locations. For customer orders, Contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 887-9212

For warranty repair or service information, contact the Service Repair department at:

800/685-2606

For technical assistance, contact Technical Support at: 866/78AUDIO

Specifications subject to change without notice.
