Product Type	Passive Two-Way Loudspeaker
Brand	Electro-Voice
Model	ZX4
Dimensions (H x W x D)	Approx. 24.5 x 14.0 x 12.8 in (622 x 356 x 325 mm)
Weight	Approx. 49 lb (22.2 kg)
Power Handling (RMS)	400 W
Power Handling (Program)	800 W
Frequency Response (-10 dB)	58 Hz – 20 kHz
Impedance	8 ohms
Sensitivity (1W/1m)	98 dB SPL
Maximum SPL	127 dB
Coverage Angle (H x V)	90° x 50°
Connectors	Two Neutrik Speakon NL4
Enclosure Material	Polypropylene (PP) with internal bracing
Grille	Powder-coated steel, weather-resistant
Mounting Options	Pole mount, flying points, or floor monitor
Recommended Amplifier	600 – 1200 W into 8 ohms
Protection Circuitry	Dynamic DDT compression
Cleaning Instructions	Wipe with a dry, soft cloth. Do not use solvents or abrasive cleaners.
Safety Features	Recessed connectors, non-slip feet, reinforced handles
Spare Parts and Repairability	Contact authorized Electro-Voice service centers. Genuine parts available.
General Information	Designed for portable PA, fixed install, and stage monitoring.

Frequently Asked Questions - ZX4 ELECTRO-VOICE

What amplifier should I use with the ZX4?

Use an amplifier that delivers 600–1200 W into 8 ohms per channel. Ensure the amplifier is rated for continuous power and has adequate headroom.

Can I use the ZX4 as a floor monitor?

Yes, the ZX4 features a trapezoidal shape and non-slip rubber feet, making it suitable for stage monitoring when placed on its side.

What is the impedance of the ZX4?

The nominal impedance is 8 ohms. Ensure your amplifier is stable at 8 ohms per channel.

How do I clean the ZX4 speaker?

Wipe the enclosure and grille with a dry, soft cloth. Do not use water, solvents, or abrasive cleaners. Remove the grille periodically to clean behind it.

What is the maximum SPL of the ZX4?

The maximum SPL is 127 dB (calculated using sensitivity and peak power handling). Actual output depends on amplifier and environment.

Can I fly or suspend the ZX4?

Yes, the ZX4 has integrated flying points. Use rated hardware and follow local safety regulations. Consult the user manual for rigging details.

What type of enclosure material is used?

The enclosure is made of impact-resistant polypropylene (PP) with internal bracing for rigidity and reduced resonance.

How do I connect the ZX4 to an amplifier?

Use a Neutrik Speakon NL4 cable. Pins 1+ and 1- are for the full-range signal. The second pair (pins 2+ and 2-) can be used for bi-amping if available.

What is the coverage angle of the ZX4?

The horn provides a 90° horizontal x 50° vertical coverage pattern, allowing for even sound distribution.

Where can I find spare parts or repair service?

Contact an authorized Electro-Voice service center or visit the Electro-Voice website for genuine spare parts and repair information.

USER MANUAL ZX4 ELECTRO-VOICE

HA-5 Handle Mounting Kit

The HA-5 Handle Mounting Kit features a threaded attach point that allows for a Zx4 or Zx5 loudspeaker to be flown using a VSA-1 Strong-Arm and TCA-1 Truss Clamp Adaptor (both sold separately) to obtain desired orientation and sound coverage.

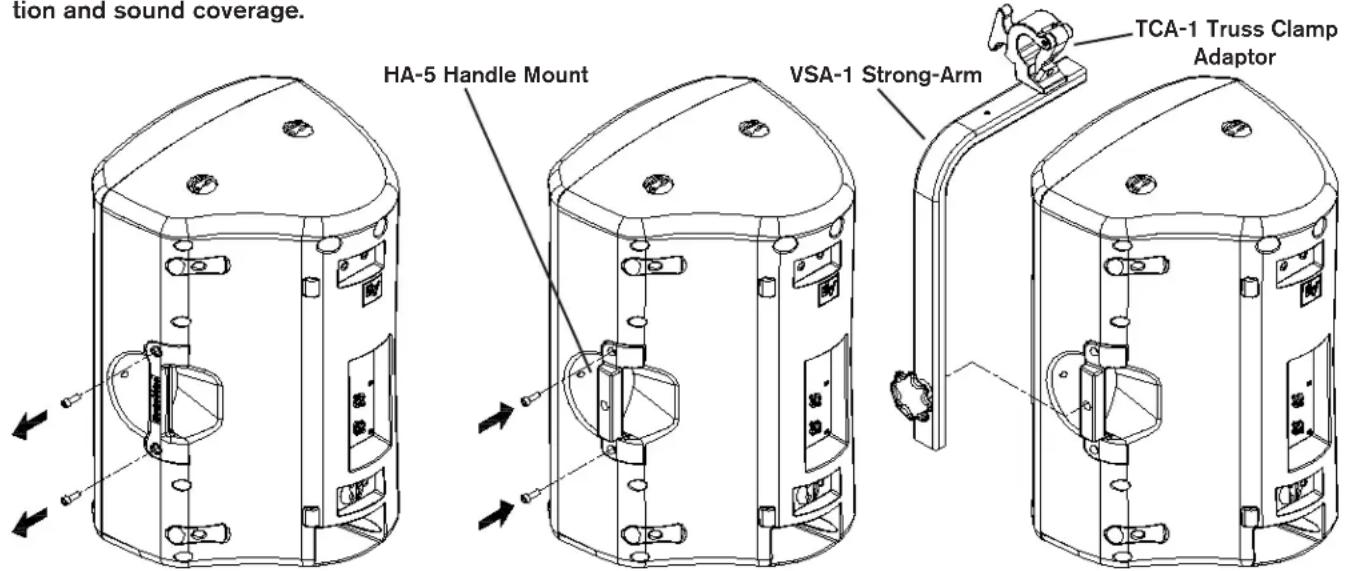

Step 1: Remove Handle Bolts and Handle Step 2: Attach HA-5 and Handle Bolts
Step 3: Attach VSA-1 Strong-Arm Mount

*Note - Please consult Zx4 and Zx5 Series User Manuals for additional information.

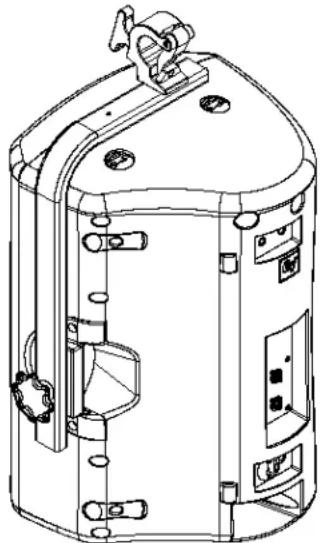

Fully Assembled with HA-5 Handle Mount, VSA-1 Strong-Arm Mount, and TCA-1 Truss Clamp Adaptor

Technical line drawing of a cylindrical mechanical device with mounting holes and internal components (no text or symbols)

Suspending any object is potentially dangerous and should only be attempted by individuals who have a thorough knowledge of the techniques and regulations of rigging objects overhead. Electro-Voice strongly recommends that Zx4 and Zx5 speakers be suspended taking into account all current national, federal, state and local regulations. It is the responsibility of the installer to ensure that Zx4 and Zx5 speakers are safely installed in accordance with all such regulations. If Zx4 or Zx5 speakers are suspended, Electro-Voice strongly recommends that the system be inspected at least once a year. If any sign of weakness or damage is detected, remedial action should be taken immediately.

Electro-Voice

12000 Portland Avenue South, Burnsville, MN 55337 Phone: [phone], Fax: [phone]

www.electrovoice.com

© Bosch Communications Systems 12/2010

Part Number 38110441 Rev C

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: [phone]

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other International locations. For customer orders, Contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 887-9212

For warranty repair or service information, contact the Service Repair department at:

800/685-2606

For technical assistance, contact Technical Support at: 866/78AUDIO

Specifications subject to change without notice.
