Product type	Built-in dishwasher
Brand	Gaggenau
Model	DF250160
Dimensions (H x W x D)	86.5 x 60 x 57 cm
Weight	Approx. 50 kg
Energy efficiency class	A+++
Annual energy consumption	240 kWh
Water consumption per cycle	9 L
Capacity (place settings)	13
Noise level	44 dB(A)
Programs	Eco, Auto, Intensive, Quick, Glass
Temperature settings	45-70 °C
Delay start	1-24 hours
Drying system	Zeolite / Heat exchanger
Water protection	AquaStop
Child lock	Yes
Self-cleaning filter	Yes
Electrical connection	220-240 V, 50/60 Hz, 10 A
Spare parts availability	Available for 10 years
Repair index	8.5 / 10

Frequently Asked Questions - DF250160 GAGGENAU

How do I install the dishwasher?

Ensure the water supply and drain are properly connected. Level the appliance using the adjustable feet. For detailed steps, refer to the installation manual.

What type of detergent should I use?

Use a dishwasher detergent (powder, gel, or tablets). Avoid hand dish soap. For best results, use a detergent with rinse aid.

Why does my dishwasher have a bad smell?

Clean the filter regularly and run a maintenance cycle with dishwasher cleaner. Also check for food debris in the sump.

How do I reset the dishwasher?

Press and hold the Start button for 3 seconds, or turn off the power for 30 seconds. Refer to the manual for specific reset procedures.

What does the 'E:24' error code mean?

Error code E:24 indicates a water drainage problem. Check the drain hose for kinks or blockages and clean the filter.

Can I use the dishwasher with half a load?

Yes, use the Half Load option if available. The machine will adjust water and energy consumption accordingly.

How do I clean the spray arms?

Remove the spray arms and rinse under running water. Use a toothpick to unclog the nozzles if necessary.

What is the noise level of this dishwasher?

The noise level is 44 dB(A), which is very quiet. It's suitable for open-plan kitchens.

How do I activate the child lock?

Press and hold the Child Lock button (usually a key symbol) for 3 seconds. A light will indicate that it's active.

Where can I find spare parts?

Spare parts are available from Gaggenau customer service or authorized dealers. Use the model number DF250160 when ordering.

USER MANUAL DF250160 GAGGENAU

Safety instructions 5

Before you switch ON the appliance	5
Delivery 5
Installation 5
In daily use 6
Damage 6
Disposal 6
Door lock 7

Environmental protection 8

Packaging 8

Old appliances 8

Getting to know your appliance 9

Control panel	9
Appliance interior	9
Info button	9
Time setting	9
Switching on the appliance for the first time	10
Settings	11

Water softening system / special salt 13

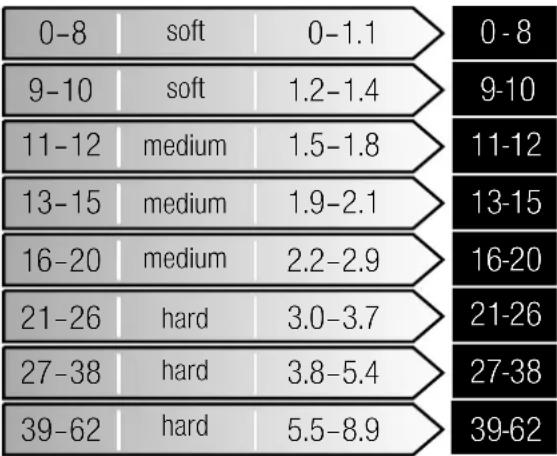

Water hardness table	13
Adjusting the water softening system	13

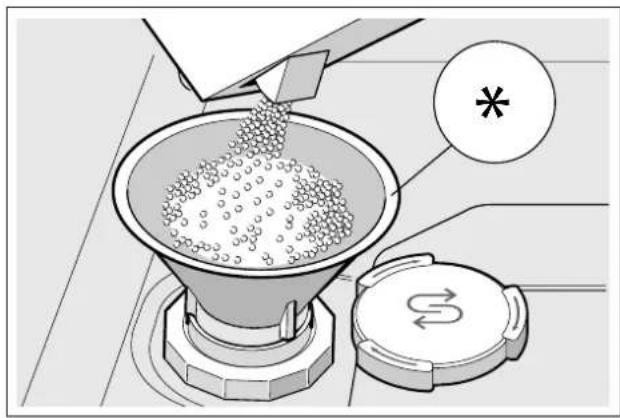

Using special salt	14
Detergent with a salt component	14
Switching off water softening system	14

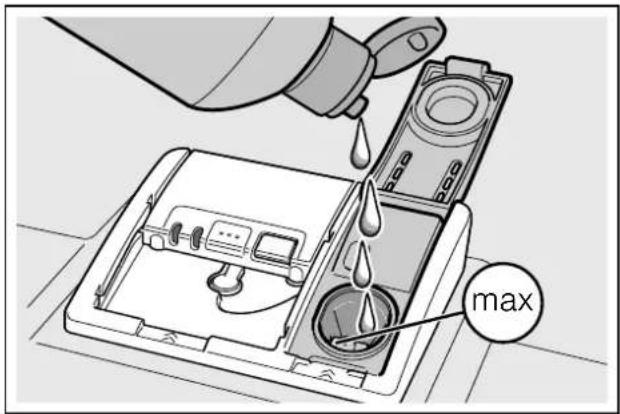

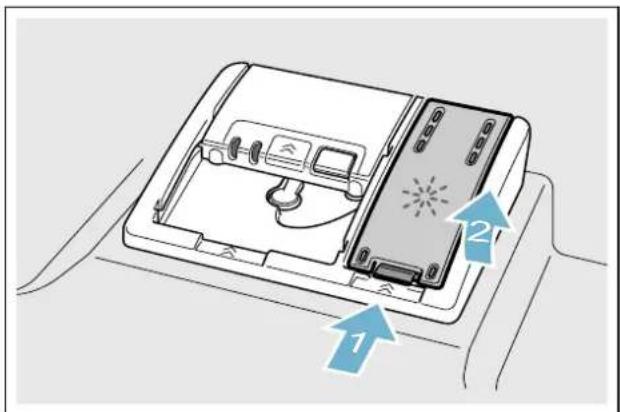

Rinse aid 14

Setting amount of rinse aid	15
Switching off rinse aid refill indicator	15

Utensils 15

Not suitable	15
Glass and utensil damage	15
Loading the dishwasher	15

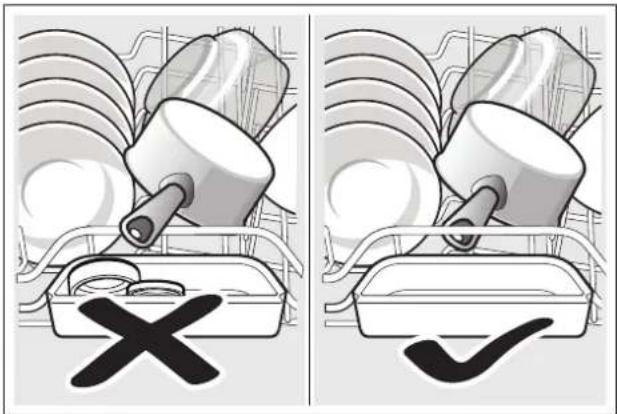

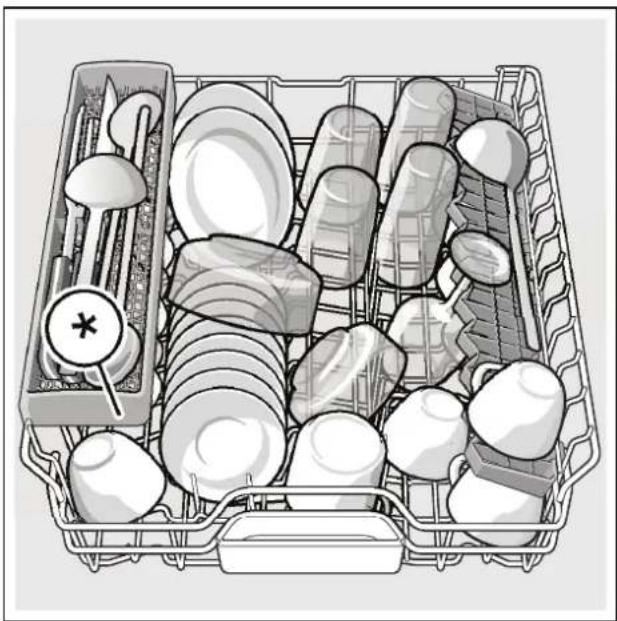

Upper basket	16

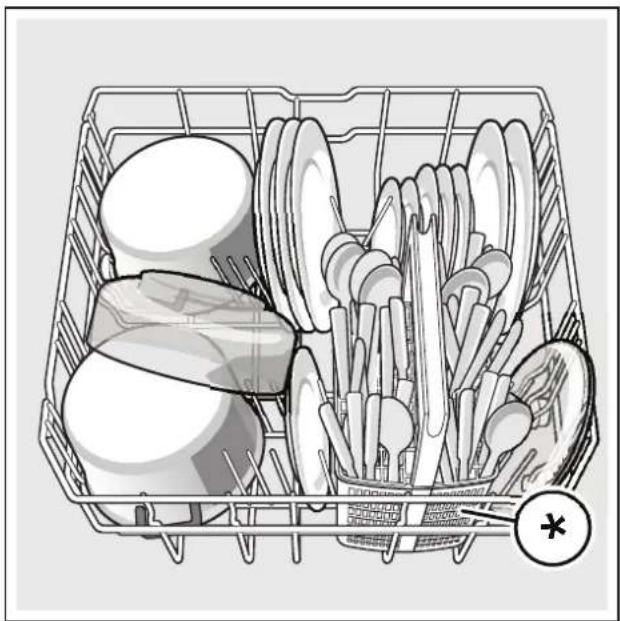

Lower basket	16

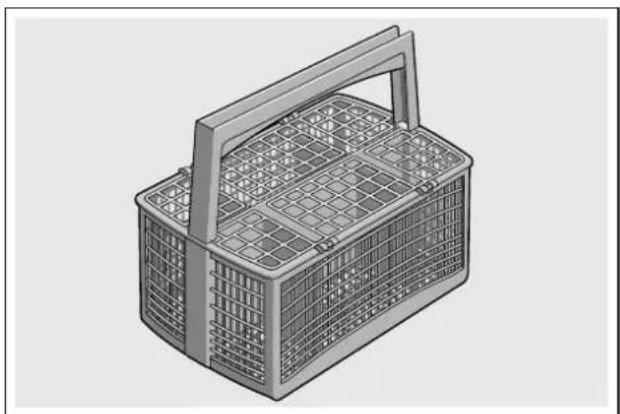

Cutlery basket	16

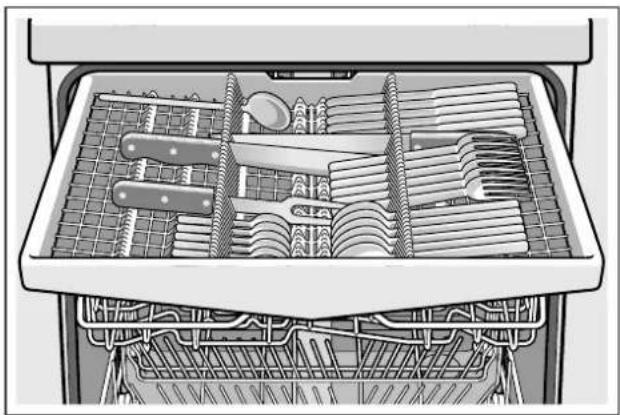

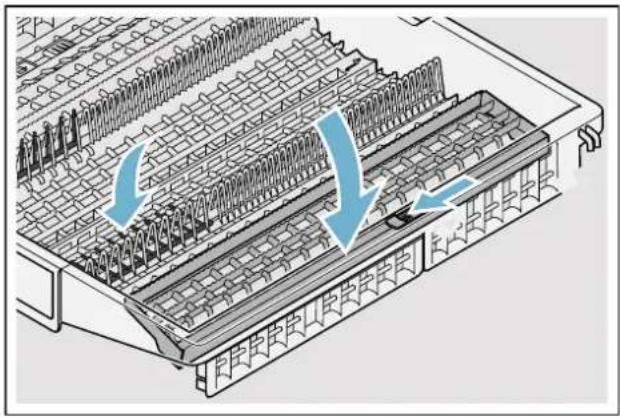

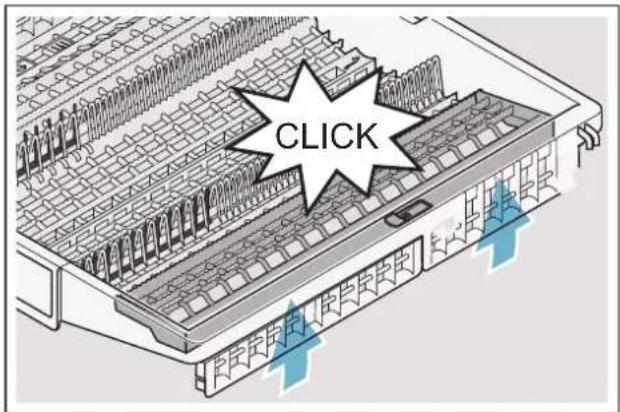

Cutlery drawer	17

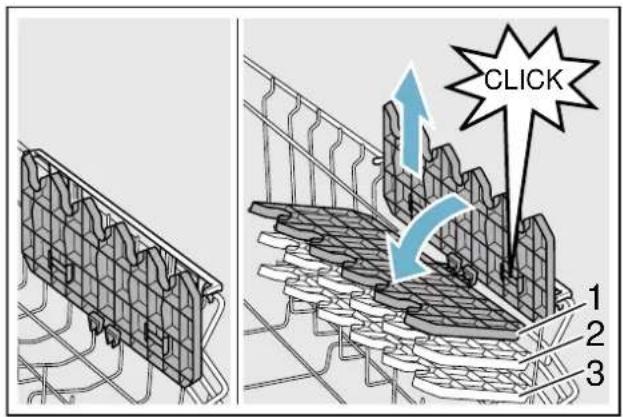

Etagere	17

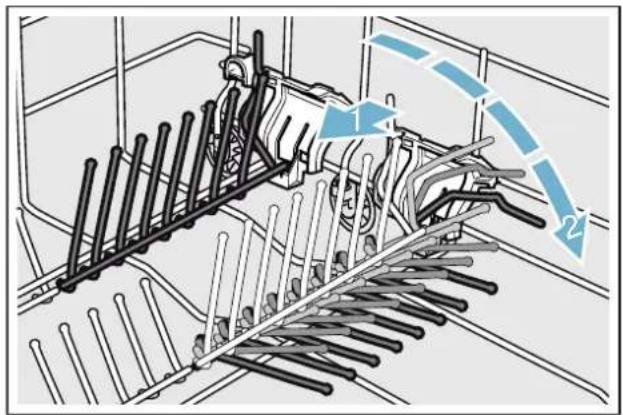

Folding spikes	17

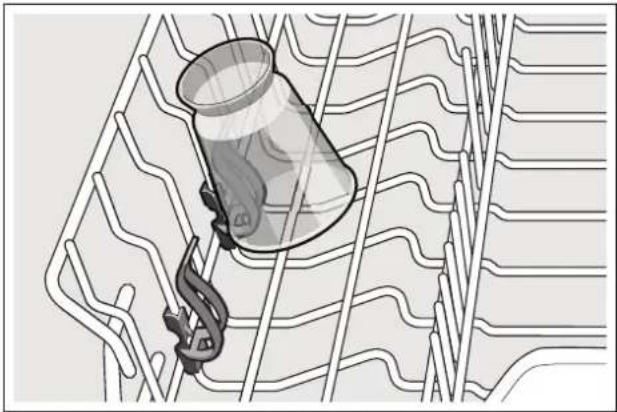

Small items holder	18

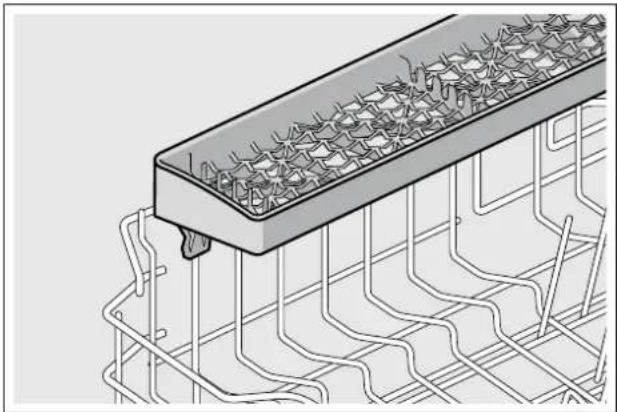

Knife rack 18

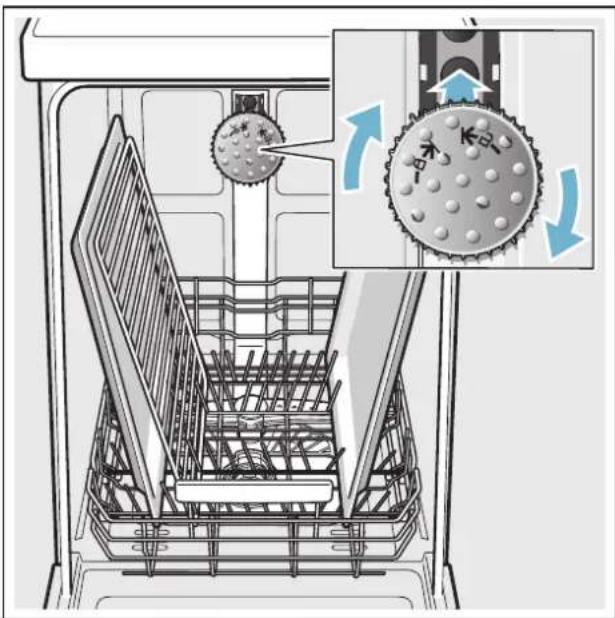

Baking sheet spray head	18

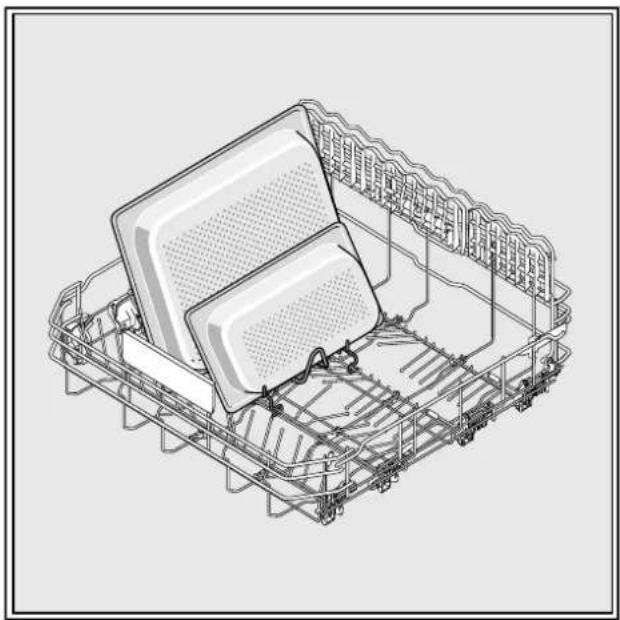

Gastronorm insert	19
Unloading the dishwasher	19

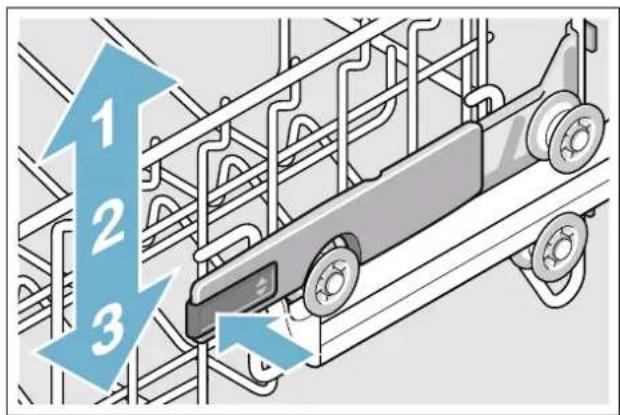

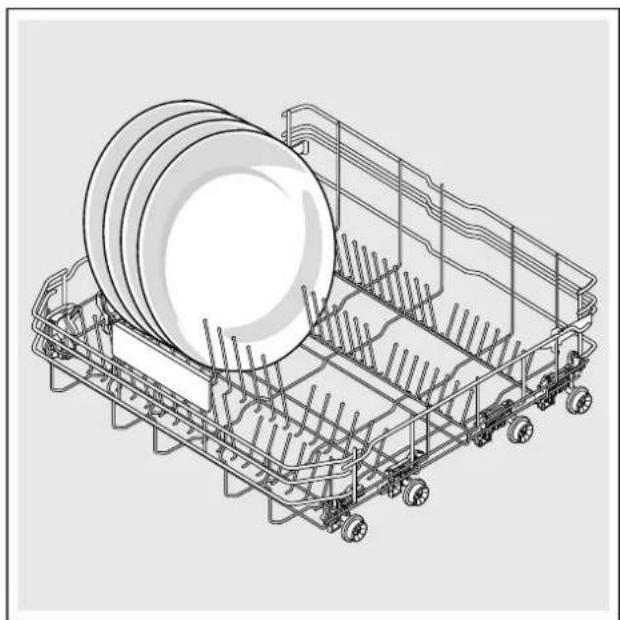

Adjusting the height of the basket	19

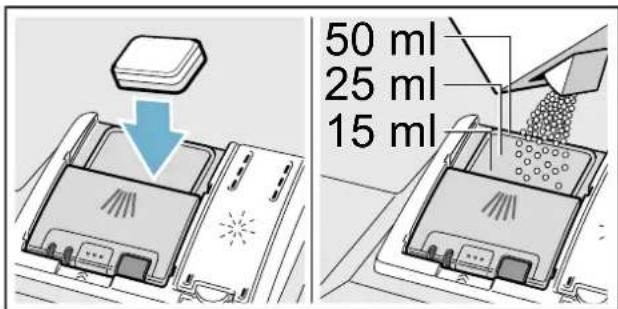

Detergent	20

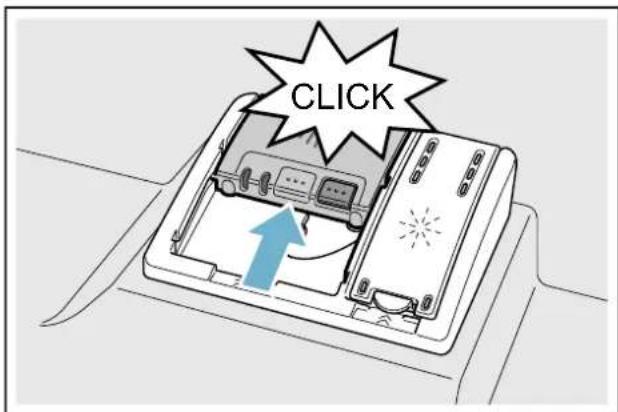

Adding detergent	21
Combination detergent	21

Overview of programmes	22
Programme selection	23
Information for test institutes	23

Additional functions	23
Power	23
Half load	23
Hygiene	23
Intensive	23
extraDry	23
Energy Save	23

Operating the appliance	24
Programme data	24
Changing the settings	24
AquaSensor	24
Time display	24
Sensor setting	24
extraDry	25
Eco forecast	25
Auto Power Off	25
EmotionLight	25
Front display	25
Remaining time projection	25
infoLight	25
Changing start programme	25
Tone volume	25
Button volume	25
Child-proof lock	26
Greeting	26
Factory setting	26
Switching the appliance on	26
Time preselection	26
Programme end	26
Switching off the appliance	26
Interrupting the programme	27
Terminating the programme	27
Changing the programme	27

Cleaning and maintenance	27
Overall condition of the machine	27
Special salt and rinse aid	27

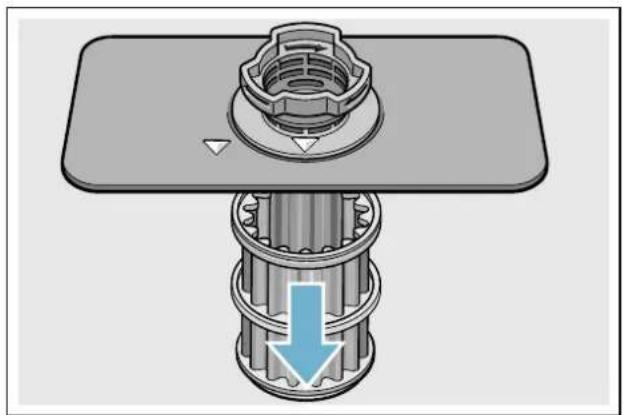

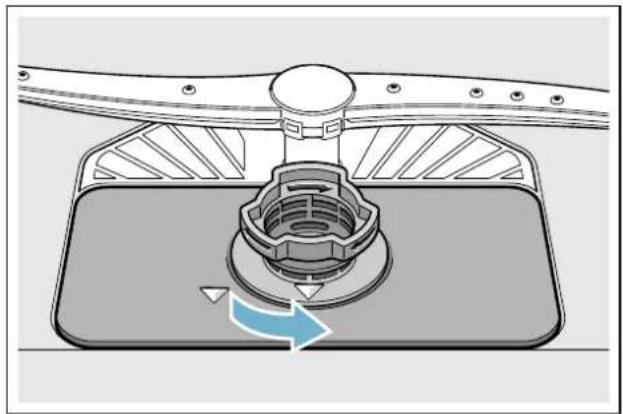

Filters	28

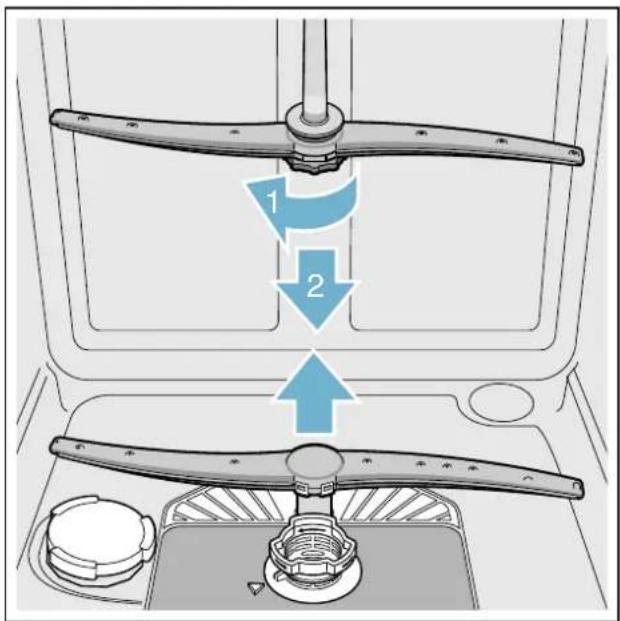

Spray arms	28

Fault, what to do? 29

Error message 29

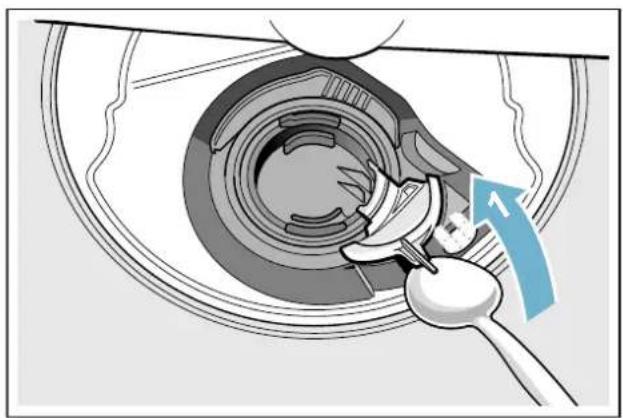

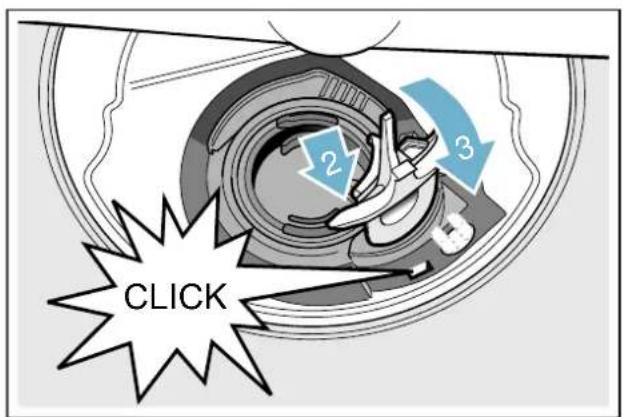

Waste water pump 29

Fault table 30

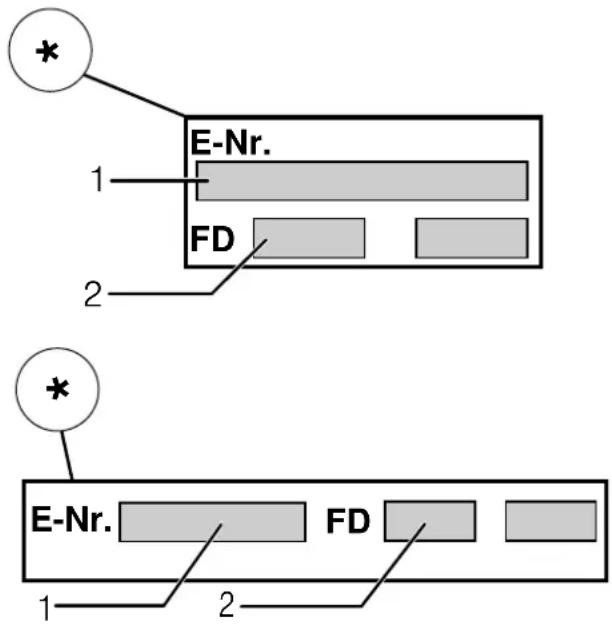

Customer service 36

Installation and connection 36

Contents of package 36

Safety instructions 36

Delivery 37

Technical specifications 37

Installation 37

Drainage connection 37

Drinking water connection 38

Warm water connection 38

Electrical connection 39

Removal 39

Transporting 39

Protection against frost (Emptying the appliance) 39

Intended use

• This appliance is intended for use in the home and domestic environments.
• Use the dishwasher only in the home and only for its designated purpose: for washing domestic dishes.
• This appliance is intended for use up to a maximum altitude of 4000 metres above sea level.

Safety instructions

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.

Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

Keep children below the age of 8 years old at a safe distance from the appliance and power cable.

Before you switch ON the appliance

Please read the instructions for use and installation carefully. They contain important information on how to install, use and maintain the appliance.

Retain all documents for later use or for the subsequent owner.

You can download the instructions for use from our website free of charge. The relevant Internet address can be found overleaf on these instructions for use.

Delivery

1. Check the packaging and dishwasher immediately for damage caused in transit. Do not switch on a damaged appliance, but contact your supplier.
2. Please dispose of the packaging material in an environmentally friendly manner.
3. Do not let children play with packaging and its parts. There is a risk of suffocation from collapsible boxes and film.

Installation

• Following installation, ensure that the back of the dishwasher is not freely accessible (protection against contact due to hot surface).
• Install and connect the appliance according to the installation and assembly instructions.
• Prior to installation, disconnect the dishwasher from the power supply.
• Ensure that the protective conductor system of the domestic supply has been correctly installed.
• The electrical connection conditions must correspond with the specifications on the dishwasher rating plate 33.
• If the power cord of this appliance is damaged, it must be replaced with a particular power cord.
  To prevent injury, the power cord may be purchased from customer service only.
• If the dishwasher is installed in a high-sided unit, the unit must be secured properly.
• If the dishwasher is installed below or above other domestic appliances, follow the information for installation in combination with a dishwasher in the installation instructions for the particular appliances.
• Also follow the installation instructions for the dishwasher to ensure that all appliances are operated safely.
• If there is no information or if the installation instructions do not include the appropriate information, contact the manufacturer of these appliances to ensure that the dishwasher can be installed above or below these appliances.

• If you cannot obtain any information from the manufacturer, you must not install the dishwasher above or below these appliances.

• If you install a microwave oven above the dishwasher, the microwave oven may be damaged.

• Install built-under or integratable appliances only under continuous worktops which have been screwed to adjacent cupboards to ensure stability.
• Do not install the appliance near heat sources (radiators, heat storage tanks, cookers or other appliances which generate heat) and do not install under a hob.
• After installing the appliance, ensure that the plug is easily accessible. "Electrical connection" on page 39
• For some models:

The plastic housing on the water connection contains an electric valve. The supply hose contains electrical connection cables. Do not cut through the supply hose. Do not immerse the plastic housing in water.

In daily use

Read and observe the safety information and instructions for use on the packaging for cleaning and rinsing agents.

Damage

• The appliance may be repaired and opened up by a technician only. To do this, disconnect the appliance from the power supply. Pull out the mains plug or switch off the fuse. Turn off the tap.
• If the appliance is damaged, especially the control panel (cracks, holes, broken buttons), or the door function is impaired, stop operating the appliance. Pull out the mains plug or switch off the fuse. Turn off tap, call customer service.

Disposal

1. Make redundant appliances unusable to prevent subsequent accidents.
2. Dispose of the appliance in an environmentally friendly manner.

⚠ Warning – Risk of injury!

• To prevent injuries, e.g. caused by stumbling, open the dishwasher only briefly in order to load and unload the dishwasher.
• Knives and other utensils with sharp points must be placed with the points downwards in the cutlery basket*28 or horizontally on the knife shelf* or in the cutlery drawer*21.
• Do not lean or sit on the open door.
• In the case of free-standing appliances, ensure that the baskets are not overloaded. The appliance could tip.
• If the appliance is not in a cavity and a side panel is accessible, the door hinge area must be covered at the side for reasons of safety (risk of injury). The covers are available as optional accessories from customer service or specialist outlets.

* depending on the features of your dishwasher

⚠ Warning – Risk of explosion!

Do not add any solvents to the rinsing compartment. Danger of explosion!

⚠ Warning – Risk of scalding!

Open the door carefully when the programme is still running. There is a risk of hot water spraying out of the appliance.

⚠ Warning – Risk to children!

- If fitted, use the childproof lock.

- Do not allow children to play with or operate the appliance.

- Keep children away from detergents and rinse aid. These may cause chemical burns in the mouth, throat and eyes or asphyxiation.

- Keep children away from open dishwasher. There may be small parts in the dishwasher which children could swallow and the water inside the dishwasher is not drinking water as it may contain detergent residue.

- Ensure that children do not place fingers in the tablet collecting tray 24. Small fingers could become caught in the slots.

- When opening and closing the door on an eye-level appliance, ensure that children do not become jammed or crushed between the appliance door and the cupboard door below.

• Children could become locked in the appliance (danger of suffocation) or get into another dangerous situation.

Redundant appliances: Pull out the mains plug, sever and dispose of the power cord. Destroy the door lock so that the door can no longer be closed.

Childproof lock (door lock) \*

The child-proof lock (door lock) protects children from potential hazards which the dishwasher poses.

Warning – Risk of suffocation!

Children may become locked in the dishwasher and suffocate. Always completely close the appliance door when leaving the dishwasher.

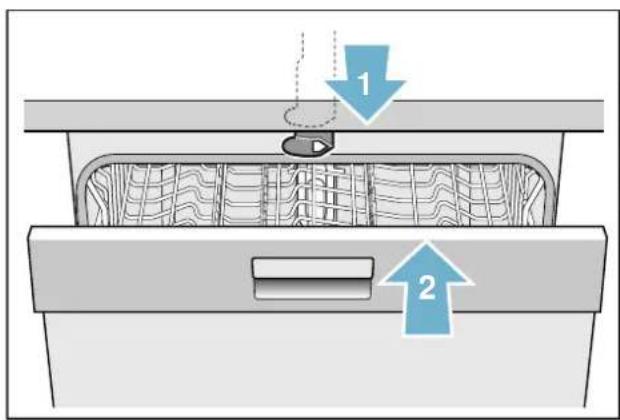

Activate the child-proof lock (door lock) as follows:

1. Pull the catch of the child-proof lock towards yourself (1).

2. Close the door (2).

The child-proof lock is activated.

Diagram showing a mechanical or structural component with labeled parts 1 and 2, indicating directional movement or assembly.

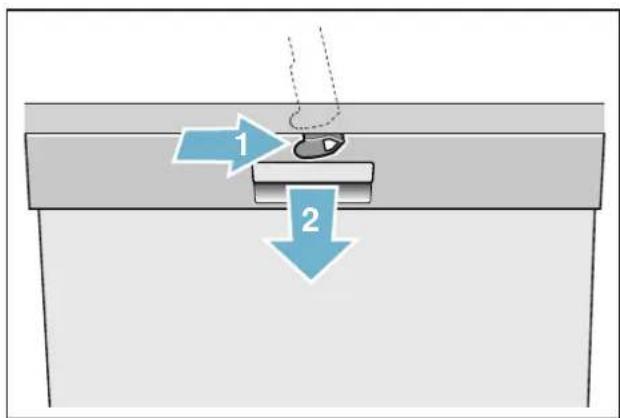

Open the door with activated child-proof lock (door lock) as follows:

1. Press the catch of the child-proof lock to the right (1).
   2.Open the door (2).

Diagram showing two labeled arrows pointing to a mechanical component, with blue arrows indicating direction of movement.

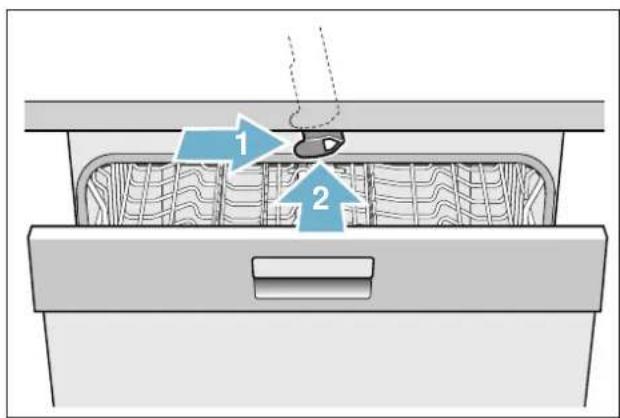

Deactivate the child-proof lock (door lock) as follows:

1. Press the catch of the child-proof lock to the right (1).
2. Press the catch of the child-proof lock backwards (2).

The childproof lock is deactivated.

Diagram showing a mechanical or electrical component with labeled parts 1 and 2, likely illustrating a process or assembly.

* depending on the features of your dishwasher

Environmental protection

Both the packaging of new appliances and the old appliances themselves contain valuable raw materials and recyclable materials.

Please dispose of the individual parts separated according to type.

Please ask your dealer or inquire at your local authority about current means of disposal.

Packaging

All plastic parts of the appliance are identified with internationally standardised abbreviations (e.g. PS polystyrene). Therefore, plastic waste can be sorted out when the appliance is being disposed of.

Please follow the safety instructions under "Delivery" → Page 5.

Old appliances

Please follow the safety instructions under "Disposal of your appliance" → Page 6.

This appliance has been identified in accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). The directive provides a framework for the collection and recycling of old appliances, which is valid across the EU.

Getting to know your appliance

Diagrams of the control panel and the interior of the appliance can be found at the front of the manual. Individual positions are referred to in the text.

Control panel

See Fig. Page 2

1 On/off switch
2 Programme buttons **
3 Info button i
4 Display window at top
5 Rinse aid refill indicator
6 Salt refill indicator
7 Selection buttons
8 Time preselection
9 Additional functions **
10 START button
11 < > button
12 Open door button
13 Front display *

* depending on the features of your dishwasher

** number depending on the features of your dishwasher

Appliance interior

See Fig. → Page 2

20 Interior light *

21 Cutlery drawer *

22 Top basket

23 Upper spray arm

24 Tablet collecting tray

25 Lower spray arm

26 Dispenser for special salt

27 Filters

28 Cutlery basket *

29 Bottom basket

30 Dispenser for rinse aid

31 Detergent dispenser

32 Lock for detergent dispenser

33 Rating plate

* depending on the features of your dishwasher

Info button i Setup 3 sec.

The Info button i can be used to display additional programme information.

1. Press the Info button i 3.
2. Press the programme button.

Information on the selected programme is indicated on the display window at the top 4.

1. To leave, press Info button i 3.

Time setting

When the appliance is switched on the for the first time, the time starts at 12:00 o'clock.

Set the time as follows:

1. Open the door.
2. Switch on ON/OFF switch 1.
3. Press Info button 1 3 for 3 seconds until the following text is indicated on the display window at the top 4:

Scroll with <>

Set with - +

Leave with Setup 3 sec.

1. Keep pressing button > 11 until the time setting is indicated on the display window at the top 4.
2. Make the setting with setting buttons + - 7. If the selection buttons + - 7 are held down, the set values are changed in 10-minute steps.
3. Press and hold the Info button i 3 for 3 seconds.

The chosen setting has now been stored.

Note: If the appliance was disconnected from the power supply for a prolonged period, the time starts at 12:00 o'clock. Set the time.

Switching on the appliance for the first time

When the dishwasher is switched on for the first time, you are taken directly to the settings for switching on the appliance for the first time. The following text is indicated on the display window at the top 4:

Scroll with <>

Set with - +

Leave with Setup 3 sec.

The required settings for switching on the appliance for the first time are listed in the table below.

Change the setting as follows:

1. Keep pressing button > 11 until the required setting is displayed.
2. Make the setting with setting buttons + - 7.
3. Press and hold the Info button i 3 for 3 seconds.
   The chosen setting has now been stored.

Settings	Factory setting Infotext
Switching on the appliance for the first time		by pressing Info button ...
Language Deutsch Language selection.
Time format 24h 12h or 24h.
Time setting 12:00 Set the current time.
Water hardness °E 16 - 20 medium Setting water hardness. When using
		Multitabs, select the lowest setting.
Rinse aid disp.	Setting 5	Amount of rinse aid affects drying. When using Multitabs, select setting 0.
Water connection *	Cold water	Connection to hot water (40-60°C) or cold water (<40°C) possible.
* depending on the features of your dishwasher

Settings

The dishwasher has been preset with certain settings for your convenience. You can change this factory setting.

Change the setting as follows:

1.Open the door.

1. Switch on ON/OFF switch 1.

2. Press Info button i 3 for 3 seconds until the following text is indicated on the display window at the top 4:

Scroll with <>

Set with - +

Leave with Setup 3 sec.

1. Keep pressing button > 11 until the required setting is displayed.
2. Make the setting with setting buttons + - 7.
3. Press and hold the Info button i 3 for 3 seconds.

The chosen setting has now been stored.

You have the option of resetting all changed settings back to the original factory settings.

Note: When you reset your dishwasher to the factory settings, you are taken directly to the settings for switching on the appliance for the first time.

Setting Factory setting Infotext		by pressing Info button i
Time setting 12:00 Set the current time.
Time format 24h 12h or 24h.
Time display Time Show end of programme with display "Finish in" or "Finish at".
Language Deutsch Language selection.
Water hardness	°E 16 - 20 medium	Setting water hardness. When using Multitabs, select the lowest setting.
Rinse aid disp.	Level 5	Amount of rinse aid affects drying. When using Multitabs, select setting 0.
Sensor setting	Standard	Adjustment of soiling detection for optimum cleaning result.
Extra dry	Off	Improved drying for glasses and plasticware.
Water connection *	Cold water	Connection to hot water (40-60°C) or cold water (<40°C) possible.
Eco forecast	Off	Show the water and energy consumption.
Auto Power Off	after 1 min.	Appliance automatically switches off at end of rinsing process.
Emotion Light *	On	Interior light.
Front display *	On	The front display can be selected.
Remaining time proj. *	On	While programme is running, status information is projected onto floor.
Infolight *	On	Light is projected to signal an active cleaning cycle.
Start programme	Eco 50°C	When switching on, the last selected programme appears.
Tone volume *	Level 2	Volume of signal at end of programme.
Button volume	Level 2	Volume when using buttons.
Child-proof lock *	Off	Activated child-proof lock impedes opening of door.
Eco drying *	On	Door opens automatically at the end of the programme.
* depending on the features of your dishwasher

Setting Factory setting Infotext	by pressing Info button
Greeting On When switching on the appliance, the brand	logo can be deselected.
Factory setting Reset Resetting to the factory setting.
* depending on the features of your dishwasher

Water softening system / special salt

To ensure good rinsing results, the dishwasher requires soft water, i.e. water which is low in lime, otherwise limescale will be deposited on the utensils and interior container. Tap water above 7^ dH (1.2 mmol/l) must be softened. The water is softened with special salt (regeneration salt) in the water softening system of the dishwasher. The setting and therefore the required amount of salt depends on the degree of hardness of your tap water (see following water hardness table).

Water hardness table

Water hardness value °E	Hardness range	mmol/l	Set value on the machine

Adjusting the water softening system

The amount of salt dispensed can be set from 0 to 62°E. Salt is not required at the set value 0-8.

Set the softening system as follows:

1. Ask your local water utility company for the water hardness value of the tap water.

2. Required setting can be found in the water hardness table.

3. Open the door.

4. Switch on ON/OFF switch 1.

5. Press Info button 3 for 3 seconds until the following text is indicated on the display window at the top 4:

Scroll with <>

Set with - +

Leave with Setup 3 sec.

1. Keep pressing button > 11 until the water hardness is indicated on the display window at the top 4.

2. Make the setting with setting buttons + - 7.

3. Press and hold the Info button i 3 for 3 seconds.

The chosen setting has now been stored.

Using special salt

As soon as the low salt indicator 6 is lit on the control panel or is requested on the front display * 13, salt should be topped up. Always refill with special salt immediately before switching on the appliance. This ensures that overrun special salt solution is immediately washed out and does not corrode the rinsing tank.

Caution!

Detergent will destroy the water softening system! Never pour detergent into the salt dispenser.

Top up the salt as follows:

1. Undo the screw plug on the dispenser 26.

2. Fill the dispenser with water (required only when switching on the appliance for the first time).

3. Add salt as illustrated (do not use table salt or tablets).

The water is displaced and runs out.

Illustration of a cooking process with a funnel pouring granular material into a pan, and a lid showing a wavy arrow (no text or symbols)

* depending on the features of your dishwasher

Using detergents with salt component

If combined detergents with a salt component are used, special salt can usually be omitted up to a water hardness of 21^ dH ( 37^ fH, 26^ Clarke, 3.7 mmol/l). If the water hardness is over 21^ dH, salt must be used.

Switching off low salt indicator / water softening system

If the use of combined detergents with a salt component impairs the low salt indicator 6 on the control panel or the text on the display window at the top 4 (enough salt for x rinse cycles), the displays can be switched off.

Proceed as described under "Setting water softening system" and set the value to 0-8. The water softening system and salt refill indicator are now switched off.

Rinse aid

As soon as the low rinse-aid indicator 5 is lit on the control panel or is requested on the front display * 13, rinse-aid should be topped up. The rinse aid is required for stain-free utensils and clear glasses. Use only rinse aid for domestic dishwashers. Combined detergents with rinse-aid component may be used up to a water hardness of 21° dH (37° fH, 26° Clarke, 3.7 mmol/l) only. If the water hardness is over 21° dH, rinse-aid must be used.

* depending on the features of your dishwasher

Top up the rinse-aid as follows:

1. Open dispenser 30; press lug on the lid (1) and lift (2).

Diagram of a device with labeled parts, showing two numbered arrows pointing to internal components.

2.Add rinse-aid up to the max. mark.

max

1. Close the lid.

Lid "clicks" into position.

1. Remove overflowed rinse aid with a cloth.

This prevents excessive frothing during the next rinse cycle.

Setting amount of rinse aid

The amount of rinse aid to be dispensed can be set from 0 to 6. Set the amount of rinse aid to be dispensed to 5 to obtain a very good drying result. Do not change the amount of rinse aid unless there are streaks or water stains on the utensils. Set a lower level to avoid streaks. Set a higher level to avoid water stains.

Set the amount of rinse aid as follows:

1. Open the door.
2. Switch on ON/OFF switch 1.
3. Press Info button 1 for 3 seconds until the following text is indicated on the display window at the top 4:

Scroll with <>

Set with - +

Leave with Setup 3 sec.

1. Keep pressing button > 11 until the rinse aid dispenser is indicated on the display window at the top 4.
2. Make the setting with setting buttons + - 7.
3. Press and hold the Info button i 3 for 3 seconds.

The chosen setting has now been stored.

Switching off rinse aid refill indicator

If the use of combined detergents with a rinse-aid component impairs the low rinse-aid indicator 5 on the control panel or the text on the front display * 13 (enough rinse aid for x rinse cycles), the displays can be switched off.

Proceed as described under "Setting amount of rinse aid" and select setting 0.

* depending on the features of your dishwasher

Utensils

Not suitable

• Cutlery and utensils made of wood.
- Delicate decorative glasses, craft and antique utensils. These decors are not dishwasher-proof.
- Plastic parts not resistant to heat.
• Copper and tin utensils.
- Utensils which are soiled with ash, wax, lubricating grease or ink.

Aluminium and silver parts have a tendency to discolour and fade during the wash cycle. Even some types of glass (e.g. crystal glass objects) may turn cloudy after many wash cycles.

Glass and utensil damage

Causes:

• Glass type and glass production process.
• Chemical composition of the detergent.
• Water temperature of the wash programme.

Recommendation:

• Use only glasses and porcelain which the manufacturer designates as dishwasher-proof.
• Use a detergent which protects utensils.
• Take glass and cutlery out of the dishwasher as soon as possible after the programme ends.

Loading the dishwasher

1. Remove large food remnants. It is not necessary to prerinse utensils under running water.
2. Place the utensils so that
3. they are secure and cannot tip over.
4. all utensils with their openings face down.
5. parts with curves or indentations are at an angle, thereby allowing water to drain.
6. does not obstruct rotation of the two spray arms 23 and 25.

Very small utensils should not be washed in the machine, as they may fall out of the baskets.

Upper basket

Arrange cups and glasses in the upper basket 22.

Illustration of a multi-tiered kitchen appliance drawer with cutlery and utensils (no text or symbols)

* depending on the features of your dishwasher
Note: Utensils must not be placed above the tablet collecting tray 24. These may block the lid of the detergent dispenser and prevent it from opening fully.

Two-panel illustration showing a piston bucket with a cross mark and a checkmark inside, against a background of mechanical parts (no text or symbols)

Lower basket

Arrange pots and plates in the lower basket 29.

Illustration of a shopping basket containing various kitchen utensils and cutlery (no text or symbols)

* depending on the features of your dishwasher
Tip: Heavily soiled utensils (pans) should be placed in the lower basket. The more powerful spray jet provides a better dishwashing result.
Tip: Other examples, such as the best way of loading your dishwasher, can be found on our homepage. These can be downloaded free of charge. The corresponding Internet address can be found on the back page of these instructions for use.

Cutlery basket \*

Place cutlery, always unsorted with the tips face down, in the cutlery basket *.

To prevent injuries, place long, pointed implements and knives on the knife shelf *.

3D rendering of a wire basket with handle and side compartments (no text or symbols)

* depending on the features of your dishwasher

Cutlery drawer \*

Arrange the cutlery in the cutlery drawer 21 as illustrated. Separately arranged utensils are easier to remove after washing.

You can take out the cutlery drawer.

Interior view of a kitchen appliance drawer with cutlery and utensils (no text or symbols visible)

Depending on the features of your dishwasher, you can fold down the side shelves to provide more room for taller items of cutlery. The front rows of prongs can be folded down to provide room for wider handles.

Isometric view of a multi-level industrial or warehouse structure with structural beams and internal components, showing no visible text or symbols.

CLICK

* depending on the features of your dishwasher

Etagere \*

The etagere and the space underneath can be used for small cups and glasses or for larger items of cutlery, such as wooden spoons or serving cutlery. If you do not require the etagere, it can be folded up.

CLICK 1 2 3

* Depending on the features of your dishwasher, you can adjust the etagere 3 times the height.

Adjust the height of the etagere as follows:

1. Position the etagere vertically and pull upwards.

2. Push etagere at a slight angle downwards to the required height (1, 2, or 3).

3. Engage etagere.

Etagere "clicks" into position.

Folding spikes \*

* Depending on the features of your dishwasher, the spikes can be folded down. This facilitates arrangement of pots, bowls and glasses.

Fold down the spikes as follows:

1. Press lever forwards (1).

2. Fold down spikes (2).

Technical diagram of a mechanical assembly with no visible text or symbols

Small items holder \*

* Depending on the features of your dishwasher, the upper basket is fitted with small items holders. The small items holders can be used to securely attach light plastic parts.

Illustration of a container with a hook attached to a grid-patterned surface (no text or symbols)

Knife rack \*

* Depending on the features of your dishwasher, the upper basket is fitted with a knife shelf. Long knives and other utensils can be placed in the knife shelf.

Technical line drawing of a mechanical component with internal channels and a grid-patterned top (no text or symbols)

Baking sheet spray head \*

* depending on the features of your dishwasher

Large trays or grilles as well as large plates (gourmet plates, pasta plates, dinner plates) can be cleaned with this spray head.

Insert the spray head as follows:

1. Remove upper basket 22.

2. Insert spray head as illustrated and turn to the right.

Spray head is engaged.

Diagram illustrating a cleaning or cleaning process with labeled components and directional arrows indicating movement.

To ensure that the spray jet can reach all parts, arrange the baking sheets as illustrated (max. 2 baking sheets and 2 grilles).

Note: Ensure that the dishwasher is always operated with upper basket 22 or baking tray spray head.

Gastronorm insert \*

Helps you stack several Gastronorm drawers, trays or similar large flat utensils at an angle in the bottom basket.

You can remove the insert if required.

Technical line drawing of a mechanical assembly with grid lines and a central component (no text or symbols)

* depending on the features of your dishwasher

Unloading the dishwasher

To prevent water from dripping off the upper basket onto the utensils in the lower basket, it is recommended to empty the appliance from the bottom up.

Tip: Hot utensils are sensitive to shock! Therefore, when the programme ends, leave the utensils to cool down in the dishwasher until they can be handled.

Note: When the programme ends, water droplets can still be seen inside the appliance. This does not affect the drying of the utensils.

Adjusting the height of the basket \*

* depending on the features of your dishwasher

If required, the height of the upper basket 22 can be adjusted to create more space for taller utensils either in the upper or lower basket.

Appliance height 81.5 cm

With cutlery basket Upper		Lower
	basket	basket
Setting 1 max. ø 22 cm 31 cm
Setting 2 max. ø 24.5 cm 27.5 cm
Setting 3 max. ø 27 cm 25 cm

With cutlery drawer Upper		Lower
	basket	basket
Setting 1 max. ø 16 cm 31 cm
Setting 2 max. ø 18.5 cm 27.5 cm
Setting 3 max. ø 21 cm 25 cm

Appliance height 86.5 cm

With cutlery basket Upper		Lower
	basket	basket
Setting 1 max. ø 24 cm 34 cm
Setting 2 max. ø 26.5 cm 30.5 cm
Setting 3 max. ø 29 cm 28 cm

With cutlery drawer Upper		Lower
	basket	basket
Setting 1 max. ø 18 cm 34 cm
Setting 2 max. ø 20.5 cm 30.5 cm
Setting 3 max. ø 23 cm 28 cm

Arrange large plates up to a diameter of 31/34* cm in the lower basket 29 as illustrated.

Isometric line drawing of a multi-wheeled cart with rollers and structural supports (no text or symbols)

* depending on the features of your dishwasher

Upper basket with side levers

1. Pull out upper basket 22.
2. Hold the sides of the basket along the upper edge.
   This prevents it from suddenly dropping.
3. To lower the upper basket; press in both levers on the left and right on the outside of the basket. The upper basket lowers.

1 2 3

1. To lift the upper basket; grip the sides of the upper basket along the upper edge and lift.
2. Ensure that both sides of the upper basket are at the same height.
   6.Push in upper basket.

Detergent

You can use tablets as well as powder or liquid detergents for dishwashers, but never use washing up liquid. The dosage can be individually adjusted with powder or a liquid detergent according to the degree of soiling. Tablets contain an adequately large amount of active ingredients for all cleaning tasks. Modern, powerful detergents predominantly use a low-alkaline formulation with phosphate and enzymes. Phosphates bond the lime in the water. Enzymes break down starch and remove protein. Phosphate-free detergents are less frequent. These have a slightly weaker lime bonding capacity and require a higher dosage. To remove coloured stains (e.g. tea, tomato sauce), oxygen-based bleaching agents are usually used.

Note: To ensure a good washing result, always follow the instructions on the detergent packaging! If you have further questions, we recommend that you contact the detergent manufacturers' helpline.

Warning – Risk of injury and damage due to non-observance of the safety instructions for detergent and rinse-aid products!

Always follow the safety instructions for detergent products and rinse-aid products.

Adding detergent

1. If the detergent dispenser 31 is still closed, actuate locking bar 32 to open it.

2. Pour detergent into the dry detergent dispenser 31 only (insert tablet flat, not on its edge).

3. Dosage: see manufacturer's instructions on the packaging. Use graduated detergent dispenser.

Usually 20 ml–25 ml are adequate for normal soiling. If using tablets, one tablet is adequate.

50 ml 25 ml 15 ml

1. Close cover on the detergent dispenser. Cover "clicks" into position.

CLICK

The detergent dispenser opens automatically at the optimum time depending on the programme. The powder or liquid detergent is distributed in the appliance and is dissolved, the tablet falls into the tablet collecting tray where it dissolves in doses.

Tip: If the utensils are only lightly soiled, slightly less than the indicated amount of detergent is usually adequate.

Suitable detergents and care products can be purchased online via our website or via customer service (see back page).

Combination detergent

Apart from conventional detergents (Solo), a number of products are offered with additional functions. These products contain not only the detergent but also rinse-aid and salt replacement substances (3in1) and, depending on the combination (4in1, 5in1, ...), additional components such as glass protection or stainless steel cleaner. Combination detergents function only up to a specific degree of hardness (usually 21°dH). Over this limit salt and rinse-aid must be added.

As soon as combined detergents are used, the rinse programme is adjusted automatically to ensure the best possible rinsing and drying result.

Notes

- If you want to add more utensils after the programme has started, do not use the tablet collecting tray 24 as a handle for the upper basket. The tablet could already be there and you will touch the partially dissolved tablet.

- Do not place small parts for washing in the tablet collecting tray 24; this prevents the tablet from dissolving evenly.

- You will obtain optimum rinsing and drying results by using solo detergents and applying salt and rinse aid separately.

- If programmes are short, tablets may not have full cleaning effect due to different dissolving properties and there may even be undissolved detergent residue. It is recommended to use washing powder for these programmes.

- The dosing of a tablet is adequate for the "Intensive" programme (for some models). When using washing powder, you can apply some of this cleaning agent to the inside of the appliance's door.

- Even if the rinse-aid and/or salt refill indicator is lit, the rinse programme will run correctly with combined detergents.

- If using detergents in a water-soluble protective cover: Take hold of the cover with dry hands only and put the detergent into an absolutely dry detergent dispenser only, otherwise the detergent may stick.

- If you switch from combined detergents to solo detergents, ensure that the water softening system and amount of rinse aid have been set to the correct value.

- Biological/eco detergents: Detergent products identified as "Bio" or "Eco" (to protect the environment) usually use lower quantities of active agents or completely dispense with certain substances. The cleaning effect of such products may occasionally be restricted.

Overview of programmes

The max. possible number of programmes is illustrated in this overview. The corresponding programmes and their arrangement can be found on the fascia.

Type of dish Type of soiling Programme Possible additional			options	Programme sequence
Pots, pans, non-sensitive dishes and cutlery	very stubborn burned or dried-on food remains containing starch or protein	Intensive 70°	all	Pre-rinseClean 70°Intermediate rinseRinse with rinse-aid 69°Drying
		Auto 65° - 75°		Is optimised according to the soiling with the aid of sensors.
mixed dishes and cutlery	part-dried, common household food remains	Auto 45° - 65°	all	Is optimised according to the soiling with the aid of sensors.
		Eco 50°		Pre-rinseClean 50°Intermediate rinseRinse with rinse-aid 66°Drying
sensitive dishes, cutlery, temperature-sensitive plastic and glasses	lightly adhering, fresh food remains	auto / Auto 35° - 45°	IntensivePowerHalf loadExtra DryEnergy Save	Is optimised according to the soiling with the aid of sensors.
mixed dishes and cutlery	part-dried, common household food remains	nightNight	IntensiveHalf loadHygieneExtra Dry	Is optimised according to the soiling with the aid of sensors.
sensitive dishes, cutlery, temperature-sensitive plastic and glasses	lightly adhering, fresh food remains	Glass 40°	IntensivePowerHalf loadExtra Dry	Pre-rinseClean 40°Intermediate rinseRinse with rinse-aid 60°Drying
		Quick wash 45°	Extra Dry	Clean 45°Intermediate rinseRinse with rinse-aid 55°
all types of dishes	Cold rinsing, intermediate cleaning	Pre-rinse	none Pre-rinse

Programme selection

You can select a suitable programme according to the type of utensils and type of soiling.

Information for test institutes

Test institutes receive the information for comparability tests (e.g. according to EN60436).

These are the conditions for conducting the tests, however these are not the results or consumption values.

Request by e-mail to:

[e-mail]

The product number (E no.) and the production number (FD) are required which you can find on the rating plate 33 on the appliance door.

Additional functions

* Depending on the features of your dishwasher, you can select different additional functions 9.

>>Power \*

The "Power" function can reduce the run time by approx. 20% to 66% depending on the rinse programme selected. To obtain optimum cleaning and drying results with a reduced run time, water and energy consumption are increased.

^1/2 Half load \*

If you have only a few items to wash (e.g. glasses, cups, plates), you can switch to "half load". This will save water, energy and time. It is recommended to put a little less detergent in the detergent dispenser than for a full load.

Hygiene \*

The temperature is increased during the cleaning process. This improves the hygiene status. This additional option is ideal e.g. for cleaning cutting boards or baby bottles.

intensive \*

Perfect for a mixed load. You can wash very soiled pots and pans in the lower basket together with normally soiled utensils in the upper basket. The spray pressure in the lower basket is intensified, the rinsing temperature is increased slightly.

extraDry ^*

An increased temperature during the final rinse and an extended drying phase ensure that even plastic parts dry better. There is a slight increase in the energy consumption.

e Energy Save \*

The "Energy Save" function can be used to reduce water and energy consumption. The run time is extended for optimum cleaning and drying results.

Operating the appliance

Programme data

The programme data (consumption values) can be found in the summary of instructions. They refer to normal conditions and the water hardness set value °E 16 - 20 medium. Different influencing factors such as water temperature or line pressure may result in deviations.

Changing the settings

The dishwasher has been preset with certain settings for your convenience. You can change these factory settings.

Change the setting as follows:

1. Open the door.
2. Switch on ON/OFF switch 1.
3. Press Info button 3 for 3 seconds until the following text is indicated on the display window at the top 4:

Scroll with <>

Set with - +

Leave with Setup 3 sec.

1. Keep pressing button >11 until the required setting is indicated on the display window at the top 4.
2. Make the setting with setting buttons + -7.
3. Press and hold the Info button i Group 6 sec 3 for 3 seconds.

The chosen setting has now been stored.

Tip: If you change several settings, first make all changes in succession. Now press the Info button i 3 for 3 seconds. This saves all set values in the appliance.

AquaSensor \*

* depending on the features of your dishwasher

The Aqua sensor is an optical measuring device (light barrier) which measures the turbidity of the rinsing water.

The AquaSensor is used according to the programme. If the AquaSensor is active, "clean" rinsing water can be transferred to the next rinse bath and water consumption can be reduced by 3–6 litres. If the turbidity is greater, the water is drained and is replaced with fresh water. In the automatic programmes the temperature and running time can also be adjusted to the degree of soiling.

Time display

The running time is determined during the programme by the water temperature, the number of utensils as well as the degree of soiling and may vary (depending on the selected programme). You can change the time display in time or hours/minutes so that the remaining running time of the rinsing programme appears in the display window "Ready at" (for example 15:20 hours) or "Ready in" (for example 3:25).

Sensor setting

The programme sequence is optimised in Auto programmes with the aid of sensors. The sensors adjust the programme strength of Auto programmes depending on the amount and type of soiling. You can adjust the sensitivity of the sensors in 3 stages.

Standard: This setting is ideal for a mixed load and heavily soiled utensils, but also saves energy and water.

Sensitive: This setting adjusts the programme strength for the effective removal of food remnants, even if the amount of soiling is low. The energy and water consumption is adjusted accordingly.

Very sensitive: This setting adjusts the programme strength for difficult conditions of use, for example firmly dried on food remnants. This setting is recommended if using biological or eco detergents which contain lower amounts of active agents. The energy and water consumption is adjusted accordingly.

extraDry

The final rinse uses a higher temperature which improves the drying result. The running time may increase slightly. (Caution if utensils are delicate!) You can switch the extraDry function on or off.

Eco forecast

When Eco forecast is activated, the average water and energy consumption of the selected programme is briefly displayed on the display window at the top 4.

AutoPowerOff

(Switching off automatically after the end of the programme)

To save energy, the dishwasher is switched off 1 minute after the programme ends. You can also change this setting.

Possible settings are:

• off: The appliance does not switch off automatically.
- After one minute: The appliance switches off after 1 minute.
- After two hours: The appliance switches off after 2 hours.

EmotionLight \*

* depending on the features of your dishwasher

The Emotion Light 20 is on when the door is open irrespective of whether the ON/OFF switch 1 is switched on or off. When the door is closed, the Emotion Light is off. You can switch the Emotion Light on or off.

Note: Note that when the door is open the Emotion Light is automatically switched off after 1 hour.

Front display \*

* depending on the features of your dishwasher

You can switch the front display 13 on or off (additional programme information).

Remaining time projection (Optical display while the programme is running) \*

* depending on the features of your dishwasher

While programme is running, an optical display (additional programme information) is indicated on the floor under the appliance door. If the base panel is pulled forwards or if the appliance is installed at eye-level with flush furniture front, the display is not visible.

You can switch the optical display on or off.

Infolight \*

* depending on the features of your dishwasher

While the programme is running, a light spot shines on the floor under the appliance door. Do not open the appliance door until the light point is no longer visible on the floor. If the appliance door is not completely closed, the light spot flashes *. If the appliance is installed at eye-level, with flush furniture front, the light point is not visible. You can switch the Infolight on or off.

Changing start programme

You can change the "Start programme" setting.

Tone volume

The end of the programme is indicated by a buzzer. You can also change this setting.

Button volume

When you are operating the dishwasher, a signal sounds whenever a button is pressed. You can control the volume of the signal. If you do not like the button volume, you can switch it off.

Child-proof lock \*

* depending on the features of your dishwasher

The dishwasher features an electronic child-proof lock. The child-proof lock protects children from potential hazards which the dishwasher poses.

You can switch the child-proof lock on or off. When the child-proof lock is on, it is difficult to open the door.

Greeting

When you switch on the dishwasher, the brand logo appears. You can switch off the brand logo.

Factory setting

You can reset all settings to the factory setting.

Switching the appliance on

1. Turn on tap fully.
   2.Open the door.
2. Switch on ON/OFF switch 1.

The Eco 50° programme has been preset for environmentally friendly operation whenever the appliance starts. This programme remains selected if no other programme button 2 is pressed.

1. Press START button 10.

2. Close the door.

Programme sequence starts.

Note:

For ecological reasons the Eco 50° programme is preset whenever the appliance starts. This conserves environmental resources and not least saves you money. The Eco 50° programme is a particularly environmentally friendly programme. According to EU regulation 1016/2010 it is the “Standard programme” which is the most efficient standard cleaning cycle for cleaning normally soiled utensils in terms of the combined energy and water consumption for cleaning these types of utensils.

Time preselection

You can delay the start of the programme by up to 24 hours. Depending on the setting of the time display, the end of programme is indicated with "Finish in" (for example 3h 25m) or "Finish at" (for example 15:20 hours).

1. Open the door.
2. Switch on ON/OFF switch 1.
3. Selects programme 2.
4. Press time preselection button 8.
5. Keep pressing the setting buttons + -7 until the displayed time corresponds with your requirements.
6. Press START button 10, timer programming is activated.
7. To delete the time preselection, press START button 10 for approx. 3 seconds.

Time preselection was terminated.

1. Close the door.

Programme end

* The programme has ended when "Finished" is indicated on the display window at the top 4 and on the front display * 13.
* The end of the programme is displayed on the floor – provided the optical display is switched on and is visible.
* depending on the features of your dishwasher

Switching off the appliance

Short time after the end of the programme:

1.Open the door.
2. Switch off ON/OFF switch 1.
3. Turn off tap (does not apply to appliances with Aqua-Stop).
4. Remove the utensils when they have cooled down.

Note: When the programme ends, leave the appliance to cool down a while before opening it. This will prevent steam from escaping and causing long-term damage to your built-in furniture.

Interrupting the programme

Caution!

Expansion (overpressure) may cause the appliance door to jump open and/or water to escape! If the door was opened on an appliance which has a hot water connection or is heated, always leave the door ajar for several minutes and then close.

1. Open the door.
2. Switch off ON/OFF switch 1.

The LEDs go out. The programme is saved.

1. To continue the programme, switch on the ON/OFF switch 1 again.
2. Close the door.

Terminating the programme (Reset)

1. Open the door.
2. Press the START button 10 and hold for 3 seconds

The display window at the top 4 and the front display * 13 show: "Program was terminated".

1. Close the door.

The programme sequence lasts approx. 1 min. The display window at the top 4 shows: "Finished".

1. Open the door.
2. Switch off ON/OFF switch 1.
3. Close the door.

* depending on the features of your dishwasher

Changing the programme

When the START button 10 has been pressed, the programme cannot be changed. The only way a programme can be changed is by Cancel programme (Reset).

Cleaning and maintenance

A regular inspection and maintenance of your machine will help to prevent faults. This saves time and prevents problems.

Overall condition of the machine

• Check rinsing compartment for grease and limescale deposits.
• Fill detergent dispenser 31 with detergent. Start the appliance without utensils in the programme with the highest rinsing temperature.

If you find such deposits:

⚠ Warning – Health hazard due to detergents containing chlorine!

Always use chlorine-free detergents.

Clean the appliance with detergents/appliance cleaners which are particularly suitable for use with dishwashers.

• To extend the life of your appliance, clean the appliance regularly with a special dishwasher detergent.
• To ensure that the door seal always remains clean and hygienic, regularly clean it with a damp cloth and a little washing-up liquid.
• If the appliance is switched off for a prolonged period, leave the door ajar to prevent the formation of an unpleasant odour.

Never use a steam cleaner to clean your dishwasher. The manufacturer is not liable for any consequential damage.

Regularly wipe the front of the appliance and fascia with a damp cloth; water and a little washing up liquid are adequate. Do not use sponges with a rough surface or abrasive detergents, as these could scratch the surfaces.

Stainless steel appliances: To prevent corrosion, avoid using sponge cloths or wash them out thoroughly several times before using for the first time.

Special salt and rinse aid

Top up the salt and/or rinse aid as soon as the refill indicators on the fascia 6 and 5 are lit or there is a prompt on the front display * 13.

* depending on the features of your dishwasher

Filters

The filters 27 keep large foreign objects in the rinsing water away from the pump. These foreign objects may occasionally block the filters.

The filter system consists of

• a coarse filter
• a flat fine filter

• a microfilter

• After each washing cycle check the filters for residue.

• Unscrew filter cylinder as illustrated and take out filter system.

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a bolted joint with a blue arrow indicating force or motion (no text or symbols present)

1. Remove any residue and clean filters under running water.
2. Re-install filter system in reverse sequence and ensure that the arrow marks are opposite each other after closing the filter system.

Spray arms

Limescale and contaminants in the rinsing water may block nozzles and bearings on the spray arms [23] and [25] .

1. Check outlet nozzles on the spray arms for blockages.
2. Unscrew the upper spray arm 23 (1) and remove downwards (2).
3. Remove the lower spray arm 25 upwards.

Diagram showing a kitchen appliance with two blades and directional arrows indicating rotation or movement.

1. Clean spray arms under running water.
2. Re-engage or screw on spray arms.

Fault, what to do?

Experience has shown that you can rectify most faults which occur in daily operation yourself. This ensures that the appliance is quickly available to you again. In the following overview you can find possible causes of malfunctions and helpful information for rectifying them.

Note: If the appliance stops during dishwashing or does not start for no obvious reason, first run the Abort programme function (Reset).

Warning – Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk!

Always have repairs carried out by technicians. If a component has to be replaced, always use original spare parts.

Error message

Some faults are indicated at the top of the display window 4 and on the front display * 13 and possible remedies are offered (for example Filter system soiled (E22) ->Clean filters).

* depending on the features of your dishwasher

Waste water pump

Large food remnants or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter.

Warning - Danger of cutting!

Sharp and pointed objects or glass fragments may block the waste water pump. Always carefully remove foreign objects.

Clean the waste water pump as follows:

1. Disconnect the dishwasher from the power supply.

2. Take out top basket 22 and bottom basket 29.

3. Remove the filters 27.

4. Scoop out water, use a sponge if required.

5. Prise off the pump cover (as shown) using a spoon. Grip the pump cover by the crosspiece and lift diagonally inwards (1). Remove cover completely.

Mechanical assembly diagram showing a gear or cam mechanism with a tool inserted, no visible text or symbols

1. Check impeller wheel and remove any foreign objects.

2. Place pump cover in the original position (2) and press down until it engages (3).

2 3 CLICK

1. Install filters.

2. Re-insert baskets.

Fault table

Fault Cause Remedial action
Error code E:18 is lit.	Supply hose kinked.	Install supply hose without kinks.
	Tap turned off. Turn on the tap.
	Tap jammed or calcified. Turn on the tap.	Flow rate must be min. 10 l/min. when water supply is open.
	Filter in the water supply blocked. Switch off the appliance and pull out the mains plug. Turn off the tap. Unscrew water connection.
		Clean filter in the supply hose. Screw water connection on again. Check for leaks. Reconnect power supply. Switch on the appliance.
Error code E:07 is lit.	Intake opening (on right inside of appliance) covered by utensils.	Arrange utensils so that the intake opening is not obstructed.
Error code E:12 is lit.	Heating element calcified or soiled.	Clean appliance with dishwasher cleaning agent or descaler. Operate the dishwasher with water softening system and check the setting.
Error code E:14 is lit.	Water protection system activated.	Turn off tap.
Error code E:15 is lit.		Call customer service and mention the fault code.
Error code E:16 is lit.	Constant water inflow.
Error code E:22 is lit.	Filters 27 are soiled or blocked.	Clean filters.
Error code E:24 is lit.	Waste-water hose kinked or blocked.	Install hose without kinks, remove any residue.
	Siphon connection still sealed. Check connection to siphon and open if required.
	Cover on the waste water pump loose.	Lock cover correctly.
Error code E:25 is lit.	Waste water pump blocked or cover on the waste water pump is not locked in position.	Clean pump and lock cover correctly.
Error code E:27 is lit.	Mains voltage too low.	Not an appliance fault, have the mains voltage and electrical installation checked.
A different error code is indicated on the digital display.(E:01 to E:30)	A technical fault has probably occurred.	Switch off appliances with the ON/OFF switch 1. After a short time restart the appliance.If the problem recurs, turn off the tap and pull out the mains plug.Call customer service and mention the error code.
Refill indicator for salt 6 and/or rinse-aid 5 is lit.	No rinse aid.	Refill rinse aid.
	No salt.	Refill with special salt.
	Sensor does not detect salt tablets. Use different special salt.
Fault Cause Remedial action
Refill indicator for salt 6 and/or rinse-aid 5 is not lit.	Refill indicator switched off. Activation/deactivation (see chapter “Water softening system/Special salt” or “Rinse aid”).
	There is still enough special salt/ rinse aid available.	Check refill indicator, levels.
Water is left in the appliance at the end of the programme.	Filter system or area under the filters 27 is blocked.	Clean filters and area underneath.
	Program has not ended yet. Wait until	programme ends or reset.
Utensils not dry. No or too little rinse aid in the dispenser.		Refill rinse aid.
		Programme selected without drying. Select programme with drying.
		Water collecting in depressions on the utensils and cutlery.	Arrange utensils in a sloping position, arrange affected utensils as sloping as possible.
		The combined detergent used has a poor drying performance	Use different combination detergent with better drying performance. Use of rinse aid also increases the drying performance.
		ExtraDry to increase drying not activated.	Activate ExtraDry.
		Utensils were removed too early or drying process had not ended yet.	Wait until program ends or wait until 30 min after program ends before removing utensils.
		The eco rinse aid used has a limited drying performance.	Use a proprietary rinse aid. Eco products may have limited effectiveness.
Plastic utensils not dry.	Special properties of plastic.	Plastic has a lower heat storage capacity and therefore dries less well.
Cutlery not dry. Cutlery not arranged properly in the cutlery basket.		Separate cutlery if possible, prevent contact points.
		Cutlery not arranged properly in the cutlery drawer.	Arrange cutlery properly and separate if possible.
Appliance interior wet after rinse cycle.	No appliance fault On account of the “Condensation drying” principle, water droplets are physically induced and required in the container. The humidity in the air condenses on the inner walls of the dishwasher, drains and is pumped out.

Fault Cause Remedial action
Food remnants on the utensils.	Utensils placed too closely together, utensils basket overfilled.	Arrange utensils with adequate clearance between them ensuring that the spray jets can reach the surface of the utensils. Prevent contact points.
	Spray arm rotation obstructed. Arrange utensils so that the spray arm can rotate without obstruction.
	Spray arm nozzles are blocked. Clean the spray arm nozzles.
	Filters 27 dirty. Clean filters.
	Filters 27 inserted incorrectly and/or not engaged.	Insert and engage filters correctly.
	Rinse programme too weak. Select a more intensive rinse programme. Increase sensitivity of the sensors. → "Sensor setting" on page 24
	Utensils precleaned too intensely; sensors therefore decide on weak programme sequence. Stubborn soiling cannot be completely removed.	Do not prerinse utensils. Remove only large food remnants. Increase sensitivity of the sensors. → "Sensor setting" on page 24 Recommended programme Eco 50° or Intensive.
	Tall narrow receptacles in corner areas are not rinsed adequately.	Do not place hollow receptacles too obliquely and do not place in the corner area.
	Top basket 22 on right and left not set to same height.	Set top basket to same height using side levers.
Detergent residue.	Detergent dispenser cover 31 blocked by utensils and therefore does not open fully.	Utensils must not be placed above the tablet collecting tray 24. These may block the lid of the detergent dispenser and prevent it from opening fully. → "Upper basket" on page 16 Do not place utensils or fragrance dispenser in the tablet collecting tray.
	Detergent dispenser cover 31 blocked by the tablet.	Tablet must be inserted flat and not upright.
	Tablets used in the quick or short programme. Dissolving time of the detergent is not reached in the selected short programme.	Dissolving time of tablets too long for a quick or short programme. Use a detergent powder or select a more intensive programme.
	Washing effect and dissolving performance are reduced after a prolonged storage time or detergent is very lumpy.	Change detergent.
Water stains on plastic parts. Droplet formation on plastic surface is physically unavoidable. After drying, water stains are visible.		Use a more intensive programme (more water changes). Arrange utensils in a sloping position. Use rinse aid. If required, increase softening setting.
Washable or water-soluble coatings in the container or on the door.	Detergent substances are deposited. These coatings cannot usually be removed with chemicals (appliance cleaner, ...).	Change detergent brand. Clean appliance mechanically.
	If there is a "white coating" on the container floor, the water softening system has been set marginally.	Increase softening setting and change detergent if required.
	Salt dispenser cover [26] not closed.	Close salt dispenser cover correctly.
	Only for glasses: Initial glass corrosion - can only apparently be wiped off.	See "Glass and utensil damage" → Page 15.
White, stubborn coatings; limescale on the utensils, container or door.	Detergent substances are deposited. These coatings cannot usually be removed with chemicals (appliance cleaner, ...).	Change detergent brand. Clean appliance mechanically.
	Hardness range incorrectly set or water hardness greater than 8.9 mmol/l.	Set water softening system according to instructions for use or top up salt.
	3in1 detergent or bio/eco detergent not effective enough.	Set water softening system according to instructions for use or use separate detergents (proprietary detergent, salt, rinse aid).
	Underdosing of detergent. Increase detergent dosage or change detergent.
	Too weak rinse programme selected. Select a more intensive rinse programme.
Tea or lipstick residue on the utensils.	Too low rinsing temperature. Select programme with higher washing temperature.
	Too little or unsuitable detergent. Use suitable detergent at correct dosage.
	Utensils precleaned too intensely; sensors therefore decide on weak programme sequence. Stubborn soiling cannot be completely removed.	Do not prerinse utensils. Remove only large food remnants. Increase sensitivity of the sensors. → "Sensor setting" on page 24 Recommended programme Eco 50°
Coloured (blue, yellow, brown), difficult to remove to non-removable coatings in the appliance or on stainless steel utensils.	Film formation consisting of ingredients from vegetables (e.g. cabbage, celery, potatoes, noodles, ...) or the tap water (e.g. manganese).	Can be partly removed with machine cleaner or by mechanical cleaning. Coatings are harmless.
	Film formation caused by metallic components on silver or aluminium utensils.	Can be partly removed with machine cleaner or by mechanical cleaning.
Coloured (yellow, orange, brown), easily removable deposits inside the appliance (mainly in the floor area)	Film formation consisting of ingredients from food remnants and substances from the tap water (limescale), "soapy"	Check function of the water softening system (refill with salt) or, if using combined detergents (tablets), activate water softening system.
Discolouration of the plastic parts inside the appliance.	Plastic parts inside the appliance may become discoloured during the service life of the dishwasher.	Discolouration is normal and will not impair the function of the dishwasher.
Plastic parts discoloured.	Too low rinsing temperature.	Select programme with higher washing temperature.
	Utensils precleaned too intensely; sensors therefore decide on weak programme sequence. Stubborn soiling cannot be completely removed.	Do not prerinse utensils. Remove only large food remnants. Increase sensitivity of the sensors. → "Sensor setting" on page 24 Recommended programme Eco 50°
Fault	Cause	Remedial action
Removable streaks on glasses, glasses with metallic appearance and cutlery.	Too much rinse aid. Set rinse aid amount to lower setting.
	No rinse aid added or setting too low.	Add rinse aid and check dosage (recommended setting 4-5).
	Detergent residue in the final rinse programme section. Detergent dispenser cover blocked by utensils (cover does not open fully).	Detergent dispenser cover must not be obstructed by utensils.Do not place utensils or fragrance dispenser in the tablet collecting tray.
	Utensils precleaned too intensely; sensors therefore decide on weak programme sequence. Stubborn soiling cannot be completely removed.	Do not prerinse utensils. Remove only large food remnants.Increase sensitivity of the sensors.→ "Sensor setting" on page 24Recommended programme Eco 50°
Initial or existing, irreversible clouding of glass.	Glasses not dishwasher-proof, only suitable for dishwasher.	Use dishwasher-proof glasses.Avoid long steam phase (standing time after wash cycle ends).Use wash cycle at lower temperature.Set water softening system according to the water hardness (if required one setting lower).Use detergent with glass protection component.
Rust spots on the cutlery. Cutlery	not adequately rust-resistant.Knife blades are frequently more severely affected.	Use corrosion-resistant cutlery.
	Cutlery will also rust if rusting parts are rinsed at the same time (pan handles, damaged utensil baskets, etc.).	Do not wash rusting parts.
	Salt content in the rinsing water too high, as salt dispenser lock not fastened firmly or salt was spilled while being refilled.	Fasten salt dispenser lock firmly or remove spilled salt.
Appliance cannot be switched on or operated.	Malfunction. Disconnect appliance from the power supply; pull out the mains plug or switch off the fuse. Wait at least 5 seconds, then connect the appliance to the power supply.
Appliance does not start. The mains fuse has tripped. Check mains fuse.
Programme starts automatically. You did not wait until programme ended.		Perform reset.
The door is difficult to open.	Child lock is activated.	Deactivate the child lock.
Door cannot be closed.	Door lock has been activated.	Close door with increased force.
	Door cannot be closed due to installation.	Check appliance installation: Door or attached parts must close without obstruction.
Cover on the detergent dispenser cannot be closed.	Detergent dispenser or cover guide blocked by sticky detergent residue.	Remove detergent residue.
Detergent residue in the detergent dispenser [31] or in the tablet collecting tray [24].	Spray arms blocked by utensils, therefore detergent is not rinsed out.	Ensure that the spray arms can rotate freely.
	The detergent dispenser was damp when filled.	Pour detergent into the dry detergent dispenser only.
Fault Cause Remedial action
Appliance stops in the programme or programme is interrupted.	Door not closed properly. Close the door.
	Do not place utensils or fragrance dispenser in the tablet collecting tray. Top basket presses against the door and prevents door from being closed securely.	Check whether rear panel is being pressed in, e.g. by socket or by hose holder which has not been removed.
	Power and/or water supply interrupted.	Restore power and/or water supply.
Filling valves making striking noises.	Depends on domestic installation, as appliance is not defective. No effect on appliance function.	No remedial action possible.
Knocking or rattling noise. Spray arm strikes the utensils, utensils not positioned correctly.		Position utensils so that the spray arms do not strike the utensils.
		Load the appliance with more utensils or distribute the utensils more evenly in the dishwasher.
		Arrange light utensils securely.
Unusual foam formation. Handwash liquid in the rinse aid dispenser.		Immediately refill rinse aid dispenser with rinse aid.

Customer service

If you are unable to rectify the fault, please contact your customer service. We will always find an appropriate solution in order to avoid unnecessary visits by engineers. Contact information for your nearest customer service can be found on the back of these instructions for use or on the enclosed customer service list. When calling, please state the appliance number (E-Nr. = 1) and the production number (FD = 2) which can be found on the rating plate 33 on the appliance door.

Trust the expertise of the manufacturer. Contact us for assistance. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your domestic appliances.

* depending on the features of your dishwasher

Installation and connection

The dishwasher must be connected correctly, otherwise it will not function properly.

The specifications for the inlet and outlet as well as the electrical connected loads must correspond with the required criteria as specified in the following paragraphs or in the installation instructions.

Install the appliance in the correct sequence:

1. Checking appliance on delivery
2. Installation
3. Drainage connection
4. Drinking water connection
5. Electrical connection

Contents of package

If you have any complaints, contact the dealer from whom you purchased the appliance or our customer services.

• Dishwasher
• User manual
  • Installation instructions
• Quick reference guide*
• Warranty*
  • Installation materials
• Steam guard plate*
• Rubber apron*
• Power cord
  * depending on the features of your dishwasher

Safety instructions

Please follow the safety instructions under

→ "Installation" on page 5.

Delivery

Your dishwasher has been checked thoroughly in the factory to ensure that it is in working order. This may cause small water stains. These will disappear after the first wash cycle.

Technical specifications

• Weight:

up to 60 kg

• Voltage:

220–240 V, 50 Hz or 60 Hz

- Connected load:

2.0 - 2.4 kW.

- Fuse:

10/16 A (UK 13 A).

• Power input:

off mode (Po)* 0,50 W.

left on mode (PI)* 50 W.

*according to regulations (EU) nos. 1016/2010 and 1059/2010.

Additional functions and settings may increase the power input.

• Water pressure:

at least 0.05 MPa (0.5 bar), maximum 1 MPa (10 bar).

At a higher water pressure:

connect pressure-reducing valve ahead.

- Inlet rate:

minimum 10 litres/minute

• Water temperature:

cold water.

Hot water:

Maximum temperature 60 °C.

• Capacity:

12–15 place settings (depending on the features of your dishwasher).

Installation

The required installation dimensions can be found in the installation instructions. Level the appliance with the aid of the height-adjustable feet. Ensure that the appliance is situated securely on the floor.

• A built-under or integrated appliance which is installed subsequently as a free-standing appliance must be secured to prevent it from overturning, e.g. by screwing it to the wall or by installing it under a continuous worktop which is screwed to adjacent cupboards.
• The appliance can easily be installed in a fitted kitchen between wooden and plastic walls.

Drainage connection

1. The required work sequence can be found in the installation instructions. If required, fit a siphon with an drainage connection.
2. Connect the waste-water hose to the drainage connection of the siphon with the enclosed parts.
   Ensure that the drainage hose is not kinked, crushed or twisted and that there is no cover plate in the drainage to prevent the waste water from flowing out!

Drinking water connection

1. Fasten the drinking water connection to the tap according to the installation instructions using the enclosed parts.

Ensure that the drinking water connection is not kinked, crushed or twisted.

1. When replacing the appliance, always use a new water supply hose.

Water pressure:

at least 0.05 MPa (0.5 bar), maximum 1 MPa (10 bar).

At a higher water pressure:

connect pressure-reducing valve ahead.

Inlet rate:

minimum 10 litres/minute

Water temperature:

cold water.

Hot water:

Maximum temperature 60 °C.

Warm water connection \*

* depending on the features of your dishwasher

The dishwasher can be connected to cold or hot water up to max. 60 °C. Connection to hot water is recommended if the hot water can be supplied by energetically favourable means and from a suitable installation, e.g. solar heating system with circulation line. This will save energy and time. The "Hot water" setting allows you to adjust your dishwasher optimally to operation with hot water. It is recommended to have a water temperature (temperature of the incoming water) of at least 40 °C and no more than 60 °C. It is not recommended to connect the appliance to hot water if the water is supplied from an electric boiler.

To change the setting:

1. Open the door.

2. Switch on ON/OFF switch 1.

3. Press Info button 3 for 3 seconds until the following text is indicated on the display window at the top 4:

Scroll with <>

Set with - +

Leave with Setup 3 sec.

1. Keep pressing the button > 11 until water connection appears of the display window at the top 4.

2. Make the setting with setting buttons + -7.

3. Press and hold the Info button i 3 for 3 seconds.

The chosen setting has now been stored.

Electrical connection

• Connect the appliance to an alternating current only, ranging from 220 V to 240 V and 50 Hz or 60 Hz via a correctly installed socket with protective earth conductor. See rating plate for required fusing 33.
• The socket must be near the appliance and freely accessible following installation.

If the plug is not freely accessible, an allpole disconnector with a contact opening of at least 3 mm must be fitted on the installation side to satisfy the relevant safety instructions.

• The connection may be modified by technicians only.
• A power cord extension may be purchased from customer service only.
• Use only a residual current operated circuit-breaker which features the symbol 📄. Only this extension guarantees compliance with the currently valid regulations.
• The appliance features a water damage protection system. Please note the system will function only when the power supply is connected.

Removal

Also observe the sequence of worksteps here.

1. Disconnect the appliance from the power supply.
2. Turn off the tap.
3. Undo the waste water and drinking water connection.
4. Loosen fastening screws for the furniture parts.
5. If fitted, remove the base panel.
6. Pull out the appliance, carefully pulling the hose behind.

Transporting

Empty the dishwasher and secure loose parts.

Drain the appliance according to the following steps:

1. Turn on the tap.
   2.Open the door.
2. Switch on ON/OFF switch 1.
3. Select programme with the highest temperature.

The estimated programme duration is indicated on the display window at the top 4.

1. Press START button 10.
2. Close the door.

Programme sequence starts.

1. Open the door after approx. 4 minutes.
2. Press START button 10 until "Program was terminated"/"Ready in one minute." is indicated at the top of the display window 4.
3. Close the door.
4. Open the door after approx. 1 minute.

The display window at the top 4 indicates; "Finished".

1. Switch off ON/OFF switch 1.
2. Turn off the tap, disconnect supply hose and drain water.

Note: Transport appliance upright only. This prevents residual water from running into the machine control and damaging the programme sequence.

Protection against frost

If the appliance is in a room where there is a risk of frost (e.g. holiday home), empty the appliance completely (see Transportation).

Subject to changes.

AQUA-STOP guarantee

en

(does not apply to appliances without Aqua-Stop)

In addition to warranty claims against the seller based on the purchase contract

and in addition to our appliance warranty we will pay damages under the following conditions:

1. If our Aqua-Stop system is defective and causes water damage, we will make good the damage for private users.
   To ensure water damage protection, the appliance must be connected to the power supply.
2. This liability guarantee is valid for the service life of the appliance.
3. A prerequisite for the warranty claim is that the appliance has been correctly installed and connected with Aqua-Stop according to our instructions. This also includes the correct installation of the Aqua-Stop extension (original accessory).
   Our warranty does not extend to defective feed lines or fittings up to the Aqua-Stop connection on the tap.
4. If your appliance is fitted with Aqua-Stop, you can leave your appliance unattended during operation and leave the tap turned on afterwards. The tap should only be turned off if you are absent from home for a prolonged period, e.g. several weeks holiday.

To book an engineer visit and product advice

GB 0844 892 8988

Calls from a BT landline will be charged at up to 3 pence per minute.

A call set-up free of up to 6 pence may apply.

IE 01450 2655

0.03 € per minute at peak. Off peak 0.0088 € per minute.

US 877 442 4436

toll-free

Please find the contact data of all countries in the enclosed customer service list.

Internet: www.gaggenau.com
