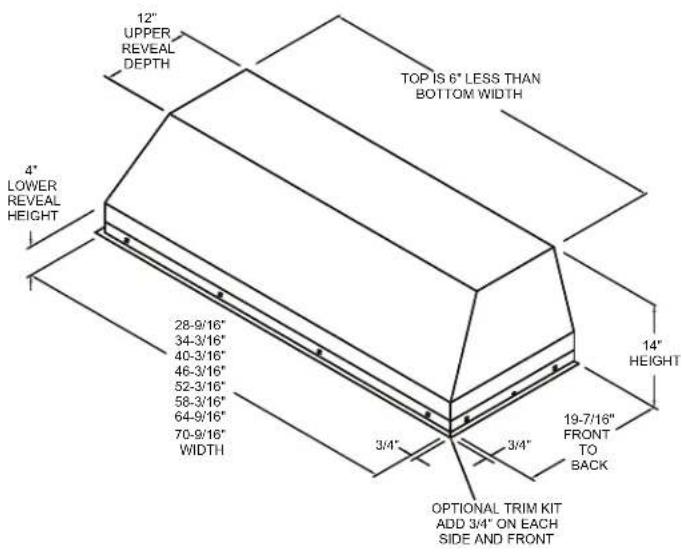

| Product Type | Range Hood Liner |
| Brand | BlueStar |
| Model | BS-PMLSS-40-SS |
| Width | 40 inches (101.6 cm) |
| Construction | Seamed, 18 gauge 300 stainless steel |
| Fan Speeds | 3 (low, medium, high) |
| Control Type | Hidden control knobs |
| Filter Type | Stainless steel baffle filters, dishwasher safe |

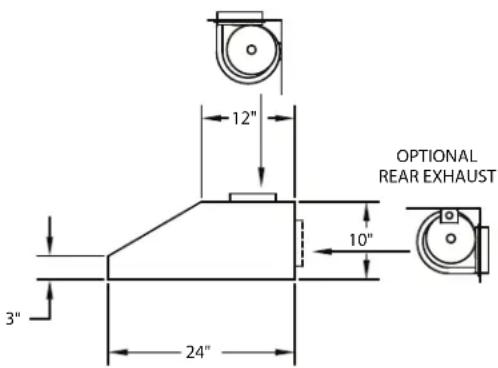

| Ducting | Reversible top or rear exhaust |
| Blower Compatibility | In-hood (300/600/1200 CFM), in-line (300/600/1200 CFM), or remote (1000/1400 CFM) |
| Safety Feature | High heat sensor |
| Material | Stainless steel |
| Finish | Non-mirrored, finished edges |
| Electrical Requirements | 120V, 60Hz, 15 Amps (dedicated, non-GFI outlet) |
| Noise Level | Quiet performance |
| Installation | For custom hood enclosures; designed for 24" deep cabinetry |
| Maintenance | Filters dishwasher safe; wipe stainless steel with mild detergent |
| Included Accessories | Liner only; blower sold separately |
Frequently Asked Questions - BS-PMLSS-40-SS BlueStar
User questions about BS-PMLSS-40-SS BlueStar
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Range hood in PDF format for free! Find your manual BS-PMLSS-40-SS - BlueStar and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BS-PMLSS-40-SS by BlueStar.
USER MANUAL BS-PMLSS-40-SS BlueStar


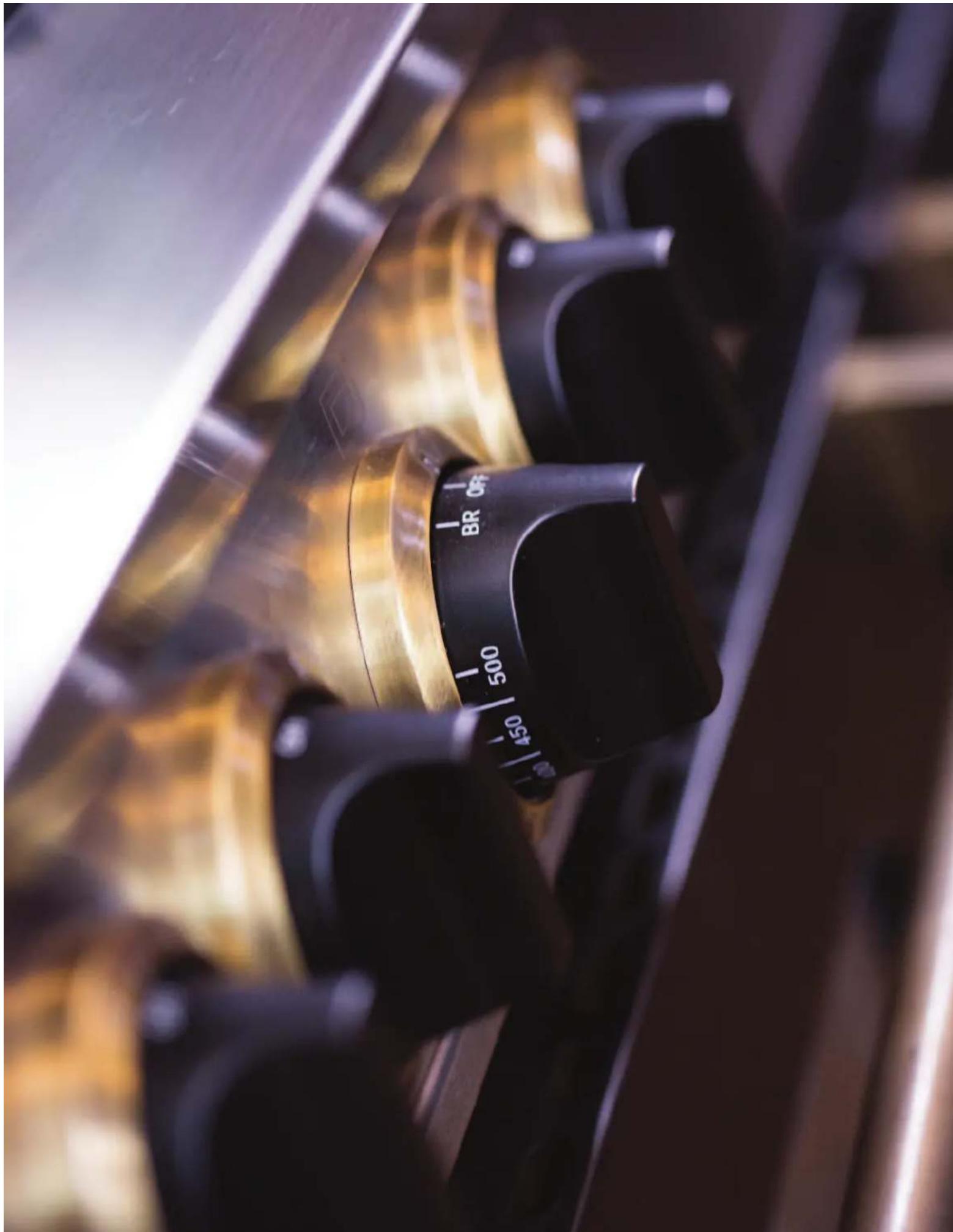

Close-up of a brass mechanical knob with black adjustment knobs and a 500-degree dial, no visible text or symbols.Handcrafted in Reading, Pennsylvania, BlueStar cooking products are designed for discerning home chefs who demand restaurant-quality results in their own kitchens. Our commitment to precision in form and function is why many top chefs consider BlueStar to be the world's top-performing residential cooking equipment.
Built with the highest-quality materials and distinctive workmanship that comes from 130 years expertise, BlueStar turns up the heat on home cooking with a fully customizable line to suit the specific cooking needs of the accomplished home chef. Available in a painter's palette of colors, and with near infinite configuration possibilities, BlueStar premium cooking products deliver restaurant magic to the home kitchen.
Unsurpassed Customization
Available in over 750+ colors and finishes with near infinite configuration possibilities, BlueStar cooking equipment is designed to suit your personal style and unique cooking preferences. Build your own BlueStar® today at www.bluestarcooking.com.
Design Preferences
Color
750+ Colors & Finishes
Available in 190 Colors


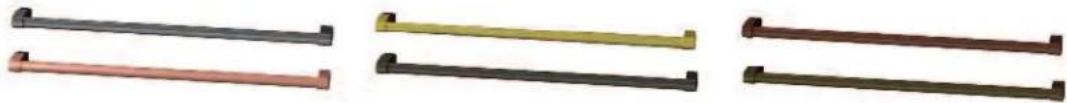

Stainless Steel, Brass, Antique Brass, Antique Copper, Copper, Chrome, Smoked Chrome, Gun Metal Nickel, Satin Nickel, Oil Rubbed Bronze
Size
Backguard
Island Trim, 6", 17"& 24"
Standard, Swing Left, Swing Right and French Doors


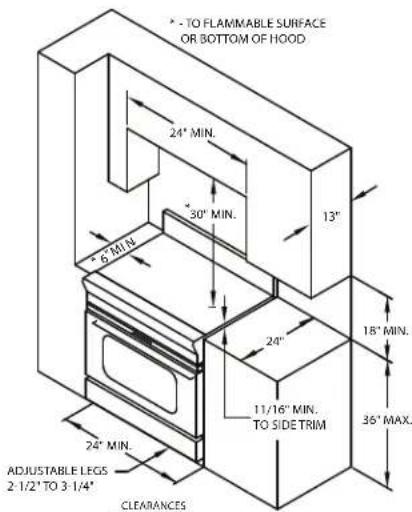

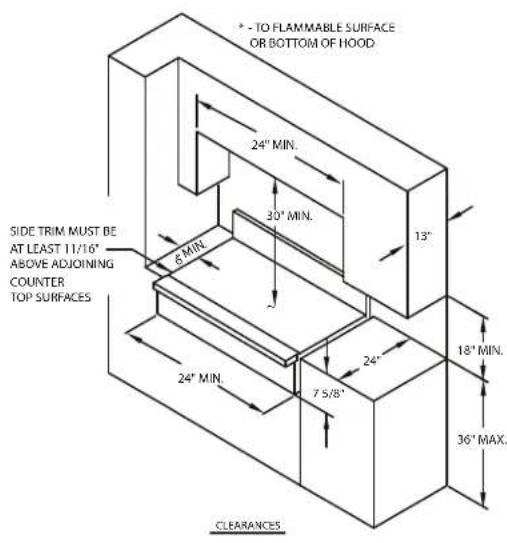

24" PLATINUM SERIES

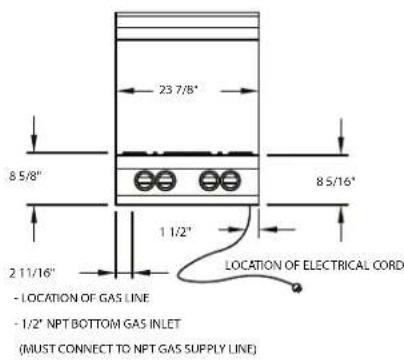

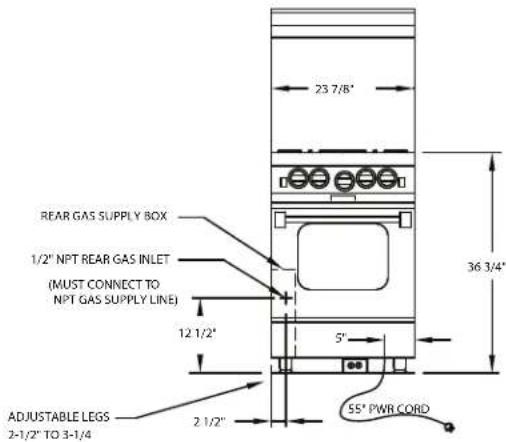

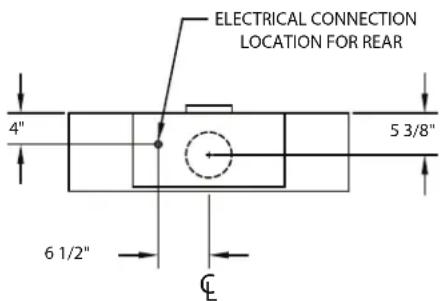

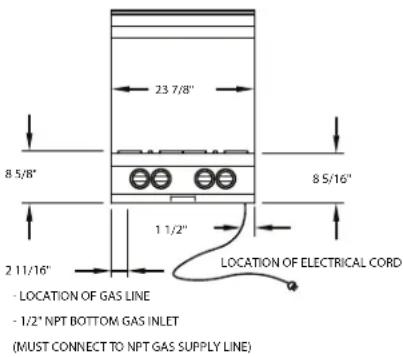

ELECTRICAL CORD LOCATED IN BACK OF UNIT
LOCATION OF ELECTRICAL OUTLET MUST NOT BE HIGHER THAN 3' FROM FLOOR IF LOCATED BEHIND THE UNIT OR CAN BE LOCATED IN AN ADJOINING CABINET.
PRODUCT FEATURES
- PrimaNova™ power burner delivers 25,000 BTUs of intense heat
- All burners include Interchangeable Griddle and Charbroiler
• Gentle 130° simmer burner - New PowR Oven™ provides 40% faster preheating and 30% increase in oven efficiency
- Extra-large oven with True European Convection and 1850° Infrared Broiler
• Available in 750+ colors and finishes - 24" depth for compatibility with standard kitchen cabinetry
- Removable, dishwasher-friendly stainless steel drip trays
- Includes standard island trim backguard
SPECIFICATIONS
Range Dimensions: 23.875"W x 24"D x 36.75"H
Oven Interior: 20.25"W x 20"D x 15"H
Top Burner Rating: 25,000 BTUs
Simmer Burner Rating: 9,000 BTUs
PowR Oven Burner Rating: 25,000 BTUs
Infrared Broiler Rating: 15,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 1/2"

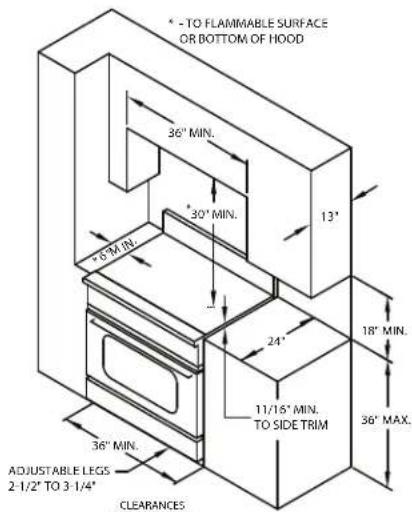

Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Four Burners with Cast Iron BSP244B Interchangeable Griddle/Charbroiler
DESIGN OPTIONS
- Range color, knob color, trim finish, and backguard options (see page 4).
MODEL OPTIONS
- Casters
• Additional oven rack
• Full extension oven rack

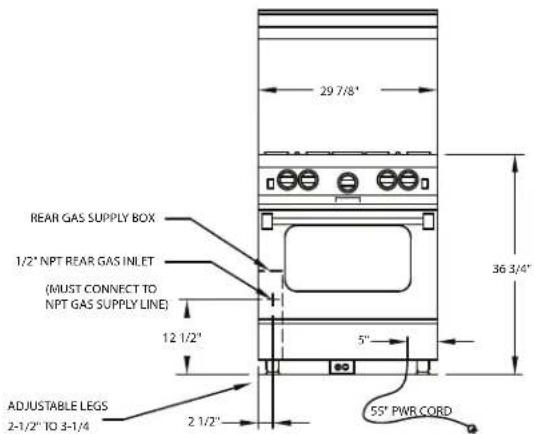

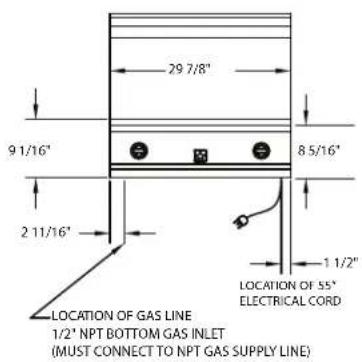

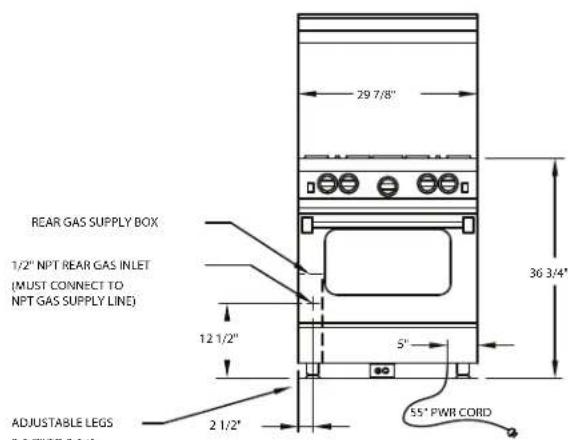

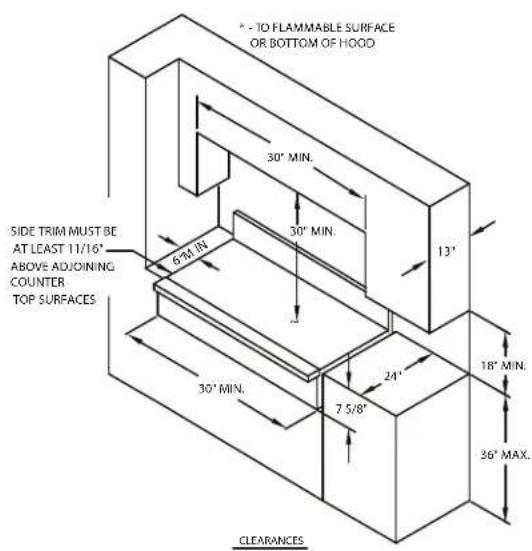

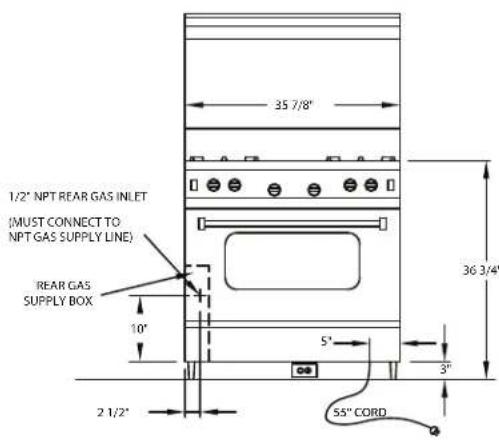

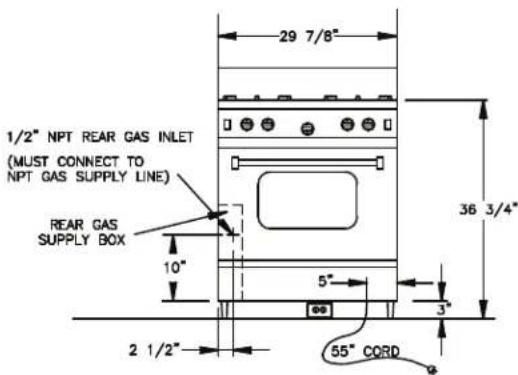

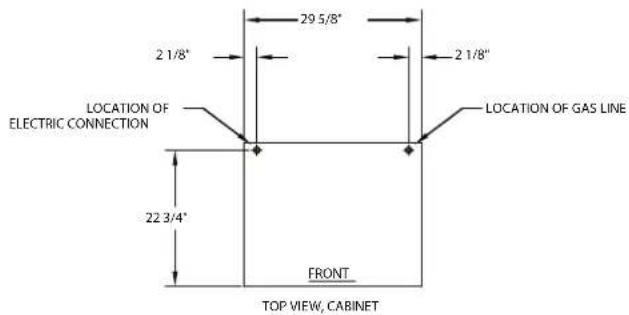

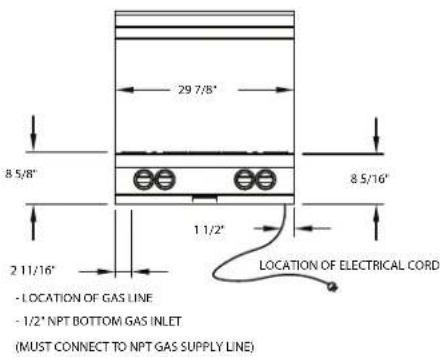

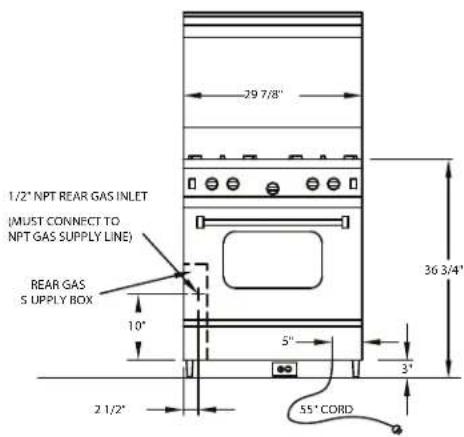

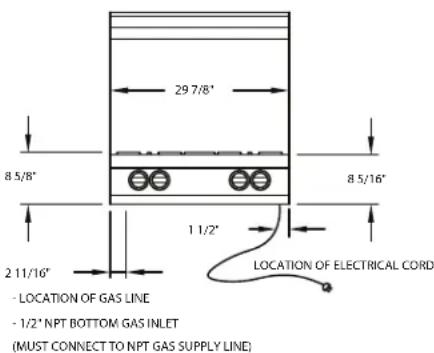

30" PLATINUM SERIES
ELECTRICAL CORD LOCATED IN BACK OF UNIT
LOCATION OF ELECTRICAL OUTLET MUST NOT BE HIGHER THAN 3" FROM FLOOR IF LOCATED BEHIND THE UNIT OR CAN BE LOCATED IN AN ADJOINING CABINET.
PRODUCT FEATURES
- PrimaNova™ power burner delivers 25,000 BTUs of intense heat
- All burners include Interchangeable Griddle and Charbroiler
• Gentle 130° simmer burner - New PowR Oven ^™ provides 40% faster preheating and 30% increase in oven efficiency
- Extra-large oven with True European Convection and 1850° Infrared Broiler
• Available in 750+ colors and finishes - Accommodates full-size commercial 18" x 26" baking sheet
- 24" depth for compatibility with standard kitchen cabinetry
- Removable, dishwasher-friendly stainless steel drip trays
- Includes standard island trim backguard
SPECIFICATIONS
Range Dimensions: 29.875"W x 24"D x 36.75"H
Oven Interior: 26.25"W x 20"D x 15"H
Top Burner Rating: 25,000 BTUs
Simmer Burner Rating: 9,000 BTUs
PowR Oven Burner Rating: 25,000 BTUs
Infrared Broiler Rating: 15,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH (Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 1/2"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Four Burners with Cast Iron
BSP304B
Interchangeable Griddle/Charbroiler
DESIGN OPTIONS
- Range color, knob color, trim finish, and backguard options (see page 4).
MODEL OPTIONS
- Casters
• Additional oven rack
• Full extension oven rack

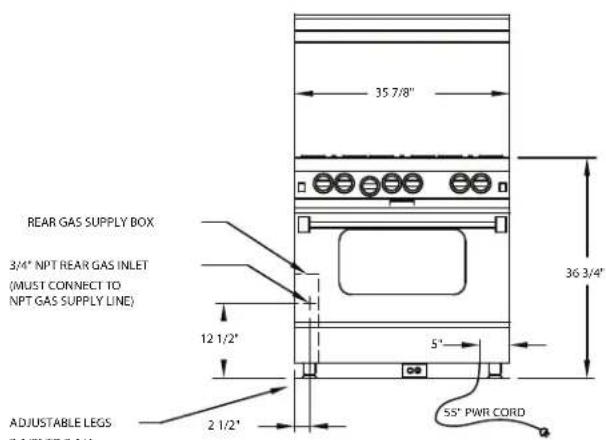

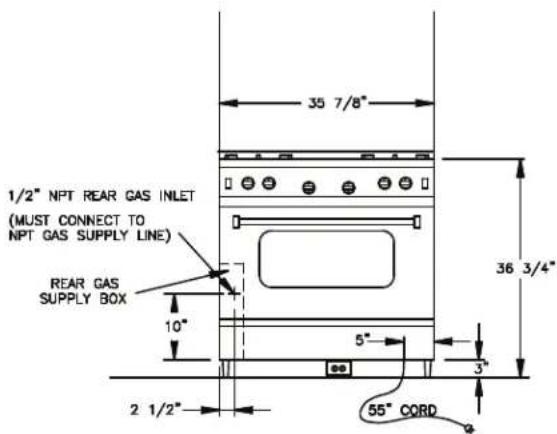

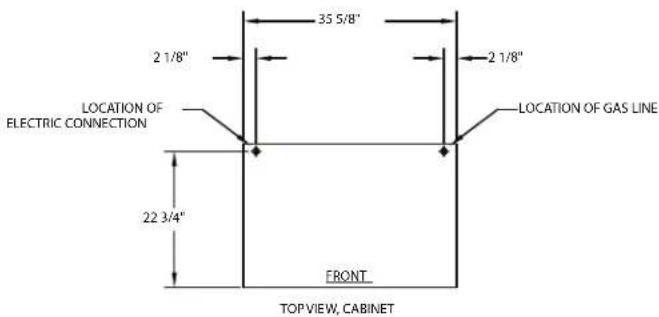

36" PLATINUM SERIES

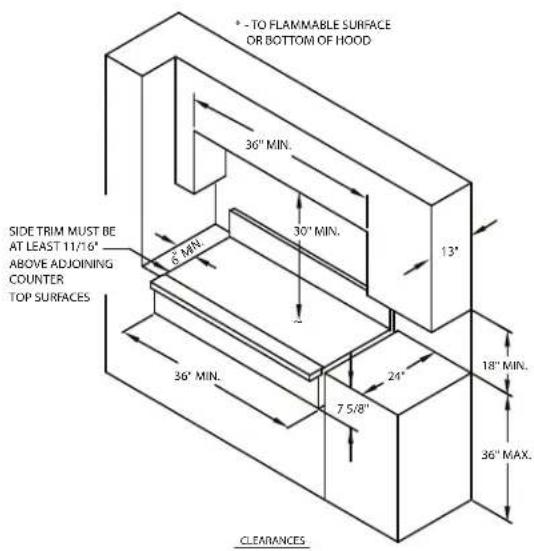

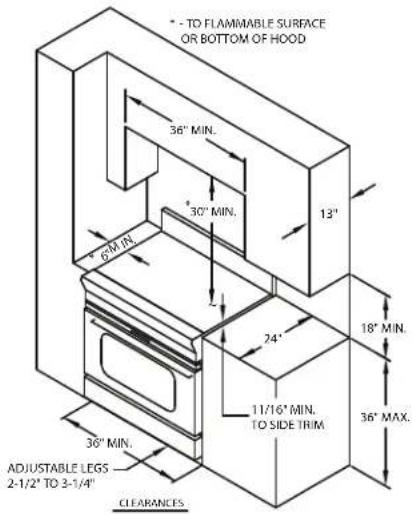

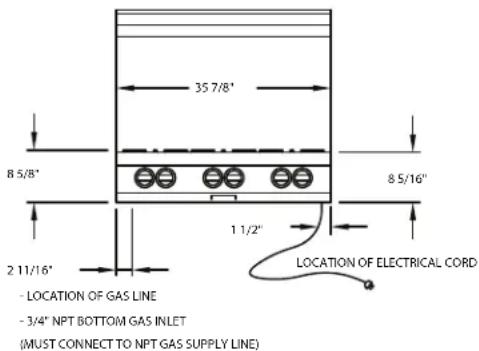

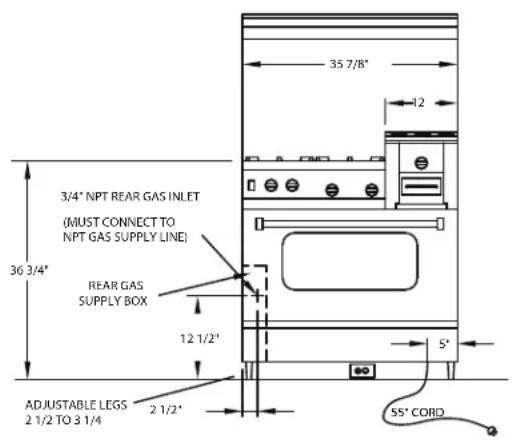

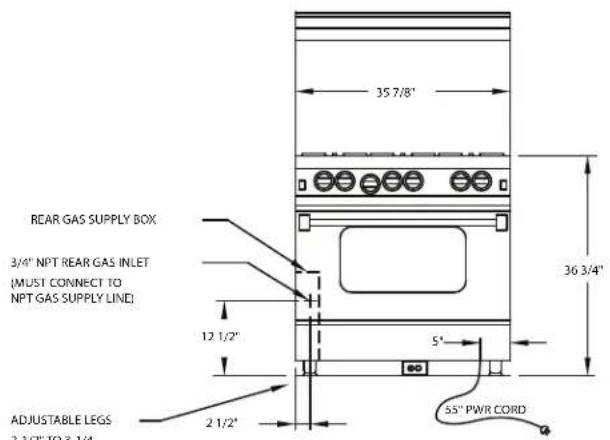

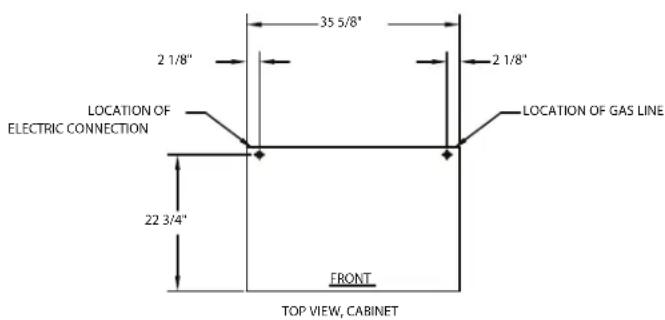

ELECTRICAL CORD LOCATED IN BACK OF UNIT
LOCATION OF ELECTRICAL OUTLET MUST
NOT BE HIGHER THAN 3" FROM FLOOR IF LOCATED BEHIND
THE UNIT OR CAN BE LOCATED IN AN ADJOINING CABINET.
PRODUCT FEATURES
- PrimaNova™ power burner delivers 25,000 BTUs of intense heat
• All burners include Interchangeable Griddle and Charbroiler
• Gentle 130° simmer burner - New PowR Oven™ provides 40% faster preheating and 30% increase in oven efficiency
- Extra-large oven with True European Convection and 1850° Infrared Broiler
• Available in 750+ colors and finishes - Accommodates full-size commercial 18" x 26" baking sheet
- 24" depth for compatibility with standard kitchen cabinetry
- Removable, dishwasher-friendly stainless steel drip trays
- Includes standard island trim backguard
SPECIFICATIONS
Range Dimensions: 35.875"W x 24"D x 36.75"H
Oven Interior: 29"W x 20"D x 15"H
Top Burner Rating: 25,000 BTUs
Simmer Burner Rating: 9,000 BTUs
PowR Oven Burner Rating: 25,000 BTUs
Infrared Broiler Rating: 15,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 3/4"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Six Burners with Cast Iron
BSP366B
Interchangeable Griddle/Charbroiler
DESIGN OPTIONS
- Range color, knob color, trim finish, and backguard options (see page 4).
MODEL OPTIONS
- Casters
• Additional oven rack
• Full extension oven rack

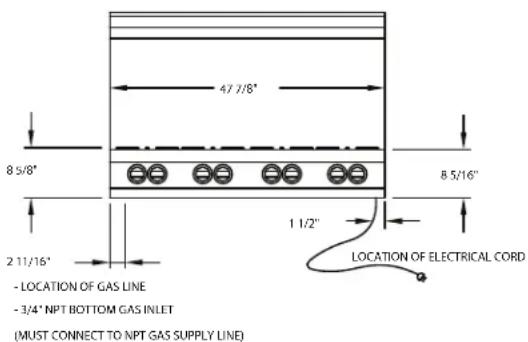

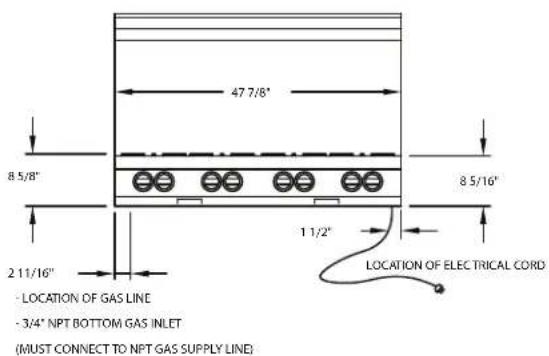

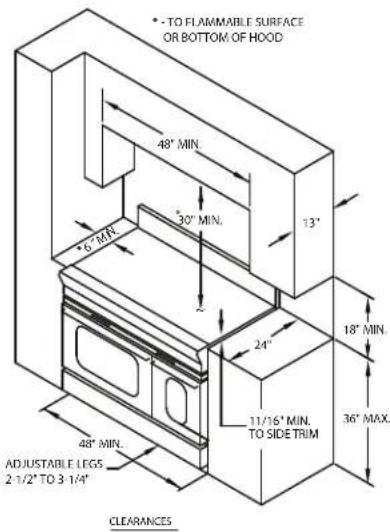

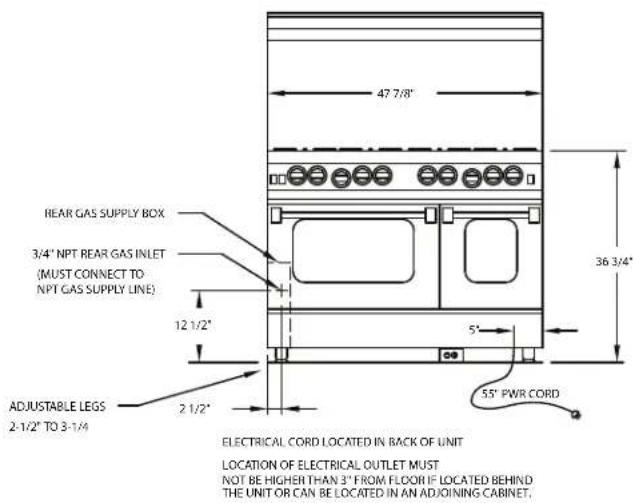

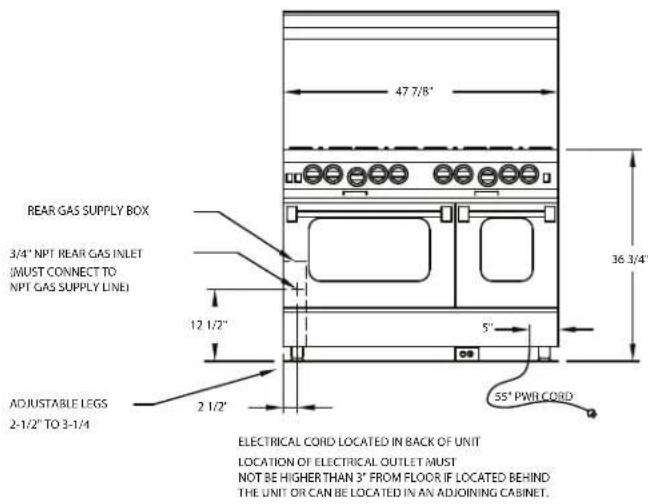

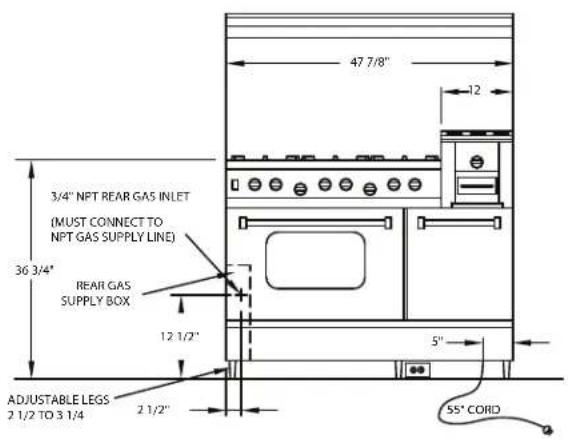

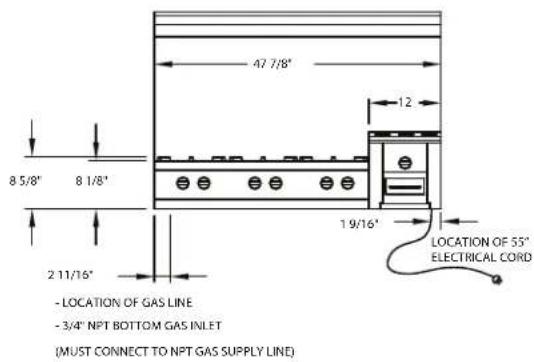

48" PLATINUM SERIES
PRODUCT FEATURES
- PrimaNova™ power burner delivers 25,000 BTUs of intense heat
• All burners include Interchangeable Griddle and Charbroiler
• Gentle 130° simmer burner - New PowR Oven™ provides 40% faster preheating and 30% increase in oven efficiency
- Extra-large oven with True European Convection and 1850° Infrared Broiler
• Available in 750+ colors and finishes - Accommodates full-size commercial 18" x 26" baking sheet
- 24" depth for compatibility with standard kitchen cabinetry
- Removable, dishwasher-friendly stainless steel drip trays
- Includes standard island trim backguard
SPECIFICATIONS
Range Dimensions: 47.875"W x 24"D x 36.75"H
Oven Interior: 26.25"W x 20"D x 15"H
Small Oven Interior: 12"W x 20"D x 15"H
Top Burner Rating: 25,000 BTUs
Simmer Burner Rating: 9,000 BTUs
PowR Oven Burner Rating: 25,000 BTUs
Small Oven Burner Rating: 15,000 BTUs
Infrared Broiler Rating: 15,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH (Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 3/4"

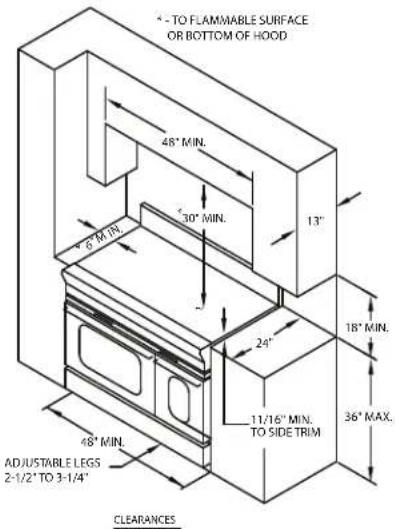

Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Eight Burners with Cast Iron BSP488B Interchangeable Griddle/Charbroiler
DESIGN OPTIONS
- Range color, knob color, trim finish, and backguard options (see page 4).
MODEL OPTIONS
- Casters
• Additional oven rack
• Full extension oven rack

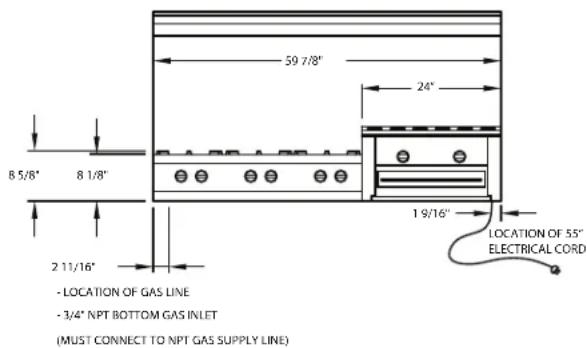

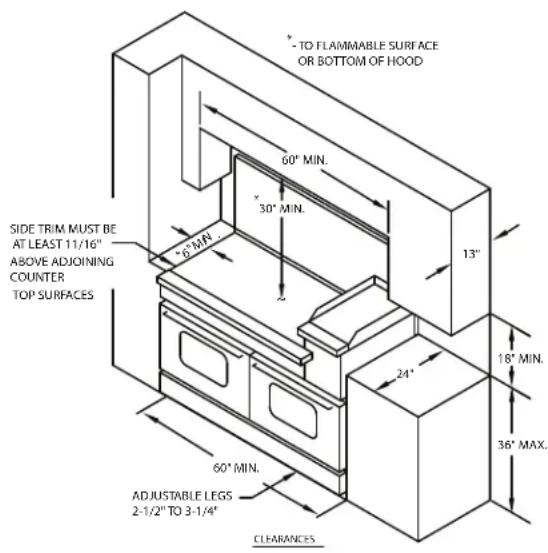

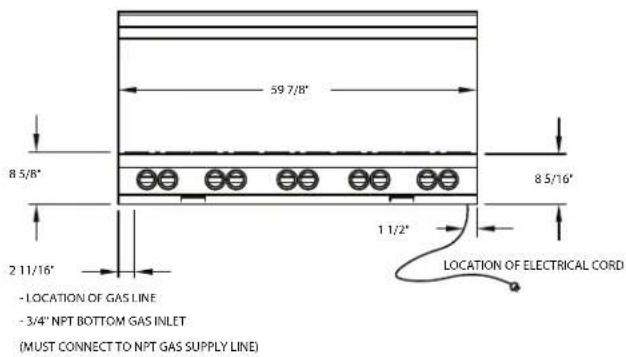

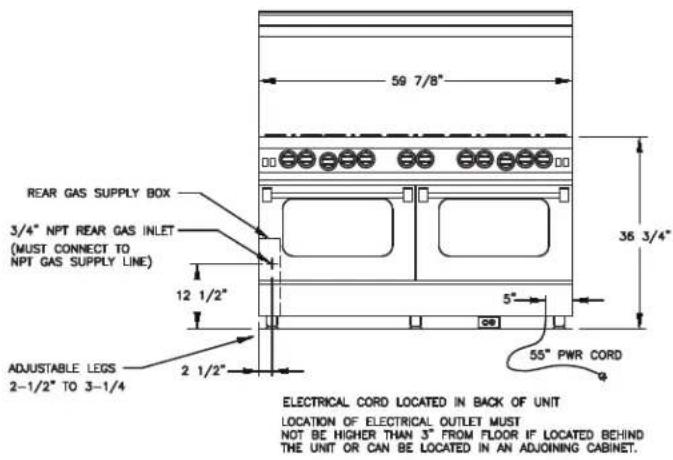

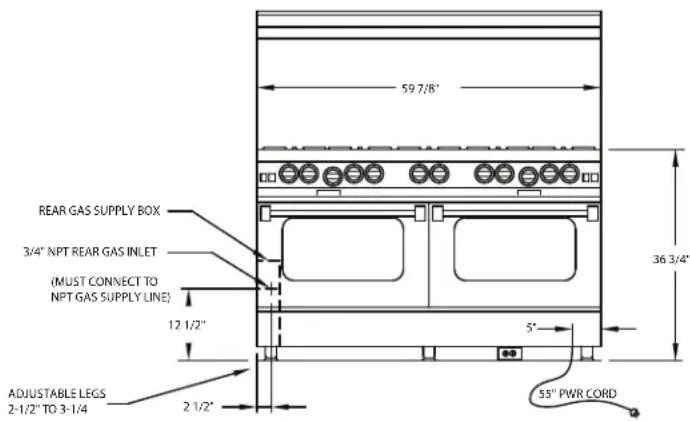

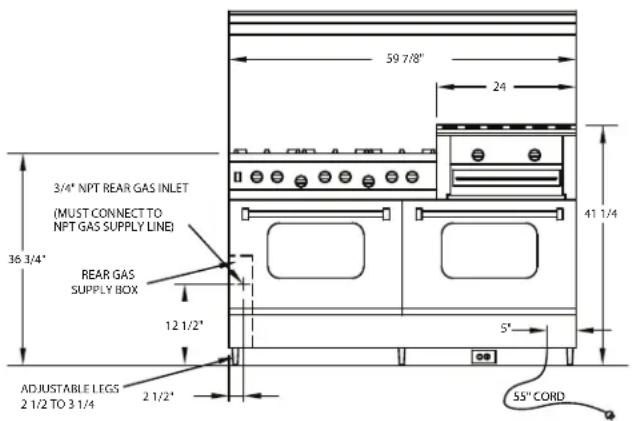

60" PLATINUM SERIES

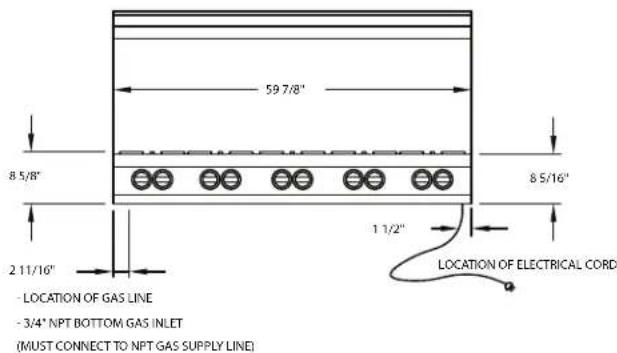

ELECTRICAL CORD LOCATED IN BACK OF UNIT
LOCATION OF ELECTRICAL OUTLET MUST
NOT BE HIGHER THAN 3' FROM FLOOR IF LOCATED BEHIND THE UNIT OR CAN BE LOCATED IN AN ADJOINING CABINET.

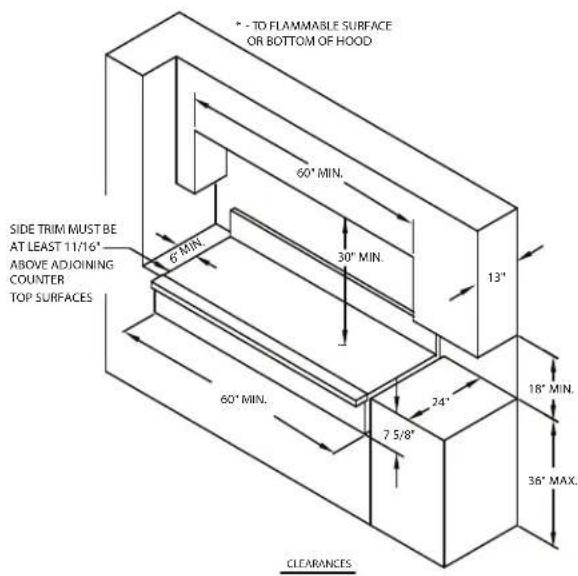

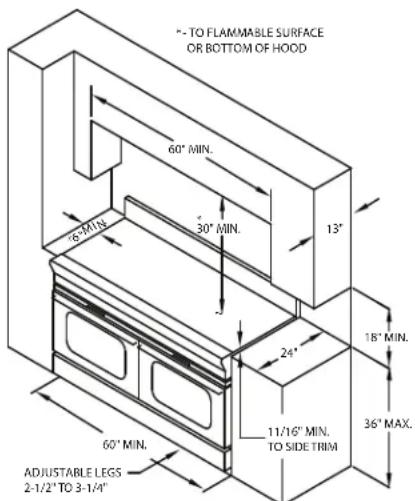

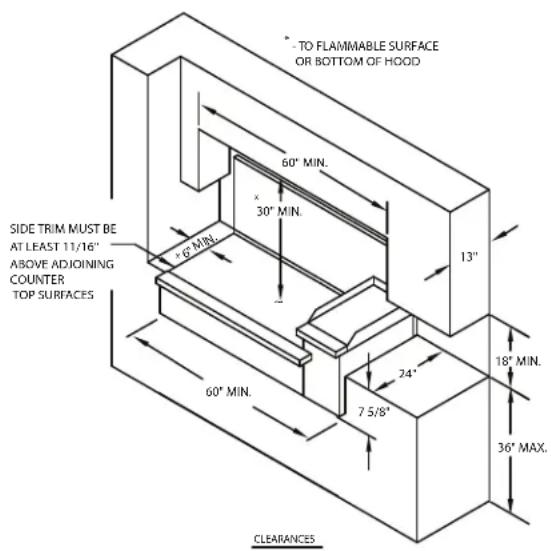

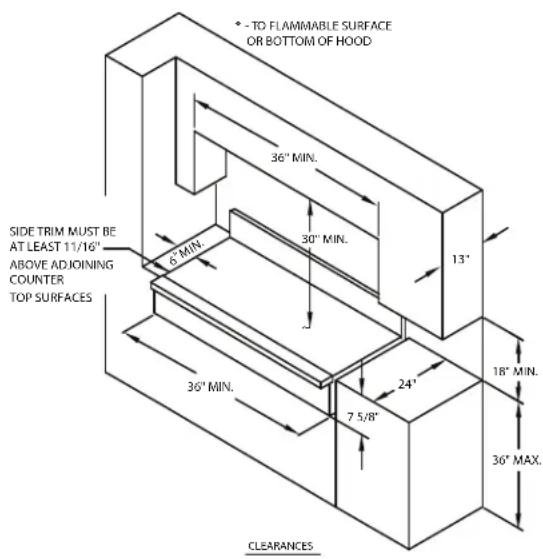

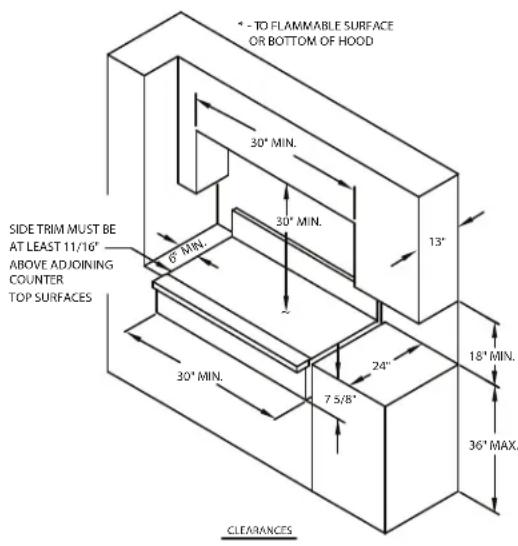

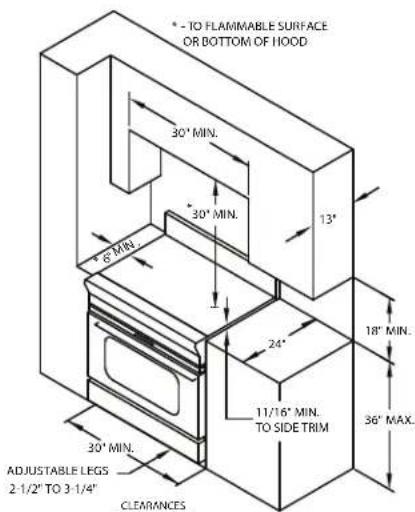

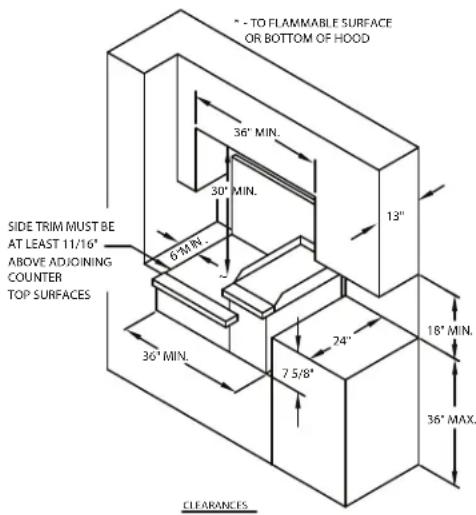

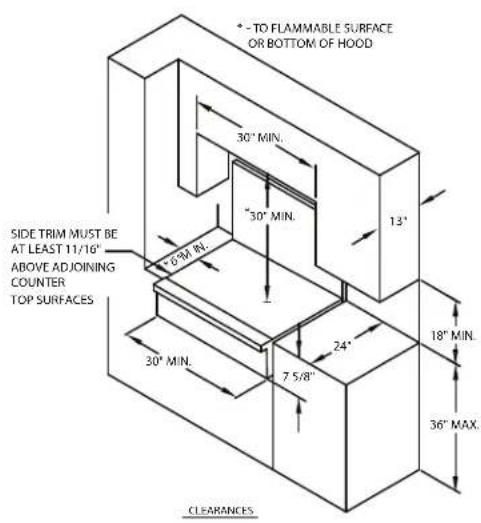

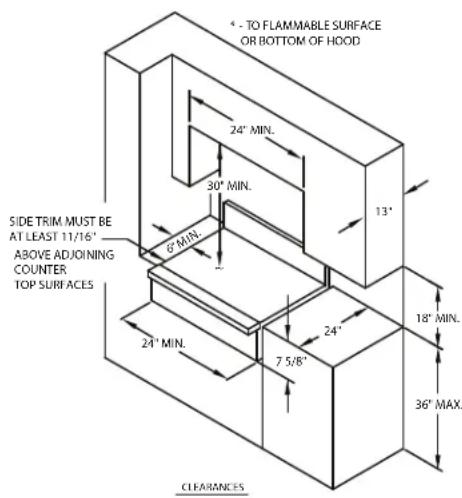

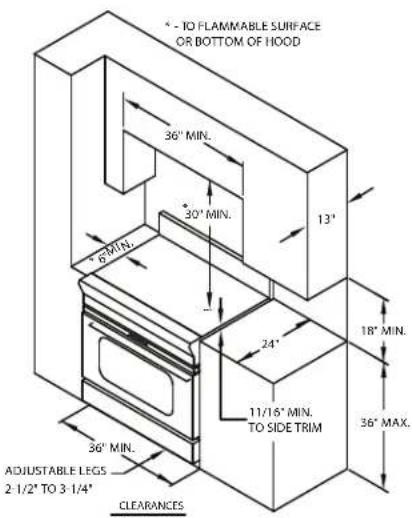

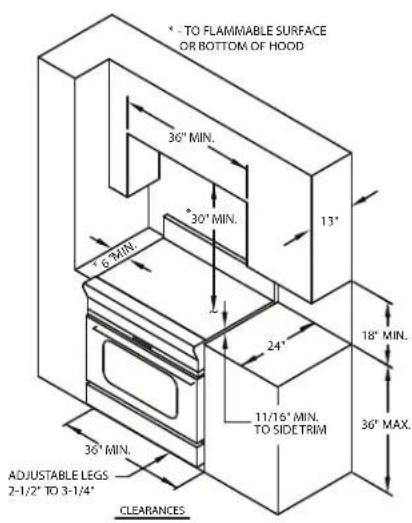

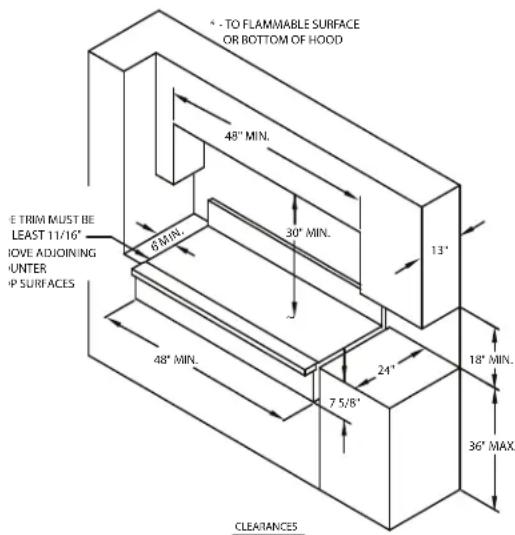

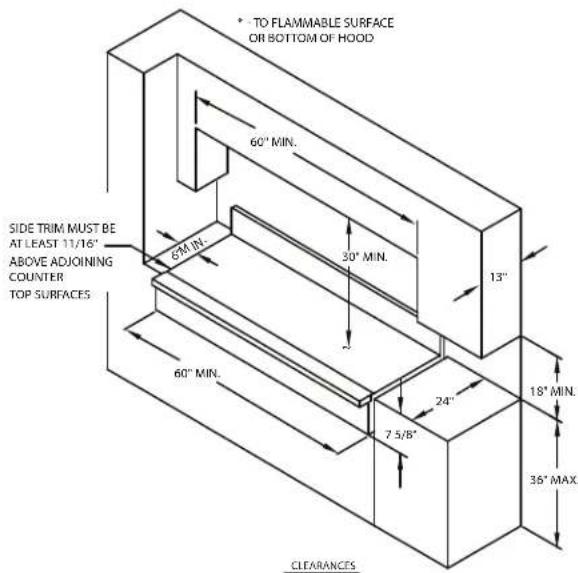

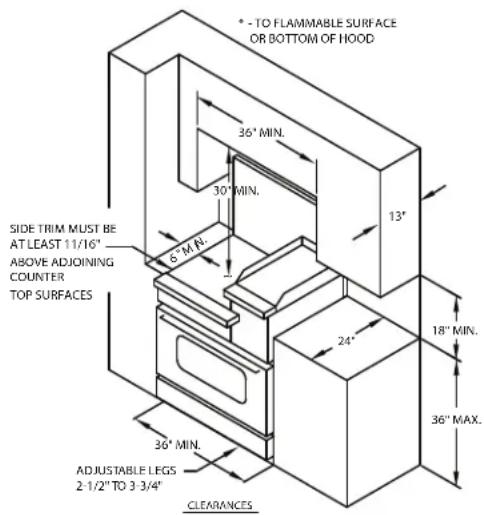

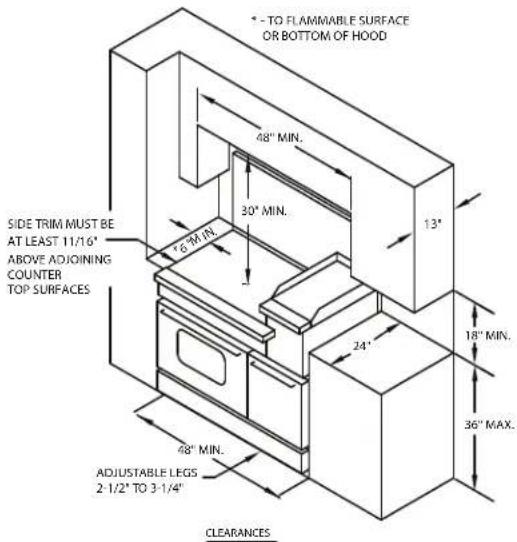

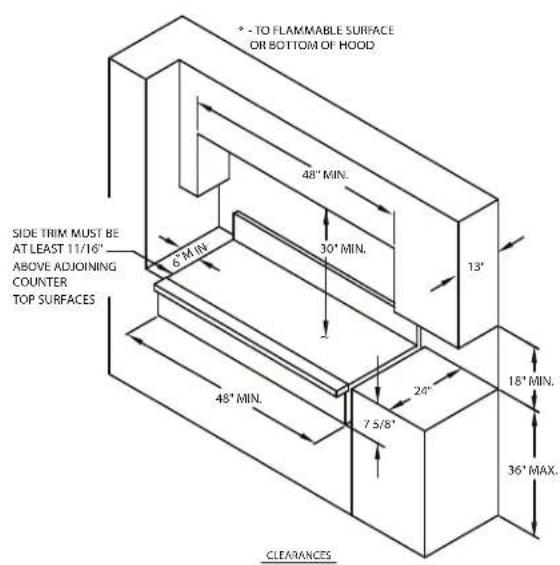

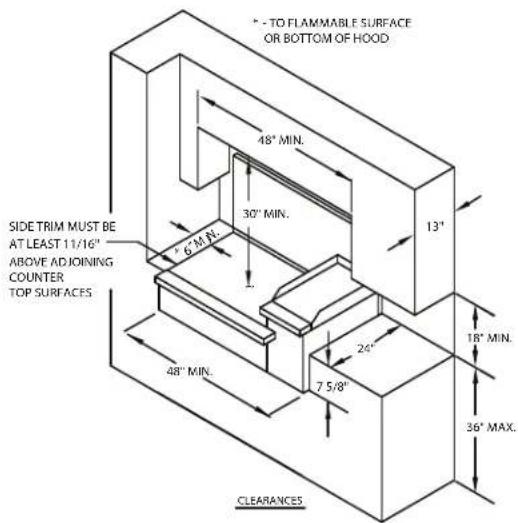

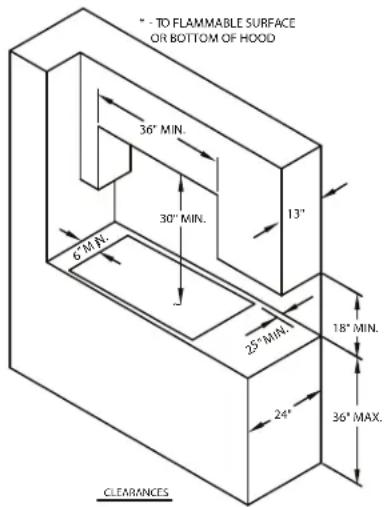

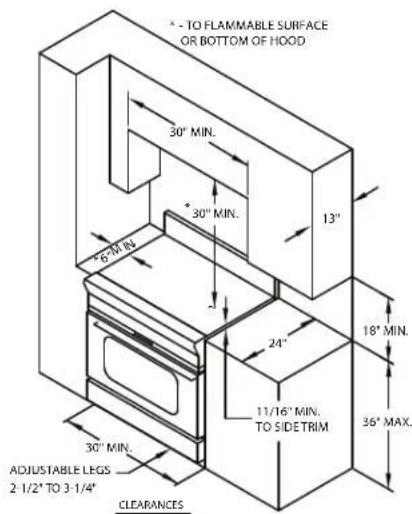

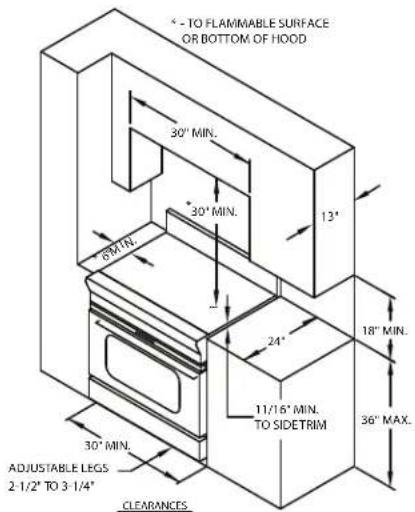

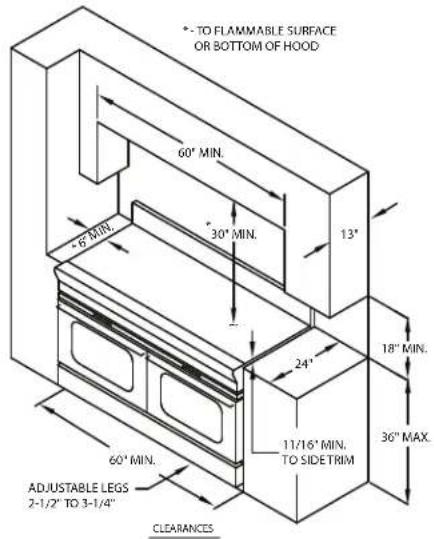

CLEARANCES
PRODUCT FEATURES
- PrimaNova™ power burner delivers 25,000 BTUs of intense heat
- All burners include Interchangeable Griddle and Charbroiler
• Gentle 130° simmer burner - New PowR Oven™ provides 40% faster preheating and 30% increase in oven efficiency
- Extra-large oven with True European Convection and 1850^ Infrared Broiler
• Available in 750+ colors and finishes - Accommodates full-size commercial 18" x 26" baking sheet
- 24" depth for compatibility with standard kitchen cabinetry
- Removable, dishwasher-friendly stainless steel drip trays
- Includes standard island trim backguard
SPECIFICATIONS
Range Dimensions: 59.875"W x 24"D x 36.75"H
Oven Interior: 26.25"W x 20"D x 15"H
Top Burner Rating: 25,000 BTUs
Simmer Burner Rating: 9,000 BTUs
PowR Oven Burner Rating: 25,000 BTUs
Infrared Broiler Rating: 15,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 3/4"
Installation Clearance: 0" Side Cabinet, 0" Back Wall

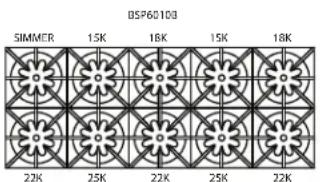

MODEL CONFIGURATIONS
Ten Burners with Cast Iron
BSP6010B
Interchangeable Griddle/Charbroiler
DESIGN OPTIONS
- Range color, knob color, trim finish, and backguard options (see page 4).
MODEL OPTIONS
- Casters
• Additional oven rack
• Full extension oven rack

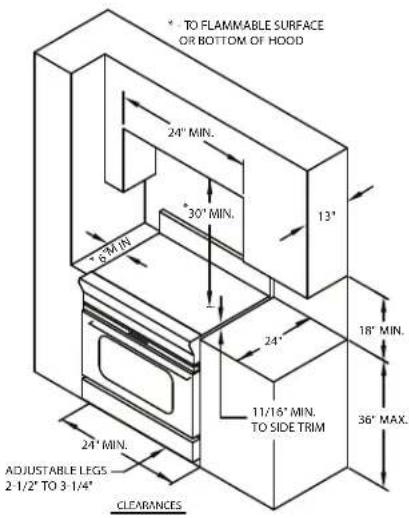

24" RNB SERIES

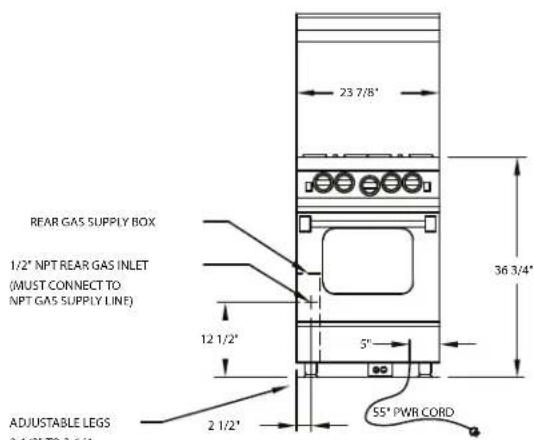

ELECTRICAL CORD LOCATED IN BACK OF UNIT
LOCATION OF ELECTRICAL OUTLET MUST NOT BE HIGHER THAN 3" FROM FLOOR IF LOCATED BEHIND THE UNIT OR CAN BE LOCATED IN AN ADJOINING CABINET.
PRODUCT FEATURES
- UltraNova™ power burner delivers 22,000 BTUs of intense heat
- Integrated cooktop options include griddles, charbroilers, and French tops
• Gentle 130° simmer burner - Extra-large convection oven that accommodates a half size 18" x 13" commercial baking sheet
- 1850° Infrared broiler
• Available in 750+ colors and finishes - Refined design and easier-to-clean cooktop
- 24" depth for compatibility with standard kitchen cabinetry
SPECIFICATIONS
Range Dimensions: 23.875"W x 24"D x 36.75"H
Oven Interior: 20.25"W x 20"D x 15"H
Top Burner Rating: 22,000 BTUs
Simmer Burner Rating: 9,000 BTUs
24" Charbroiler Burner Rating: 30,000 BTUs
24" Griddle Burner Rating: 30,000 BTUs
French Top Burner Rating: 18,000 BTUs
Oven Burner Rating: 30,000 BTUs
Infrared Broiler Rating: 15,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 1/2"
Installation Clearance: 0" Side Cabinet, 0" Back Wall

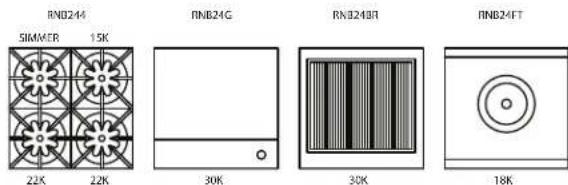

MODEL CONFIGURATIONS
| Four Burners | RNB244BV2 |
| 24" Griddle | RNB24GV2 |
| 24" Charbroiler | RNB24CBV2 |
| French Top | RNB24FTV2 |
DESIGN OPTIONS
- Range color, knob color, trim finish, and backguard options (see page 4).
MODEL OPTIONS
- Casters
• Additional oven rack
• Full extension oven rack
30" RNB SERIES
2.12 10274
ELECTRICAL CORD LOCATED IN BACK OF UNIT
LOCATION OF ELECTRICAL OUTLET MUST
NOT BE HIGHER THAN 3" FROM FLOOR IF LOCATED BEHIND
THE UNIT OR CAN BE LOCATED IN AN ADJOINING CABINET,
PRODUCT FEATURES
- UltraNova™ power burner delivers 22,000 BTUs of intense heat
- Integrated cooktop options include griddles, charbroilers, and French tops
• Gentle 130° simmer burner - Extra-large convection oven that accommodates a full size 18" x 26" commercial baking sheet
• 1850° Infrared broiler
• Available in 750+ colors and finishes - Refined design and easier-to-clean cooktop
- 24" depth for compatibility with standard kitchen cabinetry
SPECIFICATIONS
Range Dimensions: 29.875"W x 24"D x 36.75"H
Oven Interior: 26.25"W x 20"D x 15"H
Top Burner Rating: 22,000 BTUs
Simmer Burner Rating: 9,000 BTUs
Large Oven Burner Rating: 30,000 BTUs
Infrared Broiler Rating: 15,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 1/2"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Four Burners
RNB304BV2
DESIGN OPTIONS
- Range color, knob color, trim finish, and backguard options (see page 4).
MODEL OPTIONS
- Casters
• Additional oven rack
• Full extension oven rack
36" RNB SERIES

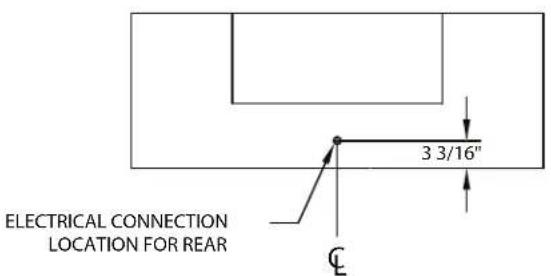

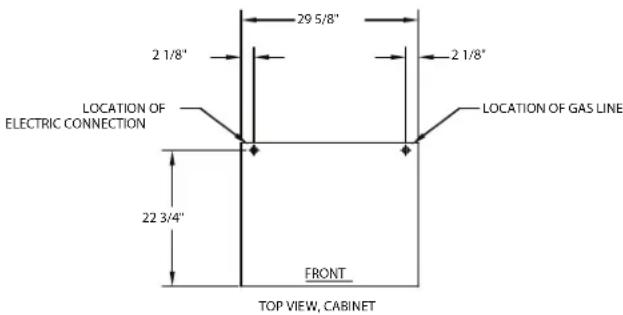

ELECTRICAL CORD LOCATED IN BACK OF UNIT
LOCATION OF ELECTRICAL OUTLET MUST
NOT BE HIGHER THAN 3" FROM FLOOR IF LOCATED BEHIND THE UNIT OR CAN BE LOCATED IN AN ADJOINING CABINET.
PRODUCT FEATURES
- UltraNova™ power burner delivers 22,000 BTUs of intense heat
- Integrated cooktop options include griddles, charbroilers, and French tops
• Gentle 130° simmer burner - Extra-large convection oven that accommodates a full size 18" x 26" commercial baking sheet
• 1850° Infrared broiler
• Available in 750+ colors and finishes - Refined design and easier-to-clean cooktop
- 24" depth for compatibility with standard kitchen cabinetry
SPECIFICATIONS
Range Dimensions: 35.875"W x 24"D x 36.75"H
Oven Interior: 29"W x 20"D x 15"H
Top Burner Rating: 22,000 BTUs
Simmer Burner Rating: 9,000 BTUs
12" Charbroiler Burner Rating: 15,000 BTUs
12" Griddle Burner Rating: 15,000 BTUs
French Top Burner Rating: 18,000 BTUs
Large Oven Burner Rating: 30,000 BTUs
Infrared Broiler Rating: 15,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 3/4"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
| Six Burners | RNB366BV2 |
| Four Burners with 12" Griddle | RNB364GV2 |
| Four Burners with 12" Charbroiler | RNB364CBV2 |
DESIGN OPTIONS
- Range color, knob color, trim finish, and backguard options (see page 4).
MODEL OPTIONS
- Casters
• Additional oven rack
• Full extension oven rack
48" RNB SERIES
- UltraNova™ power burner delivers 22,000 BTUs of intense heat
- Integrated cooktop options include griddles, charbroilers, and French tops
• Gentle 130° simmer burner - Extra-large convection oven that accommodates a full size 18" x 26" commercial baking sheet
- 1850° Infrared broiler
• Available in 750+ colors and finishes - Refined design and easier-to-clean cooktop
- 24" depth for compatibility with standard kitchen cabinetry
SPECIFICATIONS
Range Dimensions: 47.875"W x 24"D x 36.75"H
Large Oven Interior: 26.25"W x 20"D x 15"H
Small Oven Interior: 12"W x 20"D x 15"H
Top Burner Rating: 22,000 BTUs
Simmer Burner Rating: 9,000 BTUs
12" Charbroiler Burner Rating: 15,000 BTUs
24" Charbroiler Burner Rating: 30,000 BTUs
12" Griddle Burner Rating: 15,000 BTUs
24" Griddle Burner Rating: 30,000 BTUs
French Top Burner Rating: 18,000 BTUs
Large Oven Burner Rating: 30,000 BTUs
Small Oven Burner Rating: 15,000 BTUs
Infrared Broiler Rating: 15,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH (Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 3/4"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
| Eight Burners | RNB488V2 |
| Six Burners with 12" Griddle | RNB486GV2 |
| Four Burners with 24" Griddle | RNB484GV2 |
| Four Burners with 12" Griddle & Charbroiler | RNB484GCBV2 |
| Six Burners with 12" Charbroiler | RNB486CB |
| Four Burners with 24" Charbroiler | RNB484CB |
| Four Burners with French Top | RNB484FT |
DESIGN OPTIONS
- Range color, knob color, trim finish, and backguard options (see page 4).
MODEL OPTIONS
- Casters
• Additional oven rack
• Full extension oven rack
- UltraNova™ power burner delivers 22,000 BTUs of intense heat
- Integrated cooktop options include griddles, charbroilers, and French tops
• Gentle 130° simmer burner - Extra-large convection oven that accommodates a full size 18" x 26" commercial baking sheet
- 1850° Infrared broiler
• Available in 750+ colors and finishes - Refined design and easier-to-clean cooktop
- 24" depth for compatibility with standard kitchen cabinetry
SPECIFICATIONS
Range Dimensions: 59.875"W x 24"D x 36.75"H
Large Oven Interior: 26.25"W x 20"D x 15"H
Top Burner Rating: 22,000 BTUs
Simmer Burner Rating: 9,000 BTUs
12" Charbroiler Burner Rating: 15,000 BTUs
24" Charbroiler Burner Rating: 30,000 BTUs
12" Griddle Burner Rating: 15,000 BTUs
24" Griddle Burner Rating: 30,000 BTUs
French Top Burner Rating: 18,000 BTUs
Large Oven Burner Rating: 30,000 BTUs
Infrared Broiler Rating: 15,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH (Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 3/4"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
| Ten Burners | RNB6010V2 |
| Eight Burners with 12" Griddle | RNB608GV2 |
| Six Burners with 24" Griddle | RNB606GV2 |
| Six Burners with 12" Griddle & Charbroiler | RNB606GCBV2 |
| Eight Burners with 12" Charbroiler | RNB608CBV2 |
| Six Burners with 24" Charbroiler | RNB606CBV2 |
| Six Burners with French Top | RNB606FTV2 |
DESIGN OPTIONS
- Range color, knob color, trim finish, and backguard options (see page 4).
MODEL OPTIONS
- Casters
• Additional oven rack
• Full extension oven rack
36" RNB HERITAGE CLASSIC SERIES

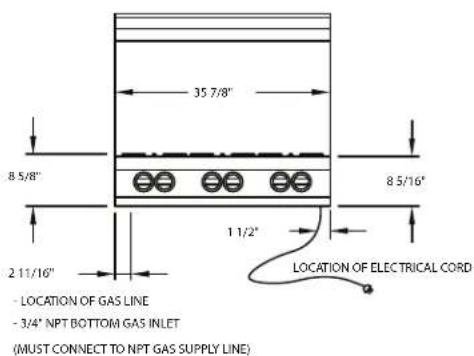

ELECTRICAL CORD LOCATED IN BACK OF UNIT
LOCATION OF ELECTRICAL OUTLET MUST
NOT BE HIGHER THAN 3" FROM FLOOR IF LOCATED BEHIND THE UNIT OR CAN BE LOCATED IN AN ADJOINING CABINET.
PRODUCT FEATURES
- UltraNova™ power burner delivers 22,000 BTUs of intense heat
• Gentle 130° simmer burner
• Full motion grates - Includes 12" raised griddle/broiler for melting and edge-browning
- Extra-large convection oven with 1850^ Infrared broiler
- Accommodates full-size commercial 18" x 26" baking sheet
• Available in 750+ colors and finishes
• Available backguard options: 17" or 24" - Raised griddle available only on right side
SPECIFICATIONS
Range Dimensions: 35.875"W x 24"D x 41.25"H
Oven Interior: 29"W x 20"D x 15"H
Top Burner Rating: 22,000 BTUs
Simmer Burner Rating: 9,000 BTUs
Infrared Broiler Rating: 15,000 BTUs
Raised Griddle/Broiler Burner Rating: 15,000 BTUs
Infrared Broiler Rating: 30,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH (Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC Gas Line Size: 3/4"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Four Burners
RNB364GHCV2
with Griddle/Broiler
DESIGN OPTIONS
- Range color, knob color, trim finish, and backguard options (see page 4).
MODEL OPTIONS
- Casters
• Additional oven rack
• Full extension oven rack
48" RNB HERITAGE CLASSIC SERIES
ELECTRICAL CORD LOCATED IN BACK OF UNIT
LOCATION OF ELECTRICAL OUTLET MUST
NOT BE HIGHER THAN 3" FROM FLOOR IF LOCATED BEHIND
THE UNIT OR CAN BE LOCATED IN AN ADJOINING CABINET.
PRODUCT FEATURES
- UltraNova™ power burner delivers 22,000 BTUs of intense heat
• Gentle 130° simmer burner
• Full motion grates - Includes 12" raised griddle/broiler for melting and edge-browning
- Extra-large convection oven with 1850° Infrared broiler
- Accommodates full-size commercial 18" x 26" baking sheet
• Available in 750+ colors and finishes
• Available backguard options: 17" or 24" - Raised griddle available only on right side
SPECIFICATIONS
Range Dimensions: 47.875"W x 24"D x 41.25"H
Oven Interior: 26.25"W x 20"D x 15"H
Small Oven Interior: 12"W x 20"D x 15"H
Top Burner Rating: 22,000 BTUs
Simmer Burner Rating: 9,000 BTUs
Raised Griddle/Broiler Burner Rating: 15,000 BTUs
Large Oven Burner Rating: 30,000 BTUs
Small Oven Rating: 15,000 BTUs
Infrared Broiler Rating: 15,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH (Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 3/4"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Six Burners
RNB486GHCV2
with Griddle/Broiler
DESIGN OPTIONS
- Range color, knob color, trim finish, and backguard options (see page 4).
MODEL OPTIONS
- Casters
• Additional oven rack
• Full extension oven rack
60" RNB HERITAGE CLASSIC SERIES
ELECTRICAL CORD LOCATED IN BACK OF UNIT
LOCATION OF ELECTRICAL OUTLET MUST
NOT BE HIGHER THAN 3" FROM FLOOR IF LOCATED BEHIND
THE UNIT OR CAN BE LOCATED IN AN ADJOINING CABINET.
PRODUCT FEATURES
- UltraNova™ power burner delivers 22,000 BTUs of intense heat
• Gentle 130° simmer burner
• Full motion grates - Includes 24" raised griddle/broiler for melting and edge-browning
- Extra-large convection oven with 1850^ Infrared broiler
- Accommodates full-size commercial 18" x 26" baking sheet
• Available in 750+ colors and finishes
• Available backguard options: 17" or 24" - Raised griddle available only on right side
SPECIFICATIONS
Range Dimensions: 59.875"W x 24"D x 41.25"H
Oven Interior: 26.25"W x 20"D x 15"H
Top Burner Rating: 22,000 BTUs
Simmer Burner Rating: 9,000 BTUs
Raised Griddle/Broiler Burner Rating: 30,000 BTUs
Large Oven Burner Rating: 30,000 BTUs
Infrared Broiler Rating: 15,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 3/4"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Six Burners

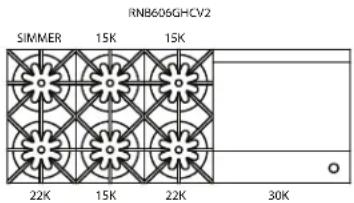

RNB606GHCV2
with Griddle/Broiler
DESIGN OPTIONS
- Range color, knob color, trim finish, and backguard options (see page 4).
MODEL OPTIONS
- Casters
• Additional oven rack
• Full extension oven rack
PRODUCT FEATURES
- UltraNova™ power burner delivers 22,000 BTUs of intense heat
• Gentle 130° simmer burner - Integrated cooktop options include griddles, charbroilers & French tops
- Includes 12" raised griddle/broiler for melting and edge-browning
• 1850° Infrared broiler - Contemporary, urban aesthetic with a sleek, modern feel
- Dependent French doors allow for easy loading/unloading
- Accommodates full-size commercial 18" x 26" baking sheet
• Available in 6 unique colors or 750+ standard options - Colored knobs and trim to match the range color
- 24" depth for compatibility with standard kitchen cabinetry
SPECIFICATIONS
Range Dimensions: 29 875"W x 24"D x 36.75"H
Large Oven Interior: 26.25"W x 20"D x 15"H
Top Burner Rating:22,000 BTUs
Simmer Burner Rating: 9,000 BTUs
Large Oven Burner Rating: 30,000 BTUs
Infrared Broiler Rating: 15,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH (Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 1/2"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Four Burners
RNB304BPM
DESIGN OPTIONS
- Range color, knob color, trim finish (see page 4).
MODEL OPTIONS
- Casters
• Additional oven rack
• Full extension oven rack
- UltraNova™ power burner delivers 22,000 BTUs of intense heat
• Gentle 130° simmer burner - Integrated cooktop options include griddles, charbroilers & French tops
- Includes 12" raised griddle/broiler for melting and edge-browning
- 1850^ Infrared broiler
- Contemporary, urban aesthetic with a sleek, modern feel
- Dependent French doors allow for easy loading/unloading
- Accommodates full-size commercial 18" x 26" baking sheet
• Available in 6 unique colors or 750+ standard options - Colored knobs and trim to match the range color
- 24" depth for compatibility with standard kitchen cabinetry
SPECIFICATIONS
Range Dimensions: 35.875"W x 24"D x 36.75"H
Large Oven Interior: 29"W x 20"D x 15"H
Top Burner Rating: 22,000 BTUs
Simmer Burner Rating: 9,000 BTUs
12" Griddle Burner Rating: 15,000 BTUs
12" Charbroiler Burner Rating: 15,000 BTUs
French Top Burner Rating: 18,000 BTUs
Large Oven Burner Rating: 30,000 BTUs
Infrared Broiler Rating: 15,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 3/4"

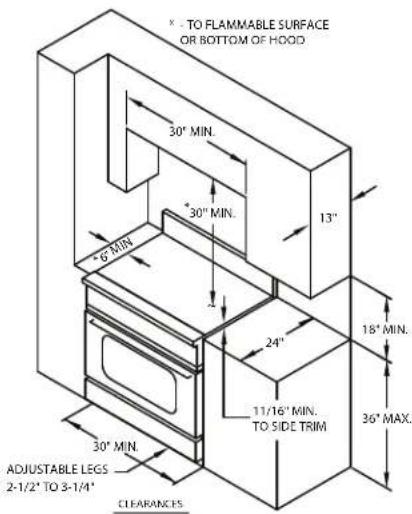

Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Six Burners
RNB366BPM
Four Burners with 12" Griddle
RNB364GPM
Four Burners with 12" Charbroiler
RNB364CBPM
Four Burners with French Top
RNB364FTPM
DESIGN OPTIONS
- Range color, knob color, trim finish (see page 4).
MODEL OPTIONS
- Casters
• Additional oven rack
• Full extension oven rack
30" RCS SERIES

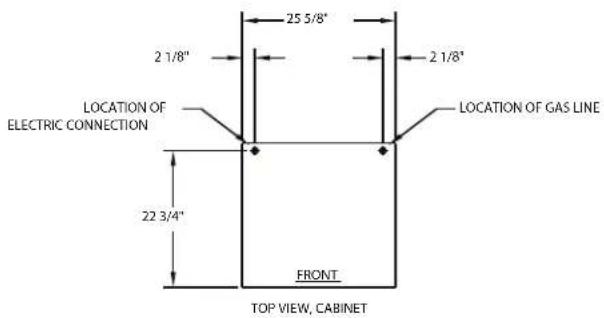

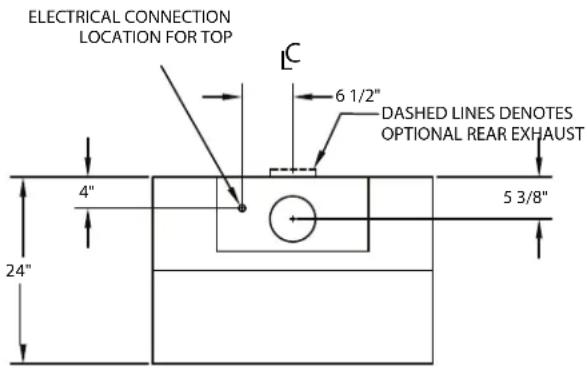

ELECTRICAL CORD LOCATED IN BACK OF UNIT
LOCATION OF ELECTRICAL OUTLET MUST
NOT BE HIGHER THAN 3" FROM FLOOR IF LOCATED BEHIND
THE UNIT OR CAN BE LOCATED IN AN ADJOINING CABINET.
RCS304BV2
PRODUCT FEATURES
- Nova™ power burner delivers 15,000 BTUs of intense heat
• Gentle 130° simmer burner
• Full motion grates - Extra-large convection oven that accommodates a full size 18" x 26" commercial baking sheet
- 1850° Infrared broiler
• Available in stainless steel only - Includes standard island trim backguard
- 24" depth for compatibility with standard kitchen cabinetry
SPECIFICATIONS
Range Dimensions: 29.875"W x 24"D x 36.75"H
Oven Interior: 26.25"W x 20"D x 15"H
Top Burner Rating: 15,000 BTUs
Simmer Burner Rating: 9,000 BTUs
Oven Burner Rating: 30,000 BTUs
Infrared Broiler Rating: 15,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH (Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 1/2"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Four Burners
RCS304BV2
DESIGN OPTIONS
- Knob color and backguard options (see page 4).
MODEL OPTIONS
- Casters
• Additional oven rack
36" RCS SERIES
ELECTRICAL CORD LOCATED IN BACK OF UNIT
LOCATION OF ELECTRICAL OUTLET MUST
NOT BE HIGHER THAN 3' FROM FLOOR IF LOCATED BEHIND THE UNIT OR CAN BE LOCATED IN AN ADJOINING CABINET.
PRODUCT FEATURES
- Nova™ power burner delivers 15,000 BTUs of intense heat
• Gentle 130° simmer burner
• Full motion grates - Extra-large convection oven that accommodates a full size 18" x 26" commercial baking sheet
- 1850° Infrared broiler
• Available in stainless steel only - Includes standard island trim backguard
- 24" depth for compatibility with standard kitchen cabinetry
SPECIFICATIONS
Range Dimensions: 35.875"W x 24"D x 36.75"H
Oven Interior: 29"W x 20"D x 15"H
Top Burner Rating: 15,000 BTUs
Simmer Burner Rating: 9,000 BTUs
Oven Burner Rating: 30,000 BTUs
Infrared Broiler Rating: 15,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH (Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 1/2"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Six Burners
RCS366BV2
DESIGN OPTIONS
- Knob color and backguard options (see page 4).
MODEL OPTIONS
- Casters
• Additional oven rack
30" SEALED BURNER SERIES
ELECTRICAL CORD LOCATED IN BACK OF UNIT
LOCATION OF ELECTRICAL OUTLET MUST
NOT BE HIGHER THAN 3" FROM FLOOR IF LOCATED BEHIND THE UNIT OR CAN BE LOCATED IN AN ADJOINING CABINET.
RCS30SBV2
PRODUCT FEATURES
• Sealed burner design with up to 18,000 BTUs of power
- Precise simmer burner
- Extra-large convection oven with 1850° Infrared Broiler
- Accommodates full-size commercial 18" x 26" baking sheet
- 24" depth for compatibility with standard kitchen cabinetry
• Available in stainless steel only
• Includes standard island trim backguard
SPECIFICATIONS
Range Dimensions: 29.875"W x 24"D x 36.75"H
Oven Interior: 26.25"W x 20"D x 15"H
Top Burner Rating: 18,000 BTUs
Simmer Burner Rating: 6,000 BTUs
Oven Burner Rating: 30,000 BTUs
Infrared Broiler Rating: 15,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 1/2"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Four Burners
RCS30SBV2
DESIGN OPTIONS
- Knob color and backguard options (see page 4).
36" SEALED BURNER SERIES
ELECTRICAL CORD LOCATED IN BACK OF UNIT
LOCATION OF ELECTRICAL OUTLET MUST
NOT BE HIGHER THAN 3" FROM FLOOR IF LOCATED BEHIND THE UNIT OR CAN BE LOCATED IN AN ADJOINING CABINET.
RCS366BSS
PRODUCT FEATURES
- Sealed burner design with up to 18,000 BTUs of power
- Precise simmer burner
- Extra-large convection oven with 1850^ Infrared Broiler
- Accommodates full-size commercial 18" x 26" baking sheet
- 24" depth for compatibility with standard kitchen cabinetry
• Available in stainless steel only - Includes standard island trim backguard
SPECIFICATIONS
Range Dimensions: 35.875"W x 24"D x 36.75"H
Oven Interior: 29"W x 20"D x 15"H
Top Burner Rating: 15,000 BTUs
Simmer Burner Rating: 6,000 BTUs
Oven Burner Rating: 30,000 BTUs
Infrared Burner Rating: 15,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH (Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 1/2"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Six Burners
RCS366BSS
DESIGN OPTIONS
- Knob color and backguard options (see page 4).
Notes


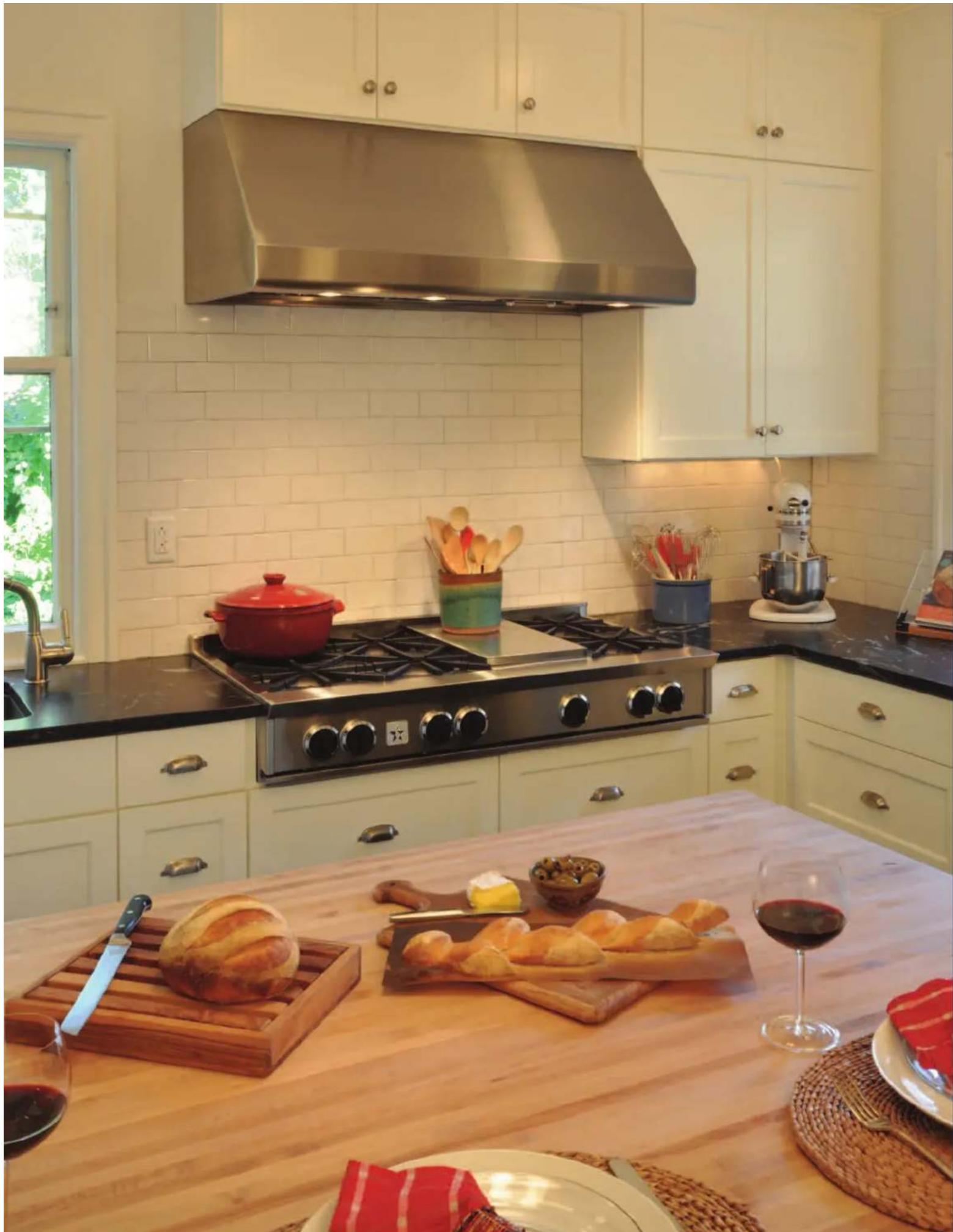

Modern kitchen interior with white tiled walls, stainless steel smoke hood, and a wooden table with bread and cutlery (no visible text or symbols)Rangetops
24" PLATINUM RANGETOP SERIES
PRODUCT FEATURES
• 25,000 BTU PrimaNova™ burners
- All burners include Interchangeable Griddle Charbroiler
• Gentle 130° simmer burner
• Integrated wok cooking
• Full motion grates
• Enhanced design that is sleeker and more functional
- 24" depth for compatibility with standard kitchen cabinetry
- Removable, dishwasher-friendly stainless steel drip trays
- Includes standard island trim backguard
SPECIFICATIONS
Rangetop Dimensions: 23.875"W x 24"D x 8.625"H
Top Burner Rating: 25,000 BTUs
Simmer Burner Rating: 9,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 1/2"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Four Burners with Cast Iron BSPRT244B Interchangeable Griddle/Charbroiler
DESIGN OPTIONS
- Knob color, trim finish, and backguard options (see page 4).
30" PLATINUM RANGETOP SERIES
PRODUCT FEATURES
• 25,000 BTU PrimaNova™ burners
• All burners include Interchangeable Griddle Charbroiler
• Gentle 130° simmer burner
• Integrated wok cooking
• Full motion grates
• Enhanced design that is sleeker and more functional
- 24" depth for compatibility with standard kitchen cabinetry
- Removable, dishwasher-friendly stainless steel drip trays
- Includes standard island trim backguard
SPECIFICATIONS
Rangetop Dimensions: 29.875"W x 24"D x 8.625"H
Top Burner Rating: 25,000 BTUs
Simmer Burner Rating: 9,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 1/2"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Four Burners with Cast Iron BSPRT304B Interchangeable Griddle/Charbroiler
DESIGN OPTIONS
- Knob color, trim finish, and backguard options (see page 4).
36" PLATINUM RANGETOP SERIES
PRODUCT FEATURES
• 25,000 BTU PrimaNova™ burners
- All burners include Interchangeable Griddle Charbroiler
• Gentle 130° simmer burner
• Integrated wok cooking
• Full motion grates
• Enhanced design that is sleeker and more functional
- 24" depth for compatibility with standard kitchen cabinetry
- Removable, dishwasher-friendly stainless steel drip trays
- Includes standard island trim backguard
SPECIFICATIONS
Rangetop Dimensions: 35.875"W x 24"D x 8.625"H
Top Burner Rating: 25,000 BTUs
Simmer Burner Rating: 9,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 1/2"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Six Burners with Cast Iron BSPRT366B Interchangeable Griddle/Charbroiler
DESIGN OPTIONS
- Knob color, trim finish, and backguard options (see page 4).
48 " PLATINUM RANGETOP SERIES
PRODUCT FEATURES
• 25,000 BTU PrimaNova™ burners
• All burners include Interchangeable Griddle Charbroiler
• Gentle 130° simmer burner
• Integrated wok cooking
• Full motion grates
• Enhanced design that is sleeker and more functional
- 24" depth for compatibility with standard kitchen cabinetry
- Removable, dishwasher-friendly stainless steel drip trays
• Includes standard island trim backguard
SPECIFICATIONS
Rangetop Dimensions: 47.875"W x 24"D x 8.625"H
Top Burner Rating: 25,000 BTUs
Simmer Burner Rating: 9,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH (Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC Gas Line Size: 3/4"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Eight Burners with Cast Iron BSPRT488B Interchangeable Griddle/Charbroiler
DESIGN OPTIONS
- Knob color, trim finish, and backguard options (see page 4).
60" PLATINUM RANGETOP SERIES
PRODUCT FEATURES
• 25,000 BTU PrimaNova™ burners
- All burners include Interchangeable Griddle Charbroiler
• Gentle 130° simmer burner
• Integrated wok cooking
• Full motion grates
• Enhanced design that is sleeker and more functional
- 24" depth for compatibility with standard kitchen cabinetry
- Removable, dishwasher-friendly stainless steel drip trays
- Includes standard island trim backguard
SPECIFICATIONS
Rangetop Dimensions: 59.875"W x 24"D x 8.625"H
Top Burner Rating: 25,000 BTUs
Simmer Burner Rating: 9,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 3/4"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Six Burners with Cast Iron BSPRT6010B Interchangeable Griddle/Charbroiler
DESIGN OPTIONS
- Knob color, trim finish, and backguard options (see page 4).

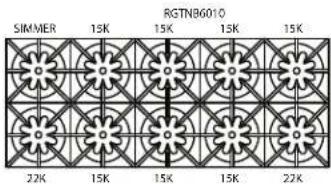

24" RNB RANGETOP SERIES
PRODUCT FEATURES
- UltraNova™ power burner delivers 22,000 BTUs of intense heat
• Gentle 130° simmer burner
• Full motion grates - 1850° Infrared broiler
- Removable, dishwasher-friendly stainless steel drip trays
• Refined design and easier-to-clean cooktop - 24" depth for compatibility with standard kitchen cabinetry
• Includes standard island trim backguard
SPECIFICATIONS
Rangetop Dimensions: 23.875"W x 24"D x 8.625"H
Top Burner Rating: 22,000 BTUs
Simmer Burner Rating: 9,000 BTUs
Griddle Burner Rating: 30,000 BTUs
Charbroiler Burner Rating: 30,000 BTUs
French Top Burner Rating: 18,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 1/2"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Four Burners RGTNB244
24" Griddle RGTNB24G
24" Charbroiler RGTNB24CB
French Top RGTNB24FT
DESIGN OPTIONS
- Knob color, trim finish, and backguard options (see page 4).
MODEL OPTIONS
• Griddles, charbroilers, and French tops
30" RNB RANGETOP SERIES
PRODUCT FEATURES
- UltraNova™ power burner delivers 22,000 BTUs of intense heat
• Gentle 130° simmer burner - Integrated cooktop options include griddles, charbroilers, and French tops
• Full motion grates - 1850° Infrared broiler
- Removable, dishwasher-friendly stainless steel drip trays
- Refined design and easier-to-clean cooktop
- 24" depth for compatibility with standard kitchen cabinetry
- Includes standard island trim backguard
SPECIFICATIONS
Range Dimensions: 29.875"W x 24"D x 8.625"H
Top Rating: 22,000 BTUs
Simmer Burner Rating: 9,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH (Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC Gas Line Size: 1/2"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Six Burners
RGTNB304BSS
DESIGN OPTIONS
- Knob color, trim finish, and backguard options (see page 4).
36" RNB RANGETOP SERIES
PRODUCT FEATURES
- UltraNova™ power burner delivers 22,000 BTUs of intense heat
• Gentle 130° simmer burner - Integrated cooktop options include griddles, charbroilers, and French tops
• Full motion grates - 1850° Infrared broiler
- Removable, dishwasher-friendly stainless steel drip trays
- Refined design and easier-to-clean cooktop
- 24" depth for compatibility with standard kitchen cabinetry
- Includes standard island trim backguard
SPECIFICATIONS
Range Dimensions: 35.875"W x 24"D x 8.625"H
Top Burner Rating: 22,000 BTUs
Simmer Burner Rating: 9,000 BTUs
Griddle Burner Rating: 15,000 BTUs
Charbroiler Burner Rating: 15,000 BTUs
French Top Burner Rating: 18,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH (Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 3/4"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Six Burners RGTNB366
Four Burners with 12" Griddle RGTNB364G
Four Burners with 12" Charbroiler RGNTB364CB
DESIGN OPTIONS
- Knob color, trim finish, and backguard options (see page 4).
48" RNB RANGETOP SERIES
- UltraNova™ power burner delivers 22,000 BTUs of intense heat
• Gentle 130° simmer burner - Integrated cooktop options include griddles, charbroilers, and French tops
• Full motion grates - 1850° Infrared broiler
- Removable, dishwasher-friendly stainless steel drip trays
- Refined design and easier-to-clean cooktop
- 24" depth for compatibility with standard kitchen cabinetry
- Includes standard island trim backguard
SPECIFICATIONS
Range Dimensions: 47.875"W x 24"D x 8.625"H
Top Burner Rating: 22,000 BTUs
Simmer Burner Rating: 9,000 BTUs
12" Griddle Burner Rating: 15,000 BTUs
24" Griddle Burner Rating: 30,000 BTUs
12" Charbroiler Burner Rating: 15,000 BTUs
24" Charbroiler Burner Rating: 30,000 BTUs
French Top Burner Rating: 18,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH (Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 3/4"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Eight Burners RGTNB488
Six Burners with 12" Griddle RGTNB486G
Four Burners with 24" Griddle RGTNB484G
Four Burners with 12" Griddle RGTNB484GCB
& Charbroiler
Six Burners with 12" Charbroiler RGTNB486CB
Four Burners with 24" Charbroiler RGTNB484CB
Four Burners with French Top RGTNB484FT
DESIGN OPTIONS
- Knob color, trim finish, and backguard options (see page 4).
60" RNB RANGETOP SERIES
- UltraNova™ power burner delivers 22,000 BTUs of intense heat
• Gentle 130° simmer burner - Integrated cooktop options include griddles, charbroilers, and French tops
• Full motion grates - 1850° Infrared broiler
- Removable, dishwasher-friendly stainless steel drip trays
- Refined design and easier-to-clean cooktop
- 24" depth for compatibility with standard kitchen cabinetry
- Includes standard island trim backguard
SPECIFICATIONS
Range Dimensions: 59.875"W x 24"D x 8.625"H
Top Burner Rating: 22,000 BTUs
Simmer Burner Rating: 9,000 BTUs
12" Griddle Burner Rating: 15,000 BTUs
24" Griddle Burner Rating: 30,000 BTUs
12" Charbroiler Burner Rating: 15,000 BTUs
24" Charbroiler Burner Rating: 30,000 BTUs
French Top Burner Rating: 18,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 3/4"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Ten Burners RGTNB6010
Eight Burners with 12" Griddle RGTNB608G
Six Burners with 24" Griddle RGTNB606G
Six Burners with 12" Griddle RGTNB606GCB
& Charbroiler
Eight Burners with 12" Charbroiler RGTNB608CB
Six Burners with 24" Charbroiler RGTNB606CB
Six Burners with French Top RGTNB606FT
DESIGN OPTIONS
- Knob color, trim finish, and backguard options (see page 4).
36" HERITAGE CLASSIC RANGETOP
PRODUCT FEATURES
• 22,000 BTU UltraNova™ burners
• Gentle 130° simmer burner
• Full motion grates
- Includes 12" raised griddle/broiler for melting and edge-browning
• Full motion grates
- Removable, dishwasher friendly stainless steel drip trays
- Refined design and easier-to-clean cooktop
- 24" depth for compatibility with standard kitchen cabinetry
• Available backguard options: 17" or 24"
- Raised griddle available only on right side
SPECIFICATIONS
Rangetop Dimensions: 35.875"W x 27.25"D x 29.625"H
Top Burner Rating: 22,000 BTUs
Simmer Burner Rating: 9,000 BTUs
Raised Griddle/Broiler Burner Rating: 15,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 3/4"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Four Burners
with Griddle/Broiler
RGTNB364GHCV2
DESIGN OPTIONS
- Knob color, trim finish, and backguard options (see page 4).
48" HERITAGE CLASSIC RANGETOP
• 22,000 BTU UltraNova™ burners
• Gentle 130° simmer burner
• Full motion grates
- Includes 12" raised griddle/broiler for melting and edge-browning
• Full motion grates
- Removable, dishwasher friendly stainless steel drip trays
- Refined design and easier-to-clean cooktop
- 24" depth for compatibility with standard kitchen cabinetry
• Available backguard options: 17" or 24"
- Raised griddle available only on right side
SPECIFICATIONS
Rangetop Dimensions: 47.875"W x 27.25"D x 29.625"H
Top Burner Rating: 22,000 BTUs
Simmer Burner Rating: 9,000 BTUs
Raised Griddle/Broiler Burner Rating: 15,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH (Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 3/4"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Six Burners RGTNB486GHCV2 with Griddle/Broiler
DESIGN OPTIONS
- Knob color, trim finish, and backguard options (see page 4).
60" HERITAGE CLASSIC RANGETOP
PRODUCT FEATURES
• 22,000 BTU UltraNova™ burners
• Gentle 130° simmer burner
• Full motion grates
- Includes 12" raised griddle/broiler for melting and edge-browning
• Full motion grates
- Removable, dishwasher friendly stainless steel drip trays
- Refined design and easier-to-clean cooktop
- 24" depth for compatibility with standard kitchen cabinetry
• Available backguard options: 17" or 24"
- Raised griddle available only on right side
SPECIFICATIONS
Rangetop Dimensions: 59.875"W x 27.25"D x 29.625"H
Top Burner Rating: 22,000 BTUs
Simmer Burner Rating: 9,000 BTUs
Raised Griddle/Broiler Burner Rating: 30,000 BTUs
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 3/4"
Installation Clearance: 0" Side Cabinet, 0" Back Wall
MODEL CONFIGURATIONS
Six Burners
RGTNB606GHCV2
with Griddle/Broiler
DESIGN OPTIONS
- Knob color, trim finish, and backguard options (see page 4).
Notes


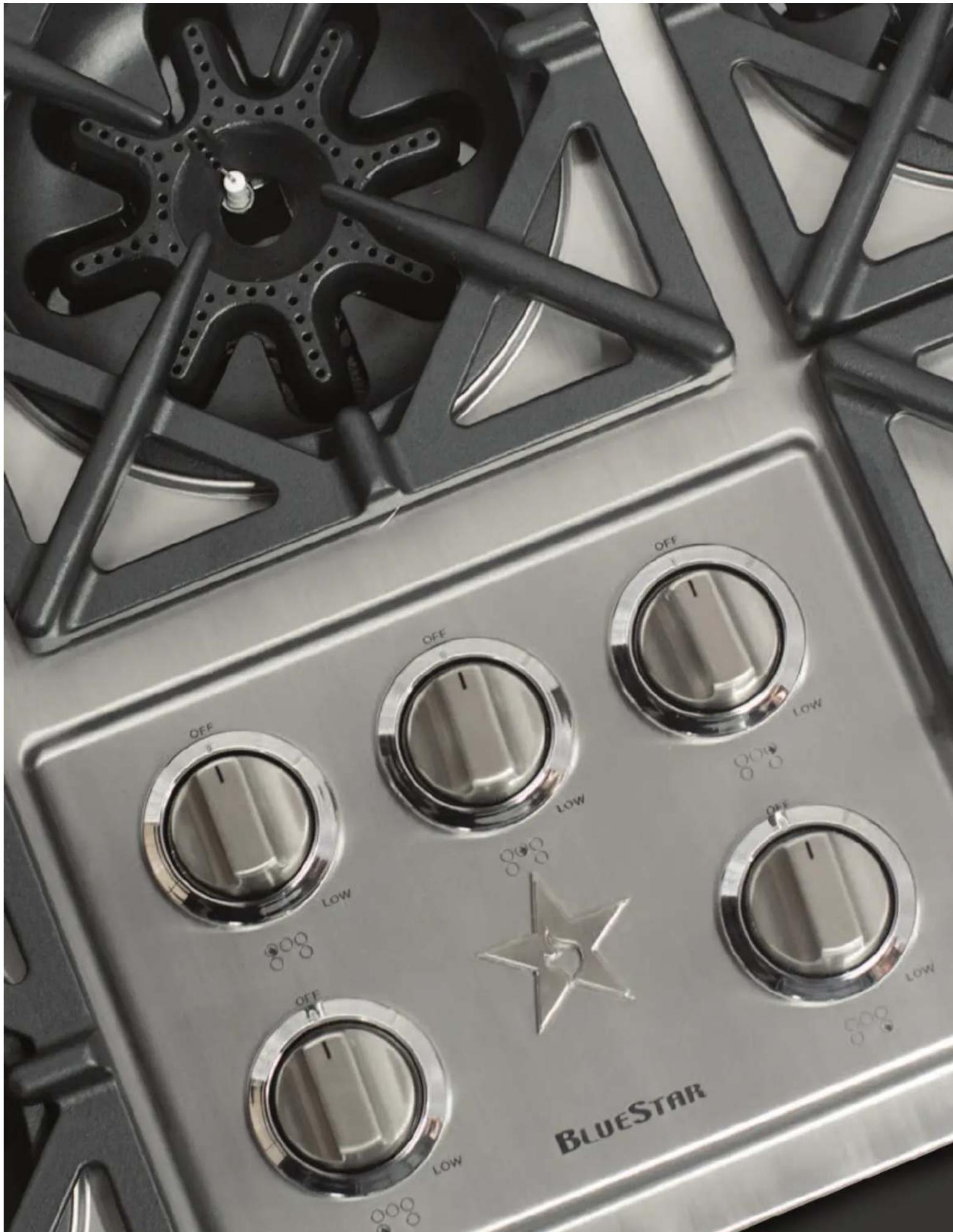

Close-up of a Bluestar air conditioner panel with multiple rotary switches and a star emblem (no readable text or symbols beyond branding)Cooktops

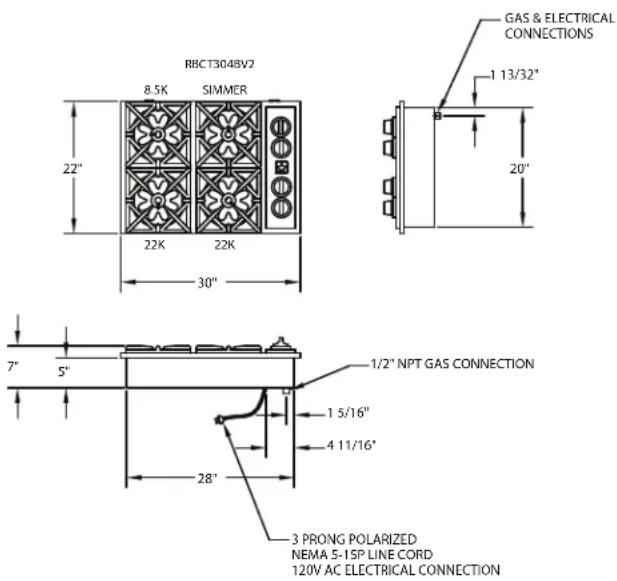

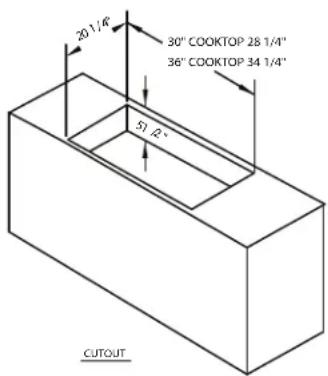

30" COOKTOP
PRODUCT FEATURES
- UltraNova™ power burner delivers 22,000 BTUs of intense heat
• Gentle 130° simmer burner
• Full motion grates - Streamlined design
• Stainless steel knobs and available customization - Enhanced compatibility with BlueStar Electric Wall Oven
- Easier to clean
SPECIFICATIONS
Cooktop Dimensions: 30"W x 22"D x 5"H
Top Burner Rating: 22,000 BTU
Simmer Burner Rating: 9,000 BTU
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 1/2"
MODEL CONFIGURATIONS
Four Burners
RBCT304BV2
DESIGN OPTIONS
- Knob color (see page 4).

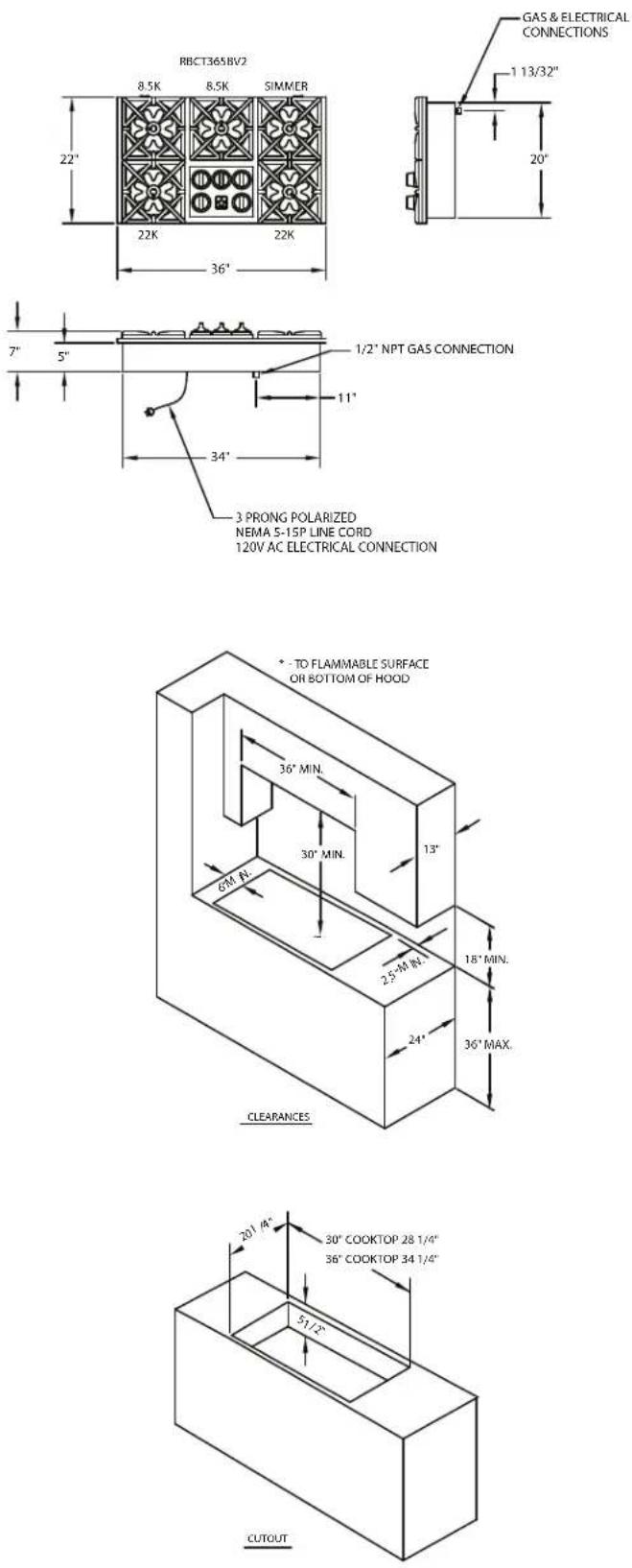

36" COOKTOP
PRODUCT FEATURES
- UltraNova™ power burner delivers 22,000 BTUs of intense heat
• Gentle 130° simmer burner
• Full motion grates - Streamlined design
• Stainless steel knobs and available customization - Enhanced compatibility with BlueStar Electric Wall Oven
- Easier to clean
SPECIFICATIONS
Cooktop Dimensions: 36"W x 22"D x 5"H
Top Burner Rating: 22,000 BTU
Simmer Burner Rating: 9,000 BTU
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH (Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 1/2"
MODEL CONFIGURATIONS
Five Burners
RBCT365BV2
DESIGN OPTIONS
- Knob color (see page 4).
Notes
Notes


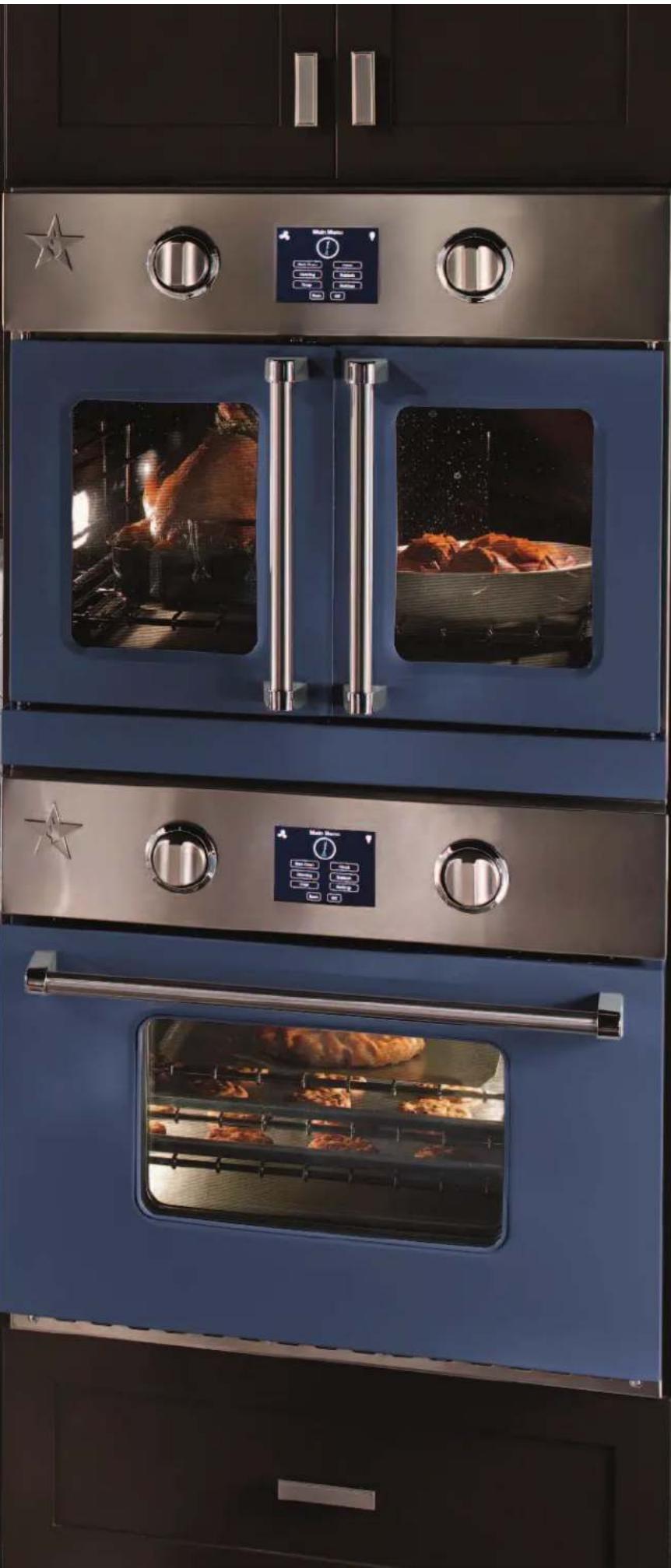

Modern stainless steel oven with star-shaped doors and digital control panel, showing interior cooking setup (no visible text or symbols)Wall Ovens
24" SINGLE GAS WALL OVEN
CLEARANCES
PRODUCT FEATURES
- Powerful 25,000 BTU oven burner with 3,000 BTU heat assist for quick start-ups
- Extra-large convection oven with True European Convection and 1850^ Infrared broiler
- Largest oven capacity available on a 24" wall oven
- Accommodates half-size commercial 18" x 13" baking sheet
- Coved corners for optimal heat circulation and easier cleaning
• High visibility dual halogen oven lights - Features swing door design
• Available in 750+ colors and finishes
• Available in both single or double versions
SPECIFICATIONS
Single Oven Dimensions: 24"W x 23"D x 32.75"H
Oven Interior: 20.25"W x 20"D x 15"H
Oven Burner Rating: 25,000 BTUs
Infrared Broiler Rating: 15,000 BTUs
Oven Heat Assist Element: 3,000 BTUs
Single Oven Electrical Requirements:
120V, 60Hz, 15 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 1/2"
MODEL CONFIGURATIONS
Single Gas Wall Oven
BWO24AGS
DESIGN OPTIONS
- Oven color, knob color, trim finish, door swing options (see page 4).
MODEL OPTIONS
• Left or right swing door
• Additional oven rack
• Full extension oven rack

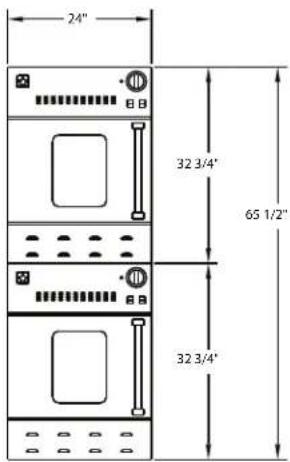

24" STACKED GAS WALL OVEN

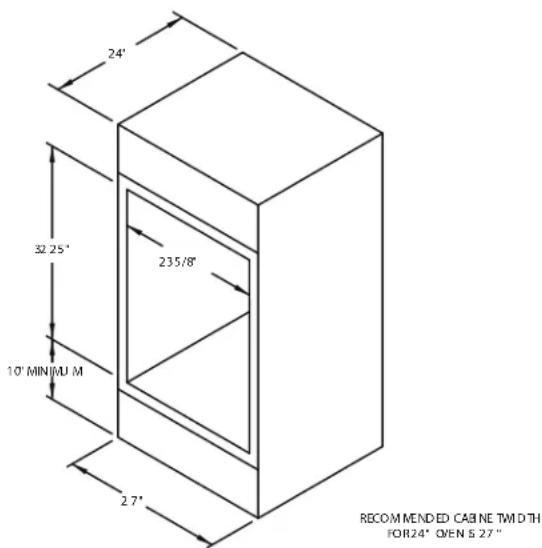

RECOMMENDED CABINET WIDTH FOR 24" OVEN IS 27"
CLEARANCES
PRODUCT FEATURES
- Powerful 25,000 BTU oven burner with 3,000 BTU heat assist for quick start-ups
- Extra-large convection oven with True European Convection and 1850° Infrared broiler
- Largest oven capacity available on a 24" wall oven
- Accommodates half-size commercial 18" x 13" baking sheet
• Coved corners for optimal heat circulation and easier cleaning
• High visibility dual halogen oven lights
• Features swing door design
• Available in 750+ colors and finishes
• Available in both single or double versions
SPECIFICATIONS
Double Oven Dimensions: 24"W x 23"D x 65.5"H
Oven Interior: 20.25"W x 20"D x 15"H
Oven Burner Rating: 25,000 BTUs
Infrared Broiler Rating: 15,000 BTUs
Oven Heat Assist Element: 3,000 BTUs
Double Oven Electrical Requirements:
120V, 60Hz, 20 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 1/2"
MODEL CONFIGURATIONS
Double Gas Wall Oven
BWO24AGS
DESIGN OPTIONS
- Oven color, knob color, trim finish, door swing options (see page 4).
MODEL OPTIONS
• Left or right swing door
• Additional oven rack
• Full extension oven rack
30" SINGLE GAS WALL OVEN
CLEARANCES
PRODUCT FEATURES
- Powerful 25,000 BTU oven burner with 3,000 BTU heat assist for quick start-ups
- Extra-large convection oven with True European Convection and 1850^ Infrared broiler
- Largest oven capacity available on a 30" wall oven
- Accommodates full-size commercial 18" x 26" baking sheet
- Coved corners for optimal heat circulation and easier cleaning
• High visibility dual halogen oven lights - Features swing door design
• Available in 750+ colors and finishes
• Available in both single or double versions
SPECIFICATIONS
Single Oven Dimensions: 30"W x 26"D x 32.75"H
Oven Interior: 26.25"W x 20"D x 15"H
Oven Burner Rating: 25,000 BTUs
Infrared Broiler Rating: 15,000 BTUs
Oven Heat Assist Element: 3,000 BTUs
Single Oven Electrical Requirements:
120V, 60Hz, 15 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 1/2"
MODEL CONFIGURATIONS
Single Gas Wall Oven
BWO30AGS
DESIGN OPTIONS
- Oven color, knob color, trim finish (see page 4).
MODEL OPTIONS
• Additional oven rack
• Full extension oven rack
30" STACKED GAS WALL OVEN
CLEARANCES
PRODUCT FEATURES
- Powerful 25,000 BTU oven burner with 3,000 BTU heat assist for quick start-ups
- Extra-large convection oven with True European Convection and 1850° Infrared broiler
- Largest oven capacity available on a 30" wall oven
- Accommodates full-size commercial 18" x 26" baking sheet
• Coved corners for optimal heat circulation and easier cleaning
• High visibility dual halogen oven lights
• Features French door design
• Available in 750+ colors and finishes
• Available in both single or double versions
SPECIFICATIONS
Double Oven Dimensions: 30"W x 26"D x 65.5"H
Oven Interior: 26.25"W x 20"D x 15"H
Oven Burner Rating: 25,000 BTUs
Infrared Broiler Rating: 15,000 BTUs
Oven Heat Assist Element: 3,000 BTUs
Double Oven Electrical Requirements:
120V, 60Hz, 20 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 1/2"
MODEL CONFIGURATIONS
Double Gas Wall Oven
BWO30AGS
DESIGN OPTIONS
- Oven color, knob color, trim finish (see page 4).
MODEL OPTIONS
• Additional oven rack
• Full extension oven rack
36" SINGLE GAS WALL OVEN
RECOMMENDED CABINET WIDTH FOR 36" OVEN IS 39"
CLEARANCES
PRODUCT FEATURES
- Powerful 25,000 BTU oven burner with 3,000 BTU heat assist for quick start-ups
- Extra-large convection oven with True European Convection and 1850^ Infrared broiler
- Largest oven capacity available on a 36" wall oven
- Accommodates full-size commercial 18" x 26" baking sheet
- Coved corners for optimal heat circulation and easier cleaning
• High visibility dual halogen oven lights
• Features French door design
• Available in 750+ colors and finishes
• Available in both single or double versions
SPECIFICATIONS
Single Oven Dimensions: 36"W x 26"D x 32.75"H
Oven Interior: 29"W x 20"D x 15"H
Oven Burner Rating: 25,000 BTUs
Infrared Broiler Rating: 15,000 BTUs
Oven Heat Assist Element: 3,000 BTUs
Single Oven Electrical Requirements:
120V, 60Hz, 15 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 1/2"
MODEL CONFIGURATIONS
Single Gas Wall Oven
BWO36AGS
DESIGN PREFERENCES
- Oven color, knob color, trim finish (see page 4).
MODEL OPTIONS
• Additional oven rack
• Full extension oven rack
36" STACKED GAS WALL OVEN
PRODUCT FEATURES
- Powerful 25,000 BTU oven burner with 3,000 BTU heat assist for quick start-ups
- Extra-large convection oven with True European Convection and 1850° Infrared broiler
- Largest oven capacity available on a 36" wall oven
- Accommodates full-size commercial 18" x 26" baking sheet
• Coved corners for optimal heat circulation and easier cleaning
• High visibility dual halogen oven lights
• Features French door design
• Available in 750+ colors and finishes
• Available in both single or double versions
SPECIFICATIONS
Double Oven Dimensions: 36"W x 23"D x 65.5"H
Oven Interior: 29"W x 20"D x 15"H
Oven Burner Rating: 25,000 BTUs
Infrared Broiler Rating: 15,000 BTUs
Oven Heat Assist Element: 3,000 BTUs
Double Oven Electrical Requirements:
120V, 60Hz, 20 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 1/2"
MODEL CONFIGURATIONS
Double Gas Wall Oven
BWO36AGS
DESIGN OPTIONS
- Oven color, knob color, trim finish (see page 4).
MODEL OPTIONS
• Additional oven rack
• Full extension oven rack
PRODUCT FEATURES
- Powerful 2,500 watt bake element plus 1,800 watt heat assist for faster preheat
• Commercial-grade intense 5,000 watt Infrared Broiler
• Built-in artisan baking stone with precise temperature control - Extra-large oven with True European Convection
- Intuitive touch screen control panel with 12 cooking modes
- Precision temperature probe that provides perfect temperature control
- Eco-friendly Continu Clean™ features continuously cleans the oven capacity
• Gentle self cleaning cycle
• Features French door design
• Available in 750+ colors and finishes
• Available in both single or double versions
SPECIFICATIONS
Single Oven Dimensions: 30"W x 25.875"D x 27.5"H
Oven Interior: 26.25"W x 20"D x 15"H
Oven Bake Element Rating: 2,600 Watts
Oven Broiler Element Rating: 5000 Watts
Oven Heat Assist Element: 1,800 Watts
Electrical Requirements: 240V, 60Hz, 24 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
MODEL CONFIGURATIONS
Single Electric Wall Oven
EWO30ECSD
DESIGN OPTIONS
- Oven color, knob color, trim finish (see page 4).
MODEL OPTIONS
• Additional oven rack
• Full extension oven rack
30" STACKED ELECTRIC WALL OVEN
French Door
CLEARANCES
PRODUCT FEATURES
- Powerful 2,500 watt bake element plus 1,800 watt heat assist for faster preheat
• Commercial-grade intense 5,000 watt Infrared Broiler
• Built-in artisan baking stone with precise temperature control
• Extra-large oven with True European Convection - Intuitive touch screen control panel with 12 cooking modes
- Precision temperature probe that provides perfect temperature control
- Eco-friendly Continu Clean™ features continuously cleans the oven capacity
- Gentle self cleaning cycle
• Features French door design
• Available in 750+ colors and finishes
• Available in both single or double versions
SPECIFICATIONS
Double Oven Dimensions: 30"W x 25.875"D x 55"H
Oven Interior: 26.25"W x 20"D x 15"H
Oven Bake Element Rating: 2,600 Watts
Oven Broiler Element Rating: 5000 Watts
Oven Heat Assist Element: 1,800 Watts
Electrical Requirements: 240V, 60Hz, 24 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
MODEL CONFIGURATIONS
Double Electric Wall Oven
EWO30ECSD
DESIGN OPTIONS
- Oven color, knob color, trim finish (see page 4).
MODEL OPTIONS
• Additional oven rack
• Full extension oven rack
PRODUCT FEATURES
- Powerful 2,500 watt bake element plus 1,800 watt heat assist for faster preheat
• Commercial-grade intense 5,000 watt Infrared Broiler
• Built-in artisan baking stone with precise temperature control - Extra-large oven with True European Convection
- Intuitive touch screen control panel with 12 cooking modes
- Precision temperature probe that provides perfect temperature control
- Eco-friendly Continu Clean™ features continuously cleans the oven capacity
• Gentle self cleaning cycle
• Available in 750+ colors and finishes
• Available in both single or double versions
SPECIFICATIONS
Single Oven Dimensions: 30"W x 25.875"D x 27.75"H
Oven Interior: 26.25"W x 20"D x 15"H
Oven Bake Element Rating: 2,600 Watts
Oven Broiler Element Rating: 5000 Watts
Oven Heat Assist Element: 1,800 Watts
Electrical Requirements: 240V, 60Hz, 24 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
MODEL CONFIGURATIONS
Single Electric Wall Oven
EWO30ECDD
DESIGN OPTIONS
- Oven color, knob color, trim finish (see page 4).
MODEL OPTIONS
• Additional oven rack
• Full extension oven rack
CLEARANCES
PRODUCT FEATURES
- Powerful 2,500 watt bake element plus 1,800 watt heat assist for faster preheat
• Commercial-grade intense 5,000 watt Infrared Broiler
• Built-in artisan baking stone with precise temperature control
• Extra-large oven with True European Convection - Intuitive touch screen control panel with 12 cooking modes
- Precision temperature probe that provides perfect temperature control
- Eco-friendly Continu Clean™ features continuously cleans the oven capacity
- Gentle self cleaning cycle
• Available in 750+ colors and finishes
• Available in both single or double versions
SPECIFICATIONS
Double Oven Dimensions: 30"W x 25.875"D x 55"H
Oven Interior: 26.25"W x 20"D x 15"H
Oven Bake Element Rating: 2,600 Watts
Oven Broiler Element Rating: 5000 Watts
Oven Heat Assist Element: 1,800 Watts
Electrical Requirements Each Oven:
240V, 60Hz, 24 AMPS, 1 PH
(Unit must be on a Non-GFI, dedicated outlet)
MODEL CONFIGURATIONS
Double Electric Wall Oven
EWO30ECDD
DESIGN OPTIONS
- Oven color, knob color, trim finish (see page 4).
MODEL OPTIONS
• Additional oven rack
• Full extension oven rack
SALAMANDER BROILER
LOCATION OF GAS LINE 1/2" NPT GAS INLET (MUST CONNECT TO NPT GAS SUPPLY LINE)
• Heavy-duty, commercial stainless steel construction
- Two independently controlled 11,000 BTU infrared ceramic burners
• 215 square inches of cooking space
• Large removable heavy-duty grilling rack
• Automatic electronic ignition and re-ignition system
SPECIFICATIONS
Product Dimensions: 25"W x 15"D x 14.625"H
Top Burner Rating: 11,000 BTU
Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH (Unit must be on a Non-GFI, dedicated outlet)
Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC
Gas Line Size: 1/2"
MODEL CONFIGURATIONS
Two Independently
PRZSAL24
Controlled Infrared Burners
30" INDOOR CHARBROILER
PRODUCT FEATURES
• Heavy-duty, commercial stainless steel construction
- Two 15,000 BTU stainless steel commercial U-burners
- Push-to-turn burner controls
• Cast iron, easy clean grates
- Removable, dishwasher-friendly stainless steel drip trays
SPECIFICATIONS
Cooktop Dimensions: 29.875"W x 24"D x 9.75"H Charbroiler Rating: 30,000 BTU Electrical Requirements: 120V, 60Hz, 15 AMPS, 1 PH (Unit must be on a Non-GFI, dedicated outlet) Operating Gas Pressure: NAT: 5.0" WC, LP: 10.0" WC Gas Line Size: 1/2"
MODEL CONFIGURATIONS
30" Charbroiler Burners
PRZIDCB30
DESIGN OPTIONS
- Knob color (see page 4).
Notes
Notes
PRO-LINE WALL HOOD
TOP VIEW
FRONT VIEW
RT SIDE VIEW
BACK VIEW
PRODUCT FEATURES
• Available in 30", 36", 42", 48", 54", 60", and 66" width sizes
• 42" and larger sizes available in 1200CFM only
- Commercial grade 18 gauge 300 stainless steel construction
• Welded seamless corners
• Dishwasher safe stainless steel baffle filters
• 3 speed blower control
- Halogen lamps with dimmer control
- Reversible top or rear exhaust
- Hidden control knobs
- Quiet performance
• Largest filtered capture in the industry
• 30" and 36" models available in 600 or 1200CFM
BLOWER OPTIONS
• In-Hood: 300, 600, and 1200CFM
• In-Line: 300, 600, and 1200CFM
• Remote: 1000 and 1400CFM
DESIGN OPTIONS
- 750+ colors and finishes (see page 4).
- Brushed Brass and Brushed Copper (see page 4).
PYRAMID WALL HOOD
FRONT VIEW
SIDE VIEW
BACK VIEW
TOP VIEW
PRODUCT FEATURES
• Available in 30", 36", 42", 48", 54", 60", and 66" width sizes
- 30" model available in 600CFM.
36" and 42" models available in 600 or 1200CFM
- 48" and larger sizes available in 1200 CFM
• Commercial grade 18 gauge 300 stainless steel construction
• Welded seamless corners
• Dishwasher safe stainless steel baffle filters
• 3-speed blower control
- Halogen lamps with dimmer control
- Top exhaust; can be ducted to the rear with use of 90^ elbow (not included)
- Hidden control knobs
- Quiet performances
- Includes flue that accommodates most 9 ft. ceilings.
BLOWER OPTIONS
• In-Hood: 300, 600, and 1200CFM
• In-Line: 300, 600, and 1200CFM
• Remote: 1000 and 1400CFM
DESIGN OPTIONS
- 750+ colors and finishes (see page 4).
- Brushed Brass and Brushed Copper (see page 4).
LOW PROFILE WALL HOOD
TOP VIEW
FRONT VIEW
BACK VIEW
STANDARD
TOP EXHAUST
RT SIDE VIEW
PRODUCT FEATURES
• Available in 24", 30", and 36" width sizes
- Compatible with 600 CFM internal blower
- Commercial grade 18 gauge 300 stainless steel construction
• Welded seamless corners
- Dishwasher safe stainless steel baffle filters
- Variable blower control
• Halogen lamps with dimmer control
- Reversible top or rear exhaust
- Hidden control knobs
- Quiet performance
- Hood flue
- Recirculating kit available on 30", 36", 42", and 48"
BLOWER OPTIONS
• In-Hood: 300 and 600
• In-Line: 300, 600, and 1200CFM
• Remote: 1000 and 1400CFM
DESIGN OPTIONS
- 750+ colors and finishes (see page 4).
- Brushed Brass and Brushed Copper (see page 4).
BONANZA WALL HOOD
PRODUCT FEATURES
• Available in 30", 36", 42", 48", 54", 60", and 66" width sizes
- Handcrafted seamless construction with 16 gauge material
• Commercial style stainless steel baffle filter system
• Available in 750+ colors or Brushed Copper and Brushed Brass finishes
- Stainless steel internal liner with double wall construction
- 3 speed fan control
- Halogen lamps
- Accommodates top or rear discharge
- 30" and 36" models include a 300 or 600CFM in-hood blower
- Remote and In-line fans available
• Recirculating kit available on 30", 36", 42", and 48"
BLOWER OPTIONS
• In-Hood: 300, 600, and 1200CFM
• In-Line: 300, 600, and 1200CFM
• Remote: 1000 and 1400CFM
DESIGN OPTIONS
- 750+ colors and finishes (see page 4).
- Brushed Brass and Brushed Copper (see page 4).
HAMPTON WALL HOOD
PRODUCT FEATURES
• Available in 30", 36", 42", 48", 54", 60", and 66" width sizes
- Handcrafted seamless construction with 16 gauge material
• Commercial style stainless steel baffle filter system
• Available in 750+ colors or Brushed Copper and Brushed Brass finishes
- Stainless steel internal liner with double wall construction
• 3 speed fan control
- Halogen lamps
- 30" and 36" accommodates top discharge only. Over 42" specify top or rear discharge
• Remote and In-line fans available
• Recirculating kit available on 30", 36", 42", and 48"
- 30" and 36" models include 300 or 600CFM in-hood blower
- Included duct heights: 6", 12", 18", 24" and 30"
BLOWER OPTIONS
• In-Hood: 300, 600, and 1200CFM
• In-Line: 300, 600, and 1200CFM
• Remote: 1000 and 1400CFM
DESIGN OPTIONS
- 750+ colors and finishes (see page 4).
- Brushed Brass and Brushed Copper (see page 4).
INCLINE WALL HOOD
PRODUCT FEATURES
• Available in 30", 36", 42", 48", 54", 60", and 66" width sizes
- Handcrafted seamless construction with 16 gauge material
• Commercial style stainless steel baffle filter system
• Available in 750+ colors or Brushed Copper and Brushed Brass finishes
- Stainless steel internal liner with double wall construction
- 3 speed fan control
- Halogen lamps
- Accommodates top or rear discharge
- Recirculating kit available on 30", 36", 42", and 48"
- 30" and 36" models include a 300 or 600CFM in-hood blower
BLOWER OPTIONS
• In-Hood: 300, 600, and 1200CFM
• In-Line: 300, 600, and 1200CFM
• Remote: 1000 and 1400CFM
DESIGN OPTIONS
- 750+ colors and finishes
- Brushed Brass and Brushed Copper
LARAMIE WALL HOOD
PRODUCT FEATURES
• Available in 30", 36", 42", 48", 54", 60", and 66" width sizes
- Handcrafted seamless construction with 16 gauge material
- Commercial style stainless steel baffle filter system
• Available in 750+ colors or Brushed Copper and Brushed Brass finishes
- Stainless steel internal liner with double wall construction
• 3 speed fan control
- Halogen lamps
- 30" and 36" accommodates top discharge only. Over 42" specify top or rear discharge
- 30" and 36" models include a 300 or 600CFM in-hood blower
- Included duct heights: 6", 12", 18", 24" and 30"
- Recirculating kit available on 30", 36", 42", and 48"
BLOWER OPTIONS
• In-Hood: 300, 600, and 1200CFM
• In-Line: 300, 600, and 1200CFM
• Remote: 1000 and 1400CFM
DESIGN OPTIONS
- 750+ colors and finishes (see page 4).
- Brushed Brass and Brushed Copper (see page 4).
LAREDO WALL HOOD
PRODUCT FEATURES
• Available in 30", 36", 42", 48", 54", 60", and 66" width sizes
- Handcrafted seamless construction with 16 gauge material
• Commercial style stainless steel baffle filter system
• Available in 750+ colors or Brushed Copper and Brushed Brass finishes
- Stainless steel internal liner with double wall construction
- 3 speed fan control
- Halogen lamps
- Accommodates top discharge only
• Remote and In-line fans available
- Recirculating kit available on 30", 36", 42", and 48"
- 30" and 36" models include a 300 or 600CFM in-hood blower
- Included duct heights: 6", 12", 18", 24", and 30"
BLOWER OPTIONS
• In-Hood: 300, 600, and 1200CFM
• In-Line: 300, 600, and 1200CFM
• Remote: 1000 and 1400CFM
DESIGN OPTIONS
- 750+ colors and finishes (see page 4).
- Brushed Brass and Brushed Copper (see page 4).
LONDON FLAT WALL HOOD
PRODUCT FEATURES
- Available in 24", 30", 36", 42", 48", 54", 60", and 66" width sizes
• Handcrafted seamless construction
• Anodized aluminum mesh filter system
• Available in 750+ colors or Brushed Copper and Brushed Brass finishes
• 3 speed fan control - Halogen lamps
• Accommodates top discharge only - Remote and In-line fans available
- 24", 30", and 36" models include a 300 or 600CFM in-hood blower
BLOWER OPTIONS
• In-Hood: 300, 600, and 1200CFM
• In-Line: 300, 600, and 1200CFM
• Remote: 1000 and 1400CFM
DESIGN OPTIONS
- 750+ colors and finishes (see page 4).
- Brushed Brass and Brushed Copper (see page 4).
PRODUCT FEATURES
• Available in 30", 36", 42", 48", 54", 60", and 66" width sizes
- Handcrafted seamless construction with 16 gauge material
• Commercial style stainless steel baffle filter system
• Available in 750+ colors or Brushed Copper and Brushed Brass finishes
- Stainless steel internal liner with double wall construction
- 3 speed fan control
- Halogen lamps
• Accommodates top discharge only
• Remote and In-line fans available
- 24", 30", and 36" models include a 300 or 600CFM in-hood blower
• Included duct heights: 18", 24", and 30"
BLOWER OPTIONS
• In-Hood: 300, 600, and 1200CFM
• In-Line: 300, 600, and 1200CFM
• Remote: 1000 and 1400CFM
DESIGN OPTIONS
750, colors and finishes (see page 4). 30", 36", 42", 48", 54", 60", and 66" Brushed Copper (see page 4).
POPLAR WALL HOOD
PRODUCT FEATURES
• Available in 30", 36", 42", 48", 54", 60", and 66" width sizes
- Handcrafted seamless construction with 16 gauge material
- Commercial style stainless steel baffle filter system
• Available in 750+ colors or Brushed Copper and Brushed Brass finishes
- Stainless steel internal liner with double wall construction
• 3 speed fan control
- Halogen lamps
- Accommodates top or rear discharge
- Remote and In-line fans available
- 30" and 36" models include a 300 or 600CFM in-hood blower
BLOWER OPTIONS
• In-Hood: 300, 600, and 1200CFM
• In-Line: 300, 600, and 1200CFM
• Remote: 1000 and 1400CFM
DESIGN OPTIONS
- 750+ colors and finishes (see page 4).
- Brushed Brass and Brushed Copper (see page 4).
SANTA FE WALL HOOD
PRODUCT FEATURES
• Available in 30", 36", 42", 48", 54", 60", and 66" width sizes
- Handcrafted seamless construction with 16 gauge material
• Commercial style stainless steel baffle filter system
• Available in 750+ colors or Brushed Copper and Brushed Brass finishes
- Stainless steel internal liner with double wall construction
- 3 speed fan control
- Halogen lamps
- Accommodates top or rear discharge
• Remote and In-line fans available
- Recirculating kit available on 30", 36", 42", and 48"
- 30" and 36" models include a 300 or 600CFM in-hood blower
BLOWER OPTIONS
• In-Hood: 300, 600, and 1200CFM
• In-Line: 300, 600, and 1200CFM
• Remote: 1000 and 1400CFM
DESIGN OPTIONS
• 750+ colors and finishes (see page 4).
- Brushed Brass and Brushed Copper (see page 4).
WRANGLER WALL HOOD
PRODUCT FEATURES
• Available in 30", 36", 42", 48", 54", 60", and 66" width sizes
- Handcrafted seamless construction with 16 gauge material
- Commercial style stainless steel baffle filter system
• Available in 750+ colors or Brushed Copper and Brushed Brass finishes
- Stainless steel internal liner with double wall construction
• 3 speed fan control
- Halogen lamps
- 30" and 36" accommodates top discharge only. Over 42" specify top or rear discharge
- Remote and In-line fans available
- 30" and 36" models include a 300 or 600CFM in-hood blower
- Included duct heights: 10", 16", 22", and 28"
BLOWER OPTIONS
• In-Hood: 300, 600, and 1200CFM
• In-Line: 300, 600, and 1200CFM
• Remote: 1000 and 1400CFM
DESIGN OPTIONS
- 750+ colors and finishes (see page 4).
- Brushed Brass and Brushed Copper (see page 4).
HAMPTON ISLAND HOOD
PRODUCT FEATURES
• Available in 30", 36", 42", 48", 54", 60", and 66" width sizes
- Handcrafted seamless construction with 16 gauge material
• Commercial style stainless steel baffle filter system
• Available in 750+ colors or Brushed Copper and Brushed Brass finishes
- Stainless steel internal liner with double wall construction
- 3 speed fan control
- Halogen lamps
- Accommodates top discharge only
- 30" and 36" models include a 300 or 600CFM in-hood blower
- Remote and In-line fans available
- Included duct heights: 6", 12", 18", 24", and 30"
BLOWER OPTIONS
• In-Hood: 300, 600, and 1200CFM
• In-Line: 300, 600, and 1200CFM
• Remote: 1000 and 1400CFM
DESIGN OPTIONS
- 750+ colors and finishes (see page 4).
- Brushed Brass and Brushed Copper (see page 4).
LARAMIE ISLAND HOOD
PRODUCT FEATURES
- Available in 30", 36", 42", 48", 54", 60", and 66" width sizes
- Handcrafted seamless construction with 16 gauge material
- Commercial style stainless steel baffle filter system
• Available in 750+ colors or Brushed Copper and Brushed Brass finishes - Stainless steel internal liner with double wall construction
• 3 speed fan control - Halogen lamps
- Accommodates top discharge only
- 30" and 36" models include a 300 or 600CFM in-hood blower
- Remote and In-line fans available
- Included duct heights: 6", 12", 18", 24", and 30"
BLOWER OPTIONS
• In-Hood: 300, 600, and 1200CFM
• In-Line: 300, 600, and 1200CFM
• Remote: 1000 and 1400CFM
DESIGN OPTIONS
- 750+ colors and finishes (see page 4).
- Brushed Brass and Brushed Copper (see page 4).
LAREDO ISLAND HOOD
PRODUCT FEATURES
• Available in 30", 36", 42", 48", 54", 60", and 66" width sizes
- Handcrafted seamless construction with 16 gauge material
• Commercial style stainless steel baffle filter system
• Available in 750+ colors or Brushed Copper and Brushed Brass finishes
- Stainless steel internal liner with double wall construction
- 3 speed fan control
- Halogen lamps
- Accommodates top discharge only
- 30" and 36" models include a 300 or 600CFM in-hood blower
- Remote and In-line fans available
- Included duct heights: 6", 12", 18", 24", and 30"
BLOWER OPTIONS
• In-Hood: 300, 600, and 1200CFM
• In-Line: 300, 600, and 1200CFM
• Remote: 1000 and 1400CFM
DESIGN OPTIONS
- 750+ colors and finishes (see page 4).
- Brushed Brass and Brushed Copper (see page 4).
MANHATTAN ISLAND HOOD
PRODUCT FEATURES
• Available in 30", 36", 42", 48", 54", 60", and 66" width sizes
- Handcrafted seamless construction with 16 gauge material
• Commercial style stainless steel baffle filter system
• Available in 750+ colors or Brushed Copper and Brushed Brass finishes
• Stainless steel internal liner with double wall construction
• 3 speed fan control
- Halogen lamps
• Accommodates top discharge only
- 30" and 36" models include a 300 or 600CFM in-hood blower
- Remote and In-line fans available
- Included duct heights: 18", 24", and 30"
BLOWER OPTIONS
• In-Hood: 300, 600, and 1200CFM
• In-Line: 300, 600, and 1200CFM
• Remote: 1000 and 1400CFM
DESIGN OPTIONS
- 750+ colors and finishes (see page 4).
- Brushed Brass and Brushed Copper (see page 4).
MLSS LINER
PRODUCT FEATURES
• Available in 28", 34", 40", 46", 52", 58", 64", and 70" width sizes
• Seamed construction
• 3 speed fan control
• High heat sensor
• Stainless steel baffle filters
• Non-mirrored, finished edges
- Accommodates top or rear discharge
- 28" and 34" models include a 300 or 600CFM in-hood blower
- Remote and In-line fans available
BLOWER OPTIONS
• In-Hood: 300, 600, and 1200CFM
• In-Line: 300, 600, and 1200CFM
• Remote: 1000 and 1400CFM
PMLSS LINER
PRODUCT FEATURES
• Available in 28", 34", 40", 46", 52", 58", 64", and 70" width sizes
• Seamed construction
• 3 speed fan control
• High heat sensor
- Stainless steel baffle filters
• Non-mirrored, finished edges
• Accommodates top or rear discharge
- 28" and 34" models include a 300 or 600CFM in-hood blower
- Remote and In-line fans available
BLOWER OPTIONS
• In-Hood: 300, 600, and 1200CFM
• In-Line: 300, 600, and 1200CFM
• Remote: 1000 and 1400CFM
Notes
36" BUILT-IN REFRIGERATOR
Revised BlueStar Refrigerator Dimesions
Revision Date: November 1, 2016
PRODUCT FEATURES
• Stunning stainless steel interiors
- All glass and metal components
• Heavy-duty construction
• Dramatic, ramp-on LED lighting
• Extra-large, fully extending drawers
- Fully extending tray that fits commercial size sheet pan
• OLED touchscreen control
- Dual compressors
• Automatic ice maker
• Available in 36" bottom freezer that can be mounted built-in or integrated
- Choose from stainless steel plus 750+ colors and finishes. Available in 10 metal handle trim options plus left or right door swings
SPECIFICATIONS
Refrigerator Dimensions:
35.75"W x 26.187"D x 83.125"H
Electrical Requirements: 115V, 60Hz, 15 AMP circuit (Unit must be on a Non-GFI, dedicated outlet)
Water Pressure: 35-120psi
DESIGN OPTIONS
- Door color, door swing, and trim options (see page 4).
DISHWASHER PANEL
PRODUCT FEATURES
• Accommodates most major dishwasher brands
• Heavy-duty stainless steel construction
• Available in 750+ colors and finishes
DESIGN OPTIONS
- Panel color, and trim options (see page 4).
For more information about BlueSt®products or to purchase, please contact: sales @bluestarcooking.com
328 June Avenue, Blandon, PA 19510
www.bluestarcooking.com
@bluestarcooking
Rev. February 2016
©2016. Prizer-Painter Stove Works, Inc. ALL RIGHTS RESERVED. Specifications subject to change without notice.
Product colors shown within this brochure are to be used for guidance only. Due to printing variations, actual colors may vary.
For the most accurate color reference, please visit www.bluestarcooking.com to purchase a RAL paint sample.
BlueStar® and the associated trademarks depicted herein are registered trademarks of Prizer-Painter Stove Works, Inc., and its related companies.
- Unsurpassed Customization
- Design Preferences
- Color
- Knob Color
- Trim Finish(Handles, Bezels)
- Cooking Preferences
- Size
- Burner Configuration
- Backguard
- Door
- Notes
- Freestanding Ranges
- 24" PLATINUM SERIES
- PRODUCT FEATURES
- SPECIFICATIONS
- MODEL CONFIGURATIONS
- DESIGN OPTIONS
- MODEL OPTIONS
- 30" PLATINUM SERIES
- 36" PLATINUM SERIES
- 48" PLATINUM SERIES
- 60" PLATINUM SERIES
- 24" RNB SERIES
- 30" RNB SERIES
- 36" RNB SERIES
- 48" RNB SERIES
- 36" RNB HERITAGE CLASSIC SERIES
- 48" RNB HERITAGE CLASSIC SERIES
- 60" RNB HERITAGE CLASSIC SERIES
- 30" RCS SERIES
- 36" RCS SERIES
- 30" SEALED BURNER SERIES
- 36" SEALED BURNER SERIES
- Rangetops
- 24" PLATINUM RANGETOP SERIES
- 30" PLATINUM RANGETOP SERIES
- 36" PLATINUM RANGETOP SERIES
- " PLATINUM RANGETOP SERIES
- 60" PLATINUM RANGETOP SERIES
- 24" RNB RANGETOP SERIES
- 30" RNB RANGETOP SERIES
- 36" RNB RANGETOP SERIES
- 48" RNB RANGETOP SERIES
- 60" RNB RANGETOP SERIES
- 36" HERITAGE CLASSIC RANGETOP
- 48" HERITAGE CLASSIC RANGETOP
- 60" HERITAGE CLASSIC RANGETOP
- Cooktops
- 30" COOKTOP
- 36" COOKTOP
- Wall Ovens
- 24" SINGLE GAS WALL OVEN
- 24" STACKED GAS WALL OVEN
- 30" SINGLE GAS WALL OVEN
- 30" STACKED GAS WALL OVEN
- 36" SINGLE GAS WALL OVEN
- 36" STACKED GAS WALL OVEN
- 30" STACKED ELECTRIC WALL OVEN
- SALAMANDER BROILER
- 30" INDOOR CHARBROILER
- Ventilation
- PRO-LINE WALL HOOD
- BLOWER OPTIONS
- PYRAMID WALL HOOD
- LOW PROFILE WALL HOOD
- BONANZA WALL HOOD
- HAMPTON WALL HOOD
- INCLINE WALL HOOD
- LARAMIE WALL HOOD
- LAREDO WALL HOOD
- LONDON FLAT WALL HOOD
- POPLAR WALL HOOD
- SANTA FE WALL HOOD
- WRANGLER WALL HOOD
- HAMPTON ISLAND HOOD
- LARAMIE ISLAND HOOD
- LAREDO ISLAND HOOD
- MANHATTAN ISLAND HOOD
- MLSS LINER
- PMLSS LINER
- Refrigeration
- 36" BUILT-IN REFRIGERATOR
- DISHWASHER PANEL
Brand : BlueStar
Model : BS-PMLSS-40-SS
Category : Range hood
