USER MANUAL Elate Titanium 903 Morel

Close-up of hands holding a metal tool with coiled metal parts (no visible text or symbols)

Exterior view of a speaker cone assembly with exposed internal components and multiple earthen holders (no text or labels visible)

ELATE TITANIUM 502/602/902/503/603/903

2-Way / 3-Way Component Systems Installation Guide

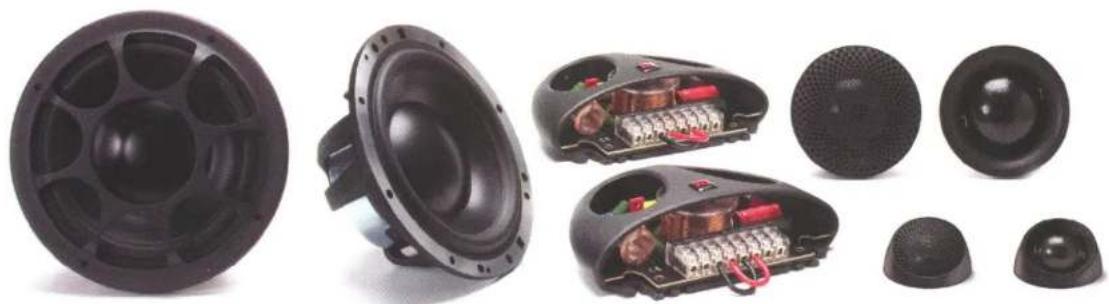

PACKAGE CONTENT

ELATE TITANIUM 5",6",9" WOOFER

MT350 TWEETER

MXT380/MXT280 CROSSOVER

CDM 880 MIDRANGE (ONLY IN 503 / 603 / 903)

Five mechanical parts labeled X2 and X8, showing different types of components (no text or symbols on parts)

MIDRANGE, WOOFER & CROSSOVER MOUNTING

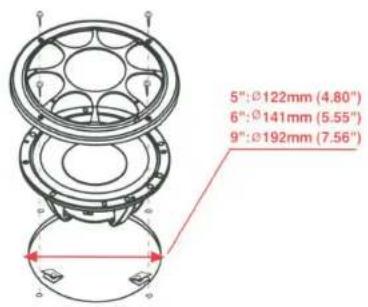

WOOFER UNIT 5".6".9"

MXT380 & MXT280 CROSSOVER MOUNTING

CDM880 MIDRANGE MOUNTING

TWEETER MOUNTING

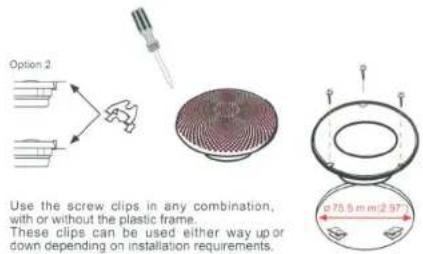

FLUSH MOUNTING

SURFACE MOUNTING

②

4

Illustration of a cosmetic device with a circular component and a lid, no text or symbols present

3

MX 280 2-WAY CROSSOVER WIRING OPTIONS

Standard wire connection\With bridged jumpers

Bi Wire connection\No bridged jumpers

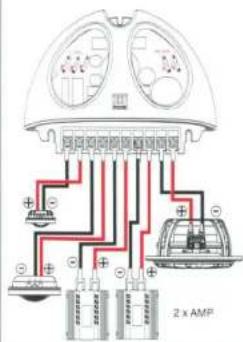

Bi Amp connection\No bridge jumpers

MX 380 3-WAY CROSSOVER WIRING OPTIONS

Standard wire connection\With bridged jumpers

Bi Wire connection\No bridged jumpers

Bi Amp connection\No bridge jumpers

MXT280 CROSSOVER ALIGNMENT SYSTEMS

MXT380 CROSSOVER ALIGNMENT SYSTEMS

SPECIFICATIONS

WOOFERS	ELATE Ti MW5	ELATE Ti MW6	ELATE Ti MW9
Nominal Impedance (ohm)	4	4	4
Power Handling Wrms	160	180	200
Max. Trans.Pwr Handling Wrms	1000	1000	1000
Sensitivity (2.83V/1M)	87dB	88dB	89 dB
Frequency Response Hz	40-5000	30-4000	25-3000
Resonant Freq. Fs Hz	58	54	45
Voice Coil Diameter mm (inch)	75 (3)	75(3)	75(3)
Voice Coil Height mm (inch)	14.50 (0.57)	14.50 (0.57)	14.50 (0.57)
Voice Coil Type/ Former	Titanium	Titanium	Titanium
Voice Coil Wire	HexatechTM aluminum	HexatechTM aluminum	HexatechTM aluminum
DC Resistance (ohm)	3.6	3.6	3.6
Voice Coil Induct. @1 kHz (mH)	0.615	0.615	0.615
Magnet System	Double magnet rear vented	Double magnet rear vented	Double magnet rear vented
HE-Magnetic Gap Height mm (inch)	5 (0.20)	5 (0.20)	5 (0.20)
B-Flux Density (T)	0.66	0.75	0.74
BL Product/BXL	5.15	5.15	5.15
Max. Linear Ex./Xmax mm (inch)	±4.75mm (0.18)	±4.75mm (0.18)	±4.75mm (0.18)
Suspension Compliance CMS - mm/N	0.33	0.33	0.33
Electrical Q Factor QES	1.05	1.05	1.6
QTS	0.9	0.9	1.2
QMS	8	6.3	6
Mech.Resistance RMS - N·S/M	1.1	1.2	1.7
Moving Mass MMS - gr/ ounce	18 (0.63)	20 (0.70)	30 (1.05)
Equiv. Can Air Load VAS - L (cu.ft')	3 (0.1)	7.00 (0.24)	26.00 (0.91)
Effective Piston Area SD sq.cm (sq. inch)	90 (13.95)	119 (18.45)	219 (33.95)
Cone Type	One-piece formed	One-piece formed	One-piece formed
Cone Material	DPC	DPC	DPC
Unit Diameter mm (inch)	135 (5.25)	165 (6.50)	222 (8.75)
Mounting Depth mm (inch)	60 (2.36)	61 (2.40)	71 (2.80)
Mounting Cutout mm (inch)	120 (4.72)	141 (5.55)	192 (7.56)
Net Weight Kg (lb)	1.05 (2.31)	1.18 (2.60)	1.42 (3.13)

CROSSOVERS	MXT280	MXT380
Crossover Point	W: 2500Hz/12dB	W: 450Hz/12dB
	T: 2500Hz /12dB	M: 450Hz/6dB
		4300Hz/12dB
		T: 4300Hz/ 12dB
Crossover Controls	Tweeter+/- 2dB	Tweeter+/-2dB
		Mid+/-2dB
Wiring Options	Bi wire / Bi amp	Bi wire / Bi amp

MIDS & TWEETERS	CDM880	MT350
Nominal Impedance (ohm)	6	6
Power Handling (Wrms)	100	130
Max Transient Power Handling W (10ms)	300	350
Sensitivity (2.83V/1M) dB	88	90
Frequency Response Hz	300-6000	1400-25000
FS Hz	400	1000
Voice Coil Diameter mm (inch)	54 (2.125)	28 (1.125)
Voice Coil Former	Aluminum	Aluminum
Voice Coil Wire	HexatechTM aluminum	HexatechTM aluminum
DC Resistance ohm	5.1	5.2
Magnet System	Neodymium Rear Vented	Neodymium Rear Vented
Dome Type	AcuflexTM hand coated soft dome	AcuflexTM hand coated soft dome
Dome Material	Silk	Silk
Unit Diameter mm (inch)	88.00 (3.50)	43.00 (1.69)
Mounting Depth mm (inch)	21.00 (0.83)	13.00 (0.51)
Mounting Cutout mm (inch)	75.50 (2.97)	46.00 (1.81)
Net Weight Kg(lb)	0.22 (0.48)	0.07 (0.15)

Active Configuration

Setting up the Elate Titanium system system using an external electronic crossover network may vary on the processor itself, the car cabin acoustic attributes, and mounting location of the drive units. Choosing proper crossover points and slopes can greatly effect the system performance.

The following guidelines should be used to assure each drive unit in the system performs to the highest level. The Optimal Crossover Points/Slope guide should be used for most vehicle applications. Advanced users may refer to the Recommended Crossover Range/Minimum Slope guide for fine system fine tuning.

Optimal Crossover Points/Slope

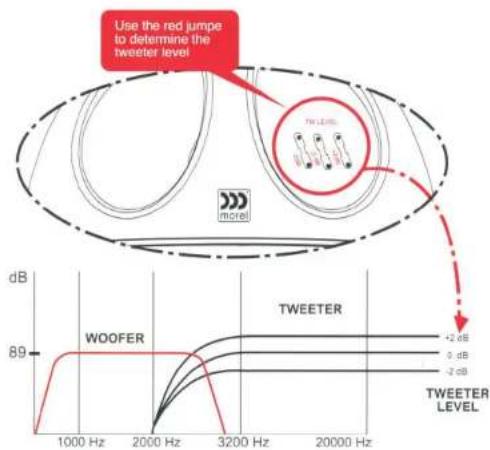

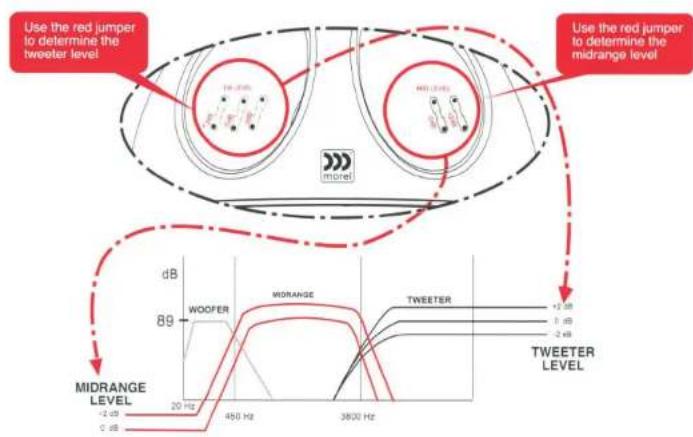

Tweeter highpass: 3300Hz/12dB

Midrange lowpass: 3300Hz/12dB

Midrange highpass: 450Hz/12dB

Woofer lowpass: 450Hz/12dB

"Woofer highpass: 60Hz/12dB

Recommended Crossover Range/Minimum

Slope

Tweeter highpass: 1800Hz-4000Hz/12dB

Midrange lowpass: 1800Hz-4000Hz/6dB

Midrange highpass: 300Hz-750Hz/12dB

Wooter lowpass: 350Hz-750Hz/6dB

*Woofer highpass: 40Hz-80Hz/12dB

Optimal Crossover Points/Slope

Tweeter highpass: 2000Hz/12dB

Wooler lowpass: 1800Hz/12dB

"Woofer highpass: 60Hz/12dB

Recommended Crossover Range/Minimum Slope

Tweeter highpass: 1800Hz-3000Hz/12dB

Woofer lowpass: 1800Hz-3000Hz/6dB

"Woofer highpass: 40Hz-80Hz/12dB

*When used with an active subwoofer system.

www.morelhifi.com

Verifying your Genuine Morel Product In light of counterfeit products that have appeared in some markets, Morel enables you to verify the authenticity of your purchase.

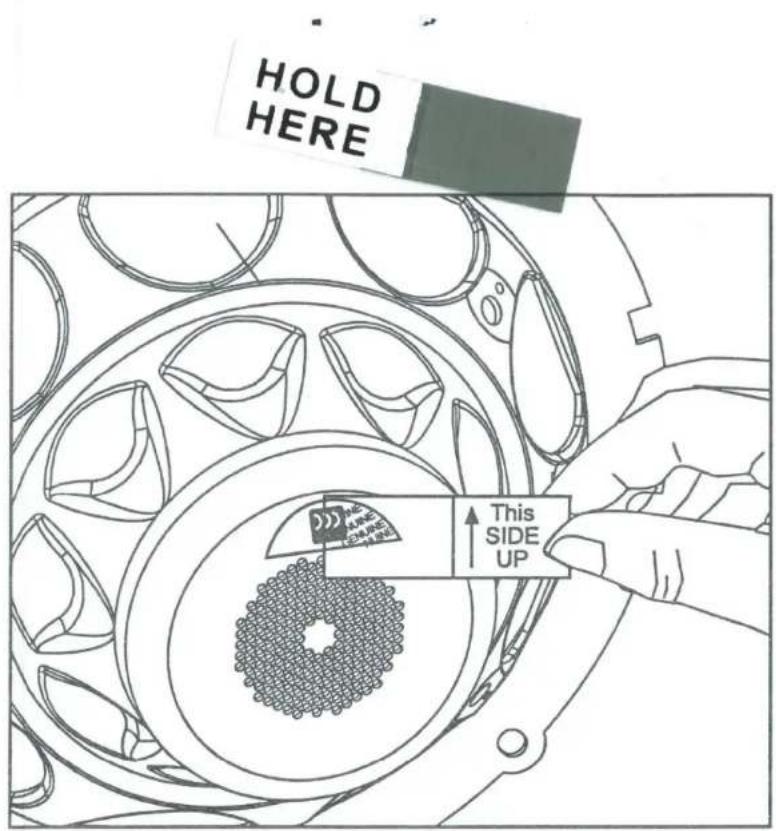

1. Remove the verification slip from the nylon bag that contains your Installation Guide.
2. Place it over the verification sticker found on the bottom of each Genuine Morel product.
3. The word "Genuine" should become visible.
4. If not, we recommend that you return the product to your point of purchase.

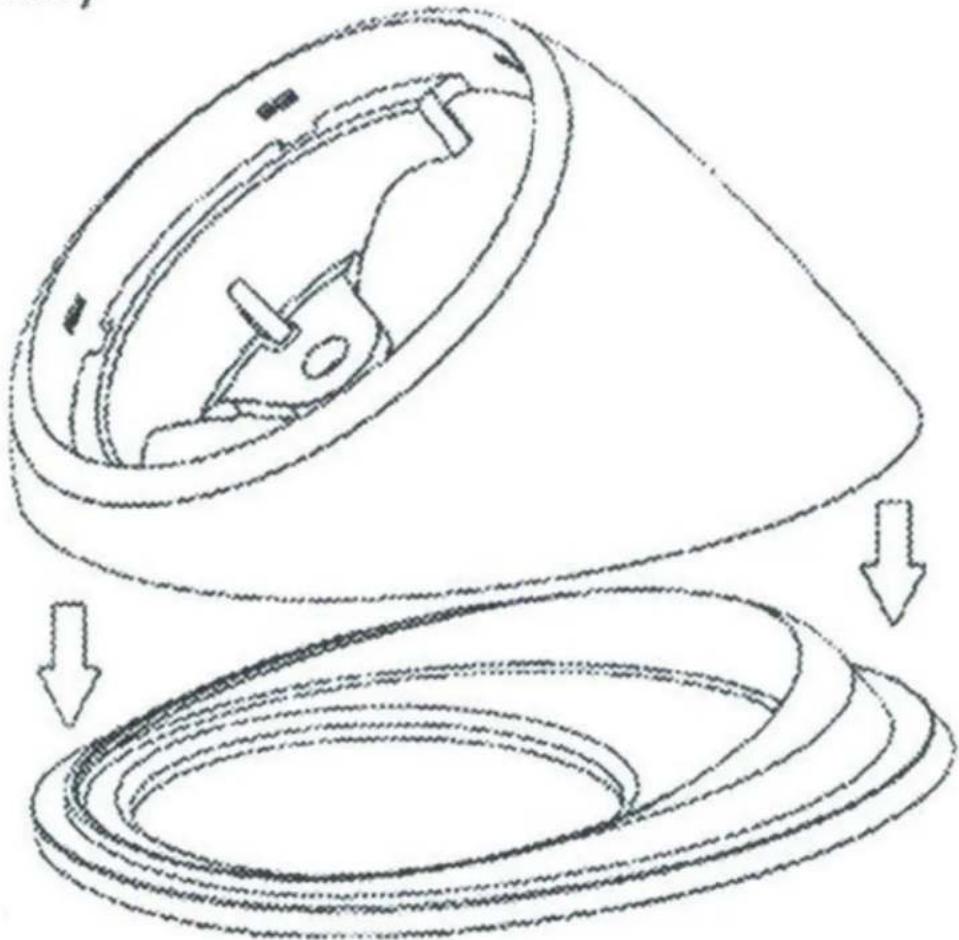

Place plastic housing on rubber base before assembly

Plastic Housing

Rubber Base

Diagram showing a mechanical component inside a circular housing and then moving through concentric rings, with arrows indicating motion direction (no text or symbols)
