Type de produit	Wireless Speaker
Marque	Morel
Modèle	Hybrid MW4
Dimensions	200 x 120 x 150 mm
Poids	1.2 kg
Puissance	20W RMS
Batterie	Rechargeable lithium-ion, 2200mAh
Connectivité	Bluetooth 5.0
Réponse en fréquence	60 Hz - 20 kHz
Haut-parleurs	1 x 4" woofer, 1 x 1" tweeter
Charge	USB-C (5V/2A)
Autonomie	Up to 10 hours at moderate volume
Résistance à l'eau	IPX5 (splashproof)
Fonctions principales	Play/Pause, Volume control, Track skip, Hands-free calling
Entretien	Wipe with a soft, dry cloth
Sécurité	Keep away from water; do not disassemble; use only supplied charger
Pièces détachées	Not available; sealed unit
Réparabilité	Not repairable by user; contact Morel support
Informations générales	Portable, rechargeable, compatible with smartphones and tablets

Frequently Asked Questions - Hybrid MW4 Morel

How do I pair the Morel Hybrid MW4 with my phone?

Press and hold the Bluetooth button until the LED flashes. On your phone, enable Bluetooth and select 'Morel Hybrid MW4' from the list. Once connected, the LED will stay solid.

How long does it take to charge the speaker?

Using a 5V/2A charger, it takes approximately 3 hours for a full charge. Use the included USB-C cable.

Can I use the speaker while it is charging?

Yes, you can use the speaker while charging, but it may charge more slowly. It is safe for both the speaker and the battery.

Is the Hybrid MW4 waterproof?

It is IPX5 rated, meaning it can withstand splashes of water but should not be submerged. Avoid using in heavy rain.

What is the battery life?

At moderate volume, the battery lasts up to 10 hours. Higher volumes will reduce battery life.

How do I reset the speaker?

To reset, press and hold the Power button and Bluetooth button simultaneously for 5 seconds. The speaker will turn off and reboot.

Can I connect two Hybrid MW4 speakers together?

This model does not support multi-speaker pairing. It is designed for standalone use only.

What Bluetooth codecs does it support?

It supports SBC and AAC codecs. For high-quality audio, ensure your source device supports AAC.

What is the warranty period?

Morel offers a 2-year warranty for manufacturing defects. Keep your purchase receipt for service.

How do I clean the speaker?

Use a soft, dry cloth to wipe the surface. Do not use any liquids or abrasive cleaners. Ensure the speaker is turned off.

USER MANUAL Hybrid MW4 Morel

Close-up of hands using a wooden rolling pin on a metal tray (no text or symbols visible)

Circular black speaker or component with flanged edges and central bore, no visible text or symbols

Circular black speaker component with mounting holes and central bore (no text or symbols visible)

Close-up of a black speaker cone with concentric rings and mounting holes (no visible text or symbols)

Woofers Installation Guide

ELATE TITANIUM MW 5/6/9 HYBRID MW 4/5/6 VIRTUS MW 4/5/6

WOOFER PACKAGE CONTENT

ELATE TITANIUM MW 5",6",9" WOOFER

X2

X2

X8(9"X16)

X2

X8 (9"X16)

HYBRID MW 4"/ VIRTUS MW 4" WOOFER

X2

X2

X6

X2

X8

X8

X8

HYBRID MW 5",6" WOOFER

X2

X2

X2

X8

X8

VIRTUS MW 5",6" WOOFER

X2

X2

X2

X8

X8

WOOFER MOUNTING OPTIONS

ELATE TITANIUM MW 5",6",9"

Technical line drawing of a mechanical component with concentric circular features and mounting holes (no text or symbols)

5":∅122 mm (4.80")
6":∅141 mm (5.55")
9":∅192 mm (7.56")

HYBRID MW 4" / VIRTUS MW 4"

Use the screw clips in any combination, with or without the plastic frame.

These clips can be used either way up down depending on installation requirements.

Use the non-screw clips to install in locations which do not require screws. Insert the clips in the small holes on the side of the loudspeaker according to your requirements.

Ø 95mm (3.74")

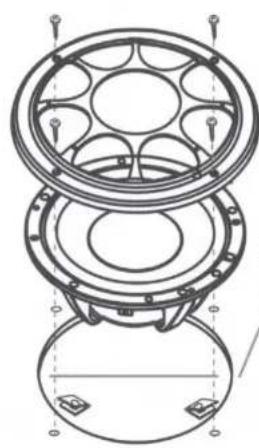

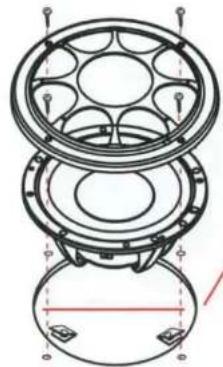

WOOFER MOUNTING OPTIONS

ELATE TITANIUM MW 5",6"/ HYBRID MW 5",6"

Technical line drawing of a multi-tiered speaker or fan assembly (no text or symbols)

5": ∅ 122mm (4.80")

6": ∅ 141mm (5.55")

VIRTUS MW 5",6"

SPECIFICATION

WOOFERS	ELATE TI MW5	ELATE TI MW6	ELATE TI MW9	HYBRID MW4	HYBRID MW5	HYBRID MW6	VIRTUS MW4	VIRTUS MW5	VIRTUS MW6
Nominal Impedance (Ohms)	4	4	4	4	4	4	4	4	4
Power Handling Wrms	160	180	200	100	120	140	100	120	140
Max. Trans.Pwr Handling Wrms	1000	1000	1000	300	500	600	300	300	300
Sensitivity (2.83V/1M)	87dB	88dB	89dB	89 dB	90dB	91 dB	87 dB	88 dB	88 dB
Frequency Response Hz	40-5000	30-4000	25-3000	50-4200	45-3000	35-3000	70-4500	65-4000	55-4000
Resonant Freq. Fs Hz	58	54	45	82	56	45	80	75	65
Voice Coil Diameter mm	75(3)	75(3)	75(3)	54 (2.1)	54 (2.1)	54 (2.1)	54 (2.1)	54 (2.1)	54 (2.1)
Voice Coil Height mm (inch)	14.50 (0.57)	14.50 (0.57)	14.50 (0.57)	10.50 (0.411	10.50 (0.411	11 (0.47')	8 (0.51)	12 (0.48)	12 (0.48)
Voice Coil Type/ Former	Titanium	Titanium	Titanium	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Voice Coil Wire	HexatechTMaluminum	HexatechTMaluminum	HexatechTMaluminum	HexatechTMaluminum	HexatechTMaluminum	HexatechTMaluminum	HexatechTMaluminum	HexatechTMaluminum	HexatechTMaluminum
DC Resistance (Ohms)	3.6	3.6	3.6	3.2	3	3	3	3.5	3.5
Voice Coil Induct. @1 kHz (MH)	0.615	0.615	0.615	0.21	0.21	0.22	0.23	0.32	0.33
Magnet System	Doublemagnet rear vented	Doublemagnet rear vented	Doublemagnet rear vented	Hybrid rearvented	Hybrid rearvented	Hybrid rearvented	Double ferriterear vented	Double ferriterear vented	Double ferriterear vented
HE-Magnetic Gap Height mm (inch)	5 (0.20)	5 (0.20)	5 (0.20)	4 (0.16)	4 (0.16)	4 (0.16)	4 (0.161)	4 (0.16)	4 (0.16)
B-Flux Density (T.M.)	0.66	0.75	0.74	0.83	0.83	0.83	0.48	0.65	0.65
BL Product/BXL	5.15	5.15	5.15	4.16	4.2	4.2	3.33	3.53	3.41
Max. Linear Ex./Xmax mm (inch)	±4.7(±0.18)	±4.7(±0 18)	±4.7(±0 18)	7 ±3.5(0.28 ± 0.14)	7 ±3.5(0.28 ± 0.14)	7±3.5(0.28±0.14)	4±2(0.16 ±0.08)	8±4(0.32±0.16)	8±4(0.32±0.16)
Suspension Compliance CMS - mm/N	0.33	0.33	0.33	0.57	0.78	1.1	0.73	0.49	0.57
Electrical Q Factor QES	0.81	0.96	1.1	0.63	0.59	0.56	0.76	1.22	1.3
QTS	0.9	0.70	0.80	0.46	0.45	0.44	0.55	0.85	0.9
QMS	4.3	4.5	4.6	1.74	1.8	2.08	2	2.82	2.88
Mech.Resistance RMS - Ohm/meter	3.68	3.63	3.63	1.98	1.96	1.5	1.42	1.54	1.49
Moving Mass MMS - gr/ ounce	14.0	17.0	26.6	6.8	9.9	11	5.96	9.31	10.67
Equiv. Can Air Load VAS - L (cu.ft)	3.50 (0.28)	7.00 (0.24)	26.00 (0.91)	3.17 (0.11)	8.87 (0.31)	21(0.74)	4.17 (0.15)	5.55 (0.195)	11.38 (0.45)
Effective Piston Area SD sq.cm (sq. inch)	90 (13.95)	119 (18.45)	219 (33.95)	64 (9.92)	90 (13.95)	119 (18.45)	64 (9.92)	90 (13.95)	119 (18.45)
Cone Type	One-pieceformed	One-pieceformed	One-pieceformed	One-pieceformed	One-pieceformed	One-pieceformed	FormedPaper	FormedPaper	FormedPaper
Cone Material	DPC	DPC	DPC	DPC	DPC	DPC	Compositecellular fiber	Compositecellular fiber	Compositecellular fiber
Unit Diameter mm (inch)	135 (5.25)	165 (6.50)	222 (8.75)	104 (4)	135 (5.25)	165 (6.50)	104 (4.0)	135 (5.25)	165 (6.50)
Mounting Depth mm (inch)	60 (2.36)	61 (2.40)	71 (2.80)	50 (21)	60 (2.36)	61 (2.40)	50 (2.1)	56.5 (2.22)	61 (2.36)
Mounting Cutout mm (inch)	120 (4.72)	141 (5.55)	192 (7.56)	95 (3.74)	120 (4.72)	141 (5.55)	95 (3.74)	120 (4.72)	141 (5.55)
Net Weight Kg (lb)	1.05 (2.31)	1.18 (2.60)	1.42 (3.13)	0.53 (1.1716)	0.60 (1.32)	0.60 (1.32)	0.54 (1.92)	0.67 (1.21)	0.739 (1.61)

* Morel operates a policy of continuous products design improvement, consequently specifications are subject to alteration without prior notice.

www.morelhifi.com

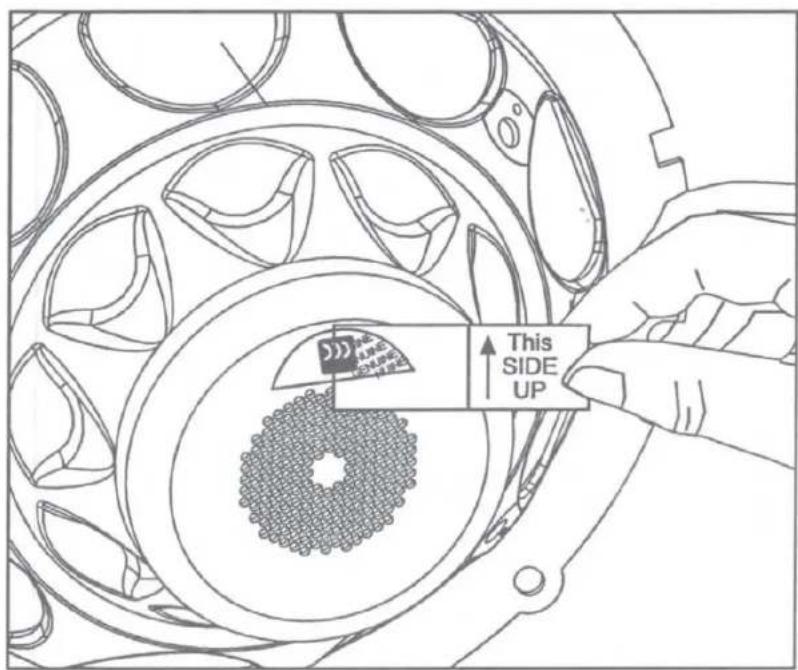

Verifying your Genuine Morel Product In light of counterfeit products that have appeared in some markets, Morel enables you to verify the authenticity of your purchase.

1. Remove the verification slip from the nylon bag that contains your Installation Guide.
2. Place it over the verification sticker found on the bottom of each Genuine Morel product.
3. The word "Genuine" should become visible.
4. If not, we recommend that you return the product to your point of purchase.
