Product Type	Car Audio Woofer
Model	Hybrid MW5 (MW5MKII)
Brand	Morel
Nominal Impedance	4 Ohms
Power Handling (RMS)	120 W
Max Transient Power Handling	500 W
Sensitivity	90 dB (2.83V/1m)
Frequency Response	45 - 3000 Hz
Resonant Frequency (Fs)	56 Hz
Voice Coil Diameter	54 mm (2.1 in)
Voice Coil Material	Hexatech™ Aluminum
Magnet System	Hybrid Rear Vented
Max Linear Excursion (Xmax)	7 ± 3.5 mm
Cone Material	DPC (One-piece formed)
Unit Diameter	135 mm (5.25 in)
Mounting Depth	60 mm (2.36 in)
Mounting Cutout	120 mm (4.72 in)
Net Weight	0.60 kg (1.32 lb)
Woofer Type	Component Woofer
Recommended Crossover (2-way active)	HP: 2500 Hz @ 12/24 dB slope; LP: 2500 Hz @ 12/24 dB slope
Installation Accessories	Screw clips, plastic frame (optional)
Compatible Tweeter	MT300 (sold separately)
Compatible Midrange	CDM700 (sold separately)

Frequently Asked Questions - Hybrid MW5 Morel

What is the power handling of the Morel Hybrid MW5?

The Hybrid MW5 has an RMS power handling of 120 Watts and a maximum transient power handling of 500 Watts.

What is the recommended active crossover setting for a 2-way system?

For a 2-way active system, set the tweeter high-pass filter at 2500 Hz with a slope of 12 dB or 24 dB, and the woofer low-pass filter at the same frequency and slope.

How should I mount the Hybrid MW5 woofer?

The woofer can be mounted using the included screw clips, with or without the plastic frame. The clips can be oriented up or down depending on installation requirements.

What is the mounting depth of the Hybrid MW5?

The mounting depth is 60 mm (2.36 inches). Ensure your installation location accommodates this depth.

What is the frequency response range of the Hybrid MW5?

The frequency response is 45 Hz to 3000 Hz, making it suitable for midbass and lower midrange reproduction.

Can I use the Hybrid MW5 in a 3-way system?

Yes, the Hybrid MW5 can be used as the woofer in a 3-way system. Recommended crossover: midrange high-pass at 500 Hz (12 dB slope) and woofer low-pass at 500 Hz (12 dB slope).

What is the nominal impedance of the Hybrid MW5?

The nominal impedance is 4 Ohms. This is standard for most car audio amplifiers.

What type of cone material is used in the Hybrid MW5?

The cone is made of DPC (One-piece formed) material for rigidity and low distortion.

How do I clean the Hybrid MW5 woofer?

Gently wipe the cone and surround with a soft, dry cloth. Avoid moisture, solvents, or abrasive cleaners. Keep the speaker away from dust and extreme temperatures.

Is the Hybrid MW5 compatible with the MXR240.4 crossover?

Yes, the MXR240.4 crossover is designed for Morel Hybrid systems. It provides crossover points at 2200 Hz (18 dB slope) for the woofer and 2200 Hz (12 dB slope) for the tweeter.

USER MANUAL Hybrid MW5 Morel

Hybrid

Installation Guide

Hybrid

42, 52, 53, 62, 63

Hybrid Integra

42, 52, 62

Components

MW4MKII, MW5MKII,

MW6MKII, MT300,

CDM700, MXR240.4,

MXR250.4i, MXR300.4

Dear Customer,

Thank you for choosing Morel for your car audio speaker solution.

Morel prides itself on engineering and producing the best high-fidelity speaker systems.

We hope you enjoy your Hybrid speakers for years to come.

If you have any questions, please contact your Morel dealer or Morel support at www.morelhifi.com

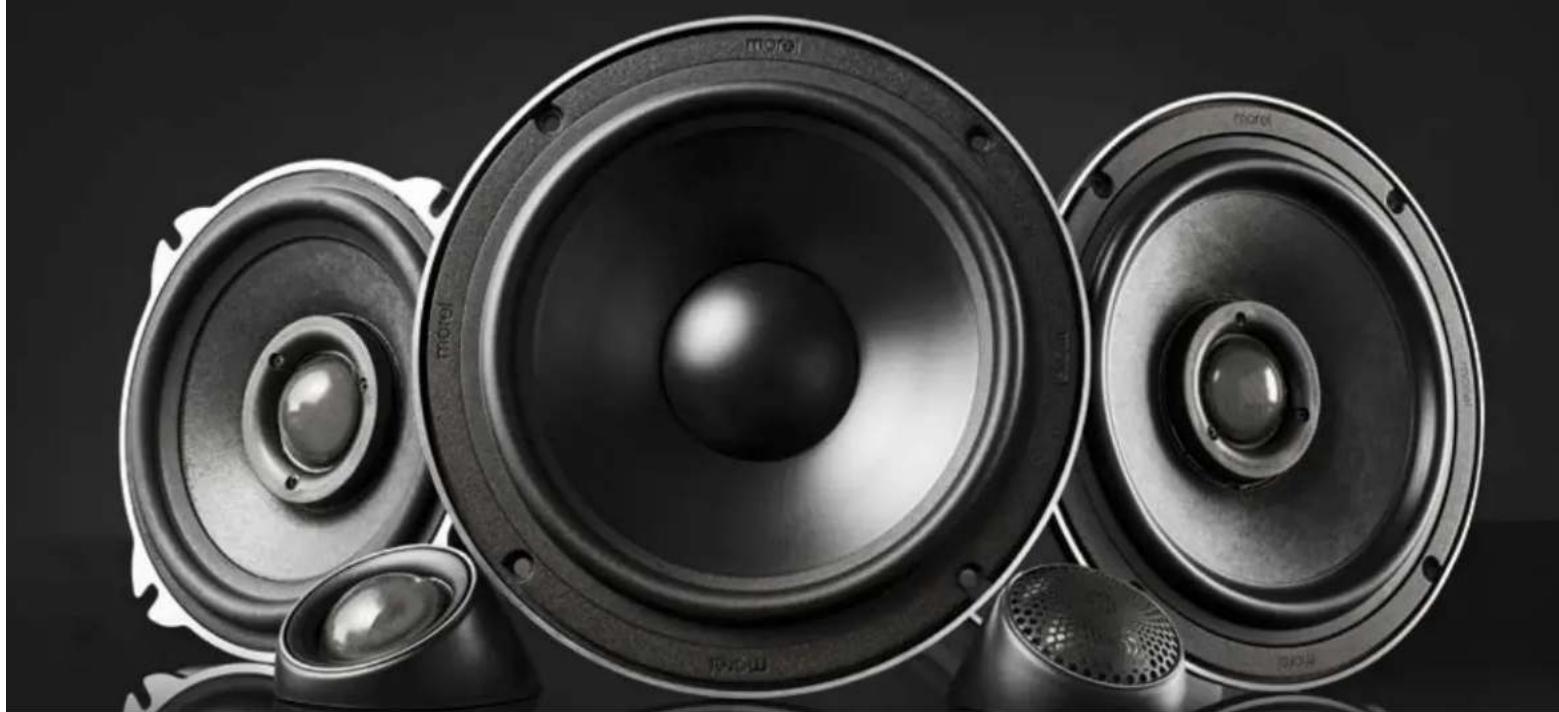

Black-and-white photo of multiple audio speakers with visible sound waves and speaker heads (no text or symbols)

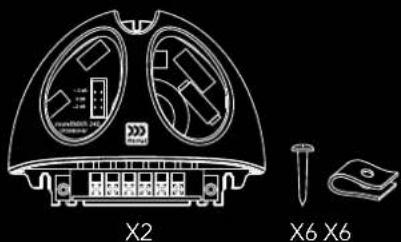

Hybrid Components

Hybrid 4", 5.25", 6.5" Woofer

X8 X8

X8

Hybrid 4", 5.25", 6.5" Integra

X8 X8

MT300 Tweeter

CDM700 Midrange

MXR240.4/250.4i/300.4

Hybrid Woofer/Integra, Tweeter, Crossover mounting

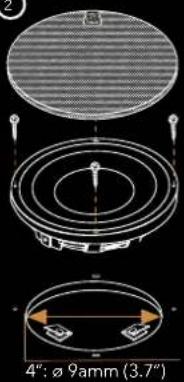

Unit 4"

Use the screw clips in any combination, with or without plastic frame. These clips can be used either way up or down depending on the installation requirement.

Pure technical diagram of pipe connection with arrows indicating direction (no text or symbols)

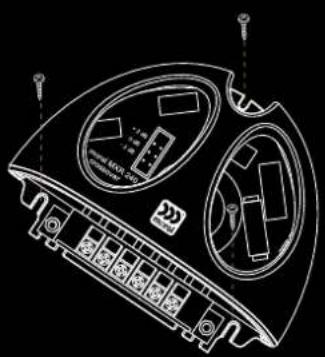

Crossover mounting

MT300 Tweeter

2

Flush Mount

Technical line drawing of a car dashboard with control panels and buttons (no text or symbols)

3

1
Surface Mount

2

3

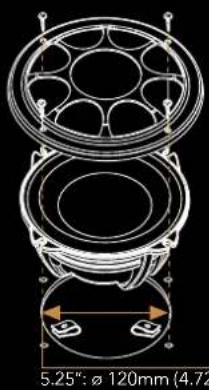

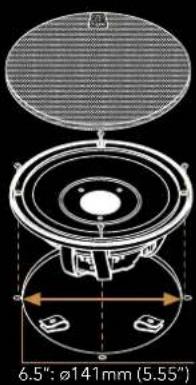

Unit 5.25", 6.5"

CDM700 Midrange

Use the screw clips in any combination, with or without the plastic frame. These clips can be used either way up or down depending on installation requirements.

3.5":ø75.5mm(2.97")

2-WAY System

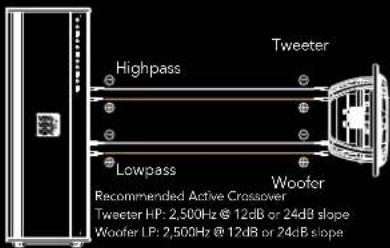

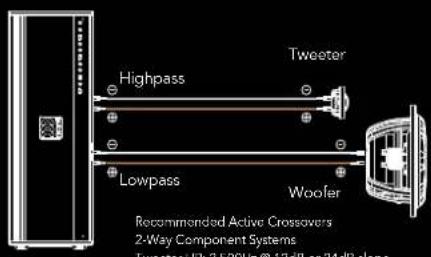

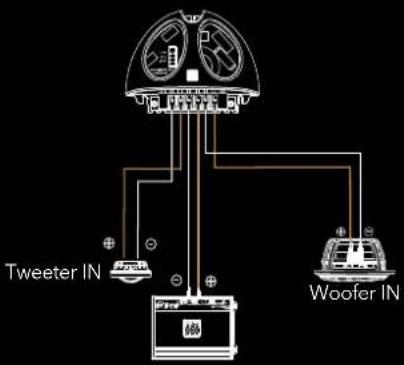

2-WAY System Wiring

ACTIVE SET UP

Recommended Active Crossovers
2-Way Component Systems
Tweeter HP: 2,500Hz @ 12dB or 24dB slope
Woofer LP: 2,500Hz @ 12dB or 24dB slope

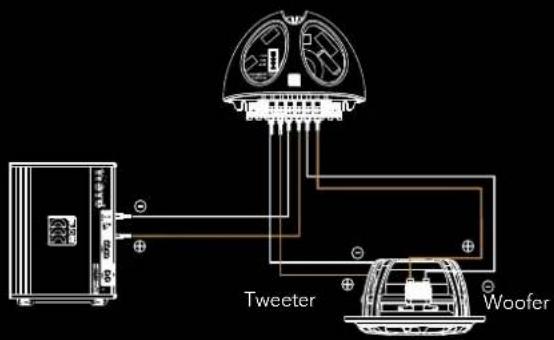

PASSIVE SET UP

2-WAY System Alignment

3-WAY System

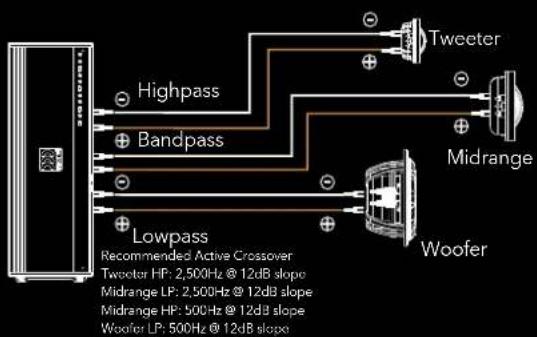

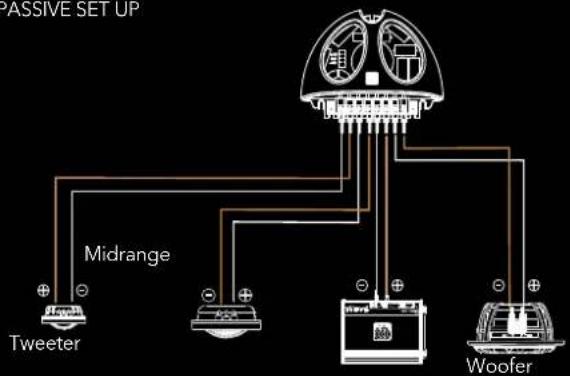

3-WAY System Wiring 3-WAY System Alignment

ACTIVE SET UP (Outputs must be filtered)

PASSIVE SET UP

Integra System

Hybrid Integra System Wiring

ACTIVE SET UP

PASSIVE SET UP

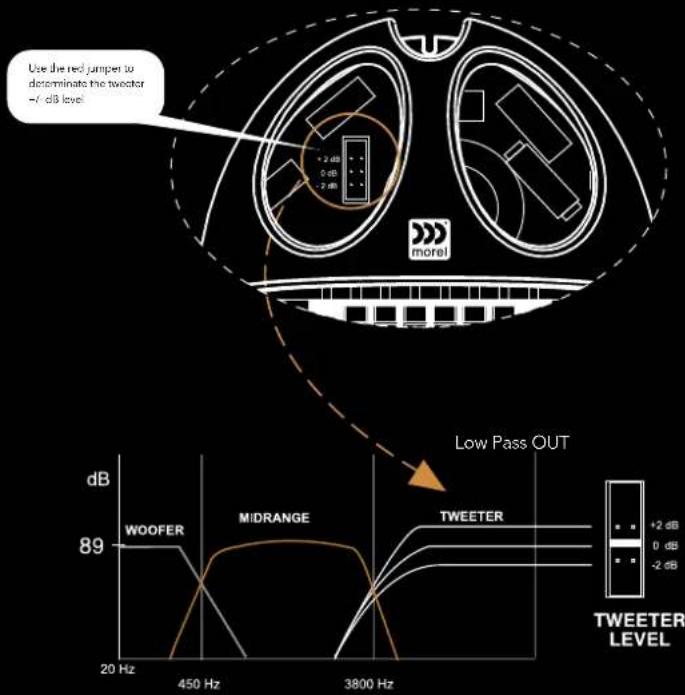

Hybrid Integra System Alignment

Specifications

DRIVER UNIT HYBRID MW4MKII HYBRID MW5MKII HYBRID MW6MKII HYBRID INTEGRA 42 HYBRID INTEGRA 52 HYBRID INTEGRA 62

Nominal Impedance (Ohms)	4	4	4	4	4	4
Power Handling Wims	100	120	140	80	90	100
Max. Trans.Pwr Handling Wims	300	500	600	250	250	300
Sensitivity (2.83V/1M)	89 dB	90dB	91 dB	89dB	90dB	91dB
Frequency Response Hz	50-4200	45-3000	35-3000	80-5000	70-3800	65-3300
Resonant Freq. Fs Hz	82	56	45	92	82	75
Voice Coil Diameter mm (inch)	54 (2.1)	54 (2.1)	54 (2.1)	54 (2.10)	54 (2.1)	54 (2.1)
Voice Coil Height mm (inch)	10.50 (0.41)	10.50 (0.41)	11 (0.47)	-	-	12
Voice Coil Type/ Former	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Voice Coil Wire	HexatechTM aluminum	HexatechTM aluminum	HexatechTM aluminum	HexatechTM aluminum	HexatechTM aluminum	HexatechTM aluminum
DC Resistance (Ohms)	3.2	3	3	3	3.3	3.3
Voice Coil Induct. @1 kHz (MHz)	0.21	0.21	0.22	0.17	0.26	0.31
Magnet System	Hybrid rear vented	Hybrid rear vented	Hybrid rear vented	Neodymium	Neodymium	Neodymium
HE-Magnetic Gap Height mm (inch)	4 (0.16)	4 (0.16)	4 (0.16)	4 (0.16)	5 (0.20)	5 (0.20)
B-Flux Density (T.M.)	0.83	0.83	0.83	0.9	0.9	0.85
BL Product/BXL	4.16	4.2	4.2	3.97	5.16	4.65
Max. Linear Ex./Xmax mm (inch)	7±3.5 (0.28±0.14)	7±3.5 (0.28 ± 0.14)	7±3.5 (0.28±0.14)	4±2 (0.16±0.08)	5.50±2.75 (0.22±0.11)	7±3.5 (0.28±0.14)
Suspension Compliance CMS - mm/N	0.57	0.78	1.1	0.66	0.6	0.42
Electrical Q Factor QES	0.63	0.59	0.56	0.45	0.39	0.67
QTS	0.46	0.45	0.44	0.36	0.32	0.54
QMS	1.74	1.8	2.08	1.72	1.85	2.86
Mech Resistance RMS - Ohm/meter	1.98	1.96	1.5	1.44	1.7	1.52
Moving Mass MMS - gr/ ounce	6.8	9.9	11	4.4	6.11	8.12
Equiv. Can Air Load VAS - L (cu.ft)	3.17 (0.11)	8.87 (0.31)	21 (0.74)	1.40 (0.04)	2.72 (0.37)	3.80 (0.13)
Effective Piston Area SD sq.cm (sq. inch)	64 (9.92)	90 (13.95)	119 (18.45)	39 (6.04)	57 (8.83)	80 (37.8)
Cone Type	One-piece formed	One-piece formed	One-piece formed	Formed Paper	Formed Paper	Formed Paper
Cone Material	DPC	DPC	DPC	Composite cellular fiber	Composite cellular fiber	Composite cell. fiber
Unit Diameter mm (inch)	109(4.3)	135 (5.25)	165 (6.50)	109(4.3)	135 (5.25)	165 (6.5)
Mounting Depth mm (inch)	28.5 (112)	60 (2.36)	61 (2.40)	30 (1.2)	60 (2.36)	61 (2.40)
Mounting Cutout mm (inch)	93 (3.6)	120 (4.72)	141 (5.55)	93 (3.6)	120 (4.72)	141 (5.55)
Net Weight Kg (lb)	0.53 (1.1716)	0.60 (1.32)	0.60 (1.32)	0.50 (1.10)	0.60 (1.32)	0.75 (1.65)

TWEETER / MIDRANGE MT300 CDM700 CROSSOVERMIXBR80.4

Nominal Impedance (Ohm)	6	4	8
Power Handling (WRms)	130	90	100
Max Transient Power Handling W (10ms)	350	180	300
Sensitivity (2-83V/1M) dB	93	90.5	90
Frequency Response Hz	1600-25000	1800-20000	600-6000
FS Hz	1200	1000	480
Voice Coil Diameter mm (inch)	28 (1.125)	25 (1)	54 (2.125)
Voice Coil Former	Aluminum	Copper	Aluminum
Voice Coil Wire	HexatechTM Aluminium	Neodymium	HexatechTM Aluminium
DC Resistance Ohm	5.2		3.5
Magnet System	Double Magnet Neodymium		Neodymium Rear Vented
Dome Type	AcuflexTM Hand Coated Soft Dome		Coated Soft Dome
Dome Material	Silk		Silk
Unit Diameter mm (inch)	43.00 (1.69)		88.00 (3.50)
Mounting Depth mm (inch)	13.20 (0.52)		21.00 (0.83)
Mounting Cutout mm (inch)	47.00 (2.00)		75.50 (2.97)
Net Weight Kg(lb)	0.067 (0.134)		0.25 (0.55)

MXR240.4 MXR250.4i

Crossover Point	W: 2200Hz / 18dB	2200Hz / 12dB	W: 500Hz / 12dB
	T: 2200Hz / 12dB		M: 18dB/ 2200Hz/ 12dB
			T: 2200Hz / 12dB

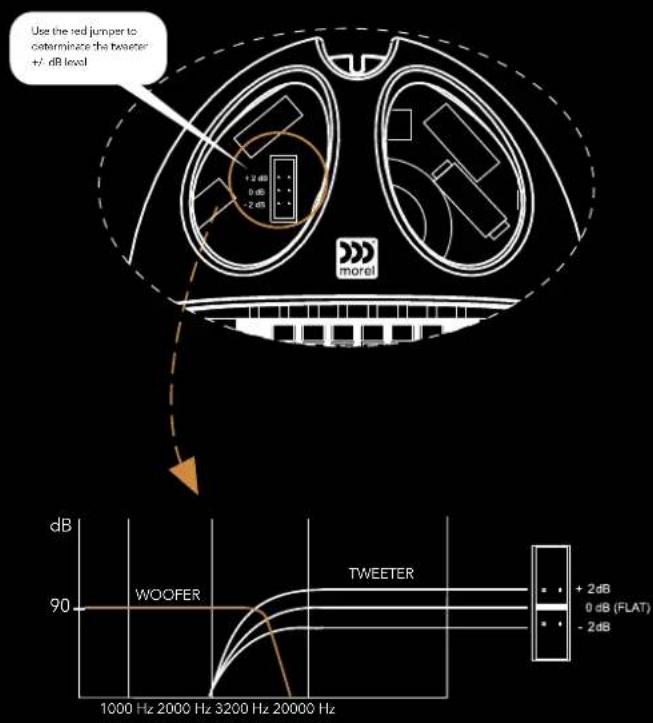

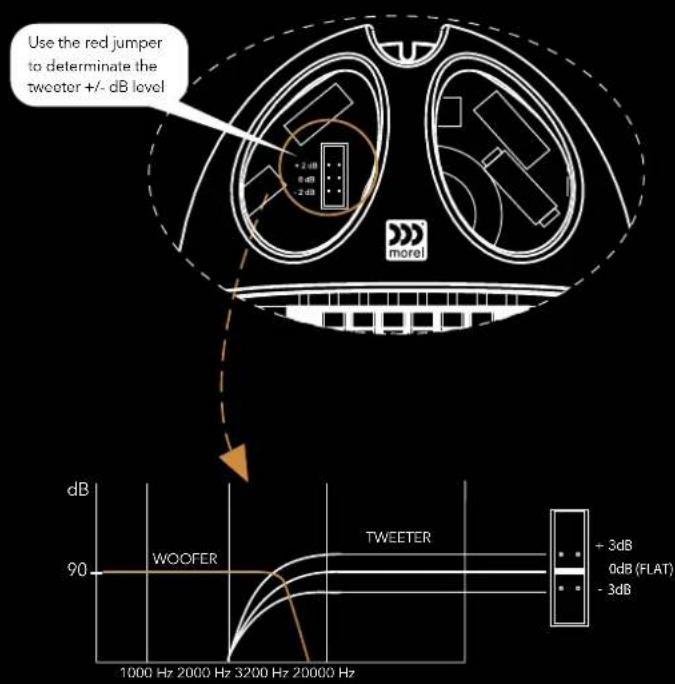

Crossover Controls	Tweeter+/- 3dB	Tweeter+/- 2dB	Tweeter+/- 2dB
Wiring Options	N/A	N/A	N/A

* Morel operates a policy of continuous product design improvement, consequently specifications are subject to alteration without prior notice.

Morel, Ness Ziona, 70400 Israel.

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

Morel America, Chandler, AZ, USA

Toll free number:1-877-667-3511

Fax: [phone]

E-mail: [e-mail]

www.morelhifi.com
