Product Type	Car Audio Coaxial Speaker
Model	Maximo Coax 6
Brand	Morel
Speaker Size	6.5 inches (165 mm)
Power Handling (RMS)	80 Watts
Peak Power Handling	240 Watts
Impedance	4 ohms
Sensitivity	91 dB (2.83V/1m)
Frequency Response	45 Hz - 22 kHz
Woofer Cone Material	Coated Paper
Tweeter Type	Soft Dome
Crossover	Integrated
Mounting Depth	2.17 inches (55 mm)
Overall Diameter	6.73 inches (171 mm)
Weight (per speaker)	0.6 kg (1.3 lbs)
Primary Functions	High-fidelity sound reproduction with coaxial design for easy installation
Cleaning Instructions	Wipe gently with a soft, dry cloth
Safety Precautions	Use with compatible amplifier; avoid prolonged distortion
Spare Parts & Repairability	Not user-serviceable; contact Morel for service
Warranty	Refer to product documentation for warranty terms

Frequently Asked Questions - Maximo Coax 6 Morel

What is the recommended amplifier power for the Morel Maximo Coax 6?

A good match is an amplifier delivering between 40 and 120 Watts RMS per channel at 4 ohms. The speakers handle 80W RMS comfortably.

Can I install these speakers in my car door?

Yes, the Maximo Coax 6 is designed as a direct replacement for most 6.5-inch factory speakers. Ensure mounting depth does not exceed 55 mm.

What tools do I need for installation?

Basic tools include: screwdriver, wire strippers, crimp connectors, and possibly a drill if adapters are needed. Always disconnect the battery before starting.

Do the speakers come with grilles?

Typically, they are sold without grilles. Aftermarket grilles can be added if needed.

What is the difference between coaxial and component speakers?

Coaxial speakers have the tweeter mounted on the woofer for a single-unit installation. Component speakers separate woofer and tweeter for better staging but require more complex installation.

How do I clean the speakers?

Use a soft, dry microfiber cloth to wipe the cone and surround. Avoid liquids or harsh chemicals that could damage the materials.

Are the tweeters adjustable?

The tweeter is fixed in position but the integrated crossover is optimized for balanced sound. Some models may have a tweeter level control (not specified for this model).

What is the impedance of the Morel Maximo Coax 6?

The nominal impedance is 4 ohms, which is standard for most car audio amplifiers.

Can I use these speakers with a factory stereo?

Yes, if your factory stereo has enough power (typically 15-25W RMS). However, for better performance, an external amplifier is recommended.

What should I do if a speaker is damaged?

Speakers are not user-repairable. Contact Morel customer service or an authorized dealer for warranty or replacement options.

USER MANUAL Maximo Coax 6 Morel

4" / 5 ^1/4 " / 6 ^1/2 " / 6x9"

Installation Instructions

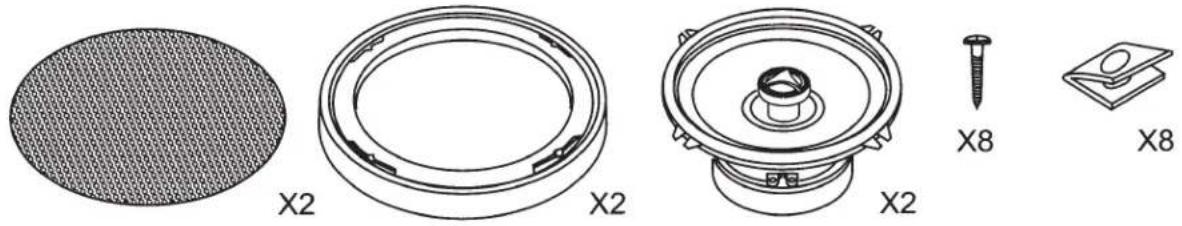

Content - 4" / 5 ^1 / 4 " / 6 ^1 / 2 "

Content - 6x9"

Simple line drawing of an oval-shaped object with two small dots at the center (no text or symbols)

X2

Line drawing of a speaker component with no text or symbols

X2

Solid black oval shape with a small white mark at the bottom center (no text or symbols)

X2

X8

X8

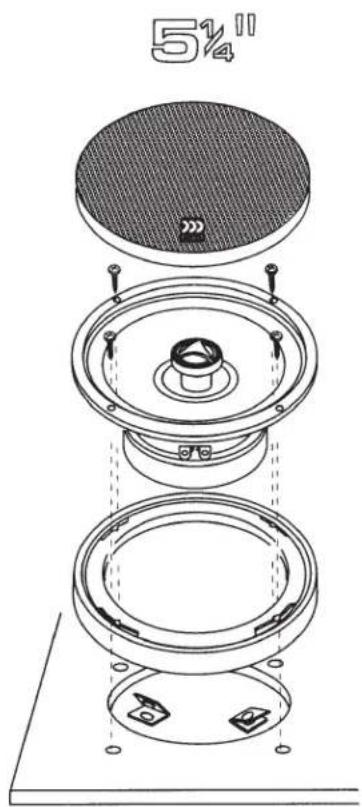

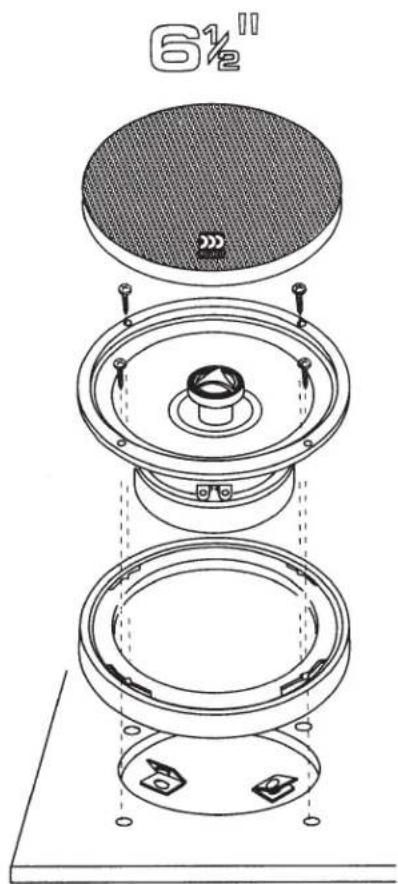

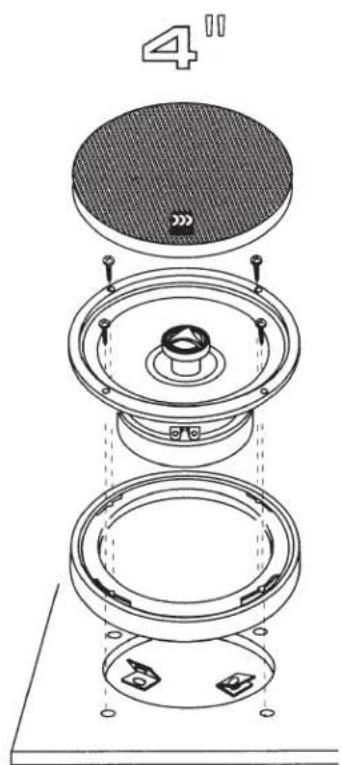

Woofer Mounting

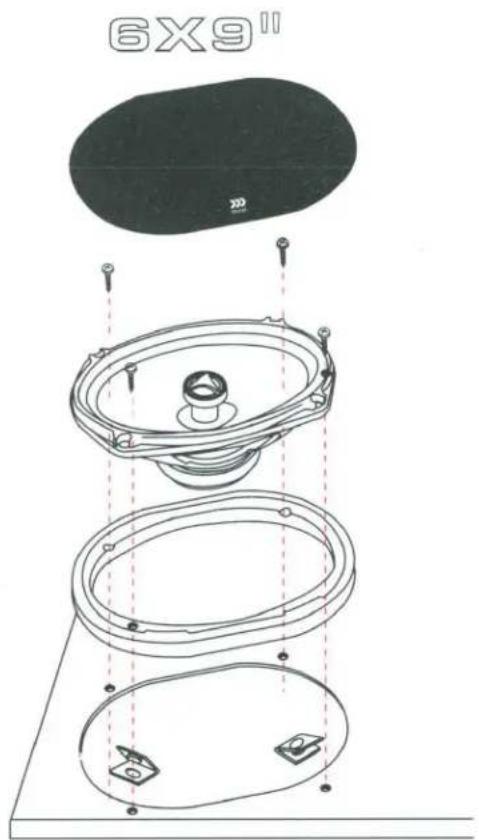

Woofer Mounting

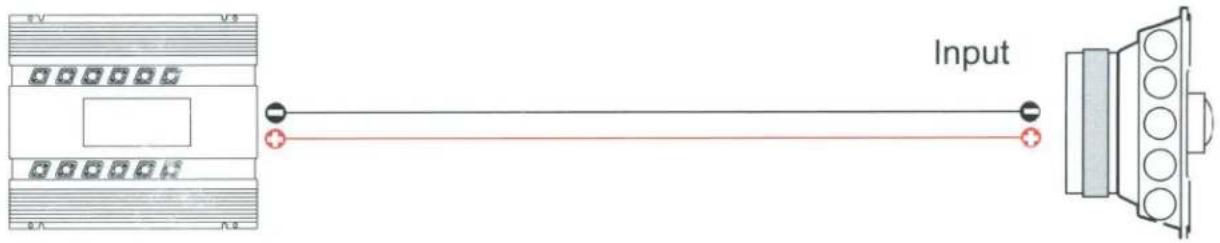

Connection Diagram

Amplifier/Head unit

Specifications

Nominal Impedance		4 ohm	4 ohm	4 ohm	4 ohm
Power Handling		45W	70W	80W	100W
Max. Transient Power Handling		100W	140W	160W	200W
Sensitivity (2.83V/1M)		87.5dB	89.5dB	91dB	90dB
Frequency Response		75-20,000 Hz	55-20,000 Hz	55-20,000 Hz	45-20,000 Hz
Voice Coil Diameter	Woofer:	25mm(1")	25mm(1")	25mm(1")	25mm(1")
	Tweeter:	19mm(0.8")	19mm(0.8")	19mm(0.8")	19mm(0.8")
Voice Coil Wire		Copper	Copper	Copper	Copper
Magnet System	Woofer:	High grade ferrite magnet	High grade ferrite magnet	High grade ferrite magnet	High grade ferrite magnet
	Tweeter:	Neodymium	Neodymium	Neodymium	Neodymium
Mounting Depth		52mm (2.1")	56mm (2.2")	63mm (2.5")	81mm (3.24")
