Product Type	Wired passive loudspeaker
Brand	Morel
Model	Supremo Piccolo
Dimensions (W x H x D)	180 x 280 x 220 mm
Weight	4.5 kg
Impedance	8 ohms
Frequency Response	50 Hz - 20 kHz
Sensitivity	87 dB
Power Handling (RMS)	100 W
Driver Configuration	1-inch soft dome tweeter, 5-inch paper cone woofer
Enclosure Type	Bass reflex with rear port
Input Connections	Binding posts (bi-wire compatible)
Recommended Amplifier Power	20 - 150 W per channel
Main Functions	High-fidelity stereo reproduction
Care and Cleaning	Wipe with a dry soft cloth. Do not use solvents.
Safety	Place on a stable surface. Avoid exposure to moisture.
Spare Parts and Repairability	Contact authorized service center for drivers and crossover.
General Information	Designed and engineered in Israel. Warranty: 2 years.

Frequently Asked Questions - Supremo Piccolo Morel

What amplifier power is recommended for the Morel Supremo Piccolo?

The recommended amplifier power is between 20 and 150 watts per channel for optimal performance.

Can I bi-wire the Supremo Piccolo speakers?

Yes, the binding posts are bi-wire compatible. Remove the jumper links to bi-wire.

What is the frequency response of these speakers?

The frequency response is 50 Hz to 20 kHz, providing a balanced sound across the audible spectrum.

How should I clean the speaker cabinets?

Wipe the cabinets with a dry, soft cloth. Do not use any chemical cleaners or abrasive materials.

Are these speakers suitable for surround sound setups?

Yes, the Supremo Piccolo can be used as front, rear, or surround speakers in a home theater system.

What is the impedance of the speaker?

The speaker has an impedance of 8 ohms, compatible with most amplifiers.

Do the speakers come with a warranty?

Yes, Morel provides a 2-year warranty against manufacturing defects.

Can I place the speakers on a bookshelf?

We recommend placing them on stable stands or shelves, ensuring at least 10 cm clearance behind the rear port for proper bass response.

What type of drivers are used in the Supremo Piccolo?

It features a 1-inch soft dome tweeter and a 5-inch paper cone woofer for detailed highs and warm mids.

How do I connect the speakers to my amplifier?

Use high-quality speaker cables with banana plugs or bare wire. Connect the red terminal to positive (+) and black to negative (-).

USER MANUAL Supremo Piccolo Morel

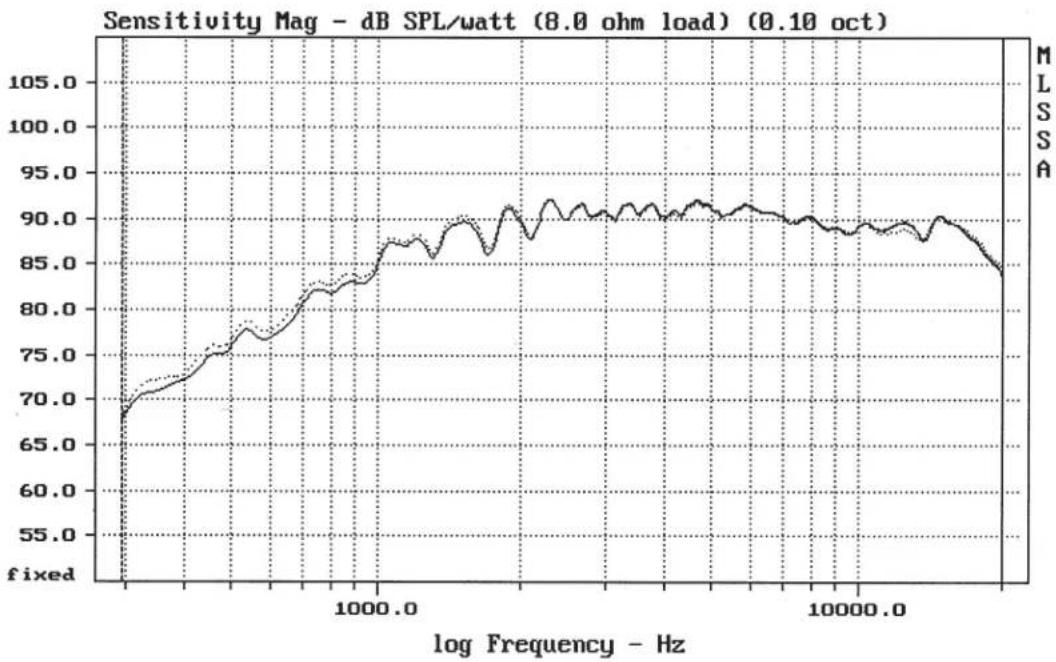

Mobile Wide Range Tweeter Matched Pair Measuring Document

CURSOR: dy = 0.440437 x = 20004.7347 (1352)

11-8-115 10:17 AM

MLSSA: Frequency Domain

Measured on a large size baffle board, Microphone: Bruel & Kjaer Model 4135.

Unit Serial Number:
Solid Line Measurement

16122

Doted Line Measurement

16123

Specification:

Overall Dimensions	∅67mm (2.63") x 34mm (1.33")	Voice Coil Former	Aluminum
Nominal Power Handling, Crossover at 2,200 HZ	P 200W/12dB Per Octave P100W/6dB Per Octave	Voice Coil Wire	Hexatech Aluminum
Transient Power - 10ms	1000W	Number Of Layers	2
Nominal Impedance - Z	6Ω	DC Resistance - RE	5.2 Ω
Sensitivity (2.38V/1M)	90dB	Voice Coil Inductance @1khz - LBM	0.09 mH
Frequency Response	1,400 - 25,000 Hz (Limit:300-50,000 Hz)	Magnet System Type	Neodymium Flat Pancake Design
Resonant Frequency - FS	790Hz ± 10%	Magnetic Gap Height -HE	4.2mm (0.16")
Voice Coil Diameter - ∅	28mm (11⁄8")	Cone / Dome Material	AcuflaxTM Coated Soft Dome
Voice Coil Height	2.7mm (0.106")	Net Weight - Kg.	0.212 Kg.

QC Signature:

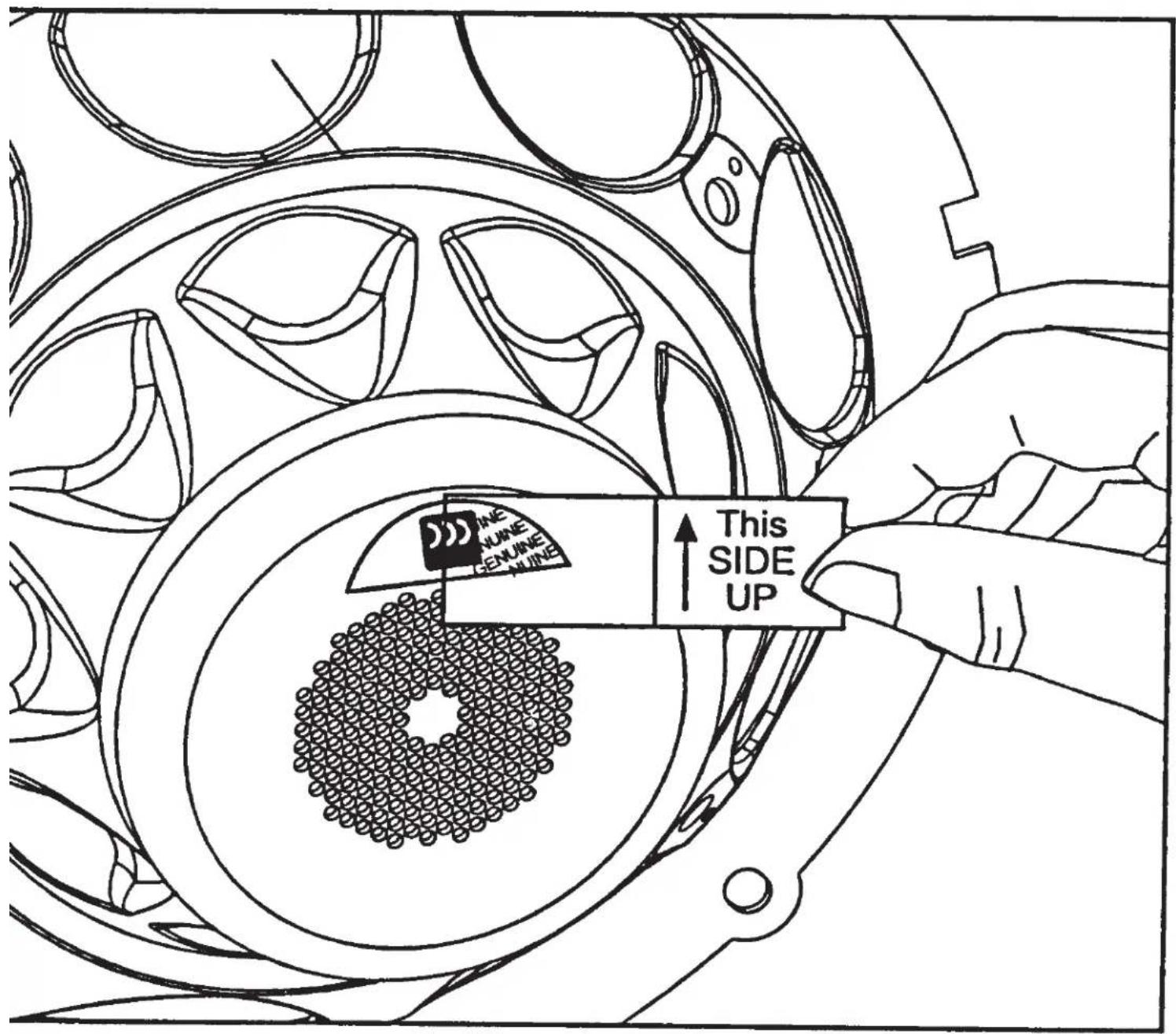

Verifying your Genuine Morel Product In light of counterfeit products that have appeared in some markets, Morel enables you to verify the authenticity of your purchase.

1. Remove the verification slip from the nylon bag that contains your Installation Guide.
2. Place it over the verification sticker found on the bottom of each Genuine Morel product.
3. The word "Genuine" should become visible.
4. If not, we recommend that you return the product to your point of purchase.

Thank you for choosing Morel speakers. This warranty card certifies (upon registration) that the product you have purchased is genuine. Please note that specific warranty terms are available through the local authorized retailer. To register the product, please logon to www.morelift.com/productregistration and follow the necessary steps. We wish you years of musical enjoyment.

PRODUCT SERIAL #

WARRANTY CARD #

M3DZ3-ERBI-FM62
