Product Type	3-Way Component Car Audio System
Model	Virtus Nano 603 Carbon
Brand	Morel
Woofer Size & Cone Material	6.5" (165 mm) Carbon Fiber + Foam Core
Midrange Size & Dome Material	3.5" (88 mm) Selected Soft Dome (Silk)
Tweeter Size & Dome Material	1.8" (45 mm) Acuflex Coated Dome (Silk)
Crossover Model	MXR300n (3-Way Passive)
Woofer Power Handling (RMS / Max Transient)	100 W / 300 W
Midrange Power Handling (RMS / Max Transient)	100 W / 300 W
Tweeter Power Handling (RMS / Max Transient)	80 W / 250 W
Sensitivity (2.83V/1m)	Woofer: 87 dB, Midrange: 90 dB, Tweeter: 90 dB
Nominal Impedance	Woofer: 4 Ω, Midrange: 8 Ω, Tweeter: 4 Ω
Frequency Response	50 Hz – 22 kHz
Woofer Mounting Depth / Cutout	17 mm / 137 mm
Midrange Mounting Depth / Cutout	21 mm / 75.5 mm
Tweeter Mounting Depth / Cutout	20 mm / 50 mm
System Net Weight (approx.)	0.76 kg (Woofer: 0.45 kg, Midrange: 0.25 kg, Tweeter: 0.06 kg)
Magnet System	Neodymium (Vented on Woofer and Midrange)
Voice Coil Technology	Hexatech™ Aluminum (Woofer and Midrange), Copper (Tweeter)
Crossover Controls	Tweeter Level Alignment (±2 dB)
Wiring Options	2-Way or 3-Way Passive; Active compatible with filtered outputs
Installation Options	Flush mount, surface mount, with or without plastic frame

Frequently Asked Questions - Virtus Nano 603 Carbon Morel

What is the power handling of the Morel Virtus Nano 603 Carbon system?

The RMS power handling is: woofer 100W, midrange 100W, tweeter 80W. Max transient power is 300W for woofer and midrange, 250W for tweeter.

Can I run the Virtus Nano 603 Carbon in a 2-way configuration?

Yes, the included MXR300n crossover can be wired for 2-way operation. Refer to the installation guide for wiring diagrams.

What are the mounting depth requirements for each driver?

Woofer: 17 mm, Midrange (CDM600): 21 mm, Tweeter (MT120N): 20 mm. Ensure your mounting location has sufficient clearance.

How do I wire the system for active setup?

Use a 2-channel amplifier with crossover filtered outputs at minimum 2,500 Hz. Connect tweeter to high-pass, woofer and midrange to band-pass (if applicable) or use separate channels.

Is the tweeter level adjustable?

Yes, the MXR300n crossover includes tweeter level alignment with ±2 dB adjustment.

How can I verify the authenticity of my Morel product?

Remove the verification slip from the nylon bag, place it over the sticker on the product bottom. The word 'Genuine' should become visible. If not, contact your point of purchase.

What amplifier power is recommended for this system?

Use an amplifier that delivers between 80-150W RMS per channel at 4 ohms for optimal performance and headroom.

What materials are the driver cones and domes made of?

Woofer: Carbon fiber + foam core (with paper backing). Midrange: Selected soft silk dome. Tweeter: Acuflex coated silk dome.

Can the CDM600 midrange be used as a standalone driver?

Yes, it can be used independently. It has a frequency response of 600-6000 Hz and a nominal impedance of 8 ohms.

What are the crossover frequencies for the 3-way passive setup?

Woofer to midrange: 500 Hz (12 dB/oct), midrange to tweeter: 2200 Hz (12 dB/oct). Refer to the MXR300n specifications.

USER MANUAL Virtus Nano 603 Carbon Morel

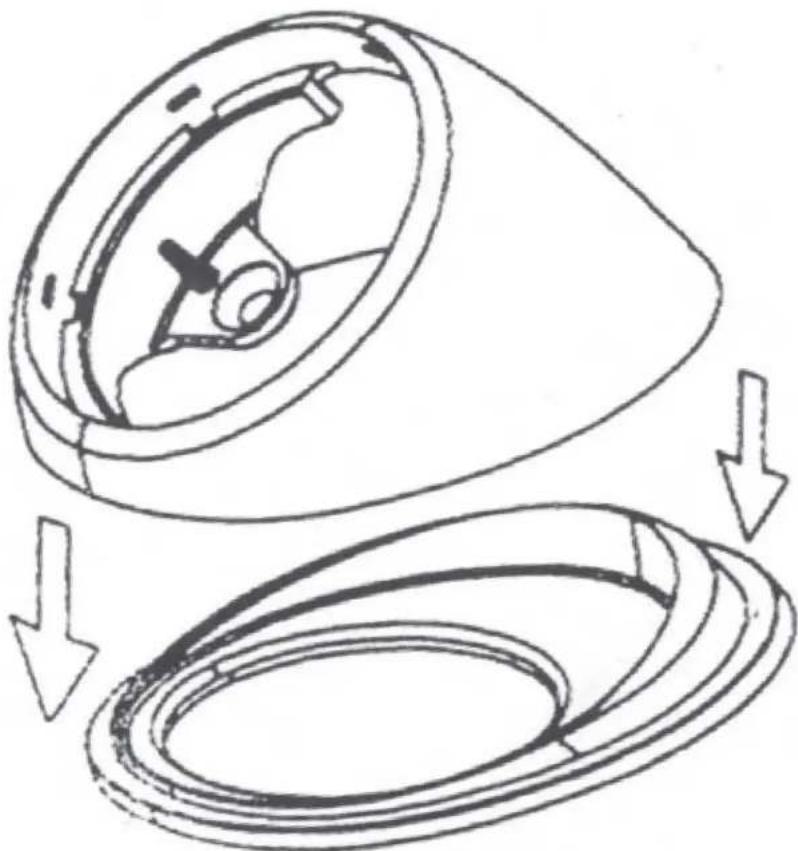

Place plastic housing on rubber base before assembly

Plastic housing

Rubber base

Diagram showing a mechanical component with internal structure and two circular components, illustrating assembly or disassembly (no text or symbols present)

Close-up of hands using a CD to work on a vinyl record (no visible text or symbols)

VIRTUSnano 602 / VIRTUSnano 603

VIRTUSnano 602 Carbon / VIRTUSnano 603 Carbon

2Way/3Way/Integra Slim Component System Installation Guide

VIRTUS PACKAGE CONTENT	WOOFER & CROSSOVER MOUNTING	TWEETER MOUNTING

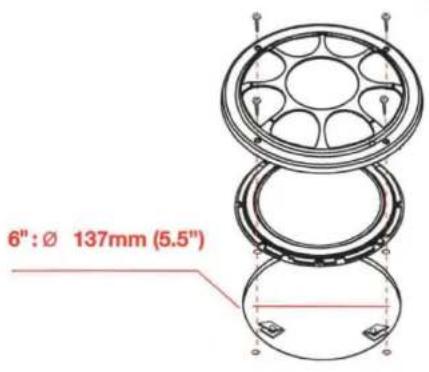

6" WOOFER	6" UNIT MOUNTING	FLUSH MOUNTING
MT120N TWEETER

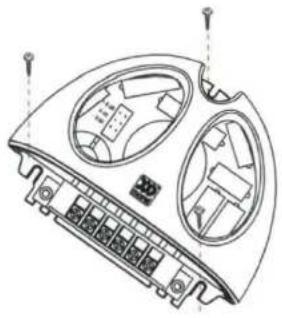

	CROSSOVER MOUNTING	SURFACE MOUNTING
2-WAY / 3-WAY CROSSOVER
CDM600 MIDRANGE (IN 3-WAY ONLY)

2-WAY CROSSOVER WIRING

PASSIVE SET UP

Amplifier OUT / Head Unit OUT

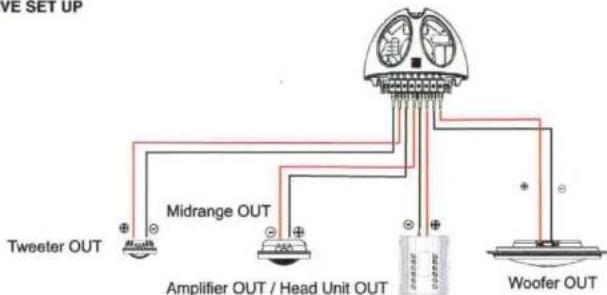

3-WAY CROSSOVER WIRING

PASSIVE SET UP

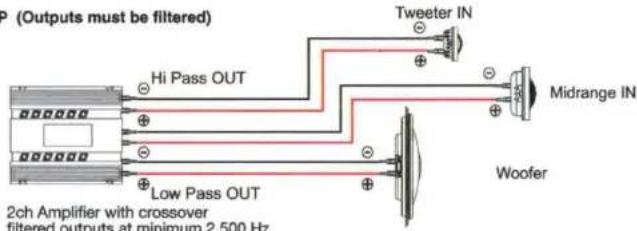

ACTIVE SET UP (Outputs must be filtered)

2ch Amplifier with crossover filtered outputs at minimum 2,500 Hz

ACTIVE SET UP (Outputs must be filtered)

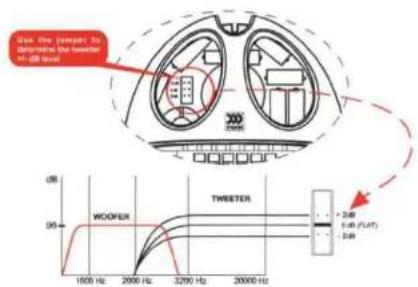

TWEETER LEVEL ALIGNMENT

CDM600 MIDRANGE MOUNTING (IN 3-WAY ONLY)

Use the screw clips in any combination, with or without the plastic frame. These clips can be used either way up down depending on installation requirements.

Option 1

SPECIFICATIONS

WOOFERS	VIRTUS NANO MW6	VIRTUS NANO MW6C
Nominal Impedance (Ohms)	4	4
Power Handling Wrms	80	100
Max. Trans.Pwr Handling Wrms	250	300
Sensitivity (2.83V/1M)	88dB	87dB
Frequency Response Hz	50-3500	50-5500
Resonant Freq. Fs Hz	85	68
Voice Coil Diameter mm (inch)	54 (2.16)	54 (2.16)
Voice Coil Height mm (inch)	9.5 (0.4)	9.5 (0.4)
Voice Coil Type/ Former	Aluminum	Aluminum
Voice Coil Wire	HexatechTM 100% Aluminum	HexatechTM 100% Aluminum
DC Resistance (Ohms)	4	3
Voice Coil Induct. @1 kHz (MH)	0.28	0.17
Magnet System	Neodymium Vented	Neodymium Vented
HE-Magnetic Gap Height mm (inch)	4 (0.16)	4 (0.16)
BL Product/BXL	5.0	3.85
Max. Linear Ex./Xmax mm (inch)	±3 (0.12)	±3 (0.12)
Electrical Q Factor QES	1.0	0.97
QTS	0.7	0.65
QMS	2.2	1.98
Moving Mass MMS - gr/ ounce	12.5	14
Equiv. Can Air Load VAS - L (cu.ft)	9	11
Effective Piston Area SD sq.cm (sq. inch)	141cm2	139cm2
Cone Type	Treated Paper Cone	Carbon Cone
Cone Material	Carbon + Paper	Carbon + Foam core
Unit Diameter mm (inch)	6.5 (0.26)	6.5 (0.26)
Mounting Depth mm (inch)	17 (0.7)	17 (0.7)
Mounting Cutout mm (inch)	137 (5.48)	137 (5.48)
Net Weight gr.	450	450

CROSSOVERS	MXR200.3n	MXR300n
Crossover Point	2200Hz/12dB/6dB	W: 500Hz / 12dBM:18dB/ 2200Hz/ 12dBT: 2200Hz / 6dB
Crossover Controls	Tweeter+/- 2dB	Tweeter+/- 2dB
Wiring Options	N/A	N/A

MIDS & TWEETERS	CDM600	MT120N
Nominal Impedance (ohm)	8	4	Voice Coil Wire	HexatechTM Aluminum	Copper
Power Handling (Wrms)	100	80	DC Resistance ohm	3.5	3.4
Max Transient Power Handling W (10ms)	300	250	Magnet System	Neodymium Rear Vented	Neodymium
Sensitivity (2.83V/1M) dB	90	90	Dome Type	Selected soft dome	Acuflex Coated Dome
Frequency Response Hz	600-6000	1800-22000	Dome Material	Silk	Silk
FS Hz	480	1200	Unit Diameter mm (inch)	88.00 (3.50)	45.00 (1.8)
Voice Coil Diameter mm (inch)	54 (2.125)	28 (1.125)	Mounting Depth mm (inch)	21.00 (0.83)	20.00 (0.80)
Voice Coil Former	Aluminum	Aluminum	Mounting Cutout mm (inch)	75.50 (2.97)	50.00 (2.00)
			Net Weight Kg(lb)	0.25 (0.55)	0.06 (0.13)

* Morel operates a policy of continuous products design improvement, consequently specifications are subject to alteration without prior notice.

www.morelthifi.com

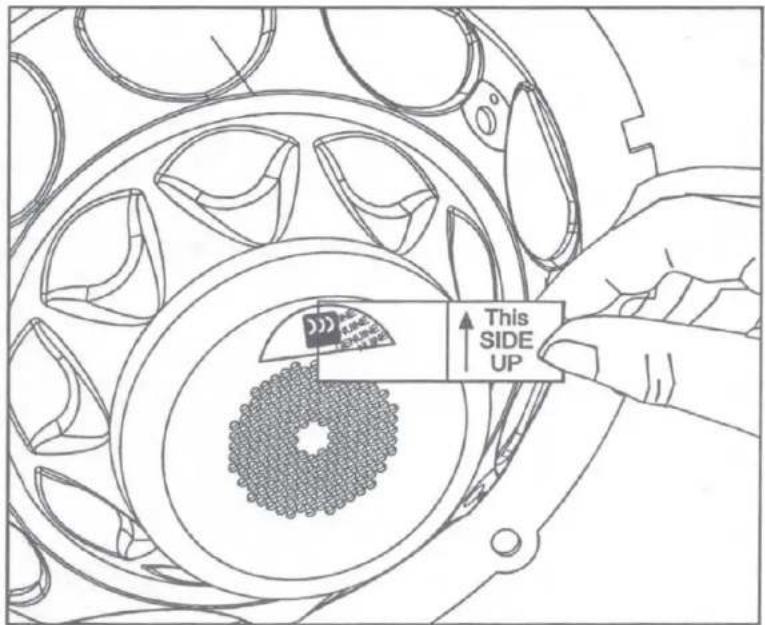

Verifying your Genuine Morel Product In light of counterfeit products that have appeared in some markets, Morel enables you to verify the authenticity of your purchase.

1. Remove the verification slip from the nylon bag that contains your Installation Guide.
2. Place it over the verification sticker found on the bottom of each Genuine Morel product.
3. The word "Genuine" should become visible.
4. If not, we recommend that you return the product to your point of purchase.
