Virtus Nano Integra 602 Carbon - Loudspeaker Morel - Free user manual and instructions

Product Type	Component Car Speaker System
Brand	Morel
Model	Virtus Nano Integra 602 Carbon
Category	Speaker
Configuration Options	2-Way, 3-Way, or Integra (Slim)
Woofer Size	6.5 inches (165.1 mm)
Woofer Power Handling (RMS)	100 W
Woofer Sensitivity (2.83V/1M)	87 dB
Woofer Impedance	4 Ohms
Woofer Frequency Response	50 - 5500 Hz
Woofer Mounting Depth	17 mm (0.7 in)
Woofer Cutout Diameter	137 mm (5.48 in)
Woofer Cone Material	Carbon + Foam Core
Tweeter Model	Integra Tweeter N (MT120N compatible)
Tweeter Power Handling (RMS)	130 W (Integra) / 80 W (MT120N)
Tweeter Sensitivity (2.83V/1M)	88 dB (Integra) / 90 dB (MT120N)
Tweeter Impedance	6 Ohms (Integra) / 4 Ohms (MT120N)
Tweeter Frequency Response	1600 - 25000 Hz (Integra) / 1800 - 22000 Hz (MT120N)
Tweeter Dome Material	Acuflex Hand Coated Soft Dome (Silk)
Crossover Model	MXR250i Carbon (Integra) / MXR200.3n (2-way) / MXR300n (3-way)
Crossover Slope	12 dB/6 dB (2-way) / 500Hz 12dB, 2200Hz 12dB/6dB (3-way)
Crossover Controls	Tweeter Level +/- 2 dB
Magnet Type	Neodymium (Vented on woofer)
Voice Coil Material	Hexatech Aluminum
Net Weight (Woofer)	450 g (0.99 lb)

Frequently Asked Questions - Virtus Nano Integra 602 Carbon Morel

What are the differences between Virtus Nano 602, 603, and Integra 602 Carbon?

The Virtus Nano 602 is a 2-way system, the 603 adds a midrange for 3-way, and the Integra 602 Carbon features a slim woofer design with a carbon cone and an integrated crossover for simplified installation. All share similar tweeters, but the Integra uses a dedicated tweeter and crossover.

Can I use these speakers in a 2-way or 3-way configuration?

Yes, the system is flexible. The Integra 602 Carbon is pre-configured as a 2-way set, but you can add the CDM600 midrange (sold separately) to create a 3-way setup using the MXR300n crossover.

What is the recommended amplifier power for these speakers?

For the woofer (100W RMS) and tweeter (130W RMS), an amplifier delivering 50-150W RMS per channel is recommended. For active setups, use a 2-channel amp filtered at minimum 2500 Hz for the tweeter and appropriate low-pass for the woofer.

How do I mount the tweeter flush?

Use the provided flush mount cup: cut a 50 mm (2 in) hole for the MT120N or Integra tweeter, insert the cup, and secure with the included clips. The surface mount option uses adhesive or screws.

What is the crossover frequency for the Integra system?

The MXR250i Carbon crossover point is 1800 Hz with a 12 dB/6 dB slope. The tweeter level can be adjusted +/- 2 dB via a switch on the crossover.

How does the tweeter level alignment work?

The crossover has a tweeter level switch that lets you boost or cut the tweeter output by 2 dB. This helps match the tweeter sensitivity to the woofer and adjust for speaker placement in the vehicle.

Are these speakers compatible with factory head units?

Yes, but due to the low impedance (4 ohms woofer, 6 ohms tweeter), most factory head units can drive them adequately. However, for best performance, an external amplifier is recommended.

What is the mounting depth for the woofer?

The woofer mounting depth is only 17 mm (0.7 inches), making it suitable for shallow mount installations where space is limited. Ensure the mounting surface is flat and the cutout is 137 mm.

What are the impedance ratings for the speakers?

The Integra woofer is 4 ohms, the tweeter is 6 ohms. For the 2-way MT120N tweeter, impedance is 4 ohms. In a passive crossover setup, the total impedance seen by the amplifier is typically 4 ohms.

How do I wire the crossover for active setup?

For an active 2-way setup, connect the woofer and tweeter directly to separate amplifier channels with appropriate high-pass (tweeter, >2500 Hz) and low-pass (woofer, <2500 Hz) filters. Disconnect the passive crossover.

USER MANUAL Virtus Nano Integra 602 Carbon Morel

Close-up of hands operating a vinyl record with a small mechanical component on top (no visible text or symbols)

VIRTUSnano 602 / VIRTUSnano 603

VIRTUSnano 602 Carbon / VIRTUSnano 603 Carbon / VIRTUSnano INTEGRA 602 Carbon

2Way/3Way/Integra Slim Component System Installation Guide

VIRTUS PACKAGE CONTENT	WOOFER & CROSSOVER MOUNTING	TWEETER MOUNTING

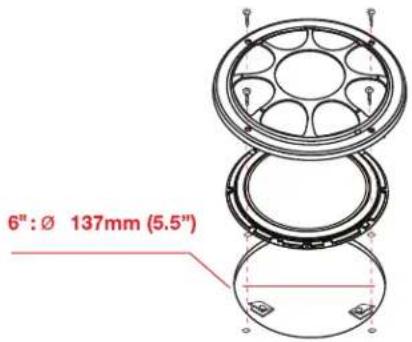

6" WOOFER / INTEGRAMT120N TWEETER (IN 2-WAY / 3-WAY ONLY)	6" UNIT MOUNTING	FLUSH MOUNTING
	CROSSOVER MOUNTING	SURFACE MOUNTING
2-WAY / 3-WAY CROSSOVER
CDM600 MIDRANGE (IN 3-WAY ONLY)

6" WOOFER / INTEGRA
MT120N TWEETER (IN 2-WAY / 3-WAY ONLY)
2-WAY / 3-WAY CROSSOVER
CDM600 MIDRANGE (IN 3-WAY ONLY)
FLUSH MOUNTING

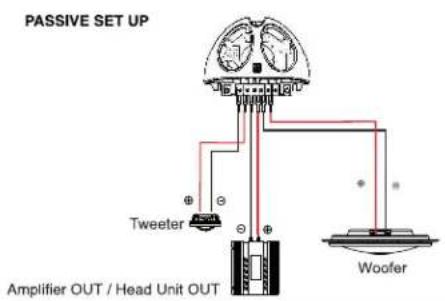

2-WAY CROSSOVER WIRING

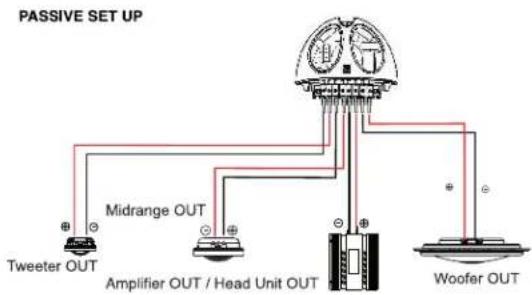

3-WAY CROSSOVER WIRING

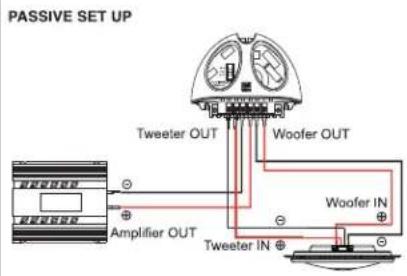

INTEGRA CROSSOVER WIRING

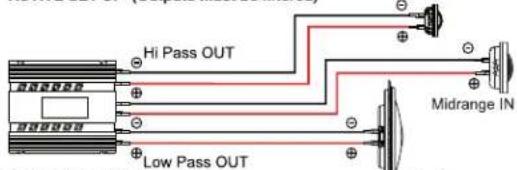

ACTIVE SET UP (Outputs must be filtered)

2ch Amplifier with crossover filtered outputs at minimum 2,500 Hz

ACTIVE SET UP (Outputs must be filtered)

2ch Amplifier with crossover filtered outputs at minimum 2,500 Hz

ACTIVE SET UP

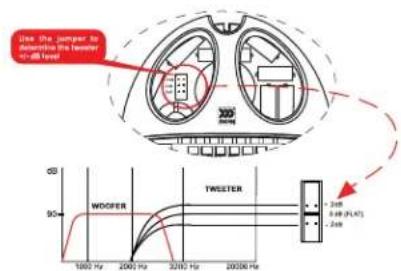

TWEETER LEVEL ALIGNMENT

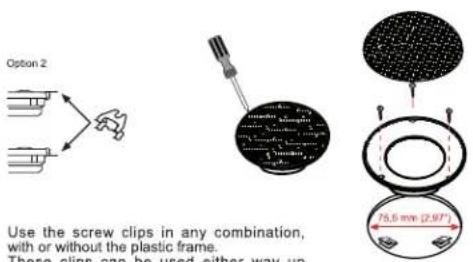

CDM600 MIDRANGE MOUNTING (IN 3-WAY ONLY)

Use the screw clips in any combination, with or without the plastic frame. These clips can be used either way up down depending on installation requirements.

TWEETER LEVEL ALIGNMENT

SPECIFICATIONS

WOOFERS	VIRTUS NANO MW6	VIRTUS NANO MW6C	INTEGRA WOOFER N
Nominal Impedance (Ohms)	4	4	4
Power Handling Wrms	80	100	100
Max. Trans.Pwr Handling Wrms	250	300	300
Sensitivity (2.83V/1M)	88dB	87dB	87dB
Frequency Response Hz	50-3500	50-5500	50-5500
Resonant Freq. Fs Hz	85	68	73
Voice Coil Diameter mm (inch)	54 (2.16)	54 (2.16)	54 (2.16)
Voice Coil Height mm (inch)	9.5 (0.4)	9.5 (0.4)	9.5 (0.4)
Voice Coil Type/ Former	Aluminum	Aluminum	Aluminum
Voice Coil Wire	HexatechTM Aluminum	HexatechTM Aluminum	HexatechTM Aluminum
DC Resistance (Ohms)	4	3	3
Voice Coil Induct. @1 kHz (MH)	0.28	0.17	0.17
Magnet System	Neodymium Vented	Neodymium Vented	Neodymium Vented
HE-Magnetic Gap Height mm (inch)	4 (0.16)	4 (0.16)	4 (0.16)
BL Product/BXL	5.0	3.85	4.18
Max. Linear Ex./Xmax mm (inch)	±3 (0.12)	±3 (0.12)	±3 (0.12)
Electrical Q Factor QES	1.0	0.97	0.97
QTS	0.7	0.65	0.73
QMS	2.2	1.98	3.4
Moving Mass MMS - gr/ ounce	12.5	14	11.8
Equiv. Can Air Load VAS - L (cu.ft)	9	11	7.5
Effective Piston Area SD sq.cm (sq. inch)	141cm2	139cm2	116cm2
Cone Type	Treated Paper Cone	Carbon Cone	Carbon Cone
Cone Material	Carbon + Paper	Carbon + Foam core	Carbon + Foam core
Unit Diameter mm (inch)	6.5 (0.26)	6.5 (0.26)	6.5 (0.26)
Mounting Depth mm (inch)	17 (0.7)	17 (0.7)	17 (0.7)
Mounting Cutout mm (inch)	137 (5.48)	137 (5.48)	137 (5.48)
Net Weight gr.	450	450	450

INTEGRA TWEETER N

Nominal Impedance (Ohm)	6
Power Handling (Wflns)	130
Max Transient Power Handling W (10ns)	350
Sensitivity (g.83V/1M) dB	88
Frequency Response Hz	1600-25000
FS Hz	900
Voice Coil Diameter mm (inch)	28 (1.125)
Voice Coil Former	Aluminum
Voice Coil Wire	HexatechTM Aluminium
DC Resistance Ohm	5.2
Magnet System	Neodymium
Dome Type	AcuflexTM Hand Coated Soft Dome
Dome Material	Silk

CROSSOVERS	MXR250i Carbon
Crossover Point	1800 Hz/12dB/6dB
Crossover Controls	Tweeter+/- 2dB
Wiring Options	N/A

MIDS & TWEETERS	CDM600	MT120N		CDM600	MT120N
Nominal Impedance (ohm)	8	4	Voice Coil Wire	HexatechTM Aluminum	Copper
Power Handling (Wrms)	100	80	DC Resistance ohm	3.5	3.4
Max Transient Power Handling W (10ms)	300	250	Magnet System	Neodymium Rear Vented	Neodymium
Sensitivity (2.83V/1M) dB	90	90	Dome Type	Selected soft dome	Acuflex Coated Dome
Frequency Response Hz	600-6000	1800-22000	Dome Material	Silk	Silk
FS Hz	480	1200	Unit Diameter mm (inch)	88.00 (3.50)	45.00 (1.8)
Voice Coil Diameter mm (inch)	54 (2.125)	28 (1.125)	Mounting Depth mm (inch)	21.00 (0.83)	20.00 (0.80)
Voice Coil Former	Aluminum	Aluminum	Mounting Cutout mm (inch)	75.50 (2.97)	50.00 (2.00)
			Net Weight Kg(lb)	0.25 (0.55)	0.06 (0.13)

CROSSOVERS	MXR200.3n	MXR300n
Crossover Point	2200Hz/12dB/6dB	W: 500Hz / 12dBM:18dB/ 2200Hz/ 12dBT: 2200Hz / 6dB
Crossover Controls	Tweeter+/- 2dB	Tweeter+/- 2dB
Wiring Options	N/A	N/A

* Morel operates a policy of continuous products design improvement, consequently specifications are subject to alteration without prior notice.
