Product Type	Outdoor IR Bullet IP Camera
Model	IPC2122SR3-PF40-C
Resolution	2 MP (1920x1080)
Lens	2.8 mm fixed lens
Night Vision	Up to 30 m IR range
Video Compression	H.265+ / H.265 / H.264+ / H.264
Power Supply	PoE (IEEE 802.3af) or 12V DC
Power Consumption	< 6.5 W
Dimensions	73 x 73 x 154 mm
Weight	0.45 kg
Ingress Protection	IP67
Operating Temperature	-30°C to 60°C
Motion Detection	Yes, with alarm output
Audio	Built-in microphone
Storage	Micro SD card slot (up to 256 GB)
Network	RJ45 10/100 Base-T
Protocols	IPv4, IPv6, HTTP, HTTPS, RTSP, ONVIF
Maintenance	Clean lens with soft dry cloth; avoid solvents
Safety	Overvoltage protection, surge protection
Spare Parts & Repairability	Contact UniView support for replacement parts

Frequently Asked Questions - IPC2122SR3-PF40-C UniView

How do I reset the IPC2122SR3-PF40-C to factory defaults?

Press and hold the reset button on the camera for 10 seconds while powered on. The camera will reboot with default settings.

Can this camera be used outdoors?

Yes, it has an IP67 rating, making it dust-tight and protected against water jets.

What is the maximum supported micro SD card size?

Up to 256 GB. Use a high-endurance card for continuous recording.

Does the camera support ONVIF?

Yes, it is ONVIF compatible, allowing integration with third-party NVRs.

How far can the IR night vision reach?

Up to 30 meters (98 feet) in complete darkness.

Can I power the camera with PoE?

Yes, it supports PoE (IEEE 802.3af) for both data and power over a single Ethernet cable.

What is the field of view?

With a 2.8 mm lens, the horizontal field of view is approximately 105°.

How do I access the camera remotely?

Use the UniView NVR or the free UniView app. Ensure port forwarding is set up on your router.

Does the camera have audio?

Yes, it has a built-in microphone for audio capture. No audio out.

What warranty does UniView provide?

Standard warranty is 3 years from date of purchase. Contact UniView support for details.

USER MANUAL IPC2122SR3-PF40-C UniView

Thank you for purchasing our product. If there are any quesons, or requests, please do not hesitate to contact the dealer.

Copyright

Copyright 2015-2017 Zhejiang Uniview Technologies Co., Ltd. All rights reserved. No part of this manual may be copied, reproduced, translated, or distributed in any form or by any means without prior consent in wring from our company.

Trademark Acknowledgement

UNV and other Uniview's trademarks and logos are the property of Zhejiang Uniview Technologies Co.,

Ltd. Other trademarks, company names and product names contained in this manual are the property of their respective owners.

Disclaimer

i

CAUTION!

The default password is used for your rst login. To ensure account security, please change the password aer your rst login. You are recommended to set a strong password (no less than eight characters).

• To the maximum extent permied by applicable law, the product described, with its hardware, sware, rmware and documents, is provided on an “as is” basis.
• Best eort has been made to verify the integrity and correctness of the contents in this manual, but no statement, informaon, or recommendaon in this manual shall constute formal guarantee of any kind, expressed or implied. We shall not be held responsible for any technical or typographical errors in this manual. The contents of this manual are subject to change without prior noce. Update will be added to the new version of this manual.
• Use of this manual and the subsequent result shall be enrely on the user's own responsibility. In no event shall we be reliable to you for any special, consequential, incidental, or indirect damages, including, among others, damages for loss of business prots, business interrupon, or loss of data or documentaon in conneccon with the use of this product.
• Video and audio surveillance can be regulated by laws that vary from country to country. Check the law in your local region before using this product for surveillance purposes. We shall not be held responsible for any consequences resulting from illegal operaons of the device.
• The illustraons in this manual are for reference only and may vary depending on the version or model. The screenshots in this manual may have been customized to meet specific requirements and user preferences. As a result, some of the examples and funcons featured may differ from those displayed on your monitor.
• This manual is a guide for mulple product models and so it is not intended for any specific product.
• Due to uncertaines such as physical environment, discrepancy may exist between the actual values and reference values provided in this manual. The ulmate right to interpretaon resides in our company.

Environmental Protecon

This product has been designed to comply with the requirements on environmental protecon. For the proper storage, use and disposal of this product, naonal laws and regulaons must be observed.

Symbols

The symbols in the following table may be found in this manual. Carefully follow the instrucons indicated by the symbols to avoid hazardous situations and use the product properly.

Symbol	Descripon
WARNING!	Contains important safety instrucons and indicates situaons that could cause bodily injury.
CAUTION!	Means reader be careful and improper operaons may cause damage or malfuncon to product.
NOTE!	Means useful or supplemental informaon about the use of product.

Contents

1 Network Connecon....1

2 Login....1

Preparaon 1

Logging In to the Web Interface 3

Introducon to the Web Interface......4

Inial Conguraon 4

3 Conguring Parameters 5

Local Parameters....5

Network Conguraon 7

Ethernet....7

Port 9

FTP 9

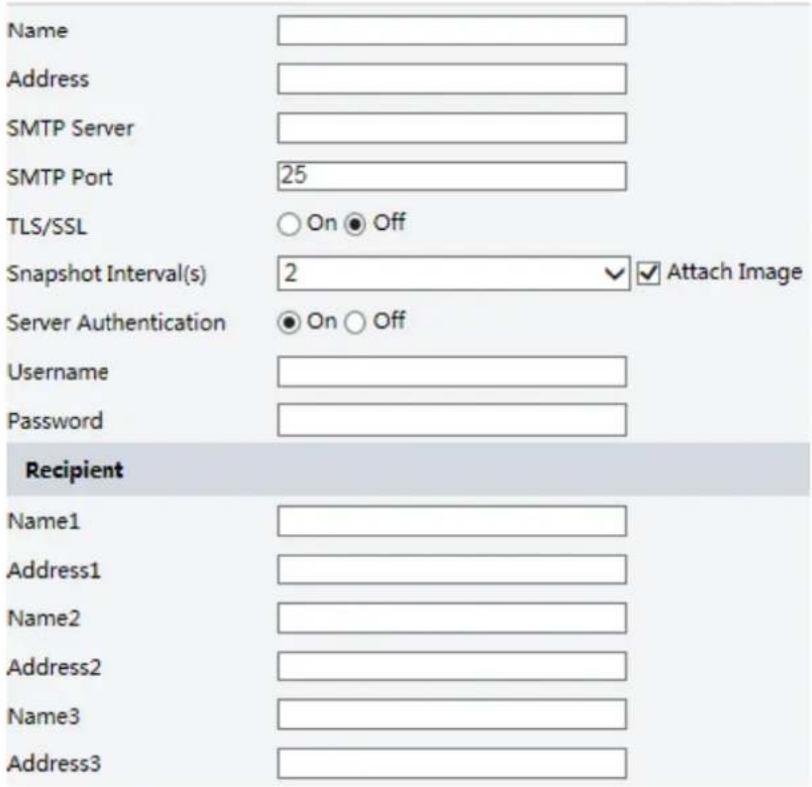

E-Mail 11

Port Mapping....11

DNS 12

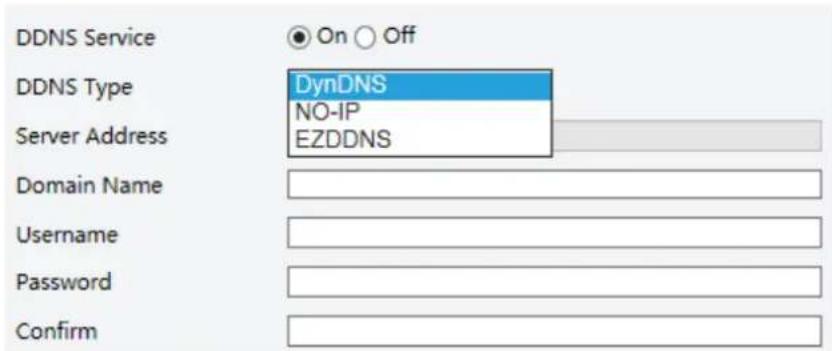

DDNS....12

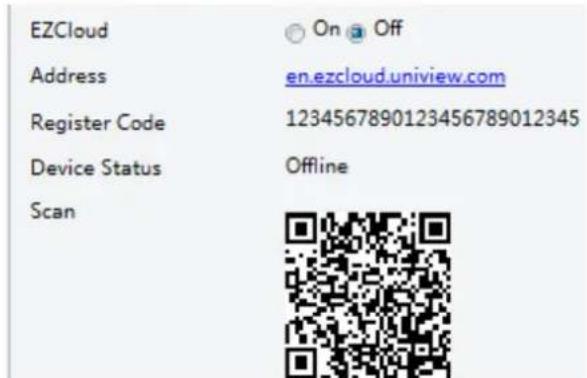

EZCloud 13

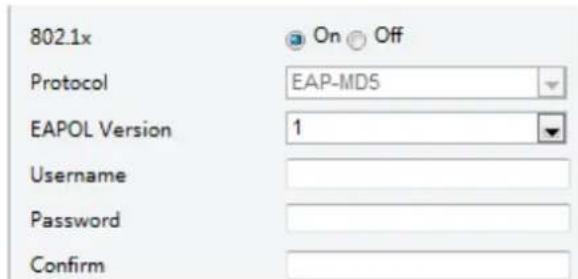

802.1x 13

Image Conguraon 13

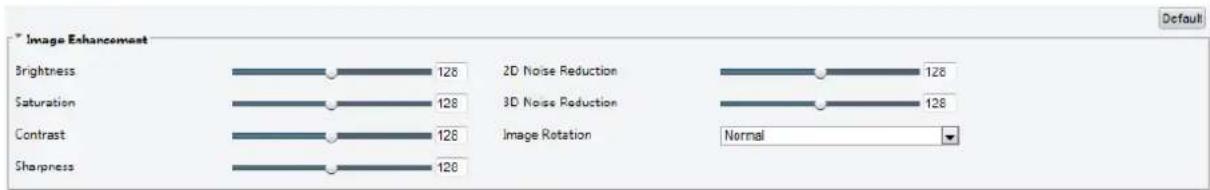

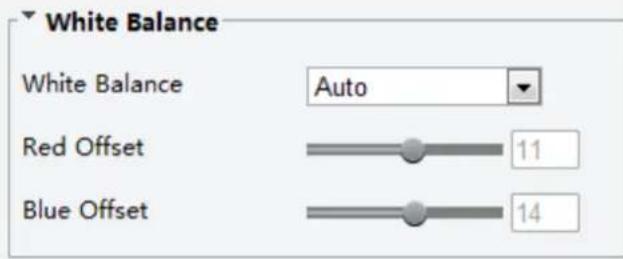

Image Adjustment 13

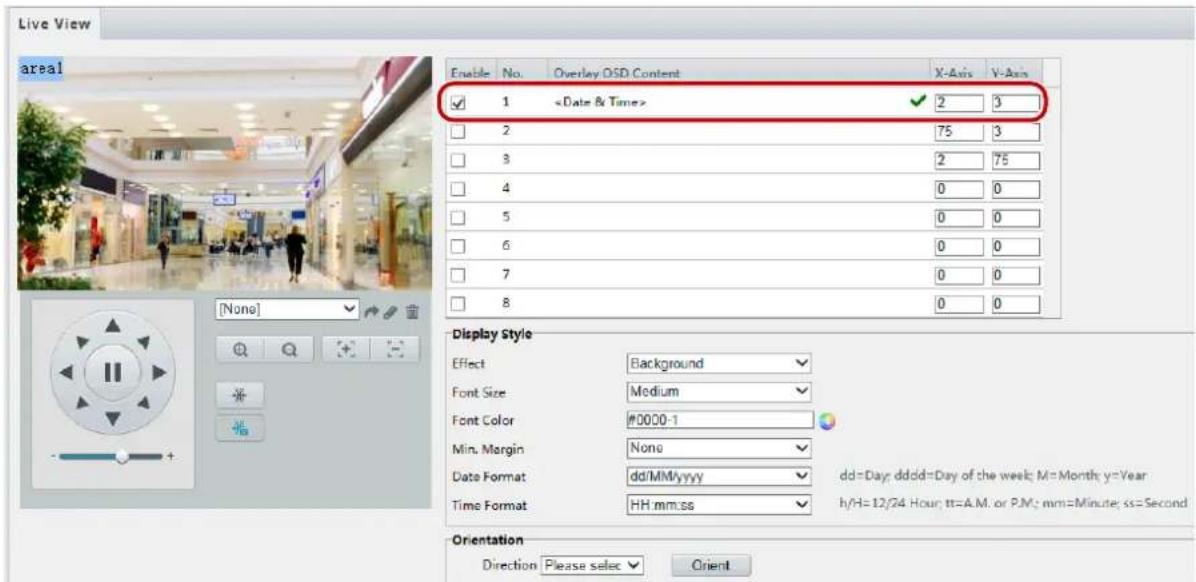

OSD Seng 22

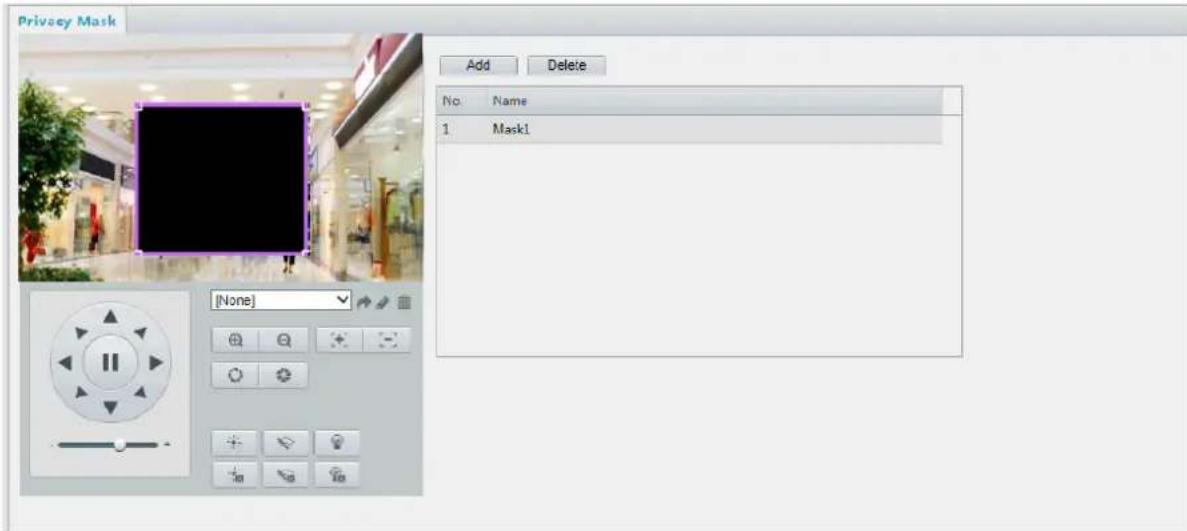

Privacy Mask 24

Audio and Video Conguraon 25

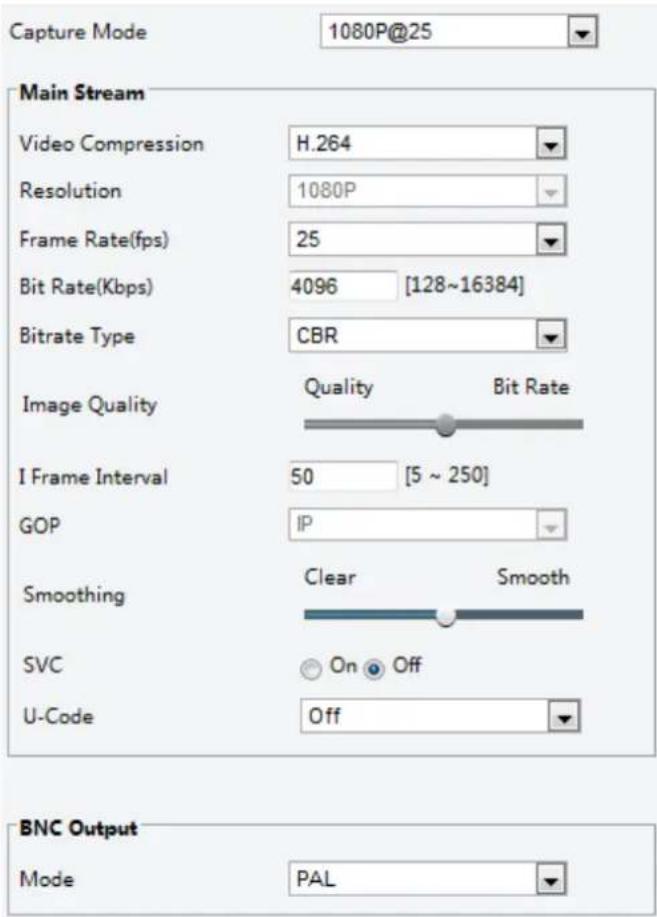

Video Conguraon 25

Audio Conguraon 27

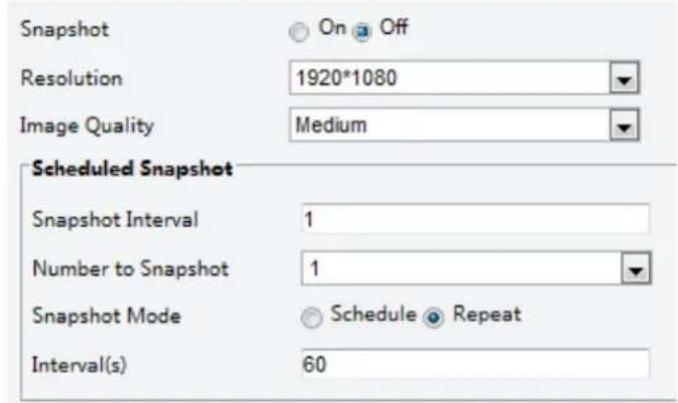

Snapshot 28

ROI 28

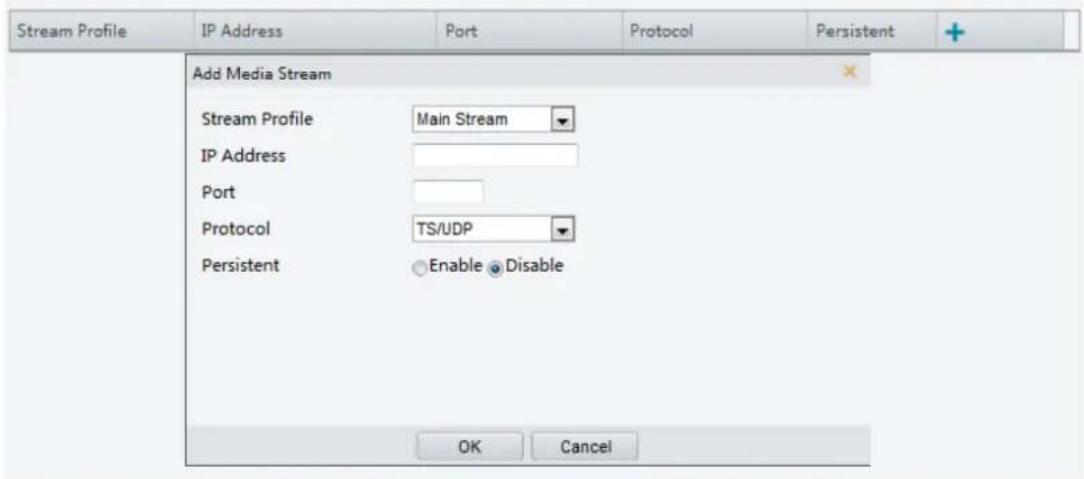

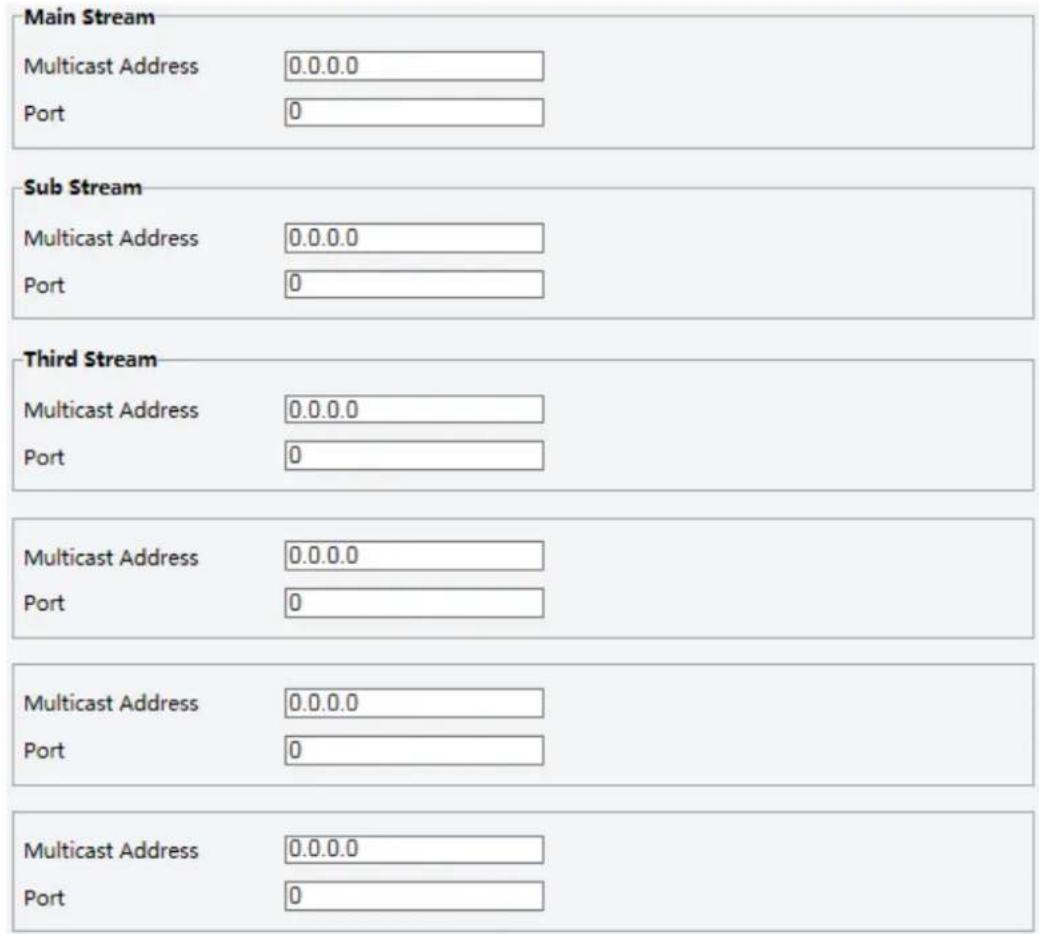

Media Stream Conguraon 29

Intelligent Alarm Conguraon 31

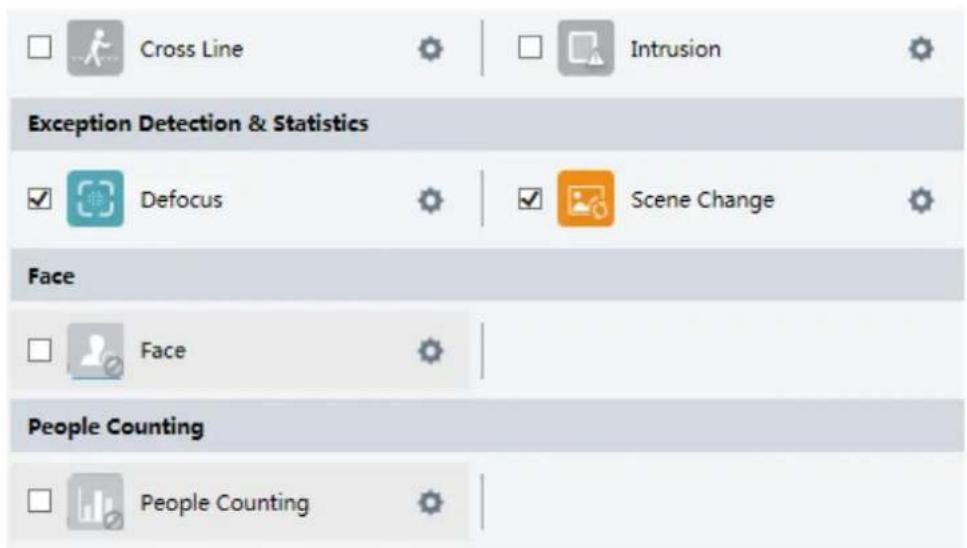

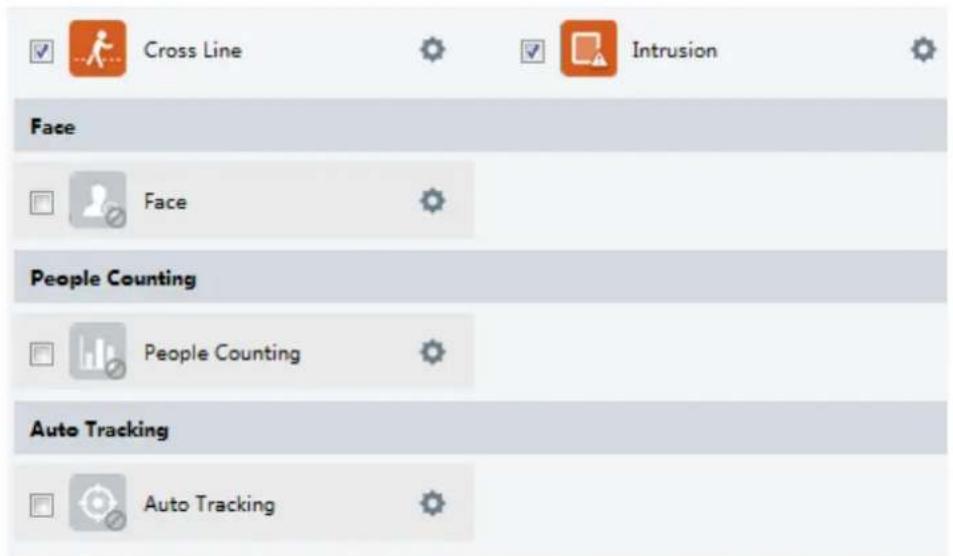

Smart Sengs 31

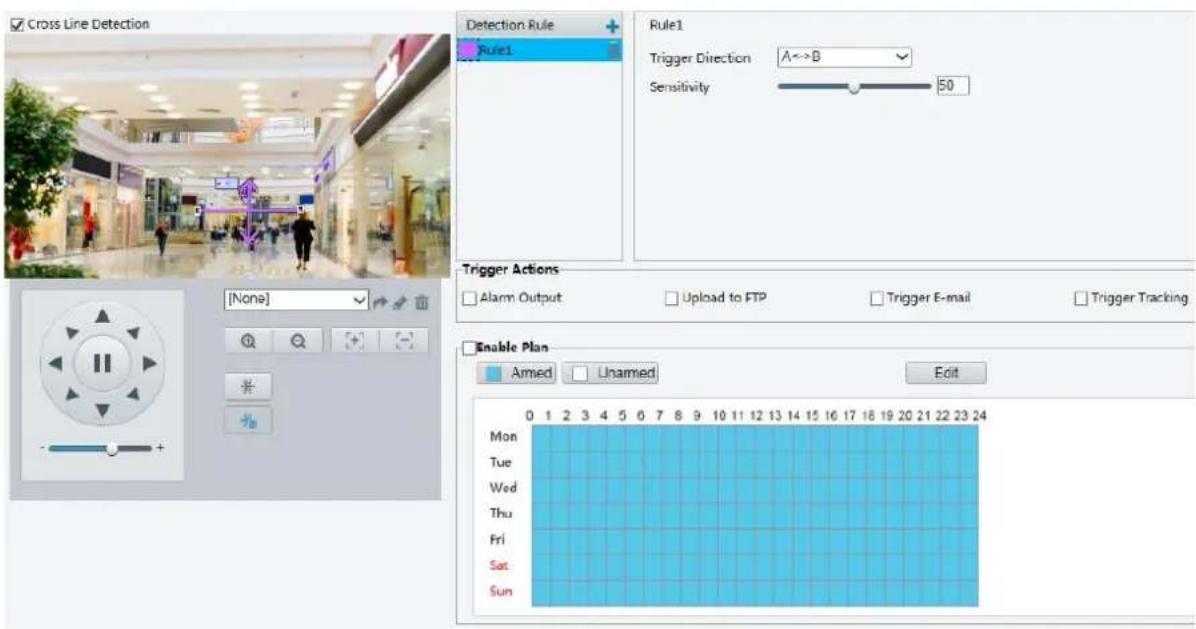

Cross Line Detecon 31

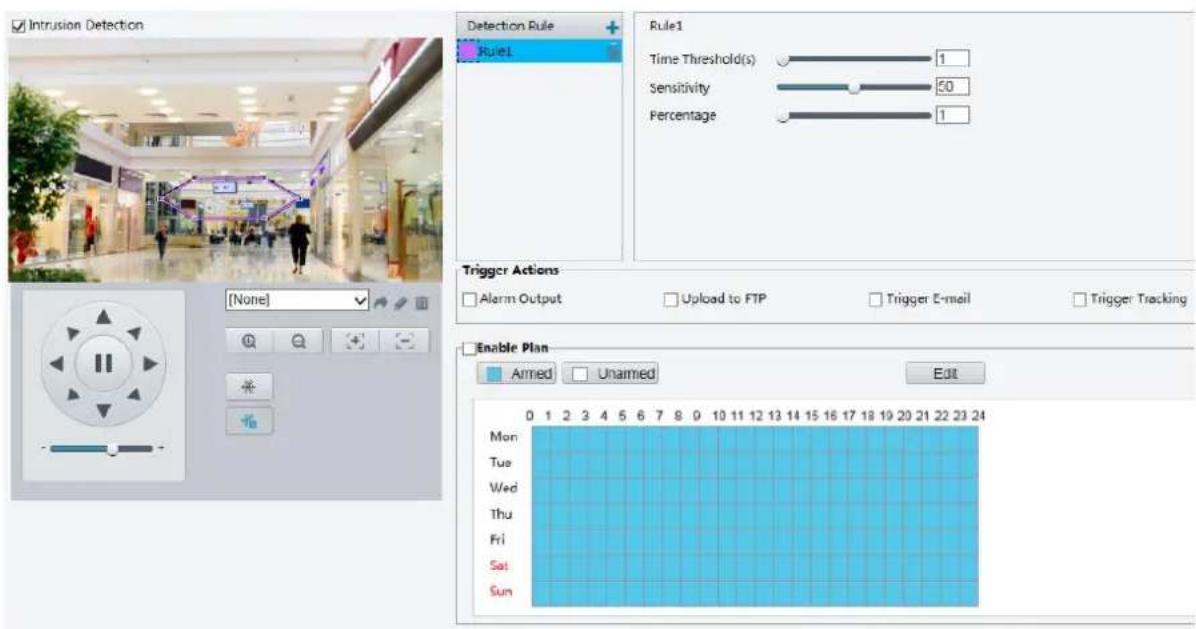

Intrusion Detecon 32

Face Detecon....33

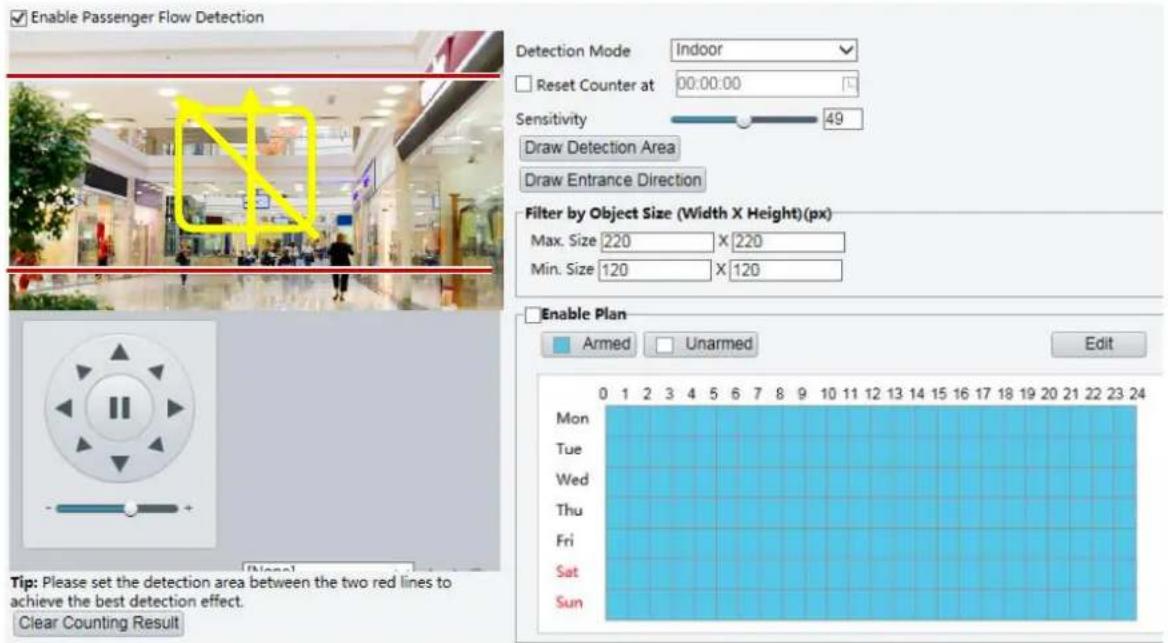

People Counng 34

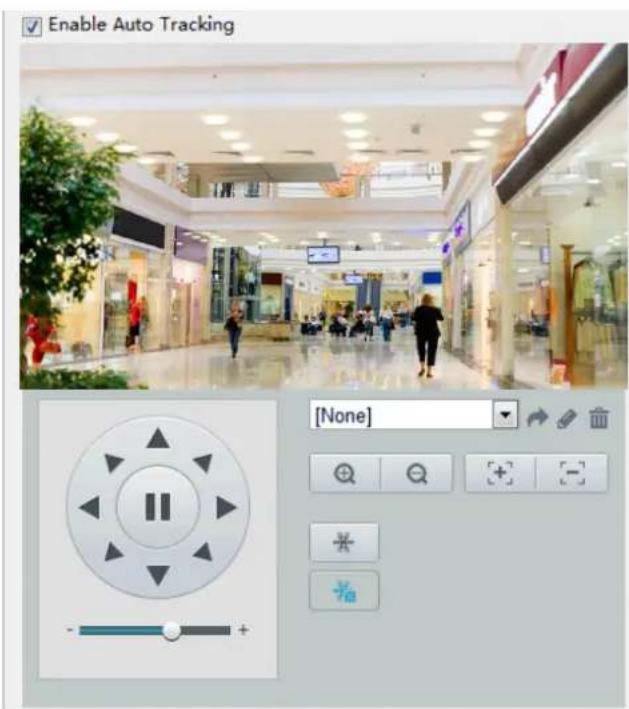

Auto Tracking 35

Defocus Detecon 36

Scene Change Detecon 37

Advanced Sengs 37

Common Alarm Conguraon 38

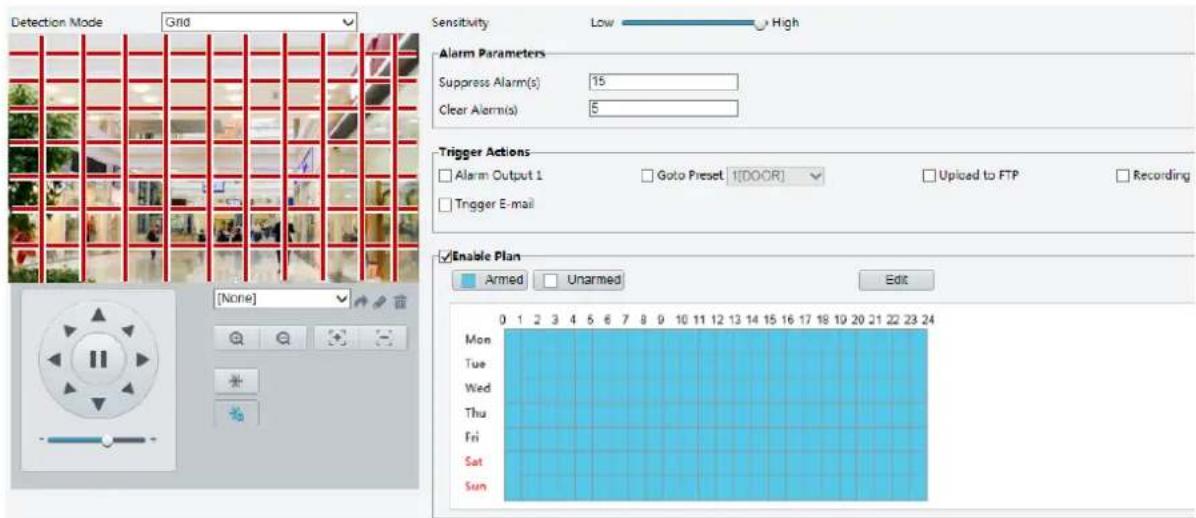

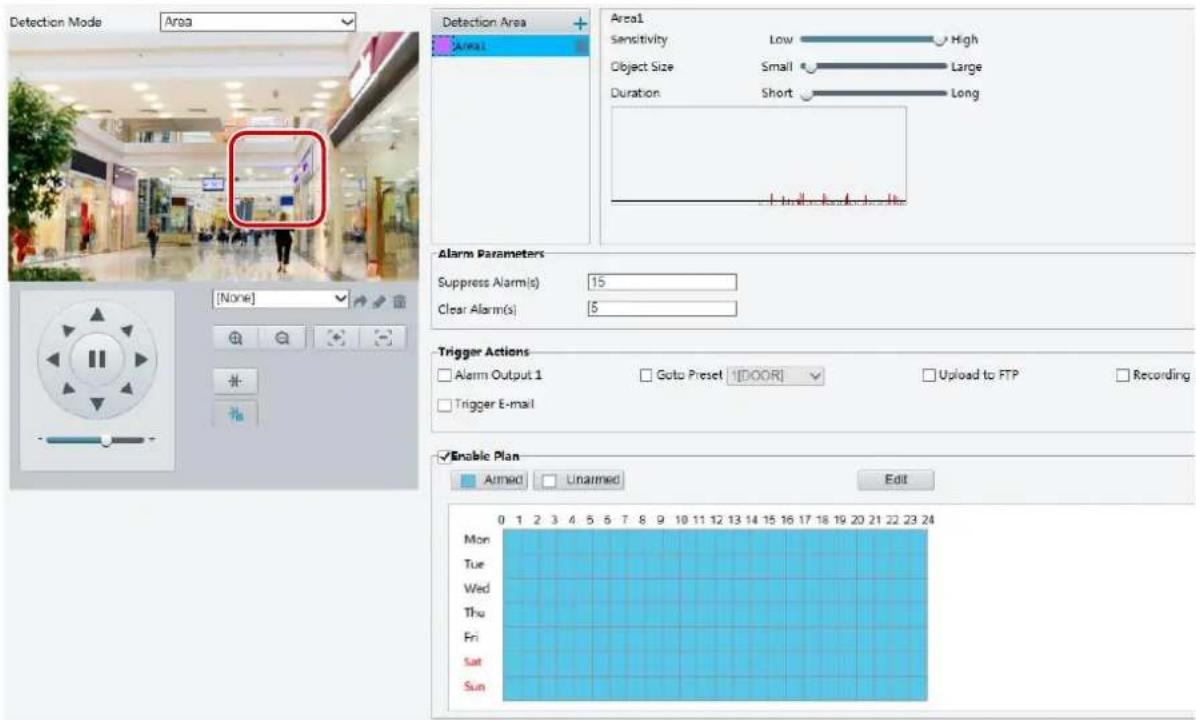

Conguring Moon Detecon Alarm 38

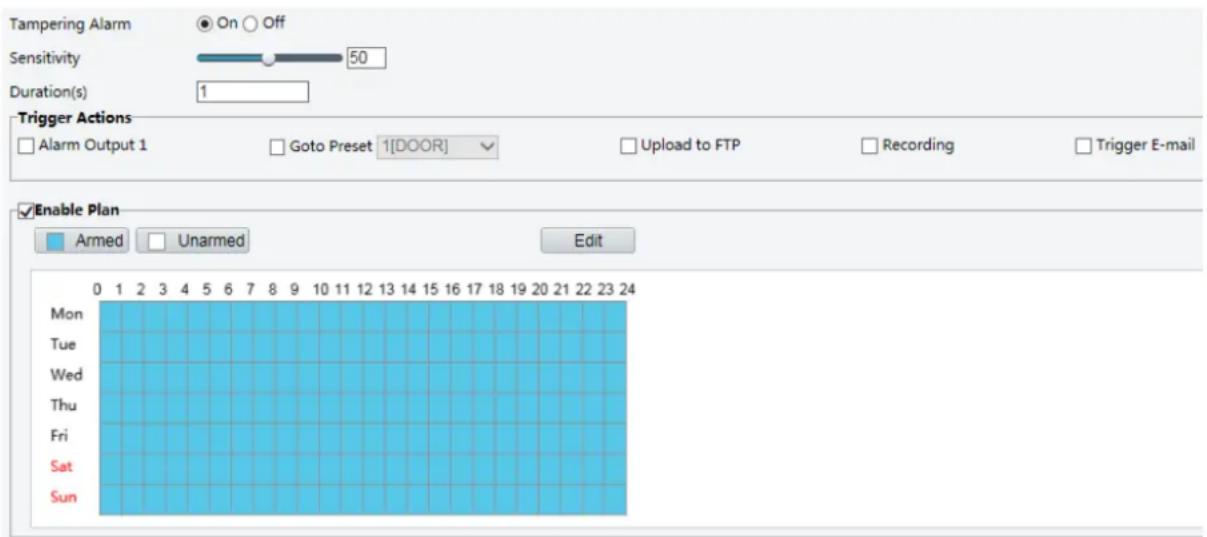

Conguring Tampering Alarm 42

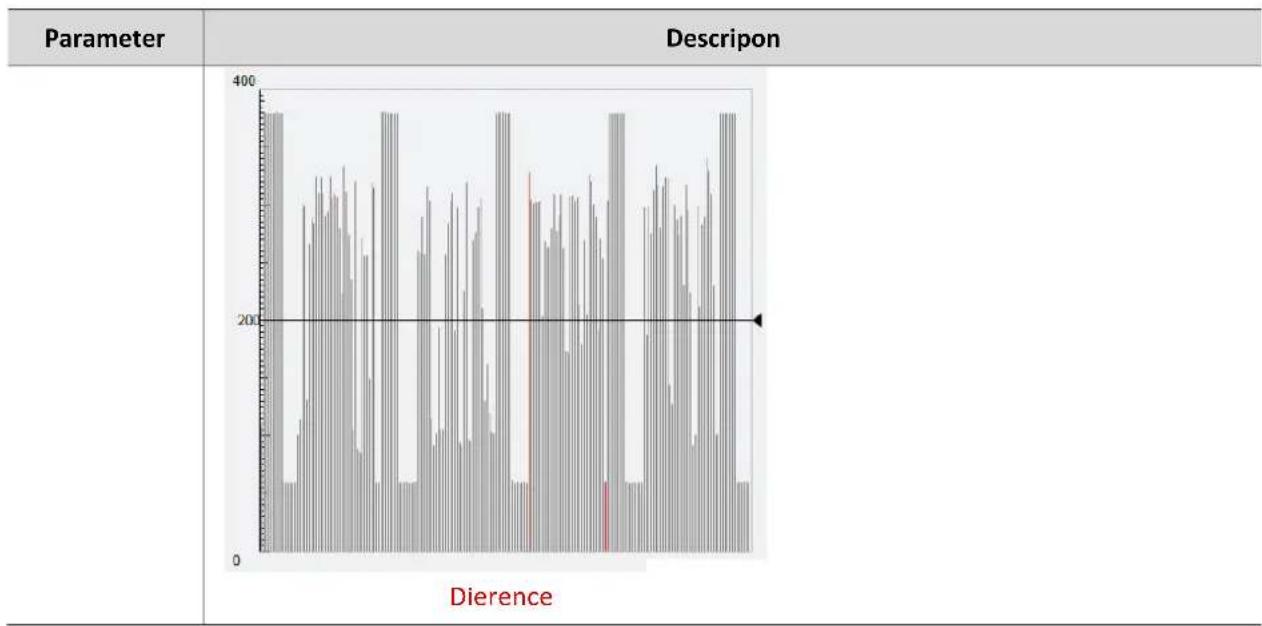

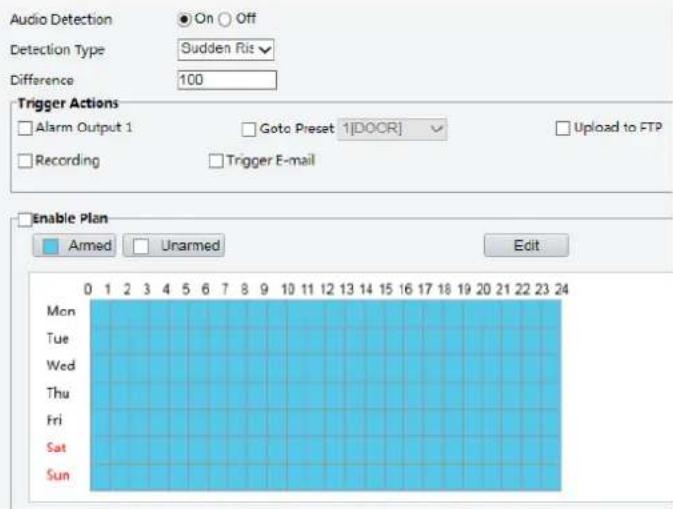

Conguring Audio Detecon Alarm 42

Conguring Alarm Input 44

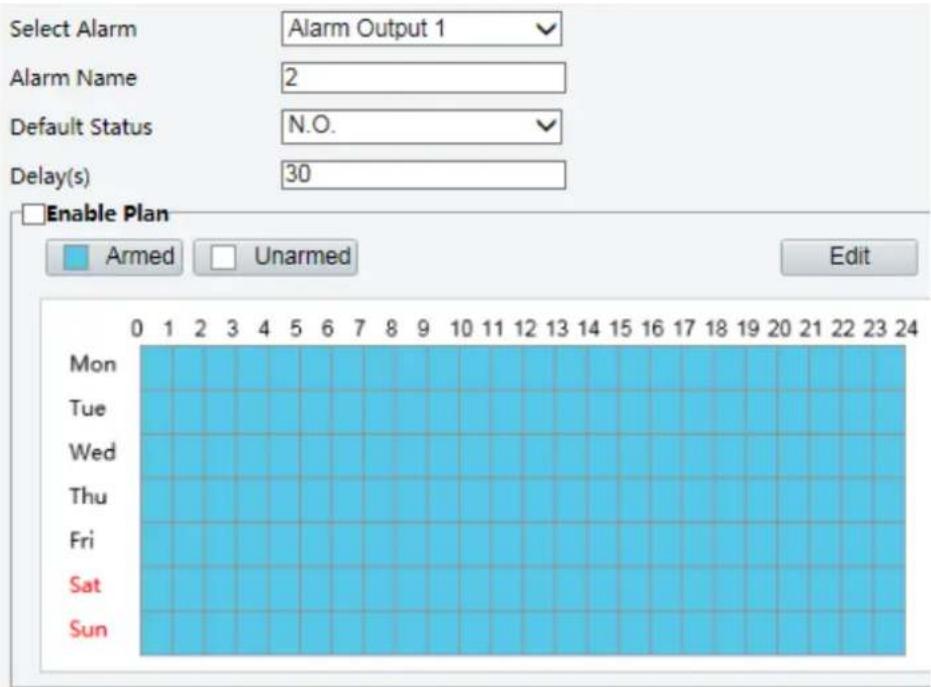

Conguring Alarm Output 45

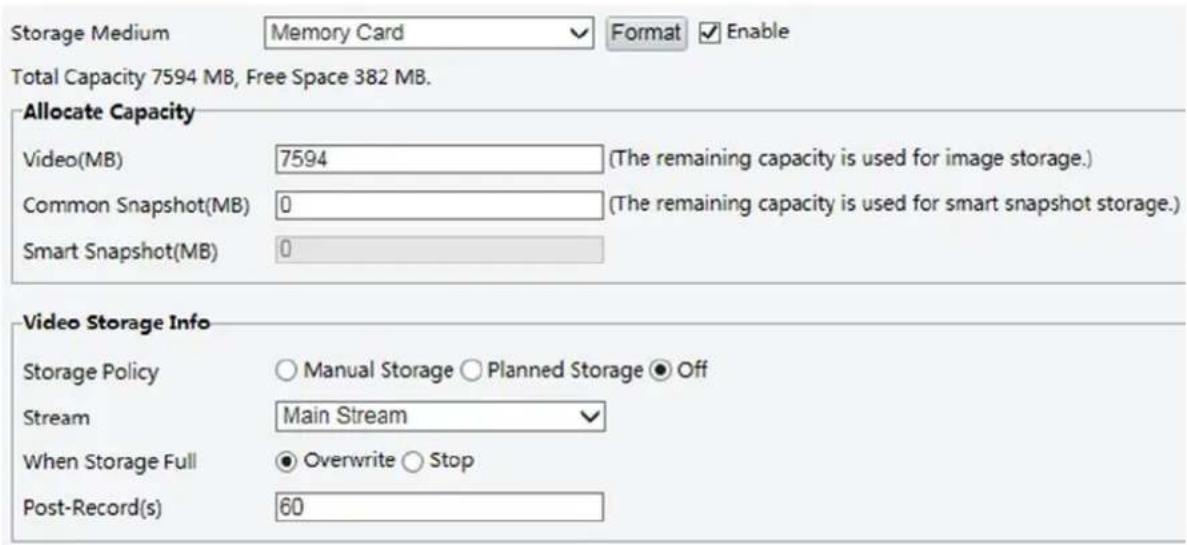

Memory Card Storage 46

Seng Cache Post Recording 48

System Maintenance 49

Security 50

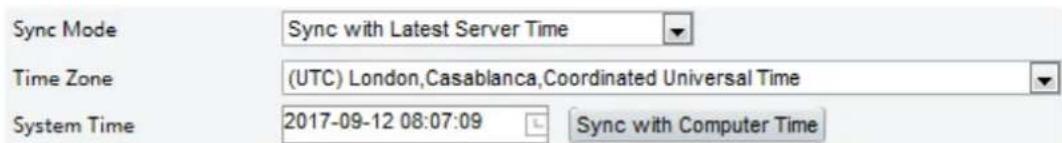

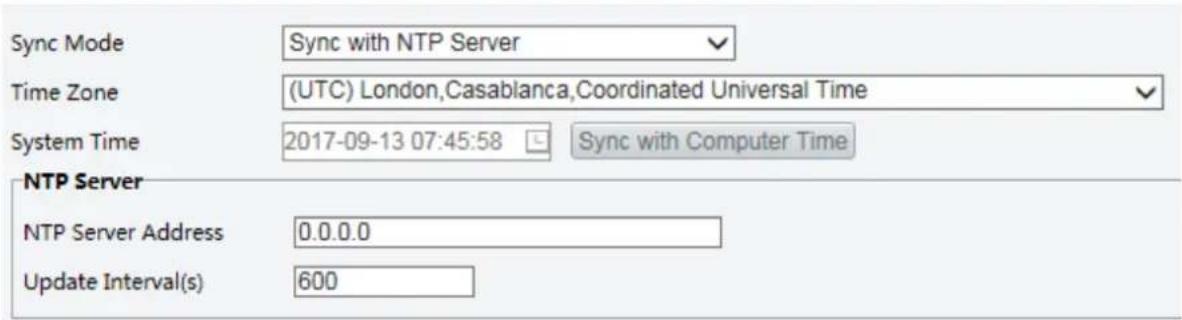

Seng the System Time....52

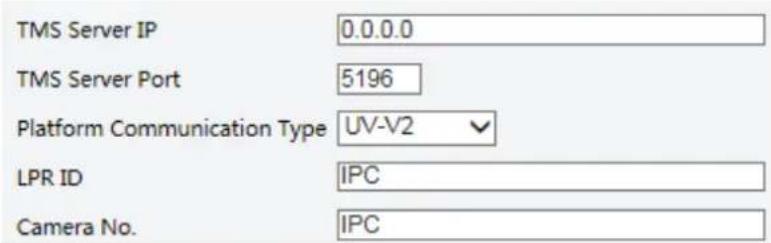

Seng Servers 53

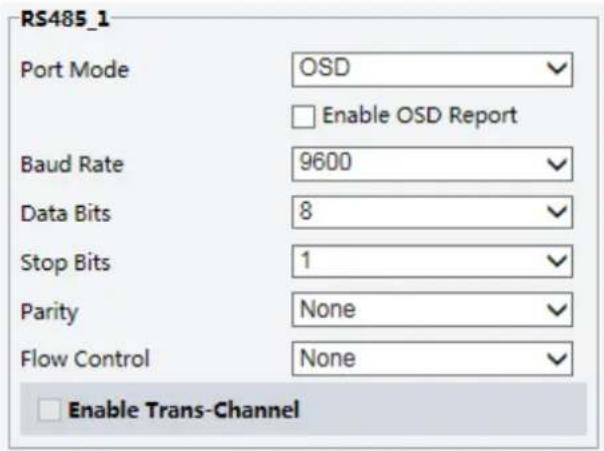

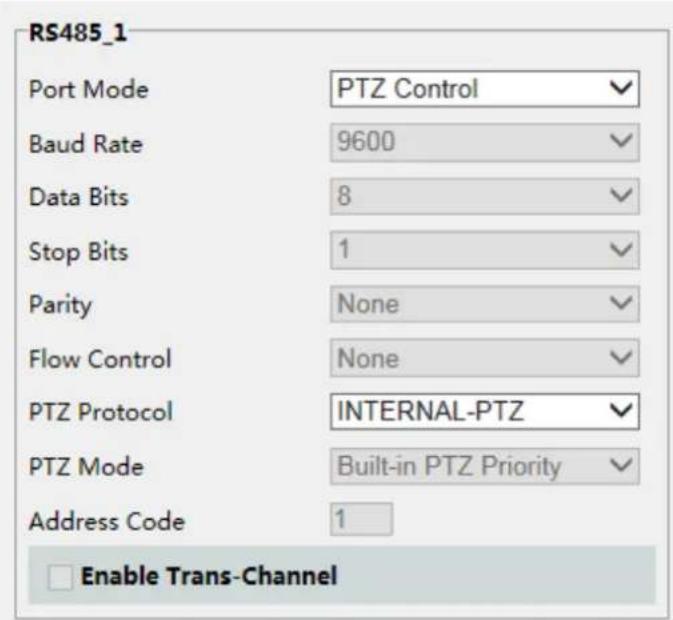

Serial Port Mode Conguraon 54

Wiper Control 56

Viewing Device Status 57

Photo Storage Status 57

Upgrading the Device 58

Restarng the System 59

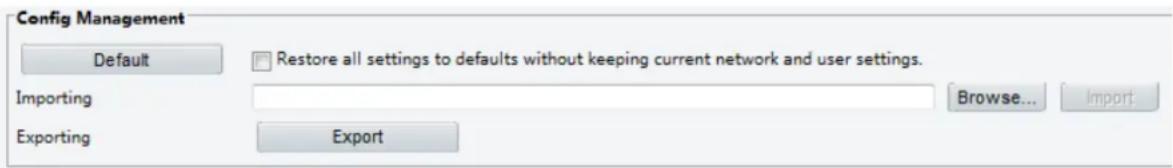

Imporng and Exporng System Conguraon File 59

Collecng Diagnosis Informaon 60

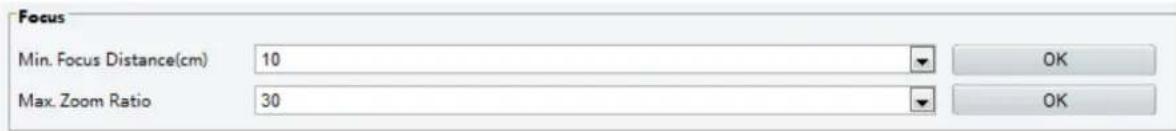

Focus Conguraon 60

Device Mounng Height 60

Fisheye Camera Parameter 61

4 Live View 62

Live View Toolbar 63

Viewing Certain Area of Images 64

Using Digital Zoom 64

Using Area Focus 65

Using 3D Posioning....66

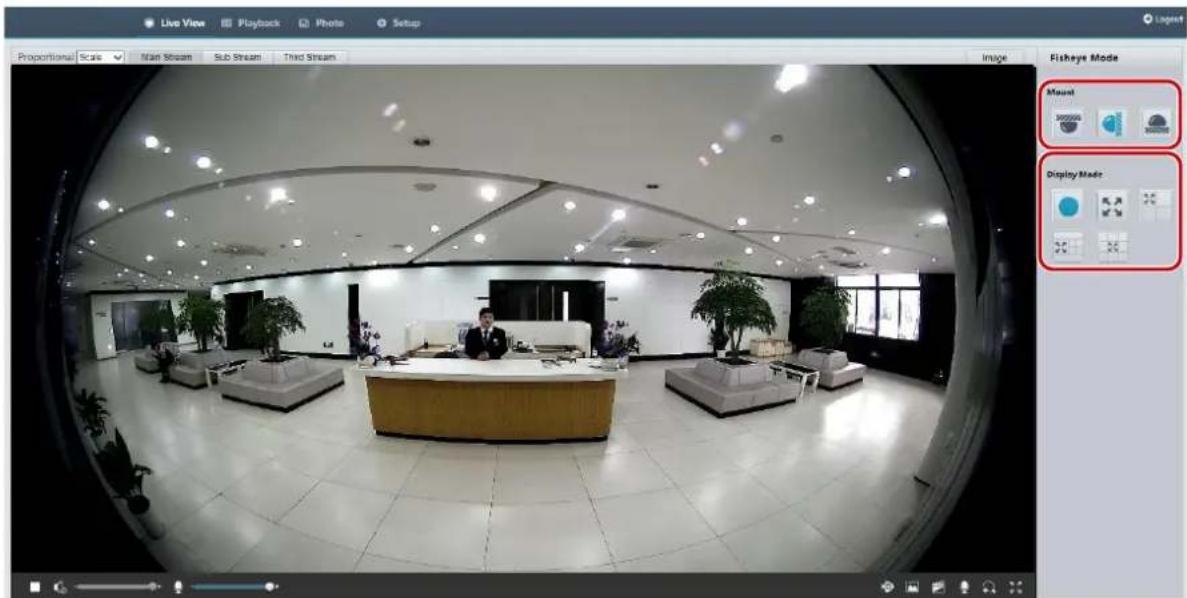

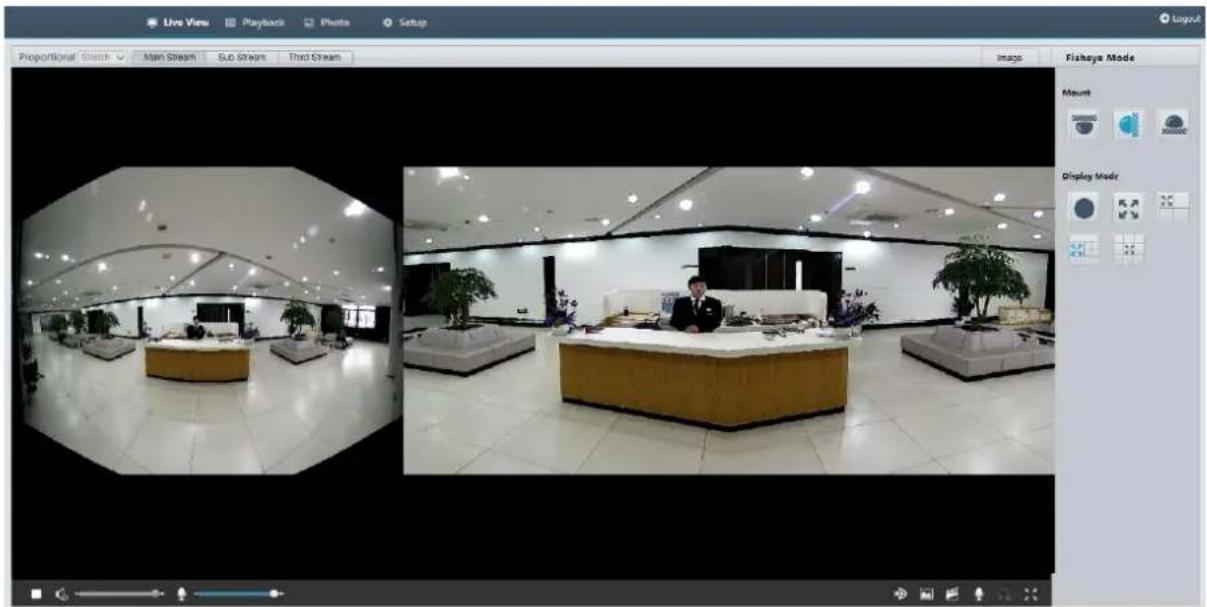

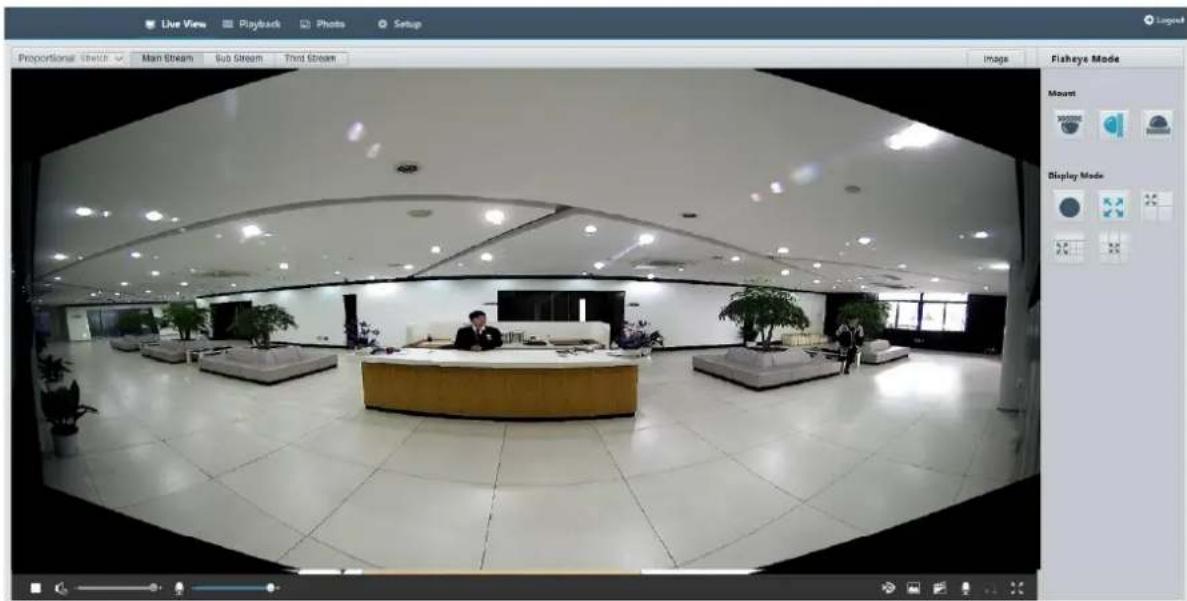

Live View of Fisheye Cameras 66

5 Video Playback and Download with Edge Storage 69

Video Playback 69

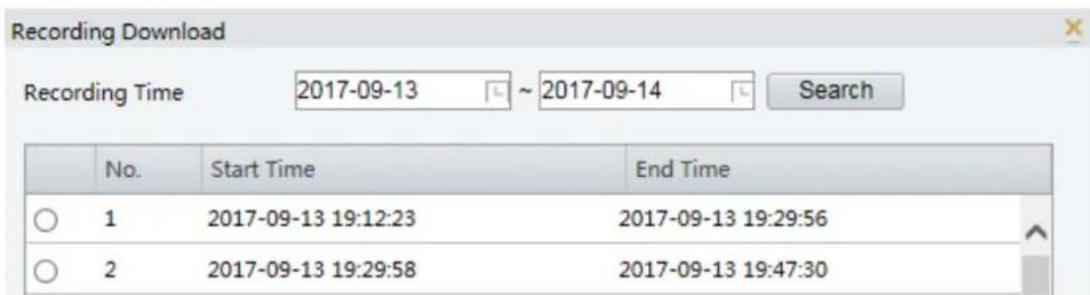

Download 69

6 PTZ Control 70

PTZ Control Toolbar 70

Seng Patrol by Presets 71

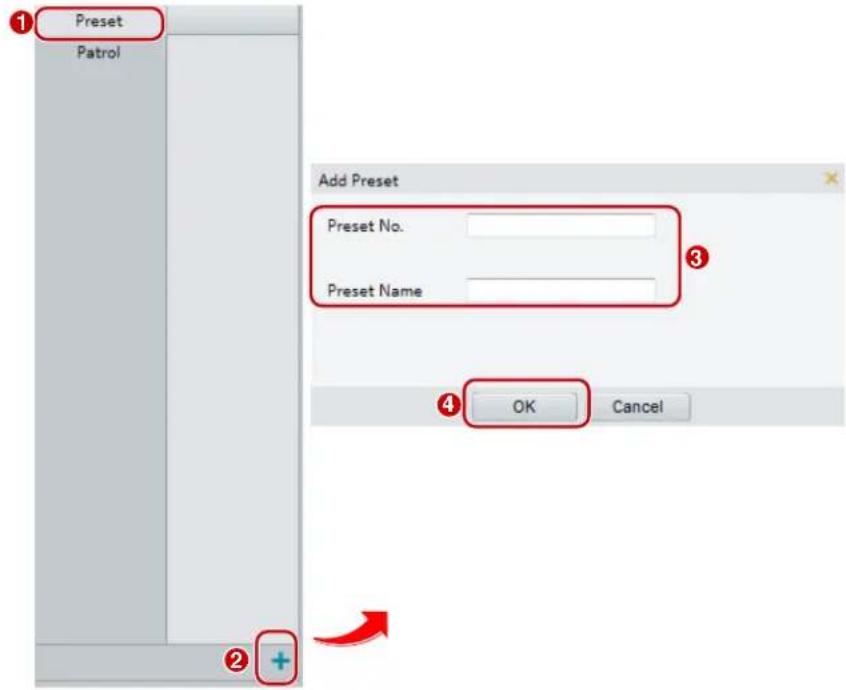

Seng Presets....71

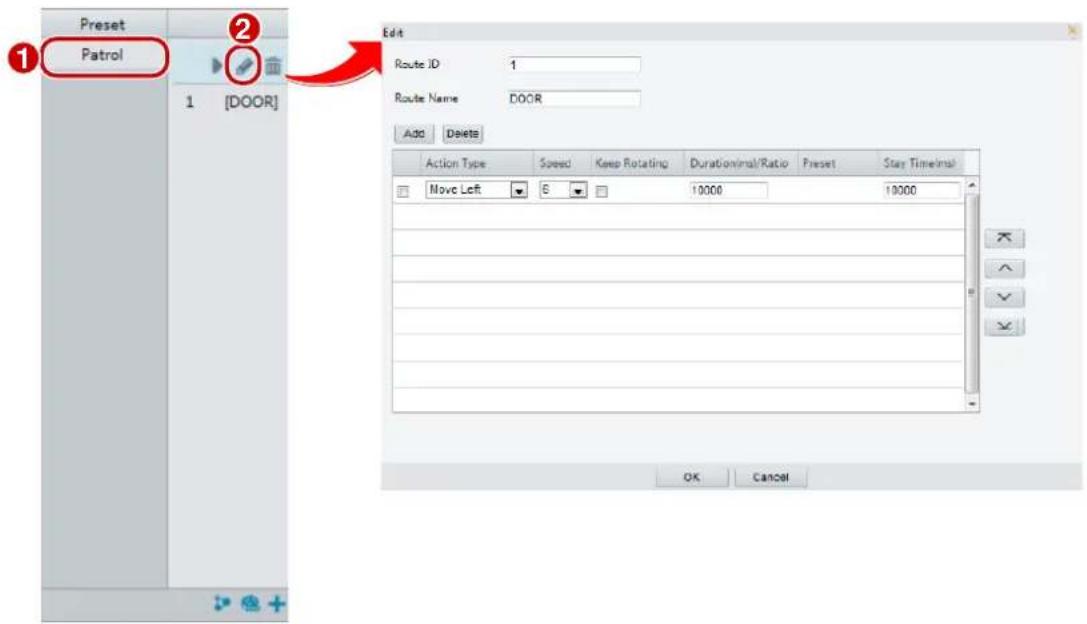

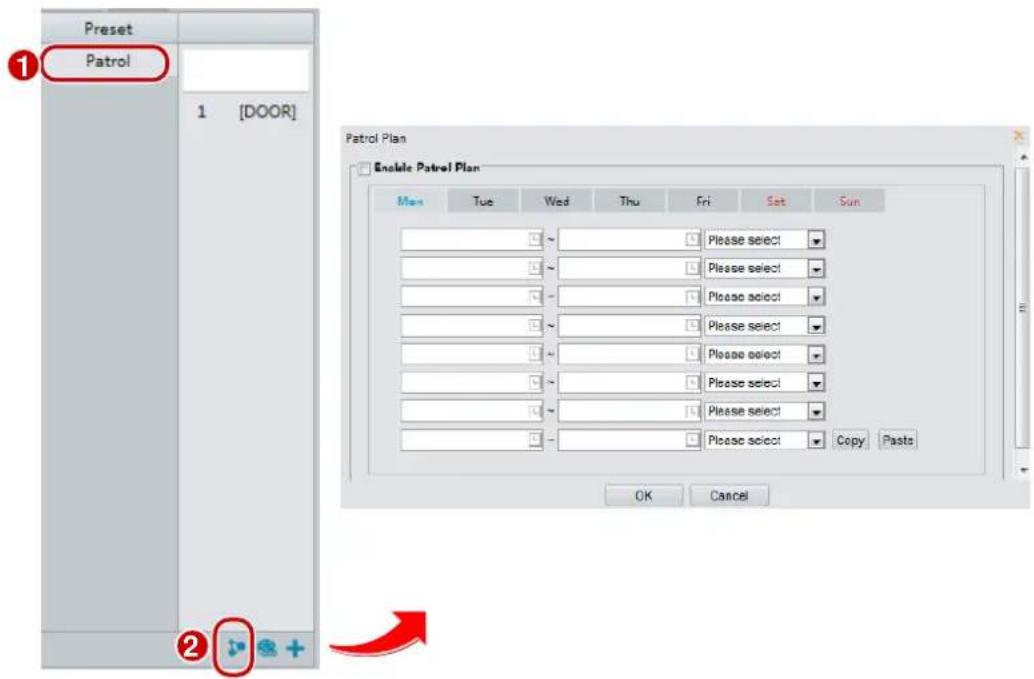

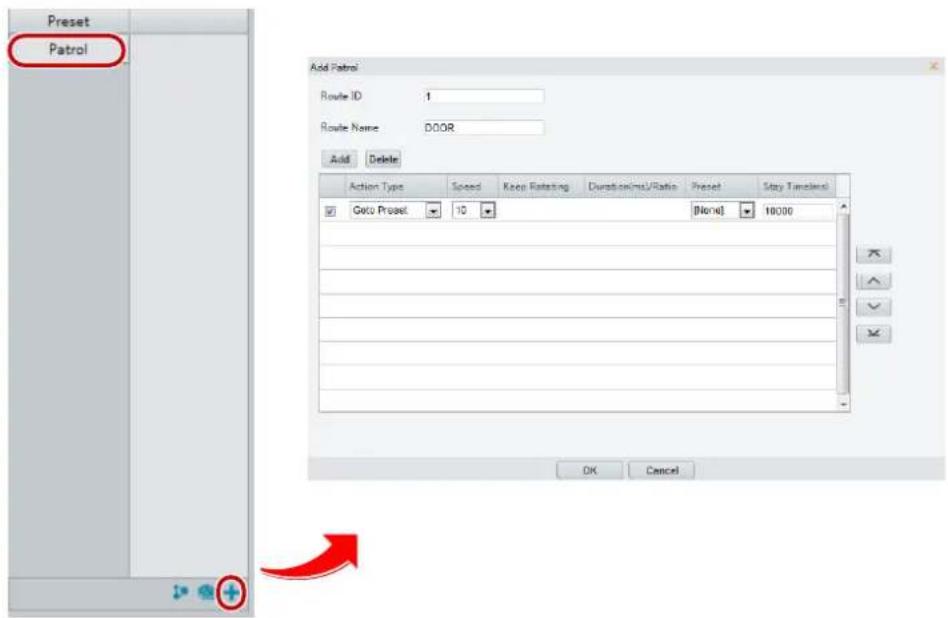

Seng Patrol 72

Seng Home Posion 76

Remote Control PTZ 77

PTZ Limit 77

Resume Patrol....78

Appendix A Glossary 78

Appendix B FAQ 80

1 Network Connecon

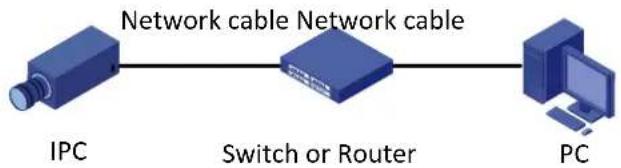

Before accessing a network camera (also known as IP Camera or IPC) from a PC, you need to connect the network camera to the PC directly with a network cable or via a switch or router.

Use a Shielded Twisted Pair (STP) cable to connect the network interfaces of the network camera and the PC.

Use Shielded Twisted Pair (STP) cables to connect the network interfaces of the camera and the switch or router.

2 Login

Preparaon

Aer you have completed the installaon in accordance with the quick guide, connect the camera to power to start it. Aer the camera is started, you can access the camera from a PC client installed with a web browser or the client soware EZStaon. Internet Explorer (IE) is a recommended web browser. For more informaon about EZStaon, refer to the EZStaon User Manual.

The following takes IE on a Microso Windows 7.0 operang system as an example.

Check before login

• The camera is operang correctly.
• The network conncon between the PC and the camera is normal.
- The PC is installed with Internet Explorer 8.0 or higher.
• (Oponal) The resoluon is set to 1440 x 900.

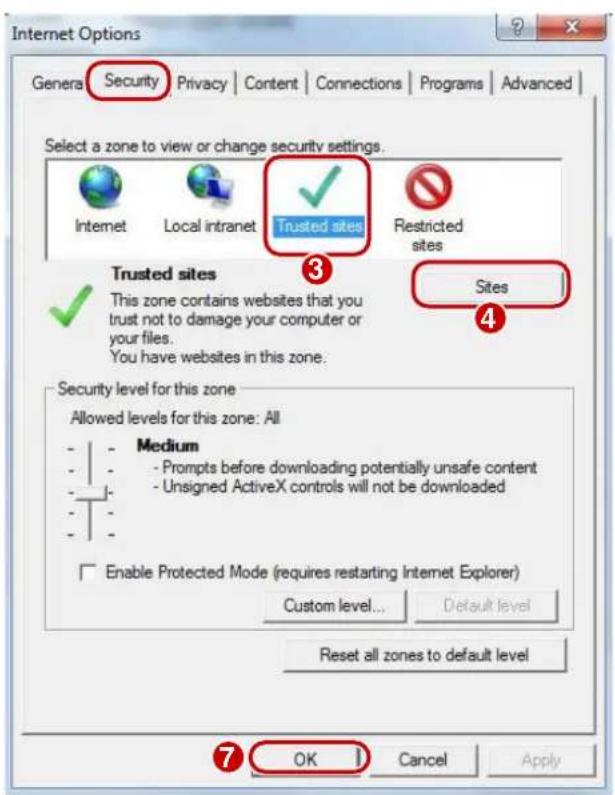

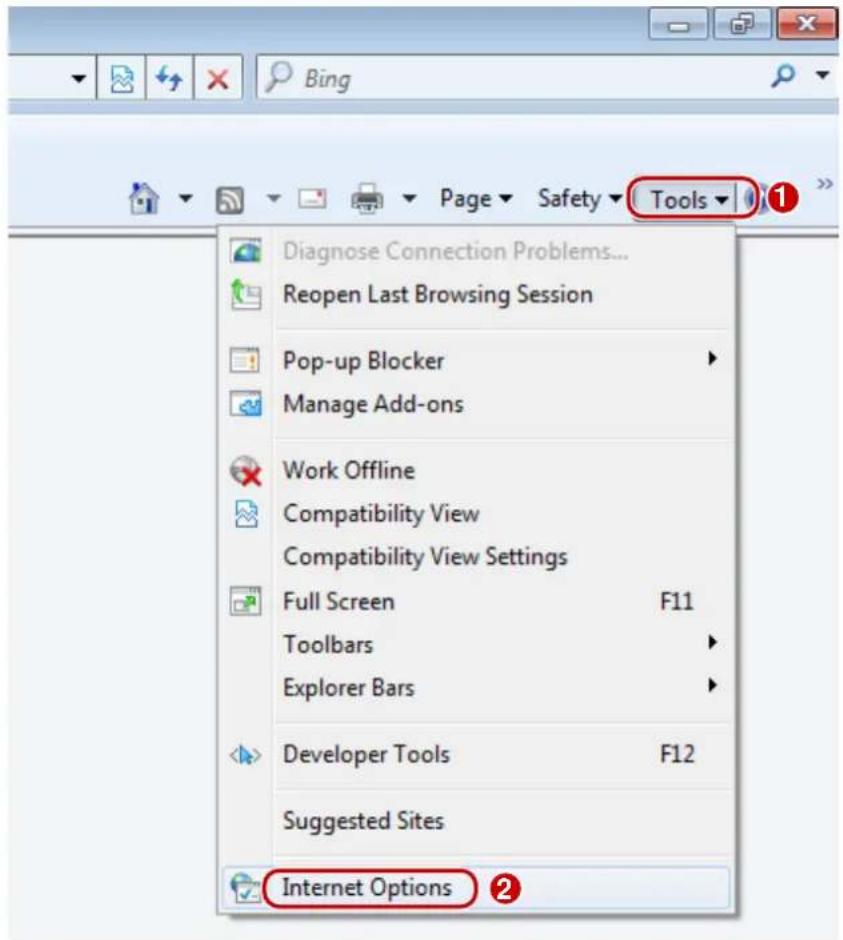

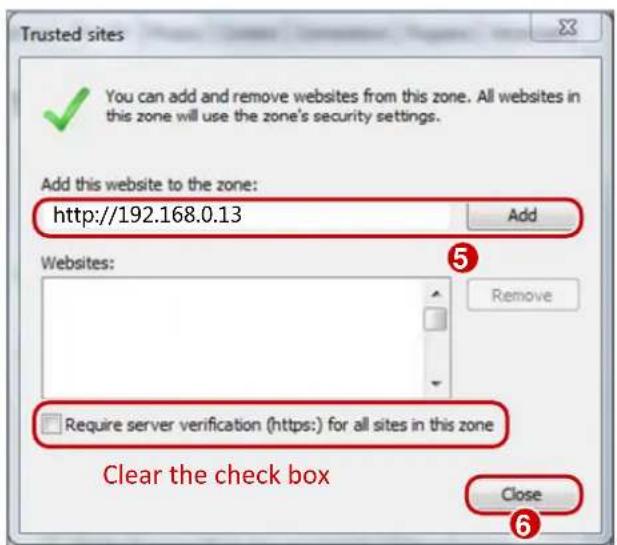

Add the IP address as a trusted site

NOTE!

The IP address 192.168.0.13/192.168.1.13 in this example is the default IP address. Please replace it with the actual address of your camera if it has been changed.

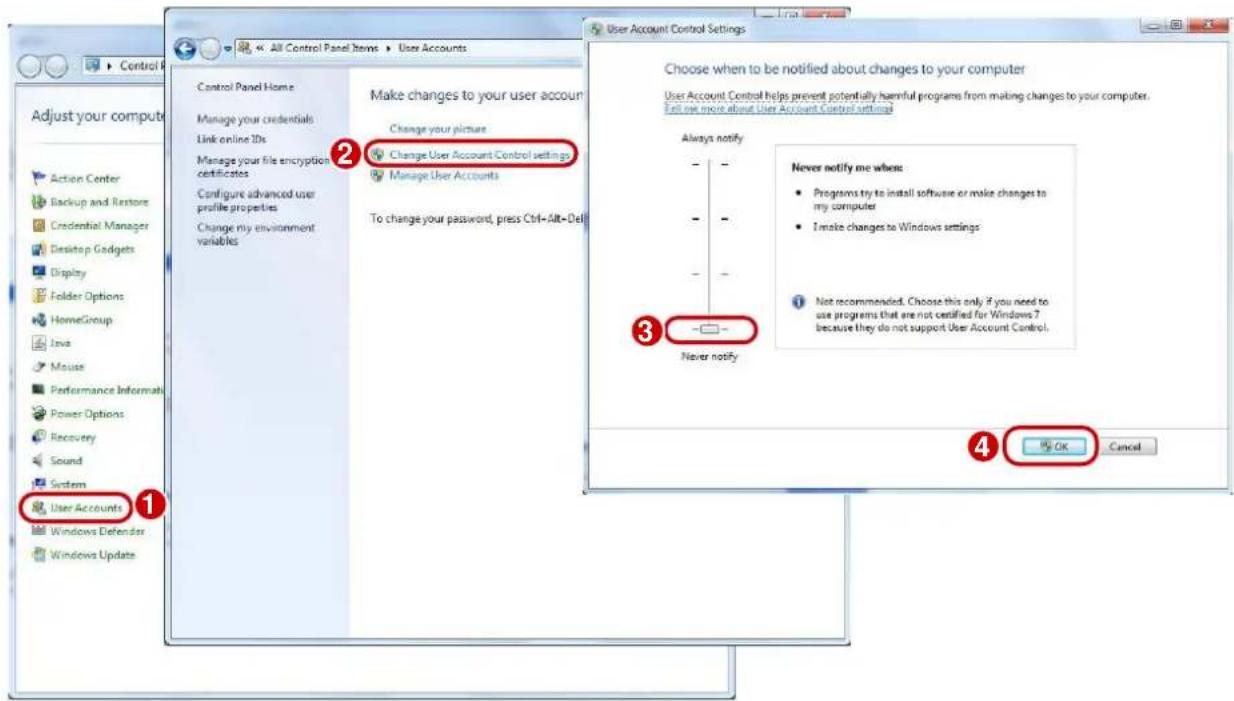

(Oponal) Modify user access control sengs

Before you access the camera, follow the steps to set User Account Control Sengs to Never nofy.

Logging In to the Web Interface

The default stac IP address of the camera is 192.168.1.13 or 192.168.0.13, and the default subnet mask is 255.255.255.0.

DHCP is turned on by default. If a DHCP server is used in the network, the IP address of your camera may be assigned dynamically, and you need to use the correct IP address to log in. Use the EZStaon client to view the dynamic IP address of your camera.

The following takes IE as an example to describe the login procedure.

1. Browse to the login page by entering the correct IP address of your camera in the address bar.

Failed to load ActiveX control, click Download to install latest ActiveX control.

1. If you log in for the rst me, follow system prompts and install the AcveX. You need to close your browser to complete the installaon.

NOTE!

• To manually load the AcveX, type hp://IP address/ActiveX/Setup.exe in the address bar and press Enter.
• The default password is used for your rst login. To ensure account security, please change the password aer your rst login. You are recommended to set a strong password (no less than eight characters).

• The camera protects itself from illegal access by liming the number of failed login aempts. If login fails six mes consecuively, the camera locks automacally for ten minutes.

• Enter the username and password, and then click Login. For the rst login, use the default username "admin" and password "123456".

- If you log in with Live View selected, live video will be displayed when you are logged in. Otherwise, you need to start live video manually in the live view window.

- If you log in with Save Password selected, you do not need to enter the password each me when you log in. To ensure security, you are not advised to select Save Password.

• To clear the Username and Password text boxes and the Save Password check box, click Reset.

Introducon to the Web Interface

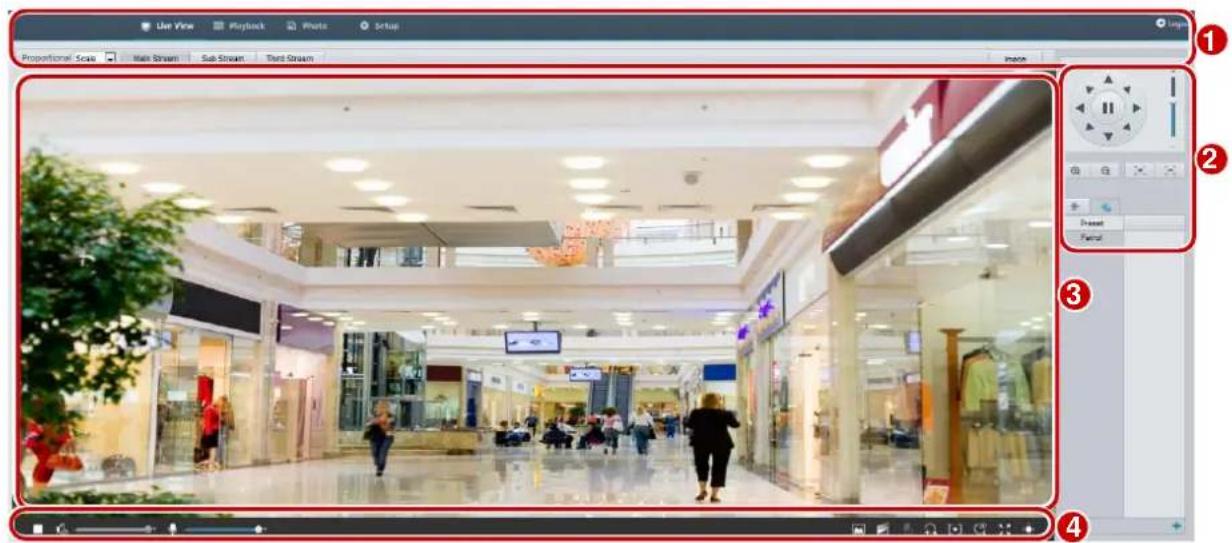

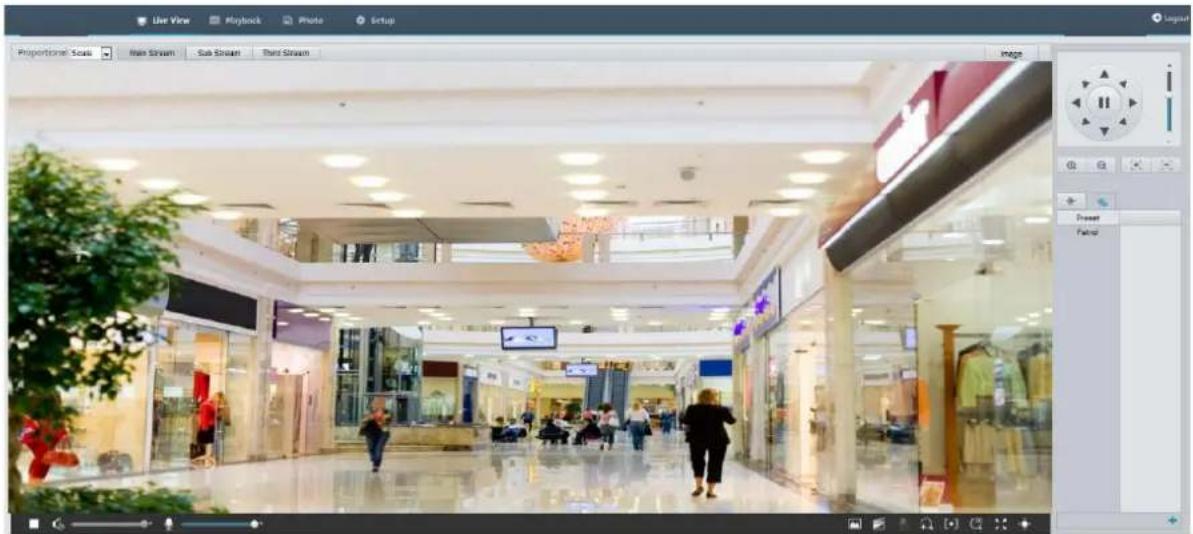

By default the live view window is displayed when you are logged in to the Web interface. The following shows an example.

No.	Descripon
1	Menu
2	PTZ control areaNote:This area is available for PTZ dome cameras and PTZ cameras.
3	Live view window
4	Live view toolbar

Inial Conguraon

Aer you log in to the device, please perform the following initial conguraon.

Item	Descripon
1. Set the TCP/IP address for the device.	Recongure the device IP and network parameters based on the actual networking.
2. Log out and log in again to the Web using the new IP address.	-
3. Set the system me.	Set the system me based on the actual situaon.
4. (Oponal) Set the management server.	Set the management server based on the actual networking.
5. (Oponal) Set the server for storing photos.	Set the server for storing photos based on the actual networking.
6. Set OSD.	Set the informaon displayed on the screen as needed, for example, me.
7. (Oponal) Manage users.	Change the default password and add common users as needed.

You can watch the live video aer nishing the inial conguraon. Please congure other parameters as needed.

NOTE!

• The displayed live view interface, parameters displayed and value ranges may vary with models. Please see the actual Web interface for details.
  • The parameters that are grayed out cannot be modified. For the actual sengs, see the Web interface.
• It is recommended that you change the password when you are logged in the rst me. For details about how to change a password, see Security.

3 Conguring Parameters

Local Parameters

Set local parameters for your PC.

NOTE!

The local parameters may vary with models. Please see the actual Web interface for details.

1. Select Setup > Common > Local Sengs.

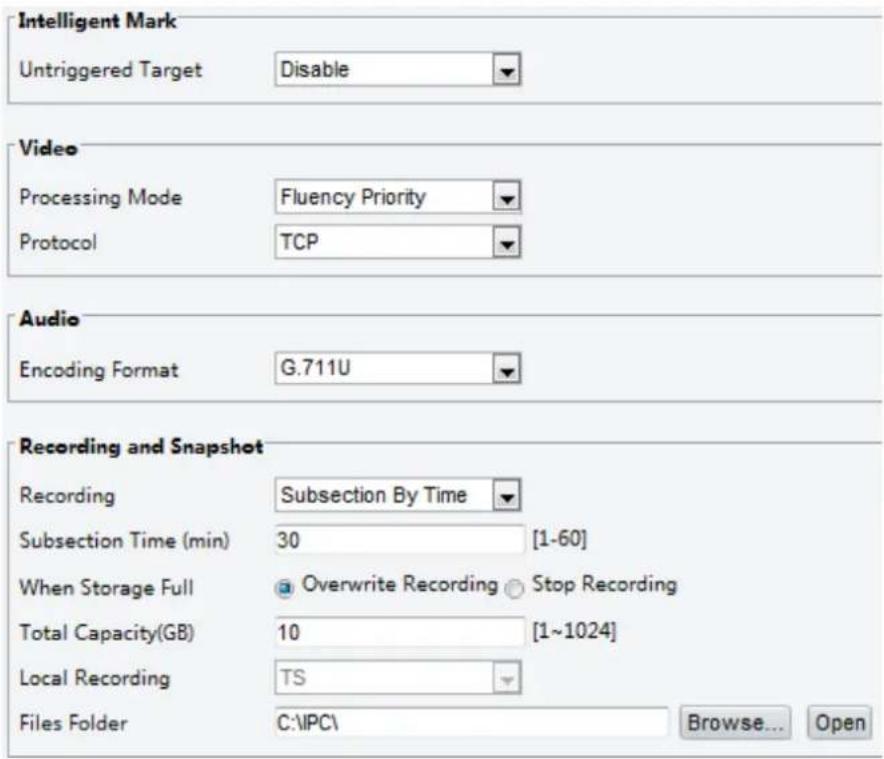

1. Modify the sengs as required. The following table describes some major parameters.

Parameter		Descripon
Intelligent Mark	Untriggered Target	When enabled, the camera will display an on-screen mark on the target (e.g., face when face detecon is enabled) and track it.
Video	Processing Mode	Real-Time Priority: Recommended if the network is in good condion.Fluency Priority: Recommended if you want short me lag for live video.Ultra-low Latency: Recommended if you want the minimum me lag for live video.
	Protocol	Set the protocol used to transmit media streams to be decoded by the PC.
Record and Snapshot	Recording	Subsecon By Time: Duraon of recorded video for each recording le on the computer. For example, 2 minutes.Subsecon By Size: Size of each recording le stored on the computer. For example, 5M.
	Record Overwrite	Overwrite: When the assigned storage space on the computer is used up, the camera deletes the exisng recording les to make room for the new recording le.Full Stop: When the assigned storage space on the computer is full, recording stops automacally.

1. Click Save.

Network Conguraon

Ethernet

Modify communicaon sengs such as the IP address for the camera so that the camera can communicate with other devices.

NOTE!

• Aer you have changed the IP address, you need to use the new IP address to log in.

- The conguraons of DNS (Domain Name System) server are applicable when the device is accessed by domain name.

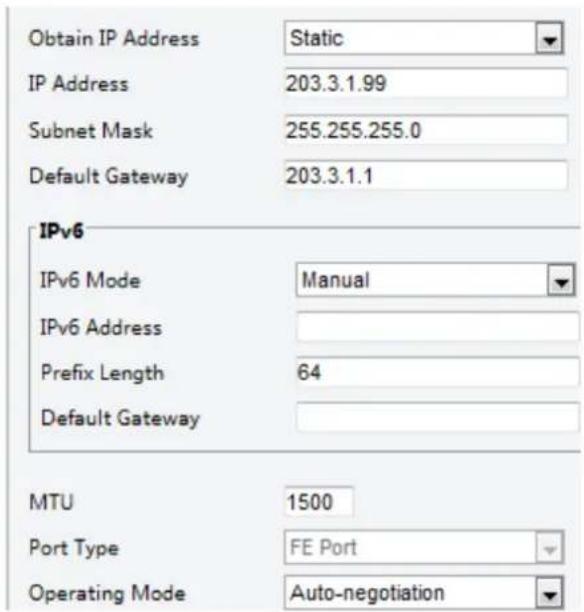

Stac Address

1. Click Setup > Network > Network.

1. Select Stac from the Obtain IP Address drop-down list.

2. Enter the IP address, subnet mask, and default gateway address. Make sure that the IP address of the camera is unique in the network.

3. Click Save.

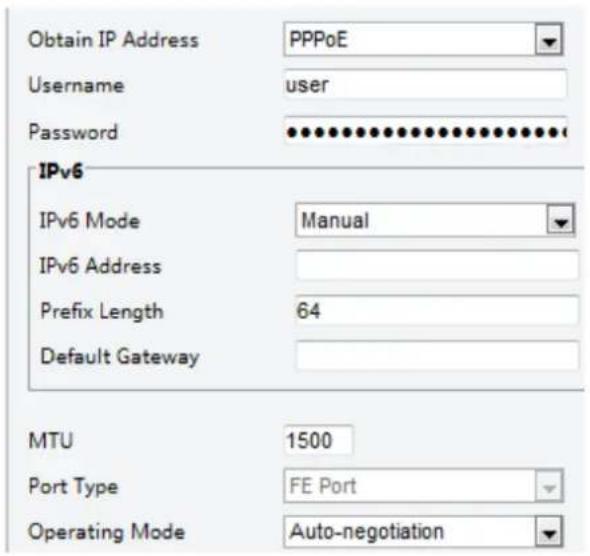

PPPoE

NOTE!

This funcon is not supported by some models. Please see the actual model for details.

If the camera is connected to the network through Point to Point over Ethernet (PPPoE), you need to select PPPoE as the IP obtainment mode.

1. Click Setup > Network > Network.

1. Select PPPoE from the Obtain IP Address drop-down list.
2. Enter the username and password provided by your internet Service Provider (ISP).
3. Click Save.

DHCP

The Dynamic Host Conguraon Protocol (DHCP) is enabled by default when the camera is delivered. If a DHCP server is deployed in the network, the camera can automatically obtain an IP address from the DHCP server.

To manually congure DHCP, follow the steps below:

1. Click Setup > Network > Network.

1. Select DHCP from the Obtain IP Address drop-down list.
2. Click Save.

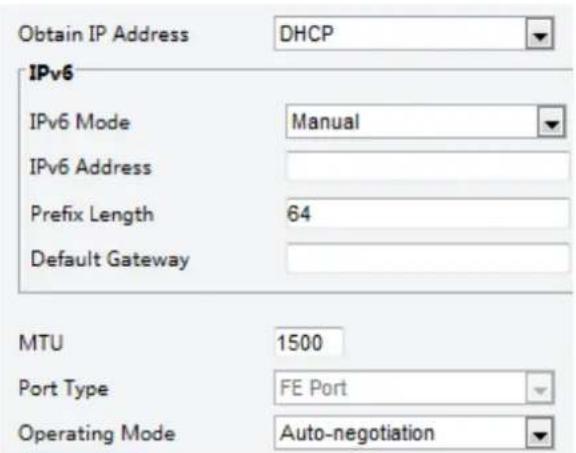

IPv6

1. Click Setup > Network > Network.

1. By default the IPv6 mode is set to Manual.
2. Enter the IPv6 address, set the prex length and default gateway. The IP address must be unique on the network.
3. Click Save.

Wi-Fi

NOTE!

This funcon is not supported by some models, please see the actual model for details.

1. Click Setup > Network > Network. Click the Wi-Fi tab.

Wi-Fi Mode

Sniffer

1. Select Snier.
2. Click Save.

Port

NOTE!

This funcon is not supported by some models. Please see the actual model for details.

1. Click Setup > Network > Port.

HTTP Port	80
HTTPS Port	443
RTSP Port	554

Note: Modifying the RTSP or server port number will cause the device to restart.

1. Congure relevant port numbers.
2. Click Save.

FTP

Aer the conguraon of FTP, you will be able to upload snapshots from network cameras to the specied FTP server.

General

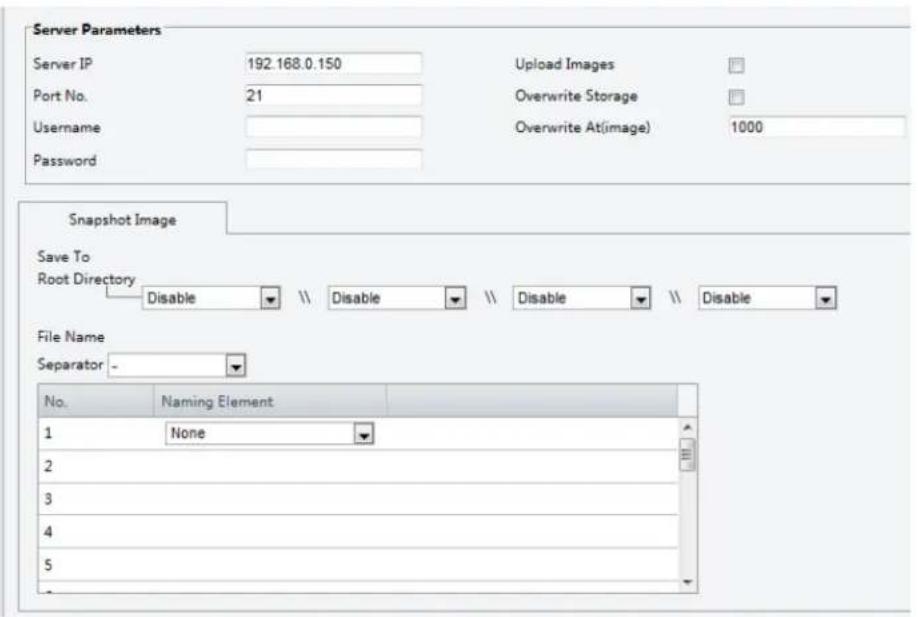

1. Click Setup > Storage > FTP. Go to General tab.

1. Set the IP address and port for the FTP server, username and password used to upload images to the FTP server, select Upload Images, Overwrite Storage and set Overwrite At (threshold for overwring images).
2. Set the path for saving snapshots on the FTP server and the le name format.
3. Click Save.

Smart

This funcon is used to store snapshots taken for smart funcons such as face recognition and people counng.

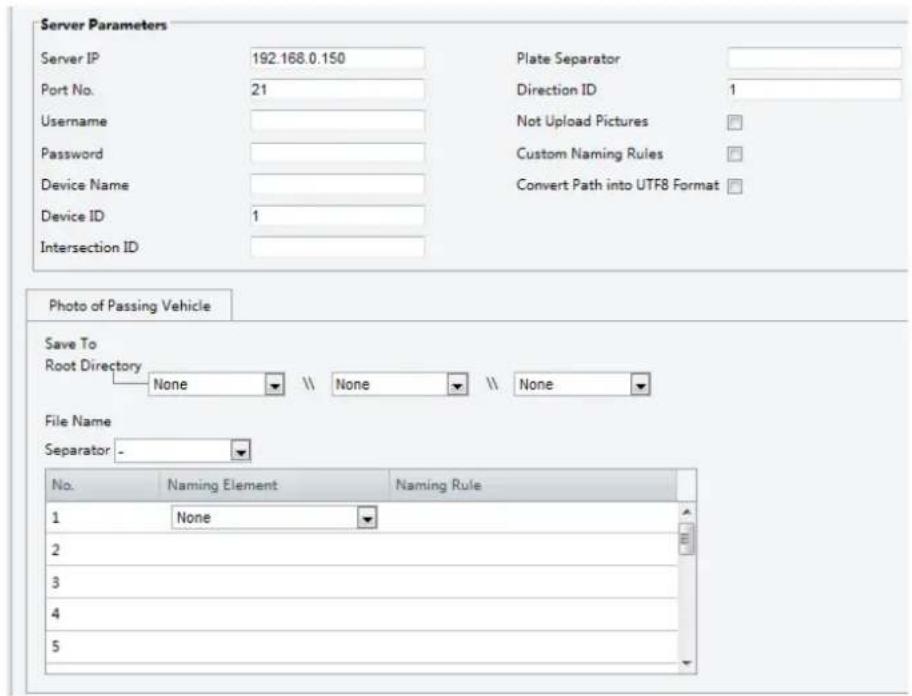

1. Click Setup > Storage > FTP. Go to Smart tab.

1. Set the IP address and port of the FTP server, username and password used to upload images to the FTP server.
2. Set the path for saving snapshots on the FTP server and the le name format.
3. Click Save.

E-Mail

Aer the conguraon of E-mail, when alarms are triggered, you will be able to send messages to the specied E-mail address.

1. Click Setup > Network > E-mail.

2. Congure relevant parameters of the sender and the recipient The following table describes some major parameters.

Parameter	Descripon
TLS/SSL	When enabled, the e-mail will be encrypted using TLS (Transport Layer Security) or Secure Socket Layer (SSL) to protect privacy.First it tries to send through an SSL conncon. If the SMTP server supports SSL, the e-mail will be sent through the SSL conncon; otherwise, it tries to send using STARTTLS.
Aach Image	When enabled, the e-mail will contain 3 instant snapshots as aachment according to the Capture Interval.

3. Click Save.

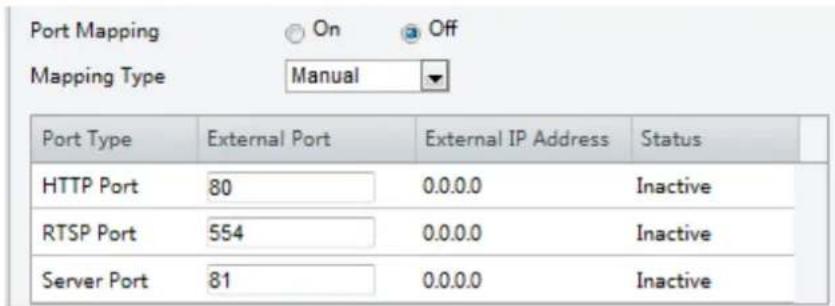

Port Mapping

1. Click Setup > Network > Port. Go to Port Mapping tab.

1. Enable Port Mapping and select mapping type. If Manual is selected, then external ports must be congured (external IP is obtained automatically by the camera). If the congured port is occupied, then the Status will show Inacve.

2. Click Save.

DNS

1. Click Setup > Network > DNS.

Preferred DNS Server	8.8.8.8
Alternate DNS Server	8.8.4.4

1. Set DNS server addresses.

2. Click Save.

DDNS

NOTE!

This funcon is not supported by some models. Please see the actual model for details.

1. Click Setup > Network > DDNS.

1. Enable DDNS Service.
2. Select a DDNS type: DynDNS, NO-IP, or EZDDNS.
3. Complete other sengs including server address, domain name, username and password.
4. Click Save.

NOTE!

• This funcon is not available to all models.
• This funcon is displayed as P2P for some devices.

1. Click Setup > Network > EZCloud.

1. Select On to enable cloud service.
2. Click Save.

802.1x

802.1x provides authencaon to devices (e.g., cameras) trying to connect to a network. Only the authenticated devices can connect the network. This enhances security.

1. Click Setup > Network > 802.1x.

1. Select On and then complete other settings.
2. Click Save.

Image Conguraon

Image Adjustment

NOTE!

• The image parameters displayed and value ranges allowed may vary with camera model. For the actual parameters and value ranges of your camera, see the Web interface. You may move the sliders to adjust sengs or enter values in the text boxes directly.
• Clicking Default will restore all the default image seings.

Seng the Scene

Set image parameters to achieve the desired image eects based on live video in dierent scenes.

Click Setup > Image > Image.

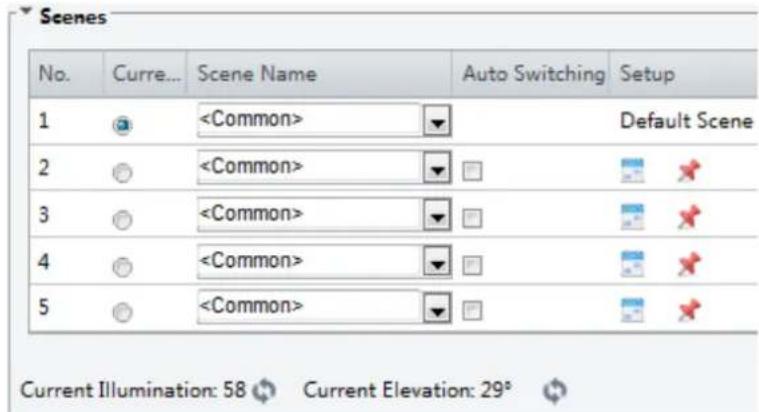

The scene management page for some models is displayed as follows, you can select the desired scene in the drop-down list.

The scene management page of some models is displayed as follows, you can take the following steps to conjure the scene.

Enable Auto Switching

1. Click Scenes.

2. Select a scene, and then set scene switching parameters. The following table describes some major parameters.

Column	Descripon
Current	Indicates the scene that is being used.Note:Select an opon button to switch to the scene and display the corresponding image parameters for the scene.The camera switches the current scene automacally when Enable Auto Switching is selected.
Scene Name	Name of the current scene. The device provides several preset scene modes. When yo select a scene, the corresponding image parameters are displayed. You can adjust imag sengs according to actual needs.Common: recommended for outdoor scenes.Indoor: recommended for indoor scenes.High Sensivity: recommended for low light environment.Highlight Compensaon: can suppress strong light such as headlights on roads and spotlight in parks. Recommended for capturing vehicle license plates.WDR: recommended for scenes with high-contrast lighng, such as window, corridor, front door or other scenes that are bright outside but dim inside.Custom: set a scene name as needed.
Auto Switching	Indicates whether to add a scene to the auto-switching list.Note:If Auto Switching is selected, the system switches to a scene automacally when thecondion for switching to the scene is met. By default the auto-switching list includes the default scene.
Setup	Click to set condions for auto-switching, including schedule, illuminaon, and current elevaon (angle between the PTZ and the horizontal direcon). It means that auto-switching is triggered only when illuminaon and the current elevaon during the set me period meet the set condions. A condion is invalid if both the start and end values are set to 0.

1. Select a scene and then click ✗ to set it as the default scene.
2. If auto-switching is enabled, the camera can switch to the scene automacally when the condion for switching to a non-default scene is met. Otherwise, the camera remains in the default scene. When auto-switching is not enabled, the camera remains in the current scene.

NOTE!

• If Auto Switching is enabled (scene sengs will be unavailable), the device will switch between the set scenes. If not, the device will stay at the current scene. The device will stay at default scenes unless the non-default scenes are triggered.
• If mulple non-default scenes are triggered, then the device will switch to the scene with the minimum number (starts from 1 to 5).

Image Enhancement

NOTE!

This funcon may vary with models. Please see actual Web interface for details.

1. Click Setup > Image > Image and then click Image Enhancement.

1. Use the sliders to change the sengs. You may also enter values directly. The following table describes some major parameters.

Item	Descripon
Brightness	Set the degree of brightness of images.
	Low brightness	High brightness
Saturaon	The amount of a hue contained in a color.
	Low saturaon	High saturaon
Contrast	Set the degree of dience between the blackest pixel and the whitest pixel.
	Low contrast	High contrast
Sharpness	Contrast of boundaries of objects in an image.
	Low sharpness	High sharpness
2D Noise Reducon	Reduce the noise of images. The funcon may cause image blurring.
3D Noise Reducon	Reduce the noise of images. The funcon may cause moon blur (or ghosng in some applicaons).
Image Rotaon	Rotaon of the image.
	Normal	Flip Vercal
	Flip Horizontal	180°
	90° Clockwise	90° An-clockwise

3. To restore default sengs in this area, click Default.

Exposure

NOTE!

• This funcon may vary with models. Please see actual Web interface for details.
• The default settings are scene-adapve. Use default sengs unless modicaon is necessary.

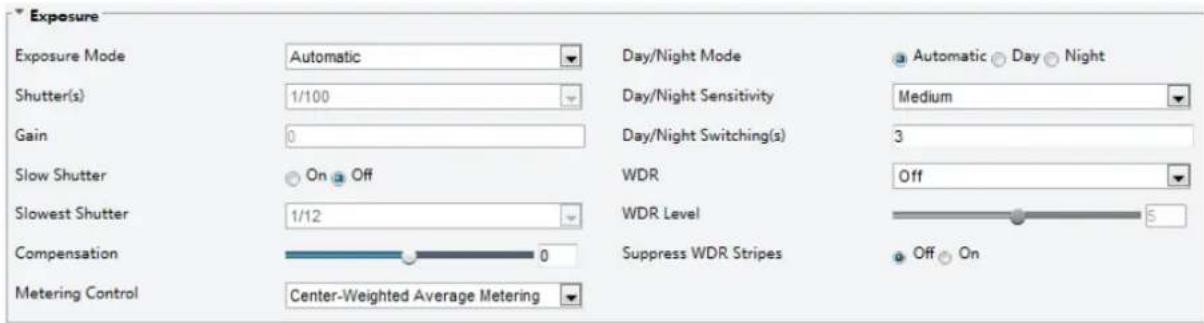

1. Click Setup > Image > Image and then click Exposure.

2. Set the parameters as required. The following table describes some major parameters.

Parameter	Descripon
Exposure Mode	Select the correct exposure mode to achieve the desired exposure eect.
Shuer (s)	Shuer is used to control the light that comes into the lens. A fast shuer speed is ideal for scenes in quick moon. A slow shuer speed is ideal for scenes that change slowly.Note:You can set a shutter speed when Exposure Mode is set to Manual or Shuer Priority.If Slow Shuer is set to O, the reciprocal of the shutter speed must be greater than the frame rate.
Gain (dB)	Control image signals so that the camera outputs standard video signals according to the light condion.Note:You can set this parameter only when Exposure Mode is set to Manual or Gain Priority.
Slow Shuer	Improves image brightness in low light conditions.Note:You can set this parameter only when Exposure Mode is not set to Shuer Priority and when Image Stabilizer is disabled.
Slowest Shuer	Set the slowest shuer speed that the camera can use during exposure.Note:You can set this parameter only when Slow Shuer is set to On.
Compensaon	Adjust the compensaon value as required to achieve the desired eects.Note:You can set this parameter only when Exposure Mode is not set to Manual.
Metering Control	Set the way the camera measures the intensity of light.Center-Weighted Average Metering: Measure light mainly in the central part of images.Evaluave Metering: Measure light in the customized area of images.Highlight compensation: Ignore the brightness of the overexposed area of images. But selecng this seng will decrease the overall brightness of the image.Note:You can set this parameter only when Exposure Mode is not set to Manual.
Day/Night Mode	Automac: The camera outputs the opmum images according to the light condion. In this mode, the camera can switch between night mode and day mode automacally.Night: The camera provides high-quality black and white images using the exisng lightDay: The camera provides high-quality color images using the exisng light.
Day/Night Sensitivity	Light threshold for switching between day mode and night mode. A higher sensitivity means that the camera is more sensitive to the change of light and becomes more easily to switch between day mode and night mode.Note:You can set this parameter only when Day/Night Mode is set to Automac.
Day/Night Switching(s)	Set the length of me before the camera switches between day mode and night mode aer the conditions for switching are met.Note:You can set this parameter only when Day/Night Mode is set to Automac.
WDR	Enable WDR to disnguish the bright and dark areas in the same image.Note:You can set this parameter only when Exposure Mode is neither Customize nor Manual and when Image Stabilizer is disabled.
WDR Level	Aer enabling the WDR funcon, you can improve the image by adjusting the WDR level.Note:Use level 7 or higher when there is a high contrast between the bright and dark areas of the scene. In the case of low contrast, it is recommended to disable WDR or use level 1-6.
Suppress WDR Stripes	When enabled, the camera can automatically adjust slow shuer frequency according to the frequency of light to minimize stripes that may appear in images.

1. To restore the default sengs, click Default.

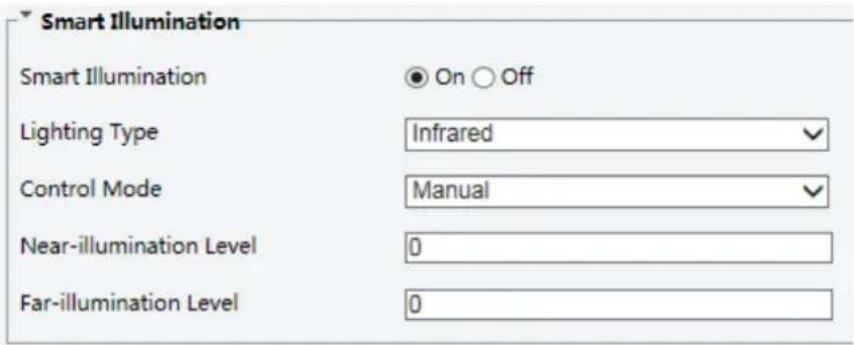

Smart Illuminaon

NOTE!

This funcon may vary with models. Please see actual Web interface for details.

1. Click Setup > Image > Image and then click Smart Illuminaon.

1. Select the correct IR control mode and set the parameters. The following table describes some major parameters.

Parameter	Descripon
Control Mode	Global Mode: The camera adjusts IR illumination and exposure to achieve balanced image eects. Some areas might be overexposed if you select this opon. This opon is recommended if monitored range and image brightness are your rst priority.Overexposure Restrain: The camera adjusts IR illuminaon and exposure to avoid regional overexposure. Some areas might be dark if you select this opon. This opon is recommended if clarity of the central part of the image and overexposure control are your rst priority.Road: This mode oers strong illuminaon in whole and is recommended for monitoring wide-ranging scenes, for example, road.Park: This mode oers uniform light and is recommended for monitoring small range scenes with many obstacles, for example, industrial parks.Manual: This mode allows you to manually control the intensity of IR illuminaon.Indoor: This mode is recommended for applicaon in indoor scenes.
Illuminaon Level	Set the intensity level of the IR light. The greater the value, the higher the intensity. means that the IR light is turned o.Note:You can set this parameter only when Control Mode is set to Manual.You are recommended to set this parameter rst for a wide-angle scene.You are recommended to set this parameter rst if the scene requires an intermediate focal length.You are recommended to set this parameter rst if the scene requires a telephoto view.

1. To restore the default sengs, click Default.

NOTE!

This funcon may vary with models. Please see actual models for details.

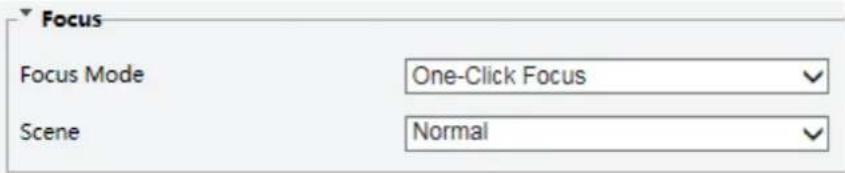

1. Click Setup > Image > Image and then click Focus.

1. Select the focus mode as required.

Parameter	Descripon
Focus Mode	Auto Focus: The camera focuses automatically according to the current light condion.Manual Focus: Manually adjust camera focus as required.One-Click Focus: The camera is triggered to focus once when rotang, zooming or going to a preset.One-Click Focus (IR): In a low light condition such as during night hours or in a dark house, this focus mode achieves beer eects with the IR light turned on.
Scene	Normal: Used for common scenes, such as road and industrial park.Long Distance: Used for long-distance monitoring on a road. For example, when the camera is installed over 30 meters high to monitor a distant road intersecon.

1. To restore the default sengs, click Default.

White Balance

White balance is the process of oseng unnatural color cast in images under dierent color temperatures so as to output images that best suit human eyes.

NOTE!

This funcon may vary with models. Please see the actual Web interface for details.

1. Click Setup > Image > Image and then click White Balance.

1. Select a white balance mode as required. The following table describes some major parameters.

Parameter	Descripon
White Balance	Adjust the red or blue oset of the image:Auto/Auto2: The camera adjusts the red and blue oset automatically according to the light condion (the color tends to be blue). If the images are sll unnaturally red or blue in Auto mode, please try Auto2.Fine Tune: Allow you to adjust the red and blue offset manually.Outdoor: Suitable for outdoor environment with a relavely greater color temperature range.Locked: Lock the current color temperature without change.Sodium Lamp: The camera adjusts red and blue oset automacally according to the light condion (the color tends to be red).
Red Oset	Adjust the red oset manually.Note:You can set this parameter only when White Balance is set to Fine Tune.
Blue Oset	Adjust the blue oset manually.Note:You can set this parameter only when White Balance is set to Fine Tune.

3. To restore the default sengs, click Default.

Advanced

Use the defog funcon to adjust the clarity of images captured in fog or haze conditions.

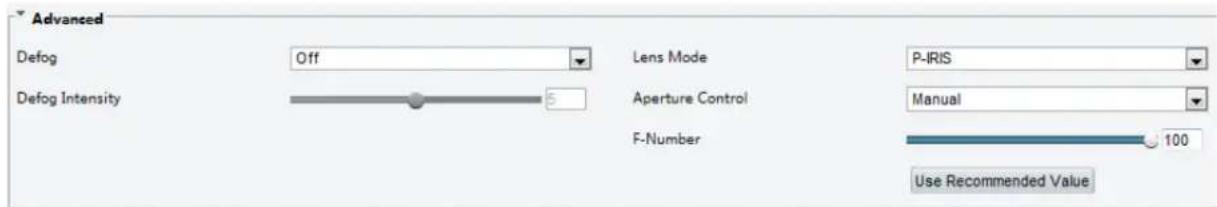

1. Click Setup > Image > Image and then click Advanced.

NOTE!

- You can set this parameter only when WDR is turned o.

- Only some camera models support opcal defog. When Defog is set to On, defog intensity level 6-9 represent optical defog, and images change from color to black/white when defog intensity is set from level 5 to 6; if Defog is set to Auto and defog intensity level is somewhere between 6-9, images do not automatically change to black/white in light fog conditions; the camera automacally switches to opcal defog only in heavy fog conditions.

1. Enable the defog funcon and then select a level for the scene. Level 9 achieves the maximum defog eects, and level 1 achieves the minimum.

Coastal cityscape with modern high-rise buildings along a waterfront promenade (no visible text or signage)

Defog O

City skyline along a wide river with modern high-rise buildings in the background (no visible text or signage)

Defog On

1. To restore the default sengs, click Default.

Lighng Type

NOTE!

This funcon may vary with models. Please see the actual model for details.

1. Click Setup > Image > Image and then click Smart Illuminaon

1. Select an opon from the Lighng Type drop-down list.

2. To restore the default sengs, click Default.

Conguring Iris and Lens Mode

NOTE!

• This funcon is only supported by certain network box camera types. Please see the actual model for details.
• Please use the lens with P-Iris control mode, and connect the iris control cable to the Z/F port of the camera.

• Iris can be set only when Lens Mode is set to P-IRIS.

• Click Setup > Image > Image and then click Advanced.

1. Modify the sengs as required. The following table describes some major parameters.

Parameter	Descripon
Lens Mode	Z/F: to modify focus and zoom.P-Iris: to modify iris value.
Aperture Control	Automacally or manually adjust iris.Note:You can set this parameter only when Lens Mode is set to P-Iris.
F-Number	Change aperture manually.

1. To restore the default sengs, click Default.

OSD Seng

On Screen Display (OSD) is the text displayed on the screen with video images and may include me and other customized contents.

NOTE!

This funcon may vary with models. Please see the actual Web interface for details.

1. Click Setup > Image > OSD.

The OSD interface of some models is displayed as follows.

1. Select the posion and content of the OSD.

2. Posion: Click the desired box in the Live View area. Aer the cursor shape is changed, click and hold the buon to move the box to the desired posion. To set the posion precisely, use the X and Y coordinates under Overlay Area.

3. Overlay OSD Content: The drop-down list provides Time, Preset and Serial Info. You may also select Custom and enter the content you want.

4. Aer you have set the posion and OSD content, the symbol appears in the Status column, which means that the OSD is set successfully. You may set mulple lines of contents for each area and use and to adjust the sequence of display.

5. Aer you have completed the sengs, a message appears to indicate the successful sengs.

You may right-click in the preview window and then choose to view in full screen mode or at an aspect rao. You may also double-click the preview window to enter or exit full screen mode.

To cancel OSD for an area, clear the OSD content in the Overlay OSD Content column or select None in the Posion column.

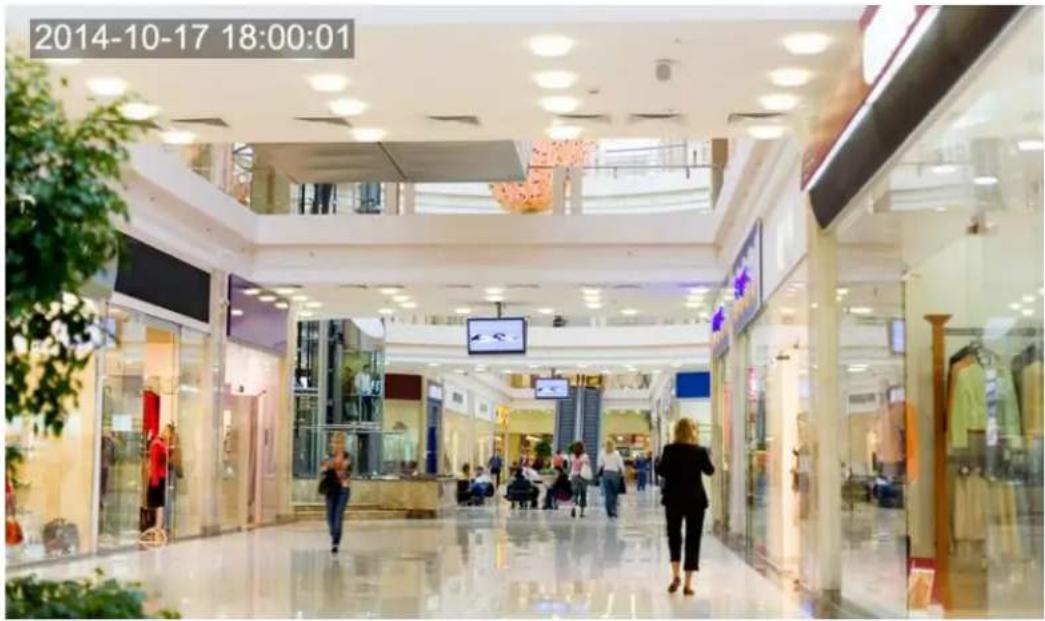

The following shows an example me OSD.

Privacy Mask

On certain occasions, you may need to set a mask area on the camera image to protect privacy, for example, the keyboard of an ATM machine. When PTZ changes its posion or zooms, the Privacy Mask will be adjusted accordingly to protect the area all along.

NOTE!

This funcon may vary with models. Please see the actual Web interface for details.

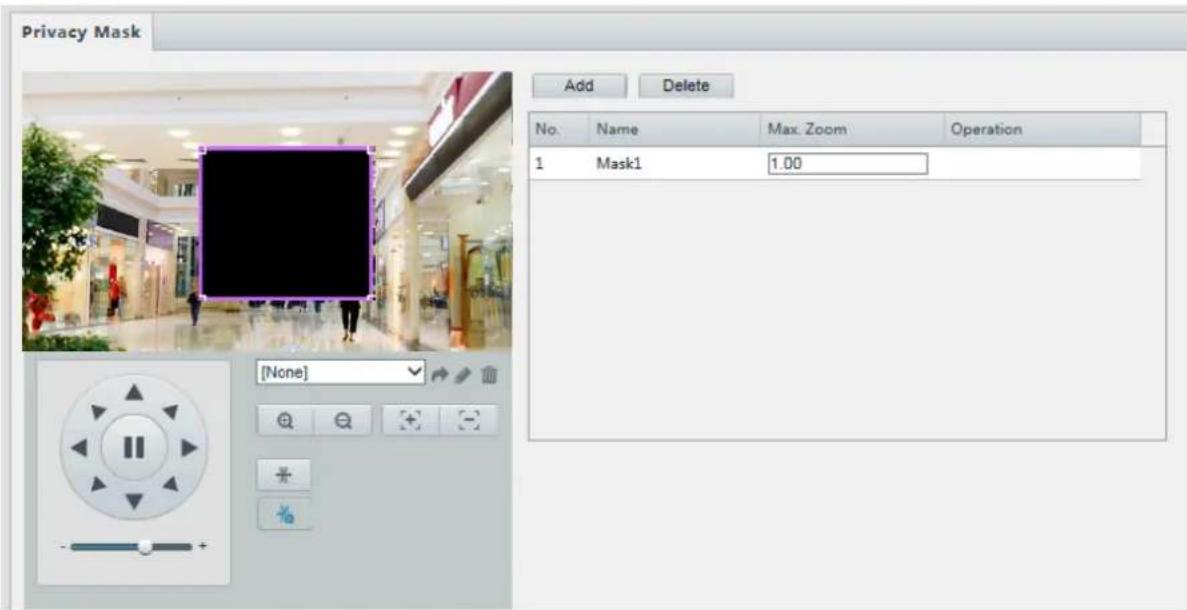

1. Click Setup > Image > Privacy Mask.

For some camera models, the page is displayed as follows:

1. Click to add a privacy mask, and click to delete a mask.

- To mask a posion: Click the box (with Mask displayed on it) to acvate the mask. Aer the cursor shape has changed, drag the box to the intended posion. - To mask an area: Use the mouse to draw a box on the area you want to mask.

When privacy mask is congured, the intended area is blocked. The following shows an example.

Interior view of a modern shopping mall with glass doors, storefronts, and pedestrians (no visible text or signage)

Audio and Video Conguraon

Video Conguraon

You can set video parameters that your camera supports and view the current status of BNC output. If available, you may also enable sub-stream and third stream as required.

NOTE!

• This funcon may vary with models. Only some camera models support the third stream. To determine if your camera supports this funcon, see the Web interface.

• Aer enabling the sub or third stream, modify the parameters as required. The parameters for the sub and third stream have the same meanings as that for the main stream.

• Click Setup > Video & Audio > Video.

1. Modify the sengs as required. The following table describes some major parameters.

Parameter	Descripon
Video Compression	Three opons: H.265, H.264 and MJPEG.Note:Image Quality cannot be set when Video Compression is set to H.265 or H.264. When set to MJPEG, only three frame rates are available: 1, 3 and 5; and Bit Rate, I Frame Interval, Smoothing and U-Code cannot be set.The bit rate changes to the default when you change the setng between H.264 and H.265. The default bit rate for H.265 is half of that for H.264.
Frame Rate	Frame rate for encoding images. Unit: FPS (frame per second).Note:To ensure image quality, note that the frame rate should not be greater than the reciprocal of shuer speed.
Bitrate Type	CBR: Constant Bit Rate, which means that the camera transmits data at a constant data rate.VBR: Variable Bit Rate, which means that the camera adjusts the bit rate dynamically according to image quality.
Image Quality	When Encoding Mode is VBR, you can move the slider to adjust quality level for images.Moving the slider toward Bit Rate decreases the bit rate and may aect image quality.Moving the slider toward Quality increases the bit rate and improves image quality.
I Frame Interval	Interval at which an I frame is encoded. Normally, a shorter I frame interval oers beer image quality but consumes more bandwidth.
GOP	Group Of Pictures in MPEG video encoding. This parameter species the order in which intra-frames (I frame) and inter-frames are arranged.
SVC	SVC (Scalable Video Coding) can reduce storage without compromising playback quality.
U-Code	Basic Mode: The actual bit rate is around 3/4 of the set bit rate.Advanced Mode: The actual bit rate is around 1/2 of the set bit rate.Note:When U-Code is enabled, video compression only supports H.264 and H.265. MJPEG is not supported.When U-Code is enabled, the capture mode does not support frame rates higher than 30.
Smoothing	Set the extent of smoothing. Choosing Clear means disabling Smoothing.Moving the slider toward Smooth increases the level of smoothing but will aect image quality.Note:In a poor network environment, you can enable smoothing to get more uent video.
BNC Output	BNC output supports NTSC and PAL.

3. Click Save.

Audio Conguraon

Audio conguraon means seng audio encoding parameters for your camera.

NOTE!

This funcon is not supported by some models. Please see the actual model for details.

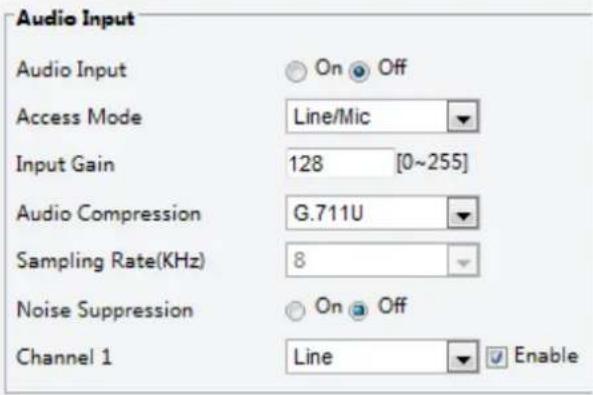

1. Click Setup > Video & Audio > Audio.

2. Modify the sengs as required. The following table describes some major parameters.

Parameter	Descripon
Audio Input	No audio data will be encoded when O is selected.Note:It is recommended to select O if you do not need audio. This can improve device performance to some extent.
Access Mode	Currently only Line/Mic.Note:This funcon is not available to devices with two audio output channels.
Audio	Three opons: G.711U, G.711A and ACC-LC.
Compression	G.711U and G.711A support 8K sampling rate only, and ACC-LC supports 8K, 16K and 48K sampling rates.
Input Gain	Audio signal amplicaon for sampling. The greater the gain, the greater amplicaon.
Noise Suppression	Used to reduce noise in images. To enable noise suppression, select On.
Channel	Audio output channel. To enable audio output, select Enable.Note:Only some camera models support two channels.

3. Click Save.

Snapshot

1. Click Setup > Video & Audio > Snapshot.

1. Select On, and then set resolution, image quality and schedule as needed.
2. Click Save.

ROI

When Region of Interest (ROI) is enabled, the system ensures image quality for ROI rst if the bit rate is insufficient.

NOTE!

This funcon is not supported by some models. Please see the actual model for details.

1. Click Setup > Video & Audio > ROI.

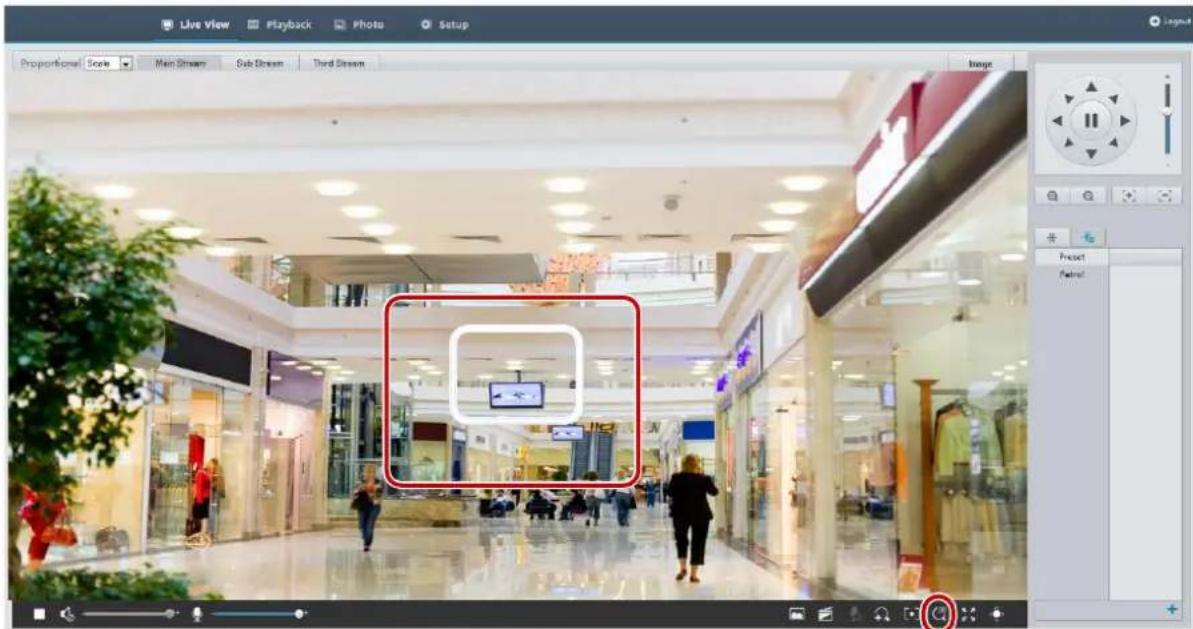

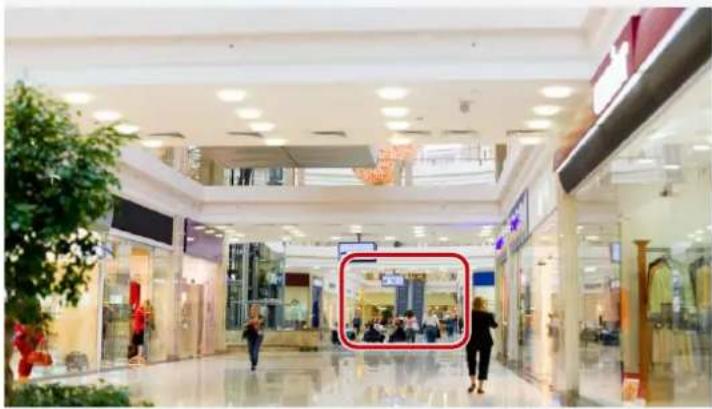

Interior view of a modern shopping mall with shoppers and storefronts (no visible text or signage)

1. Click +, and then drag the mouse to cover the intended part of the images. To delete, select the area and then click 📄

Media Stream Conguraon

Media Stream

You can display the established media streams from a camera. You may also set the camera so it transmits code streams by the UDP or TCP protocol to a specied IP address and port number. The sengs can be saved and take eect aer the camera is restarted.

NOTE!

• This funcon is not supported by some models. Please see the actual model for details.

- Choosing a transport protocol based on your actual needs and network performance. Generally speaking, TCP enables beer image quality than UDP but also causes higher latency.

1. Click Setup > Video & Audio > Media Stream.

1. Click +, select a stream type, and then set the IP address and port number of the unicast or mulcast group for the decoding device that receives audio and video streams from the camera. If you want the device to establish the media stream that has been congured before automacally aer the restart, select Yes for Persistent.

2. To delete a stream, click

1. Click Submit to complete the operaons.

RTSP Mulcast Address

Aer an RTSP mulcast address is congured, the third-party player can request the RTSP mulcast media stream from the camera through the RTP protocol.

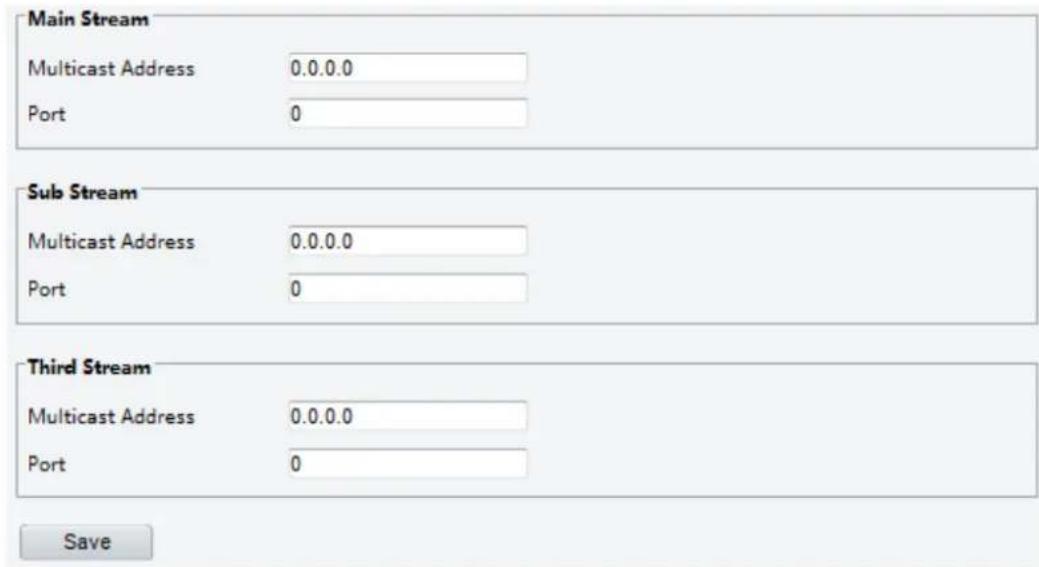

1. Click Setup > Video & Audio > Media Stream > RTSP Mulcast Address.

For some camera models, the page is displayed as follows.

1. Set the mulcast address (224.0.0.0 to 239.255.255.255) and port number (0 to 65535).

3. Click Save.

Intelligent Alarm Conguraon

You can conjure intelligent monitoring to count people and monitor moving objects. Intelligent monitoring includes people counng, intrusion detecon, and auto tracking.

The supported funcons may vary with camera model.

Smart Sengs

Click Setup > Intelligent > Smart Sengs.

For some camera models, the page is displayed as follows.

Cross Line Detecon

Cross line detecon detects objects that cross a virtual line in live video and triggers alarm when such an event is detected.

1. Click Setup > Intelligent > Smart Seings. Choose Cross Line and then click

1. Select Cross Line Detecon.

2. In the Detecon Rule area, click + to add a new detecon area. To delete a detecon area, click .

3. On the small preview window, drag the line to the intended posion and set the detecon range.

4. Set the direcon and sensitivity for the camera to decide whether to report a cross line detector alarm.

5. Set the alarm-triggered acons and arming schedule as required. For the detailed steps, see the descripons of alarm-triggered acons in Conguring Moon Detecon Alarm.

6. Click Save.

Intrusion Detecon

Intrusion detecon detects objects that enter a specied area in live video and triggers alarm when such an event is detected.

1. Click Setup > Intelligent > Smart Sengs. Choose Intrusion and then click

1. Select Intrusion Detecon.

2. In the Detecon Rule area, click + to add a new detecon area. To delete a detecon area, click .

3. Drag the borders of the box to set the intended posion and range.

4. Set me threshold, sensitivity, and percentage for the camera to decide whether to report an intrusion detecon alarm.

- Time Threshold: The minimum length of me that the intruder stays in the detecon area before an alarm will be reported.

- Sensitivity: Sensitivity of detecon. A greater value means higher detecon sensitivity.

- Percentage: The minimum rao of the intruder's size to the size of the specied detecon area before an alarm will be reported.

1. Set the alarm-triggered acons and arming schedule as required. For the detailed steps, see the descripons of alarm-triggered acons in Conguring Moon Detecon Alarm.

2. Click Save.

Face Detecon

Face detecon detects human faces in live video.

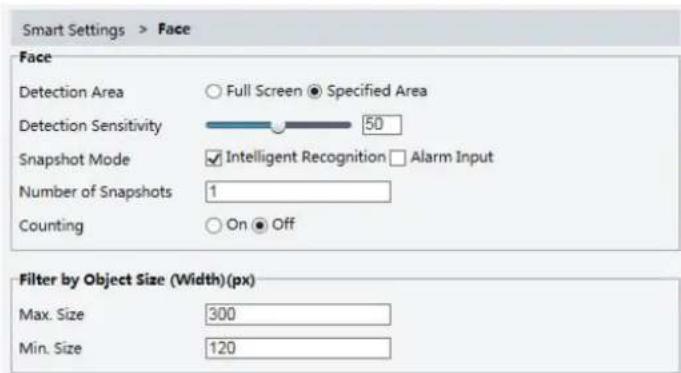

1. Click Setup > Intelligent > Smart Seings. Choose Face and then click

1. Drag the borders to set the intended posion and range.
2. Set detecon parameters according to actual needs.

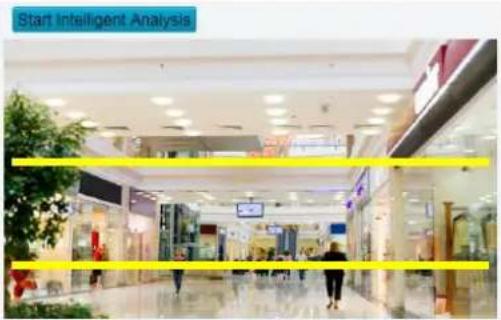

3. Click Start Intelligent Analysis.
4. Set the alarm-triggered acons and arming schedule as required. For the detailed steps, see the descripons of alarm-triggered acons in Conguring Moon Detecon Alarm.
5. Click Save.

People Counng

NOTE!

• Only some camera models support this funcon.

• The supported alarm triggering and arming schedule may vary with camera model. Please see the actual Web interface for details.

• Click Setup > Intelligent > Smart Seings. Choose People Counng and then click

1. Select Enable Passenger Flow Detecon. Select a detecon mode, set report interval and sensitivity.
2. Click Draw Detecon Area, and then draw a detecon area on the preview window on the le, e.g., a square.
3. Click Draw Entrance Direcon, and then draw the direcon on the preview window on the le. The direcon is usually vercal or sloping.
4. Set Max. Size and Min. Size under Filter by Object Size. Only objects within the size range will be counted; others will be Itered and not counted.
5. Set the alarm-triggered acons and arming schedule as required. For the detailed steps, see the descripons of alarm-triggered acons in Conguring Moon Detecon Alarm.
6. To reset counting results, click Clear Counting Result.
7. Click Save.

Auto Tracking

The camera automacally tracks an object that triggers the rule.

NOTE!

• Only some camera models support this funcon.

• The supported alarm triggering and arming schedule may vary with camera model. Please see the actual Web interface for details.

• Click Setup > Intelligent > Smart Seings. Choose Auto Tracking and then click

1. Set tracking meout (unit: sec) and zoom rao.
2. Click Save.

Defocus Detecon

NOTE!

• Only some camera models support this funcon.
• The supported alarm triggering and arming schedule may vary with camera model. Please see the actual Web interface for details.

Use defocus detecon to detect defocus of the camera and to report an alarm when such an event is detected.

1. Click Setup > Intelligent > Smart Sengs. Choose Defocus and then click

1. Select Defocus Detecon.
2. Set detecon sensitivity and alarm-triggered acons as required. For the detailed steps, see the descripons of alarm-triggered acons in Conguring Moon Detecon Alarm.
3. Click Save.

NOTE!

• Only some camera models support this funcon.
• The supported alarm triggering and arming schedule may vary with camera model. Please see the actual Web interface for details.

Use scene change detecon to detect the change of surveillance environment caused by external factors such as intenonal rotaon of the camera, and to report an alarm when such an event is detected.

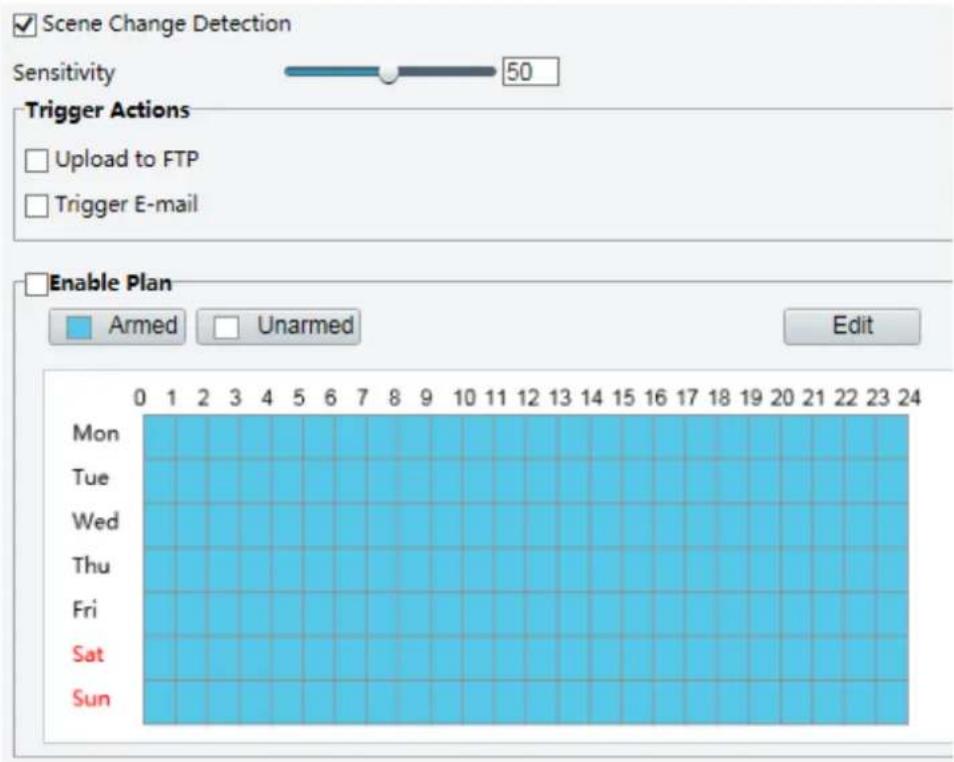

1. Click Setup > Intelligent > Smart Seings. Choose Scene Change and then click

1. Select Scene Change Detecon.
2. Set detecon sensitivity. Set the alarm-triggered acons and arming schedule as required. For the detailed steps, see the descripons of alarm-triggered acons in Conguring Moon Detecon Alarm.
3. Click Save.

Advanced Sengs

Advanced sengs include snapshot clarity and detecon mode for intelligent funcons.

Photo parameters

Set clarity of snapshots.

1. Click Setup > Intelligent > Advanced Sengs. Click Photo parameters tab.

1. Set snapshot clarity.

3. Click Save.

Detecon Parameters

NOTE!

• Only some camera models support advanced sengs. Please see the actual Web interface for details.
  • The default detecon mode is Normal Mode. Set as required.

• Click Setup > Intelligent > Advanced Sengs. Click Detecon parameters tab.

1. Choose a detecon mode. Choose Filter Repeated Moon Mode to prevent repeated alarm reporting caused by repeated moon detected in the surveillance environment.

2. Click Save.

Common Alarm Conguraon

You can schedule alarm reporting and set acons that can be triggered by other devices so that alarms and the triggered acons can be handled in me.

Alarm reporting can be scheduled for moon detecon alarm, alarm input, alarm output, tampering detecon alarm, and audio detecon alarm. The supported alarms may vary with device model. For the alarm types that your camera supports, see the Web interface.

Conguring Moon Detecon Alarm

Moon detecon detects the object moon in a specied rectangular area during a period. You need to set a detecon area, sensitivity of detecon, object size, and history for the camera to decide whether to report a moon detecon alarm when it detects moon.

NOTE!

• This funcon is not supported by some models. Please see the actual model for details.
• The alarm triggered acons may vary with models. Please see the actual Web interface for details.

Area Detecon

1. Click Setup > Events > Common Alarm > Moon Detecon. Set Detecon Mode to Area.

1. In the Detecon Area area, click to add a new detecon area. To delete a detecon area, click .

2. Click and drag the mouse to set a detecon area.

3. Set the detecon sensitivity, object size, and history for the camera to decide whether to report a moon detecon alarm.

4. Moving the slider to the right increases detecon sensitivity. When the extent of moon within the detecon area exceeds the set object size, and if the duraon of moon exceeds the set duraon, the camera reports an alarm.

5. Object size species the minimum rao of the object's size to the size of the total detecon area before an alarm will be reported. That is to say, to detect moon of ny objects, you need to draw a small box (detecon area) in the actual moon area accordingly.
6. Moon detecon results are shown in real me. The red lines represent the raised moon detecon alarms. The longer a line, the greater the extent of moon. The denser the lines, the greater the frequency of moon.

1. Set the alarm parameters.

• Suppress Alarm(s): After an alarm is triggered, the same alarm will not be reported within the set me.
• Clear Alarm(s): After an alarm is triggered,

a. If the same alarm is not triggered within the set me, the alarm will be cleared and the same alarm can be reported again.
b. If the same alarm is triggered within the set me, the alarm will not be cleared until the suppress alarm me expires. Then the same alarm can be reported again.

1. Set acons to be triggered by moon detecon alarm and the plan.

The following table describes the major alarm-triggered acons and how to set a plan.

Item	Descripon
Alarm Output 1	Select the check box. This seng is the alarm output interface linked to moon detecon alarm.Note:When an alarm is reported, the camera triggers alarm output so as to trigger acons by a third-party device.
Goto Preset	Select the check box and set the preset linked to moon detecon alarm.Note:Make sure you have set presets. Otherwise, you cannot set this parameter. For details about how to set a preset, see Seng Presets.When an alarm is reported, the PTZ camera automacally goes to the preset to capture video in the correct scene.
Upload to FTP	With Upload to FTP selected, the camera will automatically upload snapshots to the specied FTP server when an alarm is triggered.Note:Make sure you have completed FTP and Snapshot before using this funcon.
Recording	With Recording selected, the camera will automatically record video when an alarm is triggered.Note:Please set Post-Record(s) on the Storage page rst. Post-Record(s) species how long recording connues aer the end of an alarm.
Alarm the Center	With Alarm the Center selected, the camera will sends alarm informaon to the central server when an alarm is triggered.Note:Please complete sengs on the Server page rst.
Trigger Tracking	With Trigger Tracking selected, the camera starts auto tracking when an alarm is triggered.Note:Only some camera models support this funcon.Please set auto tracking on the Smart Sengs page rst.
Trigger E-mail	With Trigger E-mail selected, the camera will automatically send snapshots to the specied E-mail address when an alarm is triggered.Note:Make sure you have completed E-Mail and 错误!未找到引用源。 before using this funcon.

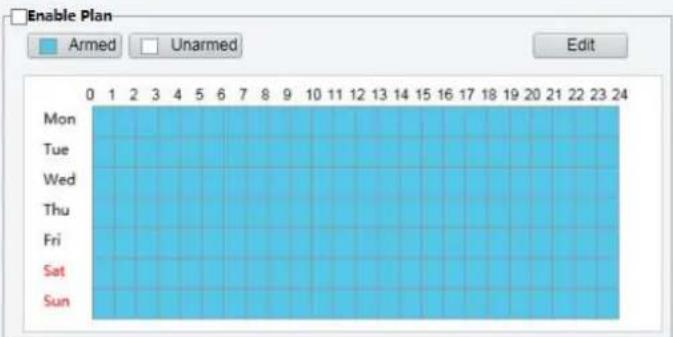

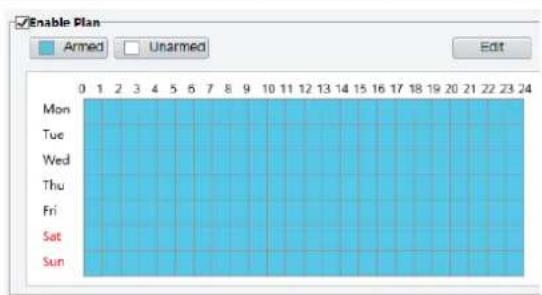

Enable Plan	Select the check box and set the start and end mes during which moon detecon alarm is eecve. You can directly drag the mouse to draw a plan and click Edit to edit me periods in the table. The me periods cannot overlap. The camera reports alarms during the specied period(s) only.You can select from Monday to Sunday and set four periods for each day.

Drag the mouse to draw a plan

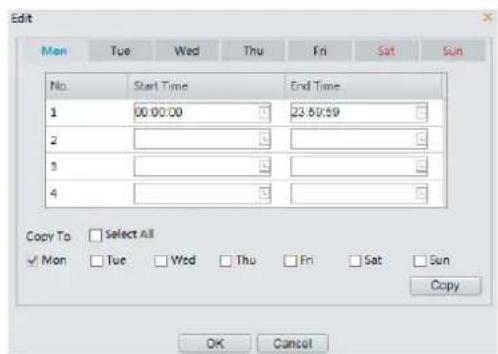

Edit me periods in the table

Note:

Plan drawing using a mouse is only supported by IE versions later than 8.0. Aer seng the plan for one day, you can apply the same setngs to other days by clicking Copy and Paste.

7. Click Save.

Grid Detecon

1. Click Setup > Events > Moon Detecon. Set Detecon Mode to Grid.

1. Detecon area(s) can be irregular on the grid.
2. Set detecon sensitivity for the camera to decide whether to report a moon detecon alarm (alarm visible on compatible NVR).
3. Set alarm parameters.

- Suppress Alarm(s): After an alarm is triggered, the same alarm will not be reported within the set me.

- Clear Alarm(s): Aer an alarm is triggered,

a. If the same alarm is not triggered within the set me, the alarm will be cleared and the same alarm can be reported again.
b. If the same alarm is triggered within the set me, the alarm will not be cleared until the suppress alarm me expires. Then the same alarm can be reported again.

1. Set acons to be triggered by moon detecon alarm and the plan. For the detailed steps, see the descripons of alarm-triggered acons in Area Detecon in Conguring Moon Detecon Alarm.

2. Click Save.

Conguring Tampering Alarm

Congure tampering alarm so that the camera reports a tampering alarm when the lens is blocked for a certain length of me.

NOTE!

• This funcon is not supported by some models. Please see the actual model for details.
• The alarm triggered acons may vary with models. Please see the actual Web interface for details.

1. Click Setup > Events > Common Alarm >Tampering Alarm.

2. Select On for Tampering Alarm.

1. Set detecon sensitivity and duraon for the camera to decide whether to report a tampering alarm.

Sensitivity is divided into three levels: high-level, mid-level and low-level. Compared with mid-level sensitivity, the camera can detect blocking from a farther locaon when sensitivity is set to high. The camera reports an alarm when the lens is blocked for a specied length of me.

Tampering alarm is eecve to the whole screen. To disable tampering alarm, clear the Tampering Alarm check box.

1. Set acons to be triggered by tampering alarms and the plan. For the detailed steps, see the descripons of alarm-triggered acons in Conguring Moon Detecon Alarm.

2. Click Save.

Conguring Audio Detecon Alarm

The camera can detect input audio signals for excepons. When the rise or fall of volume exceeds the set limit, or when the input volume reaches the threshold, the camera reports an alarm and triggers the set acons. Make sure that an audio input device is correctly connected to the camera and audio input is turned on in Conguring Alarm Input.

NOTE!

• This funcon is not supported by some models. Please see the actual web interface for details.
• The alarm triggered acons may vary with models. Please see the actual Web interface for details.

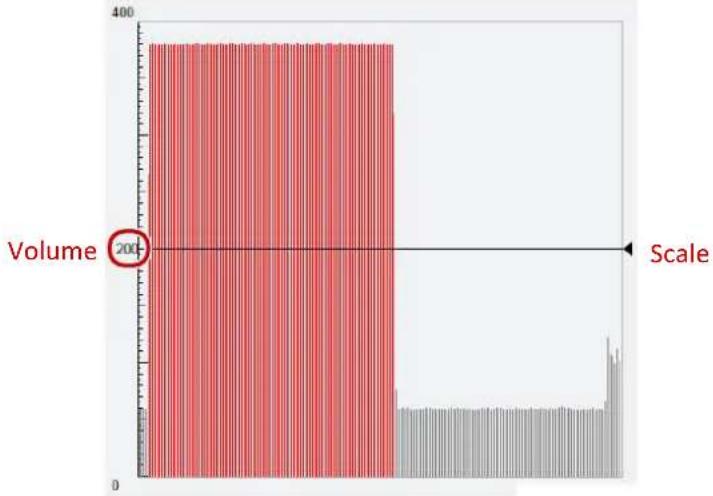

1. Click Setup > Events > Common Alarm > Audio Detecon.

1. Select Enable for Audio Detecon, select a detecon type and set the dierence or threshold. To disable audio detecon, clear the Enable check box.

The following table describes some major parameters.

Parameter	Descripon
Detecon Type	Sudden Rise: An alarm is reported when the rise of volume exceeds the dierence.Sudden Falls: An alarm is reported when the fall of volume exceeds the dierence.Sudden Change: An alarm is reported when the rise or fall of volume exceeds the dierence.Threshold: An alarm is reported when the volume exceeds a threshold.
Dierence	Threshold: Aer a volume is set as the threshold, an alarm is reported when the threshold is exceeded.Dierence: the dierence between two volumes. When the rise or fall of volume exceeds the dierence, an alarm is reported.Note:The scale in the audio detecon area is used to measure sound volume.Audio detecon results are shown in real me. The red part indicates the reported audio detecon alarms.

1. Set the alarm-triggered acons and arming schedule as required. For the detailed steps, see the descripons of alarm-triggered acons in Conguring Moon Detecon Alarm.

2. Click Save.

Conguring Alarm Input

The camera can receive alarm informaon from a third-party device. To use this funcon, you need to conjure the following informaon for alarm input rst: port, alarm name, alarm type (normally open or normally closed) and alarm reporng me.

NOTE!

• This funcon is not supported by some models. Please see the actual model for details.
  • The alarm triggered acons may vary with models. Please see the actual Web interface for details.

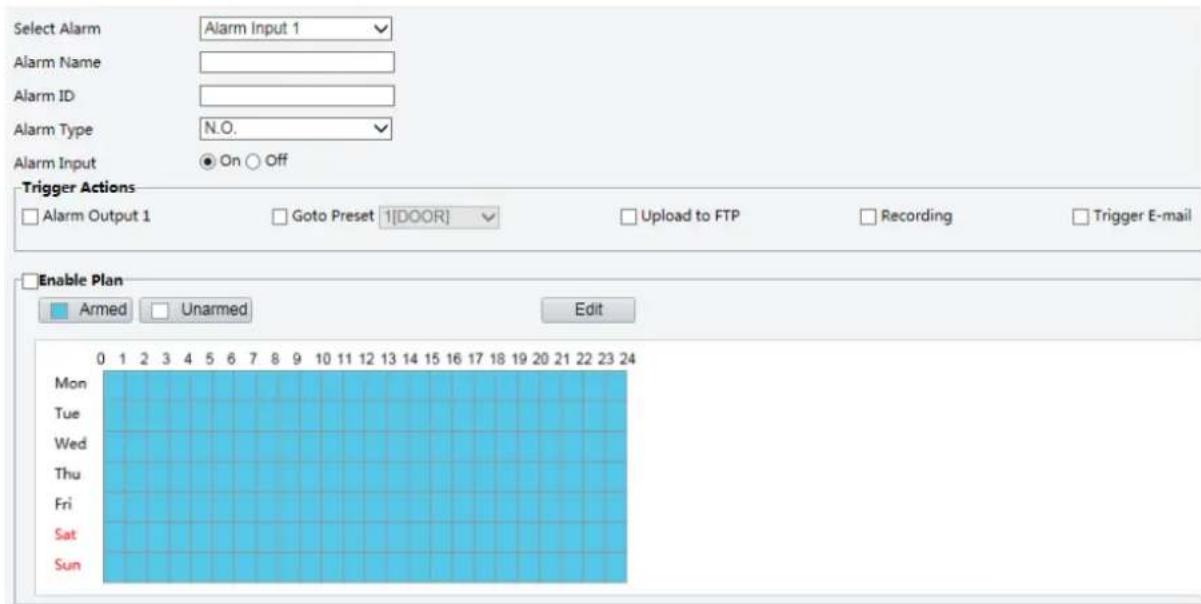

1. Click Setup > Events > Common Alarm > Alarm Input.

1. Select alarm and set the alarm name.

2. Select N.O. or N.C. according to the type of the third-party alarm input device. For example, if the third-party alarm input device is normally open, you need to select N.O. here, so that the camera can receive alarm informaon from the third-party alarm input device.

3. Set acons to be triggered by an input alarm and the plan. For the detailed steps, see the descripons of alarm-triggered acons in Conguring Moon Detecon Alarm.

4. Click Save.

Conguring Alarm Output

Aer alarm output is triggered by a moon detecon alarm, Boolean alarm, the camera can output alarm informaon to the third-party device if alarm output is set correctly to Normally Open or Normally Closed. The alarm output duraon is congorable.

NOTE!

This funcon is not supported by some models. Please see the actual model for details.

1. Click Setup > Events > Common Alarm > Alarm Output.

1. Select the alarm and set the alarm name.

2. Set the status to N.O. (default seng) and set the alarm duraon.

3. Set acons to be triggered by an input alarm and the plan. For the detailed steps, see the descripons of alarm-triggered acons in Conguring Moon Detecon Alarm.

4. Click Save.

CAUTION!

Strictly follow the sequence when powering on the devices to avoid damaging camera components:

1. Check that the alarm type is set to Normally Open (default seng), and that the camera and the alarm output device are powered o.

2. Aer compleng the conncon, power on the camera rst and then power on the alarm output device.

NOTE!

• This funcon is not supported by some models, and may vary with models. Please see the actual model for details.
• Edge storage is recommended when the camera operates in stand-alone mode. When the camera is managed by the central management server, you need to stop edge storage to avoid aecng the cache post recording service.

Seng Edge Storage

Edge storage is used to save video data and snapshots to the memory card directly. Edge storage is recommended when the camera is running in stand-alone mode.

Manual storage

The camera records live video repeatedly if manual storage is enabled.

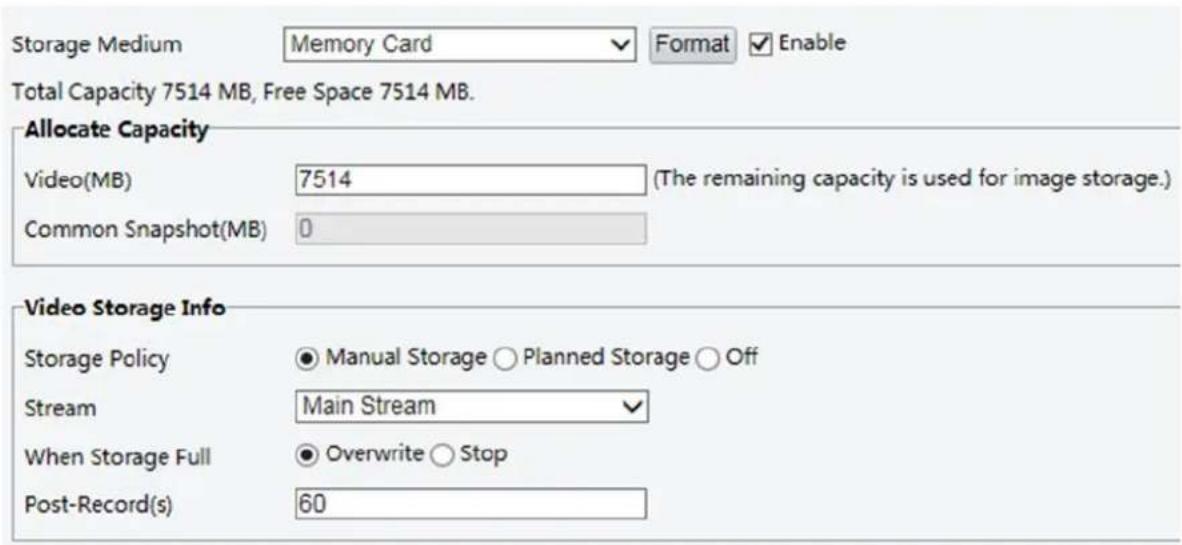

1. Click Setup > Storage > Storage.

For some camera models, the page is displayed as follows.

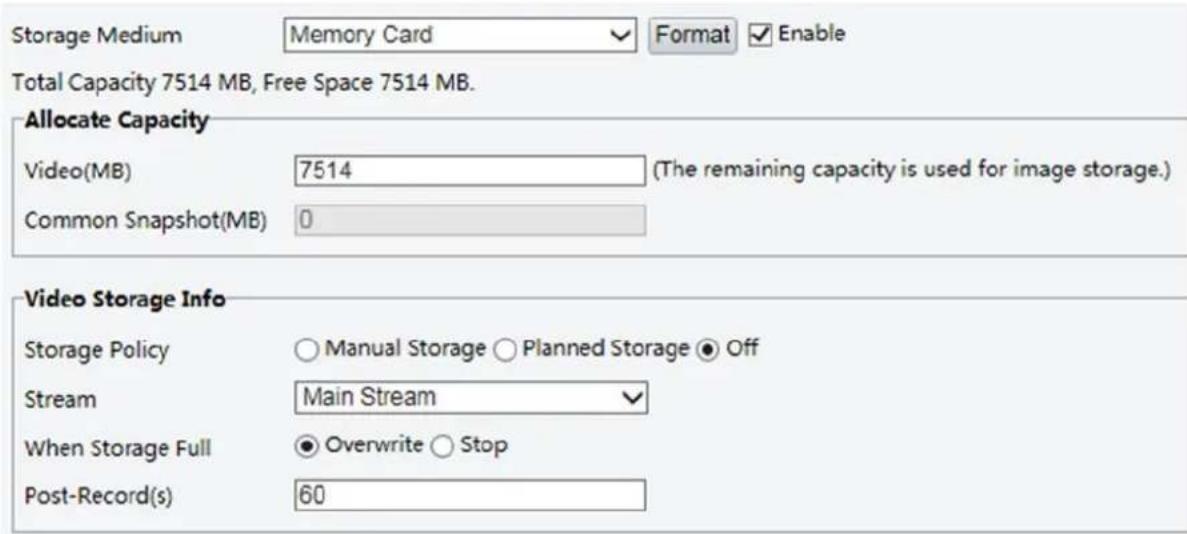

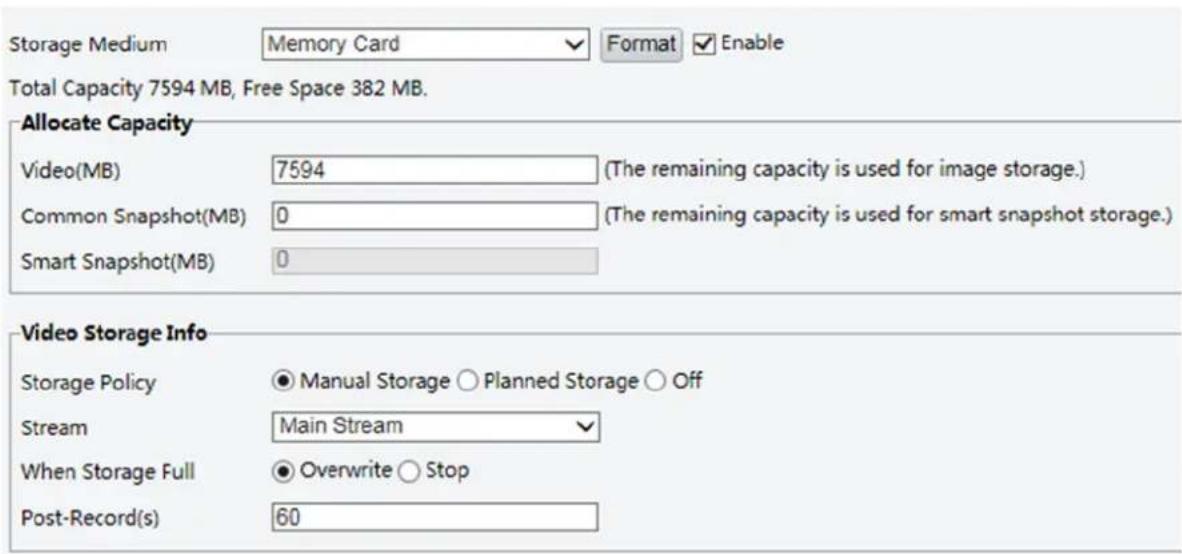

1. Start edge storage and modify the sengs as required. The following table describes some major parameters.

Parameter	Descripon
Storage Medium	Storage resource type.Note:To format the memory card, disable the storage funcon for the card rst. Then Click Format and then click OK to conrm the operaon. The system will restart when the format is completed.Informaon about the total and free space is displayed.
Data Overwrite Policy	Overwrite: If there is no free space in the memory card, new data will overwrite the exisng data repeatedly.Stop: If there is no free space in the memory card, new data will not be saved to the memory card.
Post-Record(s)	For alarm-triggered recording, length of me that recording connues aer the end of the alarm.

3. Click Save.

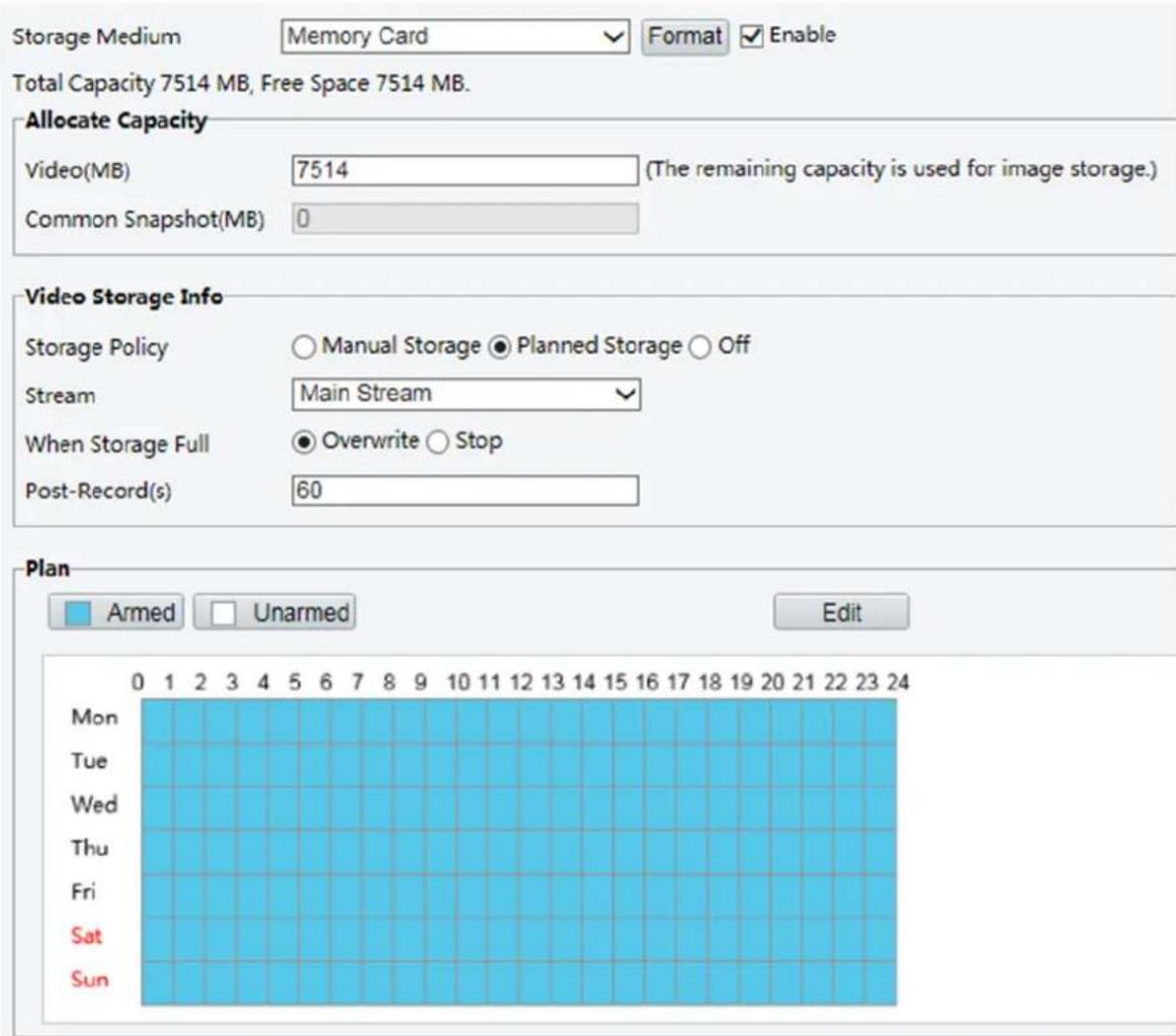

Planned storage

If planned storage is enabled, the camera records video to the memory card during the specied periods.

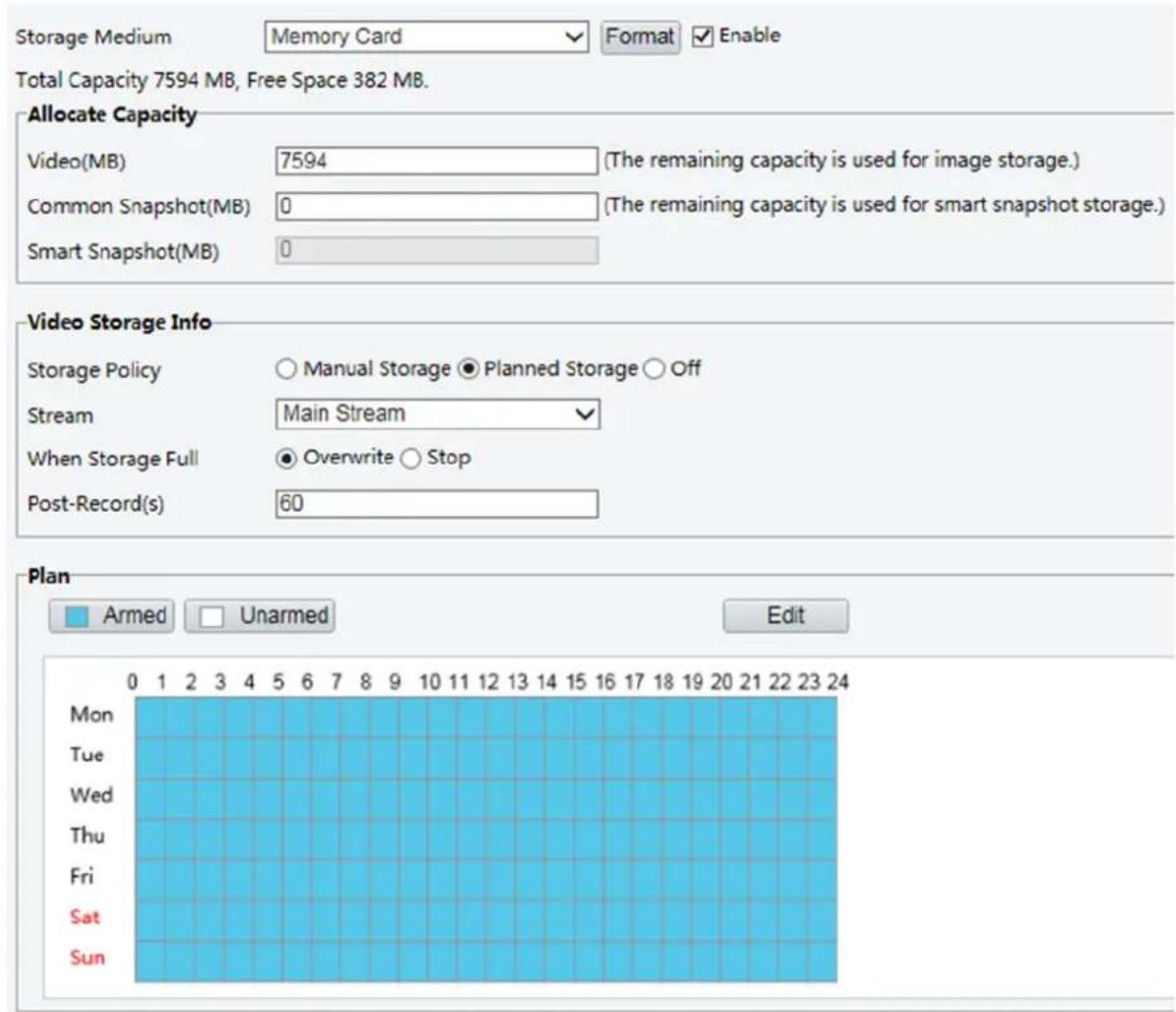

1. Click Setup > Storage > Storage.

For some camera models, the page is displayed as follows.

1. Select Planned Storage, and then set the periods during which the camera records video to the memory card.

2. Click Save.

NOTE!

• Planned storage is not effective when manual storage and planned storage are both enabled.

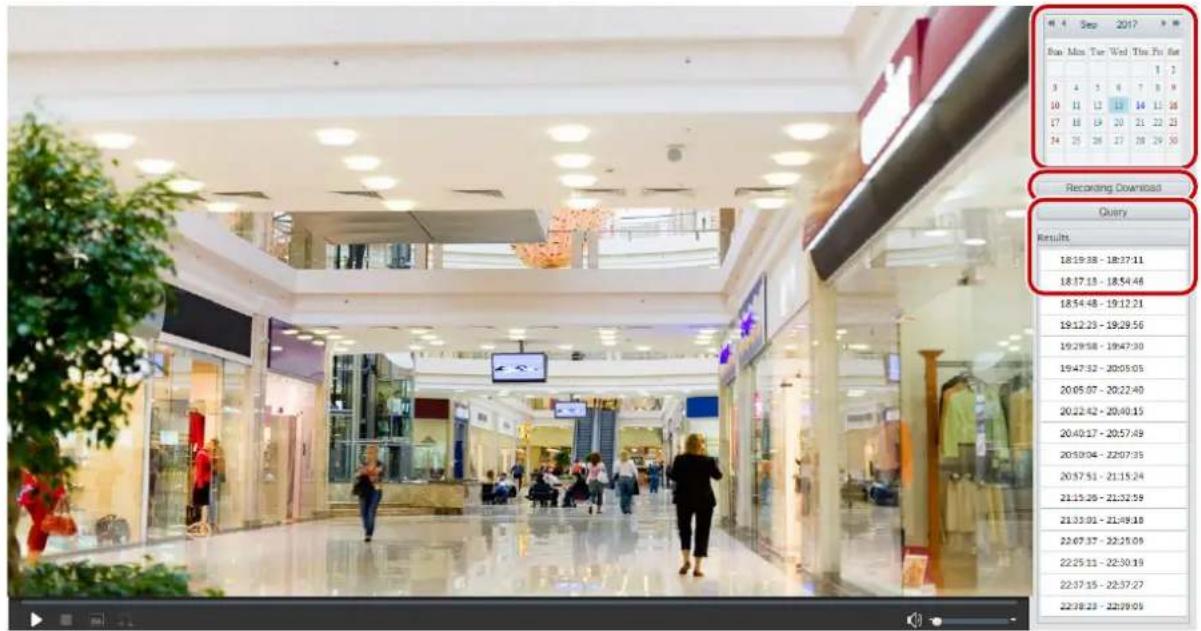

  • To query recordings in the memory card, see Video Playback and Download with Edge Storage.

Seng Cache Post Recording

A camera under centralized management can use the memory card as a backup storage resource of the central management server. If storage from the camera to the central storage device is interrupted due to unstable network conncon, the camera automacally will start cache post recording and store videos to the memory card.

With recording backup enabled, the camera can automatically transfer the video stored in the memory card to a storage resource of the backup server in form of le when the communicaon between the camera and the backup server is restored.

NOTE!

Before you set cache post recording for a camera, check that:

• The memory card is correctly installed on the camera.
• Backup resource has been added on the central server.
• Backup resource has been allocated for the camera.

Disable edge storage

1. Click Setup > Storage > Storage.

For some camera models, the page is displayed as follows.

1. Set Edge Storage to Disable (which disables manual storage), and set video capacity.
2. Click Save.

System Maintenance

NOTE!

This funcon is not supported by some models. Please see the actual model for details.

Security

User Management

There are two types of users in the system:

• Administrator: referred to as "admin" in this manual. The default name of the administrator is admin, which cannot be modified. Admin has full permission and can manage all users and devices. Only one admin user is allowed in the system.
• Common user: referred to as "user" in this manual. User only has permission to play live and recorded video. Up to 32 common users are allowed in the system.

You can add a user on the user management interface (under Setup > Security > User).

Aer the user is added successfully, you can change the password by entering the new password or delete the user by clearing the username.

NOTE!

• Only admin can change passwords. Changing the username or password for a user when the user is sill logged in will force the user to log out. The user must use the new username or password to log in.
• Only admin can add and delete users. Deleng a user when the user is sll logged in will force the user to log out. A deleted user cannot log in.

Seng Secure Data Transmission

Set a secure channel for data transmission to ensure security.

NOTE!

This funcon is not supported by some models. Please see the actual model for details.

1. Click Setup > Network > Port.

HTTP Port	80
HTTPS Port	443
RTSP Port	554

1. Enter the port number in the HTTPS Port text box.
2. Click Save.
3. Click Setup > Security > Network Security > HTTPS.

1. Select On for HTTPS. You may import a custom SSL cercate as needed.
2. Click Save.

Next me you log in, enter the address in hps://IP:HTTPS port number format, for example, https://192.168.0.13:443 to enter secure channel mode. If you use the default HTTPS port, enter hps://IP.

RTSP Authencaon

RTSP (Real Time Streaming Protocol) is an applicaon layer protocol. To transmit and control the audio and video, set RTSP authencaon on the Web interface.

1. Click Setup > Security > Network Security > RTSP Authencaon.

1. Select an authencaon mode (Basic/Digest) and then click Save.

Hide Vendor Informaon

You can set to hide the vendor informaon of the network camera on the Web interface.

1. Click Setup > Security > Registraon Info.

1. Under Registraon Info, select On.

APR Binding

This funcon can protect the camera from ARP aacks. When the camera visits an IP of another network segment via a gateway, it can communicate only with the MAC address binding to the gateway address in the same segment.

1. Click Setup > Security > Network Security > ARP Protecon.

1. Select the check box to enable the ARP binding funcon and set the gateway MAC address.

2. Click Save.

IP Address Filtering

Use IP address ltering to allow or forbid access from specied IP address(es).

NOTE!

This funcon is not supported by some models. Please see the actual model for details.

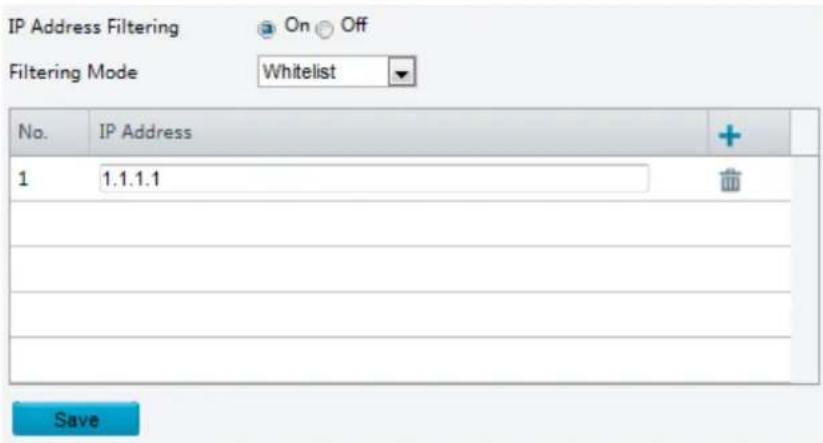

1. Click Setup > Security > Network Security > IP Address Filtering.

1. Select On to enable IP address ltering.
2. Select a ltering mode, and then add IP address(es).

4. Click Save.

NOTE!

• If Filtering Mode is set to Whitelist, then only the added IP address(es) are allowed to access the camera. If Filtering Mode is set to Blacklist, then only the added IP address(es) are not allowed to access the camera.
• Up to 32 IP addresses are allowed. Each IP address can be added once only.
• The rst byte of each IP address must be 1-223, and the fourth cannot be 0. For example, the following IP addresses are illegal and cannot be added: 0.0.0.0, 127.0.0.1, 255.255.255.255, 224.0.0.1.

Access Policy

NOTE!

Enabling friendly password does not aect use. If you turn it o and log in with a weak password, a page will pop up, prompting you to change the password. There is no Cancel or Close buon on this page. The default password is treated as weak.

1. Click Setup > Security > Network Security > Access Policy.

1. Select On to enable Telnet, and select Enable to enable friendly password.
2. Click Save.

Watermark

Use watermark to encrypt custom informaon with video to prevent unauthorized delete or alteraon.

NOTE!

Only some camera models support this funcon.

1. Click Setup > Security > Watermark.

1. Select On to enable watermark, and then input watermark content.
2. Click Save.

Seng the System Time

You can use the following methods to adjust the system me of your device.

Manually Seng or Synchronizing the System Time

1. Click Setup > Common > Time, and then click the Time tab.

1. Select a synchronizaon mode.
2. Set the correct me zone and system me. You may also click Sync with Computer Time to synchronize the me sengs of your camera with that of your PC.
3. Click Save.

Synchronizing with the NTP Server

1. Click Setup > Common > Time, and then click the Time tab.

1. Set Sync Mode to Sync with NTP Server, and then set the IP address of the NTP server and update interval.
2. Click Save. The camera will periodically synchronize me with the NTP server.

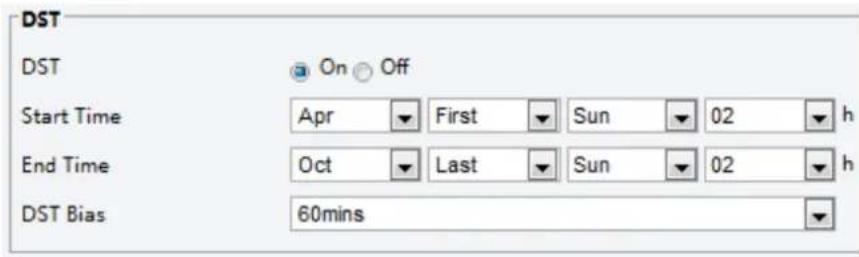

Seng the DST

1. Click Setup > Common > Time, and then click the DST tab.

1. Select On for DST, set the start me, end me, and DST bias.
2. Click Save.

Seng Servers

Intelligent Server

You need to congregate the intelligent server if an ultra sensitive camera is managed by a central server.

NOTE!

• Only some camera models support intelligent server.
  • To use face snapshot, you need to conjure the TMS server to which snapshots are uploaded.

• Click Setup > Common > Server, and then click the Intelligent Server tab.

1. Set the IP address of the TMS server and complete other sengs.

3. Click Save.

Serial Port Mode Conguraon

The RS485 serial port is used for data exchange with the third-party device. Serial port sengs on the camera should be consistent with that of the connected third-party device.

NOTE!

This funcon is not supported by some models. Please see the actual model for details.

PTZ control

To control a PTZ camera through a third-party device, you need to set Port Mode to PTZ Control.

By sending PELCO-D compliant PTZ control commands through the RS485 port, you can control the PTZ camera without using the PTZ control panel.

1. Click Setup > System > Ports & Devices, and then click the Serial Port tab.

1. Select PTZ Control from the Port Mode drop-down list. The following table describes some major parameters.

Parameter	Descripon
PTZ Protocol	Set the PTZ protocol that the channel supports.Note:You can set this parameter only when Port Mode is set to PTZ Control.When PTZ Protocol is set to INTERNAL-PTZ, the camera can connect to the external PTZ without using the serial port (serial port parameters are grayed out). In this case, you only need to connect the zoom and focus interfaces of the camera to the lens, and then you can operate the PTZ like an internal PTZ.
PTZ Mode	Built-in PTZ Priority: When this opon is selected, the camera rst tries to control the PTZ (for example, to zoom or focus) by itself instead of through the external PTZ. For operaons that the camera cannot accomplish by itself, the camera uses the external PTZ.External PTZ Priority: The camera rst tries to control the PTZ through the PTZ connected through the serial port.Note:You can set this parameter only whenPort Modeis set to PTZ Control.WhenINTERNAL-PTZis selected, this parameter is always set toBuilt-in PTZ Priority, and it is unnecessary to connect the camera to an external PTZ through the serial port. Control through the external PTZ is not eecve even when the camera has been connected to an external PTZ.Set this parameter as required. Make sure PTZ control related interfaces are correctly connected.
Address Code	Set the address code for the PTZ.Note:You can set this parameter only whenPort Modeis set to PTZ ControlandPTZ Protocolis not set toINTERNAL-PTZ.

3. Click Save.

Transparent channel

Use the RS485 serial port to achieve transparent data transmission with the third-party device. Transparent channel is mainly used to achieve transparent data transmission between two devices.

NOTE!

• This funcon is not supported by some models. Please see the actual model for details.
• Make sure that you have set Port Mode to Trans-Channel for your camera.

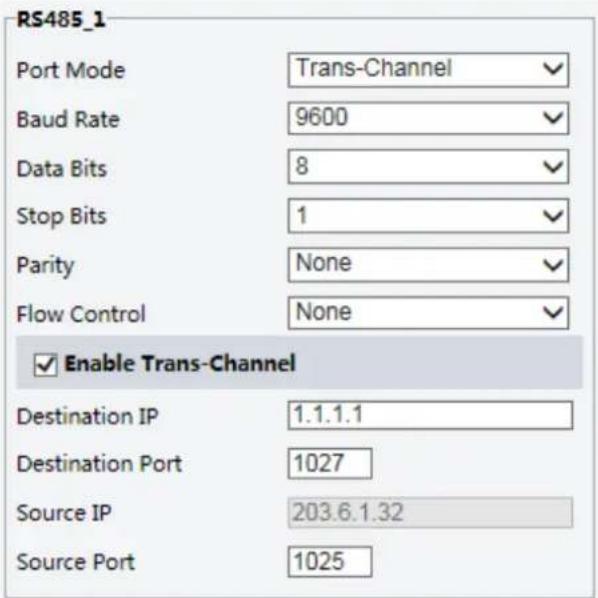

1. Click Setup > System > Ports & Devices, and then click the Serial Port tab.

1. Select Trans-Channel from the Port Mode drop-down list.
2. Select Enable for Trans-Channel.
3. Enter the desnaon IP address and port number (IP address and port number that the transparent channel connects to).
4. Click Save.

OSD

To display informaon from the third-party device on the OSD, you need to select OSD as the port mode.

The camera receives informaon from the third-party device through the RS485 serial port, translates the received informaon, and then displays it on the OSD.

NOTE!

To enable the camera to correctly translate informaon received from the third-party device, make sure that the informaon sent by the third-party device through the serial port complies with the data format specified by our company. For more details, contact your dealer.

1. Click Setup > System > Ports & Devices, and then click the Serial Port tab.

1. Select OSD from the Port Mode drop-down list. Select Enable OSD Report (so OSD data will be uploaded to the plaorm).

2. Click Save.

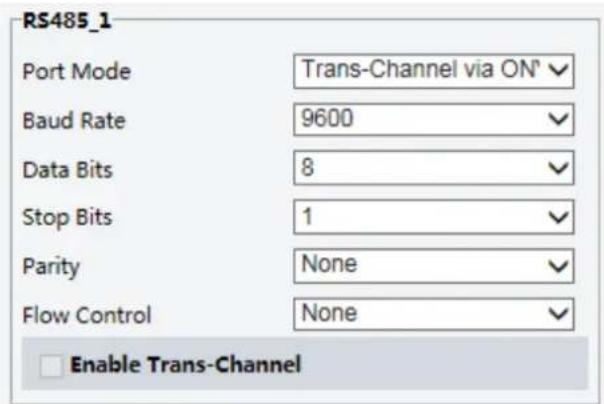

ONVIF Transparent Channel

Transmit data through the transparent channel (ONVIF) between the camera's RS485 port and a third-party device.

1. Click Setup > System > Ports & Devices, and then click the Serial Port tab.

1. Set Port Mode to Select Trans-Channel via ONVIF.

2. Click Save.

Wiper Control

Set wiper parameters before you can control the wiper.

NOTE!

This funcon is not supported by some models. Please see the actual model for details.

1. Click Setup > System > Ports & Devices, and then click the External Device tab.

1. Set control mode for the wiper. The following table describes some major parameters.

Parameter	Descripon
Serial Port	The wiper is controlled by PELCO-D instrucons; therefore, the PTZ protocol should be set to PELCO-D. See PTZ control for details.
Alarm Input/Output	Use alarm input and output to open or close the circuit and control the wiper.

Viewing Device Status

You can view the current status of your camera.

1. Click Setup > Common > Basic Info.
2. Click Refresh for the latest status informaon.
3. View the device informaon.

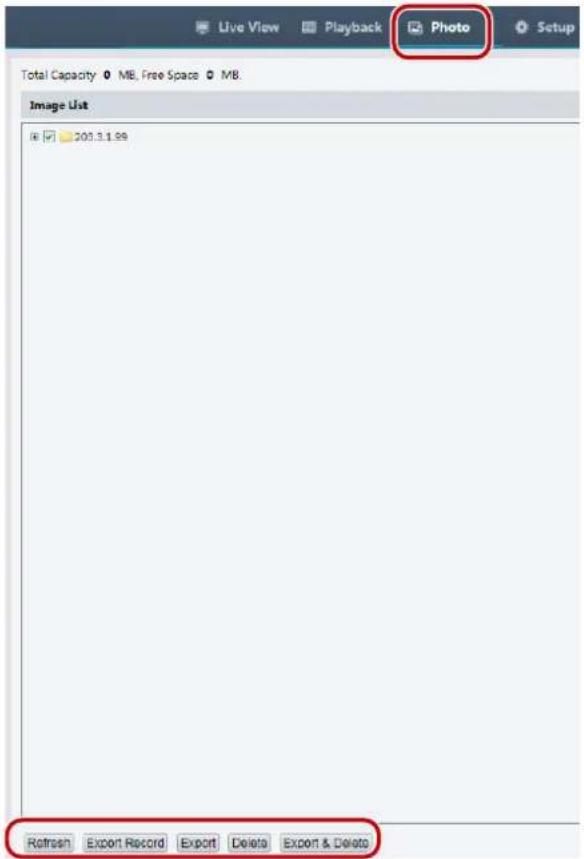

Photo Storage Status

View the current photo storage status. See Memory Card Storage for the full storage policy.

NOTE!

Only models with storage funcon support this funcon. Please see the actual model for details.

1. Click Photo.

1. Click Refresh to update the storage status.
2. You can export or delete photos in the Image List area.

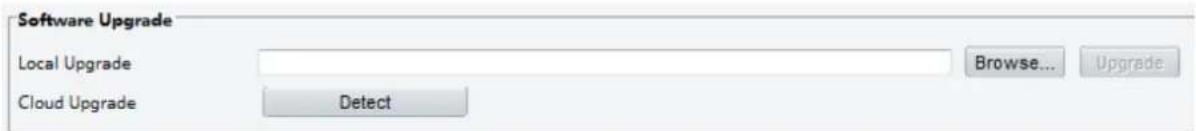

Upgrading the Device

If the device is managed by the central management server and you want to upgrade the devices in batch mode, it is recommended to perform the upgrade operaon on the central server. For detailed steps, see the user manual for the central management server.

1. Click Setup > System > Maintenance.

1. Under Soware Upgrade, click Browse and select the correct upgrade le.
2. Click Upgrade and then conrm to start. The camera will restart automacally aer the upgrade is completed.
3. You may click Detect to check for new versions available to cloud upgrade.

NOTE!

• You must use the correct upgrade le for you camera. Otherwise, unexpected results may occur.
• The upgrade le is a ZIP le and must include all the necessary les.
• The boot program loads the operang system and then the system starts running. The upgrade boot program funcon is disabled by default, and only the camera will be upgraded to the latest version. If enabled, both the camera and the boot program are upgraded, and the operang system of the following new versions can be booted properly and the camera can be upgraded conveniently.
• Ensure that the power supply is normal during upgrade. The device will restart aer the upgrade is completed.

Restarng the System

1. Click Setup > System > Maintenance.

1. Under Device Restart, click Restart. The device will restart aer you conrm the operaon.

CAUTION!

Perform this operaon with cauon because restarng the system interrupts the ongoing service.

Imporng and Exporng System Conguraon File

Export the current conguraons of the camera and save them to the PC or an external storage medium. You can also quickly restore conguraons by imporg backup conguraons stored on the PC or an external storage medium back to the camera.

CAUTION!

• Aer you perform the Default operaon, all sengs are restored to factory defaults, except the following: login password of the system administrator, network sengs, and system me.
• Make sure you import the correct conguraon le for your camera. Otherwise, unexpected results may occur.
  • The camera will restart when the conguraon le is imported successfully.

1. Click Setup > System > Maintenance.

1. To import conguraons that you have backed up, click Browse next to the Import buon and select the conguraons you want to import, and then click Import. The result will be displayed.
2. To export conguraons, click Export and select the desnaon folder.
3. To restore default conguraons, click Default and then conrm the operaon. The device will restart and restore the default conguraons.

Collecng Diagnosis Informaon

Diagnosis informaon includes logs and system conguraons. You can export diagnosis informaon to your PC.

1. Click Setup > System > Maintenance.

1. Under Diagnosis Info, click Export and select the desnaon folder.

NOTE!

• Diagnosis informaon is exported to the local folder in form of a compressed le. You need to decompress the le using a tool such as WinRAR and then open the le using a text editor.
• By selecng Collect Image Debugging Info, you can display video with debugging informaon at the same me, which makes troublesomeong easier.

Focus Conguraon

The device can adjust the speed of auto-focus according to the minimum focus distance. In order to shoot clear objects, it is recommended that the minimum focus distance is set shorter than the distance between the objects and lens, for example, if the minimum focus distance is 3m, then the objects within 3m from lens will be out of focus.

NOTE!

This funcon is only supported by the devices with auto-focus. Please see the actual model for details.

1. Click Setup > System > Maintenance.

1. Under Focus, congure Min. Focus Distance (unit: cm) and Max. Zoom Rao.

2. Click OK.

Device Mounng Height

Enter the actual height from the installed infrared dome to the ground, so that the dome will be able to automacally adjust its infrared lamp.

NOTE!

This funcon is only supported by some infrared cameras. Please see the actual model for details.

1. Click Setup > System > Maintenance.

1. Enter the actual height from the installed Infrared Dome to the ground.
2. Click OK.

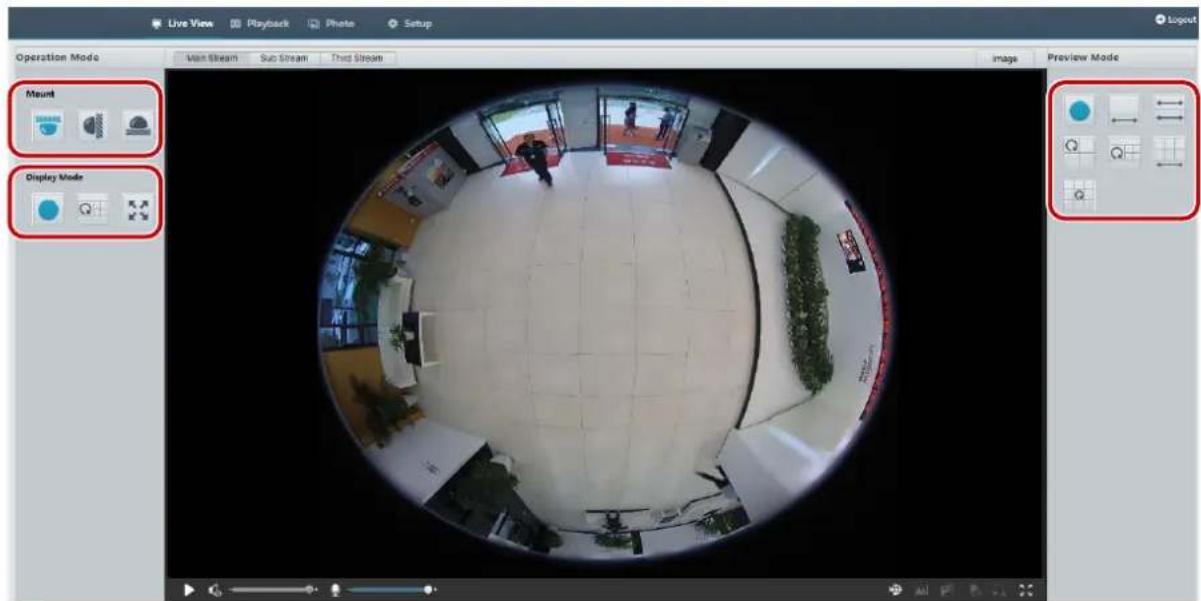

Fisheye Camera Parameter

To display video properly, you need to set sheye parameters properly according to the actual moung mode.

NOTE!

This funcon is only supported by sheye cameras. Please see the actual model for details.

1. Click Live View > Mount. Select the moung mode. The selected moung mode must be consistent with the actual moung mode.

For some camera models, the page is displayed as follows.

1. Set the parameters. The following table describes some major parameters.

Parameter	Descripon
	Eleven display modes:Original ImagePanoramicPanoramic+3PTZPanoramic+4PTZPanoramic+8PTZ 360^ Panoramic+1PTZ 180^ PanoramicFisheye+3PTZFisheye+4PTZ 360^ Panoramic+6PTZFisheye+8PTZ
	Three moung modes:CeilingWallDesktopNote:The selected moung mode must be consistent with the actual moung mode.

4 Live View

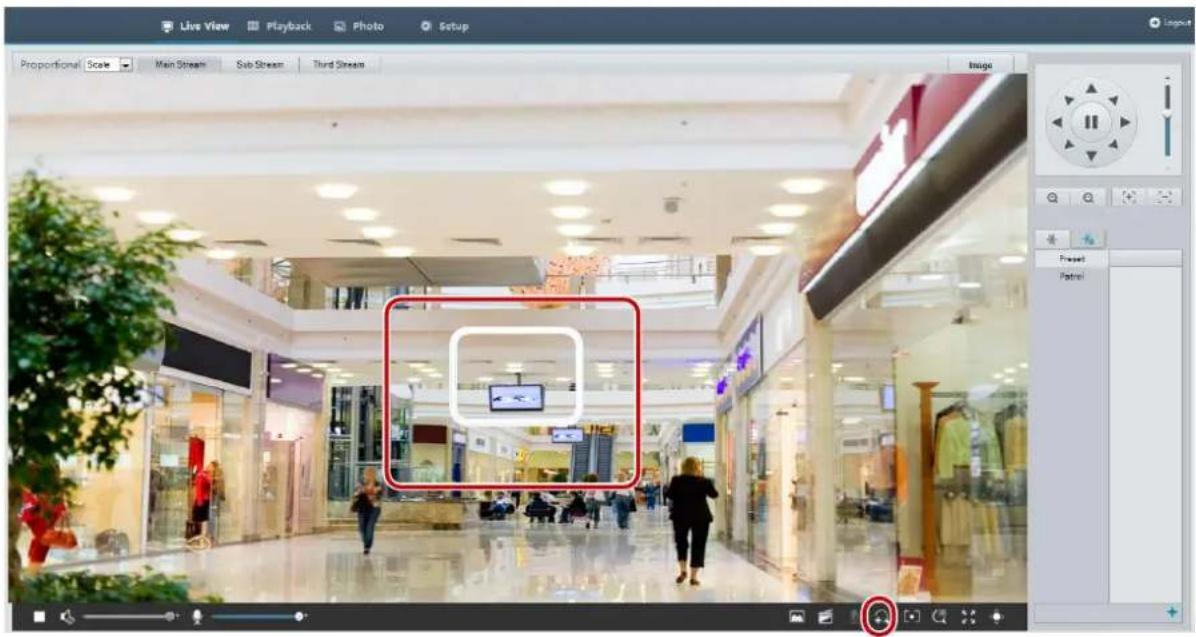

Live view means playing live video (real-me audio and video) received from a camera in a window through the Web interface.

If you log in with the Live View check box selected, live video appears by default when you are logged in. You may double-click the window to enter or exit full screen mode.

Interior view of a shopping mall with shoppers and stores, no visible text or signage

Live View Toolbar

NOTE!

The supported live view operaons may vary with camera model. For the operaons that your camera supports, see the Web interface.

Buon	Descripon
	Play/stop live video.
	Adjust the output volume for the media player on the PC.
	Adjust the microphone volume on the PC during audio communicaon between the PC and the camera.
	Take a snapshot of the current image displayed on the PC.Note:The path for saving snapshots are set in System Conguraon.
	Start/stop local recording.Note:The path for saving local recordings is set in System Conguraon.
	Start/stop audio communicaon between the PC and the camera.
[GBYK]	Start/stop digital zoom. For more details, see Using Digital Zoom.
	Start/stop area focus. For more details, see Using Area Focus.
[K460]	Start/stop 3D posioning. For more details, see Using 3D Positioning.
	Show/hide the PTZ control panel.
	Set image display rao in the window. For example, to display high-denion images at original 16:9, select Scale; to display according to window size, select Stretch; to display with the original image size, select Original.
[57ZS]	Reset the packet loss rate to zero.Note:Aer you move the mouse cursor on a live view window, this buon appears on the oang toolbar.
[8STC]	Display packet loss rate and bit rate informaon at the boom of the window.Note:Aer you move the mouse cursor on a live view window, this buon appears on the oang toolbar.Click this buon to always display the informaon. With another click, the informaon appears only when you move the mouse cursor over the window or place it at the boom. If the mouse cursor rests on the window for around 3 seconds or leaves the window, the informaon disappears.
	Click this buon to open the image seng page.
	Display in full screen mode.
[5YOT]	Select a live video stream that the camera supports: main stream, sub stream or third stream.
[HOTT]

Viewing Certain Area of Images

Digital zoom, area focus and 3D posioning allow you to get more details of certain part of images. Digital zoom enlarges an image with loss in image quality, while 3D posioning enlarges an image without.

Using Digital Zoom

NOTE!

The supported live view operaons may vary with camera model. For the operaons that your camera supports, see the Web interface.

1. On the Live View page, click 📄 on the toolbar.

1. Click and hold the mouse buon, and then drag from top down (draw a rectangle) to specify an area. To restore the original image size and zoom in on other areas of the image, right-click the mouse.

2. To exit, click

Using Area Focus

NOTE!

The supported live view operaons may vary with camera model. For the operaons that your camera supports, see the Web interface.

1. On the Live View page, click 📄 on the toolbar.

1. Click and hold the mouse buon, and then drag from top down (draw a rectangle) to specify an area.

Using 3D Posioning

NOTE!

This funcon is available only for network PTZ cameras and network box cameras equipped with motorized zoom lens and PTZ. Please see actual models for details.

1. On the Live View page, click 📄 on the toolbar.

1. Click and hold the mouse buon, and then drag from top down (draw a rectangle) to specify an area. Dragging reversely (from down top) will zoom out.

2. To exit, click

Live View of Fisheye Cameras

NOTE!

• This funcon is only supported by the network sheye cameras. Please see actual models for details.
- The preview image on the Web may vary with the sheye sengs for the camera. Please set the sheye parameters (see Fisheye Cameras Parameter) and the sheye mode (see Video Conguraon) of the camera before you start live view.

Display modes include three major types: Original Image, Fisheye and PTZ, Panoramic and PTZ. In dierent mounng modes, images are displayed dierently. The following takes wall mount as an example.

When Original Image is selected, sheye images are displayed as follows.

Interior view of a modern lounge or reception area with a reception desk, seating areas, and potted plants (no visible text or symbols)

When Panoramic is selected, dewarped panoramic images are displayed as follows.

Interior view of a modern hotel lobby with reception desk and seating area, no visible text or signage

NOTE!

If the ceiling mount or desktop mount is adopted, the panorama image (two 180° images) is a dewarped image of the sheye preview image (360° image). Please mount the camera with an appropriate angle of view according to the actual surveillance requirements.

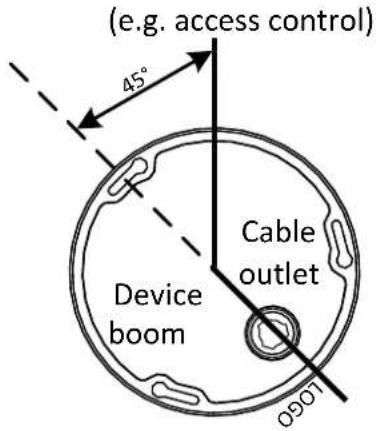

For example, if the camera is installed on the ceiling, the surveillance target is displayed on the upper part of the panorama image when the intersecon angle between the device cable outlet (logo) and the surveillance target in clockwise direcon is 135^ .

Posion of surveillance target

360° Fisheye image in sheye preview mode

Panorama image in panorama preview mode

When Panoramic+4PTZ preview mode is selected from the list on the right, 4 local images are displayed, from le to right, from top to down, by default. You may perform PTZ control and zoom operaons on each local image, as shown in the gure below.

Interior view of a modern office lobby with reception desk and operator at counter (no visible text or signage)

5 Video Playback and Download with Edge Storage

NOTE!

• Edge storage refers to recording video to the memory card of a frontend device (mostly a camera). Local recording refers to recording video to a local PC client.
• Before you play back video with edge storage, check that the camera has been installed with a memory card and storage has been congured.
  • This funcon is not supported by some models. Please see actual models for details.

Video Playback

1. Click Playback on the home page.

1. Select the date from the calendar.
2. Click Query.
3. Under Results, double-click the me period to start playing the recording.

Download

1. Click Playback on the home page.

1. Search for video within a specied period. The results will be shown in a list.
2. Select your video and click Download. The video will be downloaded to your local path from the memory card (local path can be changed in Local Seings).
3. Click Open to show the folder where the downloaded video is saved.

6 PTZ Control

This funcon is available only for the PTZ dome cameras or a box camera installed on a Pan/Tilt motor.

NOTE!

• Some of the lens control functions are applicable to cameras equipped with motorized lens.
- The PTZ control buons may vary with camera model. For the PTZ control buons that your camera supports, see the Web interface.

PTZ Control Toolbar

Item	Descripon
Preset	Select a preset and then click . The PTZ camera goes to the selected preset.To add a preset, click . To delete a preset, click .
Patrol	Select a patrol route and then click to start patrol.To edit a patrol route, click .To add a patrol route, click .To delete a patrol route, click .
	Adjust the moving speed of the PTZ camera.
	Control the direcon of the PTZ camera and release the control.
	Turn on or o IR.Turn on or o the wiper.Turn on or o the heater.Turn on or o the illuminator.Turn on or o snow control.
	Adjust camera focus.
	Adjust camera zoom.
	Increase or decrease iris diameter.
	Shortcut keys for PTZ control. Aer the mouse cursor changes to one of these shapes in live view, click and hold the le mouse buon to operate the PTZ camera.Note:Only PTZ dome cameras and PTZ cameras support this funcon.These buons are unusable when you are using 3D posioning or digital zoom.
	Shortcut keys for zooming in or out in live view. Scroll the wheel forward to zoom in or backward to zoom out.Note:Only cameras with motorized zoom lens support this funcon.

Seng Patrol by Presets

Seng Presets

On the Preset tab, you can manage presets or perform certain control operaons to the PTZ camera. For more details, see PTZ Control Toolbar.

Add a preset

1. On the Live View page, click Preset on the control panel.

1. Adjust the camera II it points toward the desired direcon.
2. Adjust zoom and focus as needed to obtain the opmal image.
3. Click + to add it as a preset. Enter a number and name for the preset and then click OK.

Go to a preset

1. On the Live View page, click Preset on the control panel.

1. Click for a preset. The PTZ camera goes to the selected preset.

Delete a preset

1. On the Live View page, click Preset on the control panel.

1. Click for a preset and then conrm the delete.

Seng Patrol

A patrol route is the track by which a PTZ camera follows when moving from a preset to the next. The length of me that a PTZ camera stays at each preset is congorable. Mulple patrol routes are allowed for a PTZ camera.

Patrol acons include going to a preset and staying at the preset for a certain amount of me before going to the next. You can set the rotaon direcon, zoom, rotaon speed, patrol me, and stay me. The system

records the route and adds it to the acon list. You may select Keep Rotang so the PTZ camera follows the same route and patrols repeatedly.

Add a patrol route

1. On the Live View page, click Patrol on the control panel.

2. Click . +

1. On the Add Patrol page, enter the route ID and name, and then click Add to add a patrol acon. Use the buons to adjust the sequence of the acons.

Patrol acons include:

• Go to a preset and stay for a certain amount of me before going to the next preset.
• Rotate at the set speed in the set direcon for a certain amount of me, zoom, stay at a set posion for a certain amount of me, or patrol repeatedly if Keep Rotang is selected.

It is recommended that the rst acon type is Go to Preset.

1. Click OK.

Record a patrol route

1. On the Live View page, click Patrol on the control panel.

1. Click 📄 to start recording the patrol route. You can adjust the direcon and zoom of the camera during the recording. The system records the moon and track of the camera and adds them to the acon list.
2. Click ■ to nish recording. Then the patrol route is saved as a mode route automacally. You can click ▶ to start patrol or to delete the mode route.

Make a patrol plan

1. On the Live View page, click Patrol on the control panel.

1. Click . The page for seng patrol plans is displayed.
2. Set the correct patrol me and route.
3. Select Enable Patrol Plan.
4. Click OK.

Start a patrol route

Aer you have added a patrol route, select the patrol route to start patrol.

1. On the Live View page, click Patrol on the control panel.

1. Click for the patrol route you want to start.

Edit a patrol route

1. On the Live View page, click Patrol on the control panel.

1. Click 📋 for the patrol route you want to edit and modify the sengs as required.

Delete a patrol route

1. On the Live View page, click Patrol on the control panel.

1. Click 📄 for the patrol route you want to delete and then conrm the delete.

Seng Home Posion

PTZ camera will return to home posion if no operaon is made within a specied period.

NOTE!

• This funcon is available for network PTZ cameras only.

• You need to add presets or a patrol route rst. See Add a preset and Add a patrol route for details.

• Click Setup > PTZ > Home Posion.

1. Select a mode and ID.
2. Click Save.

Remote Control PTZ

When the third-party plaorm is used and the PTZ protocol does not match that, you can set the remote control funcon to control the PTZ.

NOTE!

This funcon is only supported by PTZ cameras.

1. Click Setup > PTZ > Remote Control.

1. Select On to enable Remote Control. Set the listener port and address code. The following table describes some major parameters.

Acronym	Descripon
Listener Port	Camera's local port, which cannot be a port that is already in use. Change the default seng only when necessary.
Address Code	The camera can read the address code contained in instrucons. The camera interprets the instrucon only when the address code in the instrucon is the address code congured here.

1. Click Save.

PTZ Limit

Set rotaon limits to prevent the PTZ camera from hing obstacles such as a wall.

NOTE!

This funcon is only supported by some PTZ cameras.

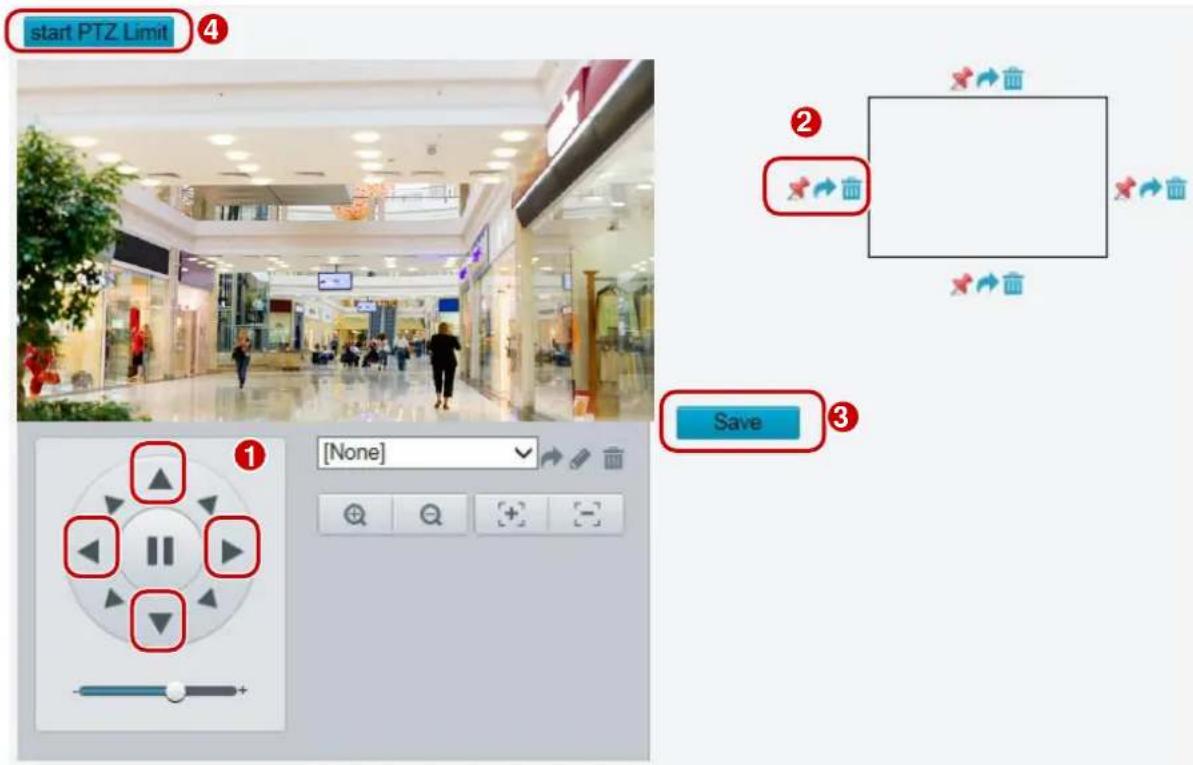

1. Click Setup > PTZ > PTZ Limit.

1. Use direconal buons to rotate the camera to an intended posion.

2. Click ✗ to set the current posion as a limit. For example, click ✗ on the top to set the upper limit.

Clicking will rotate the camera to the current posion if the direcon has been changed.

1. Repeat the above steps to set all limits as needed (up, down, le, right).
2. Click Save.
3. Click Start PTZ Limit to apply the seng.
4. Click to delete sengs and reset the limit.

Resume Patrol

1. Click Setup > PTZ > Patrol.

1. Set the me when patrol resumes.
2. Click Save.

Appendix A Glossary

Acronym	Descripon
ARP	Address Resoluon Protocol
CBR	Constant Bit Rate
DNS	Domain Name Service
DDNS	Dynamic Domain Name Service
DHCP	Dynamic Host Conguraon Protocol
DST	Daylight Saving Time
FTP	File Transfer Protocol
GOP	Group Of Pictures
GUI	Graphical User Interface
HTTPS	Hyper Text Transfer Protocol over SSL
IE	Internet Explorer
IMOS	IP Mulmedia Operaon System
IP	Internet Protocol
IPC	IP Camera
MTU	Maximum Transmission Unit
NTP	Network Time Protocol
OSD	On Screen Display
PoE	Power over Ethernet
PPPoE	Point-to-Point Protocol over Ethernet
PTZ	Pan, Tilt, Zoom
ROI	Region of Interest
SMTP	Simple Mail Transfer Protocol
SSL	Secure Socket Layer
UNP	Universal Network Passport
USB	Universal Serial Bus
VBR	Variable Bit Rate
WDR	Wide Dynamic Range

What to do if no message prompts me to install AcveX when I log in on a Windows 7 PC the rst me

Answer: Follow these steps to turn o UAC and then log in again:

1. Click the Start buon, and then click Control Panel.
2. In the search box, type uac, and then click Change User Account Control Sengs.
3. Move the slider to the Never Notify posion, and then click OK.
4. Aer UAC is turned o, log in again.

What to do if the installaon of AcveX failed

Answer: If the installaon failed, add the IP address of the camera as a trusted site: open Internet Opon in IE, click the Security tab, click Trusted sites, and then click Sites to add the website.

If you use Windows 7, you need to save the setup.exe to your PC rst, right-click the le, select Run as administrator, and then install it according to instrucons.

What to do if live video fails when I log in for the rst me

Answer: Close the rewall on your PC and then log in to the Web interface again.
