Product Type	Coffee Maker
Brand	Beko
Model	TKM 8961 K
Color	Black / Stainless Steel
Dimensions (W x D x H)	30 x 25 x 35 cm
Weight	2.5 kg
Power Consumption	1000 W
Voltage	220-240 V / 50-60 Hz
Capacity	1.5 L (10 cups)
Heating System	Boiler
Keep Warm Function	Yes, automatic
Filter Type	Permanent filter (included) / Paper filter size 4
Water Level Indicator	Yes, transparent window
Anti-Drip System	Yes
Auto Shut-Off	Yes, after 30 minutes
Cord Length	0.8 m
Material	Plastic housing, glass carafe
Cleaning	Descaling recommended every 2-3 months
Safety Features	Overheat protection
Spare Parts Available	Carafe, filter basket, permanent filter

Frequently Asked Questions - TKM 8961 K BEKO

How do I descale the Beko TKM 8961 K coffee maker?

Mix a descaling solution (or vinegar and water 1:3) and run a full brewing cycle without coffee grounds. Then run two cycles with fresh water to rinse. Refer to the manual for specific instructions.

Can I use paper filters instead of the permanent filter?

Yes, you can use standard size 4 paper filters. The permanent filter is also included for convenience.

How do I clean the carafe?

Wash the glass carafe with warm soapy water and a soft sponge. Avoid abrasive cleaners. The carafe is not dishwasher safe unless stated otherwise.

Why is the coffee not hot enough?

Ensure the keep warm function is activated. Also, preheat the carafe with hot water before brewing. If the problem persists, descale the appliance.

What is the maximum amount of water I can use?

The maximum capacity is 1.5 liters, corresponding to 10 cups. Do not exceed the MAX marking on the water level indicator.

How do I set the auto shut-off timer?

The auto shut-off is preset to 30 minutes after brewing finishes. This feature cannot be adjusted; it is fixed for safety.

My coffee maker is leaking. What should I do?

Check that the carafe is properly placed on the warming plate and the lid is closed. Ensure the anti-drip valve is clean. If leaking continues, contact support.

Can I brew a single cup?

Yes, you can brew less than a full pot. Use the appropriate amount of water and coffee grounds. The flavor may vary with smaller quantities.

How often should I replace the permanent filter?

The permanent filter is durable and should last the lifetime of the machine with proper cleaning. Rinse it after each use and replace if damaged.

Is the Beko TKM 8961 K suitable for use in the United States?

No, this model is designed for 220-240 V, 50/60 Hz electrical systems typical in Europe, Asia, and Africa. Using it in the US (120 V) requires a voltage converter and may not perform optimally.

USER MANUAL TKM 8961 K BEKO

Turkish Coffee Machine

User Manual

TKM 8961 A

TKM 8961 K

TKM 8961 B

TKM 8961 S

01M-7489490100-2519-01

Please read this manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Meanings of the Symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Suitable for contact with food.

Warning for electric shock.

Functional grounding

Protection class for electric shock.

This product has been produced in environmentally-friendly, state-of-the-art facilities.

1. Control panel
2. Left compartment, button to start making 3 servings of coffee
3. Left compartment, button to start making 2 servings of coffee
4. Left compartment, button to start making 1 serving of coffee
5. Water indicator LED
6. Right compartment, button to start making 1 serving of coffee
7. Right compartment, button to start making 2 servings of coffee
8. Right compartment, button to start making 3 servings of coffee
9. Small-Medium-Large - cup size adjustment buttons
10. Water tank (1.5 l)
11. Mains cable
12. On/off button
13. Right compartment heating surface
14. Left compartment heating surface
15. Coffee-making pots - 2x
16. Right compartment coffee-making detection sensor
17. Left compartment coffee-making detection sensor
18. Coffee measuring spoons

Technical data

Power: Total Rated Input Power: 1100 W

Induction Heating Input Power: 2 X 525 W = 1050 W

Voltage: 220-240 V AC ~, 50-60 Hz

Electrical insulation class: ||

Technical and design modifications are reserved.

The values declared in the markings affixed to your appliance or in the other printed documents supplied with it represent the values obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

1 Important safety and environmental instructions 6

1.1 General safety......6

2 Use 17

2.1 Initial use.... 17 2.2 Coffee making 21 2.3 Amounts....22 2.4 Sleep mode 23 2.5 Notifications ....24

3 Cleaning and care 27

3.1 Cleaning....27 3.1.2 Descaling.....28 3.2 Storage....29 3.3 Handling and transportation ...29

4 Technological features of the appliance 30

5 Before calling the authorised service agent 30

01M-7489490101-2519-01 01M-7489490103-2519-01 01M-7489490102-2519-01

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions will void all types of warranty.

1.1 General safety

• This appliance complies with international safety standards.
• Do not use the appliance outdoors or in the bathroom.
• No responsibility or warranty claim shall be assumed for damages arising from misuse or improper handling of the appliance.
• Never attempt to dismantle or separate the mounted parts of the appliance.
• Only use original parts or parts recommended by the manufacturer.

1 Important safety and environmental instructions

• Always use the appliance on a stable, flat, clean, dry, and non-slip surface. - Do not put any substances other than coffee and sugar into the coffee-making pot. - Do not drink the cooked Turkish coffee directly from the coffee-making pot. - The Turkish Coffee Machine is designed to operate at 4-37°C and 80% relative humidity. - Due to manufacturing technology, steam and odor may arise from the heating element during initial use. This is normal and will disappear after a few cycles. - WARNING: When making coffee, do not move the appliance or remove the coffee-making pot. - Do not move the appliance while it is still hot or when there is liquid inside the coffee-making pot.

1 Important safety and environmental instructions

• The coffee-making pot and the heating surfaces become hot during use. For this reason, do not touch the heating surface or the pot during and after use (until it cools down).
• WARNING: When making coffee, there may be hot steam above the pot. Avoid contact with these areas to prevent burns from the hot steam.
• Avoid touching hot surfaces and hold the pot only by the handle.
• Ensure the appliance is switched off before moving it.
• The base (black glass surface) on which the coffee-making pot is placed becomes hot during operation. Therefore, do not touch this area while using the appliance and until it cools down.
• This appliance should be connected to a maximum 30 mA domestic fault current protection fuse for additional protection.

1 Important safety and environmental instructions

• Use the appliance with a grounded plug.
• If the supply cable is damaged, immediately stop using it to prevent any danger and have it replaced by the manufacturer, service agent or similarly qualified personnel.
• Do not use the appliance if the appliance itself or any part of it is damaged. Contact the authorised service.
• Do not use the appliance with an extension cord.
• Do not immerse the appliance, power cord, or power plug in water or any other liquids.
• Do not touch the appliance or its plug with damp or wet hands.
• Position the appliance in such a way that the plug is always accessible.

1 Important safety and environmental instructions

• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.
• Make sure that there is no danger that the power cable could be accidentally pulled or that someone could trip over it when the appliance is in use.
• Unplug the appliance before cleaning it and never clean it when it is in use.
• Do not pull the power cable of the appliance to unplug the appliance from the outlet and do not wrap its power cable around the appliance.
• Your mains power supply should comply with the information supplied on the rating plate of the appliance.
• Do not use the appliance in or near places where combustible or inflammable places or materials are present.

1 Important safety and environmental instructions

• Do not use the appliance next to or close to heat sources (hob, grill, heater core, stove, etc.).
• Keep the appliance away from steam sources and avoid using it in environments containing excessive steam.
• Do not use the coffee-making pot with any other heater (hob, etc.) apart from the appliance.
• Do not place anything (cups, coffee-making pots, etc.) on the appliance.
• This appliance is not suitable for commercial use. It is intended to be used for household purposes in places such as: -Shops, offices, and personnel kitchens in other working environments, -Farmhouses, -By customers in hotels, motels, and other residential places, -Places for sleep and breakfast.

1 Important safety and environmental instructions

• This appliance can only be used to cook coffee.
• Extreme caution is advised when being used near children and persons who are restricted in their physical, sensory, or mental abilities.
• This appliance may be used by children who are at the age of 8 or over and the people whose physical, perceptive, or mental skills are impaired or who are inexperienced or not knowledgeable about the appliance as long as they are supervised or informed and made understood the safe use of the appliance and the encountered dangers. Children should not play with the appliance.
• Cleaning and user maintenance procedures should not be performed by children over 8 unless they are supervised by an older person.
• If you keep the package material, keep it away from children.

1 Important safety and environmental instructions

• Keep the appliance out of the reach of children under age 8.
• Supervise children to ensure that they do not play with the appliance.
• This product only contains functional grounding connection.
• If you are using a pacemaker, consult the manufacturer before using the appliance.
• Perform cleaning and care procedures in compliance with the "Cleaning and Care" section in this manual.
• WARNING: If there is damage (crack, breakage, etc.) on the coffee-making surface, immediately disconnect the product from the mains and do not use it to prevent electric shock, and contact the authorized service.
• Do not fill the water tank with any other substance (milk, powdered milk) than water.

1 Important safety and environmental instructions

• Do not exceed the max. level mark of the water tank.
• When making coffee, do not stir the coffee with a spoon or any other object and do not intervene in the process.
• Do not leave metal objects (such as cutlery) on hot surfaces in the coffee-making areas since these objects get hot.
• Do not use the devices with an external timer or a remote control system.
• This appliance cannot be used for built-in applications and it is not intended to be used inside cabinets. Do not put the coffee machine in a cabinet while it is running.

1 Important safety and environmental instructions

1.2 Compliance with the WEEE Directive and disposal of the waste product

This product does not contain harmful or prohibited materials specified in the "Regulation for Supervision of the Waste Electric and Electronic Appliances" issued by the Ministry of Environment and Urbanisation. Conforms to the WEEE Regulation.

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Package information

The product's packaging is made of recyclable materials in accordance with our national legislation. Do not dispose of the packaging materials with domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

1 Important safety and environmental instructions

1.4 Plug Wiring

The moulded plug on this appliance incorporates a 13 A fuse. Should the fuse need to be replaced, an ASTA approved BS1362 fuse of the same rating must be used. Do not forget to refit the fuse cover. In the event of losing the fuse cover, the plug must not be used until a replacement fuse cover has been fitted. The colour of the replacement fuse cover must be the same colour as that visible on the pin face of the plug. Fuse covers are available from any good electrical store.

Fitting a different plug

- As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals on your plug, proceed as follows:

• Brown cable = L (Live)
• Blue cable = N (Neutral)
• Green/yellow cable must be connected to ground (E) line
• With alternative plugs, a 13 A fuse must be fitted either in the plug or adaptor or in the main fuse box. If in doubt, contact a qualified electrician.

2 Use

2.1 Initial use

Read the whole user manual before using the product.

Make sure that the device is straight and balanced on a flat, clean, dry and non-slip surface.

Place the product vertically on a flat, clean and dry surface.

Slightly pull the coffee-making pot (15) out of its slot.

Wash the water tank (10) and the coffee making pot (15) by hand and dry them.

To obtain a tasty coffee, make sure that the inside of the coffee-making pot (15) is dry and clean.

Make sure that there are no water drops underneath the coffee-making pot (15) when preparing coffee. Otherwise, an annoying noise will be heard when the water drops get into contact with the hot base.

2 Use

Insert the plug (11) in the wall-socket. Switch the On/Off button (12) to On (I) position - All buttons on the control panel (1) will turn white.

Open the cover of the water tank. Holding the handle, slightly pull it up to remove.

Fill the water tank (10) up to a level between min. and max. levels. Close the cover again and re-install it.

If you want, you can also fill the water tank (10) without completely removing it. Repeat the same process after the appliance gives a water depleted warning (5).

To fill the pump and water system with water and bleed the air out of the system:

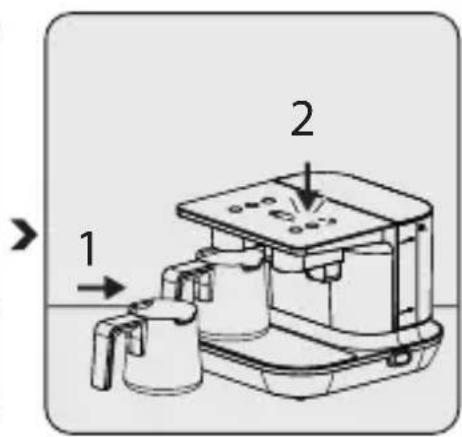

Place the coffee-making pot into the left compartment heating surface (14). Press the left compartment coffee-making button for 3 servings (2).

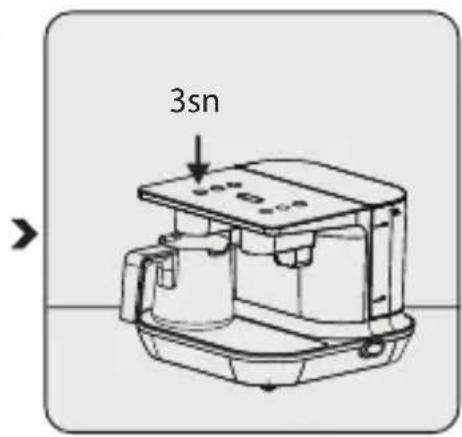

Once the water pumping process is over, press and hold the same button for 3 seconds to end the coffee-making process.

Take the coffee-making pot (15) and drain the water in it down the sink.

2 Use

This way, proper operation of the pump in the appliance is ensured.

WARNING: Repeat this process also after you remove/place the water tank from/into its place and before brewing coffee.

To adjust the water amount according to the size cup:

	Small cup for one serving 60 ml on average.
	Medium cup for one serving 70 ml on average.
	Large cup for one serving 80 ml on average.

2 Use

Place the coffee-making pot (15) into the left compartment heating surface (14). Press the left compartment coffee-making button for 1 serving (4).

Once the water pumping process is over, press and hold the same button for 3 seconds to end the coffee-making process and drain the water inside the coffee-making pot (15) into your cup.

If the water you have poured into your cup is too little or too much, press the cup size adjustment button to set it to small, medium or large (9). You can press the cup size adjustment button (9) to switch between levels. Once the LED of the desired cup size turns on, end the process.

The cup size LED will show the level to which the product is set. Repeat the water amount adjusting process when you change the cup size.

2 Use

2.2 Coffee making

Put the desired amount of coffee and sugar (up to 3 servings) into the coffee-making pot (15).

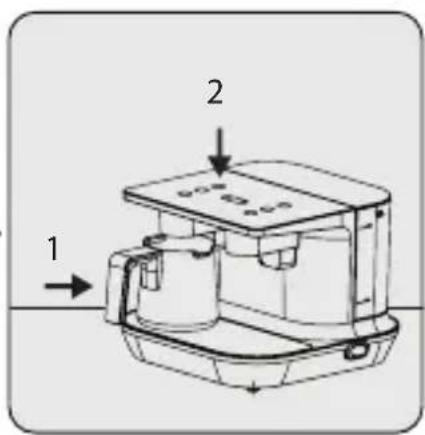

Place the coffee-making pot (15) in its slot. Slightly press the button that is found on the compartment where you have placed the coffee-making pot (15) and that shows the number of servings based on the amount of coffee you have added. - The light of the selected button will light in white.

Once the coffee-making process is complete, an audio warning will be heard and the LED of the relevant coffee-making button will flash in white. Once the LED turns dull white, slightly pull back the coffee-making pot (15) to remove it and pour the coffee into your cup.

WARNING: Pay attention not to stain the heating surface (13-14). If you drip coffee onto the heating surface, wipe it with a slightly damp cloth before it gets dry.

WARNING: Do not use the coffee-making pot on any cooking appliance other than the Coffee Machine! (Hob etc.)

WARNING: The appliance will not start unless you place the coffee-making pot (15) properly into its seat.

2 Use

WARNING: Fully insert the pot back into its seat in upright position. Otherwise your product will not run.

Coffee-making time is 1-1.5 min. for 1 person, 1.5-2.5 min. for 2 persons, and 2-3.5 min. for 3 persons.

For a tasty coffee, take the coffee-making pot (15) from the seat without waiting!

Pour coffee swiftly in order to prevent the foam and grounds from remaining in the coffee-making pot (15).

If you want to cancel the coffee-making process for any reason, press and hold the selected coffee-making starting button for 3 seconds.

2.3 Amounts

This is an easy-to-use appliance designed to make Turkish coffee. You can prepare foamy Turkish coffee that suits your tastes by using the quantities in the table. The following quantities are provided only for information purposes. You can adjust them according to your personal tastes.

• Add sufficient coffee for one, two, or three persons by using the measuring spoon, desired amount of sugar, and required amount of water for your cup size (recommended cup size is 65 ml) into the coffee-making pot.
• These amounts are for a one-serving medium cup. You can use the measuring spoon provided with the product for measuring the amount of coffee. For a foamy, delicious coffee, use fine grind fresh coffee suitable for making Turkish coffee.

2 Use

Recommended quantities of ingredients to prepare coffee
	Sugar-free	With little sugar	With medium amount of sugar	Sweet
Coffee 1 measure	1 measure 1 measure	1 measure
Sugar -		1/2 cube of sugar / 1/2 tea spoon of granulated sugar	1 cube of sugar / 1 tea spoon of granulated sugar	2 cubes of sugar / 2 tea spoons of granulated sugar

*These quantities are for single serving. *You can prepare 3 servings of coffee maximum in a single pot. *We recommend you to use sugar cubes to easily adjust the amount of sugar.

2.4 Sleep mode

If you do not do anything on the appliance for 3 minutes, it will give an audio warning (beep) and switch to stand-by mode. If you press the coffee-making start button or the cup size adjustment button, an audio warning will be heard and the appliance will leave sleep mode.

2 Use

2.5 Notifications

Product is ready to make coffee

LED of the selected cup size is constantly on in white. LEDs of the coffee-making starting button are in dull white.

Making coffee

LED of the selected coffee-making starting button is constantly on in white.

Coffee-making process is complete

LED of the selected coffee-making starting button is flashing in white.

Level exceeded error

The selected button's LED for coffee-making start is flashing in red

Please wait

Do not remove the coffee-making pot.

Remove the coffee-making pot, and pour the coffee into the cup before serving.

Switch off the product. Take out the coffee-making pot from its seat. Use a damp cloth to clean the base of the coffee-making pot, heating surface (make sure that the heating surface is cold) and the sensor glass. You can switch on the product again to start another coffee-making process. Contact authorised service agent if the error occurs again.

2 Use

Time out error

The selected button's LED for coffee-making start is continuously on in red

Switch off the product. Take out the coffee-making pot from its seat. Use a damp cloth to clean the base of the coffee-making pot, heating surface (make sure that the heating surface is cold) and the sensor glass. You can switch on the product again to start another coffee-making process. Contact authorised service agent if the error occurs again.

Coffee-making error 1

The button LEDs for coffee-making start for the relevant compartment are flashing in red

Switch off the product. Take out the coffee-making pot from its seat. Use a damp cloth to clean the base of the coffee-making pot, heating surface (make sure that the heating surface is cold) and the sensor glass. You can switch on the product again to start another coffee-making process. Contact authorised service agent if the error occurs again.

2 Use

Coffee-making error 2

LEDs of all coffee-making starting buttons are constantly on in red

Switch off the product. Take out the coffee-making pot from its seat. Use a damp cloth to clean the base of the coffee-making pot, heating surface (make sure that the heating surface is cold) and the sensor glass. You can switch on the product again to start another coffee-making process. Contact authorised service agent if the error occurs again.

No water

Water indicator LED is constantly on in red

Fill the water tank with water up to the max level. (When there is no water left, the coffee-making start buttons will go off and the user cannot make any selection).

3 Cleaning and care

3.1 Cleaning

WARNING: Since the appliance will be hot during coffee-making, please wait until it is cold if you would like to clean it afterwards.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

WARNING: Never immerse the appliance or its power cable in water or any other liquid.

WARNING: Use a dry cloth to wipe the water droplets that appear on the sensor glass (16-17) after consecutive coffee-making cycles.

WARNING: Do not wash the coffee-making pot (15) in dishwasher.

3 Cleaning and care

Switch the On/Off button (12) of the appliance to Off (0) position. Unplug the appliance. Allow it to cool down.

Use a damp cloth and a small amount of washing liquid to clean the outer surface of the appliance.

Remove the water tank (10) of the appliance. Wash it under running water with little washing liquid. Then dry and re-install it.

Wash the coffee-making pot by hand.

Then, dry it. After drying the

king pot, re-install it.

3.1.2 Descaling

To clean the stains (deposits) that might appear in the coffee-making pot in time without harming the inner base surface, pour one dessert spoon of citric acid crystals to the coffee-making pot and pour boiling water on it, so that water fills 1/3 of the pot. Wait for 10 minutes. At the end of the waiting process, you can rinse the coffee-making pot (15) and use it again.

3 Cleaning and care

WARNING: If you do not perform the descaling process for a long time, the base of the water reservoir of the appliance will get covered with lime and become inoperable.

3.2 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Please make sure that the appliance is unplugged, cooled down and totally dry. Store the appliance in a cool and dry place.
• Keep the appliance and its power cable out of the reach of children.

3.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or on the packaging. The appliance may be damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.

4 Technological features of the appliance

Automatic stirring system that ensures that the coffee is foamy and ideally consistent

The technology that allows making coffee at the best consistency.

Additional safety system eliminating the necessity of watching the coffee while it is

being prepared

5 Before calling the authorised service agent

First, check if the appliance is plugged in or not.

Check whether there is any break or damage on the cable.

Check if there is enough water in the water tank and if it is fitted in its place or not.

Clean the level detection glass.
