| Product Type | Single-Handle Kitchen Faucet |
| Brand | Elba |
| Model | ETC-E3400 |
| Material | Brass with chrome finish |
| Mounting Type | Deck mount, 1-hole or 3-hole |
| Number of Handles | 1 |
| Handle Type | Lever |
| Spout Type | High arc, swivel |
| Flow Rate | 1.8 GPM (6.8 L/min) at 60 psi |
| Valve Type | Ceramic disc |
| Installation Dimensions | Hole diameter: 1-3/8\" (35 mm); Spout height: 10\" (254 mm); Spout reach: 8\" (203 mm) |
| Weight | 3.5 lbs (1.6 kg) |
| Certifications | cUPC, NSF 61, AB1953 (low lead) |
| Warranty | Limited lifetime |
| Included Parts | Faucet body, handle, supply hoses, mounting hardware, installation guide |
| Maintenance | Clean with mild soap and water; avoid abrasive cleaners |
| Spare Parts Availability | Cartridge, O-rings, aerator, handle kit available |
| Repair Difficulty | Moderate (cartridge replacement) |
| Usage | Indoor kitchen sink |
| Finish | Chrome, polished |
Frequently Asked Questions - ETC-E3400 Elba
How do I install the Elba ETC-E3400 faucet?
Installation typically requires a 1-3/8" diameter hole in the sink or counter. Secure the faucet with the provided mounting hardware, connect supply hoses to shut-off valves, and tighten. Refer to the included installation guide for detailed steps.
What is the faucet made of?
The Elba ETC-E3400 faucet is constructed from brass with a chrome finish for durability and easy cleaning.
How do I clean and maintain this faucet?
Clean the faucet with a soft cloth and mild soap or water. Avoid harsh chemicals or abrasive pads that can damage the chrome finish. Periodically check for leaks around the base and handles.
Can I replace the cartridge if it leaks?
Yes, the faucet uses a ceramic disc cartridge that can be replaced. Turn off water supply, remove the handle, and pull out the old cartridge. Install a new one (Elba replacement part) and reassemble.
What is the flow rate of this faucet?
The flow rate is 1.8 gallons per minute (6.8 liters per minute) at 60 psi, complying with standard water efficiency regulations.
Does the spout swivel?
Yes, the high arc spout can swivel 360 degrees for convenient access to both basins of the sink.
Is the faucet lead-free?
Yes, the Elba ETC-E3400 is made from low-lead brass and certified to NSF 61 and AB1953, ensuring safe drinking water.
What is the warranty?
Elba offers a limited lifetime warranty against defects in material and workmanship. Contact customer support for warranty claims.
Can I install it on a 3-hole sink?
This model is designed for a 1-hole installation, but it can be used with a deck plate (not included) to cover 3-hole sinks.
Where can I find replacement parts?
Replacement parts such as cartridges, O-rings, and aerators are available through Elba authorized dealers or online. Check the manual for part numbers.
User questions about ETC-E3400 Elba
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Faucet in PDF format for free! Find your manual ETC-E3400 - Elba and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ETC-E3400 by Elba.
USER MANUAL ETC-E3400 Elba
| Product Range : | Stainless Steel Mixer Tap | |||
| Product Type : | ||||
| Model : | ETC-E3300 ETC-E3400 ETC-E3600 | |||
| Pre-installation | Cut-out Dimension Diagram |

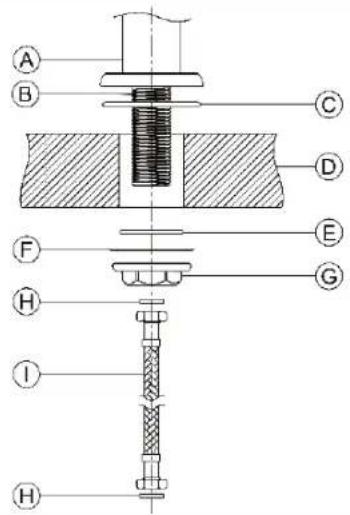

| Before installation, please ensure that the following work conditions are adhered to:-Water temperature between 0°C - 90°C-Water pressure between 0.05MPa – 1.0MPa. Pressure reducing valve is necessary if pressure exceeds 1.2MPa-Avoid major pressure differences between hot and cold water supplyFlush pipes thoroughly before and after installation to ensure water supply is free of any debris.Inspect tap fitting and debugged to its best. Do not attempt to disassemble fitting on your own.Use thread sealant tape (PTFE) on any screw joining connections and ensure all joints are securely tightened. |  A Tap Body F Metal washerB Threaded tube G Fixing nutC Rubber O-ring H Rubber washer for Flexi hoseD Sink top or Work top I Flexi hoseE Rubber O-washer |
| Installation Steps | |
| 1. An opening hole of 25mm diameter is required on sink top or work top (D) for installation of tap.2. Slide the rubber O-ring (C) over the threaded tube (B) and up to the base of tap (A).3. Insert the threaded tube (B) through the hole of sink top or work top (D) and position the tap properly.4. Slide the rubber O-washer (E) and metal O-washer (F) over the threaded tube (B) and up to the underside of sink top or work top (D).5. Screw and fasten the fixing nut (G). Please ensure the fixing nut (G) is tightened securely.6. Connect the flexi hose (I) with rubber O-washer (H) to threaded tube (B) on one end and the water supply on the other end. | |
CLEANING RECOMMENDATION:
- Tap should not be cleaned with abrasive materials such as steel wool or scourers
■ Do not use any corrosive or abrasive cleaning agents containing acid or scouring agents
