ARD-SER40-WI - Badge Reader BOSCH - Free user manual and instructions

Product Type	Badge Reader
Model	ARD-SER40-WI
Brand	Bosch
Dimensions (H x W x D)	Approx. 120 x 70 x 25 mm
Weight	Approx. 150 g
Power Supply	12 V DC via terminal block
Power Consumption	< 2 W
Operating Frequency	125 kHz (EM/Mifare compatible)
Read Range	Up to 5 cm
Supported Badge Types	EM 4102, Mifare Classic, DESFire (partial)
Interface	Wiegand 26/34 bit, RS-485
LED Indicators	Red/Green for access status
Buzzer	Yes, for feedback
Operating Temperature	-20°C to +60°C
Humidity	0% to 95% non-condensing
Protection Rating	IP54 (indoor/outdoor under cover)
Mounting	Wall mount with screws (included)
Cable Length	1.5 m pigtail
Compatibility	Bosch Access Control panels, third-party via Wiegand
Certification	CE, FCC, EN 60839
Maintenance	Clean with dry cloth; avoid solvents
Spare Parts	Mounting bracket, cable gasket, screws (order via Bosch service)
Repairability	Repairable by authorized Bosch service centers

Frequently Asked Questions - ARD-SER40-WI BOSCH

How do I connect the ARD-SER40-WI to my access control panel?

Connect the Wiegand wires (DATA0, DATA1) and 12V power supply to your panel. Refer to the panel's wiring diagram for correct pinout. Use default Wiegand 26-bit format unless configured otherwise.

What is the maximum read range?

The typical read range is up to 5 cm for standard ISO cards. Metal surfaces nearby may reduce range.

Can I use this reader with Mifare badges?

Yes, it supports Mifare Classic 1K and 4K badges. For DESFire, compatibility may be limited to certain sectors.

How do I change the Wiegand format?

This model does not have on-board DIP switches; format selection is done via software configuration if connected to a compatible Bosch panel, or by using a configuration card.

Why is the reader not reading my badge?

Check that the badge is placed within 5 cm of the reader. Ensure the badge type is supported (125 kHz EM or 13.56 MHz Mifare). Verify power supply is 12V DC.

How do I clean the reader?

Use a soft, dry cloth to wipe the surface. Do not use alcohol, solvents, or abrasive cleaners as they may damage the plastic.

What if the LED stays red constantly?

A constant red LED often indicates a power or wiring issue. Check the 12V supply and verify DATA0/DATA1 connections. Also ensure the panel is communicating correctly.

Can I mount this reader outdoors?

Yes, it has an IP54 rating, meaning it is protected against dust and splashing water. However, avoid direct rain or submersion.

What spare parts are available for this reader?

Spare parts include mounting bracket, screws, and cable gasket. Contact Bosch customer service or your distributor to order.

Is this reader compatible with third-party access control systems?

Yes, it outputs standard Wiegand 26 or 34-bit, so it can work with many third-party controllers. However, some advanced features may require a Bosch panel.

USER MANUAL ARD-SER40-WI BOSCH

LECTUS secure readers (Wiegand)

www.boschsecurity.com

BOSCH

Invented for life

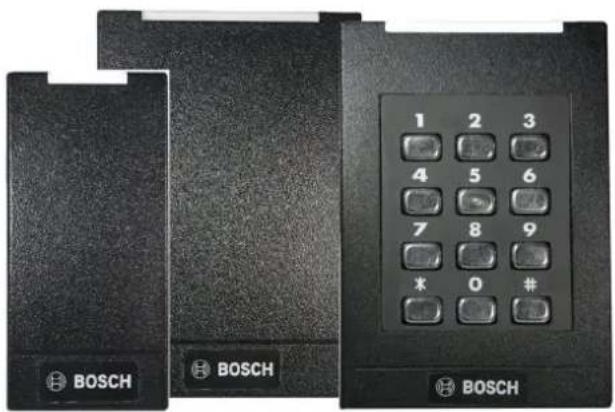

Three black Bosch memory units with control buttons, no visible text or symbols on the devices themselves.

System overview

The LECTUS secure reader (Wiegand) family has three different form factors.

The mini mullion reader offers the most attractive pricing solution. The US Gang Box sized readers can be ordered with our without a keypad. The keypad functionality offers higher security due to possible multi-factor authentication.

The keypad functionality can also be used for a variety of access control features including the option to set a door to long-term open.

The LECTUS secure readers are fully compatible with the Bosch Access Management portfolio, including the Management Software Systems (BIS/ACE, AMS and APE), the Access Modular Controller (AMC2), and the MIFARE and iCLASS credential portfolio.

The support of 13.56MHZ credential formats offers a migration path for proximity installations.

The use of NFC on mobile phones to set up the communication with the readers enables mobile phones to be used as access credentials.

▶ 13.56 MHz proximity compatible with access controllers with Wiegand interfaces
▶ IP55 rating allows for indoor and outdoor installations (additional gasket improves rating to IP65)
▶ Support of multiple card technologies (e.g. iCLASS SE, SEOS, MIFARE DESFire® EV1)
▶ Quick reading response for high performance level
▶ Easy and quick mounting for cost saving installation

Certifications and approvals
Region Regulatory compliance/quality marks

Korea KCC Korea Certification Mark
Europe CE Declaration of Conformity
Global RoHS
USA UL 294 Certified
	FCC FCC Compliance

Installation/configuration notes

The pigtail interface of the Wiegand readers is easy to install.

A variety of card data formats are supported based on the card technology, including 26bit, 32bit and 56-bit format.

The integrated audio sounder provides various tone sequences to alert: access granted, access denied, power up and diagnostics. Cardholders can easily distinguish between access granted and access denied. A high-intensity light bar provides a clear visual status indication in red, green or amber, even in bright sunlight.

The rugged polycarbonate enclosure is designed to withstand severe environmental conditions and provides reliable performance and resistance to vandalism. The IP class can be upgraded to IP65, with additional gaskets.

Technical specifications

Operating Voltage Range 5 to 16 VDC (12 VDC for RS 485)
Current draw 60 to 220 mA (peak), 16V (see manual for details)
Cable distance Up to 150 m
Environmental rating IP 65 without gasket/IP55 with additional gasket
Operating temperature - 35 °C to 65 °C (-31 °F to 150 °F)
Humidity 5 to 95%, no condensation water
Cable distance Up to 150 m
Housing Material Polycarbonate (UL 94)
Color Black
Display Multicolored RGB LED bar
Panel connection Wiegand, pigtail
Panel compatibility Access controllers and extension boards:AMC2 4W-CFAMC2 4W-EXTAMC2-2WCFIntrusion panels:B9512G/B9512G-EB8512G/B8512G-EB6512D9412GV4/D7412GV4D9412GV3/D7412GV3D9412GV2/D7412GV2
Card compatibility iCLASS	iCLASS SESEOSISO 14443A CSN MIFARE Classic 32bit (default)+ NFC (Support of HID mobile access)· iCLASS (26 / 37 bit standard coding scheme)· HID Corporate-1000 (35 / 48 bit standard coding scheme)· iCLASS SE (26 / 37 bit SIO - Secure Identity Object)· iCLASS Seos (26 / 37 bit SIO - Secure Identity Object)
Operating frequency	13.56 MHz

Typical reading distance1)LECTUS secure 1000 WI	7.6 cm (iCLASS SE card)5.8 cm (MIFARE Classic card)3.3 cm (iCLASS SE key fob)1.3 cm (MIFARE Classic key fob)
Typical reading distance1)LECTUS secure 4000 WI	11.4 cm (iCLASS SE card)8.9 cm (MIFARE Classic card)4.6 cm (iCLASS SE key fob)3.8 cm (MIFARE Classic key fob)
Typical reading distance1)LECTUS secure 5000 W1	12.7 cm (iCLASS SE card)11.4 cm (MIFARE Classic card)4.6 cm (iCLASS SE key fob)3.8 cm (MIFARE Classic key fob)

^1) Typical read range achieved in air. Different types of metal will cause some degradation (typically up to 20%). Use spacers to space product off metal and improve read range if required.

Dimension (W x H x D) See ordering information

Weight (g) See ordering information

NOTE: Using the Surface mount panel with the ARD-SER10-xx will:

- Reduce the environmental rating class to IP45, and

- Disable the tamper protection.

NOTE: HID listings for UL and FCC are valid for this product family. For details see www.hidglobal.com/certifications.

Ordering information

ARD-SER10-WI Card reader, iCLASS, Wiegand

iCLASS/MIFARE reader, mini-mullion size, suited for mullion-mounted door installations, U.S. single-gang J-box or any flat surface, pigtail, 4.8 x 10.3 x 2.3 cm, 113g net

Order number ARD-SER10-WI

EWE-RDR-IW 12mths wrty ext. Access Control Reader

12 months warranty extension

Order number EWE-RDR-IW

ARA-SER10-IP65 LECTUS Secure 1000 Gasket for IP65, 10pc

Gasket for protection class IP65, material Chloroprene Rubber, dimensions 4.625 x 10 x 0.2 cm, 10 pcs/each Order number ARA-SER10-IP65

ARD-SER40-WI Card reader, iCLASS, Wiegand

iCLASS/MIFARE reader, wall switch size, designed to mount and cover single gang switch boxes primarily used in the Americas, includes a slotted mounting plate for European and Asian back box spacing, pigtail, 8.4 x 12.2 x 2.4 cm, 220g net

Order number ARD-SER40-WI

EWE-RDR-IW 12mths wrty ext. Access Control Reader

12 months warranty extension

Order number EWE-RDR-IW

ARA-SER40-IP65 LECTUS Secure 4000 Gasket for IP65, 10pc

Gasket for protection class IP65, material Chloroprene Rubber, dimensions 8.1 x 11.9 x 0.2 cm, 10 pcs/each Order number ARA-SER40-IP65

ARD-SER30-WI LECTUS secure 3000 WI iCLASS reader

iCLASS/MIFARE reader, EU / APAC Square Size, square reader is designed to mount to and cover standard European and Asian back boxes, pigtail, 8.4 x 8.4 x 2.3 cm, 148g net

Order number ARD-SER30-WI

ARD-SERK40-W1 Card reader with keypad, iCLASS, Wiegand

iCLASS/MIFARE reader, wall switch size, designed to mount and cover single gang switch boxes primarily used in the Americas, slotted mounting plate for European and Asian back box spacing, pigtail, keypad (4x3), 8.5 x 12.2 x 2.8 cm, 256g net Order number ARD-SERK40-W1

EWE-RDR-IW 12mths wrty ext. Access Control Reader

12 months warranty extension

Order number EWE-RDR-IW

ARA-SERK40-IP65 LECTUS Secure 5000 Gasket for IP65, 10pc

Gasket for protection class IP65, material Chloroprene Rubber, dimensions 8.1 x 11.9 x 0.2 cm, 10 pcs/each Order number ARA-SERK40-IP65

Accessories

F01U508789 Surface mount panel, 10pcs

Surface-mount panel for LECTUS secure 1000 WI readers, 10 items/packaging unit Order number F01U508789

ARA-SER10-IP65 LECTUS Secure 1000 Gasket for IP65, 10pc

Gasket for protection class IP65, material Chloroprene Rubber, dimensions 4.625 x 10 x 0.2 cm, 10 pcs/each Order number ARA-SER10-IP65

ARA-SER40-IP65 LECTUS Secure 4000 Gasket for IP65, 10pc

Gasket for protection class IP65, material Chloroprene Rubber, dimensions 8.1 x 11.9 x 0.2 cm, 10 pcs/each Order number ARA-SER40-IP65

ARA-SERK40-IP65 LECTUS Secure 5000 Gasket for IP65, 10pc

Gasket for protection class IP65, material Chloroprene Rubber, dimensions 8.1 x 11.9 x 0.2 cm, 10 pcs/each Order number ARA-SERK40-IP65
