BL1515 - Blender Khind - Free user manual and instructions

Product Type	Blender
Brand	Khind
Model	BL1515
Voltage	220-240 V ~ 50/60 Hz
Power Consumption	300 W
Capacity	1.5 Litres
Number of Speeds	2 (plus Pulse)
Control Type	Rotary selector switch (1, 2, PULSE)
Jar Material	Glass or plastic (not specified but typical)
Blade Material	Stainless steel (typical)
Safety Features	Safety interlock system; resettable thermal protection
Maximum Operating Time	3 minutes continuous; cool down for 1 minute
Maximum Ingredient Temperature	70°C
Accessories Included	Blender jar, lid, cap, miller cup (for dry grinding)
Cleaning	Hand wash jar and lid; wipe motor body with damp cloth; do not immerse motor
Repairability	Power cord replaceable by qualified personnel; thermal link resettable
Intended Use	Household only
Dimensions (Approx.)	Not specified; typical height ~40 cm
Weight (Approx.)	Not specified; typical ~2 kg

Frequently Asked Questions - BL1515 Khind

What is the maximum capacity of the Khind BL1515 blender jar?

The blender jar has a maximum capacity of 1.5 litres. Do not exceed this amount for best results.

Can I blend hot liquids in this blender?

No. Do not fill the jar with ingredients hotter than 70°C to avoid damage.

How long can I run the blender continuously?

Do not run the blender continuously for more than 3 minutes. Allow it to cool for at least 1 minute before restarting.

What should I do if the blender stops during use?

The blender has a resettable thermal link. If it overheats, it will automatically shut off. Unplug and let it cool for 10-30 minutes before resuming use.

Can I use the miller cup for wet ingredients?

No. The miller cup is designed for dry ingredients only (e.g., coffee beans, spices, biscuits). Do not use with liquids.

How do I clean the blender?

Unplug the blender. Wash the jar, lid, and cap with soapy water and rinse. Wipe the motor body with a damp cloth. Do not immerse the motor body in water.

What does the safety interlock system do?

The blender will not operate unless the jar or miller cup is properly locked onto the motor body. This prevents accidental operation.

Can I blend meat or hard ingredients?

Yes, but cut them into small pieces first. For hard ingredients, blend in small quantities and use the pulse function if needed.

How do I use the pulse function?

Turn the selector switch to the PULSE position and hold it. Release to stop. Use for short bursts to chop or mix.

What should I do if the power cord is damaged?

The power cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard.

USER MANUAL BL1515 Khind

Abstract graphic with green and white geometric shapes resembling Earth, globe, and globe segments (no text or symbols)

Blender / 搅拌机 / Pengisar
Instruction Manual / 说明书/Buku Panduan

Please read this manual carefully before operating this product. Keep this manual handy for future reference.

This manual is also available online

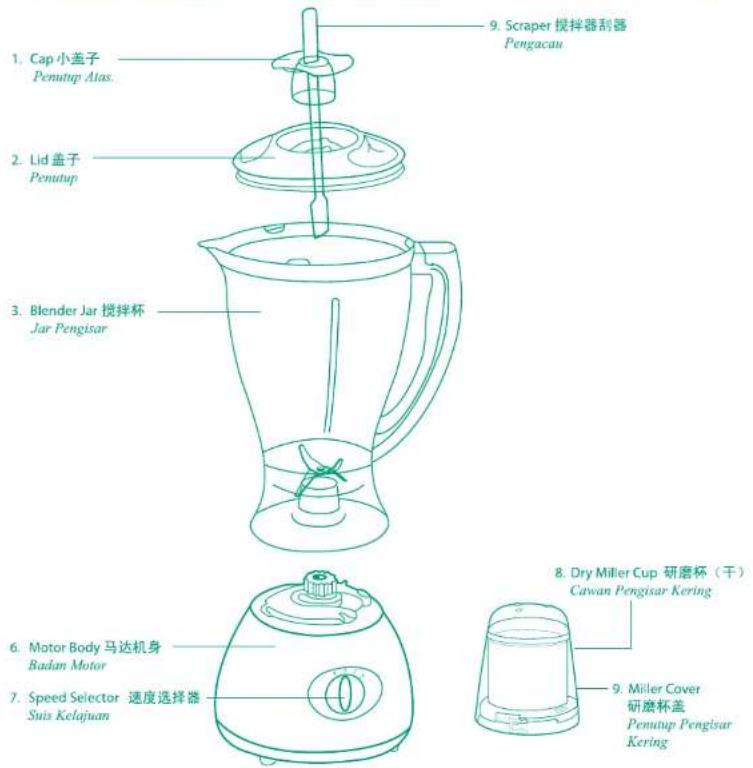

Parts Identification / 零件名称 / Pengenalan Bahagian

Specifications / 规格 / Spesifikasi

Model/型号/Model	BL 1515
Voltage/电压/Voltan	220-240V~50/60Hz
Power/功率/Kuasa	300 W
Capacity/容量/Kapasiti	1.5 Litre / 1.5 Liter

*Specifications are subject to change without prior notice. *以上规格有任何的改变，恕无另行通知。 *Perubahan asifikasi boleh dilakukan tanpa sebarang notis

Caution / 注意事项

1. Before connecting to the power supply, make sure that: 在未接通电源时，请注意：

- The blender is completely mounted. 搅拌机已经完全装配好。

- The selector switch is at "OFF" position. 速度选择器的正确位置是 "OFF".

1. Do not use without any load in the jar. 请不要空转搅拌杯。

2. When the motor is running: 当马达在进行旋转时：

- Do not insert any object into the jar except food. 除了食物，勿将其他东西放进搅拌杯内。

- Do not put your finger into the jar. 请勿将手指放进搅拌杯内。

1. Always remove the plug from the socket after being used. 每当使用后，请将插头拔出。

2. Do not remove the lid while blending. 当马达在进行旋转时，请勿把盖子取出。

3. For best blending results, do not fill the jar beyond 1500ml. 如要达到好的搅拌效果，搅拌容器裡的食物不可超過1500毫升。

4. Switch power on and off intermittently to remove sticky particle of food inside the jar and also use the scraper if necessary. 重复开关搅拌机电源并使用搅拌机刮器来清除粘附在搅拌容器裡面的食物。

5. Meat or other solid food shall be cut into small pieces before blending. 如要搅拌肉類或其它固體食物時，必須先把它們切成小塊。

6. Blend the hard ingredients in small quantities. 搅拌坚硬的材料时必需少量，分数次搅拌。

7. If the blender does not perform in normal operating condition (slow), switch the blender on and off a few times and stir the ingredients with the nonmetallic scraper (not while blending) or reduce the contents from the jar. 如有遇到搅拌机操作缓慢（不如平常速度），请重复开关搅拌机的开关钮或使用非金属搅拌机刮器来清理粘附在搅拌容器里面的食物（搅拌机操作时不宜）或减少搅拌容器里的材料即可。

8. Do not run the blender continuously longer than 3 minutes. Turn off the switch and allow the motor to cool down for one minute. 搅拌机不能连续使用超过三分钟，暂停一分钟后再继续使用。

9. Do not overload the Blender Jar or Dry Miller Cup with content at any time or use it for too long periods of time. This blender is fitted with a resettable thermal link to protect the motor from overheating. Should the motor overheat, the thermal link will disconnect the power supply and will automatically re-connect the power supply from between (10-30 minutes) after the motor cools down. 在使用搅拌机时，请不要放过多的食材在搅拌杯和研磨杯内或长时间的操作搅拌机。 此搅拌机附带可恢复温度保险丝以防马达过热。如果马达过热，可恢复温度保险丝会自动切断电源。 马达冷却后，搅拌机将会在10至30分钟内自动重新连接电源。

10. Do not fill the Blender Jar with ingredients that are hotter than 70^ C. 切勿将超过 70^ C温度的食材放入搅拌杯内。

11. Do not use gasoline, abrasive chemical/cleaning agents for cleaning. 不可用汽油或强烈化学清洁剂来清洗污垢。

12. Follow assembly instructions closely. This appliance must be fastened correctly before operating. This appliance is intended for household use only. 请根据说明书指示。本产品是要根据指示才能安全操作。本产品只适合家庭式使用。

Caution / 注意事项

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
   当电源线损坏时，请送往维修中心。所授权的维修中心或拥有同等技术的人士替换。
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. 此电器不适合这些人士使用：小孩，体力弱及感官，精神上有障碍，缺少经验和知识者；除非有人监督或指示如何操作，并负责操作人的安全。小孩需紧密的监督，此电器严禁被小孩当玩具玩。

Cleaning & Maintenance / 清洁和维护

It is highly recommended to clean the appliance immediately after use. 在每次使用后，请务必立刻清洗，

1. Always switch-off and unplug the appliance from the socket before cleaning. 在还没清洗前，请将插头拔出。

2

Clean the outside of the Motor Body with a damp cloth only. Do not immerse the Motor Body into water. 搅拌机只可用拧干的湿布抹表面，请勿将马达机身放入水中清洗。

1. Wash the Blender Jar with soapy water and rinse it with clean water. Be careful of the sharp blades. 用肥皂与干净的水清洗搅拌杯。请小心叶片刀以免被弄伤。
2. Make sure that the Motor Body is thoroughly dry before re-using the appliance. 在未使用前，请确定马达机身是干的。

Make sure that the Miller Cup is properly locked onto the Miller Cover. Turn the Miller Cover in anticlockwise direction to close it. 确保研磨杯与研磨杯盖已锁紧。像逆时方向旋转研磨杯即可关紧。

After putting the ingredients into the Blender Jar, close the Jar with the Lid Cover, make sure the Lid is placed at the slot of Blender jar and turn in anticlockwise direction to lock it. Fix the Cap in. Always close the Jar Cover Lid securely before use. 将配料放进搅拌杯后，把盖子关上时确保盖子放进搅拌杯的锁定槽然后向逆时方向旋转即可锁上。最后把小盖子装上。 时时确保在未使用前，将盖子安全盖妥。

Blender Jar 搅拌杯

4

Fix the Blender Jar or Miller Cup onto the Motor Body and rotate in anticlockwise direction and make sure it is properly locked onto the Motor Body. 将搅拌杯或研磨杯装置在马达机身，向逆时方向旋转确定锁紧在马达机身。

1. Do not operate this Blender when it is empty. 不可以空转搅拌机。
2. Plug in the appliance. Select suitable speed 1, 2 or PULSE as desired. 连接搅拌器至电源，选择适当的速度1, 2或PULSE。

Note/备注

1. This appliance is designed with a safety system. If the Blender Jar or Miller Cup is not placed correctly, the appliance will not function. For safety purpose, switch-off and unplug the appliance every time after blending. 这产品具备安全系统设计。如果还没把搅拌杯或研磨杯装备在适当的位置，搅拌机是不会启动的。为了安全，在每次使用后请将插头拔出。
2. The Miller Cup can also be used for milling pepper, dry chilli and others. (ONLY FOR DRY USE) 研磨杯也可以用来搅拌胡椒，辣椒或其他，(只限于干用)

How To Use The Miller Cup / 研磨杯用法

1) Place dry ingredients into Miller Cup. Cut the bigger ingredients into smaller pieces before grinding. 把干的研磨材料放入杯里。启动搅拌前，先把大片的研磨材料切成小片。
2) Make sure the Miller Cup is properly locked before switching on the power supply. 在还未连接至电源时，必须把研磨杯锁紧。
3) The Blender should be switched off after 15 to 20 seconds of continuous operation to allow the unit to cool down. Repeat operation to grind ingredients to desired degree of fineness. 搅拌机必须在每搅拌15至20秒后暂停操作，暂停操作的次数依所需搅拌材料 幅度而定。

The Miller Cup / 研磨杯说明

Coffee beans and chocolate nuts can be milled to any degree of fineness as well as bread, biscuit and cornflake crumbs. (Do not operate the appliance when the miller cup is empty and also do not run with liquid inside). 咖啡豆，巧克力核心，面包，饼干及粒狀小麥片都可用研磨杯研磨至所需細度。（註：不可空转操作此攪拌机和把液体倒入研磨杯內）。
