Sleep Perfect BL5681 - Electric blanket SUNBEAM - Free user manual and instructions
Find the device manual for free Sleep Perfect BL5681 SUNBEAM in PDF.
| Product Type | Electric Underblanket |
| Brand | Sunbeam |
| Model | Sleep Perfect BL5681 |
| Available Variants | BL51 Fitted, BL52 Waterproof, BL53 Antibacterial, BL54 Quilted, BL55 Pillow Top, BL56 Wool Fleece |
| Power Supply | 230-240V AC, 50Hz |
| Control Type | 9 heat settings with timer (BL51-53) or 6 heat digital timer (BL54-56) |
| Timer Options | 75 minutes and 12 hours (9 heat); 1 hour and 9 hours (6 heat digital) |
| Dual Controls | Yes on Double, Queen, King, and Super King sizes |
| Heating Element | SleepPerfect® temperature-sensitive fast-heating elements |
| Safety Features | 9 levels of safety protection, dual microprocessors, thermal back-up fuse, overheat protection |
| Special Features | Cosy feet heating (concentrated heat at base), removable controls, waterproof heating elements |
| Fabric | Fitted design with 50cm skirt (BL51-53); Quilted (BL54), Cotton Sateen (BL55), Australian Wool Fleece (BL56) |
| Waterproof Membrane | Available in BL52 model |
| Antibacterial Treatment | Available in BL53 model |
| Machine Washable | Yes, with controls removed; gentle cycle below 40°C |
| Tumble Dry | Low setting, maximum 15 minutes |
| Storage | Roll or fold loosely; avoid sharp creases; store in bag |
| Warranty | 3-year replacement or repair warranty (Australia/New Zealand) |
| Usage | Household only; not for use on waterbeds, adjustable beds, or futons |
| Safety Certifications | Approved by appropriate electrical regulatory authorities |
Frequently Asked Questions - Sleep Perfect BL5681 SUNBEAM
User questions about Sleep Perfect BL5681 SUNBEAM
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric blanket in PDF format for free! Find your manual Sleep Perfect BL5681 - SUNBEAM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Sleep Perfect BL5681 by SUNBEAM.
USER MANUAL Sleep Perfect BL5681 SUNBEAM
Sunbeam's Safety Precautions 1
Safety Precautions for your Electric Blanket 2
Sunbeam's Sleep Perfect™ Technology 3
Features of your electric blanket Sleep Perfect Fitted, Waterproof, Antibacterial 4
Sleep Perfect Quilted, Pillow Top, Wool Fleece 5
Fitting your electric blanket 6
Using your 9 heat control with timer 8
Using your 6 heat digital timer control 10
Troubleshooting 11
Care and cleaning 12
Important instructions – retain for future use.
Sunbeam's Safety Precautions
Sunbeam is very safety conscious when designing and manufacturing consumer products, but it is essential that the product user also exercise care when using an electrical appliance. Listed below are precautions which are essential for the safe use of an electrical appliance:
- Read carefully and save all the instructions provided with an appliance.
- Always turn the power off at the power outlet before you insert or remove a plug. Remove by grasping the plug - do not pull on the cord.
- Turn the power off and remove the plug when the appliance is not in use and before cleaning.
- Do not use your appliance with an extension cord unless this cord has been checked and tested by a qualified technician or service person.
- Always use your appliance from a power outlet of the voltage (A.C. only) marked on the appliance.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
-
The temperature of accessible surfaces may be high when the appliance is operating.
-
Never leave an appliance unattended while in use.
- Do not use an appliance for any purpose other than its intended use.
- Do not place an appliance on or near a hot gas flame, electric element or on a heated oven.
- Do not place on top of any other appliance.
- Do not let the power cord of an appliance hang over the edge of a table or bench top or touch any hot surface.
- Do not operate any electrical appliance with a damaged cord or after the appliance has been damaged in any manner. If damage is suspected, return the appliance to the nearest Sunbeam Appointed Service Centre for examination, repair or adjustment.
- For additional protection, Sunbeam recommend the use of a residual current device (RCD) with a tripping current not exceeding 30mA in the electrical circuit supplying power to your appliances.
- Do not immerse the appliance in water or any other liquid unless recommended.
- Appliances are not intended to be operated by means of an external timer or separate remote control system.
- This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
If you have any concerns regarding the performance and use of your appliance, please visit www.sunbeam.com.au or contact the Sunbeam Consumer Service Line. Ensure the above safety precautions are understood.
Safety Precautions for your Electric Blanket
- Do not use your electric blanket on or under a waterbed.
- Do not use on an adjustable bed or futon.
- Do not switch the blanket on if moist or wet.
- Do not allow the blanket heating wires to lie over the edge of the mattress.
- Do not place your power cord or connector under any stress or strain. Never jam or bend the power cord over a hard surface such as a bed frame. The power cord should always remain free from obstructions.
- Do not use pins, needles, safety pins or other sharp items on your electric blanket.
- Do not dry clean your electric blanket.
- Use only as an underblanket.
- Examine periodically for signs of wear or damage on the blanket cords. If there are such signs, or the blanket has been misused, return it to an authorised service agent for inspection.
- Each day check that the electric blanket is smooth, flat and properly secured on the mattress. Do not use if the blanket is folded, rucked or creased.
-
Only use your electric blanket with the controls supplied or marked equivalent.
-
Do not use with infants, infirm persons, or persons insensitive to heat.
- Parents or guardians must preset the controls for young children, unless the child has been adequately instructed on how to operate the control safely.
- Turn the power off and remove the plug when the appliance is not in use and before cleaning.
- This electric blanket is not intended for use in hospitals.
- Should your appliance suffer a thermal or fuse link rupture (normally identified when the blanket stops heating) please return it to the manufacturer or agent for repair or replacement.
- When storing the appliance, allow it to cool down before folding.
- Do not crease the appliance by placing items on top of it during storage.
- Not to be used by very young children (0-3 years), infirm persons, or persons insensitive to heat.
- This appliance must not be used by persons insensitive to heat and other very vulnerable persons who are unable to react to overheating.
- Children under the age of three are not to use this appliance due their inability to react to overheating.
Important instructions – retain for future use.
If you have any concerns regarding the performance and use of your appliance, please visit www.sunbeam.com.au or contact the Sunbeam Consumer Service Line. Ensure the above safety precautions are understood.
Care Label Symbols

Attention

Instruction Booklet - Please read the instructions thoroughly before use
Sunbeam's SleepPerfect® Technology
Temperature sensitive, fast-heating elements
All Sunbeam Sleep Perfect electric blankets feature our exclusive SleepPerfect® Technology. This technology uses a unique heating element that adjusts the power supplied to your electric blanket to maintain your selected setting.
A built-in microprocessor continually senses changes to your body temperature affecting the blankets' temperature and adjusts the power input accordingly, to provide a constant level of comfort.
On double, queen, king and super king size electric blankets each side adjusts independently to maintain individual comfort levels. So you'll always sleep soundly, even on the coldest nights.
This unique element also heats to your selected temperature in just 10 minutes, so there's no need for hours of preheating before bedtime.
Nine levels of safety protection
Nine levels of safety protection make Sunbeam's Sleep Perfect range safer than any other electric blanket. A built-in microprocessor senses any rise in temperature and reduces the power supply to prevent overheating.
In the unlikely event of a fault, the microprocessor senses the abnormal operation and automatically cuts off power to the blanket.
A second microprocessor acts as a back up should the first fail.
For additional safety protection, all Sleep Perfect electric blankets contain a thermal back up fuse that is independent of the blanket control. It detects any abnormal temperature variations in the heating element and automatically switches the blanket off to prevent overheating.
Sleep Perfect Fitted. BL51 Sleep Perfect Waterproof. BL52 Sleep Perfect Antibacterial. BL53
Cosy feet heating
The heating wires are concentrated at the base of the blanket to deliver extra heat around your feet, while keeping the rest of your body comfortably warm.
Fitted design
The 50cm fitted skirt and extra strong elastic cord keep the blanket flat and taut on the mattress, and make fitting easier.
Machine washable
The detachable controls and waterproof element make your electric blanket safe to machine wash and may be tumble dried. For Care and Cleaning instructions, see page 12.
9 heat timer control
A choice of 9 heat settings allows you to select the desired temperature to keep you comfortable all night. The dial is illuminated for easy adjustment in the dark.
You can also use the timer setting at either 75 minutes or 12 hours and the blanket will switch off at these intervals.

Detachable controls
Always remove the controls when laundering your blanket. Store the controls during the summer months while your blanket remains on the bed as a comfortable underblanket.
Dual controls
Your Double, Double/Queen, Queen or King size electric blanket features two controls for individual comfort.
BL52 Sleep Perfect Waterproof inner layer
This electric blanket (BL52) contains a special waterproof membrane that prevents any liquids from reaching the heating wires or soaking through to the mattress.
BL53 Sleep Perfect Antibacterial treatment
This blankets' polyester fibres feature Antibacterial treatment. Ideal for asthma and allergy sufferers, this treatment assists to inhibit the growth of mould and bacteria, ensuring a fresher, more hygienic blanket.
Sleep Perfect Quilted. BL54 Sleep Perfect Pillow Top. BL55 Sleep Perfect Wool Fleece. BL56
Quilted fabric
The quilted electric blanket adds an extra layer of comfort to your bed. It is designed to remain on the bed all year round as a comfortable underblanket, with the added benefit of protecting your mattress. Simply detach the controls when not needed.
Cosy feet heating
The heating wires are concentrated at the base of the blanket to deliver extra heat around your feet, while keeping the rest of your body comfortably warm.
Fitted design
The fitted skirt and extra strong elastic cord keep the blanket flat and taut on the mattress, and make fitting easier.
Machine washable
The detachable controls and waterproof element make your electric blanket safe to machine wash and may be tumble dried. For Care and Cleaning instructions, see page 12
6 heat and digital timer control
Select setting 6 for fast heat up, and your bed is ready in 5 minutes. Select settings 1 to 5 for all night use.
Choose from 2 timer settings to switch off the blanket after 1 or 9 hours.

Detachable controls
Always remove the controls when laundering your blanket. Store the controls during the summer months while your blanket remains on the bed as a comfortable underblanket.
Dual controls
Your Queen, King and Super King size electric blanket features two controls for individual comfort.
BL54 Quilted fabric
The quilted fabric adds an extra layer of comfort to your bed. It is designed to remain on the bed all year round as a comfortable underblanket.
BL55 Pillow top fabric
100% Cotton sateen stripe of pillowy comfort luxury is designed to remain on your bed all year round.
BL56 Australian Wool Fleece
Featuring 500g/m2 28 micron Australian wool fleece top, this blanket is the ultimate in warmth and comfort all year round with the added benefit of heating. The 25mm wool pile allows the air to circulate around your body in winter and summer.
Fitting your electric blanket
Note: The heat pad is designed to fit within the edges of your mattress (see Figure 1). This ensures the best, smoothest and firm fit of your blanket to the mattress. As the blanket settles in to the fit of the bed, any fold ridges should smooth out over time.
Follow the instructions below for the type of electric blanket you have purchased.
Fitted electric blankets

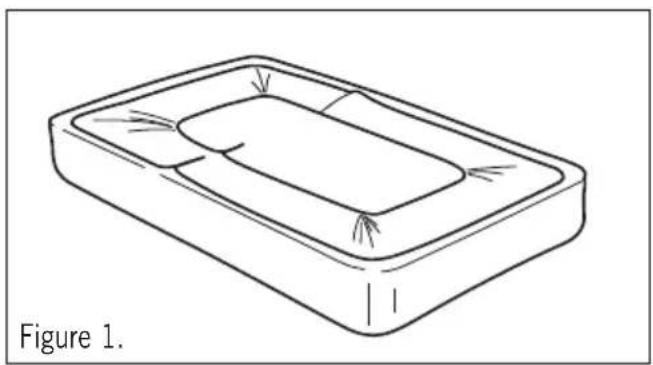

Place the electric blanket on your mattress with the control sockets on the underside of the blanket near the head of the bed (see Figure 1). Ensure the heating wires do not extend under the pillows.


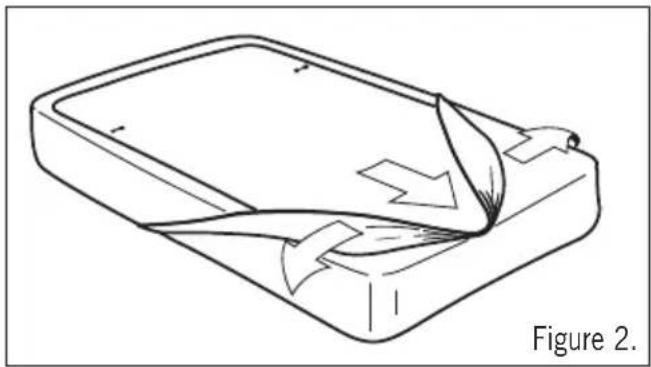

Pull the elastic cord inside the fitted skirt over the top corners of the mattress. To fit the foot of the bed, pull from the centre of the blanket to the foot of the bed, and fit one corner at a time while holding the centre (see Figure 2).
Connecting the controls

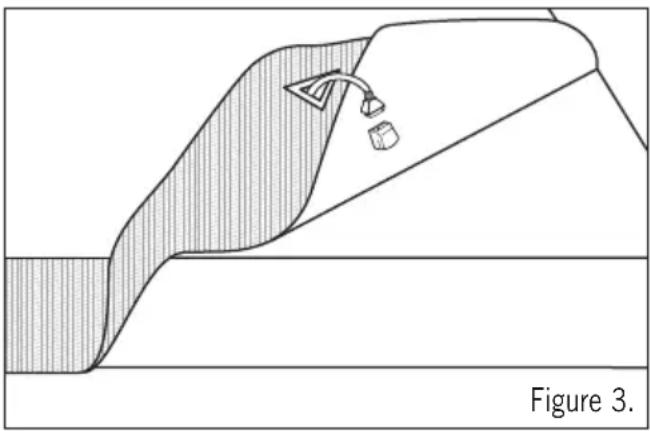

To connect the controls, lift one corner of the blanket near the head of the bed to expose the connector socket (see Figure 3). With the control set to the off position, pass the control cord through the triangular hole in the fitted skirt and insert the connector plug into the socket. Ensure it is firmly clicked into position. Repeat on the other side if required. Plug the controls into a 230-240V power outlet and turn the power on.
Note: Ensure that the controls are connected to the blanket before inserting the power cord into the power outlet. Connecting the power before attaching the controls to the blanket will replicate a power interruption and activate the safety system, preventing your blanket from heating.
Caution: The cord and controls must be kept outside the bed and away from external heating sources such as heaters and lamps. Do not cover the control.
BL51 Fitted
BL52 Waterproof
BL53 Antibacterial Series
Before first use
Before using your electric blanket for the first time, Sunbeam recommends that you switch the blanket to maximum heat (setting 9) for two to three hours to evaporate any moisture in the mattress. Repeat this process every few months to maintain a dry, healthy bed. Your electric blanket control has nine heat settings, which are recommended for use as follows:
1-3 Low, gentle heat for all night use
4-6 Medium heat
7-9 High heat, for preheating only
Use the high heat settings to preheat your bed only. Do not sleep with your blanket on these settings for more than 30 minutes.
Your timer control features a slide switch to select the desired operating mode, plus an easy to use dial to select the temperature setting (see Figure 4). The heat setting dial is illuminated for easy adjustment in the dark.

Figure 4.
75 minute setting
Use the 75 minute setting to preheat your bed before hopping in. Move the slide switch to the 75min position. The temperature dial will then illuminate enabling you to turn the dial to your desired heat setting. The timer indicator light (positioned next to the slide switch) will go out, indicating that the blanket is on and heating.
Your electric blanket will automatically switch off after 75 minutes. The timer indicator light will illuminate and the light in the temperature dial will go out, indicating that the timer period has elapsed and the blanket is no longer heating.
To restart the timer, move the slide switch to the OFF position and then return it to the desired timer position.
12 hour setting
Ideal for colder nights or those who like warmth all through the night, the 12 hour setting automatically switches your electric blanket off after 12 hours. Move the slide switch to the 12 hour position. The temperature dial will then illuminate enabling you to turn the dial to your desired heat setting. The timer indicator light (positioned next to the side switch) will go out, indicating that the blanket is on and heating. Sunbeam recommends that you use only settings 1, 2 or 3 for all night use.
Your electric blanket will automatically switch off after 12 hours. At the end of the timer period, the timer indicator light will illuminate and the light in the temperature dial will go out, indicating that the timer period has elapsed and the blanket is no longer heating.
To restart the timer, move the slide switch to the OFF position and then return it to the desired timer position.
Using your 6 heat digital timer control
BL54 Quilted
BL55 Pillowtop
BL56 Wool Fleece Series
Before first use
Before using your electric blanket for the first time, Sunbeam recommends that you switch the blanket to maximum heat (setting 6) for two to three hours to evaporate any moisture in the mattress. Repeat this process every few months to maintain a dry, healthy bed. Your electric blanket control has 6 heat settings, which are recommended for use as follows:
1-3 Low, gentle heat for all night use
4-5 Medium heat or all night use
6 Fast, preheat only
Use setting 6 to preheat your bed only. Do not sleep with your blanket on this settings for more than 30 minutes.

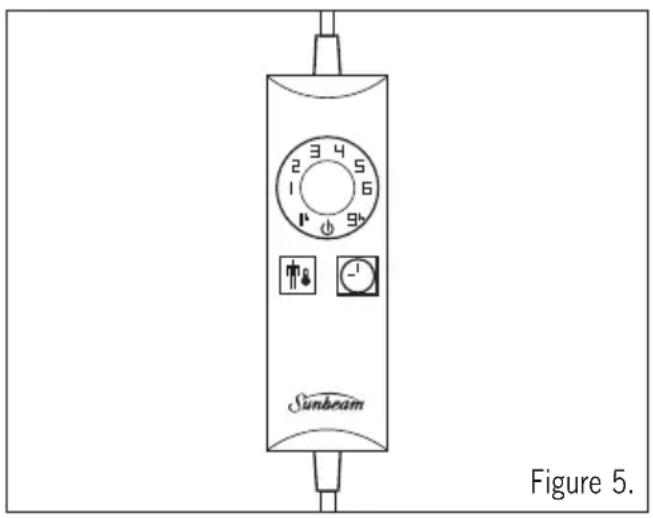

Ensure that the control is connected to the blanket properly. Move the slide switch on the rear of the control to the on position (1). The blue standby light (⏻) will illuminate to indicate that the blanket is connected to the power outlet but is not heating.
Press the timer button (☐) to turn the control on. Heat setting 1 will illuminate. Select the desired temperature using the temperature (☐) button. The selected temperature setting will illuminate.
Pressing the temperature button cycles through the various temperature settings, from 1 through to 6, then back to 1.
To change the timer period, press the timer button (☐). Pressing the timer button will cycle through the two timer options, 1 hour or 9 hours, and standby mode. If the timer setting is changed during the timer period, the timer will restart.
At the end of the selected timer period, the blanket will switch off and the blue standby light will illuminate. To switch the blanket on again, press the timer button to select a timer period. The control will default to the previous temperature setting. You can adjust the temperature at any time during the timer period.
Troubleshooting
| The electric blanket is not heating | Check the control is plugged into the electric blanket, and ensure it is clicked securely into position. If the control connector is not properly fitted to the blanket, switch the power off at the power outlet, securely attach the control connector plug to the blanket and then switch the power back on. The timer indicator light should not flash once the power is reconnected.If the timer light flashes once the power is reconnected, the control connector plug is not properly fitted. |
| Check the power cord is connected to the power outlet and that the power is switched on. | |
| If using the 9 heat control, check the control slide switch is in either the 75 minute or 12 hour position. | |
| If there is an On/ Off switch on the back of the control, ensure it is in the 'On' position. | |
| If only one side of the blanket is working, it may simply be because the control rather than the blanket is not working. To help resolve your issue quickly, before calling Sunbeam Customer Service, please check the control. Simply swap the "good controller" to the "faulty" side of the blanket. Wait 20 minutes to see if the blanket is heating. If it does heat, the first controller is faulty.If the blanket still does not heat, the blanket may be faulty. Then call Sunbeam Customer Service line, and they will be able to assist. | |
| Remember for double, queen, king and super king blankets there are 2 controls.Ensure both are plugged into the blanket, and both cords are plugged into a power outlet. | |
| If you are using a powerboard, use one with a safety cut out. Check to see if the powerboard is working, by plugging your blanket into a different powerpoint. | |
| The cord or any wiring is damaged | Do not attempt to repair it yourself. Contact the Sunbeam Customer service line on 1300 881 861 in Australia or 0800 786 232 in New Zealand. |
| 6 Heat Digital Timer Control (Quilted, Pillowtop, Wool Fleece Series) | |
| The standby light is flashing | If the control detects a fault within the blanket, the standby light (💡) will flash. If it flashes twice, followed by a long pause, the control may not be connected to the blanket correctly. Turn the control off at the main power switch (located on the rear of the control). Check that the control is properly connected to the blanket and the connector is not damaged. Switch the control on again.If the standby light continues to flash, please contact Sunbeam Customer Service (see the back page for contact details).If the standby light flashes three times, followed by a long pause, the blanket is too hot or may be damaged. Turn the control off at the main power switch (located on the rear of the control). Switch the control on again. If the standby light continues to flash, please contact Sunbeam Customer Service (see the back page for contact details). |
Care and cleaning
All Sleep Perfect electric blankets feature waterproof heating elements, making them fully immersible and safe to wash by hand or machine.
Before cleaning your electric blanket, ensure that the controls are unplugged from the blanket.
Spot cleaning
Sponge the affected area using a neutral wool detergent or mild soap flakes mixed with lukewarm water. Sponge twice with clean water to remove detergent. Remove excess water by compressing the wet area between two towels.
Hand washing
Wash the blanket in lukewarm water with a neutral wool detergent or mild soap flakes. Soak for five minutes, then gently squeeze the soapy water through the fabric. Rinse thoroughly in clean, lukewarm water then drain excess water from the blanket. Do not wring.
Machine washing
Take your electric blanket to a commercial laundry or wash in a domestic washing machine (size permitting). Wash on WOOL or DELICATES cycle with a neutral wool detergent or mild soap flakes, below 40°C. Do not use high speed or extra spin cycles.
Line drying
Drape the blanket across several lines of your clothesline, and try to avoid direct heat. Do not use pegs on the wired areas. Do not dry with a hairdryer or heater. Ensure that the blanket and control sockets are completely dry before using again.
Machine drying
Tumble dry your blanket on LOW setting for 15 minutes MAXIMUM. Smooth the blanket by gently pulling any creases out of the fabric. Line dry to ensure the blanket and control sockets are completely dry before use. Do not dry with a hairdryer or heater.
Storing your blanket
Your blanket can remain on the bed all year round as a comfortable underblanket. Simply remove the controls and store until winter. If you wish to remove the blanket from your bed when not in use, roll or fold it loosely and store in a blanket bag or the bag it was supplied in. Avoid pressing sharp creases into the blanket.
Do not place heavy items on top of your electric blanket when storing.
When storing the electric blanket, allow it to cool down before folding.
3 Year Replacement Guarantee
This Sunbeam product is covered by a 3 year replacement or repair warranty, which is in addition to your rights under the Australian Consumer Law (if your product was purchased in Australia) or New Zealand Consumer Guarantees Act (if your product was purchased in New Zealand).
Should you experience any difficulties with your product during the warranty period, please contact our customer service line for advice on 1300 881 861 in Australia, or 0800 786 232 in New Zealand.
Australia
www.sunbeam.com.au
1300 881 861
Units 5 & 6,
13 Lord Street,
Botany NSW 2019
Australia
New Zealand
www.sunbeam.co.nz
0800 786 232
Level 6, Building 5,
Central Park,
660-670 Great South Road,
Greenlane, Auckland
New Zealand
Upon receipt of your claim, Sunbeam will seek to resolve your difficulties or, if the product is defective, advise you on how to obtain a replacement or refund.
To assist us in managing warranty claims, we recommend you register your product as soon as practicable after purchase by creating a MySunbeam account on our website and uploading a copy of your original receipt.
In order to make a claim under our warranty, you must have the original proof of purchase documentation for the product and present it when requested (if not already uploaded to our website).
Should your product develop any defect within 3 years of purchase because of faulty materials or workmanship, we will replace or repair it, at our discretion, free of charge. A product presented for repair may be replaced by a refurbished product of the same type rather than being repaired. Refurbished parts may be used to repair the product.
Our replacement or repair warranty only applies where a defect arises as a result of faulty material or workmanship during the warranty period. Your warranty does not cover misuse or negligent handling (including damage caused by failing to use the product in accordance with this instruction booklet), accidental damage, or normal wear and tear.
Your warranty does not:
• cover freight or any other costs incurred in making a claim, consumable items, accessories that by their nature and limited lifespan require periodic renewal (such as filters and seals) or any consequential loss or damage; or
• cover damage caused by:
- power surges, power dips, voltage supply problems, or use of the product on incorrect voltage;
- servicing or modification of the product other than by Sunbeam or an authorised Sunbeam service centre;
- use of the product with other accessories, attachments, product supplies, parts or devices that do not conform to Sunbeam specifications; or
- exposure of the product to abnormally corrosive conditions; or
- extend beyond 3 months if the product is used in commercial, industrial, educational or rental applications.
The benefits given to you by our warranty are in addition to other rights and remedies under law in relation to the product.
In Australia our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Our goods also come with guarantees that cannot be excluded under the New Zealand Consumer Guarantees Act.
If your warranty claim is not accepted, we will inform you and if requested to do so by you, repair the product provided you pay the usual charges for such repair. You will also be responsible for all freight and other costs.
Should your product require repair or service after the warranty period, contact your nearest Sunbeam service centre. For a complete list of Sunbeam's service centres, visit our website or call our customer service line for advice on 1300 881 861 in Australia, or 0800 786 232 in New Zealand.
Need help with your appliance?
Contact our customer service team or visit our website for information and tips on getting the most from your appliance.
Australia | visit www.sunbeam.com.au
phone 1300 881 861
mail Units 5 & 6, 13 Lord Street,
Botany NSW 2019 Australia.
New Zealand | visit www.sunbeam.co.nz
phone 0800 786 232
mail Level 6, Building 5,
Central Park,
660-670 Great South Road,
Greenlane, Auckland.
Sunbeam Corporation Limited | ABN 45 000 006 771
Sunbeam Corporation is a division of GUD Holdings Limited.
SleepPerfect is a registered trade mark of Sunbeam Corporation.
Sunbeam is a registered trade mark.
Made in China to Sunbeam's specification.
Due to minor changes in design or otherwise,
the product you buy may differ slightly from the one shown here.
Approved by the appropriate electrical regulatory authorities.
©Copyright Sunbeam 2016.
