Product Type	Marine Coaxial Speaker
Model	SG-CL65SP
Brand	Fusion
Speaker Size	6.5 inches (165 mm)
Impedance	4 ohms
Power Handling (RMS)	50 Watts
Power Handling (Peak)	150 Watts
Frequency Response	50 Hz - 20 kHz
Sensitivity	89 dB (1W/1m)
Mounting Depth	2.4 inches (61 mm)
Cutout Diameter	5.1 inches (130 mm)
Water Resistance	IP65 rated (splash proof)
UV Resistance	Yes (UV stabilized)
Material	Polypropylene cone with rubber surround
Grille	Stainless steel (removable)
Installation	Flush mount or surface mount
Weight	1.5 lbs (0.68 kg) per speaker
Compliance	Marine grade (salt fog tested)
Warranty	1 year limited

Frequently Asked Questions - SG-CL65SP Fusion

What is the size of the Fusion SG-CL65SP speaker?

The Fusion SG-CL65SP is a 6.5-inch marine coaxial speaker, suitable for boats and outdoor use.

Is the SG-CL65SP speaker waterproof?

Yes, it has an IP65 rating, meaning it is protected against water jets and dust, making it ideal for marine environments.

What is the power handling of this speaker?

It handles 50 Watts RMS and 150 Watts peak, ensuring clear sound at various volume levels.

What is the impedance of the Fusion SG-CL65SP?

The impedance is 4 ohms, which is standard for most car and marine audio systems.

Can I install this speaker in my car?

While designed for marine use, it can be installed in a car as long as the mounting depth and cutout fit. However, it excels in humid conditions.

What is the mounting depth required?

The required mounting depth is 2.4 inches (61 mm), so ensure your installation location has sufficient clearance.

Does the speaker come with a grille?

Yes, it includes a stainless steel grille that is removable for cleaning or painting.

What materials are used in the SG-CL65SP?

The cone is made of polypropylene with a rubber surround, offering durability and resistance to UV and saltwater.

How do I clean the speaker?

Use a soft damp cloth to wipe the grille and cone. Avoid abrasive cleaners to prevent damage.

What is the frequency response of this speaker?

It covers 50 Hz to 20 kHz, providing a good balance of bass and treble for most music genres.

USER MANUAL SG-CL65SP Fusion

Signature Series Speakers Installation Instructions.... 2

Garmin , the Garmin logo, FUSION , the Fusion logo, and True-Marine ^™ are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. These trademarks may not be used without the express permission of Garmin.

Signature Series Speakers Installation Instructions

Important Safety Information

WARNING

Failure to follow these warnings and cautions could result in personal injury, damage to the vessel, or poor product performance.

See the Important Safety and Product Information guide in the product box for product warnings and other important information.

This device must be installed according to these instructions.

Disconnect the vessel's power supply before beginning to install this product.

CAUTION

Audio systems can produce sound pressure levels exceeding 135 dB. Continuous exposure to sound pressure levels over 100 dB may cause permanent hearing loss. The volume is typically too loud if you cannot hear people speaking around you. Limit the amount of time you listen at high volume. If you experience ringing in your ears or muffled speech, stop listening and have your hearing checked.

Always wear safety goggles, ear protection, and a dust mask when drilling, cutting, or sanding.

NOTICE

When drilling or cutting, always check what is on the opposite side of the surface.

It is strongly recommended that you have your audio system installed by a professional installer to ensure optimum performance.

You must read all installation instructions before beginning the installation. If you experience difficulty during the installation, go to www.fusionentertainment.com for product support.

What's In the Box

• 2 speakers
• 2 tinned, pre-terminated speaker wires (6 m)
• 12 Phillips stainless steel, 4.2 mm x 38 mm (8 gauge x 1.5 in.) mounting screws
- Mounting templates
• 2 foam mounting gaskets
• 2 grilles (Classic models only)
• 2 tinned LED connection cables (6 m) (Sports models only)
• Hex key (Sports models only)

Tools Needed

Electric drill
• Drill bit (size varies based on surface material)
• Phillips screwdriver
- Wire strippers
- Crimping tool
- Electrical tape
• Appropriate saw or utility knife to cut surface material
• Marine sealant (optional)

NOTE: For customized installations, additional tools and materials may be needed.

Mounting Considerations

Selecting the correct mounting location is critical to optimize the performance of each speaker. FUSION® speakers are designed to perform in the widest possible range of mounting locations, but the more you plan the installation, the better the speakers' sound will be.

- For the best performance, the speakers should not be mounted low in the boat. Sound travels in the direction in which the speakers are facing. When the speakers are mounted low, the sound quality and volume are not ideal.

• If you intend to mount the speakers outside the boat, they must be mounted in a location well above the waterline, where they are not submerged. The speakers must be mounted in a location where they will not be damaged by docks, pilings, or other pieces of equipment. When mounted correctly, these speakers are rated IP65 for protection in the harsh marine environment from the front of the speaker. Water exposure and damage to the rear of the speaker will void the warranty. This includes when mounted in a sealed enclosure, especially if they are exposed to wash down. A port or vent may allow water to collect in the enclosure and damage the speaker.
• The speaker mounting locations should enable you to hear sound from both speakers, and from different directions, at the same time to achieve a sound stage effect. To achieve this effect, the speakers usually should not be mounted side-by-side.
• For better bass performance, each speaker should be mounted in an area that provides just enough room behind the speaker. Too small an area restricts bass, and too large an area compromises bass performance. Placing a speaker close to an open area (where sound from the back of the speaker has a very short path to compete with sound from the front of the speaker) produces the least bass.
• When possible, the area behind each speaker should be enclosed.
• The speaker mounting locations must provide sufficient clearance for the mounting depth of the speakers as specified in the product specifications.
• When a speaker is not exposed to the outside environment, a better bass performance can be achieved using an enclosure that has a ported design. See the optimum enclosure design recommendations. Those recommendations specify volume only, and for the ported option, an optimum port size and length are also provided.
  • You should select a flat mounting surface for the best seal.
• You should protect the speaker wires from sharp objects and always use rubber grommets when wiring through panels.
• The mounting location must avoid potential obstacles, such as fuel and hydraulic lines and wiring.
• You should protect all terminals and connections from grounding and from each other. Failure to do so could result in permanent damage to the audio system and void the product warranty.
• To avoid interference with a magnetic compass, the speakers should not be installed closer to a compass than the compass-safe distance value listed in the product specifications.
• The audio system must be turned off before making any connections to the source unit, amplifier, or speakers. Failure to do so could result in permanent damage to the audio system.

Mounting the Speakers

Before mounting the speakers, you must choose a location where there is enough clearance behind the mounting surface. Refer to the specifications for clearance information.

Before mounting the speakers, you must choose a location following the guidelines above.

1 Route the wires from the source to the speaker location, away from sources of electrical interference.
2 Trim the template and make sure it fits in the selected location.
3 Orient the template with the FUSION logo at the bottom of the template.
4 Secure the template to the selected location.
5 Using a drill bit appropriate for the mounting surface, drill a hole inside the dashed line on the template to prepare the mounting surface for cutting.
6 Using a rotary tool or jigsaw, cut the mounting surface along the inside of the line on the template.

7 Place the speaker in the cutout to test the fit.

8 If necessary, use a file and sandpaper to refine the size of the cutout.

9 After the speaker fits correctly in the cutout, ensure the mounting holes on the speaker line up with the pilot holes on the template.

10 If the mounting holes on the speaker do not line up, mark the new hole locations.

11 Using an appropriately sized drill bit for the mounting surface and screw type, drill the holes.

12 Remove the template from the mounting surface.

13 Place the included gasket ① on the back of the speaker, aligning the holes on the gasket with the holes on the speaker.

14 Connect the speaker wires ② while observing polarity.

15 Push the wire into a retaining clip to relieve the tension on the wire.

16 If necessary, connect the LED wires (see the following section).

17 Place the speaker in the cutout.

18 Secure the speaker to the mounting surface using the included screws ③. NOTE: Do not over tighten the screws, especially if the mounting surface is not flat.

19 If necessary, attach the grille to the speaker front.

Sports Model LED Wiring

Connecting the LED Wires to the Sports Model Speakers

NOTE: This feature is available only on the Sports model speakers.

You can control the color of the LEDs by the polarity of the LED wires.

1 Using the hex key, loosen the screws on the wiring terminals on the back of the speaker.

2 Connect the black and red wires to the terminal according to the preferred LED color.

Blue LED	Black to negative	(-)Red to positive (+)
White LED	Black to positive	(+)Red to negative (-)

3 Using the hex key, tighten the screws on the wiring terminals.

4 Push the wire into a retaining clip to relieve the tension on the wire.

Connecting the Sports Model Speakers LED Wires to Power

NOTE: This feature is available only on the Sports model speakers.

All 12 Vdc wiring to the LEDs must be fused at the power-source end of your cable using a 3 A fuse. The red power (+) wire should be connected to a

12 Vdc source through an isolator switch or circuit breaker to turn the speaker LEDs on and off. You can use the same isolator or circuit breaker controlling the supply to your stereo, which allows you to turn the LEDs and the stereo on and off at the same time.

If it is necessary to extend the red and black wires included with the speakers, you should use 20 AWG (0.5 mm ⁴ ) or thicker wire.

1 Route the red power (+) and black ground (-) wires to the battery and speaker.

2 Connect the black wire to the negative (-) battery terminal.

3 Connect the red wire to the positive (+) terminal through a 3 A fuse and isolator switch or circuit breaker.

Attaching the Grille to the Classic Model Speakers

NOTE: This feature is available only on the Classic model speakers.

1 With the speakers mounted, hold the grille with the FUSION logo at the bottom, or at the 6 o'clock position.

2 Turn the grille counter-clockwise about 10° , so the FUSION logo is at the 5 o'clock position.

3 Place the grille on the rim of the speaker.

4 Twist the grille clockwise to secure it.

Speaker Information

True-Marine™ Products

True-Marine products are subjected to rigorous environmental testing under harsh marine conditions to surpass industry guidelines for marine products.

Any product that bears the True-Marine stamp of assurance has been designed for simplicity of use and combines advanced marine technologies to deliver an industry leading entertainment experience. All True-Marine products are supported by the FUSION 3-year worldwide limited consumer warranty.

Optional LED Voltage Regulator

You can use an LED voltage regulator (optional accessory SG-VREGLED) to regulate the battery voltage supply to the LED lights. You can use the voltage regulator if you notice the levels of brightness changing when you are running your engine, charging, or using battery power only. The voltage regulator can power the LEDs on up to ten Signature Series speakers or subwoofers; for example four pairs of speakers and two subwoofers.

Registering Your Signature Series

Help us better support you by completing our online registration today.

• Go to www.fusionentertainment.com.

- Keep the original sales receipt, or a photocopy, in a safe place.

Dimension Drawings

Signature Series Side View

Dimension	6.5" Speakers	7.7" Speakers	8.8" Speakers
1	76 mm (3.0 in.)	82.5 mm (3.25 in.)	102.5 mm (4.05 in.)
2	133 mm (5.25 in.)	153 mm (6.0 in.)	184.9 mm (7.28 in.)

A Sports model speaker is shown, but the dimensions are the same for the Classic model speaker.

NOTE: You must allow at least 3 mm (0.15 in.) of clearance beyond the depth of the speaker.

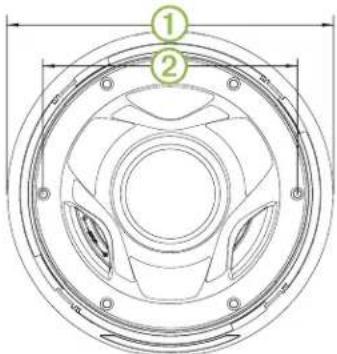

Sports Model Front View

Dimension	6.5" Speakers	7.7" Speakers	8.8" Speakers
1	176 mm (6.93 in.)	196 mm (7.69 in.)	224 mm (8.8 in.)
2	156 mm (6.13 in.)	176 mm (6.94 in.)	202 mm (7.95 in.)

Classic Model Back View

Dimension 6.5" Speakers 7.7" Speakers 8.8" Speakers
1	200 mm (7.88 in.)	220 mm (8.69 in.)	247 mm (9.72 in.)
2	156 mm (6.13 in.)	176 mm (6.94 in.)	202 mm (7.95 in.)

Cleaning the Speakers

NOTE: When mounted correctly, these speakers are rated IP65 for protection in the harsh marine environment from the front of the speaker. They are not designed to withstand high pressure water spray, which may occur when you wash down your vessel. Failure to carefully spray-clean the vessel may damage the product and void the warranty.

NOTICE

Do not use harsh or solvent-based cleaners on the speakers. Using such cleaners may damage the product and void the warranty.

1 Clean all salt water and salt residue from the speaker grille with a damp cloth soaked in fresh water.
2 Use a mild detergent to remove a heavy buildup of salt or stains.

Troubleshooting

Before you contact your FUSION dealer or service center, you should perform a few simple troubleshooting steps to help diagnose the problem.

If the FUSION speaker has been installed by a professional installation company, you should contact the company so the technicians can assess the problem and advise you about possible solutions.

There is no sound coming from the speakers

- Verify that all connections from the source device and/or the amplifier are connected correctly to the speaker terminals.

The system lacks bass or high frequencies

- Verify that the correct wire polarity is observed between the source and speakers.

The wires should be connected positive to positive and negative to negative.

- Verify that the speakers are attached firmly to the mounting surface.

The audio is distorted

- Verify that the source volume is not too loud for the speaker, and reduce the volume if necessary.

- Verify that the panels surrounding the speaker on the vessel are not rattling.

- Verify that the source device and/or the amplifier are connected to the speaker terminals correctly.

- If the speaker is connected to an amplifier, verify that the input level of the amplifier is matched to the output level of the stereo. For more information, see the manual for the amplifier.

The LED lights will not turn on

- Verify that all wiring connections are correct and tight.

The LEDs pulse with the bass notes of the music

• Install a FUSION LED voltage regulator (SG-VREGLED).

Specifications

Specification 6.5" Speakers 7.7" Speakers 8.8" Speakers
Max. power (Watts) 230 W	280 W	330 W
RMS power (Watts) 75 W	100 W	130 W
Efficiency (1 W/1 m) 90 dB	91 dB	91 dB
Frequency response(+ 3 dB)	70 Hz to 22 kHz		60 Hz to 22 kHz	50 Hz to 20 kHz
Min. mounting depth(clearance)	79 mm (3.11 in.)		86 mm (3.39 in.)	105.5 mm (4.15 in.)
Mounting diameter(clearance)	136 mm (5.35 in.)		156 mm (6.12 in.)	188 mm (7.4 in.)
Impedance	4 ohms
LED Supply Voltage(Sports Model Speakers only)	From 10.8 to 16 Vdc
LED Load Current at14.4 Vdc (Sports ModelSpeakers only)	150 mA
Operating temperature range	From 0 to 50°C (from 32 to 122°F)
Storage temperature range	From -20 to 70°C (from -4 to 158°F)
Tweeter type	Silk dome

Compass-Safe Distances

All speakers contain magnets which may cause interference with instruments on your boat. The size of the magnet used in the speaker affects how much interference the speaker may cause.

Interference can cause deviations and variations in the readings of sensitive navigational equipment, such as magnetic compasses. These deviations can cause inaccuracies or offsets in the readings, but will not harm the equipment. To alleviate the deviations, adjust the compass for the deviation following the manufacturer's instructions or move the speaker away from the navigational equipment. After moving a source of interference, you may need to recalibrate the compass.

If you are navigating solely by a magnetic compass, use extreme caution to place the speaker far enough away from the compass to avoid causing deviations in the readings.

To avoid deviations to navigational equipment, position the speakers so they are separated from the navigational equipment by at least the distance listed in the table below.

Direction from Speaker	6.5" Speakers	7.7" Speakers	8.8" Speakers
1	181 cm (5.94 ft.)	193 cm (6.33 ft.)	171 cm (5.61 ft.)
2	198 cm (6.49 ft.)	224 cm (7.35 ft.)	171 cm (5.61 ft.)
3	310 cm (10.17 ft.)	358 cm (11.75 ft.)	412 cm (13.52 ft.)
4	153 cm (5.02 ft.)	175 cm (5.74 ft.)	173 cm (5.68 ft.)
5	160 cm (5.24 ft.)	198 cm (6.50 ft.)	178 cm (5.84 ft.)
6	310 cm (10.17 ft.)	333 cm (10.93 ft.)	318 cm (10.43 ft.)

Amplifier Power Rating Recommendations

6.5" Speakers	From 30 to 90 W RMS, playing music
7.7" Speakers	From 25 to 120 W RMS, playing music
8.8" Speakers	From 25 to 140 W RMS, playing music

Optimum Enclosure Recommendations

Specification 6.5" Speakers	7.7" Speakers	8.8" Speakers
Sealed enclosure volume* 18 L	0.64 ft.3)	20 L (0.71 ft.3)	22 L (0.78 ft.3)
Ported (Vented) enclosure volume**	25 L (0.88 ft.3)	30 L (1.06 ft.3)	35 L (1.23 ft.3)
Port diameter 76 mm (3 in.)	76 mm (3 in.) 76 mm (3 in.)
Port length 162 mm (6.4 in.)	160 mm (6.3 in.)	170 mm (6.7 in.)

* Fully filled with absorption material
** Lined with absorption material

FUSION®

Important Safety and Product Information....2

Important Safety and Product Information

WARNING

Failure to heed the following warnings could result in an accident resulting in death or serious injury.

Marine Operation Warnings

• You are responsible for the safe and prudent operation of your vessel. This device does not relieve you from the
  responsibility of safely operating your vessel. Avoid navigational hazards and never leave the helm unattended.
• Always be prepared to promptly regain control of the vessel. Use caution near hazards in the water, such as docks, pilings and other vessels.

Hearing Damage Warning

Listening to the stereo at high volume can cause damage to your hearing.

Product Environmental Programs

Information about the Garmin ^® product recycling program and WEEE, RoHS, REACH, and other compliance programs can be found at www.garmin.com/aboutGarmin/environment.

Declaration of Conformity

Hereby, Garmin declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. To view the full Declaration of Conformity, go to www.fusionentertainment.com.

Software License Agreement

BY USING THE DEVICE, YOU AGREE TO BE BOUND BY THE TERMS AND CONDITIONS OF THE FOLLOWING SOFTWARE LICENSE AGREEMENT. PLEASE READ THIS AGREEMENT CAREFULLY.

Garmin Ltd. and its subsidiaries ("Garmin") grant you a limited license to use the software embedded in this device (the "Software") in binary executable form in the normal operation of the product. Title, ownership rights, and intellectual property rights in and to the Software remain in Garmin and/or its third-party providers.

You acknowledge that the Software is the property of Garmin and/or its third-party providers and is protected under the United States of America copyright laws and international copyright treaties. You further acknowledge that the structure, organization, and code of the Software, for which source code is not provided, are valuable trade secrets of Garmin and/or its third-party providers and that the Software in source code form remains a valuable trade secret of Garmin and/or its third-party providers. You agree not to decompile, disassemble, modify, reverse assemble, reverse engineer, or reduce to human readable form the Software or any part thereof or create any derivative works based on the Software. You agree not to export or re-export the Software to any country in violation of the export control laws of the United States of America or the export control laws of any other applicable country.

Limited 3-Year Marine Consumer Warranty

Garmin New Zealand Limited, trading as FUSION® Entertainment ('FUSION'), warrants that this FUSION Marine product is free from defects in material and workmanship, according to the following terms and conditions:

- The limited warranty for the FUSION product purchased extends to 36 months beginning on the date of purchase of the product.

• The limited warranty extends only to consumers who purchase the product in one of the countries (or areas) set forth on www.fusionentertainment.com. The limited warranty is only valid in FUSION's intended country (or area) of sale of the product.
• During the limited warranty period, FUSION or its authorised service network will repair or replace (at FUSION's discretion), any defective product or parts thereof with new and return the product to the consumer in working condition. No charge will be made to the consumer for either parts or labour in repairing or replacing the product. All replaced parts and cosmetic parts should be free of defects at the time of shipment and, therefore shall not be covered under these limited warranty terms.
• Repaired product will be warranted for the balance of the original warranty period or for ninety (90) days from the date of repair, whichever is longer.
• All warranty claims must be accompanied with a copy of this warranty card, and a copy of proof of purchase.
  The consumer shall have no coverage or benefits under this limited warranty if any of the following conditions are applicable
• The product has been subject to: abnormal use, abnormal conditions, improper storage, unauthorised modifications, unauthorised connections, unauthorised repair including but not limited to use of unauthorised spare parts in repairs, misuse, neglect, abuse, accident, alteration, improper installation, acts of God, spill of foods or liquids, maladjustment of customer controls or other acts which are beyond the reasonable control of FUSION, including deficiencies in consumable

parts such as fuses, and breakage or damage to antennae unless caused directly by defects in materials or workmanship, and normal wear and tear of the product.

• FUSION was not notified by the consumer of the alleged defect or malfunction of the product during the applicable limited warranty period.

• The product serial number or the accessory date code has been removed, defaced or altered.

- The product was used with or connected to an accessory not supplied by FUSION or fit for use with FUSION product, or used in a manner other than its intended use.

If a problem develops during the limited warranty period, the consumer should take the following step-by-step procedure:

1 The consumer shall return the product to any authorised FUSION dealer in authorised sales countries for repair or replacement processing. FUSION assumes no freight or shipping responsibility for returning goods to an authorised FUSION dealer, or return freight from an authorised dealer to the consumer submitting the warranty claim.

2 The consumer shall be charged for any parts or labour charges not covered by this limited warranty. The consumer shall be responsible for expenses related to removal and reinstallation of the product.

3 If the product is returned to FUSION after the expiration of the warranty period, FUSION's normal service policies shall apply and the consumer will be charged accordingly.

The benefits conferred by this warranty apply to the extent that they are not superseded by any other rights and remedies available under any applicable legislation that cannot be excluded. In jurisdictions where implied or legal warranties may be excluded, any implied or legal warranty is hereby excluded and the foregoing warranty is the purchaser's sole and exclusive remedy and is in lieu of all other warranties, express or implied.

• Some states in America do not allow the exclusion or limitation of consequential damages, so the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights which may vary from state to state.

- FUSION neither assumes nor authorises any authorised service centre or any person or entity to assume for it any other obligation or liability beyond that which is expressly provided for in this warranty.

- All warranty information, product features and specifications are subject to change without notice.

Limited 3-Year Marine Consumer Warranty for Australian Consumers Garmin Australasia, 30 Clay Place, Eastern Creek, NSW 2766, Australia.

EMAIL: [e-mail] PHONE: [phone]

THE FUSION PROMISE OF QUALITY LIMITED 3-YEAR CONSUMER WARRANTY

This warranty is given in addition to other rights and remedies available to the consumer under Australian Consumer Law. In addition to the FUSION Warranty, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any others reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Garmin New Zealand Limited, trading as FUSION Entertainment ('FUSION'), warrants this FUSION Product including, Speaker, Subwoofer, Amplifier, Head Unit, or genuine FUSION Accessory 'product' is free from defects in materials and workmanship, in accordance with the following terms and conditions:

• The limited warranty for the FUSION product purchased is only available for (36) months after the date of purchase.

- The limited warranty extends only to the original consumer of the product and may not be assigned or transferred to any other person or consumer without FUSION's prior written consent being provided.

- During the limited warranty period, FUSION or its authorised service network will repair or replace any defective or faulty product or parts at its own cost.

- Repaired or replaced product will be warranted for the balance of the original warranty period or for ninety (90) days after the date of repair, whichever is longer.

- All warranty claims must be notified to FUSION or its authorised Dealer in writing during the warranty period accompanied with a copy of this warranty card, proof of purchase date and the product with an intact and unaltered serial number or accessory date code.

This warranty will not apply if:

The consumer causes the Product to be of unacceptable quality or fails to take steps to prevent the product from becoming of unacceptable quality and/or it is damaged by abnormal use. Examples of goods becoming of unacceptable quality or of abnormal use by the consumer include:
• Storage of product under improper conditions.
• Exposure to excessive moisture or dampness.
- Exposure to excessive temperature extremes or other adverse environmental conditions.

• Unauthorised modifications of product, connections or otherwise unauthorised repairs including, but not limited, to the use of unauthorised parts in the repair of products.
• Improper use of or installation of, or interference with, product adjustments or controls and or including antenna breakage or damage due to misuse.
  • Damage caused by consumables or by electricity supply.
• Acts of god (force majeure), exposure of product to food spills, or any other type of fluid ingress.
  • Using the product in a way for which was not intended to be used or connecting it to an accessory not supplied by, specified by, or authorised by FUSION.
  • Any other abnormal use of or conduct causing product to become of unacceptable quality.
  Other exclusions:
• This warranty extends to the repair or replacement of FUSION product only and the consumer is responsible for any expenses relating to the removal or installation of the product or related services including the cost of delivering the product to FUSION or its authorised dealer.
• Repair work conducted by FUSION after this warranty has expired or if this warranty for any other reason this Fusion warranty does not apply is subject to FUSION's normal service policies and FUSION charges for labour and material may apply.
• This is a manufacturer's warranty provided to consumers of FUSION products. Variations to this warranty may only be made by FUSION and will be notified to the customer in writing or issued on the FUSION website. Fusion Dealers, agents and authorised dealers are not authorised to make changes or vary this FUSION warranty.
• All warranty information, product features and specifications are subject to change without notice.
• FUSION is not responsible for replacing or the cost of replacing any consumer data lost occurring either due to equipment failure or during the repair and replacement process.
