Product Type	Glue Gun
Brand	Ozito
Model	GGM-010
Dimensions (approx.)	200 x 50 x 120 mm
Weight (approx.)	0.3 kg
Power Source	Corded electric, 220-240V AC
Power Consumption	10-20W (typical)
Heating Time	Approx. 2-3 minutes
Glue Stick Diameter	7-8 mm (standard)
Max Temperature	Approx. 190°C (374°F)
Drip Tray	Built-in stand with drip tray
Trigger Mechanism	Manual feed trigger
Nozzle Type	Standard tapered nozzle
Main Functions	Bonding materials like wood, plastic, fabric, ceramics
Usage	DIY, crafts, home repairs
Maintenance	Wipe nozzle after use; store in dry place
Safety Features	Heat-resistant nozzle cover; insulated handle
Spare Parts Available	Nozzles, heating element, trigger assembly
Repairability	User-replaceable parts; consult manual
Warranty	Standard 1-year (check local)

Frequently Asked Questions - GGM-010 Ozito

How long does it take to heat up?

The Ozito GGM-010 glue gun typically heats up in about 2-3 minutes. The indicator light will show when ready.

What size glue sticks does it use?

This model uses standard 7-8 mm diameter glue sticks. Avoid using larger sticks as they may not feed properly.

Can I use it on fabric?

Yes, the glue gun is suitable for fabric and other porous materials. Use low-temperature glue sticks if available to avoid damage.

How do I clean the nozzle?

Allow the gun to cool slightly, then wipe the nozzle with a dry cloth. For hardened glue, heat the gun and carefully scrape off with a non-metal tool.

Is it safe to leave unattended?

Never leave a hot glue gun unattended. Always place it on the built-in stand when not in use and unplug after use.

What materials can I bond?

It bonds wood, plastic, fabric, ceramics, glass, and many other materials. For best results, ensure surfaces are clean and dry.

Why is the glue not coming out?

Check if the glue stick is inserted properly and the gun is fully heated. If clogged, clean the nozzle or replace the glue stick.

Can I use it for electronic repairs?

Yes, hot glue is commonly used for insulating and securing components. Allow the glue to cool completely before handling.

How do I replace the nozzle?

Unplug and let cool. Unscrew the old nozzle (counterclockwise) and screw on a new one. Do not overtighten.

What voltage does it require?

The GGM-010 is designed for 220-240V AC mains supply. Using a different voltage may damage the gun.

USER MANUAL GGM-010 Ozito

Glue Stick Length: 100mm

Dual Heat Temperatures:

170° - 190°C

Weight:

0.45kg

ozito.com.au

1 Glues Sticks x 2
2 Protective Nozzle Cover
3 Metal Stand
4 Flow Control Trigger
5 Glue Display
6 Glue Stick Entry
7 Power Cord

GGM-010

ELECTRICAL SAFETY

NG! When using mains-powered tools, basic safety precautions, including the following, should always be followed to reduce risk of fire, electric shock, personal injury and material damage.

Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before operating the tool.

Save these instructions and other documents supplied with this tool for future reference.

The manufacturer cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety information.

Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.

Using an Extension Lead

Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.

When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for the power input of the tool or which is damaged or defective may result in a risk of fire and electric shock.

To reduce the risk of electric shock, we recommend the use of a residual current device (rated 30mA or less).

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Young children should be supervised to ensure that they do not play with the appliance.

POWER TOOL WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

1. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

1. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

1. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

1. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Glue Gun Safety Tips

• Do not touch hot glue.
• Do not remove the glue from skin in the event of accidental contact. Immediately run cold water over and seek medical advice.
• Do not leave glue gun unattended while in use or directly after use.
• Do not touch the nozzle end of the gun while in use or directly after use.
• Do not inhale vapours generated while in use.
• Do not attempt to feed any other materials through the glue gun, eg. crayons, sealants, candles etc.

1. LOADING A GLUE STICK

WARNING! ENSURE THE TOOL IS SWITCHED OFF AND ALLOWED TO COOL DOWN BEFORE PERFORMING ANY OF THE FOLLOWING TASKS.

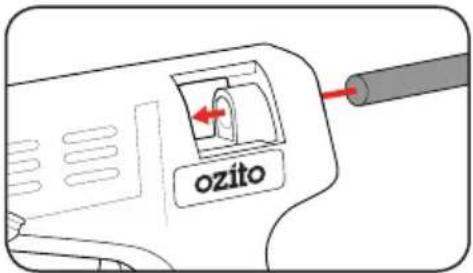

Installing the Glue Stick

1 Insert the glue stick into the glue stick entry and slide down gently.

2 Squeeze the flow control trigger multiple times to allow the glue stick to be pushed down.

2. OPERATION

1 Plug the power cord into a power point and switch on.

Diagram of a wall-mounted electrical outlet with two switches and a plug inserted, showing no text or symbols.

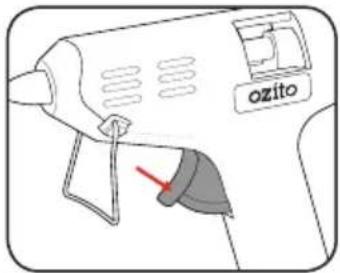

2 Squeeze the trigger flow control to release the glue.

Tip: Ensure the glue sticks are heated fully to allow an even flow of glue.

3 Press the surfaces to be glued together within 15 seconds for a strong bond.

Abstract geometric shape with two gray triangular sections and red arrows pointing to each, no text or symbols present.

4 To stop the flow of glue from the gun, release the flow control trigger.

Diagram showing a mechanical component with a red arrow indicating direction (no text or symbols)

WARNING! DO NOT ALLOW HOT GLUE TO COME IN CONTACT WITH PRODUCT HOUSING DURING USE.

WARRANTY

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE:

Australia 1800 069 486

New Zealand 0508 069 486

TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.

The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law.

Our goods come with guarantees that cannot be excluded at law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Generally you will be responsible for all costs associated with a claim under this warranty, however, where you have suffered any additional direct loss as a result of a defective product you may be able to claim such expenses by contacting our customer service helpline above.

3 YEAR REPLACEMENT WARRANTY

Your product is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it will be replaced in accordance with the terms of this warranty. Warranty excludes consumable parts.

WARNING

The following actions will result in the warranty being void.

• If the tool has been operated on a supply voltage other than that specified on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.

DESCRIPTION OF SYMBOLS

V	Volts	Hz	Hertz
~	Alternating current	W	Watts
°C	Degrees Celsius	[1xCZ]	Read instruction manual
	Double insulated	[xGyW]	Regulator compliance mark

ONLINE MANUAL

Scan this QR Code with your mobile device to take you to the online manual.

OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
