XS-7693 - Car speaker SONY - Free user manual and instructions

Product Type	3-Way Coaxial Car Speaker
Brand	Sony
Model	XS-7693
Woofer Type	Cone
Woofer Size	16 × 24 cm (6 × 9 in)
Midrange Type	Cone
Midrange Size	6.6 cm (2 5/8 in)
Tweeter Type	Dome
Tweeter Size	2 cm (1/2 in)
Maximum Input Power	160 W
Rated Input Power	40 W
Impedance	4 Ω
Sensitivity	93 dB/W/m
Frequency Response	30 – 26,000 Hz
Weight (per speaker)	Approx. 1.3 kg (2 lb 13 oz)
Mounting Options	Top mounting (from car interior) or Bottom mounting (from trunk)
Grille Net	Removable
Polarity	White cord – Left speaker; Gray cord – Right speaker
Safety Precautions	Do not exceed power handling; keep magnetic media away from speaker magnets
Installation Hole Diameter	5 mm (7/12 in) for mounting bolts

Frequently Asked Questions - XS-7693 SONY

What is the power handling of the Sony XS-7693?

The maximum input power is 160 W, and the rated input power is 40 W. Avoid continuously driving the speaker above the rated power to prevent damage.

What are the dimensions of the Sony XS-7693?

The speaker is a 3-way coaxial design with a woofer size of 16 × 24 cm (6 × 9 in). The overall dimensions are not fully specified, but the mounting hole diameter is 5 mm.

Can I install the XS-7693 in a car door?

Yes, it can be mounted from the car interior (top mounting) or from the trunk (bottom mounting). Ensure you have sufficient depth and a suitable location. Consult a dealer if unsure.

How do I remove the grille net?

To remove the grille net, gently press and insert the edges using a tool (as shown in the manual). Be careful not to damage the net or speaker cone.

What is the impedance of the XS-7693?

The impedance is 4 ohms, which is standard for most car audio systems. Check compatibility with your amplifier.

How do I wire the speaker correctly?

The white cord is for the left speaker, and the gray cord is for the right speaker. Maintain correct polarity for proper stereo imaging.

What is the frequency response of the XS-7693?

The frequency response ranges from 30 Hz to 26,000 Hz, covering deep bass to high treble.

Can I install the XS-7693 in a standard 6x9 cutout?

Yes, the woofer is sized 16 × 24 cm (6 × 9 in), which fits standard 6×9 speaker openings. Always measure before cutting.

Is the Sony XS-7693 waterproof?

No, the speaker is not waterproof. Avoid exposure to moisture and install in a dry location within the car.

How do I mount the speaker from the trunk?

For bottom mounting (from trunk), mark the bolt holes, drill 5 mm diameter holes, and secure the speaker from below. The manual includes detailed diagrams.

USER MANUAL XS-7693 SONY

(7/8)

Unit: mm (in.)

Unité: mm (po.)

Einheit: mm

Unidad: mm

Eenheid: mm

Enhet: mm

Unità: mm

Unidade: mm

Jednostka: mm

• Do not continuously drive the speaker system over the power handling capacity.
• Keep recorded tapes, watches, and personal credit cards using magnetic coding away from the speaker system to protect them from damage caused by the magnets in the speakers.

If you cannot find an appropriate mounting location, consult your car dealer or your nearest Sony dealer before mounting.

Précautions

Woofer 16 × 24 cm (6 × 9 in.)

cone type

Midrange 6.6 cm (2 ^5 / _4 in.)

cone type

Tweeter 2 cm (1/s in.) dome

type

Maximum input power

160 watts

Rated input power

40 watts

Impedance

4 ohms

Sensitivity

93 dB/W/m

Frequency response

30 - 26,000 Hz

Mass

Approx. 1.3 kg (2 lb. 13 oz.)

per speaker

Design and specifications are subject to change without notice.

Spécifications

Haut-parleur

Coaxial à 3 voies:

Woofer de 16 × 24 cm

(6 × 9 po.) type conique

Médium 6,6 cm (2 ^5 /8 po.) type

conique

Tweeter de 2 cm (4/s po.) type

en dôme

A Mounting from the car interior (Top mounting)

B Mounting from the trunk (Bottom mounting)

Mark the four bolt holes. Make them 5 mm (7/12 in.) in diameter for A and B.

Line drawing of a tool applying material to a circular component (no text or symbols)

Remove the grille net.

- White cord — Left speaker

Gray cord — Right speaker

Press and insert the edges of the grille net.

Diagram of a mechanical device with a sensor and rotating components, showing a downward force application (no text or symbols)

How to remove the grille net

Diagram showing a medical or surgical procedure with a device and tool, no text or symbols present

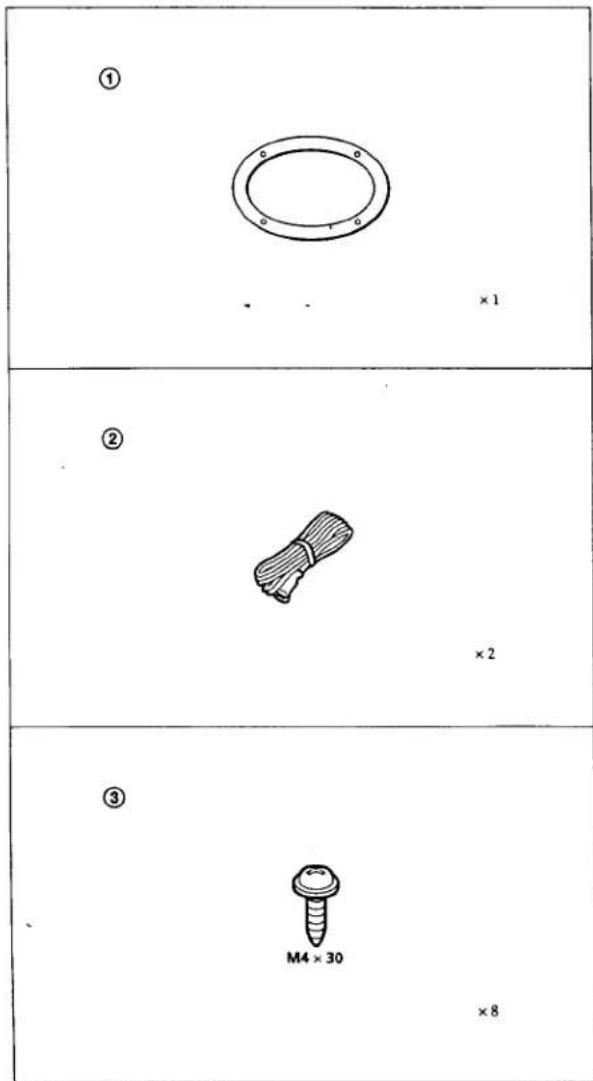

Parts List/Liste des pièces/Teileliste/Lista de las piezas/Onderdelenlijst/Lista över delar/Lista delle parti/Lista das peças/Lista elementów/Cписък на детайли/Szerelőelemek jegyzéke/Komплектация/零件一覧表
