GTx 542 ES - Loudspeaker BLAUPUNKT - Free user manual and instructions

Product Type	2-Way Coaxial Car Speaker
Model	GTx 542 ES
Brand	Blaupunkt
Speaker Size	5.25 inches (13 cm)
Peak Power	150 W
RMS Power	50 W
Impedance	4 ohms
Sensitivity	90 dB
Frequency Response	50 Hz - 20 kHz
Tweeter Type	Piezo or Soft Dome (typical)
Woofer Cone Material	Polypropylene or Paper (typical)
Mounting Depth	45 mm
Cutout Diameter	120 mm
Weight	0.5 kg (approx.)
Power Supply	Passive (no external power, driven by amplifier)
Main Functions	Reproduce audio with clear mids and highs, capable of handling moderate bass
Care & Cleaning	Wipe gently with a dry cloth; avoid liquids and abrasive cleaners.
Safety Precautions	Install securely to avoid short circuits; do not exceed rated power; keep away from moisture.
Spare Parts & Repairability	Non-user-serviceable; contact professional for repairs.
General Information	Designed for car audio systems; compatible with standard 4-ohm amplifiers.

Frequently Asked Questions - GTx 542 ES BLAUPUNKT

What is the RMS power rating of the Blaupunkt GTx 542 ES?

The RMS power rating is 50 watts, suitable for most car audio systems.

What is the impedance of this speaker?

It has a 4-ohm impedance, compatible with standard car audio amplifiers.

Can I use these speakers for home audio?

These are car speakers designed for 12V systems. They can be used for home audio with a suitable amplifier, but impedance and mounting may require adaptation.

How do I clean the speakers?

Gently dust the grille and cone with a soft, dry cloth. Do not use water or cleaning agents.

What is the mounting depth of the GTx 542 ES?

The mounting depth is approximately 45 mm, allowing installation in many factory locations.

Is the tweeter separate or integrated?

This is a coaxial speaker, so the tweeter is integrated into the same chassis for easy installation.

What is the frequency response?

The frequency response ranges from 50 Hz to 20 kHz, covering bass to high treble.

Do I need an external amplifier?

While they can work with a head unit's built-in amp, an external amplifier is recommended for best performance.

What is the cutout diameter required?

The required cutout diameter is 120 mm (4.72 inches).

Are the speakers waterproof?

No, they are not waterproof. Avoid exposure to moisture and water.

USER MANUAL GTx 542 ES BLAUPUNKT

Two black speaker plates with metallic blades, shown from different angles (no text or symbols visible)

Two black speaker plates with visible sound waves and mounting holes (no text or symbols)

Enjoy it.

Icon of a hand holding wrench and wrenches, symbolizing repair or tool use (no text or symbols present)

DEUTSCH....3

Einbau....10

We provide a manufacturer's warranty for products bought within the European Union. For devices purchased outside the European Union, the warranty terms issued by our respective responsible domestic agency are valid. The warranty terms can be called up from www.blaupunkt.com.

Safety Notes

Please observe the following safety notes during the installation and connection.

• Disconnect the negative pole of the battery! Observe the safety notes of the vehicle manufacturer.
• When you drill holes, ensure that you do not damage any vehicle components.
• Use cable glands for holes with sharp edges.
• Leave ample clearance between the cables and other harnesses.
• An incorrect installation can result in malfunctions of the electronic vehicle systems or your car sound system.

Recycling and disposal

Please use the return and collection systems available to dispose of the product.

Subject to changes!

FRANÇAIS

Please read these operating instructions before using the equipment for the first time.

Safety Notes

Please observe the following safety notes during the installation and connection.

Disconnect the negative terminal of the battery before carrying out installation and connection work.

Observe the vehicle manufacturer's safety instructions (regarding airbags, alarm systems, trip computers, vehicle immobilisers).

Prior to drilling the mounting holes, make sure that no cables and parts of the vehicle will be damaged.

Leave ample clearance between the cables and other harnesses. Use cable glands for holes with sharp edges.

An incorrect installation can result in malfunctions of the electronic vehicle systems or your car sound system.

Recycling and disposal

Please use the return and collection systems available to dispose of the product.

Subject to changes!

Einbau • Installation • Montage • Instalación • Montagem • Montaggio • Inbouw • Montering • Inmontering • Asennus • Εγκατάσταση • Montaj • Montaż • Montáž • Montáž • Montáž • Beszerelés • Установка • Montare • Монтаж • Ugradnja • Vgradnja • Ugradnja • Installation

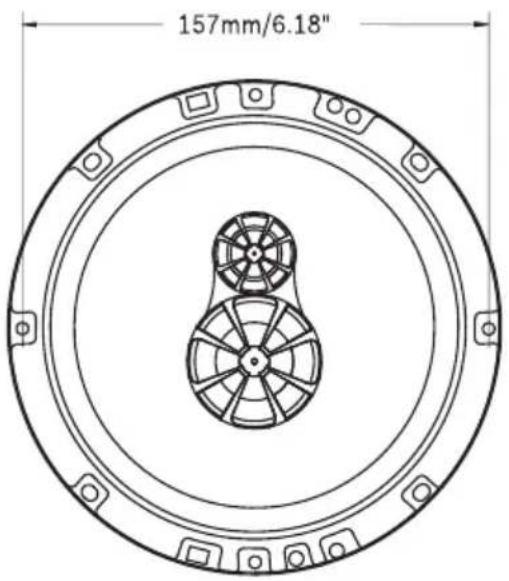

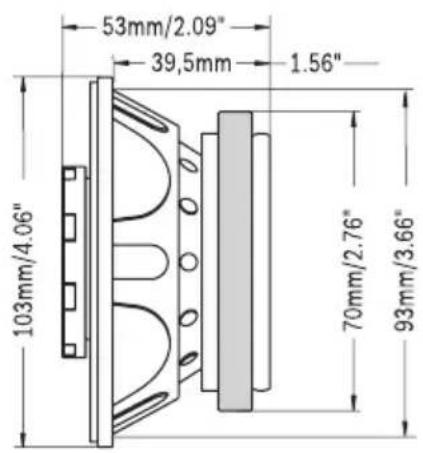

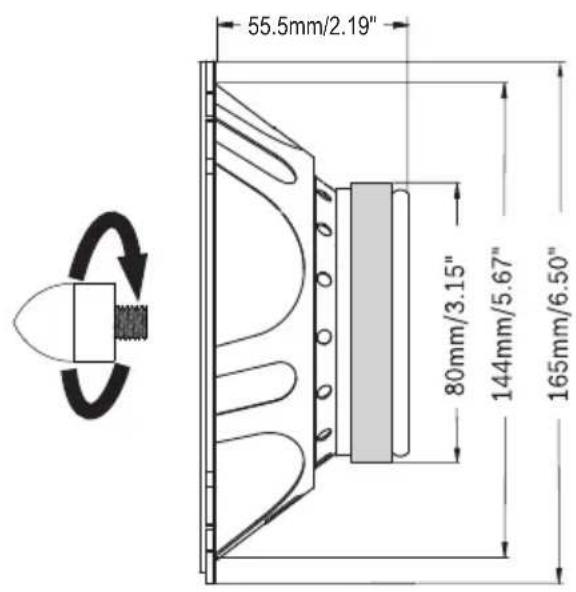

Technical line drawing of a mechanical assembly with no visible text or symbols

GTx 402 ES

GTx 542 ES

GTx 662 ES

The cable must be threaded through the hole

GTx 663 ES

Technische Daten • Technical data • Caractéristiques techniques • Datos técnicos • Dados técnicos • Dati tecnici • Technische gegevens • Tekniske data • Tekniska data • Teknisettiedot • Техника характеристика • Teknik veriler • Dane techniczne • Technické údaje • Technické údaje • Müszaki adatok • Технические характеристики • Date tehnice • Технически данни • Tehnički podaci • Tehnični podatki • Specifi kacije • Technical data

Performance GTx 402 ES		Performance GTx 662 ES
Peak power handling	140 Watt	Peak power handling	220 Watt
RMS power handling	30 Watt	RMS power handling	45 Watt
Impedance	4 ohms	Impedance	4 ohms
Frequency response	90-20.000 Hz	Frequency response	55-22.000 Hz
Sensitivity	90 dB (2.83 V/m)	Sensitivity	92 dB (2.83 V/m)
Performance GTx 542 ES		Performance GTx 663 ES
Peak power handling	180 Watt	Peak power handling	240 Watt
RMS power handling	40 Watt	RMS power handling	50 Watt
Impedance	4 ohms	Impedance	4 ohms
Frequency response	70-20.000 Hz	Frequency response	40-22.000 Hz
Sensitivity	91 dB (2.83 V/m)	Sensitivity	93 dB (2.83 V/m)

Blaupunkt

Competence Center Car Multimedia

Evo-Sales GmbH

Hastenbecker Weg 33

31785 Hameln/Germany

www.blaupunkt-automotive.com
