Product Type	Rack Enclosure
Brand	APC
Model	AR7721
Color	Black
Material	Steel
Form Factor	Standalone Rack
Rack Height	42U
Maximum Load Capacity	1500 lb (680 kg)
Dimensions (H x W x D)	78.5 x 23.6 x 42.0 in (199.4 x 60.0 x 106.7 cm)
Weight	225 lb (102 kg)
Cooling	Vented front and rear doors
Security	Lockable front and rear doors, side panels
Cable Management	Top and bottom cable entry, vertical mounting rails
Compliance	UL, CE, RoHS
Warranty	2 years
Maintenance	Clean with dry cloth; check door hinges and locks annually
Repairability	Doors, side panels, and locks replaceable; contact APC support
Mounting Depth Adjustable	Yes, from 28 to 42 inches (71 to 107 cm)
Package Contents	Rack enclosure, assembly hardware, user manual

Frequently Asked Questions - AR7721 APC

What is the maximum weight capacity of the APC AR7721 rack?

The APC AR7721 has a maximum load capacity of 1500 lb (680 kg) when properly installed on a level surface.

What are the dimensions of the AR7721?

Dimensions are 78.5 x 23.6 x 42.0 inches (H x W x D), which is 199.4 x 60.0 x 106.7 cm.

Is the rack height adjustable?

The rack is a fixed 42U height, but the mounting depth is adjustable from 28 to 42 inches (71 to 107 cm) to fit various equipment.

Does the AR7721 come with locking doors?

Yes, it includes lockable front and rear doors as well as lockable side panels for security.

What type of cooling does the rack provide?

The rack features vented front and rear doors for passive airflow. For high-density setups, additional fans may be required.

How do I install equipment in the rack?

Equipment mounts to vertical mounting rails with adjustable depth. Use standard 10-32 or M6 cage nuts (not included).

Can I place the rack on carpet?

It is recommended to place the rack on a hard, level surface or use a raised floor. On carpet, ensure adequate ventilation underneath.

What is the warranty period for the APC AR7721?

APC offers a standard 2-year warranty on the AR7721 rack enclosure.

Are replacement parts available?

Yes, replacement doors, side panels, locks, and mounting rails are available through APC support or authorized resellers.

How should I clean the rack?

Clean the exterior with a soft, dry cloth. Do not use abrasive cleaners or liquids. Periodically check hinges and locks for proper operation.

USER MANUAL AR7721 APC

NOTES:

1. INSTALLATION SHALL COMPLY WITH ALL APPLICABLE NATIONAL, STATE AND LOCAL CODES.

2. PLEASE REFER TO PRODUCT DOCUMENTATION FOR FURTHER INFORMATION.

3. ALL DIMENSIONS ARE IN INCHES [MILLIMETERS].

4. WEIGHT OF UNIT IS 4.80 LBS [2.18 KG].

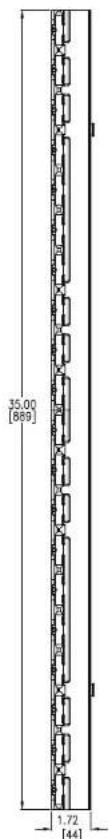

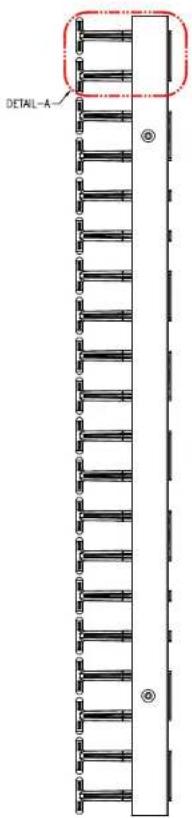

FRONT VIEW

RIGHT SIDE VIEW

REAR VIEW

THIS DRAWING AND SPECIFICATIONS HEREIN ARE THE PROPERTY OF SCHNEIDER ELECTRIC AND SHALL NOT BE COPIED. REPRODUCED OR USED IN WHOLE OR IN PART, AS THE BASE IS FOR MANUFACTURING FROM THE MANUFACTUR OR SALE OF ITEMS WITHOUT WATTEN PERMISSION FROM SCHNEIDER ELECTRIC. THIS DRAWING IS BASED UPON LATEST AVAILABLE INFORMATION AND IS SUBJECT TO CHANGE WITHOUT NOTICE
	Schneider Electric	TITLEVERTICAL CABLE MANAGER FOR NETSHELTER SX600mm WIDE, 42U (LQTY, 2)MAIN MECHANICAL			DWG NO.AR7721REV.0
					DRAWN BY: S CUNHA	21-NOV-13
					ENGINEER: P FISCHER	21-NOV-13
					APPROVED BY: J KUMMER	21-NOV-13
		PROJECT STD SURWITAL DRAMINGS SHEET 1 OF 2

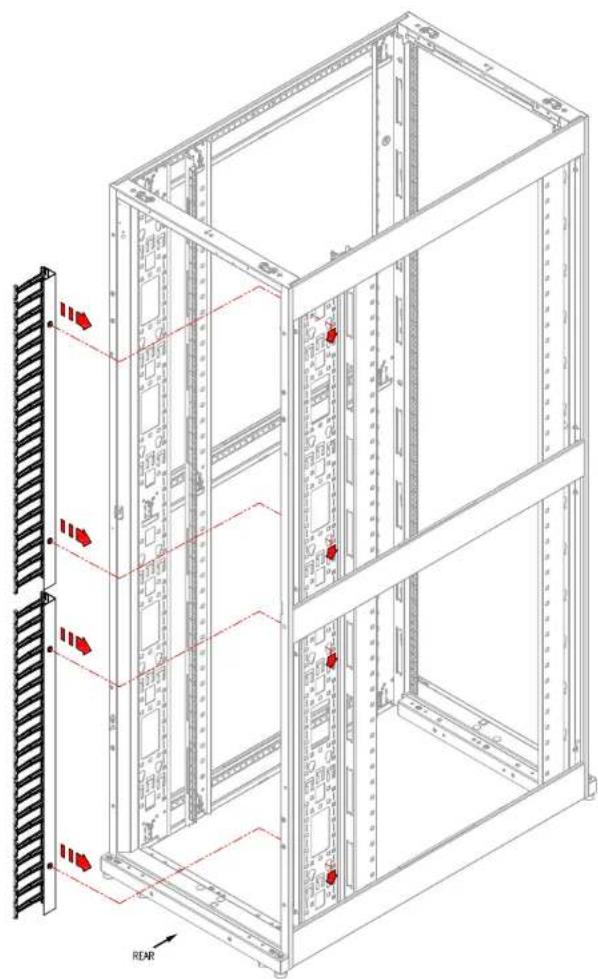

Technical line drawing of a server rack cabinet with red directional indicators and a red 'REAR' label (no text or symbols on the diagram itself)

AR3100 NETSHELTER SHOWN

NOTES:

1. INSTALLATION SHALL COMPLY WITH ALL APPLICABLE NATIONAL, STATE AND LOCAL CODES.

2. ONLY TWO ITEMS PER SKU.

3. REFER TO ENCLOSURE USER MANUAL FOR RAIL ADJUSTMENT TO ACCOMMODATE MOUNTING OF THE VERTICAL CABLE MANAGER.

THIS DRAWING AND SPECIFICATIONS HEREIN ARE THE PROPERTY OF SCHNEIDER ELECTRIC AND SHALL NOT BE COPIED. REPRODUCED OR USED IN WHOLE OR IN PART, AS THE BASE FOR THE MANUFACTURE OR SALE OF ITEMS WITHOUT WATTEN PERMISSION FROM SCHNEIDER ELECTRIC. THIS DRAWING IS BASED UPON LATEST AVAILABLE INFORMATION AND IS SUBJECT TO CHANGE WITHOUT NOTICE
	Schneider Electric	TITLEVERTICAL CABLE MANAGER FOR NETSHELTER SX 600mm WIDE 420 (OTY. 2)PRODUCT APPLICATION			DWG NO AR7721 REV.0
					DRAWN BY: S CUNHA 21-NOV-13	THIRD ANGLE PROJ
					ENGINEER: P FISCHER 21-NOV-13
		PROJECT STD SUBMITTAL DRAWINGS SHEET 2 OF 2			APPROVED BY: J KUMMER 21-NOV-13
