Product Type	Professional LCD Monitor (19" 7U Rack Mount)
Brand	Datavideo
Model	TLM-170LR
Display Size	17.3"
Panel Resolution	1920 x 1080
Viewing Angle (H/V)	140° / 120°
Brightness	300 cd/m²
Contrast Ratio	400:1
Video Inputs	2x HDMI (v1.3), 1x 3G-SDI (BNC)
Video Output	1x SDI Loop-through (BNC)
Audio	Embedded audio on SDI & HDMI; internal speaker; 3.5mm headphone jack
Rack Mounting	19" 7U rack ears included
Tally	Bi-color tally light (red/green) and 3.5mm tally input
OSD Controls	Brightness, Contrast, Saturation, Sharpness, Backlight, Color Temp (6500K/7500K/9300K/User), Underscan/Overscan, Blue Only, Aspect Ratio (16:9/4:3)
Power	DC 12V, 30W (power supply included)
Weight	4.1 kg
Dimensions (W x H x D)	Approx. 482 x 310 x 88 mm (with rack ears)
Warranty	Standard 1 year; extendable to 3 years with registration within 30 days (from July 2017)
Firmware Update	Via USB 2.0 port (requires USB flash drive with file renamed to MSTFLASH.bin)
VESA Mount	100 x 100 mm (compatible with VESA MIS)
Cooling	Passive (no fan); ensure ventilation slots not blocked

Frequently Asked Questions - TLM-170LR DataVideo

How do I zoom into the video on the TLM-170LR?

Press the Zoom button on the front panel. This toggles between 1x, 2x, 4x and 8x zoom. Use the VOL +/– keys to move horizontally and the Up/Down keys to move vertically. The Zoom button light flashes to indicate active zoom. Press the MENU key to exit zoom mode.

How do I update the firmware on the TLM-170LR?

Obtain the latest firmware file from your Datavideo dealer. Copy it to an empty USB 2.0 flash drive and rename it to MSTFLASH.bin. Insert the drive into the USB 2.0 (MAINTENANCE) port on the rear panel. Reboot the monitor – the update starts automatically. Do not interrupt the process; it takes about 15 minutes.

Can I mount the TLM-170LR in a 19" rack?

Yes. The TLM-170LR includes rack ears for a 19" 7U rack. Attach the ears using the supplied screws (four on each side plus additional at the base). The monitor occupies 7U of rack space when in use.

How do I connect the tally light?

The monitor has a built-in bi‑color tally light on the front panel. To control it externally, use the 3.5mm Tally Light Input on the rear panel. It is compatible with Datavideo devices like RMC‑140, TB‑5, TB‑10, ITC‑100SL, or ITC‑200B/E. The tally light can indicate Live (red) or Cued (green) status.

What is the difference between TLM-170L, TLM-170LR, and TLM-170LM?

The TLM-170L is a desktop monitor. The TLM‑170LR is a 19" 7U rack‑mount version (with rack ears). The TLM‑170LM is a 1U mobile tray rack mount version. All share the same display panel and features.

Can I use both HDMI and SDI inputs simultaneously?

The monitor has two HDMI inputs and one SDI input, but only one source can be displayed at a time. Use the Source Select Buttons on the front panel to switch between SDI, HDMI1, and HDMI2. The active input is indicated by a red LED on the button.

How do I adjust the color temperature?

Press the MENU button to enter the OSD. Navigate to the COLOR submenu. Choose from preset values: 6500K, 9300K, or 7500K. Select USER COLOR to manually adjust Red, Green, and Blue levels from 0 to 100.

What should I do if the monitor does not power on?

Check that the AC adapter is securely connected to the DC In Socket on the rear panel and that the main On/Off Switch is in the ON position. Ensure the power source is working. If the problem persists, contact Datavideo support.

Does the TLM-170LR support 3G-SDI?

Yes. The SDI input and loop‑through output support 3G‑SDI (SMPTE‑425M‑A) at data rates up to 3 Gbps. It is compatible with 1080p50/60/59.94 signals.

How do I clean the TLM-170LR monitor?

Unplug the monitor from the power outlet before cleaning. Use a damp cloth – do not use liquid or aerosol cleaners. Gently wipe the surfaces. Avoid touching the LCD panel directly; use a soft microfiber cloth if needed.

USER MANUAL TLM-170LR DataVideo

WARNINGS AND PRECAUTIONS .... 3

WARRANTY 4

STANDARD WARRANTY 4

THREE YEAR WARRANTY 4

DISPOSAL 4

1. INTRODUCTION .... 5

FEATURES 5

TLM-170L MODEL TYPES 5

COMPATIBLE RESOLUTIONS AND FORMATS....5

1. CONNECTIONS AND CONTROLS 7

FRONT PANEL 7

REAR PANEL 9

1. OSD MENU 10

2. FIRMWARE UPDATE PROCEDURE.... 11

3. TLM-170LR: FITTING THE 19" RACK EARS TO THE TLM-170L.... 12

4. TLM-170LM: FITTING THE MONITOR TO A 19" RACK.... 13

5. DIMENSIONS 14

VESA MOUNTING INTERFACE STANDARD (MIS)....15

1. SPECIFICATIONS.... 16

SERVICE AND SUPPORT 20

Disclaimer of Product and Services

The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete. This manual may contain typing errors, omissions or incorrect information. Datavideo Technologies always recommend that you double check the information in this document for accuracy before making any purchase decision or using the product. Datavideo Technologies is not responsible for any omissions or errors, or for any subsequent loss or damage caused by using the information contained within this manual. Further advice on the content of this manual or on the product can be obtained by contacting your local Datavideo Office or dealer.

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Warnings and Precautions

1. Read all of these warnings and save them for later reference.
2. Follow all warnings and instructions marked on this unit.
3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this unit in or near water.
5. Do not place this unit on an unstable cart, stand, or table. The unit may fall, causing serious damage.
6. Slots and openings on the cabinet top, back, and bottom are provided for ventilation. To ensure safe and reliable operation of this unit, and to protect it from overheating, do not block or cover these openings. Do not place this unit on a bed, sofa, rug, or similar surface, as the ventilation openings on the bottom of the cabinet will be blocked. This unit should never be placed near or over a heat register or radiator. This unit should not be placed in a built-in installation unless proper ventilation is provided.
7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.
8. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed.
9. If an extension cord must be used with this unit, make sure that the total of the ampere ratings on the products plugged into the extension cord do not exceed the extension cord rating.
10. Make sure that the total amperes of all the units that are plugged into a single wall outlet do not exceed 15 amperes.
11. Never push objects of any kind into this unit through the cabinet ventilation slots, as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock. Never spill liquid of any kind onto or into this unit.
12. Except as specifically explained elsewhere in this manual, do not attempt to service this product yourself. Opening or removing covers that are marked "Do Not Remove" may expose you to dangerous voltage points or other risks, and will void your warranty. Refer all service issues to qualified service personnel.
13. Unplug this product from the wall outlet and refer to qualified service personnel under the following conditions:
    a. When the power cord is damaged or frayed;
    b. When liquid has spilled into the unit;
    c. When the product has been exposed to rain or water;
    d. When the product does not operate normally under normal operating conditions. Adjust only those controls that are covered by the operating instructions in this manual; improper adjustment of other controls may result in damage to the unit and may often require extensive work by a qualified technician to restore the unit to normal operation;
    e. When the product has been dropped or the cabinet has been damaged;
    f. When the product exhibits a distinct change in performance, indicating a need for service.

Warranty

Standard Warranty

• Datavideo equipment are guaranteed against any manufacturing defects for one year from the date of purchase.
• The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty.
• The product warranty period beings on the purchase date. If the purchase date is unknown, the product warranty period begins on the thirtieth day after shipment from a Datavideo office.
• Damage caused by accident, misuse, unauthorized repairs, sand, grit or water is not covered under warranty.
• Viruses and malware infections on the computer systems are not covered under warranty.
• Any errors that are caused by unauthorized third-party software installations, which are not required by our computer systems, are not covered under warranty.
• All mail or transportation costs including insurance are at the expense of the owner.
• All other claims of any nature are not covered.
• Cables and batteries are not covered under warranty.
• Warranty only valid in the country or region of purchase.
• Your statutory rights are not affected.

Three Year Warranty

- All Datavideo products purchased after July 1st, 2017 are qualified for a free two years extension to the standard warranty, providing the product is registered with Datavideo within 30 days of purchase.

- Certain parts with limited lifetime expectancy such as LCD panels, DVD drives, Hard Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting, Camera module, PCIe Card are covered for 1 year.

- The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase.

Disposal

Symbol of a waste bin with diagonal lines crossing it, no text or labels present

For EU Customers only - WEEE Marking

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

CE Marking is the symbol as shown on the left of this page. The letters "CE" are the abbreviation of French phrase "Conformité Européenne" which literally means "European Conformity". The term initially used was "EC Mark" and it was officially replaced by "CE Marking" in the Directive 93/68/EEC in 1993. "CE

Marking" is now used in all EU official documents.

1. Introduction

The Datavideo TLM-170L monitor is designed for superior performance. Whether your application is in a live production gallery, 19" rack monitoring, OB Van or a video editing suite the TLM-170L will help you confidently monitor the pictures within your chosen workflow.

To get more value out of this equipment please take a few minutes to read this manual thoroughly as this will help you familiarise yourself with all aspects of the TLM-170L monitor.

Features

• 1920 x 1080P Panel resolution
• Supports 3G-SDI video input with loop-through output
• Supports two HDMI inputs
• Monitor Underscan and Overscan mode selection.
- User selectable color temperature
• Headphone Jacks on the Front panel
• Bi-colour Tally light and 3.5mm Jack Tally input socket.
- Safe area
- Blue Only
• Supports embedded audio on SDI & HDMI (ver 1.3)
• Image Zoom (HD only)
- USB for FW upgrade

- Independent adjustment of Brightness, Contrast, Color Saturation and LED Backlight Level on the monitor

TLM-170L Model Types

Model	TLM-170L	TLM-170LR	TLM-170LM
System	Desktop	7U Rack Mount	1U Mobile Tray Rack Mount

Compatible Resolutions and Formats

Format	TLM-170L Interface
	HDMI	SDI
1920x1080P @ 59.94	Support	Support
1920x1080P @ 60	Support	Support
1920x1080P @ 50	Support	Support
1920x1080P @ 29.97	Support	Support
1920x1080P @ 25	Support	Support
1920x1080P @ 30	Support	Support
1920x1080P @ 23.98	Support	Support
1920x1080P @ 24	Support	Support
1920x1080i @ 59.94	Support	Support
1920x1080i @ 60	Support	Support
1920x1080i @ 50	Support	Support
1280x720P @ 59.94	Support	Support
1280x720P @ 60	Support	Support
1280x720P @ 50	Support	Support
1280x720P @ 23.98	x	x
1280x720P @ 24	x	x
720 x 480i (NTSC)	Support	Support
720 x 576i (PAL)	Support	Support

2. Connections and Controls

Front Panel

Buttons	Descriptions
Bi-Colour Tally Light	Can be used to indicate Live (Red).
Source Select Buttons	Select the type of input you are using. The available interfaces are SDI and HDMI. The active input will be indicated by a red LED on the Source Button.
BLUE	Press this button to eliminate the red and green component of input signals. Only the blue component of an input is displayed on the screen.
Pattern Button	When pressed displays internally generated SMPTE 75% Colour Bars. Press again to return to the previously selected video input.
Menu Navigation Buttons	Display and navigate the set up menus - See OSD Menu Section for more details.
Aspect Ratio Button	Sets the Aspect Ratio to 16:9 / 4:3
Mute Button	Mutes the audio from the internal speakers or headphone socket.
Zoom Button	This feature is designed for use with HD-SDI and HDMI sources above 720p resolution. Press this button to zoom in to the video on the display. This is strictly a zooming function and does not alter the native aspect ratio of the source pixels to fill the screen.The ZOOM button allows you to toggle the Pixel Zoom feature between zoom x1, x2, x4 and x8.When turned ON the zoomed display may be moved left or right using the VOL + /- keys and up or down using the up/down keys.A Flashing ZOOM button light will be activated whenever you are in a zoomed mode as a reminder/warning that the entire incoming signal is not being shown on the monitor.To exit zoomed mode, simply press down on the MENU key.
Volume Control	Adjusts the speaker / headphone volume up / down.
Power Button	Press to turn ON / OFF the monitor.Note: Main Power On/Off switch is located on the rear of the TLM-170L.
Headphone Socket	3.5mm headphone socket; internal speaker circuit will automatically mute when headphones are connected.

Rear Panel

Ports	Descriptions
3.5mm Tally Light Input	Tally light information can be supplied to the TLM-170L from the Datavideo RMC-140, TB-5 or TB-10 or the ITC-100SL / ITC-200B/E via this socket.
USB 2.0 Port	For firmware updates only. See Firmware Update section for more details.
SDI Input & Loop Through	BNC Input for HD / SD SDI with a loop through output.
HDMI Input	Video and Audio input from an HDMI device.
DC In Socket	DC In Socket for connecting 12V / 30W power supply. The connection can be secured by screwing the outer fastening ring of the DC In plug to the socket.
On / Off Switch	Main on / off switch to switch the TLM-170L on and off.

3. OSD Menu

The TLM-170L can be set up using an OSD menu system. To display the OSD menu press the MENU button. This menu system is navigated using the Up / Down buttons to change a value or to highlight a menu option. Press the Enter button to select an option or confirm a value.

Main Options	Sub Options	Parameters	Parameters
MAIN ADJUST	BRIGHTNESS	0~100
	CONTRAST	0~100
	SHARPNESS	0~100
	SATURATION	0~100
	TINT	0~100
	BACKLIGHT	0~100
	NR	HIGH / MID / LOW / OFF
	DLC	ENABLE / DISABLE
	VOLUME	0~100
	EXIT
COLOR	6500
	9300
	7500
	USER COLOR	RED	0~100
		GREEN	0~100
		BLUE	0~100
	EXIT
SCAN SETTING	UNDER SCAN	Full Image
	OVER SCAN	Cropped Image
INFORMATION	H. FREQUENCY
	V. FREQUENCY
	RESOLUTION
	VER.
LANGUAGE	English [default]
	Francis
	Deutsch
	Español
	Italiano
	Dutch
	Português
	Russian
	EXIT
SPECIAL FUNCTION	OSD TIMOUT	5-120 SEC
	FRAME RATIO	80 / 90 / OFF
	4:3 MARK LINE	ON / OFF
	CENTRAL MARK	ON / OFF
	CINEMA ZONE MARK	ON / OFF
	AUDIO CHANNEL L
	AUDIO CHANNEL R
	EXIT
FACTORY RESET
EXIT

4. Firmware update procedure

From time to time Datavideo may release new firmware to either add new features or to fix reported bugs in the current TLM-170L firmware. Customers can update the firmware themselves if they wish or they can contact their local dealer or reseller for assistance should they prefer this method.

This page describes the firmware update process and it should take approximately 15 minutes total time to complete.

As well as a working TLM-170L you will need:

The latest firmware update for the TLM-170L monitor.
This firmware file can be obtained from your local Datavideo office or dealer.
USB 2.0 pen drive 128MB or larger with a USB A connector.

Once started the update process should not be interrupted in any way as this could result in a non-responsive unit.

How to update the firmware

1. Unzip / extract the supplied zipped archive or rar folder.
2. Wipe the contents of the USB 2.0 pen drive so it is empty.
3. Transfer / copy the unzipped / extracted file to the USB 2.0 pen drive; make sure the file name is renamed to MSTFLASH.bin.
4. Plug the USB 2.0 pen drive into the USB 2.0 port labelled MAINTENANCE on the back of the monitor.
5. Reboot TLM-170L and the update will be automatically in progress.
6. The TLM-170L Monitor will reboot itself at the end of the process.

5. TLM-170LR: Fitting the 19" Rack Ears to the TLM-170L

The TLM-170LR is supplied with 19" Rack Ears which allow the monitor to be rack mounted (19" 7U).

Pure architectural floor plan lines without any text, numbers, or symbols

Use the supplied screws to attach the left and right rack ears. You will see there are four screws on either side, as illustrated above, plus additional screws at the base of each rack ear, as illustrated below.

Pure technical diagram of a mechanical or electrical component layout without any text, numbers, or symbols

6. TLM-170LM: Fitting the monitor to a 19" Rack

The TLM-170LM is designed to rack mount. When folded away it is 1U high, please bear in mind that when opened for operation the monitor is 7U high, so leave adequate room above for this.

The monitor arrives already fitted with sliding rack rails, these have a length adjustment at the rear to suit the distance between the front and rear rack rails of your cabinet.

To adjust the length loosen the four adjustment nuts as illustrated below, and pull the side rails back as far as is required. Then re-tighten the nuts.

Technical diagram of a server rack with mounting brackets and control panel (no text or symbols)

Mount the monitor in your rack with the rear panel facing upwards. Ensure the rack mounting screws are secured both front and rear.

Once mounted and secure to the rack, unscrew the two locking screws on either side of the front panel, and pull the monitor forward using the handle. Once the monitor is fully forward simply hinge it up into a vertical position.

To fold away, pull the top of the monitor forward, so that it hinges down to a horizontal position, then push it back into the rack until you are able to screw in the locking screws.

Note: When folding the monitor away be careful not to trap your fingers or scrape your hand on the rack cabinet.

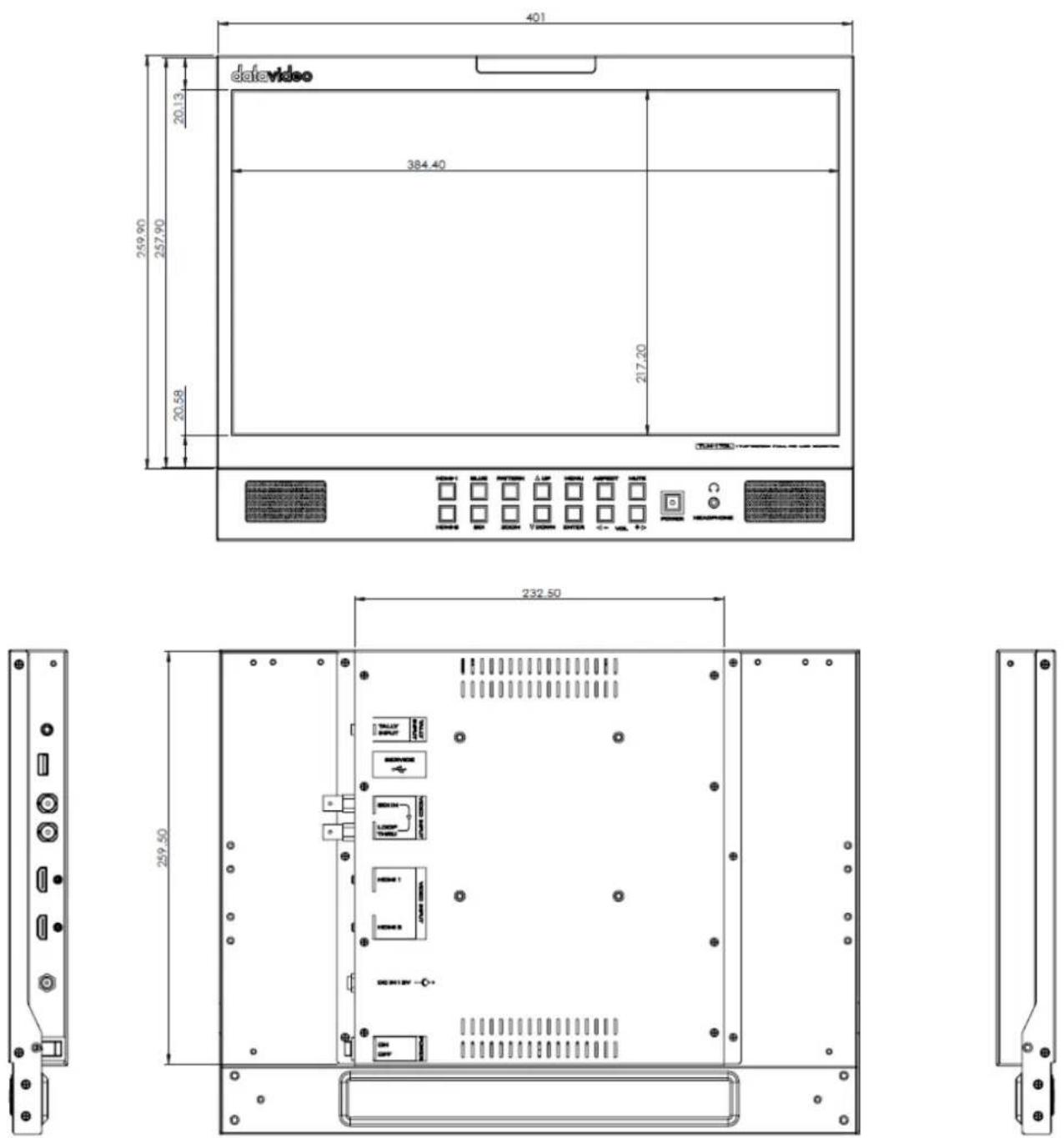

1. Dimensions

   All measurements in millimetres (mm)

VESA Mounting Interface Standard (MIS)

All measurements in millimetres (mm)

1. Specifications

LCD	Size	17.3"
	Resolution	1920 x 1080
	View Angle	Top: 60 deg Bottom: 60 degLeft: 70 deg Right: 70 deg
	White Luminance	300cd
	Contrast	400
	VESA Mounting Interface Standard (MIS)	100mm x 100mm
Video INPUT	HDMI x 2	HDMI Ver. 1.3
	BNC x 1	3Gbps/HD/SD-SDI (Level A)
Video OUTPUT	BNC x 1 (Loop-Through)	3Gbps/HD/SD-SDI
SDI Signal Format	SMPTE-425M-A	1920 x 1080p 60/59.95/50
	SMPTE-274M	1920 x 1080p30/29.97/25/24/24SF/23.98
	SMPTE-292M	1920 x 1080i 60/59.94/50
	SMPTE-296M	1280 x 720p 60/59.94/50
	SMPTE-259M	720 x 480i (NTSC), 720 x 576i (PAL)
VESA Timing	1680 x 1050 (16:10)1360 x 768 (16:9)1280 x 1024 (5:4)1280 x 1024 (4:3)1280 x 960 (4:3)1280 x 768 (4:3)1152 x 864 (4:3)1024 x 768 (4:3)800 x 600 (4:3)
Audio Input	Supports 3G/HD/SD-SDI embedded audioSupports HDMI embedded audio (Ver.1.3)
Audio Input	Internal Speaker
	3.5mm Headphone Socket	Internal speaker circuit will automatically mute when headphones are connected.
Tally	Tally Port x 1
Bi-Color Tally Light	Can be used to indicate Live (Red) or Cued (Green) Source.
Service	USB x 1	USB 2.0 FW Auto Upgrade
Power	DC 12V/16W (12V/2A)
Operating Temperature	0 °C to 40 °C
Storage Temperature	-10 °C to 60 °C
Weight	4.1 Kg

Service & Support

It is our goal to make owning and using Datavideo products a satisfying experience. Our support staff is available to assist you to set up and operate your system. Contact your local office for specific support requests. Plus, please visit www.datavideo.com to access our FAQ section.

Please visit our website for latest manual update.

www.datavideo.com/product/TLM-170L

www.datavideo.com/product/TLM-170LM

www.datavideo.com/product/TLM-170LR

datavideo

www.datavideo.com

@DatavideoUSA

@DatavideoEMEA

@DatavideoTaiwan

@DatavideoAsia

@DatavideoIndia2016

@Datavideojapan

@DatavideoLatam

@DatavideoBrasil

@Datavideo

@Datavideo_EMEA

@Datavideo Taiwan

@DatavideoUSA

@DVTWDVCN

@DatavideoUSA

@DatavideoEurope
