Product Type	Cabinet Cooler Fan
Model	ICAB-COOL-2 (CAB-COOL-2)
Number of Fans	2
Power Requirements	12 VDC @ 240mA
Airflow (CFM)	40 CFM (total)
Noise Level (dBA @ 1 meter)	27 dBA
Fan Size (estimated)	80 mm x 80 mm
Cutout Hole Diameter	3.5 inches (89 mm)
Fan Control	Inline fan control with temperature sensor (default on at 87°F, off at 85°F); jumper options for always on or off
Mounting	Flush mount inside cabinet with wood screws; louvered guard attaches via snap fasteners
Louvered Guard	Included, paintable to match aesthetics
Included Accessories	2 fan units, 2 louvered guards, 1 inline fan control, 1 power supply, 10 wire ties, 10 wire tie mounts, 16 wood screws (4 extra)
Installation Tools Required	3.5" hole saw, 3/32" drill bit, #2 Phillips head driver
Intake/Exhaust Option	Yes, one fan can be inverted for opposite airflow
Warranty	3 years from date of shipment
Application	Remove heat from smaller cabinets and entertainment centers
Material	Plastic fan housing, metal louvered guard (estimated)
Compliance	ISO 9001 and ISO 14001 registered

Frequently Asked Questions - ICAB-COOL-2 Middle Atlantic

How do I set the temperature control on the ICAB-COOL-2?

The inline fan control has a jumper with three positions: default (center) turns fan on at 87°F and off at 85°F; left position keeps fan off; right position keeps fan on. Adjust the jumper on the two-pin header accordingly.

Can I use one fan for intake and the other for exhaust?

Yes. The CAB-COOL-2 allows two fans to operate as intake and exhaust by inverting one fan so airflow direction is opposite. Mount one fan normally for exhaust and the inverted one for intake.

What size hole do I need to cut for installation?

Use a 3.5-inch hole saw to cut a hole in the cabinet front. The louvered guard will cover the template markings.

What tools are required for installation?

You need a 3.5-inch hole saw, a 3/32-inch drill bit, and a #2 Phillips head driver. Also ensure wood screws are not longer than the panel thickness.

How many fans come with the ICAB-COOL-2?

The ICAB-COOL-2 includes two fan units. Each fan is rated at 20 CFM and 12 VDC @ 120mA, for a total airflow of 40 CFM.

Can I paint the louvered guard?

Yes. The grille can be painted to match the aesthetics of any environment. Ensure paint does not obstruct airflow.

What is the warranty period for this product?

Middle Atlantic warrants the CAB-COOL Series to be free from defects for three years from date of shipment. See full warranty for terms.

How do I connect the fans to the inline control?

Run the cable from each fan unit to the inline fan control. Inputs 1 and 2 are interchangeable. Then connect the power supply to the control input.

Are wire ties included for cable management?

Yes. The ICAB-COOL-2 includes 10 wire ties and 10 wire tie mounts to manage cables neatly inside the cabinet.

What is the noise level of the ICAB-COOL-2?

The noise level is 27 dBA at 1 meter, which is relatively quiet for a cabinet cooler.

USER MANUAL ICAB-COOL-2 Middle Atlantic

THANK YOU

Thank you for purchasing the CAB-COOL Cabinet Cooler(s). Please read these instructions thoroughly before installing / assembling this product.

PRODUCT FEATURES

• Extends equipment life
• Removes heat from smaller cabinets and entertainment centers
• Grille can be painted to match aesthetics of any environment

SPECIFICATIONS

MODEL	POWER REQUIREMENTS	CFM	dBA @ 1 METER
CAB-COOL	12 VDC @ 120mA	20	24
CAB-COOL-2	12 VDC @ 240mA	40	27

FAN UNIT

INLINE FAN CONTROL

SIDE VIEW

TOP VIEW

• Jumper on two center pins (default location) fan will turn on at 87° and turn off at 85°.
• Jumper on two left pins, fan will remain off.
• Jumper on two right pins, fan will remain on.

PARTS

FAN UNIT		QTY
CAB-COOL	1	1
CAB-COOL-2	2	2

WIRE TIE		QTY
CAB-COOL	5	5
CAB-COOL-2	10	10

WIRE TIE MOUNT		QITY
CAB-COOL	5	5
CAB-COOL-2	10	10

WOOD SCREW		QTY
CAB-COOL	8	(2 Extra)
CAB-COOL-2	16	(4 Extra)

TOOLS REQUIRED

• 3.5" Hole Saw
• 3/32" Drill Bit

• 2 Phillips Head Driver

LOUVERED GUARD		QTY
CAB-COOL	1	1
CAB-COOL-2	2	2

POWER SUPPLY		QTY
CAB-COOL	1	1
CAB-COOL-2	1	1

INLINE FAN CONTROL		QTY
CAB-COOL	1	1
CAB-COOL-2	1	1

FAN UNIT		QTY
CAB-COOL	1	1
CAB-COOL-2	2	2

INSTALLATION

1) Mark center lines as shown. Remove adhesive back on the template and press firmly onto the desired location. Make sure notches on template line up with center lines.

2) On the front of cabinet, using a 3.5" Hole Saw, cut a hole in the center mark on the template. (Louvered Guard will cover what remains of the template)

3) Remove the Louvered Guard from the fan unit. Gently bend hinges forward and insert the fan unit through the inside of the cabinet.

4) Gently bend hinges back. Align holes on the hinges to the "+" mark on template. (Snap Fasteners can be positioned to the top and bottom for horizontal louvre installation or to the left/right sides for vertical louvre installation)

HORIZONTAL MOUNTING VERTICAL MOUNTING

5) It is recommended that you drill four pilot holes using a 3/32" drill bit. Drill on the "+" marks. Using a #2 Phillips Head Driver, carefully affix the unit with the four provided Wood Screws.

HORIZONTAL MOUNTING VERTICAL MOUNTING

6) Attach Louvered Guard using Snap Fasteners. (An audible "snap" is heard once Snap Fastener is engaged). Adjust Guard for air flow and/or aesthetic needs.

HORIZONTAL MOUNTING VERTICAL MOUNTING

7) Using two provided Wood Screws, mount Inline Fan Control at the highest available location in your cabinet.

TIP: Make sure the Wood Screws are not longer than the panel they will be installed in.

8) Run the cable from the Fan Unit to the Inline Fan Control. (Inputs 1 and 2 are interchangeable)

9) Connect Power Supply to power source. Connect Power Supply to input on Inline Fan Control.

NOTE: Wire Ties and Wire Tie Mounts are provided for cable management.

(SEE PAGE 7)

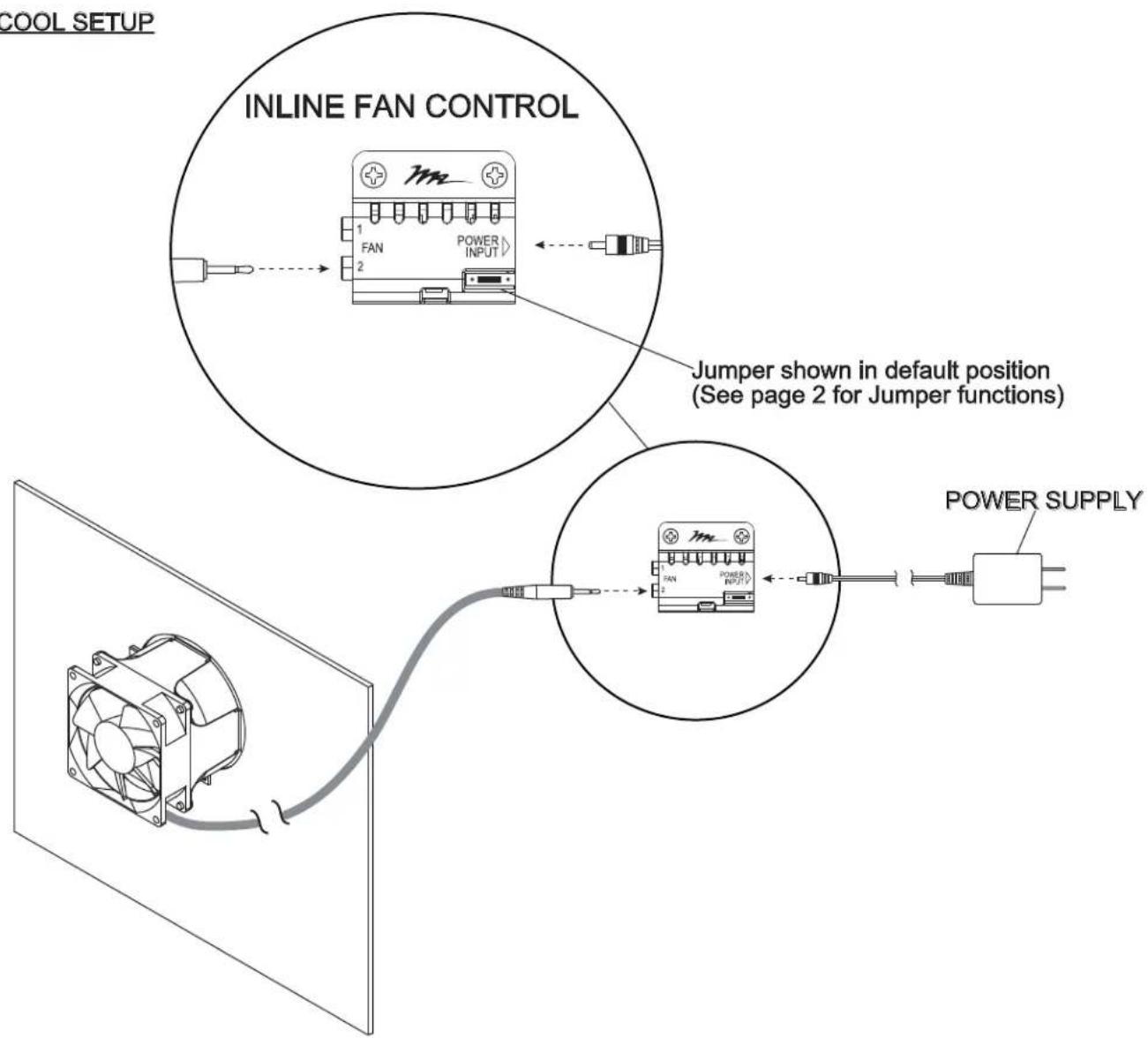

CAB-COOL SETUP

CAB-COOL-2 SETUP

INTAKE/EXHAUST OPTION

The CAB-COOL-2 allows for two fans to operate within the same cabinet as an intake/exhaust source.

This can be achieved by inverting one of the CAB-COOL fans so that the direction of airflow is opposite its counterpart.

INTAKE (Direction of airflow noted by arrow)

EXHAUST (Direction of airflow noted by arrow)

WARRANTY

Middle Atlantic Products, Inc. (the "Company") warrants the CAB-COOL Series Cabinet Cooler(s) to be free from defects in material or workmanship under normal use and conditions for a period of (3) three years from date of shipment by the Company.

The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and exclusive remedy, under this warranty shall be limited, at the Company's option, to either (a) return of and refund of the price paid for, or (b) repair or replacement at the Company's factory of the products purchased, or any part or parts thereof, which the Company has determined to be defective after inspection thereof at the Company's factory. This warranty does not cover damage due to acts of God, accident, misuse, abuse or negligence by parties other than the Company, or any modification or alteration of the products. In addition, this warranty does not cover damage due to improper handling, assembly, installation or maintenance.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF THE PRODUCTS PURCHASED, EVEN IF THE COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE COMPANY'S LIABILITY TO THE PURCHASER (OR ANY OTHER PARTY) HEREUNDER, IF ANY, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCTS PAID TO THE COMPANY.
