Product Type	Upright Freezer
Brand	White-Westinghouse
Model	WCFH 183 BW
Total Capacity	183 liters
Energy Class	A+
Annual Energy Consumption	280 kWh
Noise Level	40 dB
Climate Class	SN-T
Temperature Range	-18°C to -24°C
Defrosting Method	Manual defrost
Shelves	3 wire shelves
Freezer Drawers	3 drawers
Door Lock	Yes (with key)
Adjustable Feet	Yes
Weight	55 kg
Dimensions (H x W x D)	150 x 60 x 65 cm
Voltage / Frequency	220-240 V / 50 Hz
Power Cord Length	1.5 m
Refrigerant Type	R600a
Frost Free System	No
Interior Light	Yes
Temperature Control	Mechanical thermostat

Frequently Asked Questions - WCFH 183 BW White-Westinghouse

How to set the temperature on my White-Westinghouse WCFH 183 BW freezer?

Turn the thermostat dial inside the freezer. A higher number means a colder temperature. Usually, setting 3 or 4 is recommended for normal use.

How often should I defrost the freezer?

Defrost when frost buildup reaches about 5 mm (0.2 inches). This manual defrost model requires you to unplug the freezer, remove food, and let the ice melt.

Why is my freezer making unusual noises?

Normal noises include gurgling from refrigerant flow, clicking from the thermostat, and humming from the compressor. Ensure the freezer is level on a solid floor to reduce vibrations.

How can I reduce energy consumption?

Place the freezer away from heat sources, allow adequate air circulation around the unit, keep the door closed, and defrost regularly. An A+ energy rating already ensures efficiency.

What should I do if the freezer door does not close properly?

Check if the door gasket is clean and free of debris. Ensure the freezer is level and that nothing is blocking the door. Adjust the feet if needed.

How do I clean the freezer?

Unplug the freezer, remove all food and shelves. Clean the interior with a mild detergent and warm water. Do not use abrasive cleaners. Wipe dry before restarting.

What clearance is needed around the freezer?

Leave at least 10 cm (4 inches) on the back and sides for proper ventilation. The top should have 30 cm (12 inches) clearance for air circulation.

How long will food stay frozen during a power failure?

A fully loaded freezer can keep food frozen for about 24 hours if the door remains closed. Avoid opening the door during a power outage.

Can I use the freezer in a garage or unheated room?

The climate class SN-T allows operation in temperatures from +10°C to +43°C. In very cold environments (<10°C), the freezer may not maintain proper temperature.

Where can I find spare parts or service for my freezer?

Contact White-Westinghouse customer service or visit their website for authorized service centers. Common spare parts like door gaskets and thermostats are available.

USER MANUAL WCFH 183 BW White-Westinghouse

WCFH 153 BW WCFH 183 BW

CONTENTS

TECHNICAL SPECIFICATIONS ....2 page

SAFETY INSTRUCTIONS....3 page

Warnings and Guidelines

INSTALLATION 4-5 page

Position

Appliance Description

Control Panel

Starting up

Temperature regulation

Freezing

Tips

HOW TO USE 6 page

Temperature Control

Opening/Closing the Lid

Control Panel

Freezing

Packaging and Positioning

Capacity

HELPFUL HINTS ....7 page

Storage

Freezing

Defrosting

Accessories

MAINTENANCE 8 page

Defrosting

How to Clean Your Freezer

When Not in Use

IF SOMETHING DOES NOT WORK 9 page

ELECTRICAL CONNECTION....10 page

GUARANTEE CONDITIONS & SERVICE 12 page

TECHNICAL SPECIFICATIONS

Model		WCFH 153 BW	WCFH 183 BW
Volume (gross) litres		414	514
Volume (net) litres		404	502
Height without/with roller cm		87,6/88,3	87,6/88,3
Width cm		132,5	160
Depth cm		66,5	66,5
Weight kg		56	66
Energy consumpt./24h kWh		3,16	5,35
Freezing capacity kg/24h		29	20
Hold-over time	hours	21	22
Rated power	W	250	270

CE this appliance complies with the following EC Directives:

- 73/23/EEC of 19. 02. 1973 - Low-Voltage Directive

- 89/336/EEC of 03. 05. 1989 (including Amendment Directive 92/31/EEC - EMC Directive.

Some of the models are not available in all countries.

Testing has been carried out in accordance with ISO 5155 regarding the determination of freezer capacity, energy consumption and hold-overtime.

Information for test institute: A plan of the positioning of test packages may be obtained directly from the manufacturer.

WARNINGS AND GUIDELINES

These warnings are provided to improve safety, and should be read carefully before installing or using your freezer.

IMPORTANT

It is vital that these instructions are kept with the freezer for future use. If the freezer is sold or given to another user, or if you move and leave the freezer behind, you must ensure that the instructions accompany the freezer to enable the next user to use the freezer correctly and read the relevant warnings.

• This freezer is only intended for the freezing and storage of food.
• This freezer should only be operated by adults. Children must not be allowed to tamper with the control buttons or play with the freezer.
• Changes in the electrical mains system in connection with the installation of this freezer should always be carried out by an authorised electrician or competent person.
• Do not under any circumstances attempt to repair the freezer yourself. Repairs carried out by untrained people may result in personal injury or serious malfunction of the freezer.
• Service of the freezer should be carried out by an authorised service company, and only original spare parts should be used. See under "Guarantee Conditions and Service".
• It is dangerous to alter the freezer specifications, or to change the freezer in any other way.
• Make sure that the freezer is not placed on top of the mains cable.
• Do not re-freeze food once it has been defrosted.
• Observe the recommendations for storage carefully. See under "Helpful Hints".
• This freezer includes components that are heated during operation. Consequently, adequate ventilation must always be provided. If ventilation is insufficient defects may occur, resulting in the loss of food. See under "Installation".

• The inside of the freezer contains pipes through which coolant flows. If these pipes are punctured the freezer may be damaged beyond repair, and food may be lost. Do not use sharp implements to remove frost or ice. Frost can be removed using the enclosed scraper. Do not knock ice off the sides of the freezer, but remove it by defrosting the freezer. See under "Maintenance".

• Do not place drinks in the freezer. Bottles and cans containing carbonic acid or sparkling drinks are particularly prone to explosion, which may damage the freezer.

• This freezer is heavy. Take care when moving it.
• If the freezer is fitted with a lock to prevent tampering by children, the key must always be kept safely out of the reach of children, and far away from the freezer.
• Before disposing of an old freezer, make sure that the lock (if present) no longer works. This is to prevent accidents and avoid the danger of children getting locked inside.
• Ice lollies can cause frostbite if eaten direct from the freezer.
• Your appliance contains an environmental friendly natural gas, isobutane (R600a) as refrigerant, which is nevertheless flammable.
• During transportation and installation of the appliance, be sure that none of the components of the cooling circuit become damaged.
• If any part of the cooling circuit damaged:
• avoid naked flames and sources of ignition;
• thoroughly ventilate the room in which the appliance is installed.

IN THE INTERESTS OF THE ENVIRONMENT:

When disposing of your old fridge, freezer or fridge/freezer:

Check with your local Council or Environmental Health Officer to see if there are facilities in your area for collecting the gas from the appliance for recycling. This will help reduce the amount of CFC gas released into the atmosphere.

Help to keep your country tidy - when disposing of an old appliance or a CFC free appliance use an authorised disposal site.

INSTALLATION

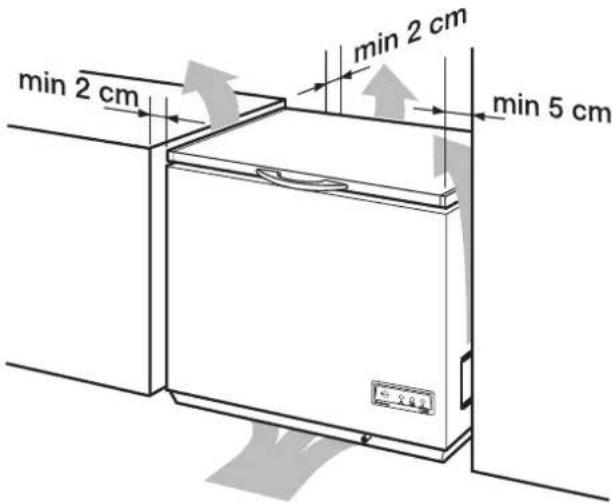

POSITION

• Place the freezer horizontally on a firm surface, resting on all four plastic feet. Use a wooden block or similar object to compensate for any bumps/holes in the surface.
• The room should be dry and adequately ventilated.

If the room temperature exceeds 32^ C, or falls below freezing point, the freezer will not function as it should.

• Do not place the freezer close to sources of heat, radiators, chimneys, etc., and do not place the freezer in direct sunlight.
• If the freezer has been handled standing on end it should be allowed to stand in normal position for about 12 hours before switching it on.
• Please ensure that when the appliance is installed it is easily accessible for the engineer in the event of a breakdown.

Appliance Description

Control Panel

1 temperature regulator
2 green mains operating light
3 fast freeze switch with amber light
4 red temperature warning light

Starting up

• Please clean the appliance interior and all accessories prior to initial start-up (see section: „Cleaning and Care”).
• Insert the mains plug of your chest freezer into the mains supply. Your appliance is then operational.

The green mains operating light (2) and red temperature warning light (4) show, and the acoustic temperature warning sounds.

The green mains operating light indicates operation and must continuously show.

The red temperature warning light tells you that the storage temperature has not yet been attained.

If you additionally operate the fast freeze switch (3), the amber pilot light in the switch (3) illuminates, and the refrigerating unit operates in continuous mode.

When the fast freeze switch is pressed, the acoustic temperature warnin immediately stops.

If you switch off the fast freeze switch (3) when the red temperature warning light (4) has gone out, the amber light goes out.

The red temperature warning light (4) and acoustic temperature warning give an alarm if:

— the storage temperature has not yet been reached (starting up).
- the minimum storage temperature is no longer being maintained (fault).

INSTALLATION

— large quantities of fresh food have been placed inside.
— the chest lid has been open for too long.

The red temperature warning light (4) and acoustic temperature warning give no warning:

— if the power supply is interrupted;
- if the thermostat is defective.

Important: Check regularly on the red

temperature warning light and on a thermometer

placed inside whether the storage temperature is being maintained.

Temperature regulation

The temperature inside the freezer is controlled by the thermostat control knob situated on the control panel. To operate the freezer, proceed as follows:

When you first start the freezer it is recommended that the thermostat control knob is turned to a medium setting (3-4). The correct setting can be found by measuring the temperature of the top middle package in the freezer. The temperature must be 18°C or colder.

1 = Lowest setting, minimum cold
7 = Highest setting, maximum cold.

Allow the freezer to run for several hours before placing food inside.

Do not fill the freezer to higher than 5mm below the lower edge of the plastic frame.

A coin has to be used to turn the temperature control knob. This makes it more difficult to inadvertently adjust the temperature (child protection).

Since the ambient temperature, type and quantity of stored frozen food, and frequency and duration of lid opening affect the storage temperature of -18 °C or colder, you should check the internal temperature on a thermometer.

Set the temperature control knob so that the indicated temperature is-18 °C or colder.

Important: If you operate the fast freeze switch or adjust the temperature control knob, it may happen that the refrigerating unit of your chest freezer does not start immediately. This is normal and not a fault with the appliance.

Freezing

To freeze fresh foods use the small freezing compartment on the right of the dividing partition. This enables you to separate already frozen foods from fresh foods. Always make sure already frozen goods cannot defrost by coming into contact with fresh products. If the freezing compartment is too small you can freeze part of the products in the large storage section on the left of the dividing partition.

Attention!

Before freezing food the temperature in the freezer must be -18 °C or colder.

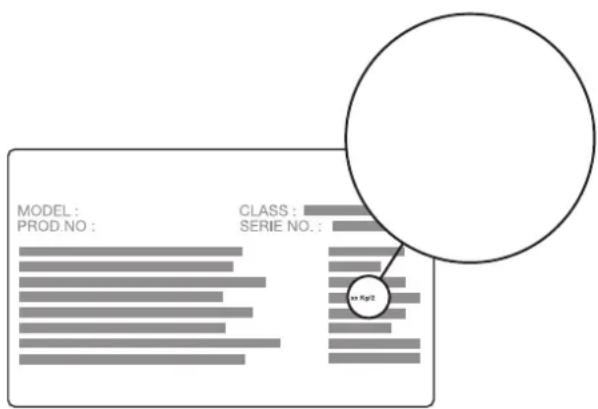

Please observe the indicated freezing capacity on the rating plate. The freezing capacity represents the maximum amount of fresh goods that can be frozen within 24 hours. If you freeze goods on several days, one after the other, freeze amounts equal to 2/3 to 3/4 of the capacity indicated on the rating plate.

Thawed foods which have not been processed further (cooked into meals) may not under any circumstances be frozen a second time.

To freeze the maximum quantity of fresh food quoted on the rating plate press the QUICK FREEZE button 24

hours prior to freezing, or 4 to 6 hours for smaller quantities. The amber fast freeze light illuminates.

The QUICK FREEZE button need not be pressed for freezing small quantities of up to 3 kg.

All foods must be packed air tight prior to freezing, so that they do not dry out or lose their flavour, and so that no transfer of flavour to other frozen goods occurs.

Caution! Do not touch the frozen foods with wet hands. Hands can freeze to the goods.

• Place the packed food products into the freezer. Ensure they come into contact with the side walls. Unfrozen goods may not come into contact with already frozen goods, otherwise the frozen goods may start to thaw.
• If more products have to be frozen, keep on the fast freeze switch - otherwise switch the fast freeze function off about 24 hours after inserting the food products, for smaller quantities earlier.

Tips:

• The following are suited for the packaging of frozen goods:
  — freezer bags and polyethylene wraps;
• special cans for frozen goods;

• extra-thick aluminium foil

• The following are suitable for closing bags and foil: plastic clips, rubber bands or adhesive tape.

• Before closing press out the air from the bags and foil, as air makes the frozen products dry out more easily and wastes space.
• Make flat packages, because these freeze more quickly.
• Do not fill cans for frozen goods to the brim with liquid or paste-like goods, because liquids expand during freezing.

PACKAGING AND POSITIONING

Food must be cold before freezing (no more than room temperature).

Food must be packed in airtight and moisture-proof packaging to prevent it from drying out.

Place fresh food for freezing close to the cold sides of the freezer, making sure that it is not in contact with the frozen food already in the freezer.

Never fill the freezer to more than 5 mm below the top edge.

See under "Helpful hints".

CAPACITY

The freezing capacity of the freezer is stated in the data plate (kg/24 hours). Do not exceed the amount stated - if you do, the freezing time will be extended. The data plate is located inside the lid.

LOCK

(Not a standard accessory for all models.) The lock works as shown in the drawings. Remember to keep the key out of the reach of children.

BASKETS

The baskets are designed for the storage of food which has already been frozen. The handles can be placed in two positions, as shown in the drawings. The baskets can either be placed inside the freezer or hung on the edge of the casing.
