SWC12S - Wine cellar SWAN - Free user manual and instructions

Product Type	Wine Cellar
Brand	SWAN
Model	SWC12S
Capacity	12 standard wine bottles
Dimensions (W x D x H)	26 x 51 x 52 cm (approx.)
Weight	12 kg (approx.)
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	70 kWh/year (approx.)
Energy Class	G (EU energy label)
Temperature Range	5°C to 18°C
Climate Class	N (16°C to 32°C ambient)
Noise Level	42 dB (approx.)
Refrigerant	R600a
Shelves	3 removable wire shelves
Interior Light	LED, soft glow
Control Type	Mechanical thermostat dial
Door Type	Full glass door, reversible
Lock	Key lock included
Defrost	Automatic (frost-free)
Installation	Freestanding
Maintenance & Cleaning	Wipe interior with damp cloth; clean condenser yearly
Safety Features	Child lock (mechanical), tempered glass
Spare Parts & Repairability	Available via Swan service: shelves, thermostat, door gasket
General Information	Designed for red and white wine storage; vibration-free compressor

Frequently Asked Questions - SWC12S SWAN

What is the capacity of the SWAN SWC12S wine cellar?

The SWAN SWC12S can hold up to 12 standard 750 ml wine bottles.

What is the temperature range of this wine cellar?

The adjustable temperature range is 5°C to 18°C, ideal for both red and white wines.

Does the SWC12S have a lock?

Yes, it comes with a key lock to secure your collection.

Is the glass door UV-protected?

The door is made of tempered glass with UV protection to shield wine from light.

How do I clean the wine cellar?

Unplug the unit, remove bottles and shelves, then wipe the interior with a damp cloth. Avoid abrasive cleaners.

Can I reverse the door?

Yes, the door is reversible. Instructions for reversal are in the manual.

What type of refrigerant does it use?

It uses R600a, an eco-friendly refrigerant.

Is the wine cellar noisy?

Noise level is approximately 42 dB, which is quiet enough for a living space.

How often should I defrost it?

The SWC12S features automatic defrost (frost-free), so no manual defrosting is needed.

What is the energy consumption?

Estimated energy consumption is about 70 kWh per year, with energy class G.

USER MANUAL SWC12S SWAN

Model Numbers: SWC12S

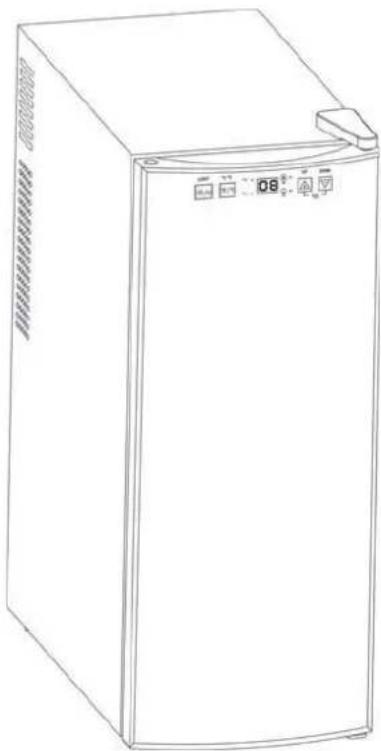

WINE COOLER

(Image may vary)

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

TABLE OF CONTENTS

Parts and Features 4

Important Safety Instructions 5

Installation Instructions 5

Before Using Your Wine Chiller 5

Installation of Your Wine Chiller 5

Electrical Connection 6

Extension Cord 6

Operating Your Wine Chiller 7

Temperature Control 7

Storage Capacity 8

Interior Light 8

Care and Maintenance 8

Cleaning Your Wine Chiller 8

Power Failure 8

Moving Your Wine Chiller 8

Energy Saving Tips 8

Troubleshooting Guide 9

Wiring Diagram 10

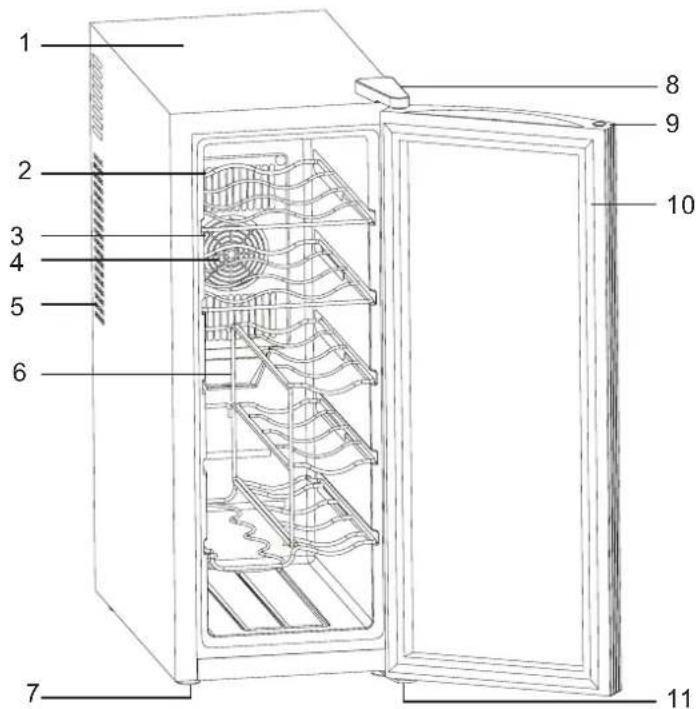

PARTS & FEATURES

SWC12S

1.	Cabinet	7.	Leveling legs
2.	Shelf(Total 2)	8.	Upper Door Hinge w/ Cover
3.	Cold sink fan	9.	Glass Door
4.	Cold sink Fan Cover	10.	Gasket
5.	Ventilation Holes	11.	Bottom hinge
6.	Shelf Assembly (Total 1)Vertical Spaces (4 bottles)Horizontal Spaces (4 bottles)

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

Read all instructions before using the Wine Chiller.DANGER or WARNING: Risk of child entrapment.Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous . . . even if they will “just sit in the garage a few days”.Before you throw away your old Wine Chiller: Take off the door. Leave the shelves in place so that children may not easily climb inside.Never allow children to operate, play with, or crawl inside the appliance.Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.Do not repair or replace any part of the wine chiller or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions. Replace the fuse with the same type.-Save these instructions-

INSTALLATION INSTRUCTIONS

Before Using Your Wine Chiller

• Remove the exterior and interior packing.
• Check to be sure you have all of the following parts:
  (5) Shelves
  • (1) Instruction Manual

Clean the interior surface with lukewarm water using a soft cloth.

Installation of Your Wine Chiller

• This Wine Chiller is designed to be free standing installation only, and should not be recessed or built-in (Fully recessed).
• Place your Wine Chiller on a surface that is strong enough to support it when it is fully loaded.
• Allow 5 inches of space between the back and sides of the wine chiller, which allows the proper air circulation to cool the heat sink.
• Locate the Wine Chiller away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.
• This Wine Chiller uses superconductor refrigeration technology (no compressor) and is not designed for storage in hot areas like garages, warehouses or outdoors since it is designed to operate at a maximum of 30 degrees below the ambient temperature.
• Avoid locating the unit in moist areas.
• Plug the Wine Chiller into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Avanti Products service center.
  • After plugging the Wine Chiller into a wall outlet, allow the unit to cool down for 2-3 hours before

placing any items in the compartment.

Electrical Connection

Warning

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center.

This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.

Do not under any circumstances cut or remove the third ground prong from the power cord supplied. For personal safety, this appliance must be properly grounded.

This appliance requires a standard 220 Volt AC \~/60Hz electrical ground outlet with three-prong. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.

The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.

The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the appliance, be careful not to damage the power cord.

Extension Cord

Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an extension cord with this appliance.

SURGE PROTECTOR

Most electrical appliances use a series of electric control boards to operate. These boards are very susceptible to power surges and could be damaged or destroyed.

If the appliance is going to be used in an area or if your city / country is prone to power surges / outages; it is suggested that you use a power surge protector for all electrical devices / appliances you use. The surge protector that you select must have a surge block high enough to protect the appliance it is connected to. If you have any questions regarding the type and size of surge protector needed contact a licensed electrician in your area.

Damages due to power surges are not considered a manufacturer covered defect and will void your product warranty.

It is recommended you install the Wine Chiller in a place where the ambient temperature is between 23°-26°C . If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate. The range of 12°-18°C may not be reached.

Temperature Ranges For Your Wine Chiller

Temperature Range 12 - 18°C

CONTROL PANEL

LIGHT

°F °C

°F

O

°C

0

O RED

WHITE

UP

DOWN

SETTING THE TEMPERATURE CONTROL
Your Wine Cellar has been equipped with an "automatic" control panel lock, that will activate 12 seconds after the last time a button has been touched.

Push the Ⓐ and Ⓥ button simultaneously for 3 seconds to unlock the control panel. You will hear a "BEEP" sound to alert you that the control is now active.

You can set the temperature as you desire by pushing the Ⓐ or ▽ button on the control panel for each zone. The temperature that you desire to set will increase 1°F or 1°C if you push the Ⓐ button once, on the contrary the temperature will decrease 1°F or 1°C if you push the ▽ button once.

NOTE:

- When you use the wine chiller for the first time or restart the wine chiller after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the wine chiller is running for a few hours everything will be back to normal.

Storage Capacity

Many bottles may differ in size and dimensions. As such the actual number of bottles you may be able to store may vary. Bottle capacities are approximate maximums when storing traditional Bordeaux 750ml bottles and include bulk storage.

Interior Light

You can turn the interior light ON or OFF by pushing the button marked with the "Light" symbol. The light will be turned off automatically if it remains ON for 10 minutes. You have to push the button marked with the "Light" symbol again and the light will turn back on.

CARE AND MAINTENANCE

Cleaning Your Wine Chiller

• UNPLUG the Wine Chiller, and remove all items including shelves.
- Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
- Wash the shelves with a mild detergent solution.
- Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
- Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.

CAUTION

Failure to unplug the Wine Chiller could result in electrical shock or personal injury.

Power Failure

- Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

Moving Your Wine Chiller

• Remove all bottles.
• Securely tape down all loose items (shelves) inside your appliance.
• Tape the door shut.
• Protect outside of appliance with a blanket, or similar item.

Energy Saving Tips

• The Wine Chiller should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.
• One characteristic of superconductor units is the length of time it requires to recover from having the door opened and shut frequently. It may be necessary to wait longer for the temperature to return to its former level once the door has been opened for too long. This is normal for this type of unit.

PROBLEMS WITH YOUR WINE CHILLER?

You can solve many common Wine Chiller problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE CAUSE
Wine Chiller does not operate.	Not plugged in.The circuit breaker tripped or a blown fuse.
Control panel is locked	Push the Ⓐ and ▼ button simultaneously for3 seconds to unlock the control panel.Wait for beep sound.
Wine Chiller is not cold enough.	Check the temperature control setting.External environment may require a higher setting.The door is opened too often.The door is not closed completely.The door gasket does not seal properly.The Wine Chiller does not have the correct clearances.Abnormal voltage.
The light does not work.	Not plugged in.The circuit breaker tripped or a blown fuse.The light button is “OFF”.
Vibrations.	Check to assure that the Wine Chiller is level.
The door will not close properly.	The Wine Chiller is not level.The door was not properly installed.The gasket is dirty.The shelves are out of position.

WIRING DIAGRAM

Swan Appliances

Warranty / terms and conditions:

WARRANTY:

Swan Appliances warrants this product is of good quality, in good working order and free of any defects in material and workmanship and will be useable and durable for a period of 24 (twenty four) months from the date of purchase and complies with any applicable standards set under the Standards Act 1993 (Act No 29 of 1993).

TERMS AND CONDITIONS OF THE WARRANTY:

1. This warranty is only to be used by the original purchaser of the product and cannot be ceded, assigned, transferred or handed to any other person.
2. Swan Appliances' in its sole discretion can either repair or replace the defective appliance.
3. Should the defective appliance be situated further than 50 km from the nearest Swan Service Centre or authorized dealer, then Swan Appliances shall be entitled to charge the consumer a travelling charge for any distance further than 50km.
4. The appliances has been designed and manufactured for normal domestic use only and the warranty will not be valid if it was not used for domestic purposes only.

LIMITATION OF WARRANTY:

1. Swan Appliances has no liability or responsibility in respect of any second hand goods;
2. Swan Appliances has no liability to any subsequent purchasers;
3. Swan Appliances has no liability if the appliance is defective due to any damage, loss due to the gross negligence of the consumer or due to the faulty installation, accidental damages, incorrect usage, misuse or abuse or failure to follow the operational instruction by the Consumer;
4. Swan Appliances has no liability of the appliance is damaged or destroyed as a result of any Acts of God;
5. Swan Appliances has no liability and this warrant is not valid if the appliance is dismantled or any repairs was done to the appliance or any other parts were inserted;
6. Swan Appliances has no liability if the serial number of the appliances has been removed;
7. Swan Appliances has no liability and will not be responsible to replace any light bulbs, fuses, glass plates or bowls, remote controls, bags, burners or any other item which Swan Appliance in its sole discretion determines that the life of such item depends on the amount of use and care taken in respect of such item;
8. Swan Appliances has no liability of any nature and will also not be responsible for any costs, should no fault have been found regarding the appliance.

Go to www.swan-brand.co.za to register your warranty or to see what other exciting products are available.

You can scan the below QR barcode to go directly to the website on your smartphone.

www.swan-brand.co.za
