Product Type	Graphics Card
Model	AGP-V6800 Pure (32M)
Brand	ASUS
GPU	NVIDIA GeForce 256
Memory Size	32 MB DDR SDRAM
Memory Interface	128-bit
Bus Type	AGP 4X
Core Clock	120 MHz
Memory Clock	166 MHz
RAMDAC	350 MHz
Max Resolution	2048x1536 @ 75 Hz
Connectivity	VGA, S-Video, DVI (optional)
DirectX Support	DirectX 7.0
API Support	OpenGL 1.2
Power Requirements	250W PSU recommended
Dimensions	Approx. 4.8 x 6.8 inches (12.2 x 17.3 cm)
Weight	Approx. 0.5 lbs (230 g)
Maintenance	Keep clean with compressed air; avoid moisture
Safety	Handle by edges; ground yourself to prevent ESD
Spare Parts & Repairability	Non-user serviceable; seek professional repair

Frequently Asked Questions - AGP-V6800 Pure (32M) ASUS

What operating systems are compatible with the ASUS AGP-V6800 Pure?

The card supports Windows 98/ME/2000/XP and older versions. Drivers are available for these systems.

How do I install the drivers for this graphics card?

Insert the included CD-ROM and run the setup. Alternatively, download the latest drivers from NVIDIA's website for the GeForce 256.

Can I use this card with a modern motherboard?

The card uses AGP 4X slot. It may work in older AGP slots but not in PCIe slots. Compatibility with modern motherboards is limited.

What is the maximum resolution supported?

The ASUS AGP-V6800 Pure supports resolutions up to 2048x1536 at 75 Hz refresh rate.

How much power does this card consume?

The card draws about 15-20 watts. A 250W power supply is recommended for stable operation.

Does this card support TV output?

Yes, it includes an S-Video output for connecting to a TV. Some models may also have composite video.

Why is my screen flickering or showing artifacts?

Check the driver installation and ensure the card is seated properly. Overheating can also cause artifacts; clean the fan and heatsink.

How do I clean the graphics card?

Use compressed air to remove dust from the fan and heatsink. Do not use liquids. Keep the card dry and static-free.

How can I check the memory size?

Open DirectX Diagnostic Tool (dxdiag) or use GPU-Z. The card has 32 MB of DDR SDRAM.

What should I do if the card is not detected?

Reseat the card in the AGP slot, ensure the power cable is connected (if required), and update the motherboard BIOS.

User questions about AGP-V6800 Pure (32M) ASUS

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Video card in PDF format for free! Find your manual AGP-V6800 Pure (32M) - ASUS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AGP-V6800 Pure (32M) by ASUS.

USER MANUAL AGP-V6800 Pure (32M) ASUS

V6600 / V6800 Series

3D Graphics Cards

USER'S MANUAL

Hardware & Video Drivers

AGP-V6800 Deluxe / 32MB

AGP-V6800 (Pure) / 32MB

AGP-V6600 Deluxe / 32MB

AGP-V6600 (Pure) / 32MB

AGP-V6600 MX

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. ("ASUS").

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

• NVIDIA, GeForce 256, and combinations thereof are trademarks of NVIDIA Corporation.
- Windows, MS-DOS, and DirectX are registered trademarks of Microsoft Corporation.
- Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.

The product name and revision number are both printed on the product itself. Manual revisions are released for each product design represented by the digit before and after the period of the manual revision number. Manual updates are represented by the third digit in the manual revision number.

For previous or updated manuals, BIOS, drivers, or product release information, contact ASUS at http://www.asus.com.tw or through any of the means indicated on the following page.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Product Name: ASUS V6600 / V6800 Series

Manual Revision: 1.02 E803

Release Date: July 2001

ASUSTeK COMPUTER INC. (Asia-Pacific)

Marketing

Address: 150 Li-Te Road, Peitou, Taipei, Taiwan 112

Telephone: +886-2-2894-3447

Fax: +886-2-2894-3449

Address: 6737 Mowry Avenue, Mowry Business Center, Building 2

Newark, CA 94560, USA

Fax: +1-510-608-4555

Email: tmd1@asus.com

Technical Support

Fax: +1-510-608-4555

Email: tsd@asus.com

WWW: www.asus.com

FTP: ftp.asus.com/Pub/ASUS

ASUS COMPUTER GmbH (Europe)

Marketing

Address: Harkortstr. 25, 40880 Ratingen, BRD, Germany

Fax: +49-2102-442066

Email: sales@asuscom.de (for marketing requests only)

Technical Support

Hotline: MB/Others: +49-2102-9599-0 Notebook: +49-2102-9599-10

Fax: +49-2102-9599-11

Support (Email): www.asuscom.de/de/support (for online support)

WWW: www.asuscom.de

FTP: ftp.asuscom.de/pub/ASUSCOM

1. Introduction ......7

Highlights....7

Available Models ....7

ASUS AGP-V6800 Deluxe 7

ASUS AGP-V6800 (Pure) 7

ASUS AGP-V6600 Deluxe 7

ASUS AGP-V6600 (Pure) 7

ASUS AGP-V6600 MX 7

Common Features ....8

2. Hardware Installation ......9

ASUS AGP-V6800 Deluxe Layout 9

ASUS AGP-V6800 (Pure) Layout 10

ASUS AGP-V6600 Deluxe Layout ....11

ASUS AGP-V6600 (Pure) Layout 12

ASUS AGP-V6600 MX Layout 13

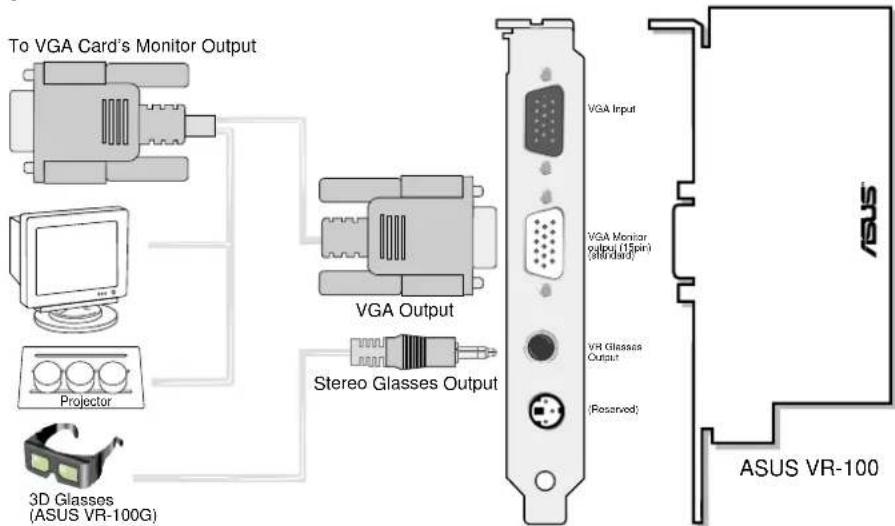

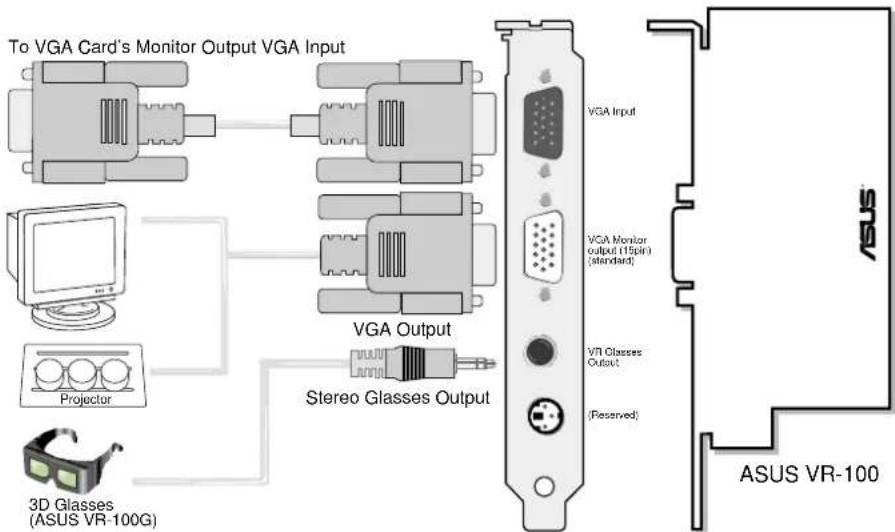

ASUS VR-100 Optional Upgrade Kit ....14

Installation Procedures....15

New Systems ....15

Systems with Existing VGA Card ....15

3. Software Setup ....16

Operating System Requirements ......16

Windows 98....16

Driver Setup 17

Method 1: ASUS Quick Setup Program....17

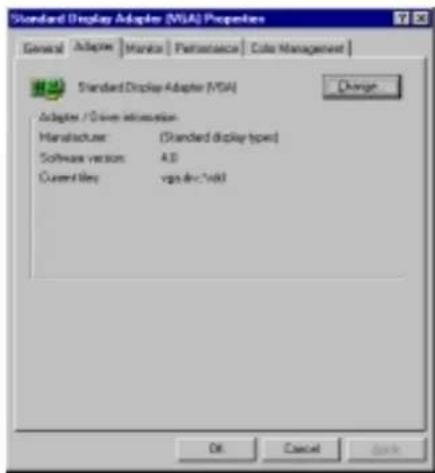

Method 2: Display Property Page ......18

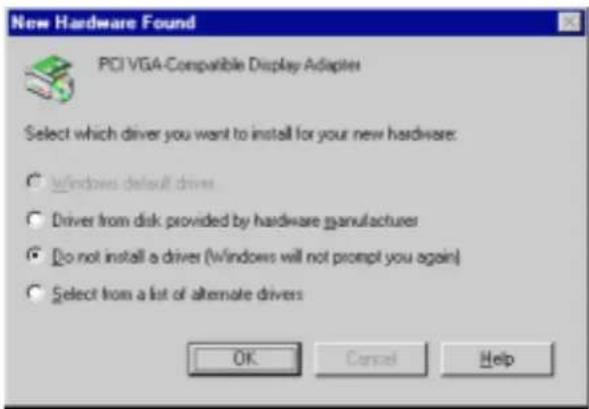

Method 3: Plug and Play ....19

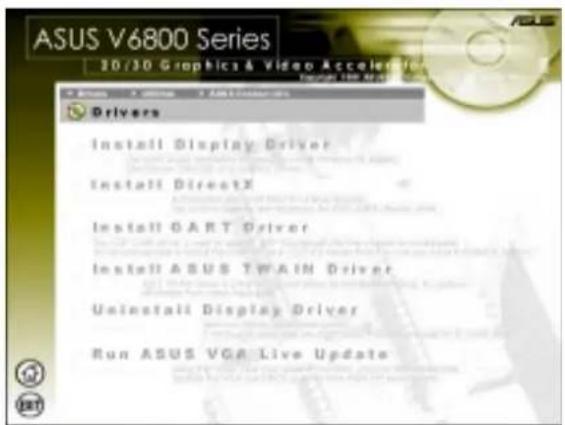

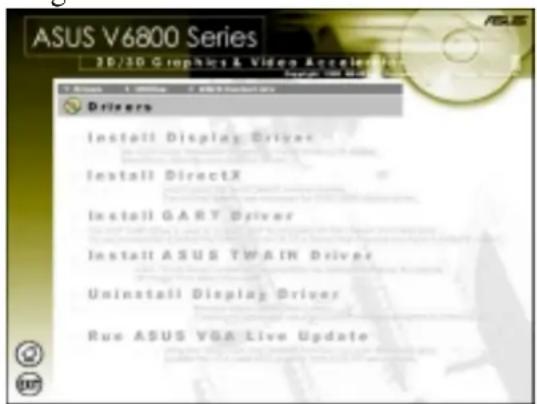

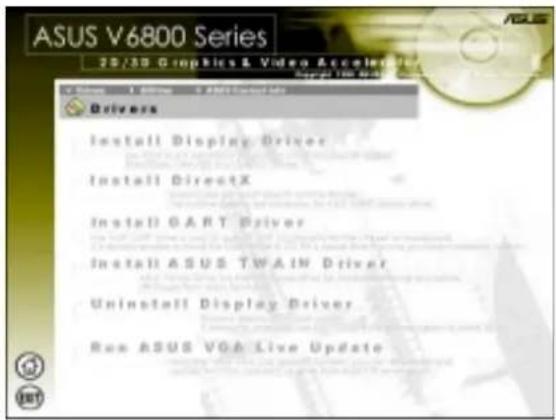

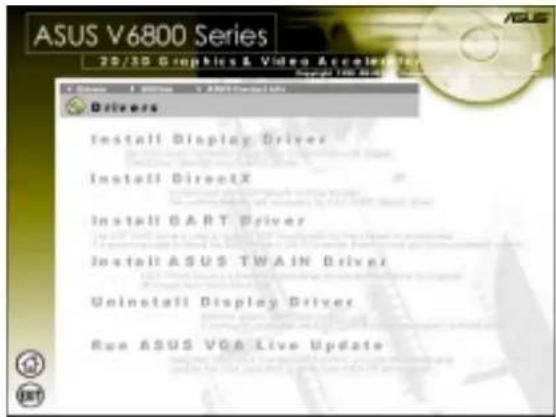

Drivers 20

Install Display Driver 20

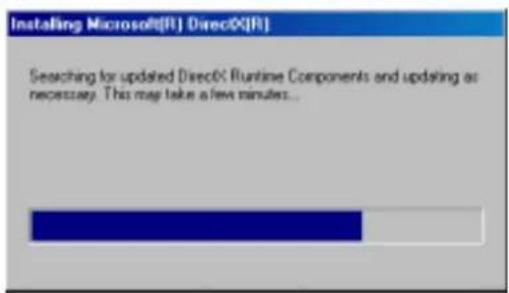

Install DirectX 21

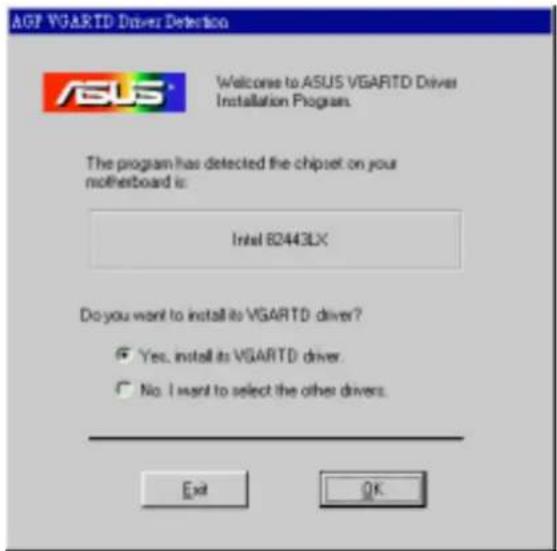

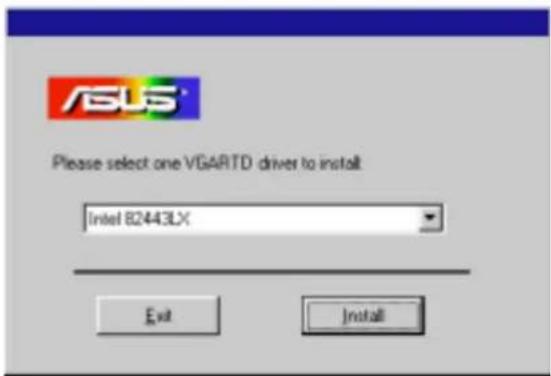

Install GART Driver....22

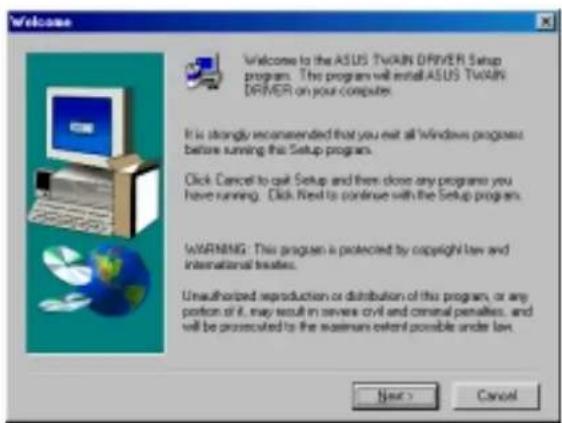

Install ASUS TWAIN Driver 25

Uninstall Display Driver 26

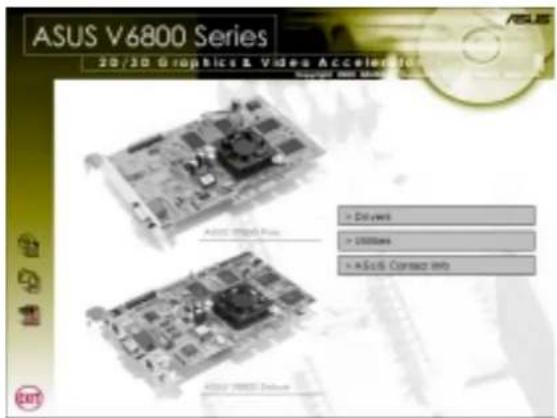

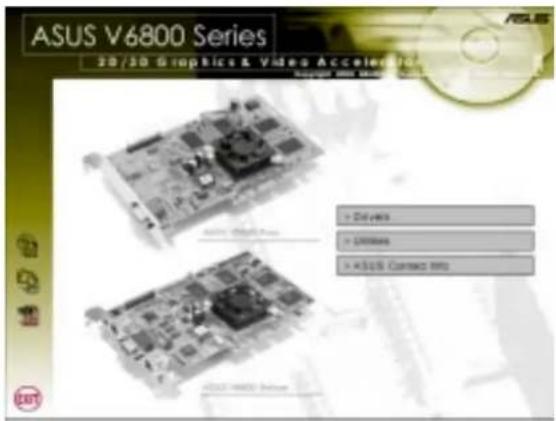

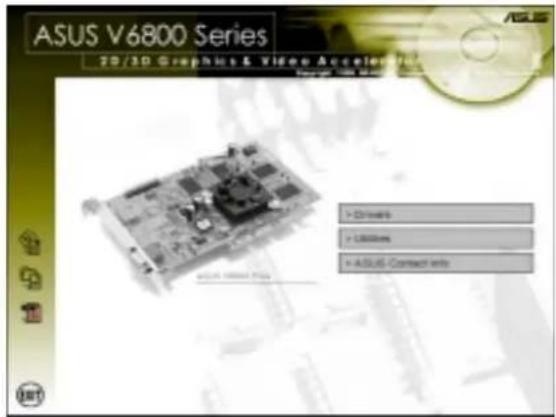

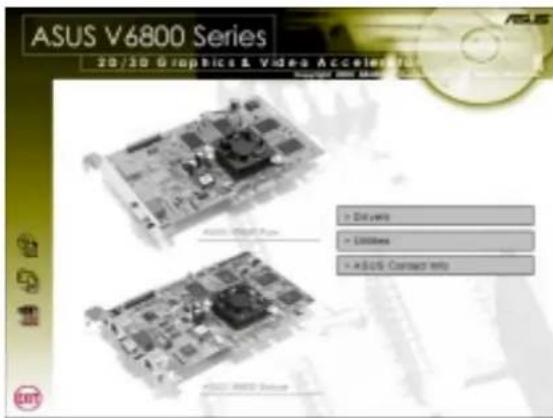

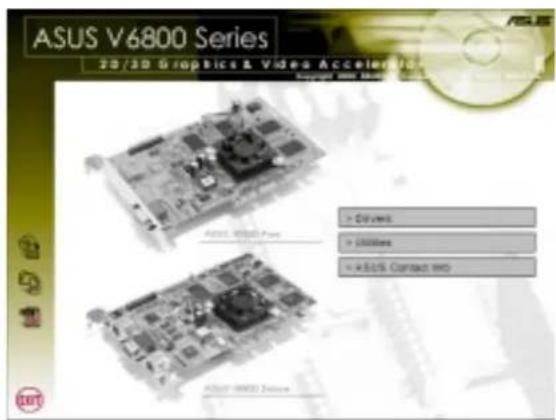

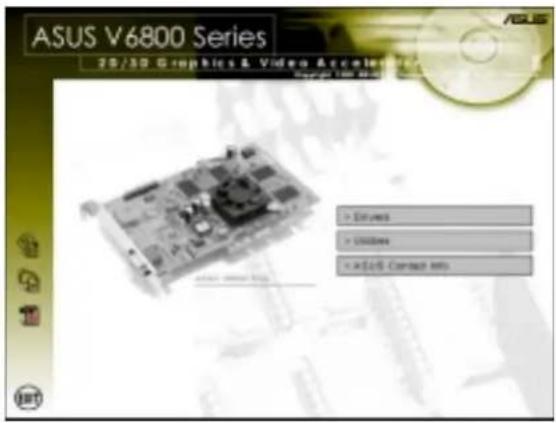

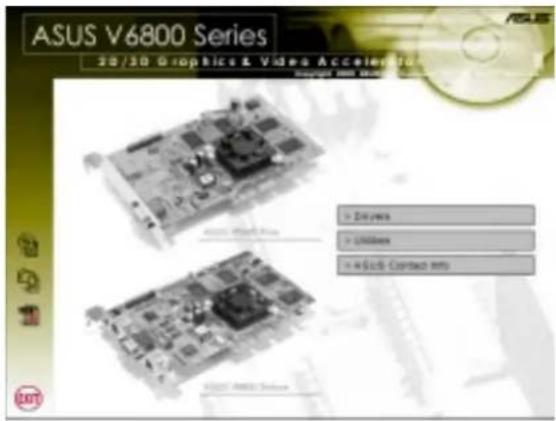

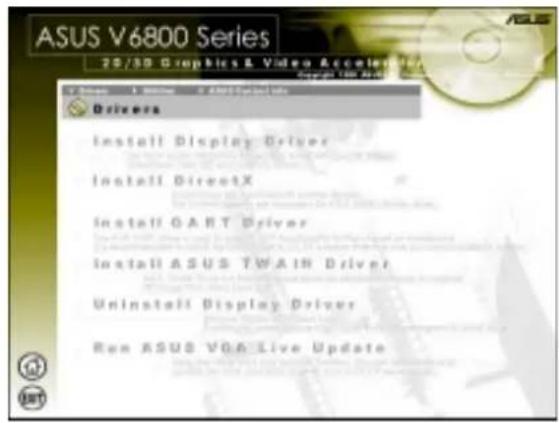

Using the Autorun Screen....26

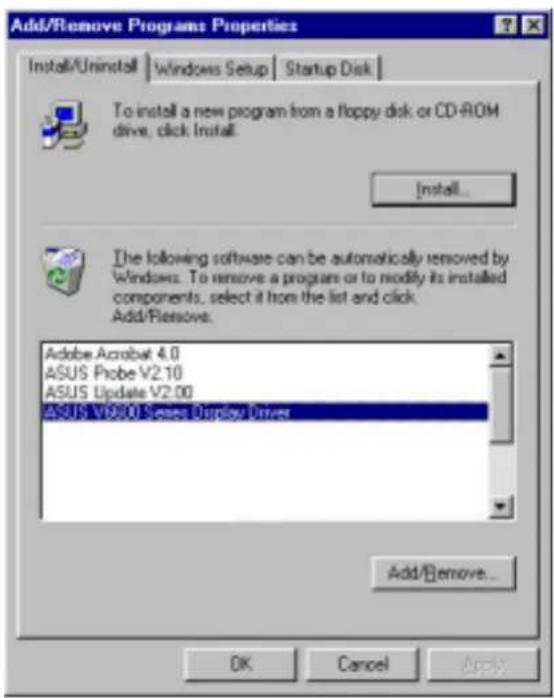

Using Windows 98 Control Panel ......26

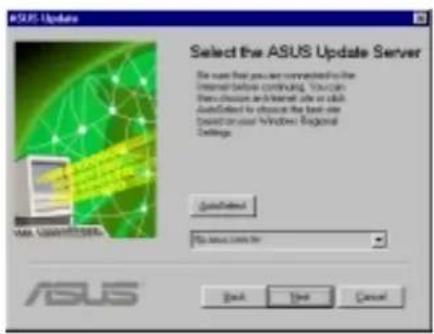

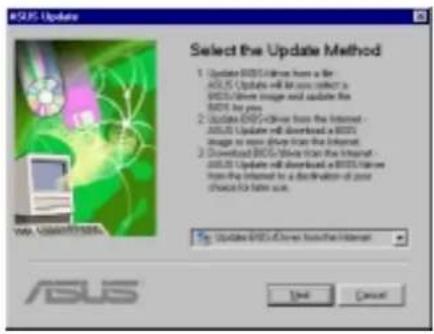

Run ASUS VGA Live Update 27

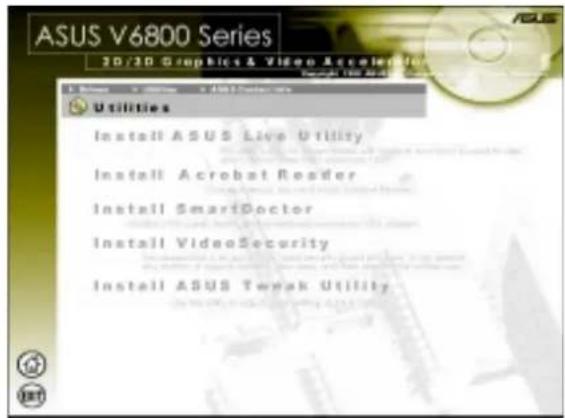

Utilities....28

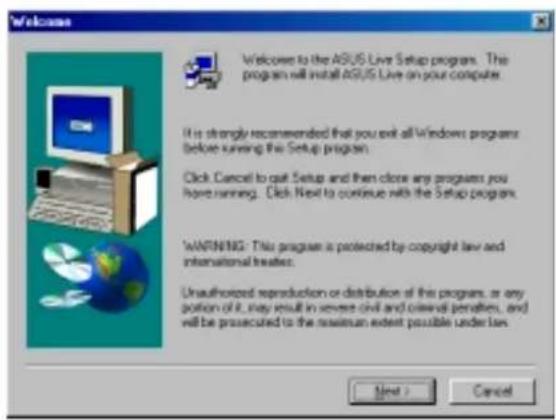

Install ASUS Live Utility 28

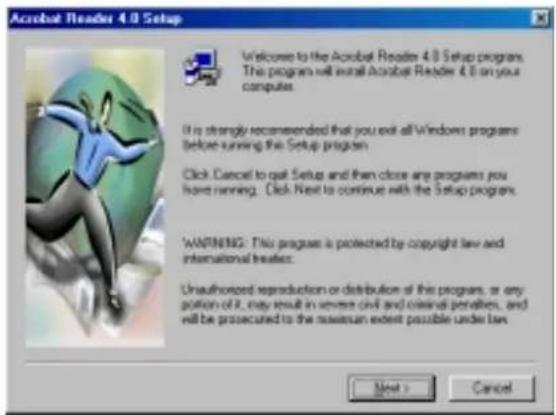

Install Acrobat Reader....29

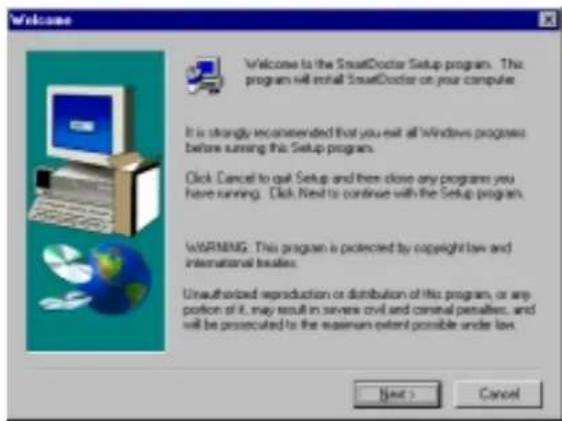

Install SmartDoctor ....30

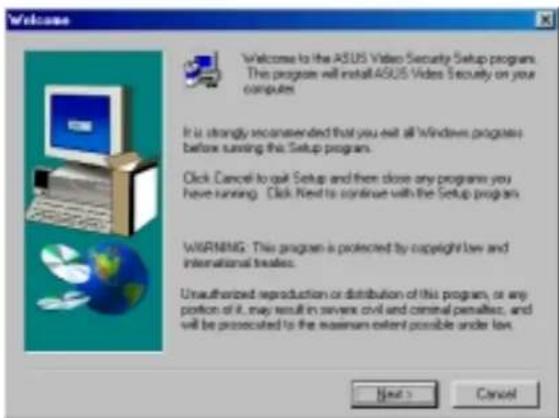

Install VideoSecurity ....31

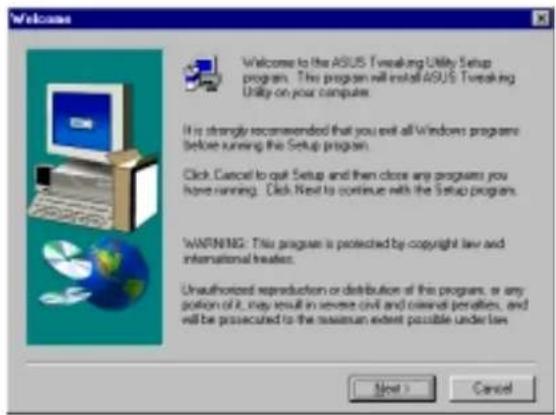

Install ASUS Tweak Utility 32

4. Software Reference......33

Using the Utilities ....33

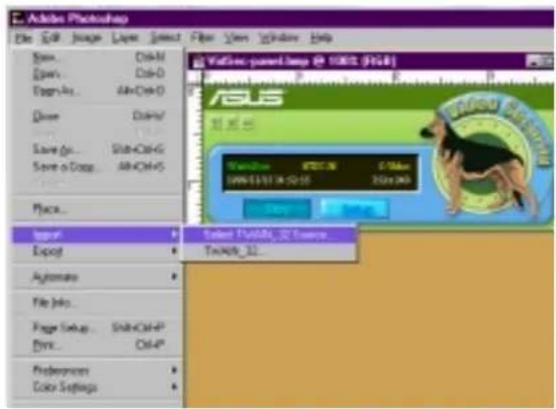

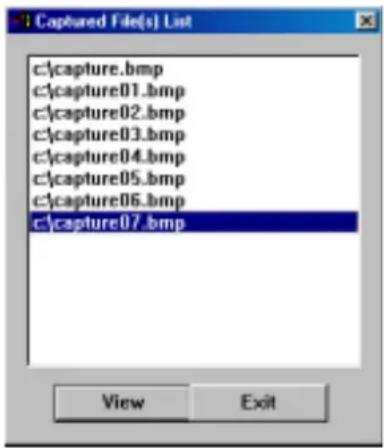

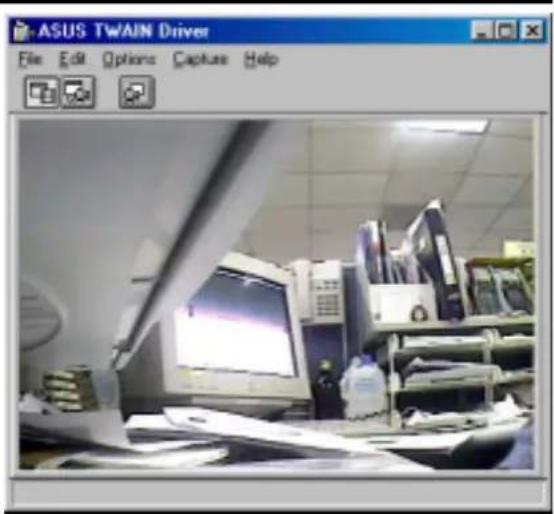

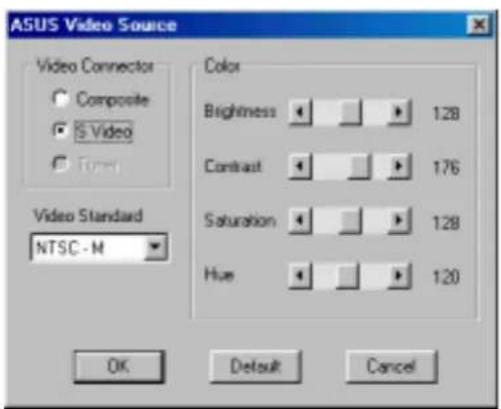

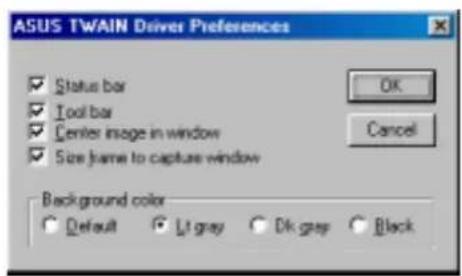

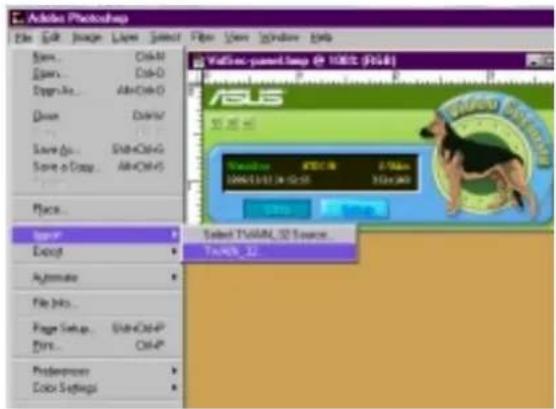

ASUS TWAIN Interface....33

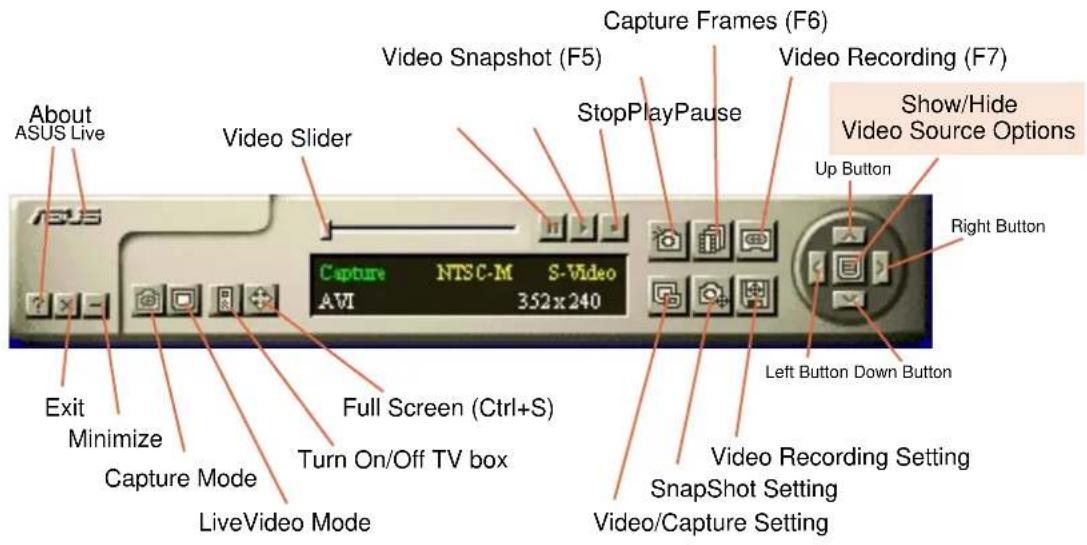

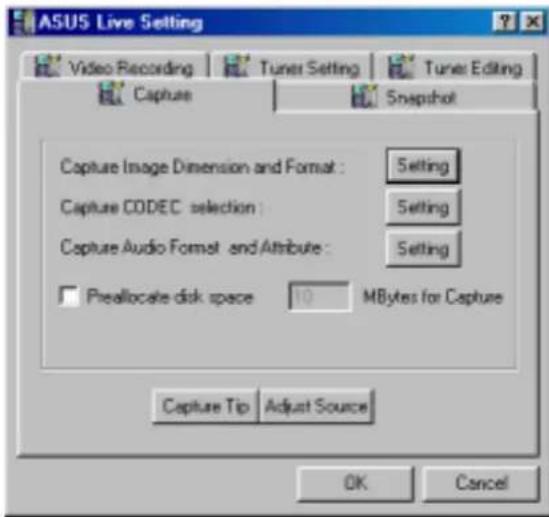

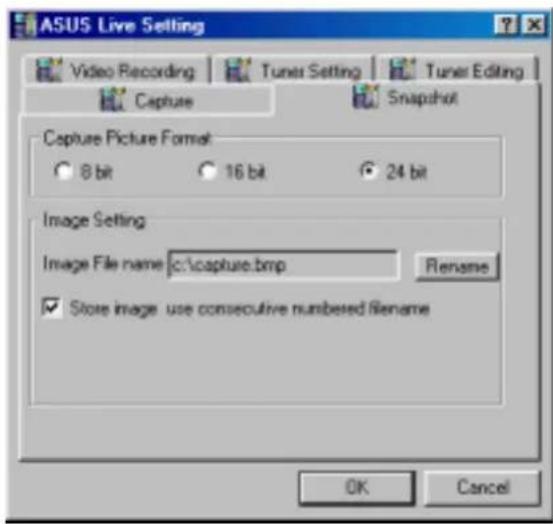

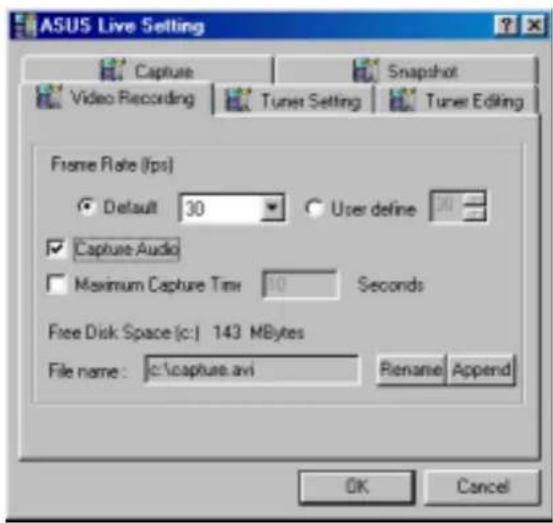

ASUS Live Utility 35

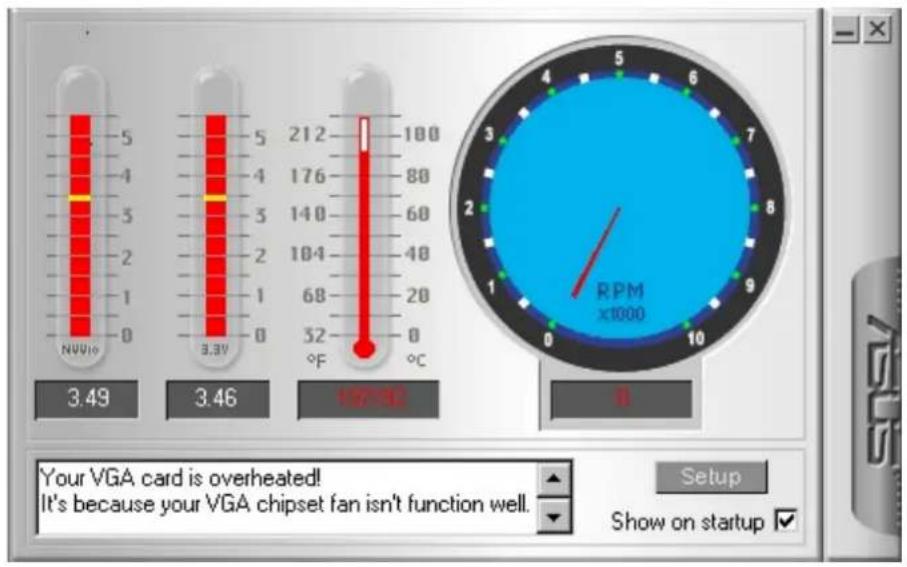

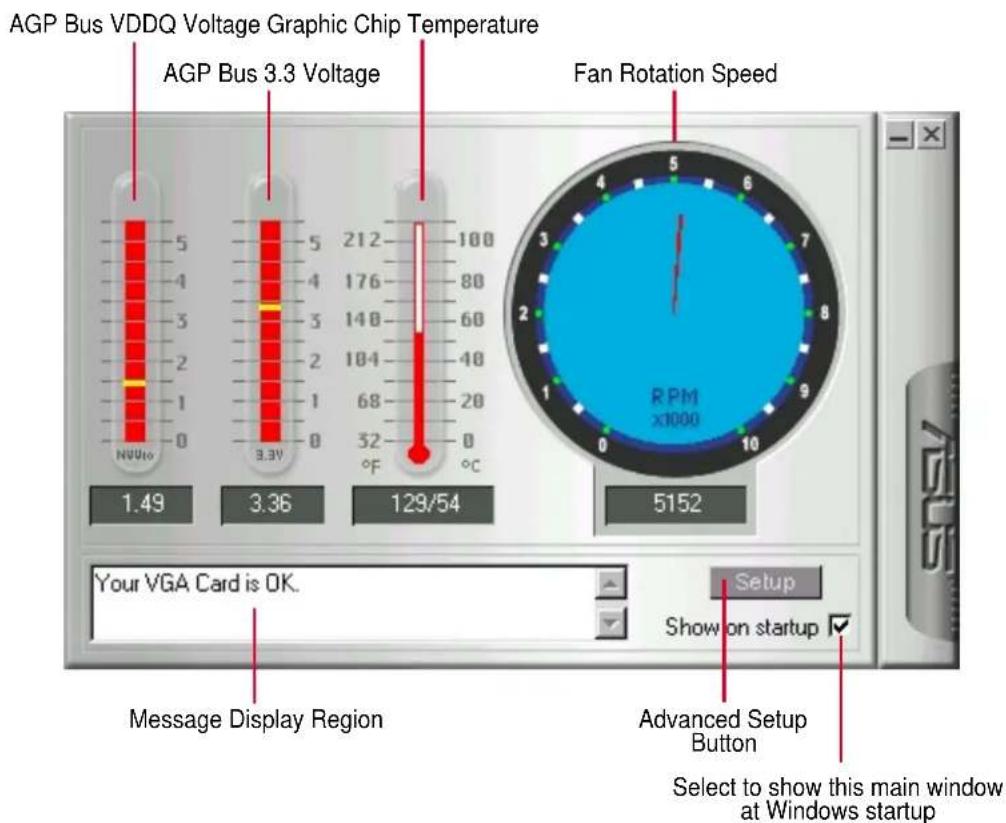

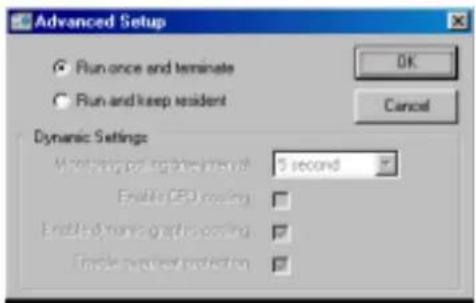

ASUS SmartDoctor ....41

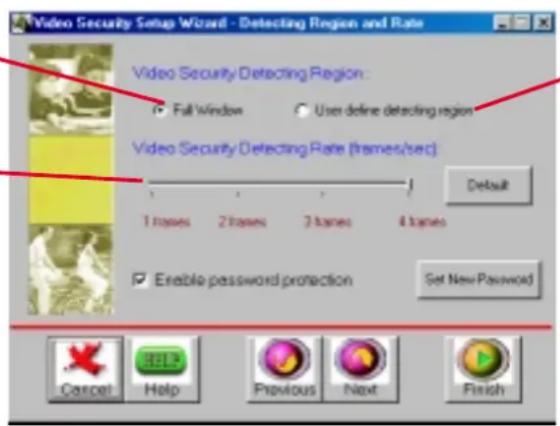

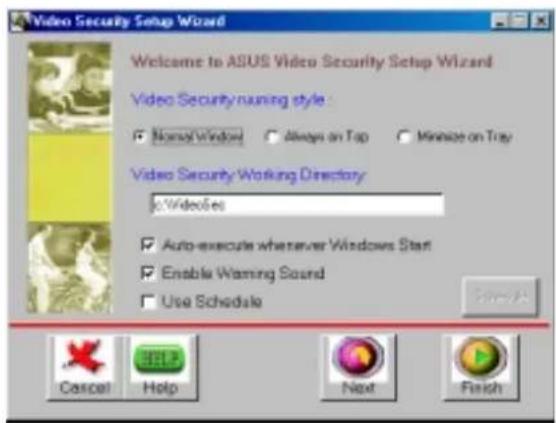

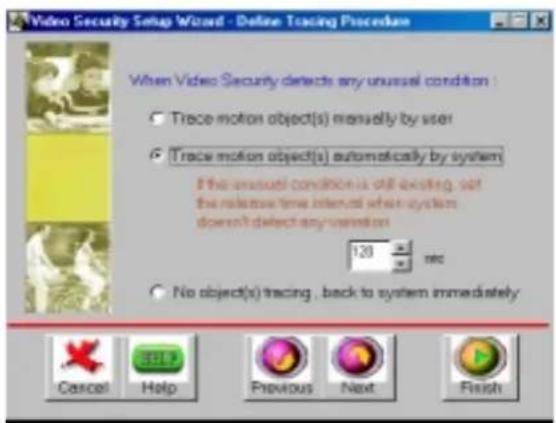

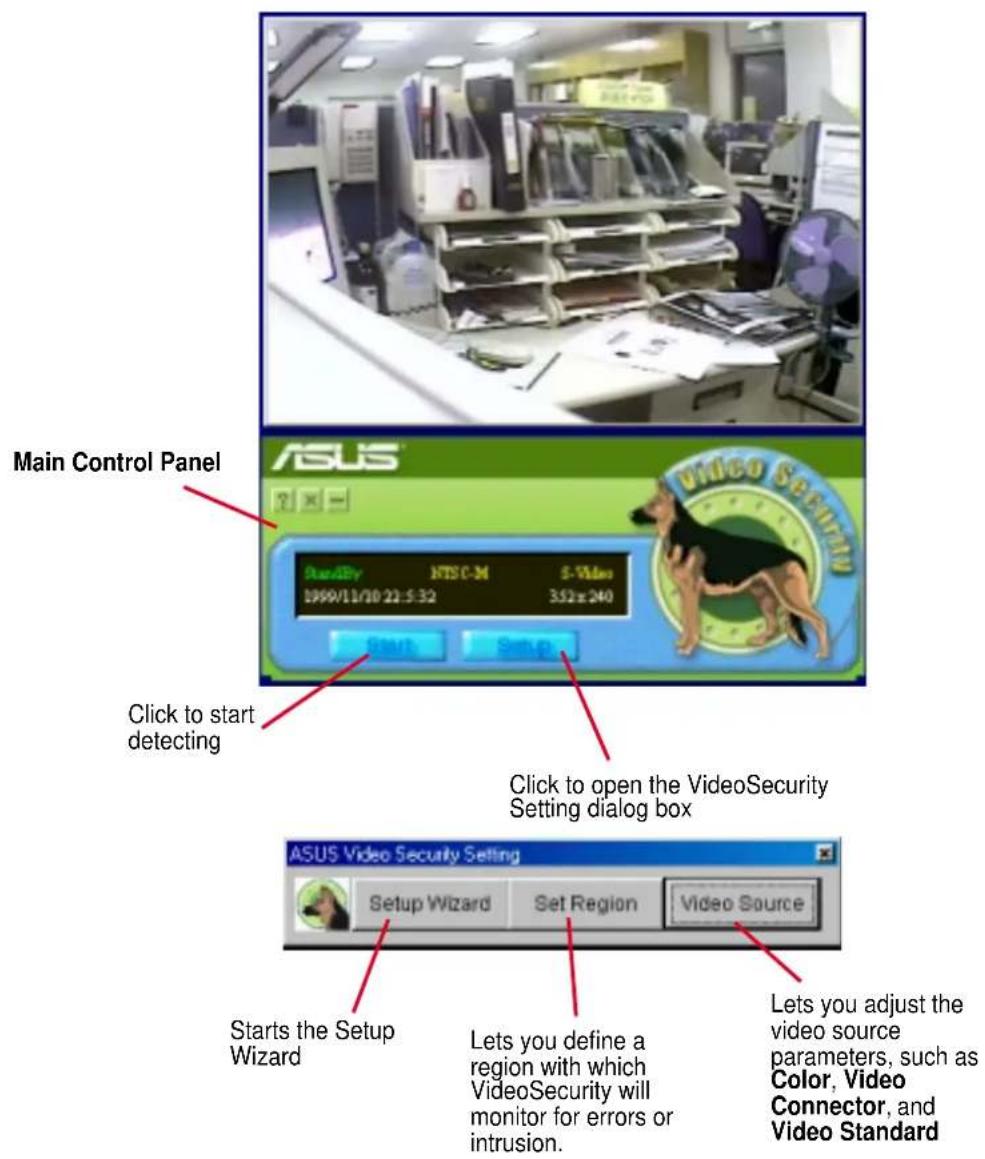

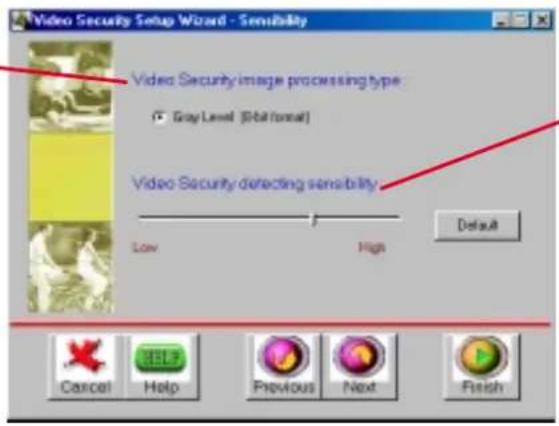

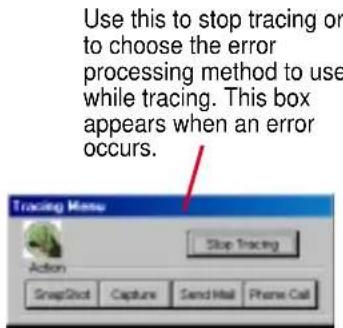

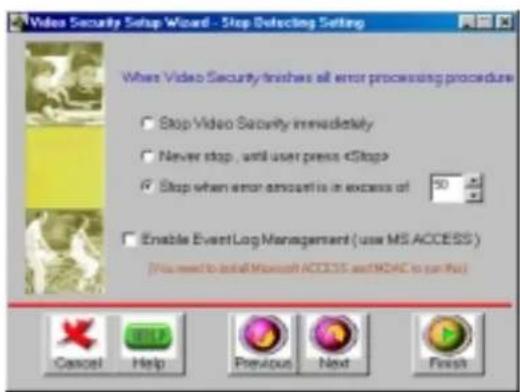

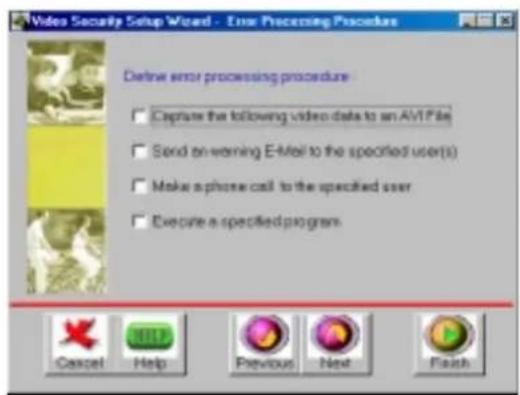

ASUS VideoSecurity 44

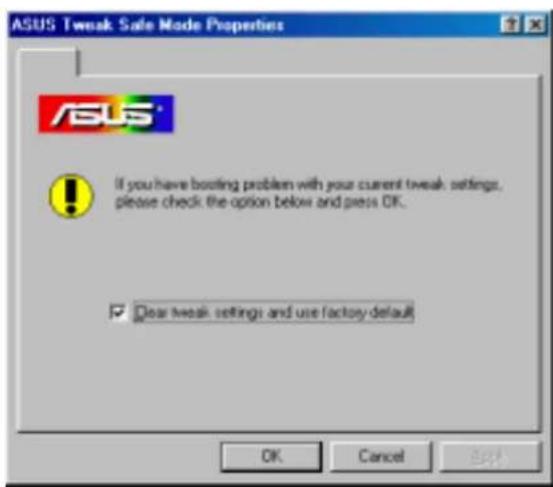

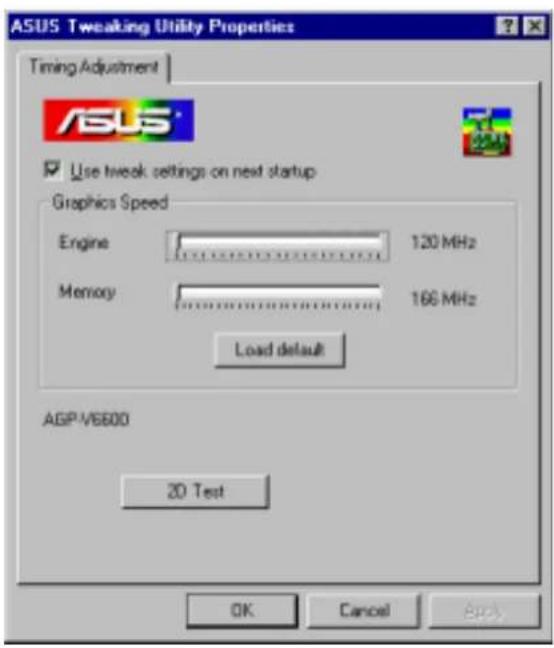

ASUS Tweak Utility 48

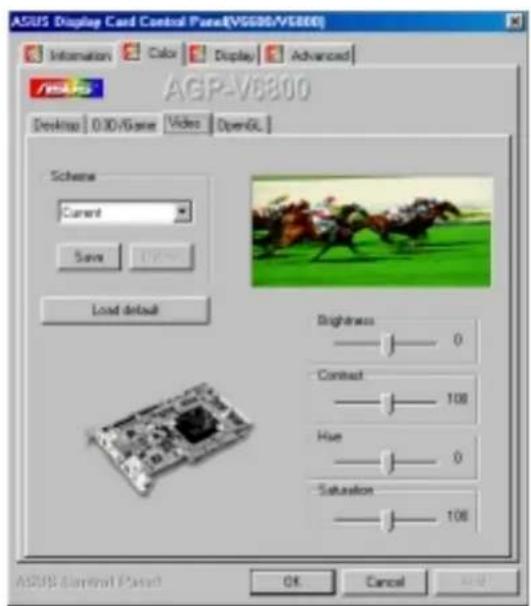

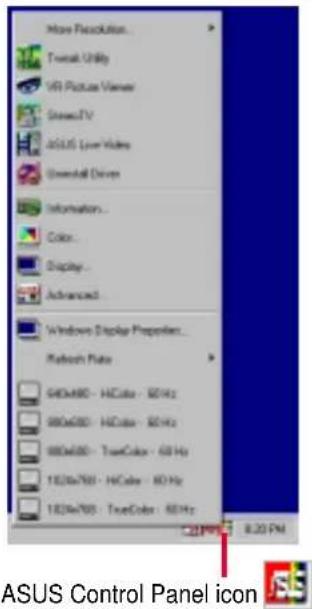

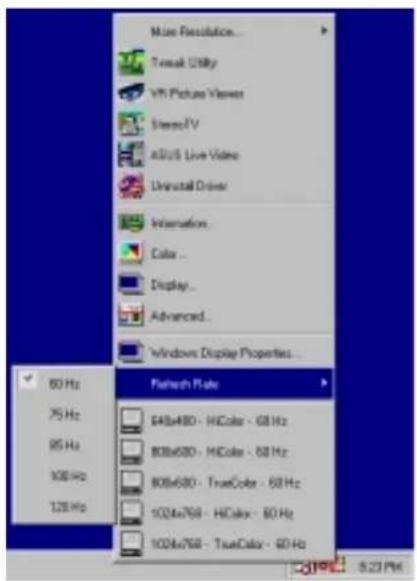

ASUS Control Panel ....50

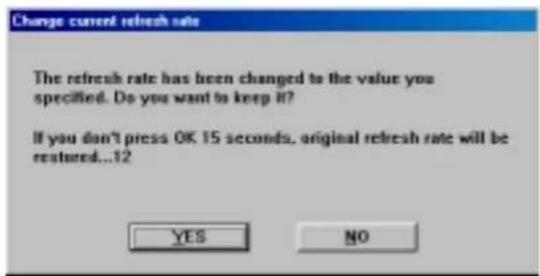

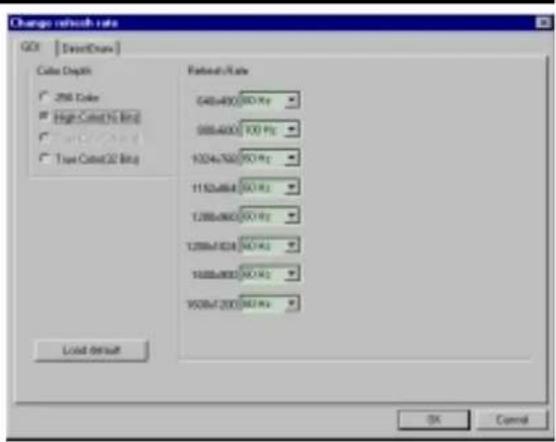

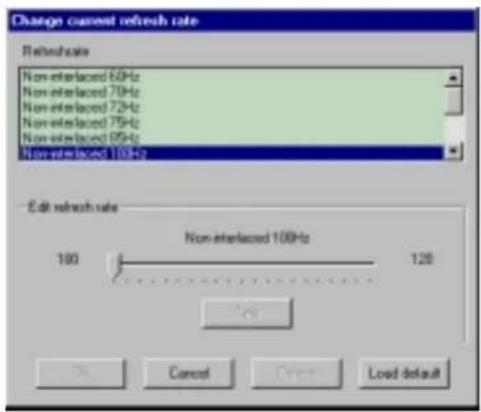

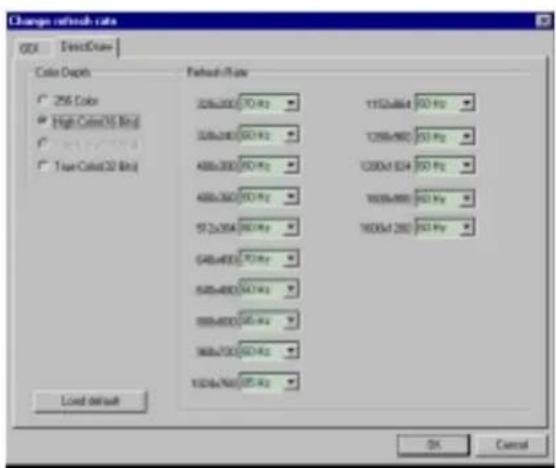

Refresh Rate 50

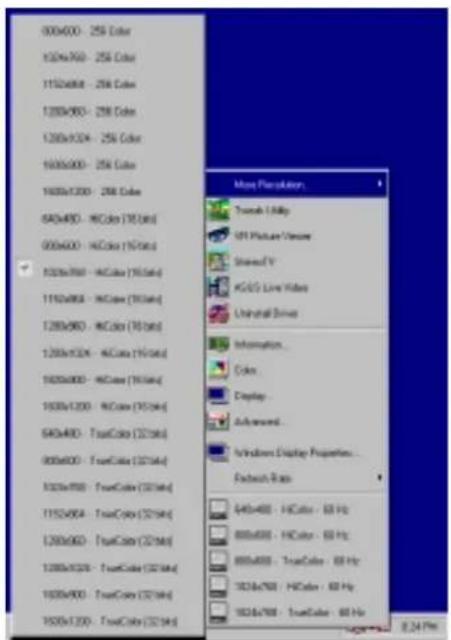

More Resolution....51

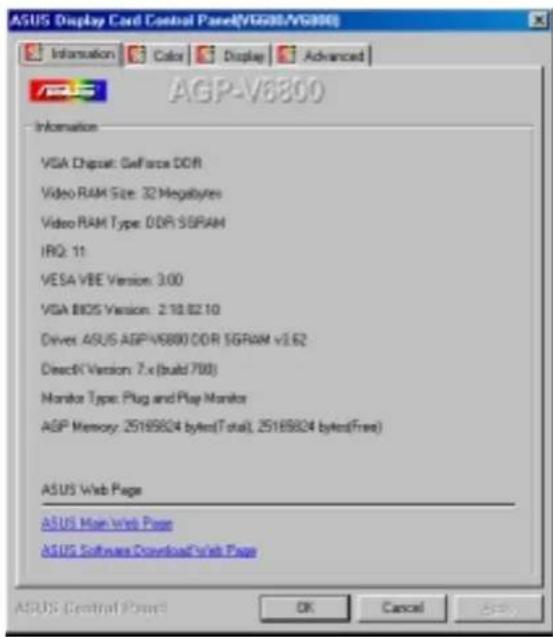

Information....51

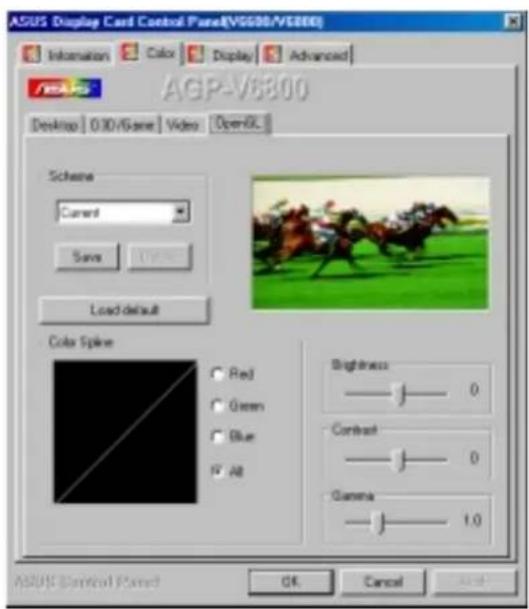

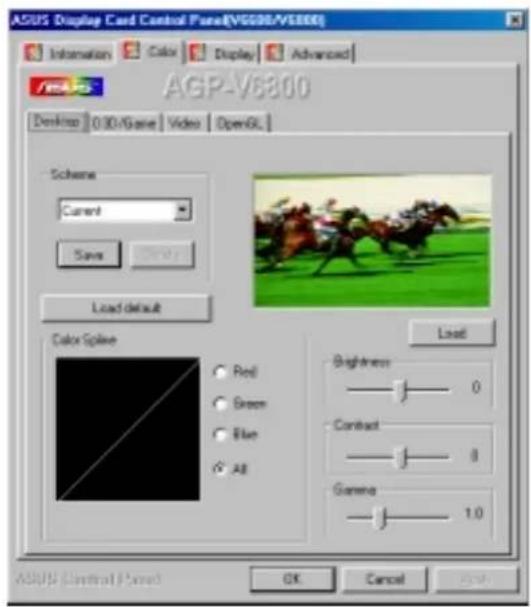

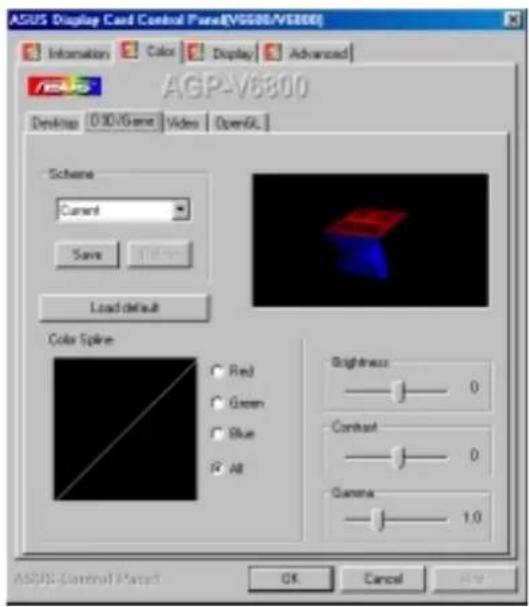

Color....52

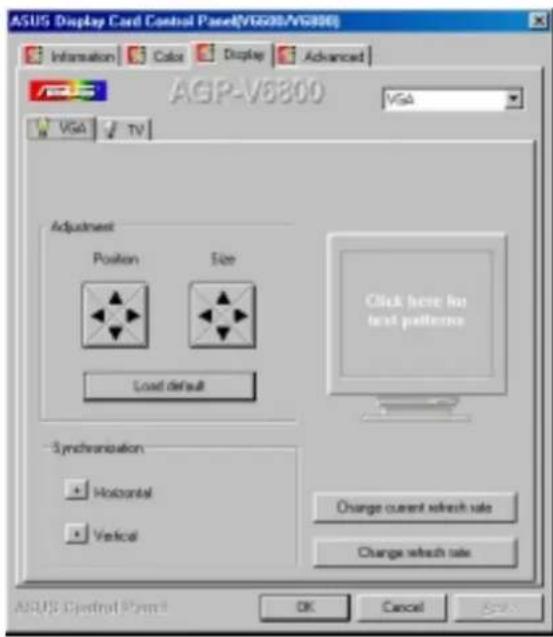

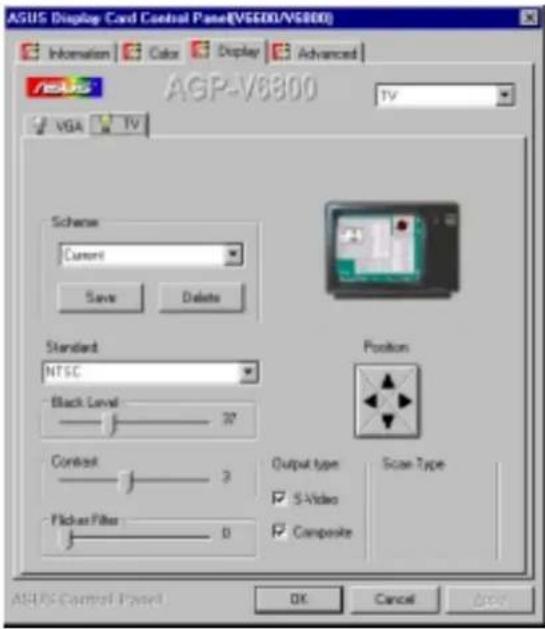

Display 55

Advanced....58

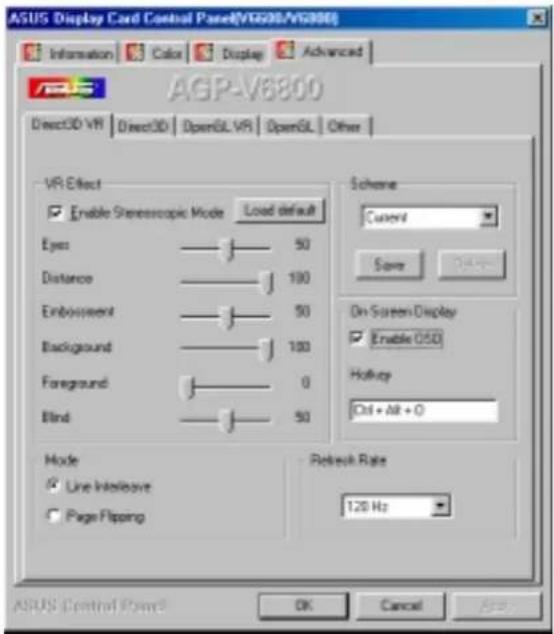

Direct3D VR....58

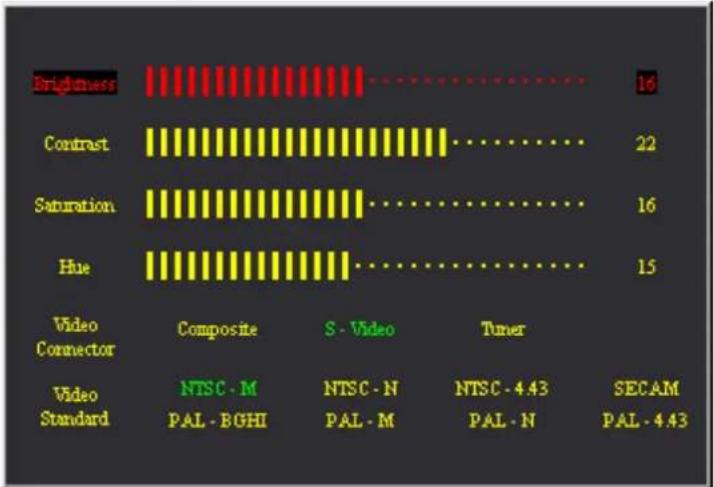

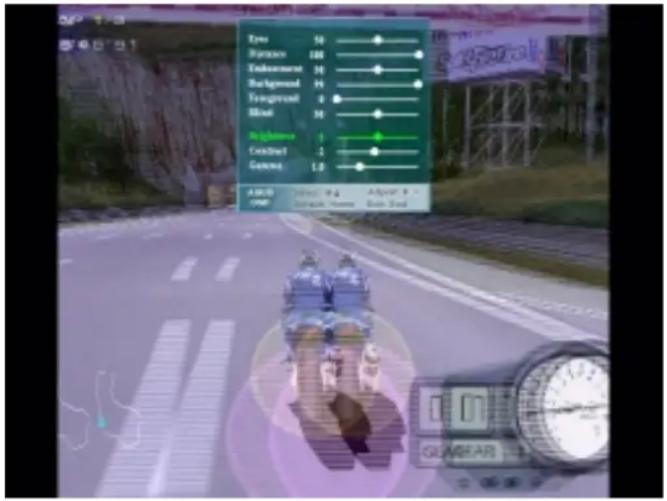

On Screen Display (ASUS OSD) 59

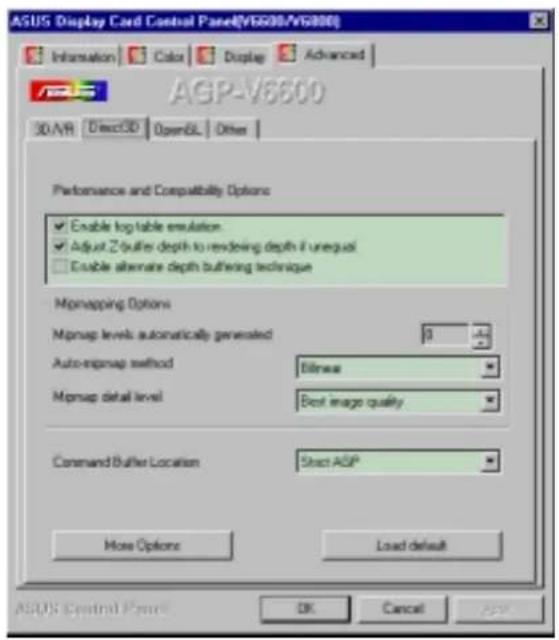

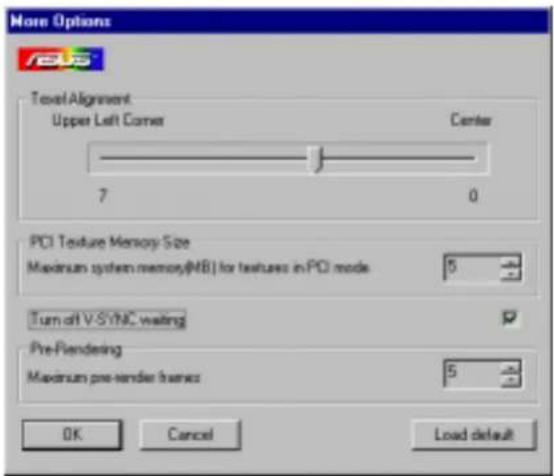

Direct3D 60

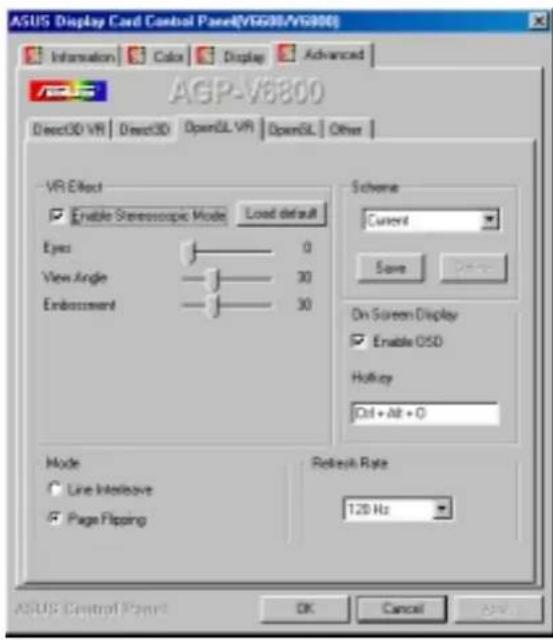

OpenGL VR....63

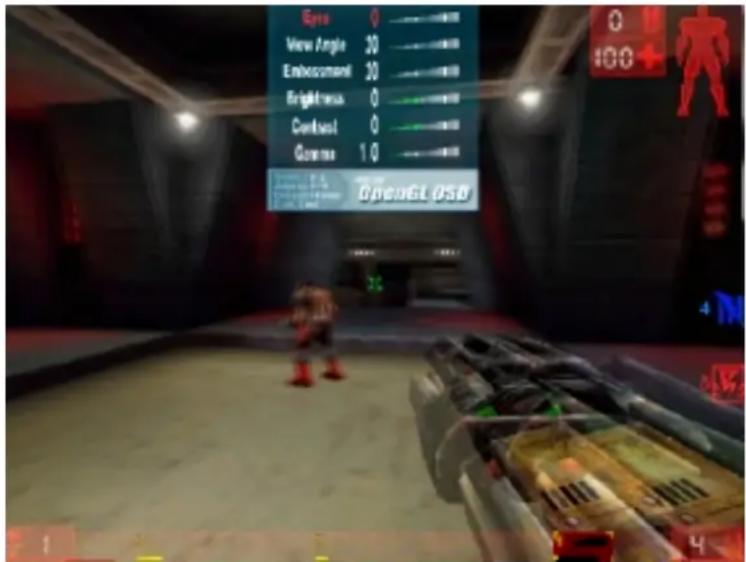

On Screen Display (OpenGL OSD)....64

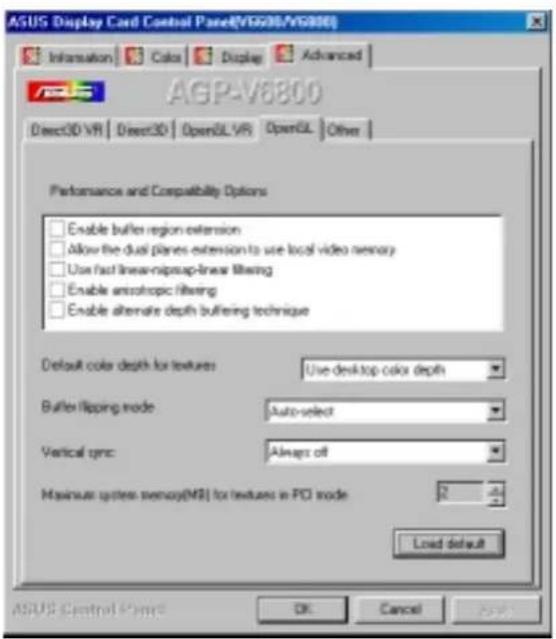

OpenGL 64

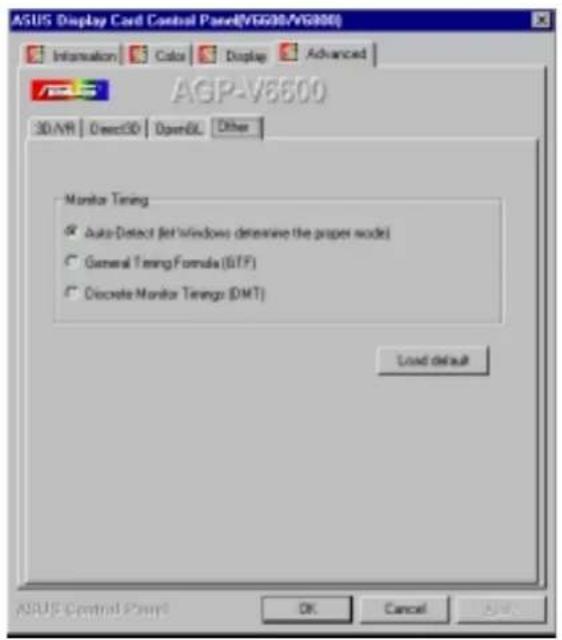

Other 66

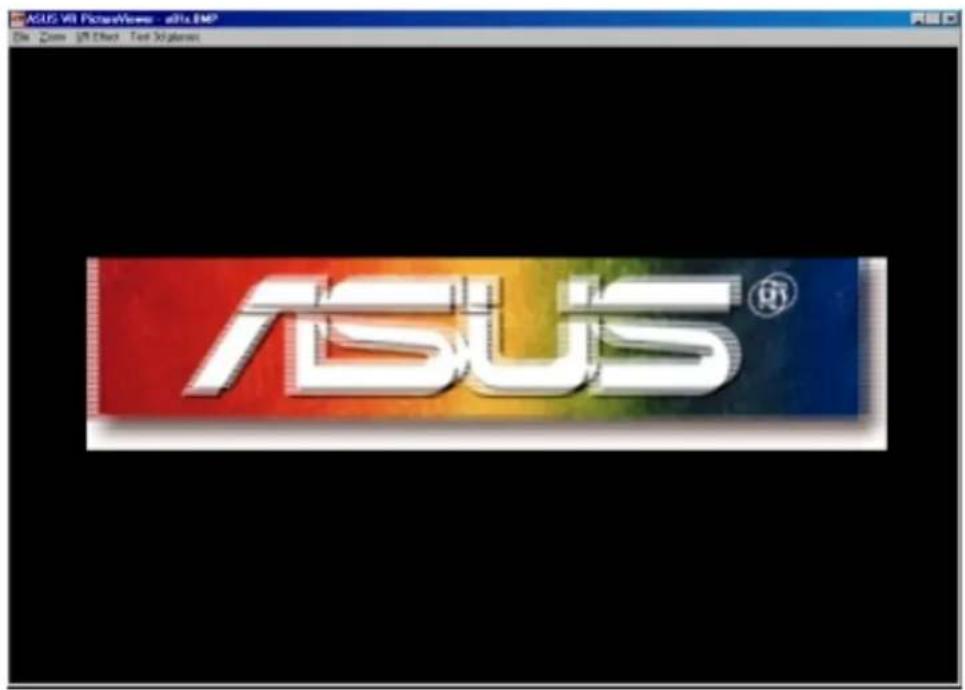

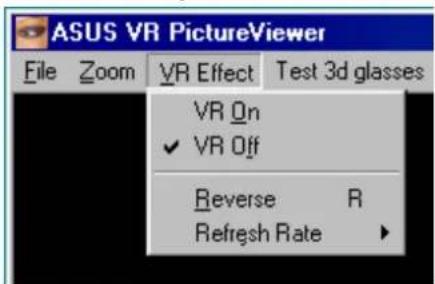

ASUS VR PictureViewer (optional) 68

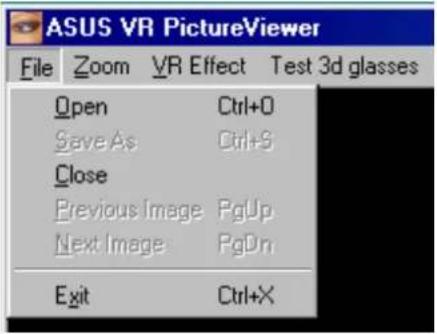

Opening or Displaying a Stereoscopic or 3D File ......68

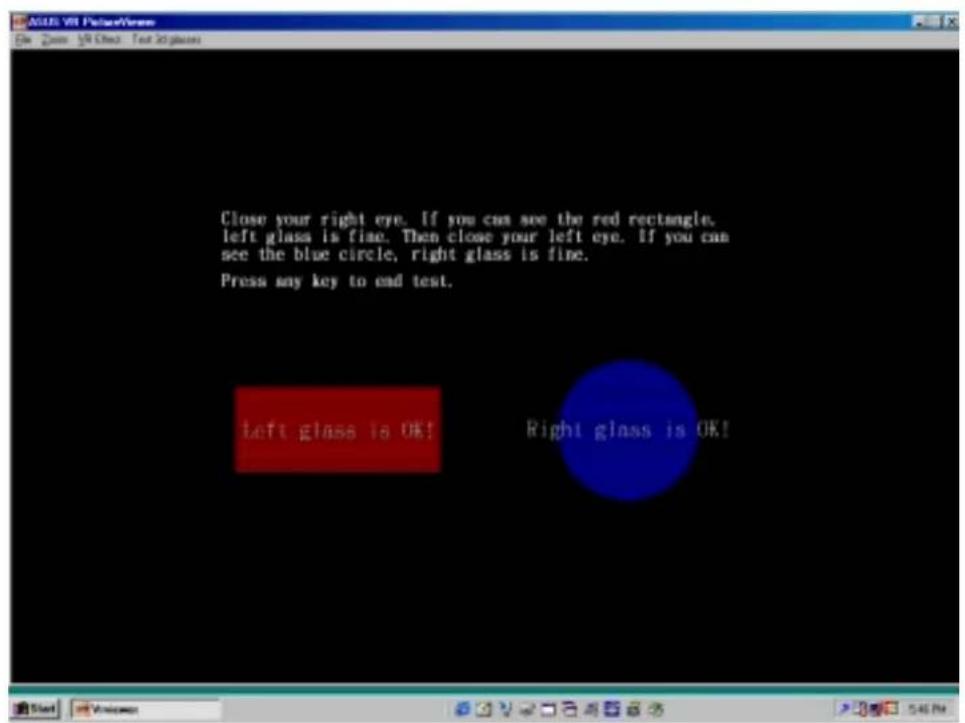

Testing the 3D Glasses ......69

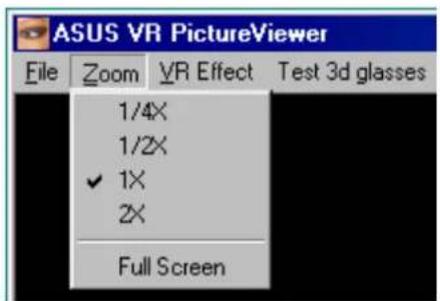

Changing the View 69

ASUS StereoTV (optional) 70

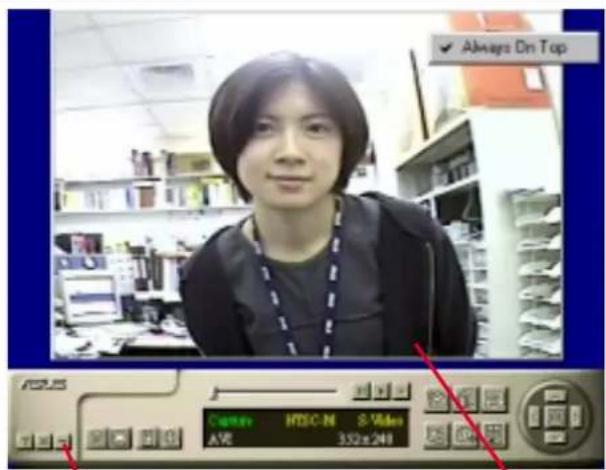

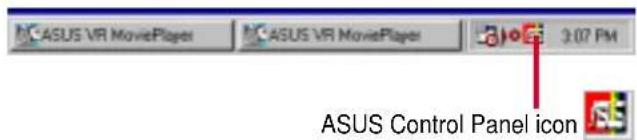

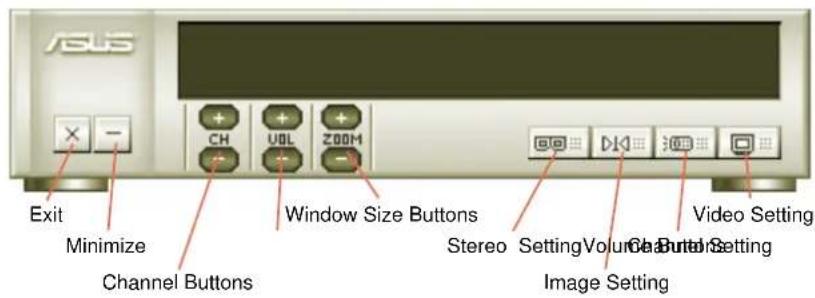

ASUS VR MoviePlayer 70

Buttons and Functions ....70

Install Windows NT 4.0 Display Driver ....73

Installation Procedures 73

5. Resolution Table....73

6. Troubleshooting ....75

Description....75

Recommended Action....75

Federal Communications Commission Statement

This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

WARNING! The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This Class B digital apparatus complies with Canadian ICES-003.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Thank you for purchasing an ASUS AGP-V6800/AGP-V6600 Graphics and Video Accelerator. With this purchase, you join an elite squadron of graphics enthusiasts. Powered by the NVIDIA™ GeForce256™ graphics processing unit (GPU) and featuring DDR (Double Data Rate) memory for the V6800 Series, the ASUS AGP-V6800/AGP-V6600 deliver not only cutting-edge graphics performance but also image fidelity regardless of the CPU (central processing unit) your computer system is using.

With the ASUS AGP-V6600/V6800, you will not only see but also experience dynamic, realistic 3D worlds and characters.

Highlights

Powered by the World's First Graphics Processing Unit (GPU)
NVIDIA ^TM GeForce256 ^TM (V6800: NVIDIA GeForce256 DDR)
• Built-in 32 MB Frame Buffer (V6800: DDR memory)
Provides more resolutions and color depths
4x4 Engine Integrated Transform and Lighting
Frees up CPU bandwidth
• 256-bit QuadPipe ^TM Rendering
Delivers industry's fastest graphics performance
• AGP 4X with Fast Writes
Maximizes overall system performance
• High Quality Video Acceleration
Delivers the highest video quality
Optimized for DirectX ^® 7 and OpenGL ^® Features
Ensures broad application support

Available Models

ASUS AGP-V6800 Deluxe

• 32MB DDR Frame Buffer
- VGA + Video-In + TV-Out + 3D Glasses (ASUS VR-100G Bundled Free!)

ASUS AGP-V6800 (Pure)

• 32MB DDR Frame Buffer / • VGA

ASUS AGP-V6600 Deluxe

32MB Frame Buffer
VGA + Video-In + TV-Out + 3D Glasses (ASUS VR-100G Bundled Free!)

ASUS AGP-V6600 (Pure)

• 32MB Frame Buffer / • VGA

ASUS AGP-V6600 MX

• High Speed Frame Buffer / • VGA

Common Features

• AGP 4X with Fast Writes
- Peak fill rate of 480 million bilinear filtered, multi-textured pixels and more than 3.8 gigatexels per second
- Up to 15 million triangles per second at peak rates
- Four 32-bit 3D rendering pipeline
- Four texture mapped, lit pixels per clock cycle
- Transform and Lighting (T&L) Engine
- Optimized for Direct3D acceleration with complete support for DirectX 7 features, such as multi-texturing, bump mapping, light maps, reflection maps, full scene anti-aliasing, trilinear and 8-tap anisotropic filtering (better than trilinear mipmapping)
• 32-bit Z and stencil buffer
- Hardware acceleration for all Windows GDI operations
• Video acceleration for Direct Show and MPEG-1, MPEG-2, and Indeo
- Multiple video windows with hardware color space conversion and filtering (YUV 4:2:2 and 4:2:0)
• Video ports supports ITU-R 656, VESA DDC2B+ DPMS
- Integrated 350MHz RAMDAC supporting from 640x480 up to 2048x1536 in true color
- Motion compensation for MPEG-2 decoding

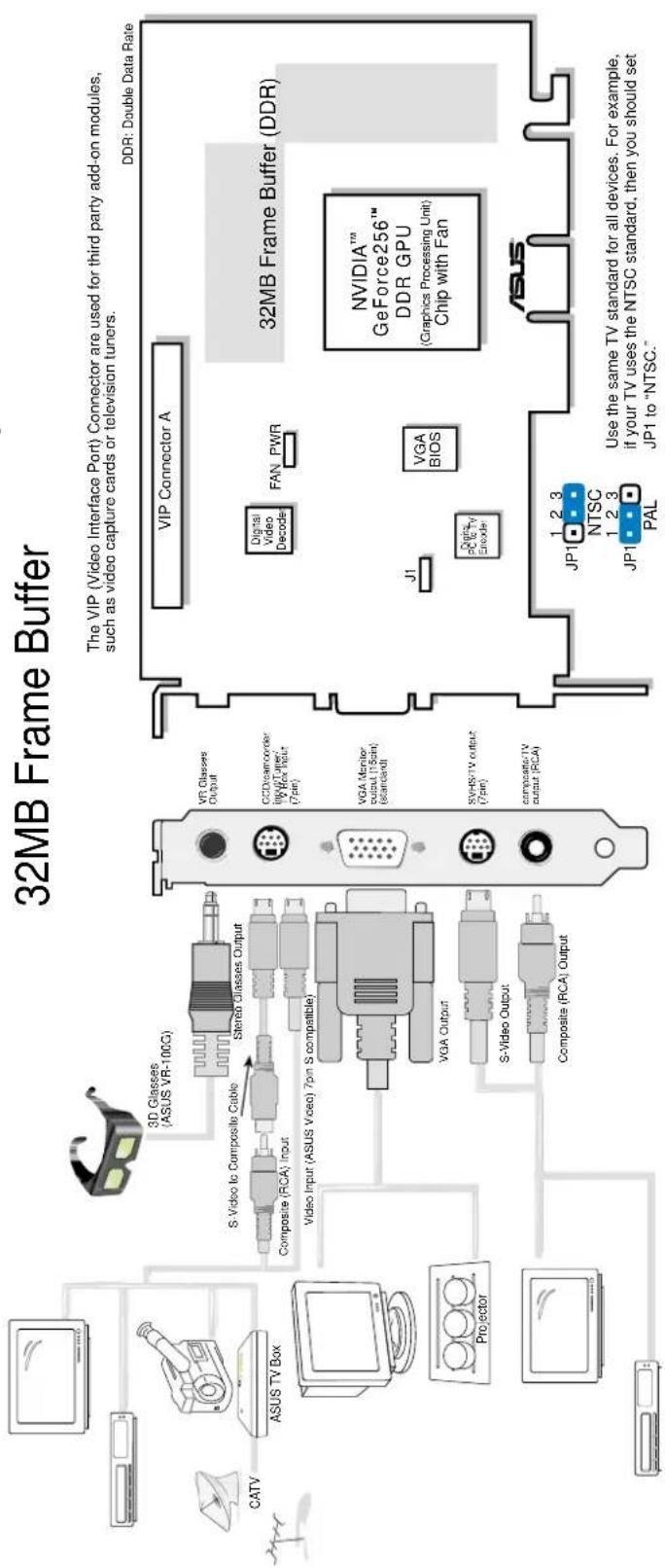

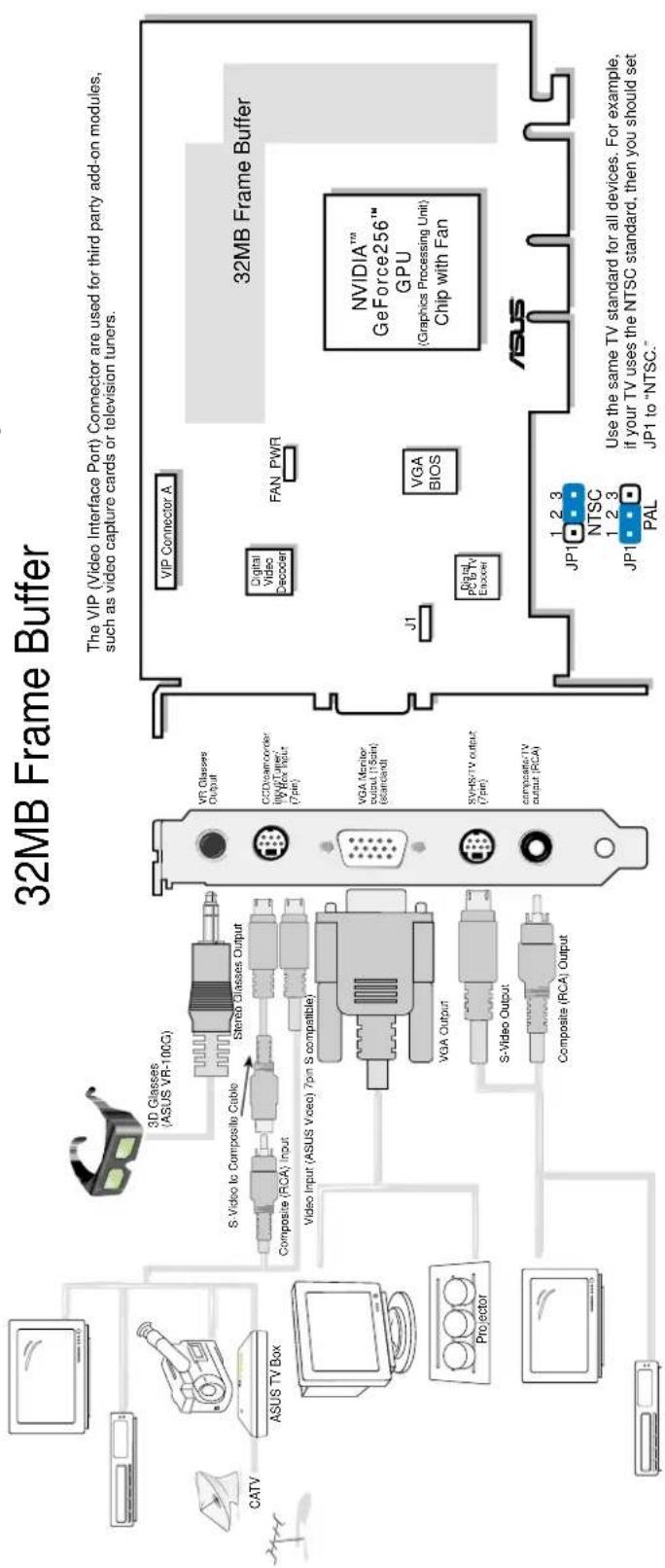

ASUS AGP-V6800 Deluxe Layout
ASUS AGP-V6800 Pure (32M) - Common Features - 1

Item Checklist

ASUS AGP-V6800 Graphics Card (PAL or NTSC) ASUS VR-100G

This User's Manual

ASUS V6600/V6800 Series Drivers & Utilities Installation CD Disc

NOTES

- Use the same TV standard for all devices.

• and T cannot be connected at the same time.

2. Installation AGP-V6800 (Pure)

ASUS AGP-V6800 (Pure) Layout 32MB Frame Buffer
ASUS AGP-V6800 Pure (32M) - Installation AGP-V6800 (Pure) - 1

Item Checklist
ASUS AGP-V6800 Graphics Card
This User's Manual
☑ ASUS V6600/V6800 Series Drivers & Utilities Installation CD Disc

ASUS AGP-V6600 Deluxe Layout 32MB Frame Buffer
ASUS AGP-V6800 Pure (32M) - Installation AGP-V6800 (Pure) - 2

Item Checklist

ASUS AGP-V6600 Graphics Card (PAL or NTSC) ASUS VR-100G

This User's Manual

ASUS V6600/V6800 Series Drivers & Utilities Installation CD Disc

NOTES

- Use the same TV standard for all devices.

• and cannot be connected at the same time.

2. Installation AGP-V6600 (Pure)

ASUS AGP-V6600 (Pure) Layout 32MB Frame Buffer
ASUS AGP-V6800 Pure (32M) - Installation AGP-V6600 (Pure) - 1

Item Checklist
ASUS AGP-V6600 Graphics Card
This User's Manual
☑ ASUS V6600 Series Drivers & Utilities Installation CD Disc

ASUS AGP-V6600 MX Layout
ASUS AGP-V6800 Pure (32M) - Installation AGP-V6600 (Pure) - 2

Item Checklist
ASUS AGP-V6600 MX Graphics Card
This User's Manual
ASUS V6600 Series Drivers & Utilities Installation CD Disc
ASUS AGP-V6600 MX Graphics Card
√
√
2. Installation
AGP-V6600 MX

2. Hardware Installation

ASUS VR-100 Optional Upgrade Kit

The ASUS VR-100 Optional Upgrade Kit enables the ASUS VR-100G 3D Glasses to be used with Pure models of the V6600/V6800 Series cards. See your dealer for more information on the ASUS VR-100 Optional Upgrade Kit.

The monitor cable that came with your kit may be of the Y- or standard type. Connect your cable accordingly.

Y-Type Connection
To VGA Card's Monitor Output VGA Output Stereo Glasses Output VGA Input VGA Monitor output (15pin) (standard) VR Glasses Output (Reserved) 3D Glasses (ASUS VR-100G) ASUS VR-100

When using a Y-type cable, you do not need to connect the VGA Input of the VR-100 to your VGA card's monitor output (see diagram above).

Standard Connection
ASUS AGP-V6800 Pure (32M) - ASUS VR-100 Optional Upgrade Kit - 2

You must anchor the ASUS VR-100's mounting bracket with a screw to a free expansion slot in your computer chassis.

NOTE: This graphics card series can only be installed in motherboards with an AGP slot.

WARNING! Computer boards and components contain very delicate Integrated Circuit (IC) chips. To protect the computer board and other components against damage from static electricity, you must follow some precautions.

Make sure that you unplug your power supply when adding or removing expansion cards or other system components. Failure to do so may cause severe damage to both your motherboard and expansion cards.
Keep all components such as the host adapter in its antistatic bag until you are ready to install it.
Use a grounded wrist strap before handling computer components. If you do not have one, touch both of your hands to a safely grounded object or to a metal object, such as the power supply case. Hold components by the edges and try not to touch the IC chips, leads, or circuitry.
Place components on a grounded antistatic pad or on the bag that came with the component whenever the components are separated from the system.

Installation Procedures

New Systems

Unplug all electrical cords on your computer.
Remove the system unit cover.
Locate the AGP bus expansion slot. Make sure this slot is unobstructed.
Remove the corresponding expansion slot cover from the computer chassis.
Ground yourself to an antistatic mat or other grounded source.
Pick up the board (still in its sleeve) by grasping the edge bracket with one hand and then remove the plastic sleeve.
Position the card directly over the AGP slot and insert one end of the board in the slot first. Firmly but gently press the bus connector on the bottom of the card down into the slot. Be sure the metal contacts on the bottom of the host adapter are securely seated in the slot.
Anchor the board's mounting bracket to the computer chassis using the screw from the slot cover that you set aside previously.
Replace the cover on the system unit.
Connect your analog monitor's 15-pin VGA connector to the card and fasten the retaining screws (if any).
Connect other cables and devices if available -You are now ready to install the software drivers and utilities.

Systems with Existing VGA Card

Change your display driver to Standard VGA.
Shut down your computer and unplug all electrical cords.
Replace the existing VGA card with your graphics card.
Restart your computer.
Install the ASUS V6600/V6800 series display driver.

Operating System Requirements

NOTE: This graphics card requires a motherboard with an AGP slot.

Windows 98

Windows 98 supports full Direct3D and AGP features. If you are still using the beta version of Windows 98 and you want to fully take advantage the Direct3D and AGP features, you must upgrade your current Windows to the release version before installing the AGP display driver.

Windows 98 includes VGARTD for the major chipsets but it is recommended that you install VGARTD from the ASUS AGP-V6600/V6800 Series CD to make sure that you have the latest version of VGARTD (see 3. Software Setup | Install GART Driver).

NOTES

VGARTD stands for Virtual Graphics Address Remapping Table Driver, which is necessary to use the DIME feature of AGP. DIME means Direct Memory Execute, which is accessed directly by most AGP chips (when VGARTD is installed) for complex texture-mapping operations.
For other notes or release information, see the README files in the installation CD disc.
This Manual assumes that your CD-ROM disc drive is drive D: and that Windows is in C:\WINDOWS. Replace either with the actual location, if necessary.

Driver Setup

You can use one of three methods to install the Windows 98 drivers for your ASUS AGP-V6600/V6800 series graphics card.

Method 2 and Method 3 will not install the appropriate AGP GART driver if your motherboard does not use the Intel AGPset. Installing the AGP GART driver will ensure that the AGPset's AGP functions are available. Method 2 and Method 3 will not install also the DirectX runtime libraries. DirectX must be installed so that your video player can take advantage of hardware acceleration. See 3. Software Setup | Install GART Driver and 3. Software Setup | Install DirectX later in this manual for the setup steps.

NOTE: The screen displays in this manual may not reflect exactly the screen contents displayed on your screen (the V6600/6800 Series share similar interfaces; screen shots shown throughout this manual are those of the ASUS V6800 Series). The contents of the support CD are subject to change at any time without notice.

Method 1: ASUS Quick Setup Program

NOTE: See 3. Software Setup | Drivers | Install Display Driver for more information.

Start Windows.
Switch display to Windows' Standard Display Adapter (VGA) mode and then restart Windows.
Insert the CD installation disc into your CD-ROM drive.
The ASUS Windows 98 Install Shell appears. Click Drivers and then click Install Display Driver on the Drivers dialog box.

ASUS V6800 Series 2D/3D Graphics & Video Accelerator ASUS V6800 Series ASUS V6800 Series > Drivers > Utilities > ASUS Contact info

ASUS V6800 Series 10/10 Graphics & Video Interactive Drivers Install Display Driver Install DirectX Install GART Driver Install ASUS TWAIN Driver Uninstall Display Driver Rue ASUS V68 Live Update

Follow the onscreen instructions to complete the setup.

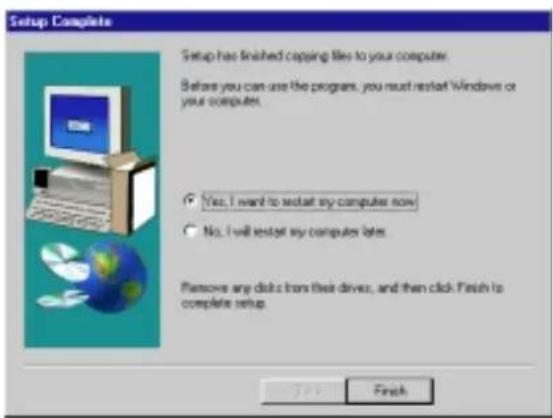

When Setup has finished installing all the necessary files on your computer, it will prompt you to restart your computer. Click Yes... and then Finish to restart your computer and to complete Setup.

3. Software Setup

Method 2: Display Property Page

Start Windows.
Switch display to Windows' Standard Display Adapter (VGA) mode and then restart Windows.
Right-click the Windows desktop and click Properties.
Click the Settings tab and then click Advanced. The Standard Display Adapter (VGA) Properties dialog box appears.

Standard Display Adapter (MSA) Properties General Adapte | Manager | Performance | Colo Management | Standard Display Adapter (MSA) Adapte /Drive information Manufacturer: (Standard display types) Software version: A.D Current file: vgs.drc.7x84 OK Cancel Apply

Click Change on the Adapter tab. The Update Device Driver Wizard dialog box appears. Click Next, click Display a list of all the drivers... and then click Next.
Click Show all hardware and then click Have Disk...When the Install From Disk dialog box appears, type the location of the ASUS6600.INF file and then proceed to step 9. Otherwise, proceed to the next step.
Click Browse to search the CD-ROM drive. In the Drives box of the Open dialog box, select your CD-ROM drive and then click OK.
In the Folders box, double-click the WIN9x folder and then select ASUS6600.INF in the File name box.
Click OK. A list of video cards appears. Select your VGA card type for your operating system and then click OK.
The Update Driver Warning box appears. Click Yes to confirm the setting up of the ASUS enhanced display drivers and then follow the onscreen instructions to start the setup.
Setup will prompt you when it has finished installing all the necessary files on your computer. Click Finish to close Setup.
When you are returned to the Standard Display Adapter (VGA) Properties box, click Close. The Display Properties box appears. Click Close.
The system will prompt you to restart your computer. Click Yes to restart your computer and to complete Setup.

3. Software Setup

Method 3: Plug and Play

NOTE: Before proceeding with these steps, replace first your old VGA card with an ASUS AGP-V6600/V6800 series graphics card.

Start Windows.
When Windows detects your ASUS AGP-V6600/V6800 series graphics card, the New Hardware Found dialog box appears.

New Hardware Found PCI VGA-Compatible Display Adapters Select which driver you want to install for your new hardware: Windows default drives Driver from disk provided by hardware manufacturers Do not install a driver (windows will not prompt you again) Select from a list of alternate drivers OK Cancel Help

Click Driver from disk provided by hardware manufacturer.
When Setup prompts you for the location of the driver, type D:\WIN9x to direct Setup to the INF file and then click Finish to install the driver.
When Setup has finished installing all the necessary files on your computer, it will prompt you to restart your computer. Click Yes to restart your computer and to complete Setup.

3. Software Setup

Drivers

Install Display Driver

Insert the CD installation disc into your CD-ROM drive or double click the CD drive icon in My Computer to bring up the autorun screen or run Setup.exe in the root directory of your CD-ROM drive.

Click Drivers.

ASUS V6800 Series 75/3D Graphics & Video Acceleration + Drivers + Luminous + ASUS-Contact info

The Drivers box appears. Click Install Display Driver to install all the drivers and utilities into your computer. Setup will install the drivers in the following order: Display Driver (Direct3D and OpenGL Drivers), DirectX runtime libraries, and VGART driver. Just follow the on-screen instructions to complete the installation.

ASUS V6800 Series 20/30 Graphics & Video Accelerator Drivers Install Display Driver Install DirectX Install UART Driver Install ASUS TRAIN Driver Uninstall Display Driver Run ASUS V68 Live Update

If you prefer to install the drivers individually, follow the steps on the following pages.

3. Software Setup

Install DirectX

Microsoft DirectX allows 3D hardware acceleration support in Windows 98. For Software MPEG support in Windows 98, you must first install Microsoft DirectX, and then an MPEG-compliant video player.

Insert the CD installation disc into your CD-ROM drive or double click the CD drive icon in My Computer to bring up the autorun screen or run Setup.exe in the root directory of your CD-ROM drive.

Click Drivers.

The Drivers box appears. Click Install DirectX to select the DirectX version you want to install.
The installation program will automatically install the DirectX 7 runtime libraries into your system.
Setup will prompt when it has finished copying all the files to your computer. Click OK to finish the installation.

ASUS V6800 Series 3D/3D Graphics & Video Accelerator Drivers Install Display Driver Install DirectX Install GART Driver Install ASUS TWAIN Driver Uninstall Display Driver Run ASUS VGA Live Update

Installing Microsoft[R] DirecX[R] Searching for updated DirecX: Runtime Components and updating as necessary. This may take a few minutes...

Restart DirectX 7.0 install completely. Please press "OK" to restart system. OK

WARNING! Some games written for older DirectX versions may not work properly under DirectX 7. Make sure that your applications or games support DirectX 7 before installing the DirectX 7 runtime libraries. DirectX 7 currently cannot be uninstalled by regular means, such as outlined in 3. Software Setup | Uninstall Display Driver.

3. Software Setup

Install GART Driver

The AGP GART Driver is used to support AGP functionality for the chipset on your PC's motherboard. It is recommended to install the GART driver if it is newer than the one you have installed in your system. The GART driver is only necessary for an AGP graphics card.

NOTE: Installation dialogs are slightly different for each chipset. Follow the on-screen instructions to finish the GART driver installation. The succeeding steps assume that you are installing for an Intel chipset.

Insert the CD installation disc into your CD-ROM drive or double click the CD drive icon in My Computer to bring up the autorun screen or run Setup.exe in the root directory of your CD-ROM drive.

Click Drivers.

ASUS V6800 Series 28/3D Graphics & Video Accelerator Copyright 100k Amp → Direct → Connected → ASUS Connect exp

The Drivers box appears. Click Install GART Driver to install AGP support for motherboards with Intel, AMD, VIA, SiS, or ALi chipsets.

ASUS V6800 Series 20/30 Graphics & Video Accelerator Copyright © 2014-2015 Drivers Install Display Driver Install DirectX Install UART Driver Install ASUS TWAIN Driver Uninstall Display Driver Run ASUS VGA Live Update

The AGP VGARTD Driver Detection box appears with the chipset detected on your motherboard. Click OK to install the appropriate driver for your AGPset.

AGF VGARTD Driver Detection Welcome to ASUS VGARTD Driver Installation Program. The program has detected the chipset on your motherboard is: Intel 82443LX Do you want to install its VGARTD driver? Yes, install its VGARTD driver. No, I want to select the other drivers. Exit OK

3. Software Setup

If you selected No..., on the previous screen before clicking OK, you will be presented with a selection of other drivers. Make your driver selection and click Install.
When the Welcome screen appears, click Next to continue.
Once the driver installation is finished, click Finish.

Please select one VGARTD driver to install Intel 82443LX Exit Install

Setup Complete Setup has finished capping files to your computer. Before you can use the program, you must restart Windows or your computer. Yes, I want to install my computer now No, I will install my computer later. Remove any disks from their drivers, and then click Finish to complete setup. Finish

(This page was intentionally left blank.)

3. Software Setup

Install ASUS TWAIN Driver

ASUS TWAIN Driver is a frame capture driver for Adobe Photoshop®, an image editing software. With this driver, you can capture still images through Photoshop using the video input port of your card (Deluxe model only).

Insert the CD installation disc into your CD-ROM drive or double click the CD drive icon in My Computer to bring up the autorun screen or run Setup.exe in the root directory of your CD-ROM drive.

Click Drivers.

The Drivers box appears. Click Install ASUS TWAIN Driver..

ASUS V6800 Series 25/39 Graphics & Video Accelerator V. Series 1 Version 2 ASUS V6800 Series Drivers Install Display Driver Install DirectX Install CART Driver Install ASUS TWAIN Driver Uninstall Display Driver Run ASUS V68 Live Update

When the Welcome box appears, click Next to start copying the files. Setup automatically starts copying the necessary files to the default folder.

To complete the installation, simply follow the on-screen instructions or prompts.

3. Software Setup

Uninstall Display Driver

If you want to update your display drivers or if you no longer need the AGP-V6800 display drivers, you can use one of the following procedures to completely uninstall the drivers from Windows 98 to save disk space.

Using the Autorun Screen

Insert the CD installation disc into your CD-ROM drive or double click the CD drive icon in My Computer to bring up the autorun screen or run Setup.exe in the root directory of your CD-ROM drive.

Click Drivers.

Click Uninstall Display Driver and follow the on-screen directions.

ASUS V6800 Series 25/30 Graphics & Video Accelerator Copyright © 1995.05.07 Drivers Install Display Driver Install DirectX Install CART Driver Install ASUS TWAIN Driver Uninstall Display Driver Run ASUS VGA Live Update

Using Windows 98 Control Panel

Click Start, and then point to Settings.
Click Control Panel.
Double-click the Add/Remove Programs icon.
Click the Install/Uninstall tab.
Click ASUS V6800 Series Display Driver from the list.
Click Add/Remove.
The system will prompt you to restart your computer. Click Yes to restart.

3. Software Setup

Run ASUS VGA Live Update

The ASUS VGA Live Update is a utility that allows you to update your VGA card's BIOS and drivers. The use of this utility assumes that you are properly connected to the Internet through an Internet Service Provider (ISP).

Insert the CD installation disc into your CD-ROM drive or double click the CD drive icon in My Computer to bring up the autorun screen or run Setup.exe in the root directory of your CD-ROM drive.

Click Drivers and when the Drivers box appears, click Run ASUS VGA LiveUpdate.

Select an update method from the drop-down list box and then click Next.

- Update BIOS/Driver from the Internet lets you update the BIOS or driver from the Internet. The updating (running the flash utility or the installation program) will be done automatically.

- Download BIOS/Driver from the Internet lets you download the BIOS or driver to a folder in your computer.

After you have selected your preferred update method, you will need to select an Internet site. Choose the site that is closest to you and then click Next or click Auto Select.

Follow any on-screen instructions or prompts to complete setup.

If you selected Download BIOS/Driver from the Internet, you will be prompted for a destination folder. Create or select an existing folder to save the file or files that you selected.

ASUS V6800 Series 25/30 Graphics & Video Accelerator Copyright © 19th Anniversary V-Drive Driver Install Display Driver Install DirectX Install GART Driver Install ASUS TWAIN Driver Uninstall Display Driver Run ASUS V6& Live Update

ASUS Update Select the ASUS Update Server Be sure that you are connected to the Internet before continuing. You can Show choices and/or use any other Windows or Windows Regional Settings. GoodSelect No less than 5x Back Next Cancel ASUS

Open Lock in: My Documents File name: Files of type: iOS image (*.xml) Open Cancel

3. Software Setup

Utilities

Install ASUS Live Utility

The ASUS Live utility lets you view and capture video images from the card's video input port.

NOTE: Make sure that you have an ASUS graphics card with VIDEO-IN connector before attempting to install the utility.

Insert the CD installation disc into your CD-ROM drive or double click the CD drive icon in My Computer to bring up the autorun screen or run Setup.exe in the root directory of your CD-ROM drive.

Click Utilities.

ASUS V6800 Series 23/30 Graphics & Video Accelerator ASUS V6800 Series + Divers + Utilities + AOS Contact info

The Utilities box appears. Click Install ASUS Live Utility.

ASUS V6800 Series 25/30 Graphics & Video Accelerator Copyright © 1994 Award Utilities Install ASUS Live Utility Install Acrobat Reader Install Smart Doctor Install VideoSecurity Install ASUS Tweak Utility

When the Welcome box appears, click Next to start copying the files. Setup automatically starts copying the necessary files to the default folder.

To complete the installation, simply follow the on-screen instructions or prompts.

3. Software Setup

Install Acrobat Reader

Acrobat Reader is necessary for reading the PDF copy of this manual.

Insert the CD installation disc into your CD-ROM drive or double click the CD drive icon in My Computer to bring up the autorun screen or run Setup.exe in the root directory of your CD-ROM drive.

Click Utilities.

ASUS V6800 Series 20/30 Graphics & Video Acceleration + Drives + Dashes + AUSB Current info ASUS V6800 Series

The Utilities box appears. Click Install Acrobat Reader.

ASUS V6800 Series 20/30 Graphics & Video Accelerator Adobe 100.00 Utilities Install ASUS Live Utility Install Acrobat Reader Install SmarlDoctor Install VideoSecurity Install ASUS Wear Utility

When the Acrobat Reader x.x Setup box appears, click Next.

To complete the installation, simply follow the on-screen instructions or prompts.

3. Software Setup

Install SmartDoctor

SmartDoctor is a utility that monitors the card's graphic chip state, alerting users about abnormal events, such as a fan malfunction or chip overheat. Likewise, the utility "cools" down the graphic chip temperature when it is idle or returns it to its maximum capability when necessary.

Insert the CD installation disc into your CD-ROM drive or double click the CD drive icon in My Computer to bring up the autorun screen or run Setup.exe in the root directory of your CD-ROM drive.

Click Utilities.

The Utilities box appears. Click Install SmartDoctor.

NOTE: If your graphics card is not equipped with a monitor IC, an error message warns you that monitor IC was not detected. The installation will abort. SmartDoctor works only with cards with a monitor IC.

ASUS V6800 Series 2D/3D Graphics & Video Accelerator Utilities Install ASUS Live Utility Install Acrobat Reader Install SmartDoctor Install VideoSecurity Install ASUS Tenak Utility

When the Welcome box appears, click Next to start the installation.

To complete the installation, simply follow the on-screen instructions or prompts.

3. Software Setup

Install VideoSecurity

VideoSecurity is a powerful video stream comparison and detection utility that helps in detecting potential errors or intrusions at a specific time interval by using a video capture device, such as a digital camera.

Insert the CD installation disc into your CD-ROM drive or double click the CD drive icon in My Computer to bring up the autorun screen or run Setup.exe in the root directory of your CD-ROM drive.

Click Utilities.

ASUS V6800 Series 20/30 Graphics & Video Accelerator ASUS V6800 Series Auto Drive + Drivers + Utilities + ASUS Connects

The Utilities box appears. Click Install VideoSecurity.

ASUS V6800 Series 3D/3D Graphics & Video Accelerator Through 100 MHz Utilities Install ASUS Live Utility Install Acrobat Reader Install SmartDoctor Install VideoSecurity Install ASUS Tweak Utility

When the Welcome box appears, click Next to start the installation.

To complete the installation, simply follow the on-screen instructions or prompts.

3. Software Setup

Install ASUS Tweak Utility

The ASUS Tweak Utility lets you control the core clock speed and the memory interface speed of your graphics card.

WARNING! Use this option with caution. Using this inappropriately may damage your card and cause your system to be unstable.

Insert the CD installation disc into your CD-ROM drive or double click the CD drive icon in My Computer to bring up the autorun screen or run Setup.exe in the root directory of your CD-ROM drive.

Click Utilities.

The Utilities box appears. Click Install ASUS Tweak Utility

ASUS V6800 Series 20/3D Graphics & Video Accelerator 1. V6800 - Version 1. 4000 Features Utilities Install ASUS Live Utility Install Acrobat Reader Install Smarl Doctor Install VideoSecurity Install ASUS Tweak Utility

When the Welcome box appears, click Next.

To complete the installation, simply follow the on-screen instructions or prompts.

4. Software Reference

Using the Utilities

ASUS AGP-V6800 Pure (32M) - Using the Utilities - 1

ASUS TWAIN Interface

TWAIN is a cross-platform interface for acquiring images captured by scanners, digital cameras, and frame grabbers. The ASUS TWAIN Driver is currently supported only when used with Adobe Photoshop® (see www.adobe.com for details). If you already have Photoshop installed and you chose to install the ASUS TWAIN Driver, you can use Photoshop to import a still image using the ASUS TWAIN interface installed.

NOTE: The following steps assume that you are already running Photoshop and that you have already connected a compatible and working capture device, such as a web cam, to your system.

Using the ASUS TWAIN Interface for the First Time

From the File menu, click Import and then Select TWAIN_32 Source to specify the capture option.

Select ASUS Frame Capture Source.

$Adobe Photoshop File Edit Image Layer Select Filter View Window Help Show... CIs-N Down... CIs-O Down-As... Alt+CIs-O Down... Alt+V Save As... Sub+CIs-G Save as Copy... Alt+CIs-V Place... Import Export Automotive File Info... Page Setup... Sub+CIs-P Edit... CIs-P Preferences Color Settings WebSim powerLamp @ 100% (FGB) USB 723.00 1995-1997-14-02-01 6/10/20 Send F:\WIN_32\Software\WIN_32_...$

NOTE: You do not need to repeat this step for subsequent uses of the ASUS TWAIN module. If more than one TWAIN device is installed in your system and you want to switch devices, use Select TWAIN_32 Source command.

Importing an Image Using the ASUS TWAIN Interface

From the File menu, click Import and then TWAIN_32.

Adobe Photoshop File Edit Image Layer Select Filter View Window Help Sears... Sears... Mouse... Mouse... Mouse... Save As... Save As... Save As... Place... Export Export Automotive File Info... Page Setup... Print... Pre Slovenia Color Settings Wallac-power.bmp @ 100% (FIG.8) T-Mobile 3.2 7006.11/07.14:15:55 3.0x2.00 Select Visual, 3D Source... T-Mobile 3.2

4. Software Reference

When the ASUS TWAIN Driver utility appears, click Options and then Video Format.

ASUS TWAIN Driver File Edit Options Capture Help

In the Image Format list of the ASUS Video Format dialog box, click 24 bit RGB.

ASUS Video Format Image Dimensions 852 x 240 1/3 1/2 Full OK Cancel Image Format: 24 bit RGB

Click Options and then Video Format to select your video source. If desired or necessary, you may adjust the Brightness, Contrast, Saturation, and Hue of your image.

ASUS Video Source Video Connector Composite S-Video Tunes Video Standard NTSC - M Color Brightness 128 Contrast 176 Saturation 128 Hue 120 OK Default Cancel

You are now ready to capture.

To capture, click the capture button Single Frame.

or click the Capture menu and then

Other Options

Preferences Menu: Click to adjust the background color of your image and other options.

ASUS TWAIN Driver Preferences Status bar Tool bar Center image in window Size frame to capture window Background color Default Lit gray Dk gray Black

Toggle preview video: Click button or click the Options menu and then Preview to toggle between the preview video options. A pressed button (or a checked Preview command) indicates that the preview is on and vice-versa.
Toggle overlay video: Click button or click the Options menu and then Overlay to toggle between the overlay video options. A pressed button (or a checked overlay command) indicates that the overlay preview is on and vice-versa.

ASUS AGP-V6800 Pure (32M) - Other Options - 2

ASUS Live Utility

NOTE: The ASUS Live utility can only be used with the Deluxe model.

It can be used to:

View images using your monitor as screen from traditional consumer devices, such as videocassette players, camcorders, digital cameras, and laser disc players through the onboard RCA or SVHS VIDEO-IN connectors.
Capture live motion video up to 30 frames/second (minimum system requirement: Pentium II/266).
Play any *.AVI file.

NOTE: You should already have installed DirectX 7 or higher to use ASUS Live (see 4. Software Reference Install DirectX)

To run the utility, click Start and point to Programs and then ASUS Live and then click ASUS Live.

You may also run ASUS Live by clicking or right-clicking the ASUS Control Panel icon (see 4. Software Reference ASUS Control Panel) on the taskbar's status area to display the ASUS Control Panel, pointing to ASUS Live Video, and then clicking it.

To uninstall the software, click Start and point to Programs and then ASUS Live and then click Uninstall. You may also uninstall the software using the Add/Remove Programs Properties dialog box at the Windows Setup tab. See Windows online help for more information on removing a Windows component.

ASUS Main Panel

About ASUS Live Video Slider Capture Frames (F6) Video Snapshot (F5) StopPlayPause Video Recording (F7) Show/Hide Video Source Options Up Button Right Button Capture NTSC-M S-Video AVI 352x240 Left Button Down Button Exit Minimize Capture Mode LiveVideo Mode Full Screen (Ctrl+S) Turn On/Off TV box Video Recording Setting SnapShot Setting Video/Capture Setting

4. Software Reference

Always On Top

The Always On Top option is provided for users who may wish to continue watching VCD/DVD/TV programs while doing other tasks, such as when downloading files from the Internet or word processing. To keep your display screen always on top of other programs, right-click the display screen and then click the Always On Top button. Position the screen where it will not interfere with your other tasks.

✓ Always On Top Current HTSC-N S-Video AVE 352x24H

Click Minimize to shrink the ASUS Main Panel to the taskbar when viewing
Display screen

Show/Hide Video Source Option

When first using ASUS Live, you must set up the video source. By clicking the Show/Hide Video Source Options button on the ASUS Main Panel, you can show or hide the video source setup screen.

ASUS AGP-V6800 Pure (32M) - Show/Hide Video Source Option - 1

bar

| Category | Value | |---|---| | Brightness | 16 | | Contrast | 22 | | Saturation | 16 | | Hue | 15 | Video Connector: Composite, S - Video, Tuner Video Standard: NTSC - M, NTSC - N, NTSC - 4.43, SECAM PAL - BGHI, PAL - M, PAL - N, PAL - 4.43

Use the Up or Down Buttons on the ASUS Main Panel or the UP and DOWN arrow keys on your keyboard to select Video Connector and then the Left and Right Buttons or the LEFT and RIGHT arrow keys to set your video connection (Composite, S-Video, or Tuner) or video standard (NTSC-M, NTSC-N, NTSC-4.43, PAL-BGHI, PAL-M, PAL-N, PAL-4.43 or SECAM).

NOTE: Users with the PAL D/K models should select PAL-BGHI for the Video Standard.

4. Software Reference

If desired, you may adjust the Brightness, Contrast, Saturation, and Hue of your display by using the video source setup screen. Use the Up or Down Buttons on the ASUS Main Panel or the UP and DOWN arrow keys on your keyboard to select the desired option and then the Left and Right Buttons or the LEFT and RIGHT arrow keys to make the desired adjustments.

Click again the Show/Hide Video Source Options button on the ASUS Main Panel to exit from the video source option screen.

Video Capture

IMPORTANT: It is the intent of ASUS that this product be used in full compliance with the copyright laws of your respective and other countries and that prior permission be obtained from copyright owners whenever necessary.

When you install the Windows 98 Driver of your ASUS graphics card (only models with the VIDEO-IN connector), the video capture driver will automatically be installed on your system. This video capture driver follows Microsoft Video for Windows standard and can open up to a capture window size of 704 x 480. It can be used with some applications that use video capture as an option, such as video conferencing, net meeting, or digital video authoring applications.

IMPORTANT: You must enable the DMA transfer mode of your hard disk (EIDE HD) to get the maximum data transfer capability (704 x 480, 30 frames/second) during the video capture process. Otherwise, your system may become unstable.

Enabling DMA Transfer Mode

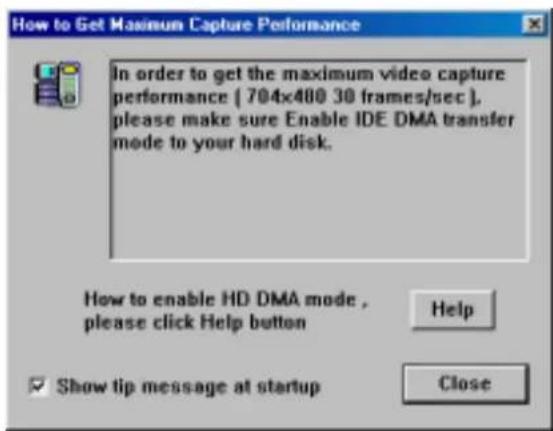

NOTE: The How to Get Maximum Capture Performance dialog box will tell you how to enable your hard disk's DMA transfer mode to get the best capture performance. Simply follow the on-screen instructions to enable DMA mode. Otherwise, do the following:

Click Start, point to Settings, and then click Control Panel.
Double-click the System icon. The System Properties dialog box appears.
Click the Device Manager tab and then click the plus sign next to Disk drives, and then double-click your hard disk. The hard disk's Properties box appears.
Click the Settings tab and then select the DMA check box under Options.

How to Get Maximum Capture Performance In order to get the maximum video capture performance [ 704x480 30 frames/sec ], please make sure Enable IDE DMA transfer mode to your hard disk. How to enable HD DMA mode , please click Help button Show tip message at startup Help Close

4. Software Reference

Capturing Images

You must be in capture mode to capture images. To do this, click the Capture Mode button on the ASUS Main Panel.

NOTE: ASUS Live will automatically detect and warn you if the capture driver installed in your system is not compatible with ASUS Live.

Video/Capture Setting

Click Video/Capture Setting to adjust the basic video capture settings, such as Capture Image DIMension and Format, Capture CODEC selection, and Capture Audio Format and Attribute.

ASUS Live Setting Video Recording Tuner Setting Tuner Editing Capture Snapshot Capture Image Dimension and Format : Setting Capture CODEC selection : Setting Capture Audio Format and Attribute : Setting Preallocate disk space 10 MBytes for Capture Capture Tip Adjust Source OK Cancel

Under Capture Image Dimension and Format, select the Image Dimension and Image Format setting of your choice.

ASUS Video Format Image Dimensions 704 x 480 1/3 1/2 Full OK Cancel Image Format: ASUS Video ASV1

Under Capture CODEC selection, select the video compression of your choice for your captures.

Video Compression Compressor No Recompression OK Cancel Preview Help

Under Capture Audio Format and Attribute, select the Audio Format and Audio Attribute setting of your choice. This setting depends on whether you have audio set on your system.

Preallocate disk space: If you have limited space on your hard disk, you may want to limit the capture file size to a certain size. To do this, click Preallocate disk space and enter the desired maximum file size.

Capture Tip: See Enabling DMA Transfer Mode

Adjust Source: This lets you select the video connection and video standard to be used in the capture. It also lets you adjust the Brightness, Contrast, Saturation, and Hue of your images.

You are now ready to capture video images.

4. Software Reference

SnapShot Setting

Click SnapShot Setting to select your Capture Picture Format (default: 24 bit), Image Setting and other settings.

Under Image Setting, you may set the desired Image File name and path (default: C:\CAPTURE.BMP) and for the filename to be consecutively numbered (Store image use consecutive numbered filename).

$ASUS Live Setting Video Recording Tuner Setting Tuner Editing Capture Snapshot Capture Picture Format 8 bit 16 bit 24 bit Image Setting Image File name: c:\capture.bmp Rename Store image: use consecutive numbered filename OK Cancel$

You are now ready to capture video images.

Video Recording Setting

Click Video Recording Setting to select the video recording settings, such as the Frame Rate (fps) (default: 30), Maximum Capture Time (default: 10 seconds) and File name and path (default: C:\CAPTURE.AVI).

$ASUS Live Setting Capture Snapshot Video Recording Tuner Setting Tuner Editing Frame Rate (fps) Default 30 User define 20 Capture Audio Maximum Capture Time 10 Seconds Free Disk Space (c:) 143 MBytes File name: c:\capture.avi Rename Append OK Cancel$

You are now ready to capture video images.

Video Snapshot (F5)

Video Snapshot lets you capture video stream data as single images and then show these images on your desktop almost simultaneously through the image viewer you selected. It supports any plug-in picture viewers or image processing programs (see Step 3 in Capturing Images) to view the captured images.

To begin capturing, do the following:

Click the Video Snapshot (F5) button on the ASUS Main Panel or press the F5 key to capture the desired image on ASUS Live's display screen. The screen will freeze momentarily and the captured image (saved as a BMP file, using consecutive numbers) will be listed in the Captured File(s) List dialog box.

You may click View to view a selected captured image.

Repeat Step 1 as necessary.

$C:\Capture File(s) List c:\capture.bmp c:\capture01.bmp c:\capture02.bmp c:\capture03.bmp c:\capture04.bmp c:\capture05.bmp c:\capture06.bmp c:\capture07.bmp View Exit$

Capture Frames (F6)

Capture Frames lets you capture video stream data as consecutive images and then show these images on your desktop through your default movie player. Capture Frames is useful in animation.

To begin capturing, do the following:

Click the Capture Frames (F6) button on the ASUS Main Panel or press the F6 key to open the Capture Frames box.
Click Capture to begin capturing the desired frame or frames on ASUS Live's display screen and then click Done when finished. The initial frame of the captured video (saved as an AVI file) will immediately be displayed on your movie player.
Click the PLAY button of your player to view the captured video.

Video Recording (F7)

Video Recording lets you capture video stream data continuously and then show these images on your desktop through your default movie player.

To begin capturing, do the following:

Click the Video Recording (F7) button on the ASUS Main Panel or press the F7 key.
Follow the on-screen instructions to begin and then stop recording.

ASUS AGP-V6800 Pure (32M) - Video Recording (F7) - 1

ASUS SmartDoctor

ASUS SmartDoctor is designed to satisfy two major goals. One is to monitor the graphic chip status, alerting users about abnormal events, such as fan malfunction or chip overheat. The other, as the name “SmartDoctor” implies, is to “cool” down the graphic chip smartly when it is not necessary for it to be kept running at full speed.

Functions

• Monitors graphic chip temperature, fan speed and voltage
- Notifies users about irregular hardware events, such as temperature overheat, fan malfunction, and out-of-safe-range voltage.
- Forcibly cools down the graphic chip when the graphic chip's temperature is over an acceptable temperature, to protect the graphic chip from overheat damage.
- Cools down the graphic chip's temperature when it is idle, and restores it to its maximum capability once needed, thus smartly extending the graphic chip's lifetime.
- Cools down the CPU's temperature (for Windows 98/98 Second Edition only) to lengthen CPU lifetime.

AGP Bus VDDQ Voltage Graphic Chip Temperature AGP Bus 3.3 Voltage Fan Rotation Speed 1.49 3.36 129/54 5152 Your VGA Card is OK. Setup Show on startup ✓ Message Display Region Advanced Setup Button Select to show this main window at Windows startup

NOTE: AGP bus VDDQ Voltage and AGP bus 3.3 Voltage should be supplied steadily by your motherboard, otherwise, your system will crash.

4. Software Reference

Advanced Setup

When you click the Setup button, the Advanced Setup dialog box appears.

Advanced Setup ○ Run once and terminate ○ Run and keep resident OK Cancel Dynamic Settings Monitoring per step-through (5 second) Enable CFD routing Enable dynamic graph routing Enable process protection

The default setting of SmartDoctor is Run once and terminate, which means that SmartDoctor will run every time Windows starts and checks the graphic card's status.

If your graphics card is working properly, SmartDoctor will just exit or terminate in 5 seconds.

If you want SmartDoctor to continue running in the background and to monitor your graphic card's status, select Run and keep resident.

Dynamic Settings will become available when you select Run and keep resident.

Monitoring polling time interval lets you specify the time intervals that SmartDoctor will take to check the graphic chip. The default setting is 5 seconds. You can choose a longer time interval value. SmartDoctor, however, will be less sensitive to graphic chip condition changes.
Enable CPU cooling allows you to enable or disable the CPU cooling option. Enabling CPU cooling option will cool down the CPU's temperature when SmartDoctor detects that CPU is idle. The CPU's temperature will then drop.

NOTE: If you have already installed any CPU cooling software in your system, you should just choose only one. Running more than one CPU cooling software at the same time is redundant.

After CPU cooling is enabled, and when you run System Monitor in Programs—Accessories—System Tools to monitor CPU usage, you will find that CPU usage has reached its maximum, that is, 100%. Do not be alarmed—this is normal.

- Enable dynamic graphic cooling allows you to enable or disable the dynamic graphic cooling option. Enabling the graphic cooling option will cool down the graphic chip's temperature when SmartDoctor detects that the graphic chip is idle.

4. Software Reference

- Enable overheat protection lets you forcibly cool down the graphic chip when temperature is over the tolerable range or value.

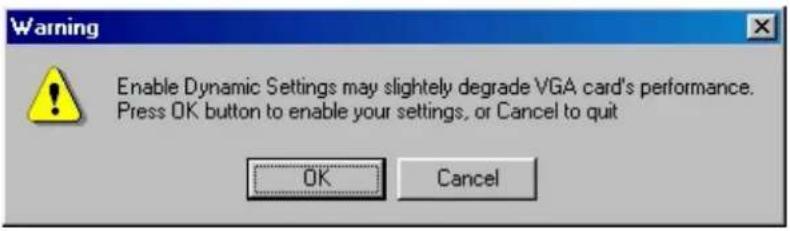

When you select Run and keep resident and then click OK, a dialog box appears to warn you of a possible graphic performance drop. This performance penalty is very slight and almost undetectable even under rigorous examination by benchmark programs.

Warning Enable Dynamic Settings may slightly degrade VGA card's performance. Press OK button to enable your settings, or Cancel to quit OK Cancel

Press OK to set your modifications or Cancel to retain the original settings

Abnormal Events

When SmartDoctor senses that something is wrong with your card's graphic chip, the message display region will display a detailed description of the error or trouble. The component in question will also have a flashing red value. If you enabled overheat protection in Advanced Setup dialog, SmartDoctor will cool down the graphic chip in time to protect it from possible overheat damage.

NV010 3.49 3.39 3.46 1.92-1.82 212 100 176 80 60 40 20 0 °F °C RPM x1000 Setup Show on startup ✓

ASUS AGP-V6800 Pure (32M) - Abnormal Events - 2

ASUS VideoSecurity

NOTE: The ASUS VideoSecurity utility can only be used with the Deluxe model.

ASUS VideoSecurity lets you detect intruders into your system and environmental changes and monitor a specified location or any incoming visitor. If VideoSecurity detects any deviation from the norm that you set, it may give an error message or not. Regardless of any messages, VideoSecurity will record:

Any information about the monitored activity and then store these to an event log file. If you have already installed Microsoft Access 97 or later, you may use these event log data and export it as an Access database for further data management and processing.
The last two detected snapshot image files from the video captured stream (stored as bitmap format). Any image processing or editing software can then be used to view, modify, or distribute them.

Limitations

Because of differences in hardware sensitivity, VideoSecurity may not completely detect all possible errors. Before you execute VideoSecurity, there are some limitations you have to understand so that you can appropriately use it.

Due to changing temperatures, the captured image of some CCDs will be twisted, which may give a wrong detection.
If the features (e.g., color, luminance) of the object are similar to that of background, the object may not be detected clearly.
The CCD cannot capture the object smoothly and immediately when an object moves too fast.

VideoSecurity is designed for the widest environments possible and error conditions, therefore it is necessary to tune the parameters in VideoSecurity Setup Wizard to get the best detection results.

Setup Wizard

Setup Wizard guides you through setting up the VideoSecurity features.

To open Setup Wizard, click the Start button, and then point to Programs, ASUS Video Security, and then click Setup Wizard. The Video Security Setup Wizard dialog box appears.

$Video Security Setup Wizard Welcome to ASUS Video Security Setup Wizard Video Security running style Normal/Window Always on Tap Minimize on Tray Video Security Working Directory c:\Videos Auto-execute whenever Windows Start Enable Warning Sound Use Schedule Cancel Help Next Finish$

4. Software Reference

NOTE: The following descriptions are only for selected features of the ASUS VideoSecurity utility. For a full description of the features described in this manual and other features, refer to the ASUS VideoSecurity Online Help (HTML) format included with your support CD. You may also click the Help button to open the online help file.

Main Window

VideoSecurity Running Style

Normal Window is the default style, that is, VideoSecurity will function as a standard Windows program.
Always on Top is like a Normal Window except that the main window and control panel is shown always on top of other programs or utilities. You may right click to enable or disable this function at the main window anytime.
Minimize on Tray lets you hide the main VideoSecurity window. This is useful when you don't want anyone to know you are monitoring. When this option is selected, the VideoSecurity icon will appear on the taskbar in the lower-right corner of your screen. Whenever VideoSecurity detects a problem, it will run. You may also run VideoSecurity by clicking the icon.

VideoSecurity Working Directory

The VideoSecurity Working Directory is the folder where the utility stores its temporary working and log files. Default is C:\VIDEOSEC. The directory is user-configurable. When VideoSecurity is ran, a sub-directory will automatically be created under the main directory, using the current date and time as the folder name, for example, "1999.11.30_12.30.20" means that VideoSecurity was started on 30 November 1999 at 12:30:20 PM.

IMPORTANT: Do not change the working folder's name while VideoSecurity is running. Otherwise, a fatal runtime error will occur.

VideoSecurity Detecting Region

Detects all visible area when watchdog function is on

This sets the scan rate. Default is 2 frames/sec. The higher the scan rate, the more accurate is the detection. Higher rates, however, entails a higher CPU usage. Do not use a high rate when you plan to use VideoSecurity while using other applications.

Video Security Setup Wizard - Detecting Region and Rate Video Security Detecting Region: Full Window User define detecting region Video Security Detecting Rate (frames/sec) Default 1 frames 2 frames 3 frames 4 frames Enable password protection Set New Password Cancel Help Previous Next Finish

Detects only the area defined by the user when watchdog function is on. Feature will take effect only when VideoSecurity runs the next time

4. Software Reference

Sensibility

Currently, only one option is available to set the image format

Video Security Setup Wizard - Sensitivity Video Security image processing type Gray Level (RGB/10mm) Video Security detecting sensibility Low High Default Cancel Help Previous Next Finish

This is an important parameter when setting up VideoSecurity. Your environment may change often but VideoSecurity is concerned only when there is a change in the environment. Make sure that you select a suitable sensitivity for your environment.

Define Tracing Procedure

VideoSecurity not only detects errors or problems in your card but also monitors or detects an intrusion.

Video Security Setup Wizard - Online Tracing Procedure When Video Security detects any unusual condition : Trace motion object(s) manually by user Trace motion object(s) automatically by system If the unusual condition is still existing, set the release time interval when system doesn't detect any variation 120 rec No object(s) tracing, back to system immediately Cancel Help Previous Next Finish

Use this to stop tracing or to choose the error processing method to use while tracing. This box appears when an error occurs.

Error Processing Procedure

Video Security Setup Wizard - Error Processing Procedure Define error processing procedure Capture the following video data to an AVT file Send on warning E-Mail to the specified user(s) Make a phone call to the specified user Execute a specified program Cancel Help Previous Next Finish

Stop Detecting Setting

Video Security Setup Wizard - Stop Detecting Setting When Video Security finishes all error processing procedure □ Stop Video Security immediately □ Never stop, until user press □ Stop when error amount is in excess of 50 □ Enable Event Log Management (use MS ACCESS) [You need to install Microsoft ACCESS and MDAC to run this]

4. Software Reference

Running ASUS VideoSecurity
Main Control Panel ASUS STANDIwy NTSC-34 5 Videos 1999/11/10 22:5:32 3.52x240 Starts Setup Setup Click to start detecting Click to open the VideoSecurity Setting dialog box Starts the Setup Wizard Lets you define a region with which VideoSecurity will monitor for errors or intrusion. Lets you adjust the video source parameters, such as Color, Video Connector, and Video Standard

Shortcut Keys

ESC Exit VideoSecurity

F1 Open Online help

F2 Toggle VideoSecurity / Stop Watchdog function

F3 Open Setup menu

F4 Show error log box

ASUS AGP-V6800 Pure (32M) - Software Reference - 2

ASUS Tweak Utility

WARNING! Use the ASUS Tweak Utility with extreme caution and only if you are well acquainted with your display card. Using this inappropriately may damage your card, its components, and your system.

To run the ASUS Tweak Utility, click Start and point to Programs, Asus, Tweaking Utilities, and then click Tweak.

Timing Adjustment

Timing Adjustment lets you adjust the working frequency of the graphic engine and video memory.

Graphics Speed

Engine

Lets you adjust the working frequency of the graphic engine

Memory

Lets you adjust the working frequency of the video memory.

Default

Restores the settings to their defaults.

Test settings

Lets you test your settings.

Use tweak settings on next startup Selecting this allows you to use your settings when Windows starts.

ASUS Tweaking Utility Properties Timing Adjustment ASUS® Use tweak settings on next startup Graphics Speed Engine 120 MHz Memory 166 MHz Load default AGP/V6600 20 Test OK Cancel Apply

4. Software Reference

Tweak Safe Mode Recovery

Timing Adjustment (Safe Mode) lets you restore the working frequency of the graphic engine and video memory to their factory default settings. This mode is used when you encounter problems when starting or restarting Windows using your customized tweak settings.

Using Tweak Safe Mode Recovery

Restart Windows in safe mode. To start Windows in safe mode, hold the F8 key until the Windows Startup Menu appears. For some machines and Windows 98, you can use CTRL to bring up the Startup Menu. Enter the number for Safe mode and then press ENTER.
In Windows, click Start and point to Programs, Asus, Tweaking Utilities, and then click Tweak Safe Mode Recovery.
The ASUS Tweak Safe Mode Properties box appears. Click the appropriate settings.

Timing Adjustment (Safe Mode) Select the Clear tweak settings and use factory default box to change back the timing adjustment settings to their factory defaults and then click OK to restart Windows properly.

ASUS Tweak Sale Mode Properties ASUS ! If you have booting problem with your current tweak settings, please check the option below and press OK. ✓ Dear tweak settings and use factory default OK Cancel Help

4. Software Reference

ASUS Control Panel

After installation of the display drivers, you will find an ASUS icon on the taskbar's status area. Clicking or right-clicking this icon opens the ASUS Control Panel, showing a menu composed of shortcuts of the graphics board's enhanced and other functions.

NOTE: Instead of clicking the ASUS Control Panel icon, you may right-click the Windows95/98 desktop, click Properties, and then click Settings. Under Windows98, click Advanced after clicking Settings. Click the appropriate tab to change your display settings.

More Resolution... Treadout Utility V61 Picture Viewer StreamTV ASUS Liver Video Greenfall Drives Information... Color... Display... Advanced... Windows Display Properties... Network Rate G40x80 - HCCale - 80Hz 980x80 - HCCale - 80Hz 980x80 - TrueColor - 60 Hz 1824x705 - HCCale - 80 Hz 1824x705 - TrueColor - 60 Hz 8.20 PM ASUS Control Panel icon

Refresh Rate

Refresh Rate lets you change the refresh rate of your current screen resolution.

WARNING! Be sure that the refresh rate that you select is supported by your monitor. Selecting a refresh rate that is beyond your monitor's specification may damage it. Press ESC to restore your original settings in case of problems.

Click/right-click the ASUS Control Panel icon, point to Refresh Rate, and then click the desired refresh rate.

Main Resolution... Treadout Utility VH Picture Viewer Stereo/V All2/5 Live Video Uninstall Driver Information... Color... Display... Advanced... Windows Display Properties... 80 Hz 75 Hz 85 Hz 100 Hz 120 Hz Faintech Mode 848x480 - HColor - 68 Hz 808x680 - HColor - 68 Hz 808x680 - TrueColor - 68 Hz 1024x768 - HColor - 80 Hz 1024x768 - TrueColor - 60 Hz

The system will prompt you whether you want to keep the setting you just selected. Click OK to keep the setting, otherwise, click Cancel or press ESC.

Click OK to keep current setting, CANCEL to abort Time left: 7 OK Cancel

4. Software Reference

More Resolution

More Resolution lets you change the screen resolution of your monitor.

Click/right-click the ASUS Control Panel icon, point to More Resolution, and then click the desired screen resolution. The system will automatically set the resolution selected without restarting your computer.

WINDOWS95 USERS: You will be prompted to restart your computer if you select a screen resolution with a different color depth, for example, from 800x600 HiColor to 800x600 TrueColor. Click OK to restart your computer to make the change.

You must reboot to take effect, do you want to reboot? OK Cancel

ASUS AGP-V6800 Pure (32M) - More Resolution - 3

Information

Information lists the relevant information about your card. Aside from this, it has links to the ASUSTeK COMPUTER, INC. web site for updated information about the graphics board, latest drivers, and other information.

4. Software Reference

ASUS AGP-V6800 Pure (32M) - Software Reference - 1

Color

Color allows you to make color adjustments, such as brightness, contrast, and gamma values for each or all of the RGB colors. These adjustments can be made for Desktop, D3D/Game, and Video. The color settings of Desktop and D3D/Game are not adjustable under 8-bit colr depth.

Desktop

Desktop lets you adjust the color of your Windows 98 desktop.

D3D/Game

D3D/Game lets you make your favorite color settings for D3D games.

ASUS Display Card Control Panel(VS000/VS800) Information Color Display Advanced AGP-V6300 Desktop 0.00/Game Video OpenXL Scheme Current Save Load default Color Spike Red Green Blue All Load Brightness 0 Contact 0 Gamma 1.0 ASUS (Control Panel) OK Cancel Cancel

ASUS Display Card Control Panel(VS600/VS800) Information Color Display Advanced AGP-V6800 Desktop 0.90/Genre Videos Open6L Scheme Current Save Load default Color Spine Red Green Blue All Brightness 0 Contrast 0 Gamma 1.0 ASUS Control Panel OK Cancel

Video

Video lets you make your favorite color settings for videos.

OpenGL

OpenGL lets you make your favorite color settings for OpenGL applications.

ASUS Display Card Control Panel(VS600-VS800) Information Color Display Advanced VISA AGP-V6800 Desktop 0.00/Game Videos OpenXL Scheme Current Save OK Load default Brightness 0 Contact 100 Hue 0 Saturation 100 ASUS Control Panel OK Cancel

ASUS Display Card Control Panel(VS600/VE800) Information Color Display Advanced AGP-V6300 Desktop 0.00/Game Videos OpenXL Scheme Current Save Load default Color Spike Red Green Blue N: All Brightness 0 Contrast 0 Gamma 1.0 ASUS Control Panel OK Cancel Add

4. Software Reference

General Functions

Brightness / Contrast / Gamma Brightness / Contrast / Gamma sliders let you calibrate the brightness, contrast, and gamma output of your display card.

Desktop

Changes to your color settings are shown immediately on your monitor. You may change the preview picture by clicking Load from the Desktop box.

D3D/Game / OpenGL

Changes to your color settings are shown immediately on your monitor.

Brightness / Contrast / Hue / Saturation

Brightness / Contrast / Hue / Saturat- tion sliders let you calibrate the bright- ness, contrast, hue, and saturation out- put of your display card.

Video

Changes to your settings can be viewed on the displayed picture (shown as race horses).

Brightness 0 Contrast 0 Gamma 1.0

Dragging a slider to the left decreases the level and to the right increases it. The number at the right of each slider displays the brightness (value range: -128 to +128, default: 0), contrast (-30 to 30, default: 0), or gamma value (0.2 to 3.0, default: 1.0).

Brightness ——J — 0 Contrast ——J — 100 Hue ——J — 0 Saturation ——J — 100

Dragging a slider to the left decreases the level and to the right increases it. The number at the right of each slider displays the brightness (value range: -100 to 100, default: 0), contrast (0 to 200, default: 100), hue (-180 to 180, default: 0), or saturation value (0 to 200, default: 100).

Color Spline

Color Spline shows how each (R, G, or B) or all channels are distributed when you move the Brightness, Contrast, or Gamma slider to make your adjustments. You can adjust all channels at once (All) or individual channels (R, G, or B).

Scheme

Scheme lists schemes that you can use to change the appearance of many screen elements simultaneously. You can use existing schemes, or create and save your own scheme by saving your current settings, or delete unwanted schemes. You may want to save a scheme that you created for some special situations, such as when you want to use the same settings when playing a certain game or a movie.

Color Spline Red Green Blue All

Scheme Current Save Delete

4. Software Reference

Important Notes

D3D/Game

The color settings of D3D/Game take effect only when you are playing a full-screen DirectDraw/Direct3D game.

Video

Only one overlay is allowed at a time with either ASUS AGP-V6600 or AGP-V6800. That is, when you click Video first and then run your favorite video player, you can only see the adjustments you made to the settings in the preview window because the video player cannot use the hardware acceleration function (overlay). On the other hand, if you run your video player first before opening Video, the preview window will show a warning message. The message may also appear when you click Video and the dialog box is on the wrong monitor in a Windows 98 multiple display environment.

ASUS AGP-V6800 Pure (32M) - Video - 1

Display

Display lets you make monitor adjustments, such as position, size, and refresh rate.

WARNING! Adjusting position or size, especially refresh rate is a highly dangerous operation. Selecting a value that is beyond your monitor's specification may damage it. Press ESC to restore your original settings in case of problems.

VGA

Adjustment

Position sets the screen position

Size sets the screen size

Synchronization

Adjusts the synchronization polarity settings

ASUS Display Cord Control Panel(V6028/V6090) Information Color Display Advanced AGP-V6800 VGA TV Adjustment Position Size Load default Synchronization Horizontal Vertical Click here for text preference Change current switch rate Change switch rate OK Cancel ASUS Display Cord Control Panel

Change current refresh rate

Displays the Change current refresh rate box to let you customize a new refresh rate.

To change the current refresh rate

Click Change current refresh rate.
In the Refresh rate list under Change current refresh rate, click the nearest default refresh rate and then adjust the Edit refresh rate slider to the rate you want, click Test and then click YES when prompted to add the new refresh rate into the list. Otherwise, the original refresh rate will be restored.

Load default

Restores the settings to their defaults.

Change current refresh rate Refreshrate Non-interlaced 60Hz Non-interlaced 70Hz Non-interlaced 72Hz Non-interlaced 75Hz Non-interlaced 80Hz Non-interlaced 100Hz Edit refresh rate 100 Non-interlaced 100Hz 120 OK Cancel Finish Load default

Change current refresh rate The refresh rate has been changed to the value you specified. Do you want to keep it? If you don't press OK 15 seconds, original refresh rate will be restured...12 YES NO

4. Software Reference

Change refresh rate

Displays the Change refresh rate box to let you change the refresh rate of any screen resolution.

GDI

GDI lets you change the refresh rate of the Windows desktop.

To change the refresh rate

Click Change refresh rate.
In the Refresh Rate list under the GDI tab, select the refresh rate you want to use. A Test button appears to let you test the selected refresh rate and resolution combination. Click YES when prompted whether to keep the new refresh rate. Otherwise, the original refresh rate will be restored.

DirectDraw

DirectDraw lets you change the refresh rate of DirectDraw. It is most useful when you are playing a full-screen game.

To change the refresh rate

Click Change refresh rate.
In the Refresh Rate list under the DirectDraw tab, select the refresh rate you want to use.

Change refresh rate QDI | DirectDraw | Color Depth 256 Color High-Cult (% Bit) True-Cult (22 Bit) Refresh Rate 048x400 90 MHz 088x400 100 MHz 1024x760 90 MHz 1152x664 90 MHz 1288x663 90 MHz 1288x434 90 MHz 1488x800 90 MHz 1508x200 90 MHz Load default OK Cancel

Change refetch rate OK DirectRate Color Depth 256 Color High Color(30 Bit) Tape Color(30 Bit) Network Rate 328x300 97 Hz 328x240 97 Hz 488x300 97 Hz 488x360 97 Hz 51.2x354 97 Hz 648x400 97 Hz 648x480 97 Hz 888x400 97 Hz 968x100 97 Hz 1024x100 97 Hz 1152x464 97 Hz 1288x480 97 Hz 1300x4 97 Hz 1600x480 97 Hz 1600x4 280 97 Hz Load default OK Cancel

4. Software Reference

TV

NOTE: This tab is not available with the Pure model.

Position

Sets the screen position.

Standard

Sets the TV signal format, for example, PAL or NTSC.

Output type

Displays the connection status of composite and S-Video.

Scan type

Sets the scan type of the TV display.

Black Level

Sets the brightness of the TV display.

Contrast

Sets the contrast of the TV display.

Flicker Filter

Sets the anti-flicker effect.

ASUS Display Card Control Panel(VS600/VS800) Information Color Display Advanced ASUS AGP-VS800 TV VGA TV Scheme Current Save Delete Standard NTSC Black Level 37 Context 3 Flicker Filter 0 Position Scan Type Output type S-Video Composite ASUS Control Panel OK Cancel Apply

ASUS AGP-V6800 Pure (32M) - Flicker Filter - 2

Advanced

Advanced provides some advanced settings for the ASUS VR-100G 3D Glasses (setting is available only with the ASUS Deluxe model or models with the ASUS VR-100 Optional Upgrade Kit) and Direct3D and OpenGL, which are software interfaces for your ASUS V6800 Series graphics cards.

Direct3D VR

VR Effect

Enable Stereoscopic Mode

When selected, this enables you to use the stereoscopic mode when playing games or watching 3D videos. This mode is available only with the ASUS Deluxe models or models with the ASUS VR-100 Optional Upgrade Kit.

NOTE: You must quit all running DirectDraw/Direct3D applications and then restart them for this option to take effect.

Eyes

Distance between both eyes. Adjust this to bring objects into focus.

Distance

Distance between foreground objects and eyes. When set to a small value, eye fatigue may occur.

Embossment

The effect to make objects virtually pop out of the screen. When set to a too high value, eye fatigue may occur.

Background / Foreground

Background is the distance between background and eyes while Foreground is the distance between foreground and eyes. These two options form a range and allow you to adjust the degree of stereoscopic effect between this range. Several current games set their Foreground to 60 and Background to 100.

Lets you discard or crop the unwanted areas of your display. Setting this to 0 will not discard any of the display area.

Load Default

Restores the settings to their defaults.

Mode

Line Interleave

Select for better compatibility with most monitors. Stereoscopic visual quality, however, will be poor because only half the number of vertical lines are generated with this mode.

Page Flipping

Select for the best stereoscopic visual quality. Your monitor must be able to support the high frequency (at least 100Hz) necessary for this mode.

Refresh Rate

To prevent eye discomfort and fatigue, high refresh rates are preferred. Some monitors, however, may not be able to support a high refresh rate. Make sure that your monitor supports a selected refresh rate; otherwise, your monitor may become unstable, for example, a blank screen may occur.

IMPORTANT: Before enabling stereoscopic mode and using your stereoscopic or 3D glasses (ASUS VR-100G), make sure that your monitor can support the selected refresh rate (interlaced mode) under the following display modes:

16 bits: 640 x 480, 800 x 600, 960 x 720, 1024 x 768, 1152 x 864

32 bits: 640 x 480, 800 x 600

WARNING! To prevent discomfort and eye fatigue when using your stereoscopic or 3D glasses, DO NOT try to use your 3D glasses for an extended period of time. Take frequent short breaks to give your muscles and eyes a chance to rest by taking off your 3D glasses and then looking up and focusing on distant objects.

On Screen Display (ASUS OSD)

Enable OSD

When selected, this lets you to adjust onscreen the settings of your 3D glasses and display card when playing games or watching 3D videos. These settings include Eyes, Distance, Embossment, Background, Foreground, Blind, Brightness, Contrast, and Gamma. See 4. Software Reference | Advanced for a description of the 3D glasses settings and 4. Software Reference | Color for a description of the display settings.

Use the UP or DOWN arrow keys on your keyboard to select a setting that you want to change or adjust and the PLUS or MINUS keys to move or drag the slider.

To restore the settings to their defaults, press the HOME key.

To close the onscreen display, press the END key.

Tres 50 Balance 188 Endorsement 36 Background 24 Temperature 0 Wind 30 Airtime 1 Control 2 Gamma 1.0 Adjusted: 9 Speed: 0.00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 GEAMEAR

Hotkey

This lets you assign hot keys to enable onscreen display or OSD. To use this function, select Enable OSD. You may want to change the default hot key (CTRL + ALT + O) when it conflicts with hot keys of certain games, video players, or Windows programs.

To change the default hot keys

With your mouse cursor in the Hotkey box, press the hot key combination of your choice (you can only define CTRL+ALT key combinations). Hot keys automatically include CTRL+ALT. Press any valid key (you cannot use ESC, ENTER, TAB, SPACEBAR, PRINT SCREEN, or BACKSPACE) you want to add to this combination. For example, to define the hot key combination CTRL+ALT+D, press D.

NOTE: The hot keys will be available only if you selected the Enable OSD check box and if you have either an ASUS Deluxe model or a model with the ASUS VR-100 Optional Upgrade Kit installed.

4. Software Reference

Direct3D

Performance and Compatibility Options

Performance and Compatibility Options ✓ Enable log table emulation ✓ Adjust Z-buffer depth to rendering depth if unequal ☐ Enable alternate depth buffering technique

Enable fog table emulation

Some old games do not correctly query the D3D hardware capabilities and expect table fog support. Choosing this option will ensure that such games will run properly.

Adjust Z-buffer depth to rendering depth if unequal

This option forces the hardware to automatically adjust the depth of its Z-buffer to the depth that the application requests. Normally, you will want to keep this option enabled, unless your work absolutely requires a specific Z-buffer depth.

Enable alternate depth buffering technique

This option lets the hardware use a different mechanism for depth buffering in 16-bit applications. Enabling this setting can produce higher quality rendering of 3D images.

4. Software Reference

Mipmapping Options

Mipmapping Options Mipmap levels automatically generated 0 Auto-mipmap method Bilinear Mipmap detail level Best image quality

Mipmap levels automatically generated

This option lets the hardware automatically generate mipmaps to increase the efficiency of texture transfers across the bus and provide higher application performance.

Auto-mipmap method

This option lets you choose the auto-mipmap method. Choose bilinear method for a generally improved performance or anisotropic method for a generally higher quality image.

Mipmap detail level

This option lets you adjust the level of detail bias for mipmaps. A lower bias will increase the application performance.

Command Buffer Location

Command Buffer Location Strict AGP

Command Buffer Location lets you choose the location of the command buffer. Default setting is Strict AGP.

Strict AGP

This option forces all the command buffer into the AGP memory. Choose for best performance.

PCI

This option forces the command buffer to be created into the PCI memory. If you are experiencing stability problems with your system (especially with some Socket 7 motherboards), choose this option for better compatibility.

PCI with reduced heap

This option forces the command buffer to be created into the PCI memory. This, however, also reduces the AGP heap size by an amount equal to the size of the command buffer. If you are experiencing stability problems with your system (especially with some Socket 7 motherboards), choose this option for best compatibility. Performance is, however, poorer using this option compared with the PCI option.

4. Software Reference

More Options

More Options Tovel Alignment Upper Left Corner Center 7 0 PCI Texture Memory Size Maximum system memory(MB) for textures in PCI mode 5 Turn off V/SYNC waiting Pre-Rendering Maximum pre-render frames 5 OK Cancel Load default

Texel Alignment

Changing these values will change where the texel origin is defined. The default values conform to the Direct3D specifications. Some software may expect the texel origin to be defined elsewhere. The image quality of such applications will improve if the texel origin is redefined.

Tessel Alignment Upper Left Corner Center 7 0

Dragging the slider to the left positions the texel origin toward the upper left corner and to the right positions it toward the center (range: 0 to 7, default: 3).

PCI Texture Memory Size

NOTE: This setting applies only to PCI display adapters or to AGP display adapters running in PCI compatibility mode.

PCI Texture Memory Size lets you set the amount of system memory for texture storage.

PCI Texture Memory Size Maximum system memory(MB) for textures in PCI mode

Clicking the up arrow increases the memory size while clicking the down arrow decreases the size of system memory for textures. The maximum amount of system memory for texture storage depends on the physical memory installed on your system.

Turn off V-SYNC waiting

Turn off V-SYNC waiting lets an image to be immediately rendered to the screen without waiting to be synchronized with the vertical retrace of the monitor. This option allows for frame rates higher than the refresh rate of your monitor. This may, however, produce visual artifacts and tearing, resulting in reduced image quality.

Turn-off V-SYNC waiting Pre-Rendering Maximum pre-render frames 5

Pre-Rendering

Maximum pre-render frames allows you to limit the number of frames the CPU can prepare before they are processed by the graphics chip when vertical sync is turned off. Reduce this value if you experience, while playing games, a noticeable delay in the response of the input devices connected to your computer.

4. Software Reference

OpenGL VR

VR Effect

Enable Stereoscopic Mode

When selected, this enables you to use the stereoscopic mode when running OpenGL 3D applications AND GAMES. This mode is available only with the ASUS Deluxe models or models with the ASUS VR-100 Optional Upgrade Kit.

Eyes

Distance between both eyes. Adjust this to bring objects into focus.

View Angle

The angle by which your two viewing directions intersect. To change this virtual viewing depth, adjust this value.

Embossment

The effect to make objects virtually pop out of the screen. This is done by setting this field to a high value. When set to a too high value, eye fatigue or discomfort may occur due to focusing problems. To achieve a better stereoscopic visual quality, set Embossment in conjunction with View Angle.

ASUS Display Cord Control Panel(VSG30/VSG800) Information Colors Display Advanced AGP-V6800 Direct3D VR Direct3D OpenSSL VR OpenSSL Other VR Effect Enable Stereoscopic Mode Load default Eye 0 View Angle 30 Enforcement 30 Scheme Current Save On Screen Display Enable OSD Hotkey Ctrl + Alt + O Mode Line Interactive Page Floating Refresh Rate 120 Hz ASUS Control Panel OK Cancel >>

Mode

Line Interleave

Select for better compatibility with most monitors. Stereoscopic visual quality, however, will be poor because only half the number of vertical lines are generated with this mode.

Page Flipping

Select for the best stereoscopic visual quality. Your monitor must be able to support the high frequency (at least 100Hz) necessary for this mode.

Refresh Rate

IMPORTANT: Before enabling OpenGL stereoscopic mode and using your stereoscopic or 3D glasses (ASUS VR-100G), make sure that you select a high resolution. The equivalent Stereo Mode resolution of a particular resolution is lower, thus:

16 bits: 2048x1536 → 1024x768 Stereo Mode
32 bits: 1280x960 → 640x480 Stereo Mode
1280x1024 → 640x480 Stereo Mode
1600x900 → 800x600 Stereo Mode
1600x1200 → 800x600 Stereo Mode

4. Software Reference

On Screen Display (OpenGL OSD)

Enable OSD

When selected, this lets you to adjust onscreen the settings of your 3D glasses and display card when playing games or watching 3D videos. These settings include Eyes, View Angle, Embossment, Brightness, Contrast, and Gamma. See 4. Software Reference | Advanced for a description of the display settings.

Use the UP or DOWN arrow keys on your keyboard to select a setting that you want to change or adjust and the PLUS or MINUS keys to move or drag the slider.

To restore the settings to their defaults, press the HOME key.

To close the onscreen display, press the END key.

Eyes View Angle 30 Embarrass 30 Brightness 0 Contrast 0 Guarantee 1.0 OpenGloss 400+

Hotkey

To change the default hot keys

With your mouse cursor in the Hotkey box, press the hot key combination of your choice (you can only define CTRL+ALT key combinations). Hot keys automatically include CTRL+ALT. Press any valid key (you cannot use ESC, ENTER, TAB, SPACEBAR, PRINT SCREEN, or BACKSPACE) you want to add to this combination. For example, to define the hot key combination CTRL+ALT+D, press D.

NOTE: The hot keys will be available only if you selected the Enable OSD check box and if you have either an ASUS Deluxe model or a model with the ASUS VR-100 Optional Upgrade Kit installed.

4. Software Reference

OpenGL

Performance and Compatibility Options

Performance and Compatibility Options Enable buffer region extension Allow the dual planes extension to use local video memory Use fast linear-mipnap-linear filtering Enable anisotropic filtering Enable alternate depth buffering technique

Enable buffer region extension

This option allows the drivers to use the OpenGL extension GL_KTX_buffer_region.

Allow the dual planes extension to use local video memory

This option allows the use of local video memory when the GL_KTX_buffer_region extension is enabled.

Use fast linear-mipmap-linear filtering

This option allows increased application performance at the expense of some image quality loss. In many cases, the loss of image quality may not be noticeable.

Enable anisotropic filtering

This option allows OpenGL to use anisotropic filtering for improved image quality.

Enable alternate depth buffering technique

This option lets the hardware use a different mechanism, for depth buffering in 16-bit applications. Enabling this setting produces higher quality rendering of 3D images.

4. Software Reference

Default color depth for textures

ASUS AGP-V6800 Pure (32M) - Software Reference - 1

Default color depth for textures determines whether textures of a specific color depth should be used by default in OpenGL applications. Options are Use desktop color depth (default), Always use 16 bpp, and Always use 32 bpp.

Buffer flipping mode

ASUS AGP-V6800 Pure (32M) - Software Reference - 2

Buffer flipping mode determines the buffer flipping mode for full-screen OpenGL applications. Options are Auto-select (default), Use block transfer, and Use page flip.

Vertical sync

ASUS AGP-V6800 Pure (32M) - Software Reference - 3

Vertical sync lets you specify how vertical sync is handled in OpenGL. Options are Always off (default), Off by default, On by default.

Maximum system memory (MB) for textures in PCI mode

ASUS AGP-V6800 Pure (32M) - Software Reference - 4

Maximum system memory (MB) for textures in PCI mode lets you set the amount of system memory for texture storage.

NOTE: This setting applies only to PCI display adapters or to AGP display adapters running in PCI compatibility mode.

4. Software Reference

Other

ASUS Display Cord Control Panel(VGG00/VG800) Information Colors Display Advanced AGP-V6500 3D/VR DirectCD OpenXL Other Monitor Timing ✓ Auto-Detect (set windows determine the proper mode) ✓ General Timing Formula (SITF) ✓ Discrete Monitor Timing (DMT) Load default ASUS Control Panel OK Cancel AUTO

Monitor Timing

Monitor Timing ● Auto-Detect (let Windows determine the proper mode) ○ General Timing Formula (GTF) ○ Discrete Monitor Timings (DMT)

Monitor Timing lets you select the proper timing mode for your monitor.

Auto-Detect (let Windows determine the proper mode)

This option allows Windows to receive the proper timing information directly from the monitor itself. This is the default setting.

NOTE: Some older monitors may not support this feature.

General Timing Formula (GTF)

GTF is a standard used by most new hardware.

Discrete Monitor Timings (DMT)

DMT is an older standard still in use on some hardware. Select this option if your hardware requires DMT.

4. Software Reference

ASUS AGP-V6800 Pure (32M) - Software Reference - 1

ASUS VR PictureViewer (optional)

ASUS VR PictureViewer lets you view stereo images, size your stereo image, set the VR effect of your 3D glasses (ASUS VR-100G), and test your 3D glasses' functionality.

ASUS®

To run ASUS VR PictureViewer, click or right-click the ASUS Control Panel icon (see 4. Software Reference ASUS Control Panel) on the taskbar's status area to display the ASUS Control Panel, point to VR PictureViewer, and then click it.

Opening or Displaying a Stereoscopic or 3D File

Click the VR Effect menu and then click VR On to enable stereoscopic display.

ASUS VR PictureViewer File Zoom VR Effect Test 3d glasses VR On ✓ VR Off Reverse R Refresh Rate ►

4. Software Reference

Click the File menu and then click Open to select a file. Select the file from the Open dialog box or select another folder and then click Open. The 3D image appears on the VrViewer main window (see preceding page for an opened 3D image file. Note that the 3D effect is not shown in this picture).

ASUS VR PictureViewer File Zoom VR Effect Test 3d glasses Open Ctrl+0 Save As Ctrl+S Close Previous Image PgUp Next Image PgDn Exit Ctrl+X

Changing the View

Click the Zoom menu and then click the desired zoom percentage.

ASUS VR PictureViewer File Zoom VR Effect Test 3d glasses 1/4X 1/2X ✓ 1X 2X Full Screen

Testing the 3D Glasses

Click the Test 3D glasses and then follow the onscreen instructions.

Close your right eye. If you can see the red rectangle. left glass is fine. Then close your left eye. If you can see the blue circle, right glass is fine. Press any key to end test. left glass is OK! Right glass is OK!

ASUS AGP-V6800 Pure (32M) - Testing the 3D Glasses - 2

ASUS StereoTV (optional)

NOTE: The ASUS StereoTV utility can only be used with the Deluxe model.

It can be used to view stereo video images with the optional 3D glasses (ASUS VR-100G) using your monitor or TV as screen from traditional consumer devices, such as videocassette players, camcorders, digital cameras, and laser disc players through the onboard RCA or SVHS VIDEO-IN connectors.

NOTE: You should already have installed DirectX 7 or higher to use ASUS StereoTV (see III. Windows 98 Install DirectX)

To run StereoTV, right-click the ASUS Control Panel icon on the taskbar's status area to display the ASUS Control Panel, point to StereoTV, and then click it.

ASUS VR MoviePlayer ASUS VR MoviePlayer 3:07 PM ASUS Control Panel icon

ASUS VR MoviePlayer

AOS Exit Minimize Channel Buttons Window Size Buttons Stereo Setting Volume Image Setting Video Setting

Buttons and Functions

Channel Buttons

Clicking + selects the next higher channel while pressing ● selects the next lower channel.

Volume Buttons

Clicking + increases the volume while pressing decreases the volume.

Window Size Buttons

Clicking + increases the window size while pressing decreases the window size.

Stereo Setting

Use this button to toggle between non-stereoscopic and stereoscopic mode.

Image Setting

Use this button to view correctly a stereoscopic image. For example, with a space inverted pseudoscopic spatial image, where the background appears in front and the foreground in the back. (Hotkey: R).

Channel Setting

ASUS AGP-V6800 Pure (32M) - Channel Setting - 1

Use this button to select an appropriate cable standard for your video system.

IMPORTANT! Be sure that the system and standard of the country where you will be installing your card is set appropriately. For example, you should have the NTSC model if you plan to use your card in countries with NTSC systems, PAL-BGHI model in countries with PAL-BGHI systems, or PAL-4.43 model in countries with PAL-4.43 systems.

Video Setting

Use this button to select the video format (Options: NTSC, PAL-BGHI, PAL-4.43) and video source (Options: Composite, Video).

Minimize Button

Clicking this button minimizes the ASUS VR MoviePlayer.

Exit Button

Clicking this button closes StereoTV.

Install Windows NT 4.0 Display Driver

WARNING! Before installing the display driver in Windows NT 4.0, make sure that you have installed Windows NT 4.0 Service Pack3 or later, to take full advantage of the ASUS AGP-V6800 AGP features. (You may download service packs at http://www.microsoft.com/ntworkstation/downloads.)

NOTE: The following steps assume your CD-ROM drive letter is D.

Installation Procedures

Start Windows NT, switch display properties to VGA mode (16 colors, 640 x 480 pixels), then restart your computer to make the change.
After your computer restarts, right-click the desktop and click Properties.
Click the Settings tab.
Select Change Display Type.
Select Adapter Type and click Change.
Click Have Disk.
Insert the CD installation disc.
Type D:\NT40 or click Browse to select the path of the display driver for Windows NT. Click OK.
Select ASUS V6800 and then click OK.
Windows NT will once again prompt for confirmation. All appropriate files are then copied to the hard disk. When all files are copied, go back to the Display Properties box by clicking Close. Click Apply.
The System Settings Change dialog box is displayed. Click Yes to restart Windows.
Windows NT will restart with the default settings. The Display applet will appear to allow for mode selection.

5. Resolution Table

Resolution Vertical Horizontal Frequency Frequency			Color Depth
Resolution Vertical Horizontal Frequency Frequency			8bpp = 256 colors Standard	16bpp = 65K colors High Color	32bpp = 16.7M colors True Color
640 x 480 60Hz 31	5√√70Hz 34.9√72Hz 37.9√75Hz 37.5√85Hz 43.3√100Hz 51.0√120Hz 61.8√140Hz 72.9√144Hz 75.2√150Hz 78.7√170Hz 90.3√200Hz 108.0√240Hz 132.9√	√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√	√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√	√	√
800 x 600 60Hz 37	9√√70Hz 43.8√72Hz 48.2√75Hz 46.9√85Hz 53.7√100Hz 63.7√120Hz 77.2√140Hz 91.1√144Hz 94.0√170Hz 112.7√200Hz 135.1√240Hz 166.2√	√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√
1024 x 768 60Hz 43.4√70Hz 56.4√72Hz 57.5√75Hz 60.0√85Hz 68.7√100Hz 81.7√120Hz 98.8√140Hz 116.6√144Hz 120.2√150Hz 125.7√170Hz 144.1√200Hz 172.8√240Hz 212.1√	√√70Hz 56.4√72Hz 57.5√75Hz 60.0√85Hz 68.7√100Hz 81.7√120Hz 98.8√140Hz 116.6√144Hz 120.2√150Hz 125.7√170Hz 144.0√200Hz 172.8√240Hz 212.1√	√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√ √√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√ √	√	√	√
1152 x 864 60Hz 53.7√70Hz 62.9√72Hz 64.9√75Hz 67.5√85Hz 77.1√100Hz 91.3√120Hz 111.2√140Hz 131.3√144Hz 135.2√150Hz 141.4√170Hz 162.9√200Hz 194.9√	√√70Hz 62.9√72Hz 64.9√75Hz 67.5√85Hz 77.1√100Hz 91.3√120Hz 111.2√140Hz 131.3√144Hz 135.2√150Hz 141.4√170Hz 162,9√200Hz 194.9√	√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√	√	√	√
1280 x 960 60Hz 60.0√70Hz 69.9√72Hz 72.1√75Hz 75.2√85Hz 86.0√100Hz 101.7√120Hz 123.5√140Hz 145.1√144Hz 150.5√150Hz 157.2√170Hz 179.8√	√70Hz 69.9√72Hz 72.1√75Hz 75.2√85Hz 86.0√100Hz 101.7√120Hz 123.5√140Hz 145.1√144Hz 150.5√150Hz 157.2√170Hz 178.8√	√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√□	√	√	√

5. Resolution Table

Resolution	Vertical Horizontal Frequency	Frequency	Color Depth
Resolution	Vertical Horizontal Frequency	Frequency	8bpp = 16bpp256 colorsStandard	= 32bpp65K colorsHigh Color	= 16.7M colorsTrue Color
1280 x 1024 60Hz	64.0 √70Hz 74.6√72Hz 76.8√75Hz 80.0√85Hz 91.3√100Hz 108.5√120Hz 131.7√140Hz 155.9√144Hz 159.6√150Hz 167.3√170Hz 191.8√	√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√	√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√	√
1600 x 900 60Hz	55.9 √70Hz 65.6√72Hz 67.5√75Hz 70.5√85Hz 80.4√100Hz 95.3√120Hz 115.4√140Hz 136.8√144Hz 140.4√150Hz 146.8√	√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√	√√√	√
1600 x 1200 60Hz	75.0 √70Hz 87.5√72Hz 90.1√75Hz 94.0√85Hz 106.1√100Hz 127.5√120Hz 154.5√	√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√
1920 x 1080 60Hz	67.1 √70Hz 78.7√72Hz 81.1√75Hz 84.6√85Hz 96.4√100Hz 113.9√	√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√□√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√
1920 x 1200 60Hz	74.6 √70Hz 87.4√72Hz 90.0√75Hz 94.0√85Hz 106.7√100Hz 126.7√	√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√ √	√	√
1920 x 1440 60Hz	89.4 √70Hz 104.9√72Hz 108.5√75Hz 112.5√85Hz 129.4√	√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√√○	√	√
2048 x 1536 60Hz	95.5 √70Hz 111.9√72Hz 115.3√75Hz 121.3√	√	√

Description Recommended Action

After installation and re-starting, Windows 95/98 informs me that the display setting is still incorrect.

My monitor is not capable of high resolution or refresh rate.

DirectX or the other applications report no AGP memory available.

Games or applications report “No 3D acceleration hardware found.”

I cannot enable AGP memory or run I-Base test.

My MPEG player displays bad quality video clips.

I can't use VideoSecurity with my USB CCD or IEEE 1394 CCD.

I am using Video Security and it seems my hard disk space is almost exhausted.

Make sure the “Assign IRQ to VGA” option is enabled in the BIOS.
Check if there is enough IRQ for VGA.
Uninstall the driver, restart, and reinstall the driver.
It depends on the display characteristics of your monitor. Consult your monitor documentation for the proper configuration.

- Windows 95 is not OSR2.1 or later.

- DirectX version is not 6.0 or later.

- You have not installed appropriate drivers for the AGP chipset. (e.g. VGARTD.VXD for Intel 440LX).

- Incorrect BIOS setting. BIOS must support at least 64MB for AGP aperture size.

- 3D works only in 16- or 32-bit color depth. Switch your color depth display mode to 16-bit (high color) or 32-bit (true color).

- Check necessary libraries, such as DirectX or OpenGL.

- Try to switch to a lower resolution.

- You may be using a motherboard with an Aladdin IV AGPset. To get the best compatibility, the display card uses AGP Bus Master mode instead of AGP execute mode for motherboards using this AGPset.

- You must install DirectX 6 or later so that your player can take advantage of the hardware acceleration mode (DirectDraw).

- Try to switch to a lower resolution, color depth, or refresh rate. Switching to a lower mode allows your player to use hardware acceleration mode.

- Switch dual view mode to VGA or TV mode.

- VideoSecurity currently only supports S-Video or Composite CCDs. Any device used must be connected to an ASUS video card.

- This is a very important issue when you decide to use VideoSecurity with the “never stop” option. You must be aware of the free space of your hard disk—it must be enough for storing temporary files in the current working directory. If disk space is exhausted, VideoSecurity will not store any information and give you a warning message.

6. Troubleshooting

I am using VideoSecurity and I set the password option. I have forgotten my password, though. Is there a way to recover my password?

- The only way to remove password protection is to recall the original password that you assigned. The password protection is still active even when you uninstall VideoSecurity and install a new copy. Make sure that the password that you assigned can be easily remembered. You may write down your password and store it in a safe place.
