Product Type	Video Projector
Model	EH336
Display Technology	DLP
Native Resolution	1920 x 1080 (Full HD)
Brightness	3500 ANSI Lumens
Contrast Ratio	20000:1
Lamp Life (Normal/Eco)	5000 / 10000 hours
Input Ports	2x HDMI, 1x VGA, 1x Composite, 1x Audio
Output Ports	1x Audio Out
Keystone Correction	Vertical ±30°
Projection Lens	Manual Zoom & Focus
Built-in Speaker	10W Mono
Noise Level (Eco)	28 dB
Power Consumption	265W (Normal), <0.5W (Standby)
Dimensions (W x D x H)	315 x 224 x 114 mm
Weight	2.8 kg
Maintenance	Clean air filter every 100 hours; lamp replacement
Safety Features	Kensington lock, thermal shutdown, auto power off
Spare Parts & Repairability	Lamp, filter, remote control available
General Information	Manual available in PDF, 75 pages

Frequently Asked Questions - EH336 OPTOMA

What is the native resolution of the Optoma EH336?

The Optoma EH336 features a native resolution of 1920 x 1080 (Full HD).

How do I replace the lamp?

Turn off the projector and unplug it. Let it cool for 30 minutes. Open the lamp cover on the bottom, unscrew the lamp module, and replace with a new one. Refer to the manual for part number.

What inputs are available?

The projector has two HDMI, one VGA, one composite video, and audio input ports.

Can I connect external speakers?

Yes, use the audio out port to connect external speakers or headphones.

What is the maximum projection size?

The projector can project up to 300 inches (diagonal) depending on distance.

How do I clean the air filter?

Turn off and unplug the projector. Remove the filter cover, take out the filter, and vacuum or wash it. Dry completely before reinserting.

Does it support 3D?

Yes, the Optoma EH336 supports 3D content via HDMI with compatible 3D glasses.

What is the throw distance for a 100-inch screen?

For a 100-inch diagonal screen, the throw distance is approximately 3.0 to 3.5 meters.

Can I mount it on the ceiling?

Yes, the projector has mounting points for a standard ceiling mount. Ensure secure installation.

How do I reset the lamp timer?

After replacing the lamp, go to the Settings menu, select 'Lamp Reset', and confirm. The timer will reset to zero.

USER MANUAL EH336 OPTOMA

Line drawing of a projector with a circular lens and control panel (no text or symbols)

TABLE OF CONTENTS

SAFETY 4

Important Safety Instruction.... 4

3D Safety Information....5

Copyright 6

Disclaimer....6

Trademark Recognition 6

FCC 7

Declaration of Conformity for EU countries 7

WEEE 7

INTRODUCTION 8

Package Overview....8

Standard accessories....8

Optional accessories 8

Product Overview 9

Connections.... 10

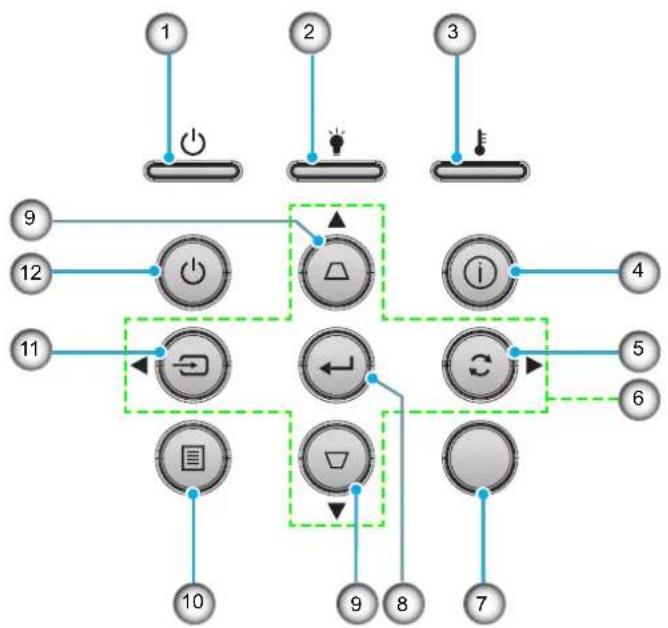

Keypad 12

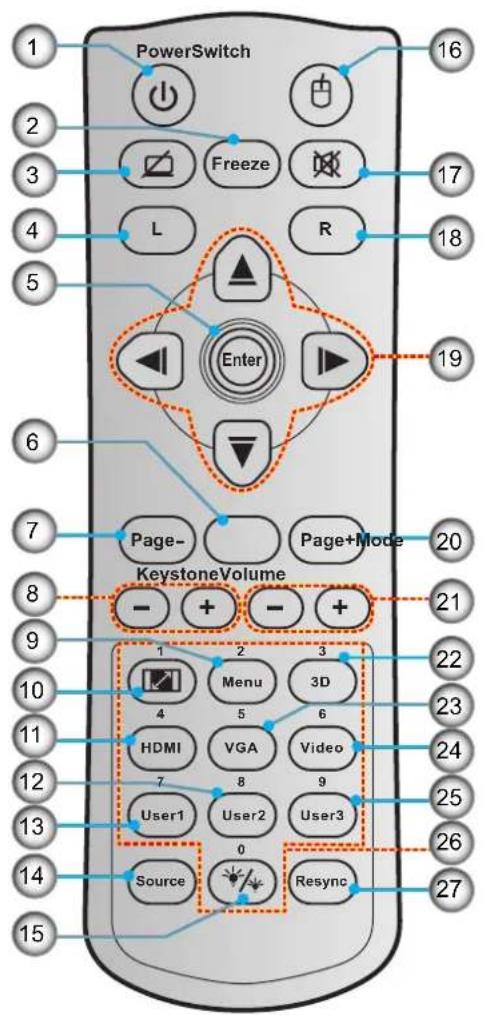

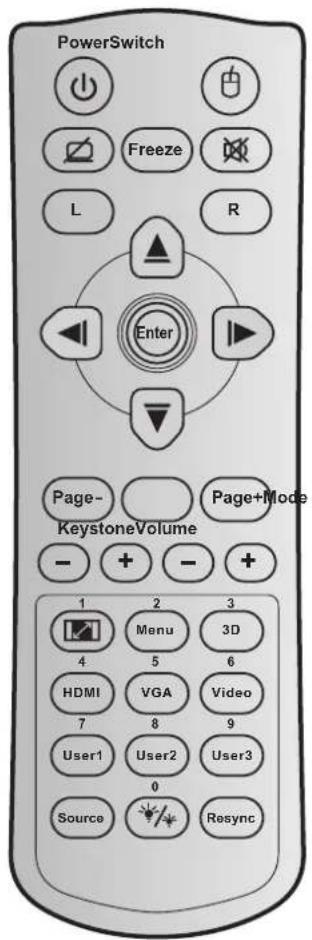

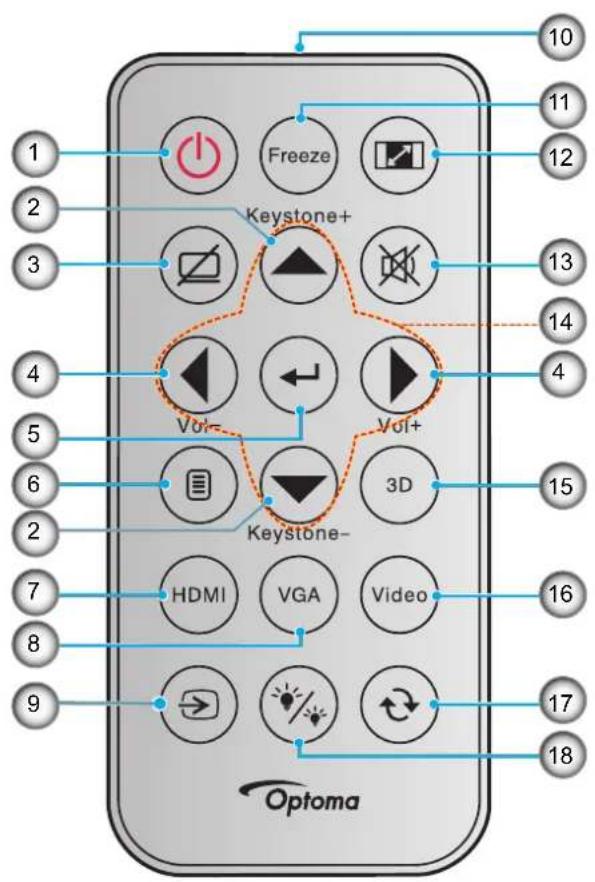

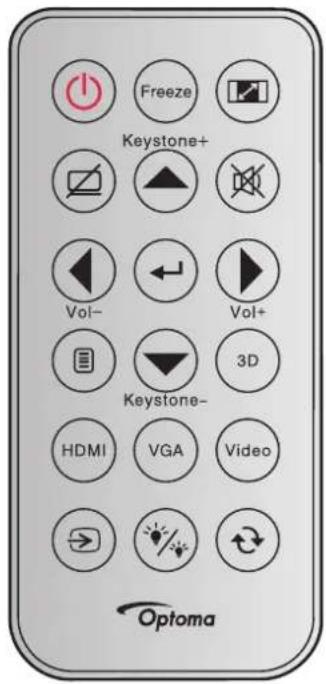

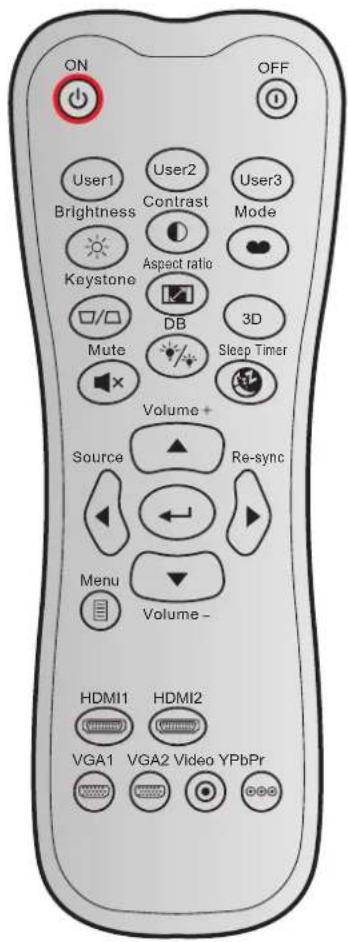

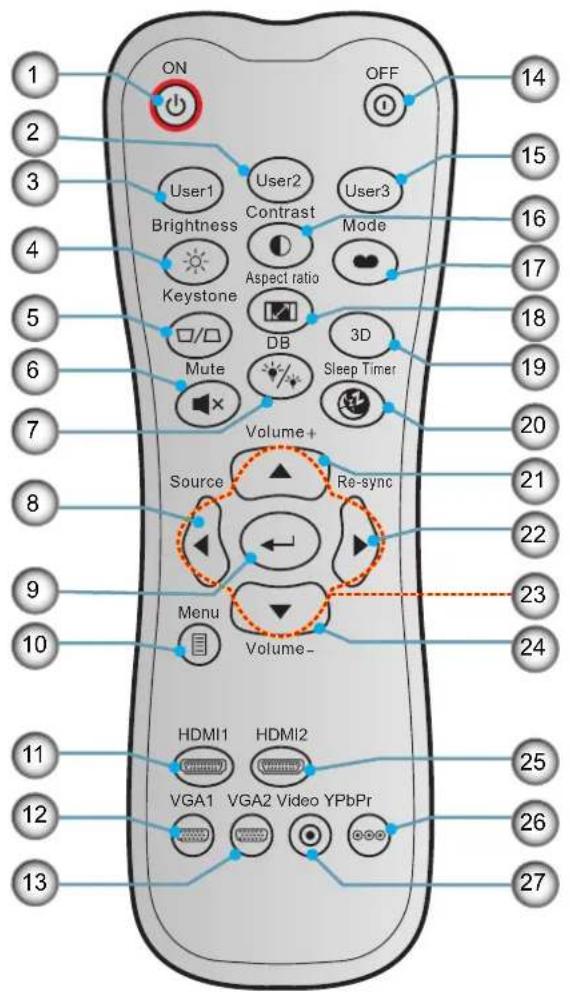

Remote control 1 13

Remote control 2....14

Remote control 15

SETUP AND INSTALLATION.... 16

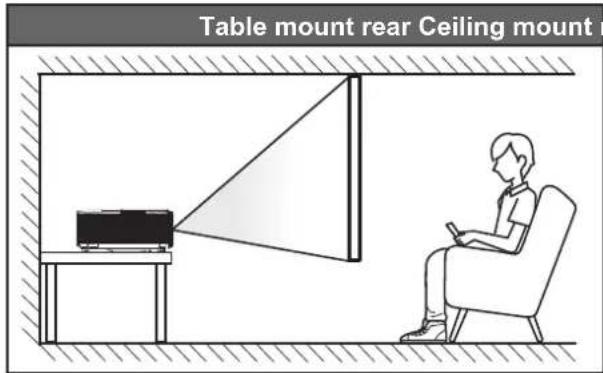

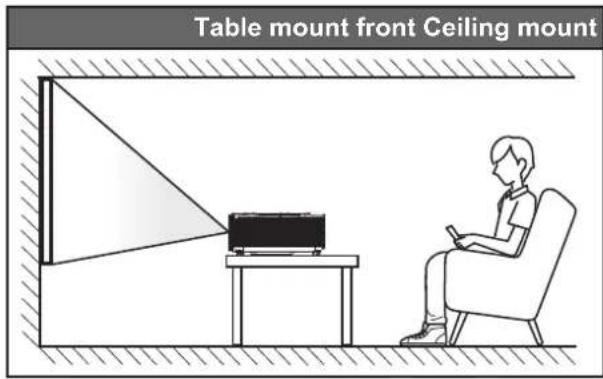

Installing the projector 16

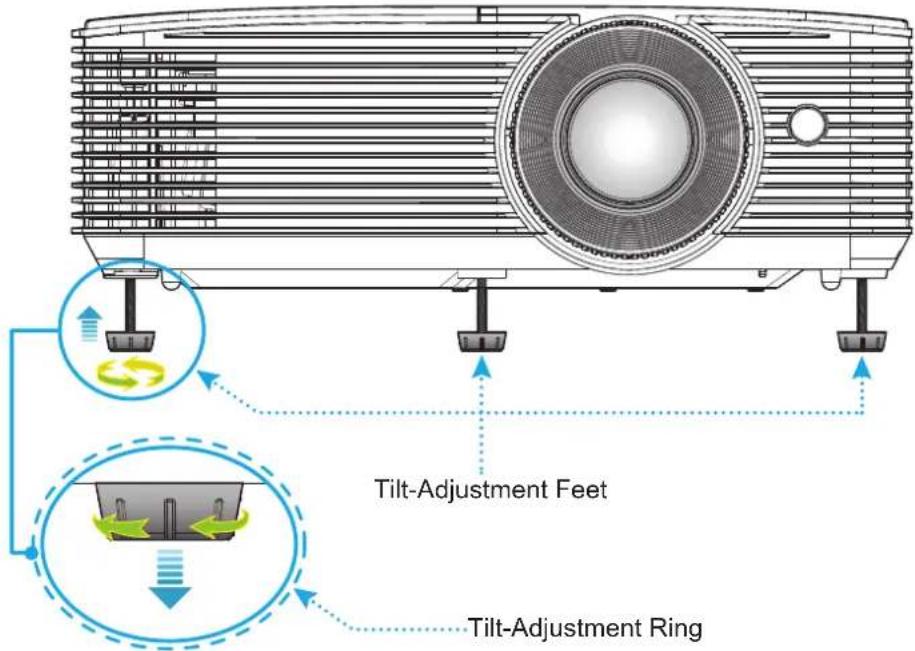

Adjusting the projector image.... 21

USING THE PROJECTOR....24

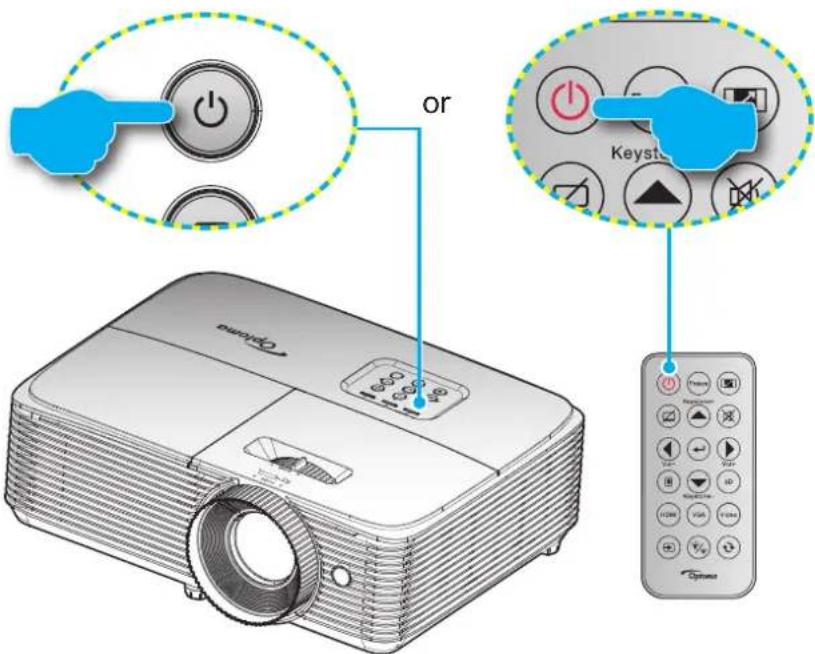

Powering on / off the projector.... 24

Selecting an input source 25

Menu navigation and features 26

OSD Menu tree 27

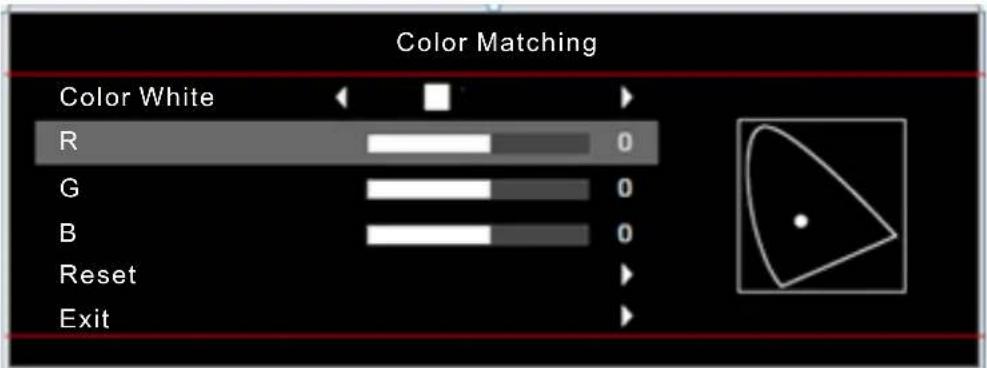

Display image settings menu 35

Display 3D menu 38

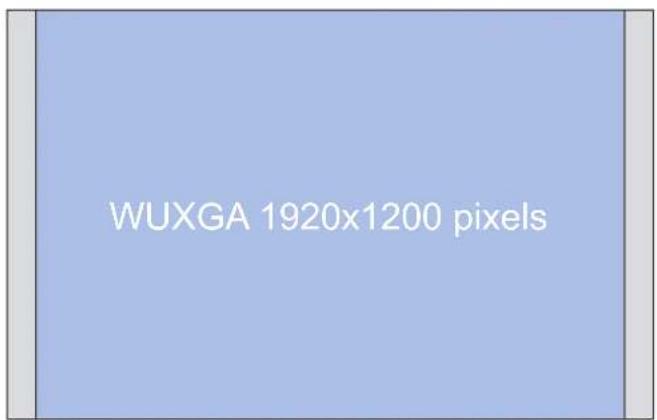

Display aspect ratio menu 38

Display edge mask menu 42

Display zoom menu 42

Display image shift menu 42

Display keystone menu 42

Audio mute menu 43

Audio volume menu....43

Setup projection menu.... 43

Setup screen type menu.... 43

Setup lamp settings menu 43

Setup filter settings menu 43

Setup power settings menu.... 44

Setup security menu.... 45

Setup HDMI link settings menu 45

Setup test pattern menu 46

Setup remote settings menu.... 46

Setup projector ID menu.... 46

Setup options menu.... 46

Setup reset menu 47

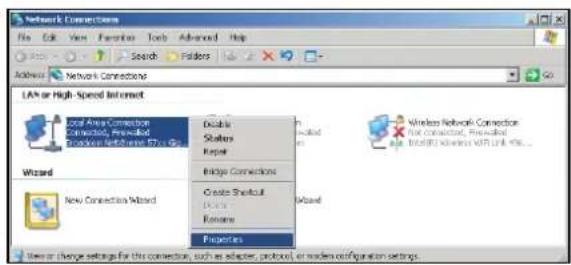

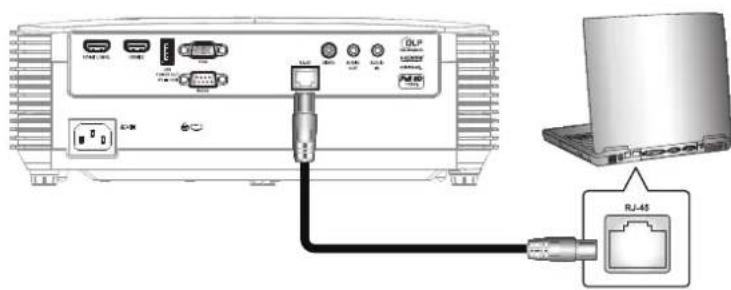

Network LAN menu 47

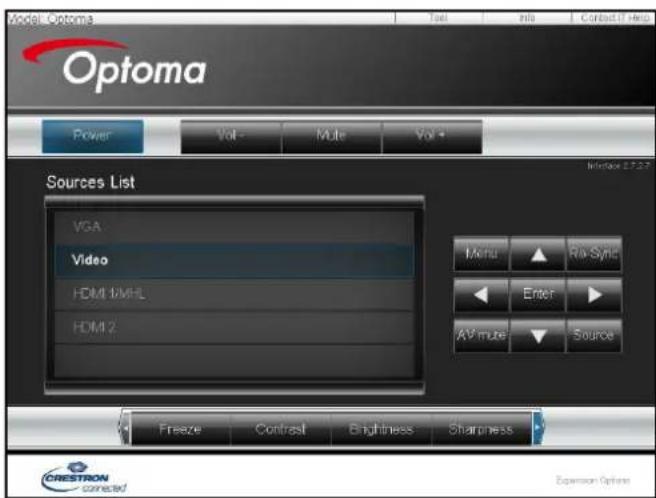

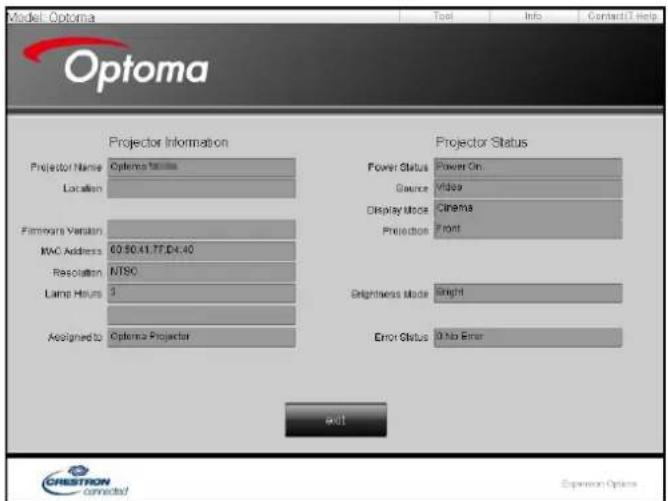

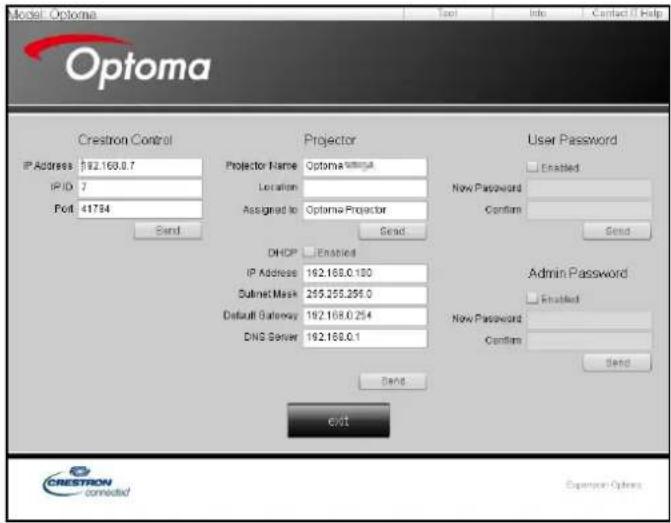

Network control menu.... 49

Setup network control settings menu 49

Info menu....54

MAINTENANCE 55

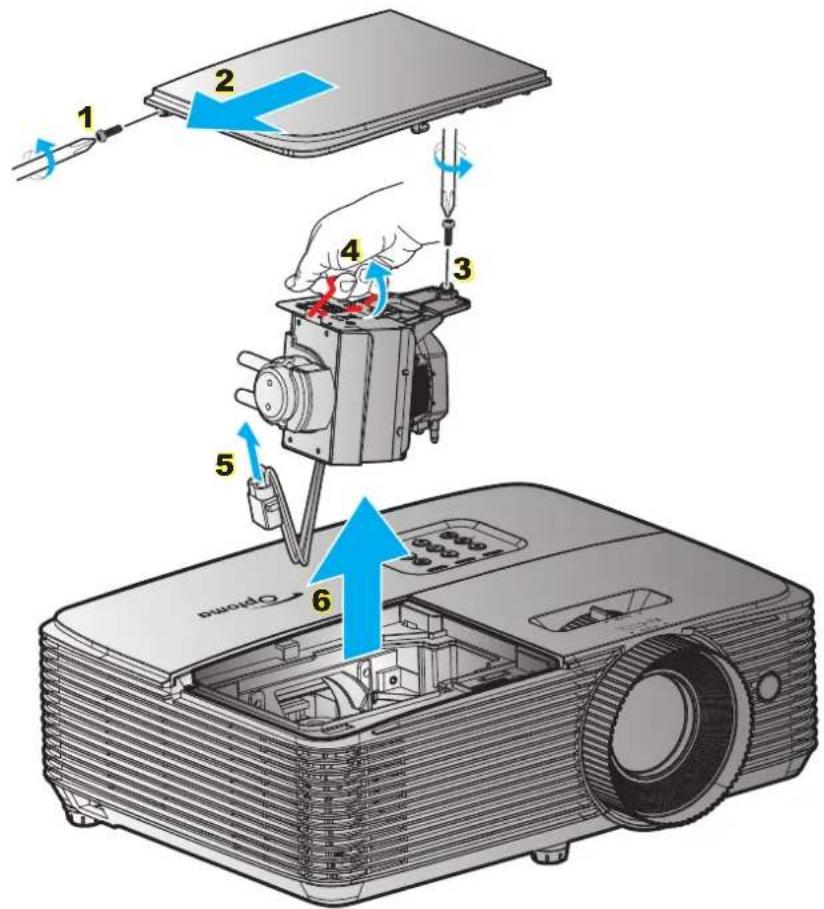

Replacing the lamp....55

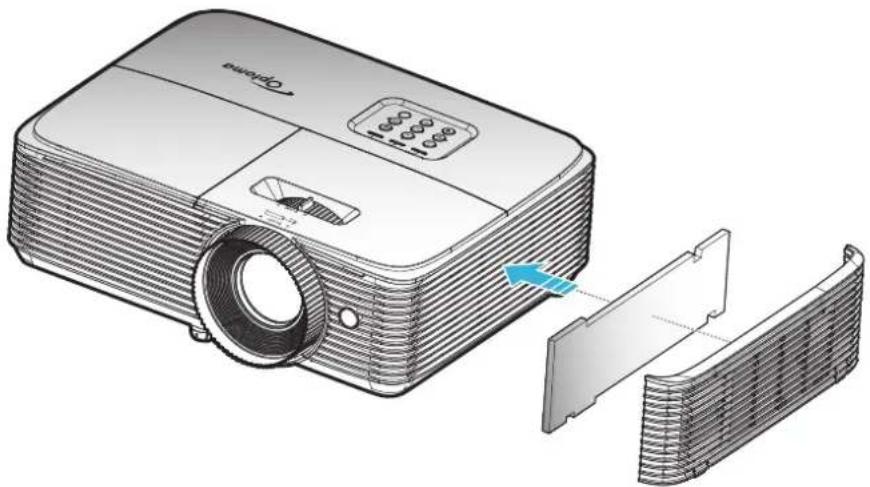

Installing and cleaning the dust filter 57

ADDITIONAL INFORMATION 58

Compatible resolutions.... 58

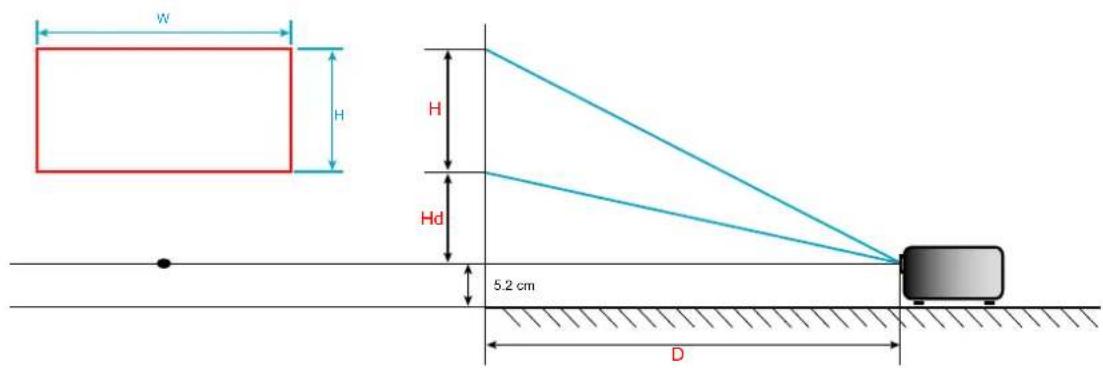

Image size and projection distance 60

Projector dimensions and ceiling mount installation....62

IR remote control 1 codes 63

IR remote control 2 codes 65

IR remote control 3 codes 67

Troubleshooting....69

Warning indicators....70

Specifications 73

Optoma global offices....74

	The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
	The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Please follow all warnings, precautions and maintenance as recommended in this user's guide.

Important Safety Instruction

- Do not stare into the beam, RG2.

As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015.

• Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from over heating, it is recommended to install the projector in a location that does not block ventilation. As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in an enclosure such as a book case or a cabinet that restricts air flow.
  • To reduce the risk of fire and/or electric shock, do not expose the projector to rain or moisture. Do not install near heat sources such as radiators, heaters, stoves or any other apparatus such as amplifiers that emits heat.
• Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in fire or electric shock.

- Do not use under the following conditions:

– In extremely hot, cold or humid environments.

(i) Ensure that the ambient room temperature is within 5^ C \~ 40^ C
(ii) Relative humidity is 10% \~ 85%

– In areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

– In direct sunlight.

- Do not use the projector in places where flammable gases or explosives gases may be present in the atmosphere. The lamp inside the projector becomes very hot during operation and the gases may ignite and result in a fire.

- Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be (but not limited to):

• Unit has been dropped.
  – Power supply cord or plug has been damaged.
  – Liquid has been spilled on to the projector.
  – Projector has been exposed to rain or moisture.
• Something has fallen in the projector or something is loose inside.

- Do not place the projector on an unstable surface. The projector may fall over resulting in injury or the projector may become damaged.

- Do not block the light coming out of the projector lens when in operation. The light will heat the object and could melt, cause burns or start a fire.

• Please do not open or disassemble the projector as this may cause electric shock.
• Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair.
• See projector enclosure for safety related markings.
• The unit should only be repaired by appropriate service personnel.
• Only use attachments/accessories specified by the manufacturer.

• Do not look into straight into the projector lens during operation. The bright light may harm your eyes.
- When replacing the lamp, please allow the unit to cool down. Follow instructions as described on pages 55-56.
- This projector will detect the life of the lamp itself. Please be sure to change the lamp when it shows warning messages.
- Reset the "Lamp Reset" function from the on-screen display "Setup lamp settings" menu after replacing the lamp module.

- When switching the projector off, please ensure the cooling cycle has been completed before disconnecting power. Allow 90 seconds for the projector to cool down.

• When the lamp is approaching to the end of its life time, the message "Lamp life exceeded." will show on the screen. Please contact your local reseller or service center to change the lamp as soon as possible.
• Turn off and unplug the power plug from the AC outlet before cleaning the product.
  • Use a soft dry cloth with mild detergent to clean the display housing. Do not use abrasive cleaners, waxes or solvents to clean the unit.
  • Disconnect the power plug from AC outlet if the product is not being used for a long period of time.

Note: When the lamp reaches the end of its life, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under "Replacing the Lamp" section on pages 55-56.

• Do not setup the projector in places where it might be subjected to vibration or shock.
- Do not touch the lens with bare hands
- Remove battery/batteries from remote control before storage. If the battery/batteries are left in the remote for long periods, they may leak.
- Do not use or store the projector in places where smoke from oil or cigarettes may be present, as it can adversely affect the quality of the projector performance.

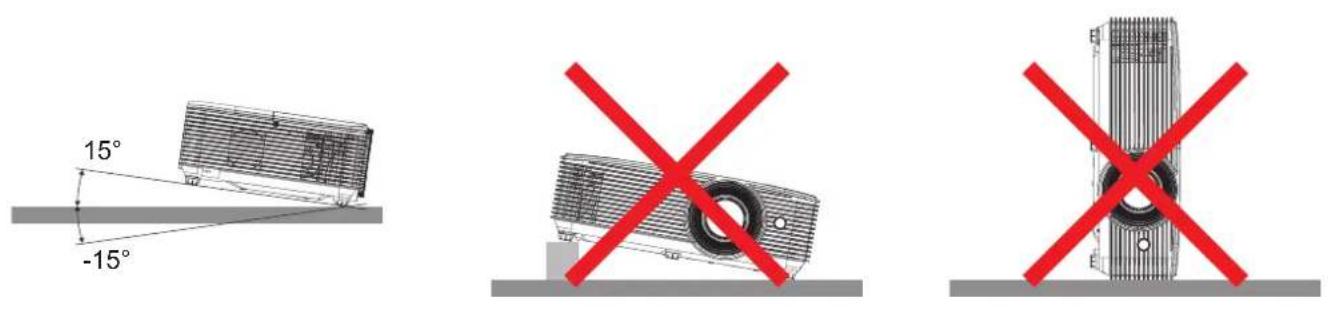

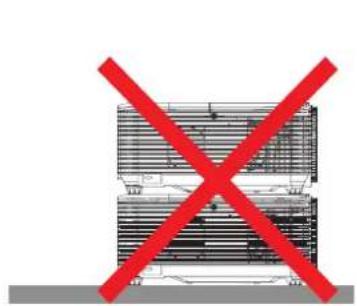

- Please follow the correct projector orientation installation as non standard installation may affect the projector performance.
• Use a power strip and or surge protector. As power outages and brown-outs can KILL devices.

3D Safety Information

Please follow all warnings and precautions as recommended before you or your child use the 3D function.

Warning

Children and teenagers may be more susceptible to health issues associated with viewing in 3D and should be closely supervised when viewing these images.

Photosensitive Seizure Warning and Other Health Risks

• Some viewers may experience an epileptic seizure or stroke when exposed to certain flashing images or lights contained in certain Projector pictures or video games. If you suffer from, or have a family history of epilepsy or strokes, please consult with a medical specialist before using the 3D function.
• Even those without a personal or family history of epilepsy or stroke may have an undiagnosed condition that can cause photosensitive epileptic seizures.
- Pregnant women, the elderly, sufferers of serious medical conditions, those who are sleep deprived or under the influence of alcohol should avoid utilizing the unit's 3D functionality.

- If you experience any of the following symptoms, stop viewing 3D pictures immediately and consult a medical specialist: (1) altered vision; (2) light-headedness; (3) dizziness; (4) involuntary movements such as eye or muscle twitching; (5) confusion; (6) nausea; (7) loss of awareness; (8) convulsions; (9) cramps; and/ or (10) disorientation. Children and teenagers may be more likely than adults to experience these symptoms. Parents should monitor their children and ask whether they are experiencing these symptoms.

- Watching 3D projection may also cause motion sickness, perceptual after effects, disorientation, eye strain and decreased postural stability. It is recommended that users take frequent breaks to lessen the potential of these effects. If your eyes show signs of fatigue or dryness or if you have any of the above symptoms, immediately discontinue use of this device and do not resume using it for at least thirty minutes after the symptoms have subsided.

- Watching 3D projection while sitting too close to the screen for an extended period of time may damage your eyesight. The ideal viewing distance should be at least three times the screen height. It is recommended that the viewer's eyes are level with the screen.

- Watching 3D projection while wearing 3D glasses for an extended period of time may cause a headache or fatigue. If you experience a headache, fatigue or dizziness, stop viewing the 3D projection and rest.

- Do not use the 3D glasses for any other purpose than for watching 3D projection.

- Wearing the 3D glasses for any other purpose (as general spectacles, sunglasses, protective goggles, etc.) may be physically harmful to you and may weaken your eyesight.

• Viewing in 3D projection may cause disorientation for some viewers. Accordingly, DO NOT place your 3D PROJECTOR near open stairwells, cables, balconies, or other objects that can be tripped over, run into, knocked down, broken or fallen over.

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

© Copyright 2017

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

DLP ^® , DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColor ^™ is a trademark of Texas Instruments.

All other product names used in this manual are the properties of their respective owners and are Acknowledged.

DARBEE is a trademark by Darbee Products, Inc.

MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing, LLC.

FCC

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector.

Operation Conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Declaration of Conformity for EU countries

• EMC Directive 2014/30/EU (including amendments)
• Low Voltage Directive 2014/35/EU
• RED 2014/53/EU (if product has RF function)

WEEE

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.

INTRODUCTION

Package Overview

Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items under optional accessories may not be available depending on the model, specification and your region of purchase. Please check with your place of purchase. Some accessories may vary from region to region.

The warranty card is only supplied in some specific regions. Please consult your dealer for detailed information.

Standard accessories

Illustration of a projector with label 'Projector Power' below (no other text or symbols)

Illustration of a bundle of cables with connectors, no text or symbols present

Note:

- The remote control is shipped with the battery.

• *(1) For European User Manual please visit www.optomaeurope.com.

• *(2) For European warranty information please visit www.optomaeurope.com.

• *(3) The actual remote control may vary depending on the region.

Optional accessories

Line drawing of a two-wheeled bag with handles and a labeled 'Carry bag' (no other text or symbols)

Diagram of a VGA cable connector with two connectors and connecting wires (no text or symbols on the diagram itself)

Simple line drawing of a lens cap with no text or symbols on the diagram itself

Note: Optional accessories vary depending on model, specification and region.

INTRODUCTION

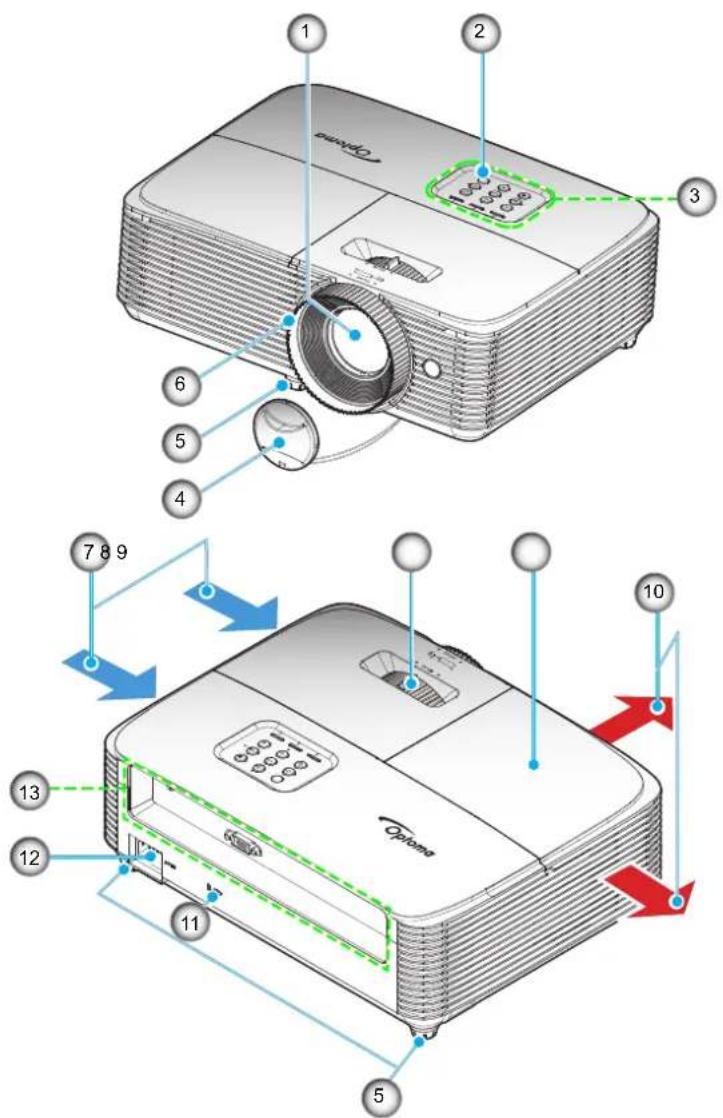

Product Overview

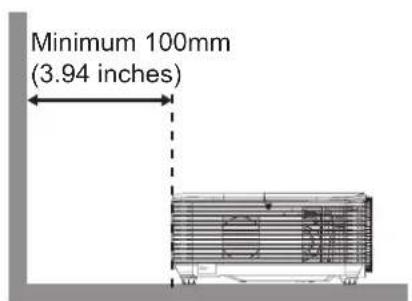

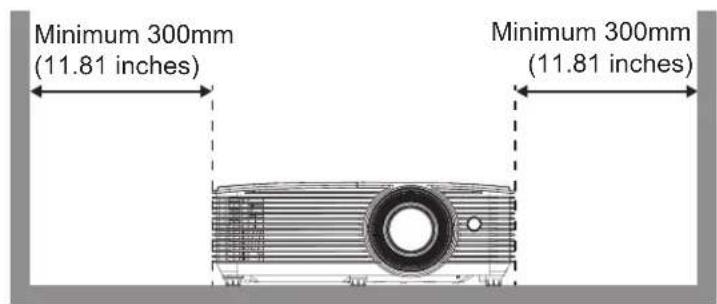

Note: Keep a minimum distance of 20 cm between the "inlet" and "outlet" labels.

No Item No Item
1. Lens 8. Zoom Lever
2. IR Receiver	9.	Lamp Cover
3. Keypad 10. Ventilation (outlet)
4. Lens Cap 11. Kensington		^TM Lock Port
5. Tilt-Adjustment Foot 12. Power Socket

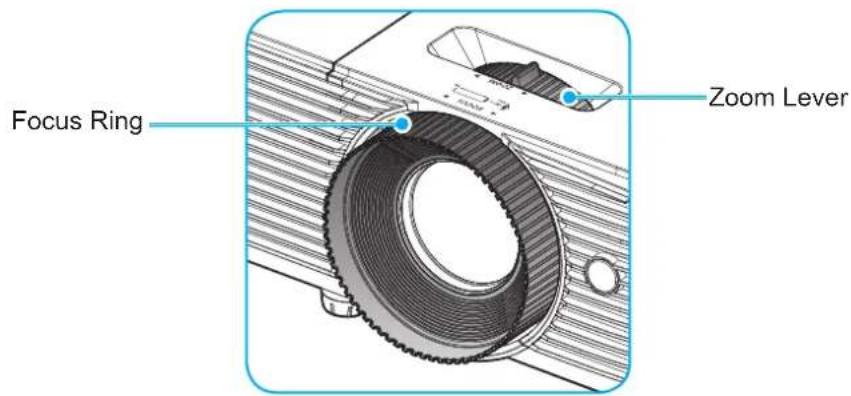

6. Focus Ring	13. Input / Output
7. Ventilation (inlet)

INTRODUCTION

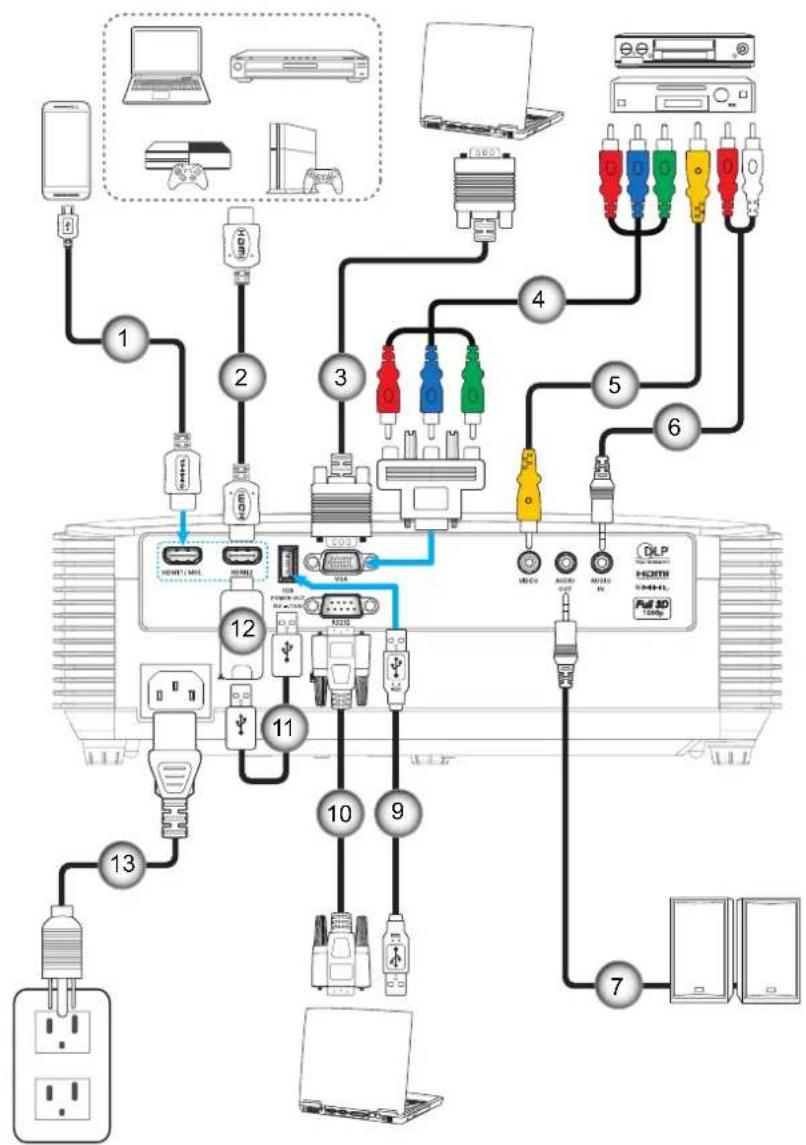

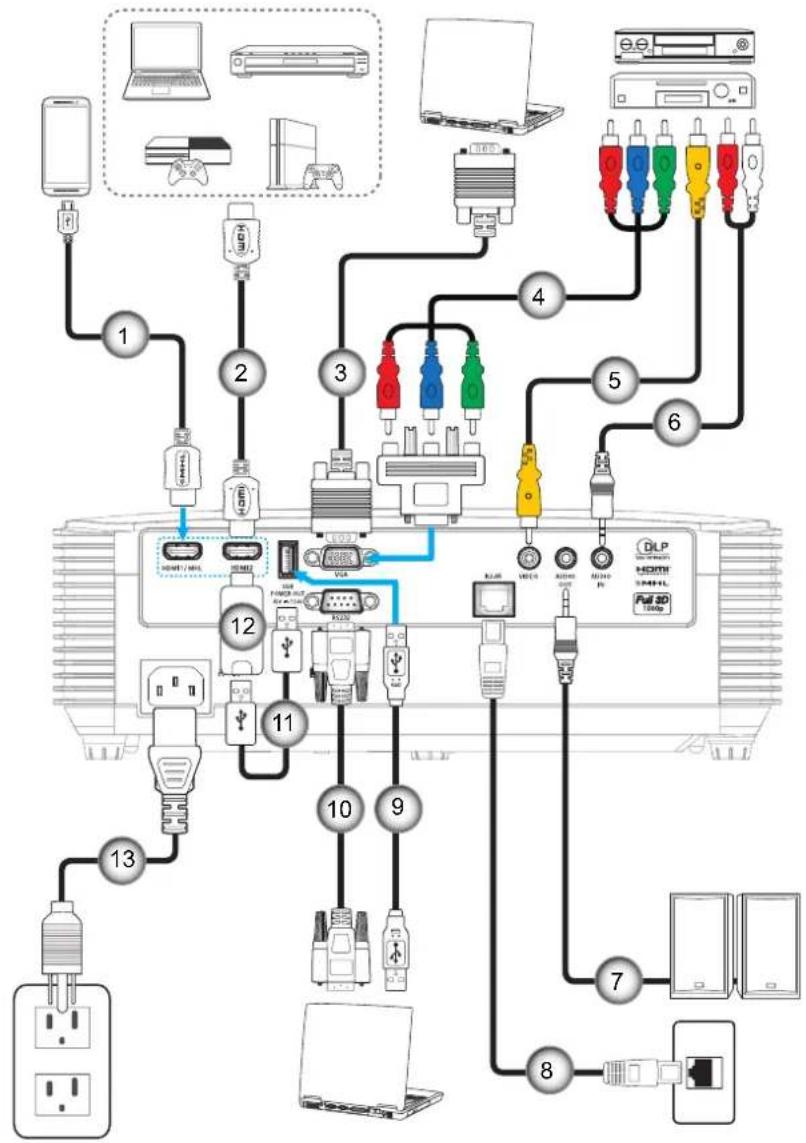

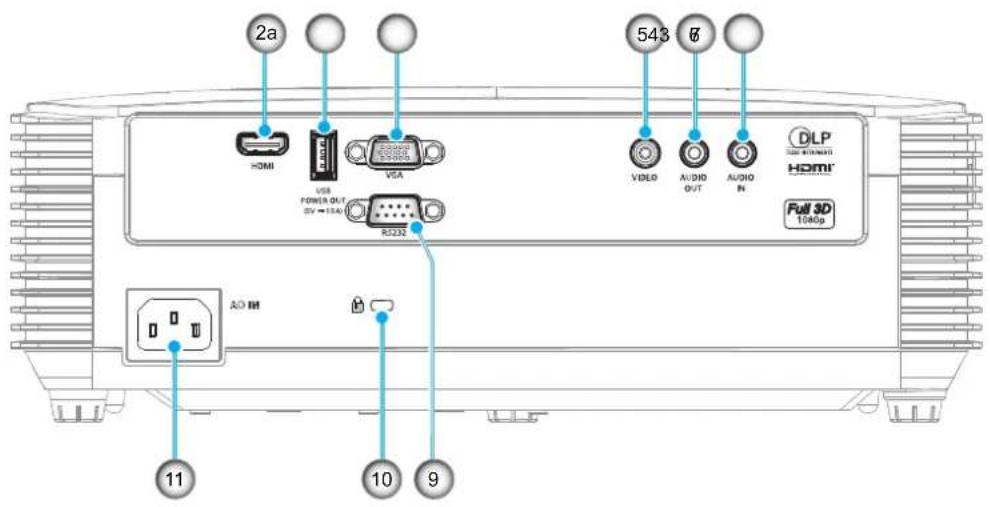

Connections

Type 1 (7 IO)

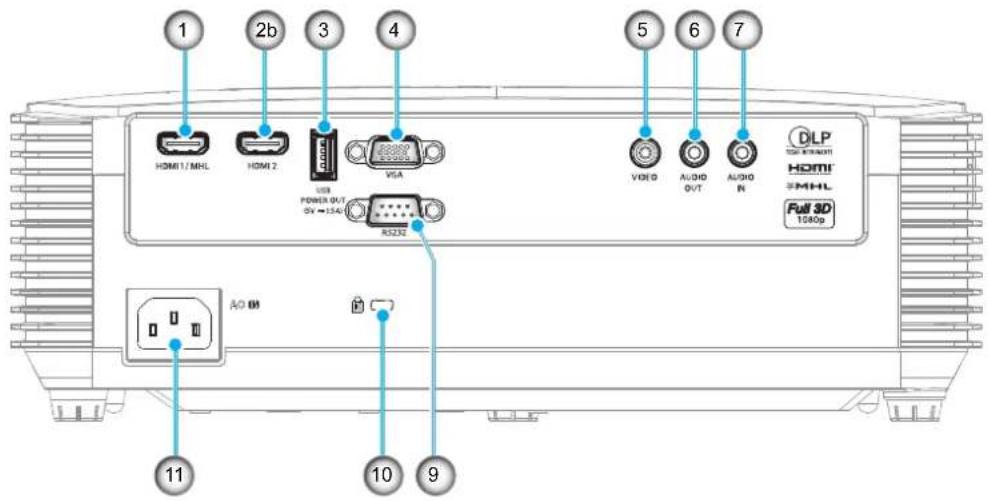

Type 2 (8 IO)

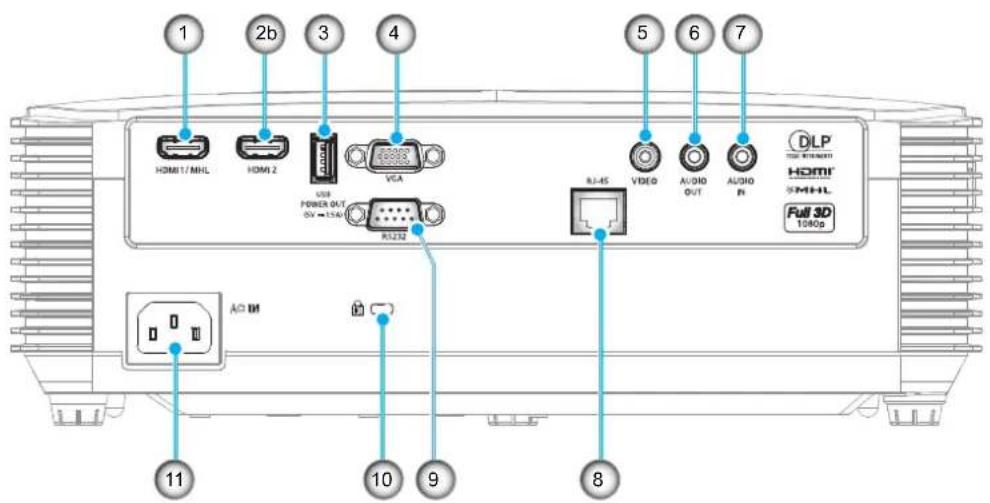

Type 3 (9 IO)

INTRODUCTION

No Item Type 1 (7 IO) Type 2 (8 IO) Type 2 (9 IO)
1. HDMI 1 / MHL Connector N/A √√
2.	a) HDMI Connectorb) HDMI 2 Connector	√(a) √(b) √(b)
3.	USB POWER OUT (5V-1A) Connector / MOUSE / SERVICE Connector	√√√
4. VGA Connector √√√
5. VIDEO Connector √√√
6. AUDIO OUT Connector √√√
7. AUDIO IN Connector √√√
8. RJ-45 Connector N/A N/A√
9. RS232 Connector		√√√
10.	KensingtonTM Lock Port	√√√
11.	Power Socket	√	√	√
Note: “√” means the item is supported, “N/A” means the item is not available.

Note:

• Remote mouse requires special remote control.
• The I/Os depend on the projector you purchased, please check the physical product for reference.

INTRODUCTION

Keypad

No Item No Item

1. On/Standby LED 7. IR Receiver
2. Lamp LED
3. Temp LED 9. Keystone Correction
4. Information 10. Menu
5. Re-Sync 11. Source

6. Four Directional Select Keys 12 Power

7. Enter

INTRODUCTION

Remote control 1

No Item No Item

1. Power On / Off 10. IR LED Indicator

2. Keystone + / - 11. Freeze

3. AV Mute 12. Aspect Ratio

4. Volume - / + 13. Mute

5. Enter 14. Four Directional Select Keys

6. Menu 15. 3D

7. HDMI 16. Video

8. VGA 17. Resync

9. Source

8. Brightness Mode

Note:

• The actual remote control may vary depending on the region.
• Some keys may have no function for models that do not support these features.
• Before using the remote control for the first time, remove the transparent insulation tape. See page 22 for battery installation.

INTRODUCTION

Remote control 2

No Item No Item
1. Power On / Off 15. Brightness Mode
2. Freeze 16. Mouse On / Off
3. Display Blank / Audio Mute 17. Mute
4. Mouse Left Click 18. Mouse Right Click
5. Enter 19. Four Directional Select Keys
6. Mode 20. Page +
7. Page -		21. Volume - / +
8. Keystone - / +		22. 3D Menu On / Off
9. Menu 23. VGA
10. Aspect Ratio		24. Video
11. HDMI		25. User 3
12. User 2		26. Numeric Keypad (0-9)
13. User 1		27. Resync
14. Source

Note:

• The actual remote control may vary depending on the region.
• Some keys may have no function for models that do not support these features.

INTRODUCTION

Remote control

No Item No Item

1. Power On 15. User 3
2.	User 2 16. Contrast
3. User 1 17. Display Mode
4. Brightness 18. Aspect Ratio
5. Keystone 19. 3D Menu On / Off
6. Mute 20. Sleep Timer
7. DB (Dynamic Black) 21. Volume +
8. Source 22. Re-Sync
9. Enter
10.	Menu
11.	HDMI1
12.	VGA1 (not supported)
13.	VGA2 (not supported)
14.	Power Off

3. Four Directional Select Keys
24. Volume -
25. HDMI2
26. YPbPr (not supported)
27. Video (not supported)

Note: Some keys may have no function for models that do not support these features.

SETUP AND INSTALLATION

Installing the projector

Your projector is designed to be installed in one of four possible positions.

Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.

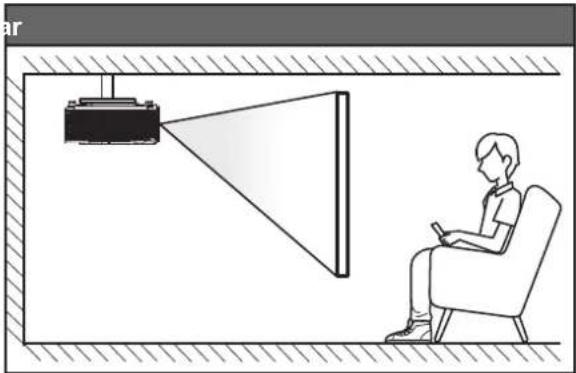

Diagram showing a person sitting in a chair viewing a projector mounted on a wall, with no text or symbols present.

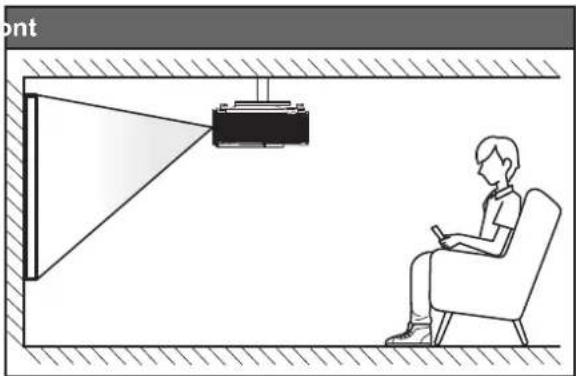

Illustration of a person sitting in a chair viewing a projector mounted on a wall, with no visible text or symbols.

Projector should be placed flat on a surface and 90 degrees / perpendicular to the screen.

• How to determine projector location for a given screen size, please refer to distance table on pages 60-61.
• How to determine screen size for a given distance, please refer to distance table on pages 60-61.

Note: The further away the projector is placed from the screen the projected image size increases and vertical offset also increases proportionally.

IMPORTANT!

Do not operate the projector in any orientation other that table top or ceiling mount. The projector should be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate the warranty and may shorten the lifetime of the projector lamp or the projector itself. For none standard installation advise please contact Optoma.

SETUP AND INSTALLATION

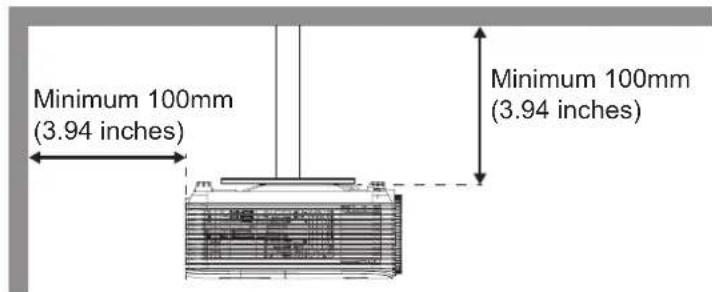

Projector installation notice

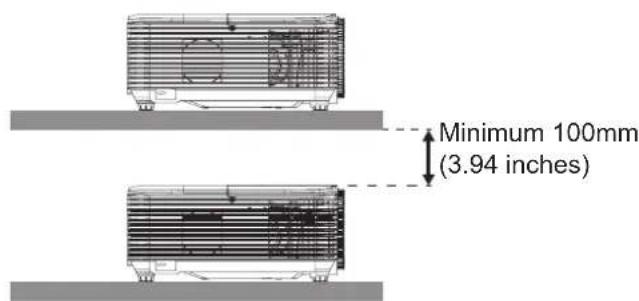

- Place the projector in a horizontal position.

The tilt angle of the projector should not exceed 15 degrees, nor should the projector be installed in any way other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically, and may lead to other unpredictable damages.

- Allow at least 30 cm clearance around the exhaust vent.

Exterior view of a modern office building (no signage)

- Ensure that the intake vents do not recycle hot air from the exhaust vent.

• When operating the projector in an enclosed space, ensure that the surrounding air temperature within the enclosure does not exceed operation temperature while the projector is running, and the air intake and exhaust vents are unobstructed.
• All enclosures should pass a certified thermal evaluation to ensure that the projector does not recycle exhaust air, as this may cause the device to shutdown even if the enclosure temperature is with the acceptable operation temperature range.

SETUP AND INSTALLATION

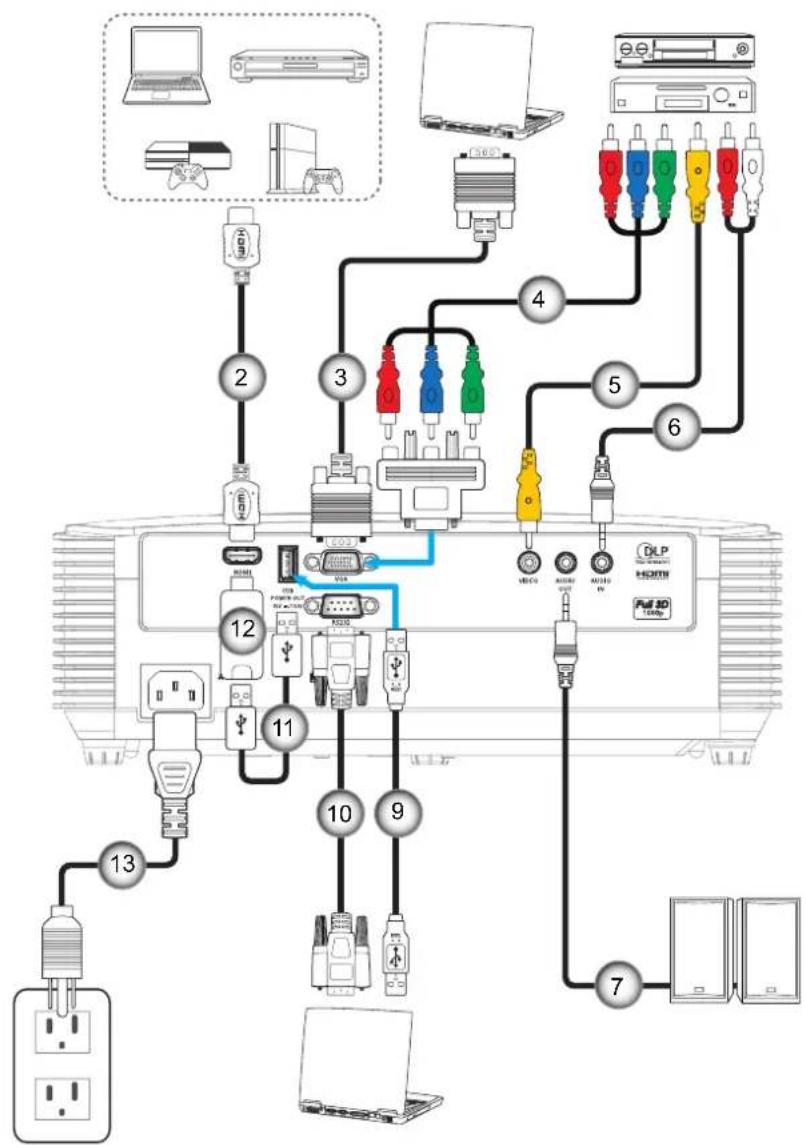

Type 1 (7 IO)

SETUP AND INSTALLATION

Type 2 (8 IO)

SETUP AND INSTALLATION

Type 3 (9 IO)

No Item Type 1 (7 IO) Type 2 (8 IO) Type 3 (9 IO)
1. MHL Cable N/A √√
2. HDMI Cable √√√
3. VGA In Cable √√√
4. RCA Component Cable √√√
5. Video Cable √√√
6. Audio In Cable √√√
7. Audio Out Cable		√√√
8. RJ-45 Cable		N/A	N/A√
9. USB Cable (mouse control)		√√√
10.	RS232 Cable	√√√
11.	USB Power Cable	√√√
12.	HDMI Stick	√√√
13.	Power Cord	√√√

Note: “√” means the item is supported, “N/A” means the item is not available.

SETUP AND INSTALLATION

Adjusting the projector image

Image height

The projector is equipped with elevator feet for adjusting the image height.

1. Locate the adjustable foot you wish to adjust on the underside of the projector.
2. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.

Zoom and focus

• To adjust the image size, turn the zoom lever clockwise or counterclockwise to increase or decrease the projected image size.
• To adjust the focus, turn the focus ring clockwise or counterclockwise until the image is sharp and legible.

Note: The projector will focus at a distance of 1m to 10m.

SETUP AND INSTALLATION

Installing / replacing the batteries

1. Press firmly and slide the battery cover off.

2. Install new battery into the compartment. Remove the old battery and install new one (CR2025). Ensure that the side with a “+” is facing up.

3. Put the cover back.

Illustration of hands using a tool to adjust or install a component, with red arrows indicating direction (no text or symbols present)

CAUTION: To ensure safe operation, please observe the following precautions:

• Use CR2025 type battery.
• Avoid contact with water or liquid.
• Do not expose the remote control to moisture or heat.
• Do not drop the remote control.

• If the battery has leaked in the remote control, carefully wipe the case clean and install new battery.

• Risk of an explosion if battery is replaced by an incorrect type.
• Dispose of used battery according to the instructions.

SETUP AND INSTALLATION

Effective range

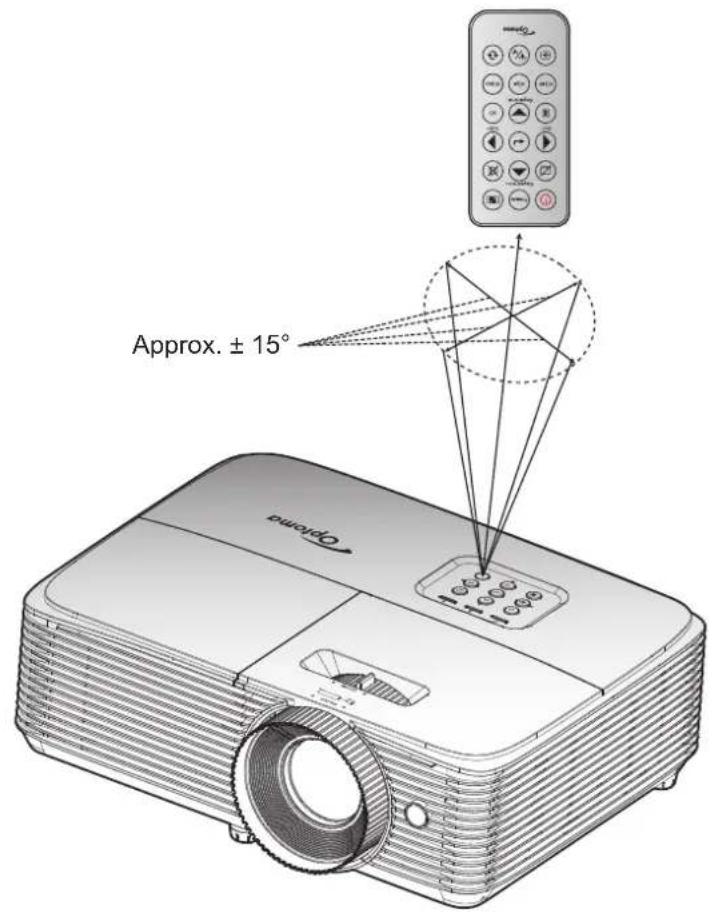

Infra-Red (IR) remote control sensor is located on top of the projector. Ensure to hold the remote control at an angle within 30 degrees perpendicular to the projector's top IR remote control sensor to function correctly. The distance between the remote control and the sensor should not be longer than 6 meters (\~20 feet).

Note: When pointing the remote control directly (0 degrees angle) on the IR sensor, the distance between the remote control and the sensor should not be longer than 8 meters (\~26 feet).

• Make sure that there are no obstacles between the remote control and the IR sensor on the projector that might obstruct the infra-red beam.
• Make sure the IR transmitter of the remote control is not being shined by sunlight or fluorescent lamps directly.
- Please keep the remote controller away from fluorescent lamps for over 2 meters or the remote controller might become malfunction.
• If the remote control is close to Inverter-Type fluorescent lamps, it might become ineffective from time to time.
• If the remote control and the projector are within a very short distance, the remote control might become ineffective.
- When you aim at the screen, the effective distance is less than 6 meters from the remote control to the screen and reflecting the IR beams back to the projector. However, the effective range might change according to screens.

USING THE PROJECTOR

Powering on / off the projector

Powering on

1. Securely connect the power lead and signal/source cable. When connected, the On/Standby LED will turn red.
2. Turn on the projector by pressing the " " either on the projector keypad or the remote control.
3. A start up screen will display in approximately 10 seconds and the On/Standby LED will be flashing green or flashing blue.

Note: The first time the projector is turned on, you will be prompted to select the preferred language, projection orientation, and other settings.

Powering off

1. Turn off the projector by pressing the " " either on the projector keypad or the remote control.
2. The following message will be displayed:

1. Press the " again to confirm, otherwise the message will disappear after 15 seconds. When you press the " button for the second time, the projector will shut down.
2. The cooling fans will continue to operate for about 10 seconds for the cooling cycle and the On/Standby LED will flash green or flash blue. When the On/Standby LED turns solid red, this indicates the projector has entered standby mode. If you wish to turn the projector back on, you must wait until the cooling cycle has finished and the projector has entered standby mode. When the projector is in standby mode, simply press the "button again to turn on the projector.
3. Disconnect the power lead from the electrical outlet and the projector.

Note: It is not recommended that the projector is turned on immediately, right after a power off procedure.

USING THE PROJECTOR

Selecting an input source

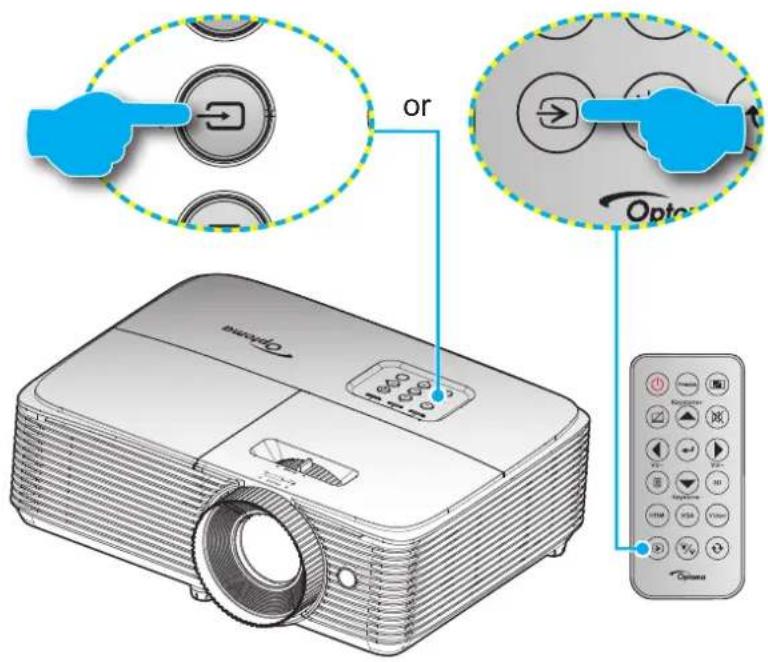

Turn on the connected source that you want to display on the screen, such as computer, notebook, video player, etc. The projector will automatically detect the source. If multiple sources are connected, push the source button on the projector keypad or the remote control to select the desired input.

USING THE PROJECTOR

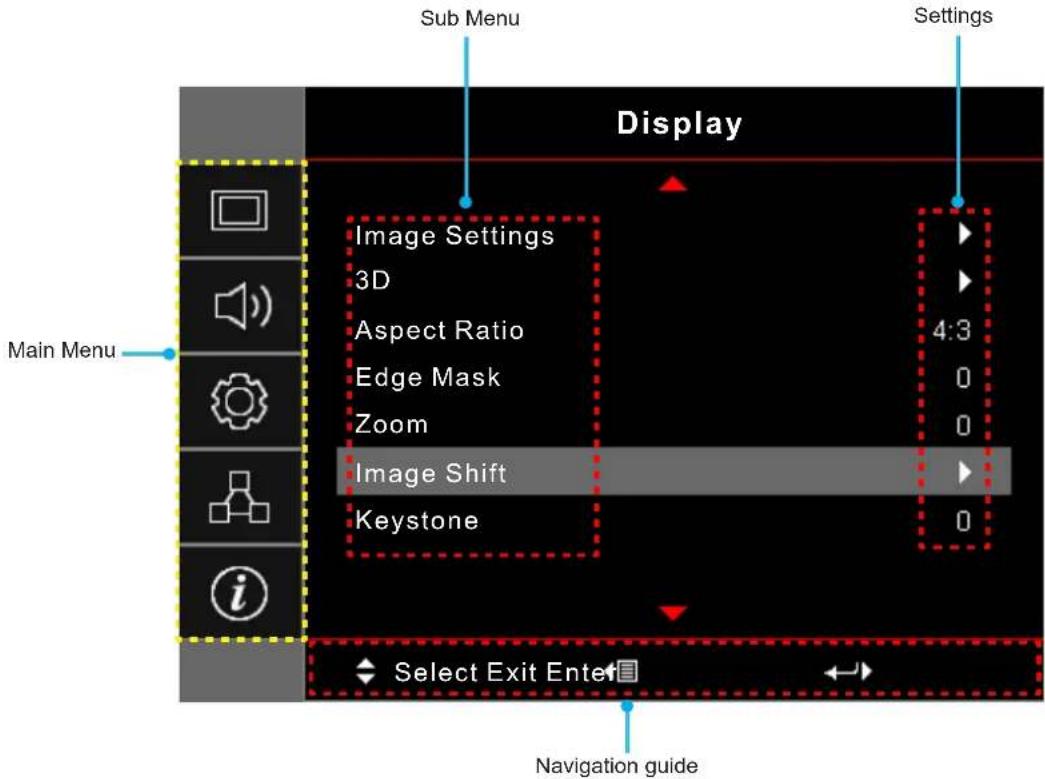

Menu navigation and features

The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source.

1. To open the OSD menu, press on the remote control or the projector keyboard.
2. When OSD is displayed, use keys to select any item in the main menu. While making a selection on a particular page, press or key to enter sub menu.
3. Use ◀▶ keys to select the desired item in the sub menu and then press ← or ▶ key to view further settings. Adjust the settings by using ◀▶.
4. Select the next item to be adjusted in the sub menu and adjust as described above.
5. Press the or to confirm, and the screen will return to the main menu.
6. To exit, press the ◀ or ☑ again. The OSD menu will close and the projector will automatically save the new settings.

USING THE PROJECTOR

OSD Menu tree

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Display Image Settings		Display Mode [Data]			Presentation
					Bright
					Cinema
					Game
					sRGB
					DICOM SIM.
					User
					3D
		Wall Color			Off [Default]
					Blackboard
					Light Yellow
					Light Green
					Light Blue
					Pink
					Gray
		Brightness -50~50
		Contrast			-50~50
		Sharpness 1~15
		Color -50~50
		Tint -50~50
		Gamma	Film
			Video
			Graphics
			Standard(2.2)
			1.8
			2.0
			2.4
		Color Settings	BrilliantColorTM		1~10
			Color Temperature	[Data mode]	Warm
					Medium
					Cool
			Color Matching	Color	R [Default]
					G
					B
					C
					Y
					M
					W
				Hue -50~50
				Saturation -50~50
				Gain -50~50

USING THE PROJECTOR

Main Menu	Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Display Image Settings	Color Settings	Color Matching	Reset	Cancel [Default]
				Yes
			Exit
		RGB Gain/Bias	Red Gain -50~50
			Green Gain -50~50
			Blue Gain -50~50
			Red Bias -50~50
			Green Bias -50~50
			Blue Bias -50~50
			Reset	Cancel [Default]
				Yes
			Exit
		Color Space [Not HDMI Input]		Auto [Default]
				RGB
				YUV
		Color Space [HDMI Input]		Auto [Default]
				RGB(0~255)
				RGB(16~235)
				YUV
		White Level 0~31 (depends on signal)
		Black Level -5~5 (depends on signal)
		IRE		0
				7.5
	Signal	Automatic		Off
				On [Default]
		Frequency		-10~10 (depends on signal) [Default: 0]
		Phase 0~31 (depends on signal) [Default: 0]
		H. Position		-5~5 (depends on signal) [Default: 0]
		V. Position		-5~5 (depends on signal) [Default: 0]
		Exit
	Brightness Mode [Lamp Base - Data]			Bright
				Eco.
				Dynamic
				Eco+
	Reset

USING THE PROJECTOR

Main Menu	Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Display	3D	3D Mode			Off
					DLP-Link [Default]
					IR
		3D->2D			3D [Default]
					L
					R
		3D Format			Auto [Default]
					SBS
					Top and Bottom
					Frame Sequential
		3D sync invert			On
					Off [Default]
	Aspect Ratio				4:3
					16:9
					16:10 [WUXGA model]
					LBX
					Native
					Auto
	Edge Mask 0~10	[Default: 0]
	Zoom -5~25 [Default: 0]
	Image shift	H			-50~50 [Default: 0]
		V			-50~50 [Default: 0]
	Keystone -40~40
Audio	Mute				Off [Default]
					On
	Volume 0-10 [Default: 5]
Setup	Projection				Front [B6WG]ult]
					Rear
					Ceiling-top
					Rear-top
	Screen Type [WUXGA model]				16:9
					16:10 [Default]
	Lamp Settings	Lamp Reminder			Off
					On [Default]
		Lamp Reset			Cancel [Default]
					Yes

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Setup	Filter Settings	Optional Filter Installed			Yes
					No
		Filter Usage Hours			(Read only)
		Filter Reminder			Off
					300hr
					500hr [Default]
					800hr
					1000hr
		Filter Reset			Cancel [Default]
					Yes
	Power Settings	Direct Power On			Off [Default]
					On
		Signal Power On			Off [Default]
					On
		Auto Power Off (min)			0~180 (5 min increments) [Default: 20]
		Sleep Timer (min)			0~990 (30 min increments) [Default: 0]
			Always On		No [Default]
					Yes
		Quick Resume			Off [Default]
					On
		Power Mode (Standby)			Active
					Eco [Default]
		USB Power			Off
					On
					Auto [Default]
	Security	Security			Off
					On
		Security Timer		Month
				Day
				Hour
		Change Password

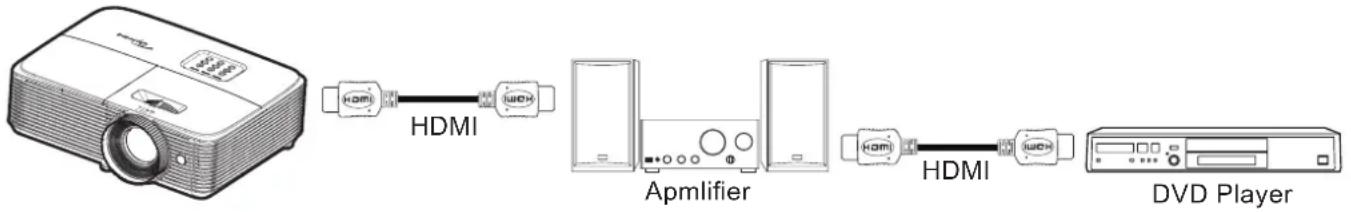

	HDMI Link Settings	HDMI Link			Off
					On
		Inclusive of TV			No
					Yes
		Power On Link			Mutual
					PJ --> Device
					Device --> PJ
		Power Off Link			Off
					On

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Setup	Test Pattern				Green Grid
					Magenta Grid
					White Grid
					White
					Off
	Remote Settings [depends on remote]	IR Function			On
					Off
		User1			HDMI 2
					Test Pattern
					LAN (Type 3 (9 IO) only)
					Brightness
					Contrast
					Sleep Timer [Default]
					Color Matching
					Color Temp
					Gamma
					Projection
					Lamp Settings
					Zoom
					Freeze
					MHL (Type 2 (8 IO) and Type 3 (9 IO) only)
		User2			HDMI 2
					Test Pattern
					LAN (Type 3 (9 IO) only)
					Brightness
					Contrast
					Sleep Timer
					Color Matching [Default]
					Color Temp
					Gamma
					Projection
					Lamp Settings
					Zoom
					Freeze
					MHL (Type 2 (8 IO) and Type 3 (9 IO) only)

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Setup	Remote Settings [depends on remote]	User3			HDMI 2
					Test Pattern
					LAN (Type 3 (9 IO) only)
					Brightness
					Contrast
					Sleep Timer
					Color Matching
					Color Temp [Default]
					Gamma
					Projection
					Lamp Settings
					Zoom
					Freeze
					MHL (Type 2 (8 IO) and Type 3 (9 IO) only)
	Projector ID 0~99
	Options Language				English [Default]
					Deutsch
					Français
					Italiano
					Español
					Português
					Polski
					Nederlands
					Svenska
					Norsk/Dansk
					Suomi
					ελληνικά
					繁體中文
					简体中文
					日本語
					한국어
					Русский
					Magyar
					Čeština
					عربي
					'ɪnu
					Türkçe
					فارسی
					Tiếng Việt
					Bahasa Indonesia
					Română
					Slovenčina

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Setup Options		Closed Captioning			CC1
					CC2
					Off [Default]
		Menu Settings	Menu Location		Top left
					Top right
					Center [Default]
					Bottom left
					Bottom right
			Menu Timer		Off
					5sec
					10sec [Default]
		Auto Source			Off [Default]
					On
		Input Source			HDMI1/MHL (Type 3 (9 IO)/ Type 2(8 IO))
					HDMI2 (Type 3 (9 IO)/ Type 2(8 IO))
					HDMI (Type 1 (7 IO))
					VGA
					Video
		Input Name	HDMI1/MHL (Type 3 (9 IO)/ Type 2 (8 IO))		Default [Default]
					Custom
			HDMI2 (Type 3 (9 IO)/ Type 2 (8 IO))		Default [Default]
					Custom
			HDMI (Type 1 (7 IO))		Default [Default]
					Custom
			VGA		Default [Default]
					Custom
			Video		Default [Default]
					Custom
		High Altitude			Off [Default]
					On
		Display Mode Lock			Off [Default]
					On
		Keypad Lock			Off [Default]
					On
		Information Hide			Off [Default]
					On
		Logo			Default [Default]
					Neutral
					User

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Setup	Options	Background Color			None [Default: for Video/Pro-AV]
					Blue [Default for Data model]
					Red
					Green
					Grey
					Logo
	Reset	Reset OSD			Cancel [Default]
					Yes
		Reset to Default			Cancel [Default]
					Yes
Network (Type 3 (9 IO) only)	LAN	Network Status (read only)
		MAC Address (read only)
		DHCP			Off [Default]
					On
		IP Address 192.168.0.100 [Default]
		Subnet Mask			255.255.255.0 [Default]
		Gateway 192.168.0.254 [Default]
		DNS 192.168.0.51 [Default]
		Reset
	Control	Crestron			Off
					On [Default]Note: Port 41794.
		Extron			Off
					On [Default]Note: Port 2023.
		PJ Link			Off
					On [Default]Note: Port 4352
		AMX Device Discovery			Off
					On [Default]Note: Port 9131
		Telnet			Off
					On [Default]Note: Port 23
		HTTP			Off
					On [Default]Note: Port 80

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Information	Regulatory
	Serial Number
	Source
	Resolution 00x00
	Refresh Rate 0.00Hz
	Display Mode
	Power mode (Standby)
	Lamp Hours	Bright 0 hr
		Eco. 0 hr
		Dynamic 0 hr
		Eco+ 0 hr
		Total
	Network Status
	IP Address
	Projector ID 00~99
	Filter Usage Hours
	Brightness Mode
	FW Version	System
		LAN
		MCU

Note:

• The "Lamp Reset" in OSD will only reset both Lamp Hours in OSD and Lamp Hours in service mode. The Projection Hours in service mode will not be reset.
  • Each display mode can be adjusted and saved the value.
  • In 3D timing mode, the zoom/edge mask will be disabled to prevent from image break.

Display menu

Display image settings menu

Display Mode (Data mode)

There are many factory presets optimized for various types of images.

• Presentation: This mode is suitable for showing PowerPoint presentations when the projector is connected to the PC.
  • Bright: Maximum brightness from PC input.
  • Cinema: Select this mode for home theater.
  • Game: Select this mode to increase the brightness and response time level for enjoying video games.
• sRGB: Standardized accurate color.
  • DICOM SIM.: This mode can project a monochrome medical image such as an X ray radiography, MRI, etc.
• User: Memorize user's settings.

USING THE PROJECTOR

• 3D: To experience the 3D effect, you need to have 3D glasses. Make sure your PC/portable device has a 120 Hz signal output quad buffered graphics card and a 3D Player installed.

Wall Color

Use this function to obtain an optimized screen image according to the wall color. Select between off, blackboard, light yellow, light green, light blue, pink, and gray.

Brightness

Adjust the brightness of the image.

Contrast

The contrast controls the degree of difference between the lightest and darkest parts of the picture.

Sharpness

Adjust the sharpness of the image.

Color

Adjust a video image from black and white to fully saturated color.

Tint

Adjust the color balance of red and green.

Gamma

Set up gamma curve type. After the initial setup and fine tuning is completed, utilize the Gamma Adjustment steps to optimize your image output.

• Film: For home theater.
• Video: For video or TV source.
• Graphics: For PC / Photo source.
- Standard(2.2): For standardized setting.
• 1.8/ 2.0/ 2.4: For specific PC / Photo source.

Color Settings

Configure the color settings.

• BrilliantColor ^TM : This adjustable item utilizes a new color-processing algorithm and enhancements to enable higher brightness while providing true, more vibrant colors in picture.
  • Color Temperature (Data mode): Select a color temperature from Warm, Medium, or Cool.

• Color Matching: Select the following options:

– Color: Adjust the red (R), green (G), black (B), cyan (C), yellow (Y), magenta (M), and white (W) level of the image.
– Hue: Adjust the color balance of red and green.
- Saturation: Adjust a video image from black and white to fully saturated color.
– Gain: Adjust the image brightness.
- Reset: Return the factory default settings for color matching.
- Exit: Exit the "Color Matching" menu.

- RGB Gain/Bias: This settings allows to configure the brightness (gain) and contrast (bias) of an image.

- Reset: Return the factory default settings for RGB gain/bias.

- Exit: Exit the "RGB Gain/Bias" menu.

USING THE PROJECTOR

• Color Space (non-HDMI input only): Select an appropriate color matrix type from the following: AUTO, RGB, or YUV.
• Color Space (HDMI input only): select an appropriate color matrix type from the following: Auto, RGB(0-255), RGB(16-235), and YUV.
• White Level: Allow user to adjust White Level when inputting Video signals.

Note: White level can only be adjusted for Video/S-Video input sources.

• Black Level: Allow user to adjust Black Level when inputting Video signals.

Note: Black level can only be adjusted for Video/S-Video input sources.

- IRE: Allow user to adjust IRE value when inputting Video signals.

Note:

• IRE is only available with NTSC video format.
• IRE can only be adjusted for Video input sources.

Signal

Adjust the signal options.

• Automatic: Configure automatically the signal (the frequency and phase items are grayed out). If automatic is disabled, the frequency and phase items will appear for tuning and saving the settings.
- Frequency: Change the display data frequency to match the frequency of your computer's graphic card. Use this function only if the image appears to flicker vertically.
- Phase: Synchronize the signal timing of the display with the graphic card. If the image appears to be unstable or flickers, use this function to correct it.

• H. Position: Adjust the horizontal positioning of the image.

• V. Position: Adjust the vertical positioning of the image.
- Exit: Exit the "Signal" menu.

Note: Signal can only be adjusted for RGB/Component input sources.

Brightness Mode (Lamp base data)

Adjust the brightness mode settings for lamp-based projectors.

- Bright: Choose "Bright" to increase the brightness.

• Eco.: Choose "Eco." to dim the projector lamp which will lower power consumption and extend the lamp life.
• Dynamic: Choose "Dynamic" to dim the lamp power which will be based on brightness level of the content and adjust lamp power consumption between 100% and 30% dynamically. The lamp life will be extended.
• Eco+: When Eco+ mode is activated, the brightness level of the content is automatically detected to significantly reduced lamp power consumption (up to 70%) during periods of inactivity.

USING THE PROJECTOR

Reset

Return the factory default settings for color settings.

Display 3D menu

3D Mode

Use this option to disable the 3D function or select the appropriate the 3D function.

• Off: Select "Off" to turn off 3D mode.
• DLP-Link: Select to use optimized settings for DLP 3D Glasses.
• IR: Select "IR" to use optimized setting for IR 3D Glasses.

3D → 2D

Use this option to specify how the 3D content should appear on the screen.

• 3D: Display 3D signal.
- L (Left): Display the left frame of 3D content.
- R (Right): Display the right frame of 3D content.

3D Format

Use this option to select the appropriate 3D format content.

• Auto: When a 3D identification signal is detected, the 3D format is selected automatically.
- SBS: Display 3D signal in "Side-by-Side" format.
• Top and Bottom: Display 3D signal in "Top and Bottom" format.
- Frame Sequential: Display 3D signal in "Frame Sequential" format.

3D Sync Invert

Use this option to enable/disable the 3D sync invert function.

Display aspect ratio menu

Aspect Ratio

Select the aspect ratio of the displayed image between the following options:

• 4:3: This format is for 4:3 input sources.
• 16:9: This format is for 16:9 input sources, like HDTV and DVD enhanced for Wide screen TV.
• 16:10 (WUXGA model only): This format is for 16:10 input sources, like widescreen laptops.
- LBX: This format is for non-16x9, letterbox source and if you use external 16x9 lens to display 2.35:1 aspect ratio in full resolution.
• Native: This format displays the original image without any scaling.
- Auto: Automatically selects the appropriate display format.

USING THE PROJECTOR

Note:

• It is considered normal that black bars appear on the right side and left side of the image with the resolution of WUXGA; and around the image with a resolution of 1080p in each aspect mode.
• The black bars and boarder will change in size depending on the aspect ratio.

Black bars

WUXGA active area

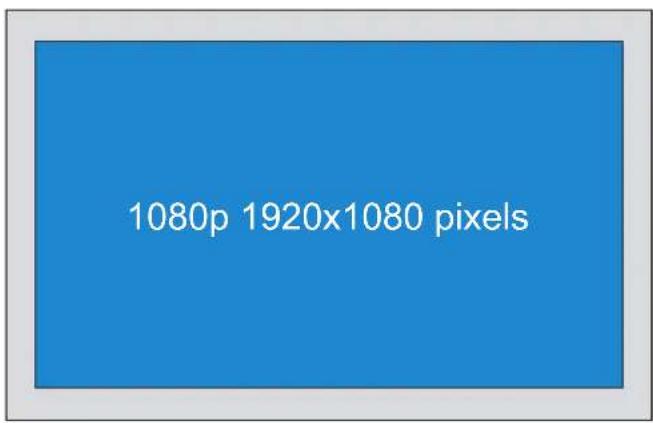

1080p active area

For projectors with a resolution of WUXGA (1920 × 1200)

Format	Aspect ratio
	16:10 16:9 4:3
Native
16:9
Full
Zoom
Auto

USING THE PROJECTOR

Note:

• Detailed informations about LBX mode:

Some Letter-Box Format DVDs are not enhanced for 16x9 TVs. In this situation, the image will not look right when displaying image in 16:9 mode. In this situation, please try to use the 4:3 mode to view the DVD. If the content is not 4:3, there will be black bars around the image in 16:9 display. For this type of content, you can use LBX mode to fill the image on the 16:9 display.
- If you use an external anamorphic lens, this LBX mode also allows you to watch a 2.35:1 content (include Anamorphic DVD and HDTV film source) that supports anamorphic wide is enhanced for 16x9 Display in a wide 2.35:1 image. In this case, there are no black bars. Lamp power and vertical resolution are fully utilized.

- To use the superwide format, do the following:

a) Set the screen aspect ratio to 2.0:1.
b) Align the projector image correctly on the screen.

1080P scaling table:

16:9 screen 480i/p 576i/p 1080i/p 720p PC
4x3 Scale to 1440x1080.
16x9 Scale to 1920x1080.
LBX Scale to 1920x1440, then get the central 1920x1080 image to display.
Native mode	-1:1 mapping centered.-No scaling will be made; the image is displayed with the resolution based on input source.
Auto	-If this format is selected, screen type will auto become 16:9 (1920x1080).-If source is 4:3, auto resize to 1440 x1080.-If source is 16:9 auto resize to 1920x1080.-If source is 16:10 auto resize to 1920x1200 and cut 1920x1080 area to display.

1080P auto mapping rule:

Auto	Input resolution		Auto/Scale
	H-resolution	V-resolution	1920	1080
4:3	640	480	1440	1080
	800	600	1440	1080
	1024	768	1440	1080
	1280	1024	1440	1080
	1400	1050	1440	1080
	1600	1200	1440	1080
Wide Laptop	1280	720	1920	1080
	1280	768	1800	1080
	1280	800	1728	1080
SDTV	720	576	1350	1080
	720	480	1620	1080
HDTV	1280	720	1920	1080
	1920	1080	1920	1080

USING THE PROJECTOR

WUXGA scaling table (screen type 16:10):

16 : 10 screen 480i/p 576i/p 1080i/p 720p PC
4x3 Scale to 1600x1200.
16x10 Scale to 1920x1200.
LBX Scale to 1920x1440, then get the central 1920x1200 image to display.
Native mode -1:1 mapping centered.-No scaling will be made; the resolution is dependent on which input source and is then displayed.
Auto -If this format is select, screen type will auto become 16:10 (1920x1200).-If source is 4:3, auto resize to 1600x1200.-If source is 16:9 auto resize to 1920x1080.-If source is 16:10 auto resize to 1920x1200.

WUXGA auto mapping rule (screen type 16:10):

Auto	Input resolution Auto/Scale
	H-resolution V-resolution 1920 1200
4:3	640 480	1600	1200
	800 600	1600	1200
	1024	768	1600	1200
	1280	1024	1600	1200
	1400	1050	1600	1200
	1600	1200	1600	1200
Wide Laptop	1280	720	1920	1080
	1280	768	1920	1152
	1280	800	1920	1200
SDTV	720 576	1500	1200
	720 480	1800	1200
HDTV	1280	720	1920	1080

WUXGA scaling table (screen type 16:9):

16 : 9 screen	480i/p 576i/p 1080i/p 720p PC
4x3 Scale to 1440x1080.
16x9	Scale to 1920x1080.
LBX Scale to 1920x1440, then get the central 1920x1080 image to display.
Native mode -1:1 mapping centered.-No scaling will be made; the resolution is dependent on which input source and is then displayed.
Auto -If this format is select, Screen type will auto become 16:9 (1920x1080).-If source is 4:3, auto resize to 1440x1080.-If source is 16:9 auto resize to 1920x1080.-If source is 16:10 auto resize to 1920x1200 and cut 1920x1080 area to display.

USING THE PROJECTOR

WUXGA auto mapping rule (screen type 16:9):

Auto	Input resolution Auto/Scale
	H-resolution V-resolution 1920 1080
4:3	640 480 1440	1080
	800 600 1440	1080
	1024 768 1440	1080
	1280 1024 1440	1080
	1400 1050 1440	1080
	1600 1200 1440	1080
Wide Laptop	1280 720 1920	1080
	1280 768 1800	1080
	1280 800 1728	1080
SDTV	720 576 1350	1080
	720 480 1620	1080
HDTV	1280 720 1920	1080
	1920 1080 1920	1080

Display edge mask menu

Edge Mask

Use this function to remove the video encoding noise on the edge of video source.

Display zoom menu

Zoom

Use to reduce or magnify an image on the projection screen.

Display image shift menu

Image Shift

Adjust the projected image position horizontally (H) or vertically (V).

Display keystone menu

Keystone

Adjust the image distortion caused by tilting the projector.

USING THE PROJECTOR

Audio menu

Audio mute menu

Mute

Use this option to temporarily turn off the sound.

• On: Choose the "On" to turn mute on.
• Off: Choose the "Off" to turn mute off.

Note:

• "Mute" function affects both internal and external speaker volume.
• When an external speaker is connected, the internal speaker is automatically muted.

Audio volume menu

Volume

Adjust the audio volume level.

Setup menu

Setup projection menu

Projection

Select the preferred projection between front, rear, ceiling-top, and rear-top.

Setup screen type menu

Screen Type (for WUXGA model only)

Choose the screen type from 16:9 and 16:10.

Setup lamp settings menu

Lamp Reminder

Choose this function to show or to hide the warning message when the changing lamp message is displayed. The message will appear 30 hours before suggested replacement of lamp.

Lamp Reset

Resets the lamp hour counter after replacing the lamp.

Setup filter settings menu

Optional Filter Installed

Set the warning message setting.

• Yes: Display warning message after 500 hours of use.

Note: "Filter Usage Hours / Filter Reminder / Filter Reset" will only appear when "Optional Filter Installed" is "Yes".

- No: Turn off warning message.

USING THE PROJECTOR

Filter Usage Hours

Display the filter time.

Filter Reminder

Choose this function to show or hide the warning message when the changing filter message is displayed. The available options include Off, 300hr, 500hr, 800hr, and 1000hr.

Filter Reset

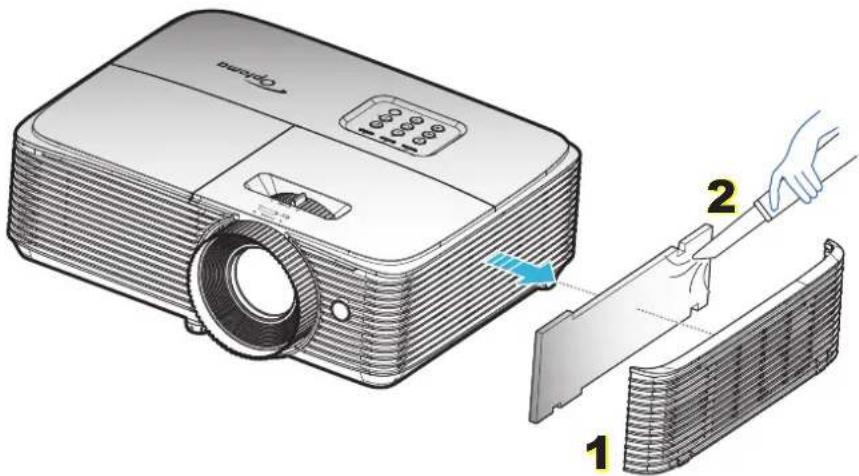

Reset the dust filter counter after replacing or cleaning the dust filter.

Setup power settings menu

Direct Power On

Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied, without pressing the “Power” key on the projector keypad or on the remote control.

Signal Power On

Choose "On" to activate Signal Power mode. The projector will automatically power on when a signal is detected, without pressing the "Power" key on the projector Keypad or on the remote control.

Note:

- If the "Signal Power On" option is turned "On", the power consumption of the projector in standby mode will be over 3W.

- "Signal Power On" can support VGA (RGB signal) and HDMI.

Auto Power Off (min)

Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

Sleep Timer (min)

Configure the sleep timer.

- Sleep Timer (min): Sets the countdown timer interval. The countdown timer will start, with or without a signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

Note: The Sleep Timer is reset every time when the projector is powered off.

- Always On: Check to set the sleep timer always on.

Quick Resume

Set the quick resume setting.

- On: If the projector is accidentally turned off, this feature allows the projector to be instantly powered on again, if selected within a period of 100 seconds.

• Off: The fan will start cooling the system after 10 seconds when user turns off the projector.

Power Mode (Standby)

Set the power mode setting.

- Active: Choose "Active" to return to normal standby.

- Eco: Choose "Eco." to save power dissipation further < 0.5W .

Note: The fans will still run in active standby if "Signal Power On" is enabled.

USB Power

Set the USB power settings.

- On: The projector is always powered on by a USB power source.

USING THE PROJECTOR

- Off: The USB Power function is off.

• Auto: The projector is automatically powered on by a USB power source.

Setup security menu

Security

Enable this function to prompt for a password before using the projector.

• On: Choose "On" to use security verification when the turning on the projector.
• Off: Choose "Off" to be able to switch on the projector without password verification.

Security Timer

Can be select the time (Month/Day/Hour) function to set the number of hours the projector can be used. Once this time has elapsed you will be requested to enter your password again.

Change Password

Use to set or modify the password that is prompted when turning the projector on.

Setup HDMI link settings menu

Note:

- When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them on the same power on or power off status using the HDMI Link control feature in the projector's OSD. This lets one device or multiple devices in a group power on or power off via HDMI Link Feature in a typical configuration, your DVD player may be connected to the projector through an amplifier or home theater system.

HDMI Link

Enable/disable the HDMI Link function. The inclusive TV, power on link, and power off link options will only available if the setting is set to "On".

Inclusive of TV

Set to "Yes" if you prefer both TV and projector to be automatically turned off at the same time. To prevent both devices to be turned off at the same time, set the setting to "No".

Power On Link

CEC power on command.

• Mutual: Both projector and CEC device will be turned on simultaneously.
- PJ -> Device: The CEC device will be turned on only after the projector is switched on.
• Device -> PJ: The projector will be switched on only after the CEC device is turned on.

Power Off Link

Enable this function to let both HDMI Link and projector to be automatically turned off at the same time.

USING THE PROJECTOR

Setup test pattern menu

Test Pattern

Select the test pattern from green grid, magenta grid, white grid, white or disable this function (off).

Setup remote settings menu

IR Function

Set the IR function setting.

• On: Choose "On", the projector can be operated by the remote control from top IR receiver.
• Off: Choose "Off", the projector can't be operated by the remote control. By selecting "Off", you will be able to use the Keypad keys.

User1/ User2/ User3 (Type 1)

Assign the default function for User1, User2, or User3 between HDMI (Type 1 (7 IO)) or HDMI 2 (Type 3 (9 IO)/Type 2(8 IO)), test pattern, brightness, contrast, sleep timer, color matching, color temp, gamma, projection, lamp settings, zoom, and freeze.

User1/ User2/ User3 (Type 2)

Assign the default function for User1, User2, or User3 between HDMI (Type 1 (7 IO)) or HDMI 2 (Type 3 (9 IO)/Type 2(8 IO)), test pattern, brightness, contrast, sleep timer, color matching, color temp, gamma, projection, lamp settings, zoom, freeze, and MHL.

User1/ User2/ User3 (Type 3)

Assign the default function for User1, User2, or User3 between HDMI (Type 1 (7 IO)) or HDMI 2 (Type 3 (9 IO)/Type 2(8 IO)), test pattern, LAN, brightness, contrast, sleep timer, color matching, color temp, gamma, projection, lamp settings, zoom, freeze, and MHL.

Setup projector ID menu

Projector ID

ID definition can be set up by menu (range 0-99), and allow user control an individual projector by using RS232 command.

Setup options menu

Language

Select the multilingual OSD menu between English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Swedish, Norwegian/Danish, Finnish, Greek, traditional Chinese, simplified Chinese, Japanese, Korean, Russian, Hungarian, Czechoslovak, Arabic, Thai, Turkish, Farsi, Vietnamese, Indonesian, Romanian, and Slovakian.

Closed Captioning

Closed Captioning is a text version of the program sound or other information displayed on the screen. If the input signal contains closed captions, you can turn on the feature and watch the channels. The available options include "Off", "CC1", and "CC2".

Note: Closed Captioning is only available for Video NTSC.

Menu Settings

Set the menu location on the screen and configure menu timer settings.

• Menu Location: Select the menu location on the display screen.
• Menu Timer: Set the duration where the OSD menu stays visible on the screen.

Auto Source

If you set this option "On" and press the button on the projector keypad or button on the remote control then the next available input source is selected automatically. Set "Off" to disable auto source function.

USING THE PROJECTOR

Input Source

Select the input source between HDMI1/MHL, HDMI2 or HDMI, VGA, and Video.

Input Name

Use to rename the input function for easier identification. The available options include HDMI1/MHL, HDMI2 or HDMI, VGA, and Video.

High Altitude

When "On" is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.

Display Mode Lock

Choose "On" or "Off" to lock or unlock adjusting display mode settings.

Keypad Lock

When the keypad lock function is "On", the Keypad will be locked. However, the projector can be operated by the remote control. By selecting "Off", you will be able to reuse the Keypad.

Information Hide

Enable this function to hide the information message.

• Off: Choose "On" to hide the info message.
• On: Choose "Off" to show the "searching" message.

Logo

Use this function to set the desired startup screen. If changes are made, they will take effect the next time the projector is powered on.

• Default: The default startup screen.
• Neutral: Logo is not displayed on startup screen.
• User: Use stored picture as logo.

Background Color

Use this function to display a blue, red, green, grey color, none, or logo screen when no signal is available.

Note: If the background color is set to "None", then the background color is black.

Setup reset menu

Reset OSD

Return the factory default settings for OSD menu settings.

Reset to Default

Return the factory default settings for Setup menu settings.

Network menu (Type 3)

Network LAN menu

Network Status

Display the network connection status (read-only).

MAC Address

Display the MAC address (read-only).

USING THE PROJECTOR

DHCP

Use this option to enable or disable the DHCP function.

• On: Projector will obtain an IP address automatically from your network.
• Off: To assign IP, subnet mask, gateway, and DNS configuration manually.

Note: Exiting OSD will automatically apply the entered values.

IP Address

Display the IP address.

Subnet Mask

Display subnet mask number.

Gateway

Display the default gateway of the network connected to the projector.

DNS

Display the DNS number.

How to use web browser to control your projector

1. Turn "On" the DHCP option on projector to allow a DHCP server to automatically assign an IP address.
2. Open the web browser in your PC and type in the projector's IP address ("Network > LAN > IP Address").
3. Enter the user name and password, and click "Login". The projector's configuration web interface opens.

Note:

• The default user name and password is "admin".
• The steps in this section is based on Windows 7 operating system.

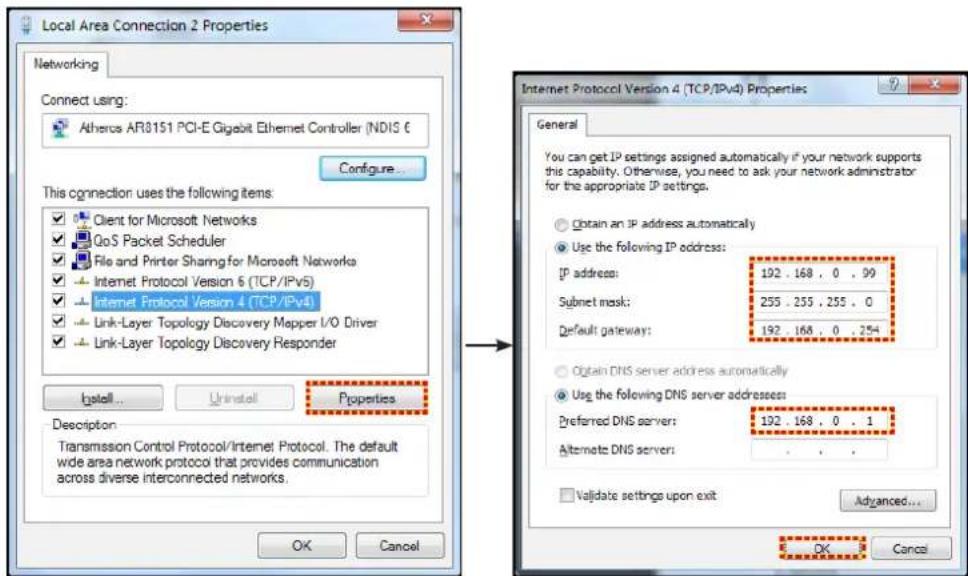

Making a direct connection from your computer to the projector\*

1. Turn "Off" the DHCP option on the projector.

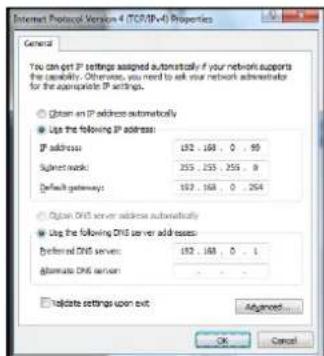

2. Configure the IP address, Subnet Mask, Gateway, and DNS on projector ("Network > LAN").

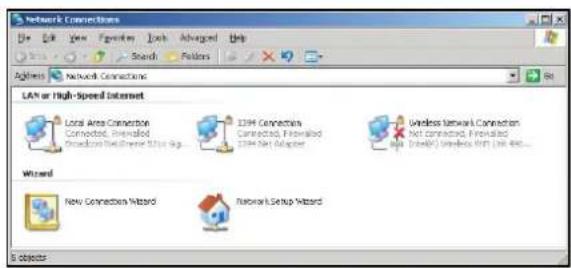

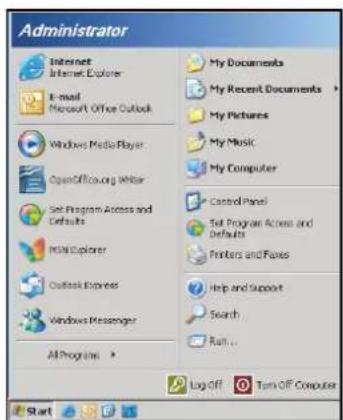

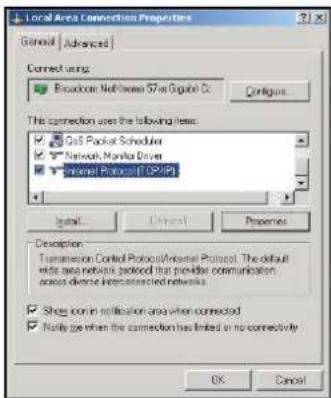

3. Open Network and Sharing Center page on your PC, and assign the identical network parameters to your PC as set on projector. Click "OK" to save the parameters.

1. Open the web browser on your PC and type in to the URL field the IP address, assigned in step 3. Then press "Enter" key.

USING THE PROJECTOR

Reset

Reset all values for LAN parameters.

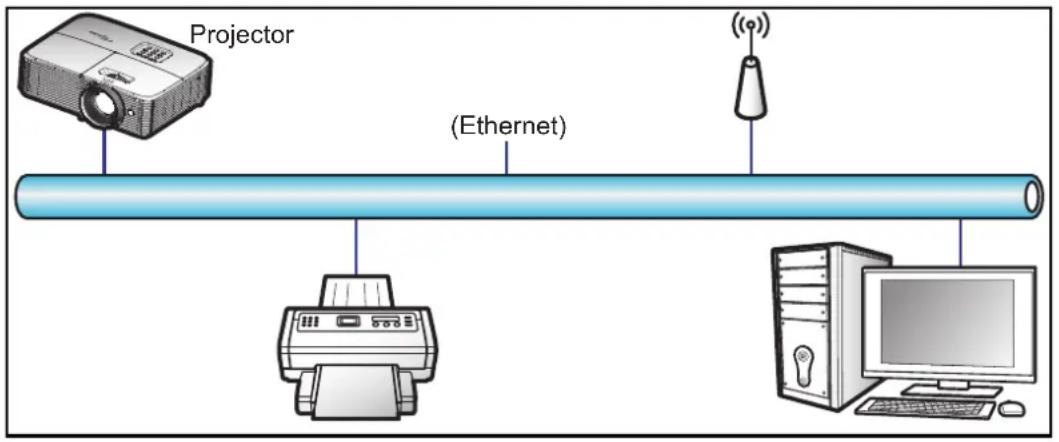

Network control menu

Crestron

Use this function to select the network function (port: 41794).

For more information, please visit http://www.crestron.com and www.crestron.com/getroomview.

Extron

Use this function to select the network function (port: 2023).

PJ Link

Use this function to select the network function (port: 4352).

AMX Device Discovery

Use this function to select the network function (port: 9131).

Telnet

Use this function to select the network function (port: 23).

HTTP

Use this function to select the network function (port: 80).

Setup network control settings menu

LAN RJ45 function

For simplicity and ease of operation, the projector provides diverse networking and remote management features. The LAN / RJ45 function of the projector through a network, such as remotely manage: Power On / Off, brightness, and contrast settings. Also, you can view the projector status information, such as: Video- Source, Sound-Mute, etc.

Wired LAN terminal functionalities

This projector can be controlled by using a PC (laptop) or other external device via LAN / RJ45 port and compatible with Crestron / Extron / AMX (Device -Discovery) / PJLink.

• Crestron is a registered trademark of Crestron Electronics, Inc. of the United States.
• Extron is a registered trademark of Extron Electronics, Inc. of the United States.
• AMX is a registered trademark of AMX LLC of the United States.

USING THE PROJECTOR

- PJLink applied for trademark and logo registration in Japan, the United States of America, and other countries by JBMIA.

The projector is supported by the specified commands of the Crestron Electronics controller and related software, for example RoomView®.

http://www.crestron.com/

This projector is compliant to support Extron device(s) for reference.

http://www.extron.com/

This projector is supported by AMX (Device Discovery).

http://www.amx.com/

This projector supports all commands of PJLink Class1 (Version 1.00).

http://pjlink.jbmia.or.jp/english/

For more detailed information about the various types of external devices which can be connected to the LAN / RJ45 port and remote control the projector, as well as the supported commands for these external devices, please contact the Support-Service directly.

LAN RJ45

1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (laptop).

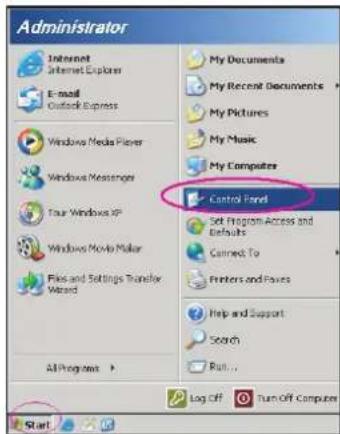

1. On the PC (Laptop), select Start > Control Panel > Network Connections.

USING THE PROJECTOR

1. Right-click on the Local Area Connection, and select Property.

1. In the Properties window, select the General tab, and select Internet Protocol (TCP / IP).

1. Click "Properties".

1. Type in the IP address and Subnet mask, then press "OK".

USING THE PROJECTOR

1. Press the "Menu" button on the projector.
2. Open on projector Network > LAN.
3. Enter the following connection parameters:

- DHCP: Off

• IP Address: 192.168.0.100
• Subnet Mask: 255.255.255.0
• Gateway: 192.168.0.254

• DNS: 192.168.0.1

• Press "Enter" to confirm settings.

• Open a web browser, for example Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher installed.
• In the Address bar, input the projector's IP address: 192.168.0.100.

1. Press "Enter".

The projector is setup for remote management. The LAN / RJ45 function displays as follows:

Information page

Main page

USING THE PROJECTOR

Tool page

Contact IT helpdesk

RS232 by Telnet Function

There is alternative RS232 command control way, in projector so called "RS232 by TELNET" for LAN / RJ45 interface.

Quick Start-Guide for "RS232 by Telnet"

• Check and get the IP address on OSD of the projector.
• Make sure that the PC / laptop can access the web-page of the projector.

• Make sure that "Windows Firewall" setting is set disabled in case of "TELNET" function filtering out by PC / laptop.

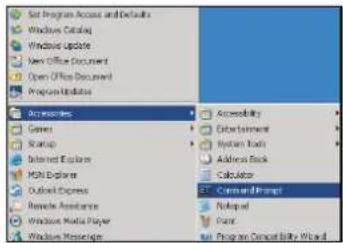

1. Select Start > All Programs.> Accessories > Command Prompt.

1. Input the command format as follows:

- telnet ttt.xxx.yyy.zzz 23 ("Enter" key pressed)

- (ttt.xxx.yyy.zzz: IP-Address of the projector)

1. If Telnet-Connection ready, and user can have RS232 command input, then "Enter" key pressed, the RS232 command will be workable.

Specification for "RS232 by TELNET":

1. Telnet: TCP.
2. Telnet port: 23 (for more detail, kindly please get contact with the service agent or team).
3. Telnet utility: Windows "TELNET.exe" (console mode).
4. Disconnection for RS232-by-Telnet control normally: Close

5. Windows Telnet utility directly after TELNET connection ready.

6. Limitation 1 for Telnet-Control: there is less than 50 bytes for successive network payload for Telnet-Control application.

7. Limitation 2 for Telnet-Control: there is less than 26 bytes for one complete RS232 command for Telnet-Control.
8. Limitation 3 for Telnet-Control: Minimum delay for next RS232 command must be more than 200 (ms).

Info menu

Info menu

View the projector information as listed below:

• Regulatory
- Serial Number
- Source
- Resolution
- Refresh Rate
- Display Mode
- Power Mode (Standby)
- Lamp Hours
• Network Status (Type 3 only)
- IP Address
- Projector ID
- Filter Usage Hours
- Brightness Mode
- FW Version

MAINTENANCE

Replacing the lamp

The projector automatically detects the lamp life. When the lamp life is nearing the end of use, a warning message will appear on the screen.

When you see this message, please contact your local reseller or service center to change the lamp as soon as possible. Make sure the projector has been cooled down for at least 30 minutes before changing the lamp.

Warning: If ceiling mounted, please use caution when opening the lamp access panel. It is recommended to wear safety glasses if changing the bulb when ceiling mounted. Caution must be used to prevent any loose parts from falling out of projector.

Warning: Lamp compartment is hot! Allow it to cool down before changing lamp!

Warning: To reduce the risk of personal injury, do not drop the lamp module or touch the lamp bulb. The bulb may shatter and cause injury if it is dropped.

MAINTENANCE

Replacing the lamp (continued)

Procedure:

1. Switch off the power to the projector by pressing the "" button on the remote control or the projector keypad.

2. Allow the projector to cool down for at least 30 minutes.

3. Disconnect the power cord.

4. Unscrew the screw on the cover. 1

5. Remove the cover. 2

6. Unscrew the screw on the lamp module. 3

7. Lift up the lamp handle. 4

8. Remove the lamp cord. 5

9. Remove the lamp module carefully. 6

10. To replace the lamp module, reverse the previous steps.

11. Turn on the projector and reset the lamp timer.

12. Lamp Reset: (i) Press "Menu" → (ii) Select "Setup" → (iii) Select "Lamp Settings" → (iv) Select "Lamp Reset" → (v) Select "Yes".

Note:

• The screw on the lamp cover and the lamp cannot be removed.

• The projector cannot be turned on if the lamp cover has not been placed back on the projector.

• Do not touch the glass area of the lamp. Hand oil can cause the lamp shatter. Use a dry cloth to clean the lamp module if it was accidentally touched.

MAINTENANCE

Installing and cleaning the dust filter

Installing the dust filter

Illustration of a projector with internal components and a blue arrow indicating the blade (no text or symbols present)

Note: Dust filters are only required/supplied in the selected regions with excessive dust.

Cleaning the dust filter

We recommend you to clean the dust filter every three months. Clean it more often if the projector is used in a dusty environment.

Procedure:

1. Switch off the power to the projector by pressing the " " button on the remote control or the projector keypad.
2. Disconnect the power cord.
3. Remove the dust filter carefully. 1
4. Clean or replace the dust filter. 2
5. To install the dust filter, reverse the previous steps.

ADDITIONAL INFORMATION

Compatible resolutions

Digital compatibility

B0/Established Timing	B0/Standard Timing	B0/Detail Timing B1/Video	Mode B1/Detail Timing
720x400 @ 70Hz SVGA: Native timing: 640x480p @ 60Hz 720x480p @ 60Hz
640x480 @ 60Hz 800x600 @ 120Hz XGA: 1024x768 @ 60Hz 720x480p @ 60Hz 1280x720p @ 60Hz
640x480 @ 67Hz 1024x768 @ 120Hz WXGA: 1280x800 @ 60Hz; 1280x720 @ 60Hz			1280x720p @ 60Hz 1366x768 @ 60Hz
640x480 @ 72Hz 1280x800 @ 60Hz 1080P: 1920x1080 @ 60Hz 1920x1080i @ 60Hz 1920x1080i @ 50Hz
640x480 @ 75Hz 1280x1024 @ 60Hz WUXGA: 1920x1200 @ 60Hz			720(1440)x480i @ 60Hz 1920x1080p @ 60Hz
800x600 @ 56Hz 1680x1050 @ 60Hz 1920x1080p @ 60Hz
800x600 @ 60Hz 1280x720 @ 60Hz		720x576p @ 50Hz
800x600 @ 72Hz 1280x720 @ 120Hz 1280x720p @ 50Hz
800x600 @ 75Hz 1600x1200 @ 60Hz 1920x1080i @ 50Hz
832x624 @ 75Hz XGA/WXGA:		720(1440)x576i @ 50Hz
1024x768 @ 60Hz	1440x900 @ 60Hz		1920x1080p @ 50Hz
1024x768 @ 70Hz	1024x768 @ 120Hz 1920x1080p @ 24Hz
1024x768 @ 75Hz	1280x800 @ 60Hz		1920x1080p @ 30Hz
1280x1024 @ 75Hz	1280x1024 @ 60Hz
1152x870 @ 75Hz	1680x1050 @ 60Hz
	1280x720 @ 60Hz
	1280x720 @ 120Hz
	1600x1200 @ 60Hz
	1080P and WUXGA:
	1280x720 @ 60Hz
	1280x800 @ 60Hz
	1280x1024 @ 60Hz
	1400x1050 @ 60Hz
	1600x1200 @ 60Hz
	1440x900 @ 60Hz
	1280x720 @ 120Hz
	1024x768 @ 120Hz

Analog compatibility

B0/Established Timing	B0/Standard Timing	B0/Detail Timing	B1/Video Mode	B1/Detail Timing
720x400 @ 70Hz	SVGA:	Native timing:		1366x768 @ 60Hz
640x480 @ 60Hz	800x600 @ 120Hz	XGA: 1024x768 @ 60Hz
640x480 @ 67Hz	1024x768 @ 120Hz	WXGA: 1280x800 @ 60Hz; 1280x720 @ 60Hz
640x480 @ 72Hz	1280x800 @ 60Hz	1080P: 1920x1080 @ 60Hz
640x480 @ 75Hz	1280x1024 @ 60Hz	WUXGA: 1920x1200 @ 60Hz
800x600 @ 56Hz	1680x1050 @ 60Hz
800x600 @ 60Hz	1280x720 @ 60Hz
800x600 @ 72Hz	1280x720 @ 120Hz
800x600 @ 75Hz	1600x1200 @ 60Hz

ADDITIONAL INFORMATION

B0/Established Timing	B0/Standard Timing	B0/Detail Timing B1/Video	Mode B1/Detail Timing
832x624 @ 75Hz XGA/WXGA:
1024x768 @ 60Hz 1440x900 @ 60Hz
1024x768 @ 70Hz 1024x768 @ 120Hz
1024x768 @ 75Hz 1280x800 @ 60Hz
1280x1024 @ 75Hz 1280x1024 @ 60Hz
1152x870 @ 75Hz 1680x1050 @ 60Hz
	1280x720 @ 60Hz
	1280x720 @ 120Hz
	1600x1200 @ 60Hz
	1080P and WUXGA:
	1280x720 @ 60Hz
	1280x800 @ 60Hz
	1280x1024 @ 60Hz
	1400x1050 @ 60Hz
	1600x1200 @ 60Hz
	1440x900 @ 60Hz
	1280x720 @ 120Hz
	1024x768 @ 120Hz

True 3D video compatibility

Input resolution	HDMI 1.4a 3D Input	Input timing
		1280x720P @ 50Hz Top - and - Bottom
		1280x720P @ 60Hz Top - and - Bottom
		1280x720P @ 50Hz Frame packing
		1280x720P @ 60Hz Frame packing
		1920x1080i @ 50 Hz Side- by-Side (Half)
		1920x1080i @ 60 Hz Side- by-Side (Half)
		1920x1080P @ 24 Hz Top - and- Bottom
		1920x1080P @ 24 Hz Frame packing
	HDMI 1.3	1920x1080i @ 50Hz	Side-by-Side(Half) SBS mode is on
		1920x1080i @ 60Hz
		1280x720P @ 50Hz
		1280x720P @ 60Hz
		800x600 @ 60Hz
		1024x768 @ 60Hz
		1280x800 @ 60Hz
		1920x1080i @ 50Hz	Top-and-Bottom TAB mode is on
		1920x1080i @ 60Hz
		1280x720P @ 50Hz
		1280x720P @ 60Hz
		800x600 @ 60Hz
		1024x768 @ 60hz
		1280x800 @ 60Hz
		480i HQFS 3D format is Frame sequential

Note:

• If 3D input is 1080p@24hz, the DMD should replay with integral multiple with 3D mode.
• Support NVIDIA 3DTV Play if there is no patent fee from Optoma. 1080i@25hz and 720p@50hz will run in 100 Hz; other 3D timing will run in 120hz.
• 1080p@24hz will run in 144Hz.

ADDITIONAL INFORMATION

Image size and projection distance

WUXGA

Desired Distance (m)	Screen size Top Screen size Top
	(Min zoom) (Max zoom)
	Diagonal (inch)	W (cm) x H (cm)	From base to top of image (cm)	Diagonal (inch)	W (cm) x H (cm)	From base to top of image (cm)
1.2 34.39 74 x 46 51 38 82 x 51 56
2 57 123 x 77 85 63 136 x 85 94
2.5 72 154 x 96 106		79 170 x 106	117
3	86	185 x 116	127	95	204 x 128	140
3.5	100	216 x 135	149	111	238 x 149	164
4	115	247 x 154	170	126	272 x 170	187
5	143	309 x 193	212	158	340 x 213	234
6	172	370 x 231	255	189	408 x 255	281
7	201	432 x 270	297	221	476 x 298	327
8	229	494 x 309	340	253	544 x 340	374
9	258	556 x 347	382	284	612 x 383	421
10	287	617 x 386	424	315.83	680 x 425	468

Note: Zoom ratio is 1.10x.

Desired image size		Distance (m)		Top (cm)
Diagonal (inch)	W (cm) x H (cm)	Max zoom	Min zoom	From base to top of image
38	82 x 51	1.2	1.3	56
50	108 x 67	1.6	1.7	74
60	129 x 81	1.9	2.1	89
70	151 x 94	2.2	2.4	104
80	172 x 108	2.5	2.8	118
90	194 x 121	2.8	3.1	133
100	215 x 135	3.2	3.5	148
120	258 x 162	3.8	4.2	178
150	323 x 202	4.7	5.2	222
200	431 x 269	6.3	7.0	296
250	538 x 337	7.9	8.7	370
300	646 x 404	9.5	10.5	444
315.8	680 x 425	10.0	11.0	468

Note: Zoom ratio is 1.10x.

ADDITIONAL INFORMATION

1080p

Desired Distance (m)	Screen size Top Screen size Top
	(Min zoom) (Max zoom)
	Diagonal (inch)	W (cm) x H (cm)	From base to top of image (cm)	Diagonal (inch)	W (cm) x H (cm)	From base to top of image (cm)
1.2 33.46 74 x 42 48 37 82 x 46	53
2 56 123 x 69 81 61 136 x 77 89
2.5 70 154 x 87 101	77 170 x 96	111
3	84	185 x 104	121	92	204 x 115	133
3.5	98	216 x 122	141	108	238 x 134	155
4	112	247 x 139	161	123	272 x 153	178
5	139	309 x 174	201	154	340 x 191	222
6	167	370 x 208	242	184	408 x 230	266
7	195	432 x 243	282	215	476 x 268	311
8	223	494 x 278	322	246	544 x 306	355
9	251	556 x 313	363	277	612 x 344	399
10	279	617 x 347	403	307.29	680 x 383	444

Note: Zoom ratio is 1.10x.

Desired image size		Distance (m)		Top (cm)
Diagonal (inch)	W (cm) x H (cm)	Max zoom	Min zoom	From base to top of image
37	82 x 46	1.2	1.3	53
40	89 x 50	1.3	1.4	58
50	111 x 62	1.6	1.8	72
60	133 x 75	2.0	2.2	87
70	155 x 87	2.3	2.5	101
80	177 x 100	2.6	2.9	116
90	199 x 112	2.9	3.2	130
100	221 x 125	3.3	3.6	144
120	266 x 149	3.9	4.3	173
150	332 x 187	4.9	5.4	217
200	443 x 249	6.5	7.2	289
250	553 x 311	8.1	9.0	361
300	664 x 374	9.8	10.8	433
307.3	680 x 383	10.0	11.0	444

Note: Zoom ratio is 1.10x.

ADDITIONAL INFORMATION

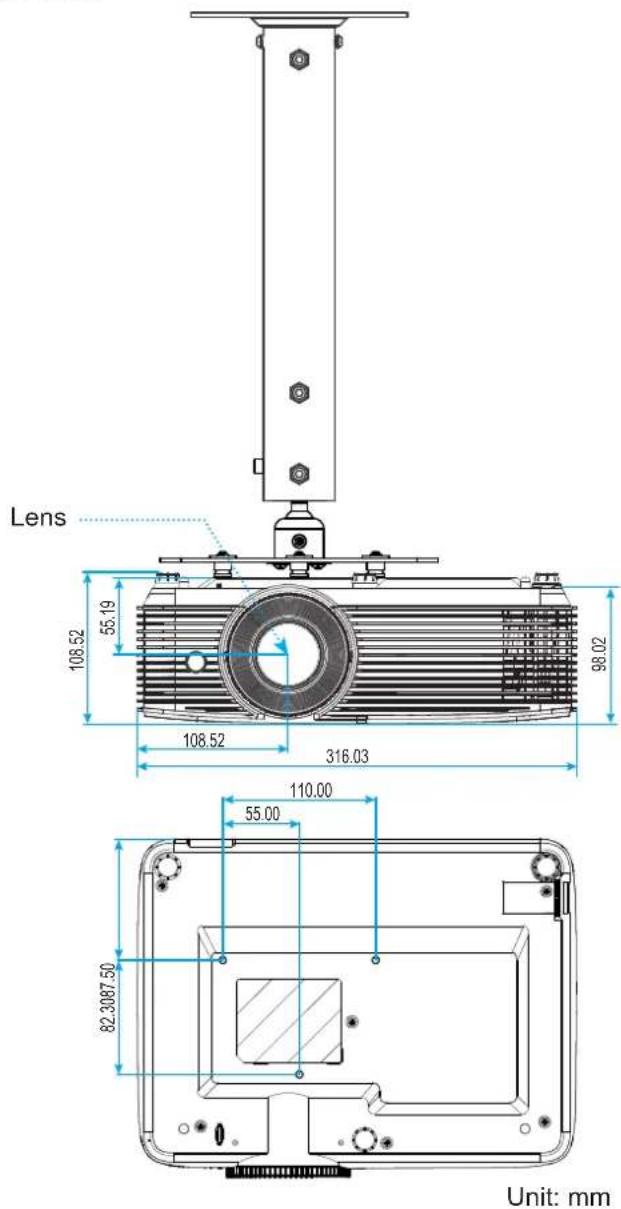

Projector dimensions and ceiling mount installation

1. To prevent damage to your projector, please use the Optoma ceiling mount.
2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications:

- Screw type: M4*3

• Minimum screw length: 10mm

Note: Please note that damage resulting from incorrect installation will void the warranty.

Warning:

• If you buy a ceiling mount from another company, please be sure to use the correct screw size. Screw size will vary depending on the thickness of the mounting plate.

• Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.
• Avoid installing the projector near a heat source.

ADDITIONAL INFORMATION

IR remote control 1 codes

Key legend Description Key code
Power Press to tu in / off the projector. 81
Freeze Press to f e the projector image. 8B
Aspect Press to c ge aspect ratio of a displayed image. 98
AV mute Press to [2DZS] off/ on projector built-in speaker 8A
Keystone+/up	• Press to adjust image distortion caused by tilting the projector.• Press to navigate up.		C6
Mute Press to mc nterily turn off / on the audio. 92
Left/Vol- Vol-	• Press to adjust to decrease the volume.• Press to navigate left.		C8
Enter	Confirm your item selection.		-C5 (for OSD)-CA (for emulation of USB mouse via USB)
Right/Vol+ Vol-	• Press to adjust to increase the volume.• Press to navigate right.		C9
Menu	Press to display or exit the on-screen display menus for projector.		88
Down/ Keystone-	• Press to adjust image distortion caused by tilting the projector.• Press to navigate down.		C7
3D [30]	Press to manually select a 3D mode that matches your 3D content.		93

ADDITIONAL INFORMATION

Key legend Description Key code
HDMI Press to ch	HDMI source. 86
VGA Press to ch	VGA source. 8E
Video Press to ch	video source. CE
Source Press to s	an input signal. C3
Brightness mode	[κx3z]	Press to automatically adjust the picture brightness to give an optimum contrast performance.	87
ReSync Automati		synchronize the projector to the input source. C4

ADDITIONAL INFORMATION

IR remote control 2 codes

Key		Key code	Printing-key definition	Description
Power 81 Power on/off Press to turn on / off the projector.
Switch 3E Switch Press to switch the USB mouse on / off.
Display blank / audio mute		8A		Press to hide / unhide the screen picture and turn off / on audio.
Freeze 8B Freeze Press to freeze the projector image.
Mute		92		Press to momentarily turn off / on the audio.
Mouse left click	L	CB	L	Use as mouse left click.
Mouse right click	R	CC	R	Use as mouse right click.
Four directional select keys		C6	Up arrow	Use ▲ ▼ ▶ to select items or make adjustments to your selection.
		C8	Left arrow
		C9	Right arrow
		C7 Down arrow
Enter		C5	Enter	Confirm your item selection.
		CA	Enter
Page - C2 Page- Press to page down.

ADDITIONAL INFORMATION

Key		Key code	Printing-key definition	Description
Mode 95 Mode Press to switch Display mode on or off.
Page + C1 Page+ Press to page up.
Keystone		85 Keystone+		Press to adjust image distortion caused by tilting the projector.
		84 Keystone-
Volume		8C Volume +		Press to adjust to increase / decrease the volume.
		8F Volume -
Aspect ratio / 1 98	[26AW]		[016H]	• Press to change aspect ratio of a displayed image.• Use as numeric keypad number "1".
Menu / 2 88	Menu/2			• Press to display or exit the on-screen display menus for projector.• Use as numeric keypad number "2".
3D / 3		93	3D/3	• Press to manually select a 3D mode that matches your 3D content.• Use as numeric keypad number "3".
HDMI / 4		86	HDMI/4	• Press to choose HDMI source.• Use as numeric keypad number "4".
VGA / 5		D0 VGA/5		• Press to choose VGA source.• Use as numeric keypad number "5".
Video / 6		D1	Video/6	• Press to choose composite video source.• Use as numeric keypad number "6".
User1 / 7; User2 / 8;User3 / 9		D2	User 1/7	• User defined keys. Please see page 46 to setup.• Use as numeric keypad numbers "7", "8", and "9" accordingly.
		D3	User 2/8
		D4	User 3/9
Source		C3	Source	Press to select an input signal.
Brightness mode / 0		96	[DTXC]	• Press to automatically adjust the picture brightness to give an optimum contrast performance.• Use as numeric keypad number "0".
Re-sync		C4 Re-Sync		Press to automatically synchronize the projector to the input source.

ADDITIONAL INFORMATION

IR remote control 3 codes

Key		Custom code		Data code	Printing-key definition	Description
		Byte 1	Byte 2 Byte 3
Power on		32	CD	02	ON	Press to turn on the projector.
Power off		32	CD	2E	OFF	Press to turn off the projector.
User 1 32 CD 36 User1						User defined keys. Please see page 46 to setup.
User 2 32 CD 65 User2
User 3 32 CD 66 User3
Brightness		32	CD	41	Brightness	Adjust the brightness of the image.
Contrast		32 CD	42	Contrast		Control the degree of difference between the lightest and darkest parts of the picture.
Display mode		32 CD	05	Mode		Select a display mode for optimized settings for different applications. Please see page 35.
Keystone		32 CD	07	Keystone		Adjust image distortion caused by tilting the projector.
Aspect ratio		32 CD	64	Aspect ratio		Press to change aspect ratio of a displayed image.
3D		32 CD	89	3D		Manually select a 3D mode that matches your 3D content.

ADDITIONAL INFORMATION

Key		Custom code		Data code	Printing-key definition	Description
		Byte 1	Byte 2 Byte 3
Volume + 32 CD 09 Volume + Adjust to increase volume.
Four direction keys		32 CD	11 ▲			Use ▲, ◀, ▶, or ▼ to select items or make adjustments to your selection.
		32 CD	10 ◀
		32 CD	12 ▶
		32 CD	14 ▼
Source 32 CD 18 SourcePress "Source" to select an input signal.
Enter key 32 CD 0F Confirm your item selection.					←
Re-sync 32 CD 04 Re-s [8253]						Automatically synchronizes the projector to the input source.
Volume -		32	CD	0C	Volume -	Adjust to decrease volume.
Menu		32	CD	0E	Menu	Display or exit the on-screen display menus for projector.
HDMI 1		32 CD	16 HDMI1			Press "HDMI1" to choose source from HDMI 1 / MHL connector.
HDMI 2		32 CD	30 HDMI2			Press "HDMI2" to choose source from HDMI 2 connector.
VGA 1		32	CD	1B	VGA1	No function
VGA 2		32	CD	1E	VGA2	No function
Video		32	CD	1C	Video	No function
YPbPr		32	CD	17	YPbPr	No function

ADDITIONAL INFORMATION

Troubleshooting

If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center.

Image problems

?

No image appears on-screen

• Ensure all the cables and power connections are correctly and securely connected as described in the "Installation" section.
• Ensure the pins of connectors are not crooked or broken.
• Check if the projection lamp has been securely installed. Please refer to the "Replacing the Lamp" section.
• Ensure that the "Mute" feature is not turned on.

?

Image is out of focus

- Adjust the Focus Ring on the projector lens.

• Make sure the projection screen is between the required distance from the projector. (Please refer to pages 60-61).

?

The image is stretched when displaying 16:9 DVD title

- When you play anamorphic DVD or 16:9 DVD, the projector will show the best image in 16: 9 format on projector side.

• If you play the LBX format DVD title, please change the format as LBX in projector OSD.
• If you play 4:3 format DVD title, please change the format as 4:3 in projector OSD.
• Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player.

?

Image is too small or too large

• Adjust the Zoom Lever on the top of the projector.
• Move the projector closer to or further from the screen.

- Press "Menu" on the projector panel, go to "Display-->Aspect Ratio". Try the different settings.

?

Image has slanted sides:

• If possible, reposition the projector so that it is centered on the screen and below the bottom of the screen.
- Use "Display-->Keystone" from the OSD to make an adjustment.

?

Image is reversed

- Select "Setup-->Projection" from the OSD and adjust the projection direction.

?

Blurry double image

- Press "3D" button and switch to "Off" to avoid normal 2D image is blurry double image.

ADDITIONAL INFORMATION

Two images, side-by-side format

- Press "3D" button and switch to "SBS" for input signal is HDMI 1.3 2D 1080i side-by-side.

? Image does not display in 3D

- Check if the battery of 3D glasses is drained.

- Check if the 3D glasses is turned on.

- When the input signal is HDMI 1.3 2D (1080i side-by-side half), press "3D" button and switch to "SBS".

Other problems

The projector stops responding to all controls

• If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before reconnecting power.

Lamp burns out or makes a popping sound

- When the lamp reaches its end of life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in the "Replacing the Lamp" section on pages 55-56.

Remote control problems

If the remote control does not work

- Check the operating angle of the remote control is pointed within ± 15^ to the IR receiver on the projector.

• Make sure there are not any obstructions between the remote control and the projector. Move to within 6 m (20 ft) of the projector.

- Make sure batteries are inserted correctly.

- Replace batteries if they are exhausted.

Warning indicators

When the warning indicators (see below) light up or flash, the projector will automatically shutdown:

• "LAMP" LED indicator is lit red and if "On/Standby" indicator flashes red.

- "TEMP" LED indicator is lit red and if "On/Standby" indicator flashes red. This indicates the projector has overheated. Under normal conditions, the project can be switched back on.

• "TEMP" LED indicator flashes red and if "On/Standby" indicator flashes red.

Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator light up or flash, please contact your nearest service center for assistance.

ADDITIONAL INFORMATION

LED lightning messages

Message	Power LED Power LED		Temp-LED	Lamp-LED
	(Red) (Green or Blue) (Red) (Red)
Standby state (Input power cord)	Steady light
Power on (Warming)		Flashing(0.5 sec off /0.5 sec on)
Power on & Lamp lighting		Steady light
Power off (Cooling)		Flashing(0.5 sec off /0.5 sec light). Back to red steady light when cooling fan turns off.
Quick Resume (100 secs)		Flashing(0.25 sec off /0.25 sec on)
Error (Lamp fail) Flashing Steady light
Error (Fan failure) Flashing Flashing
Error (Over Temp) Flashing Steady light

- Power off:

- Lamp warning:

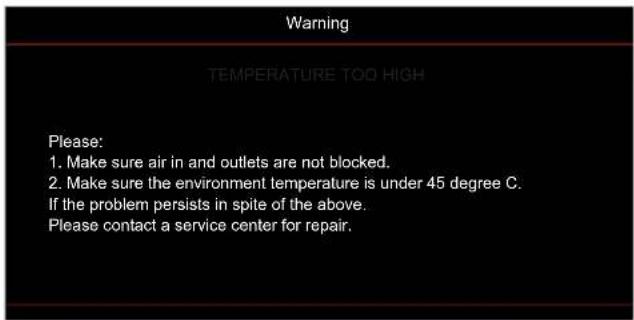

• Temperature warning:

ADDITIONAL INFORMATION

- Fan failed:

- Out of display range:

- Power down warning:

• Security timer alarm:

ADDITIONAL INFORMATION

Specifications

Optical Description

Native resolution 1080p/WUXGA

Lens Manual zoom and manual focus

Image size (diagonal) 1080p/WUXGA: 28.66~300"

Projection distance 1m ~ 10m (focus range) (overdrive to 12m)

Electrical Description

Color reproduction 1073.4 Million color
Scan rate	- Horizontal scan rate: 15.375~91.146 KHz- Vertical scan rate: 50~85 Hz (120Hz for 3D feature projector)
Built-in speaker Yes, 10W
Power requirement 100 - 240V AC 50/60Hz
Input current 3.3 A

Mechanical Description

Installation orientation Front, Rear, Ceiling - Top, Rear - Top
Dimensions	- 316 mm (W) x 243.5 mm (D) x 98 mm (H) (without feet)- 316 mm (W) x 243.5 mm (D) x 108.5 mm (H) (with feet)
Weight 2.9± 0.5Kg
Environmental conditions	Operating in 5 ~ 40°C , 10% to 85% humidity (non-condensing)

Note: All specifications are subject to change without notice.

ADDITIONAL INFORMATION

Optoma global offices

For service or support, please contact your local office.

USA

3178 Laurelview Ct. 888-289-6786 (

Fremont, CA 94538, USA 510-897-8601

www.optomausa.com [e-mail]

Canada

3178 Laurelview Ct. 888-289-6786 (

Fremont, CA 94538, USA 510-897-8601

www.optomausa.com [e-mail]

Latin America

3178 Laurelview Ct. 888-289-6786 (

Fremont, CA 94538, USA 510-897-8601

www.optomausa.com [e-mail]

Europe

Unit 1, Network 41, Bourne End Mills

Hemel Hempstead, Herts,

HP1 2UJ, United Kingdom [phone]

www.optoma.eu [phone]

Service Tel: [phone] [e-mail]

Benelux BV

Randstad 22-123 [phone]

1316 BW Almere [phone]

The Netherlands

www.optoma.nl

France

[e-mail]

www.os-worldwide.com

Taiwan

12F., No.213, Sec. 3, Beixin Rd.,

Xindian Dist., New Taipei City 231,

Taiwan, R.O.C.

www.optoma.com.tw

[phone]

[phone]

[e-mail]

asia.optoma.com

Hong Kong

Unit A, 27/F Dragon Centre,

79 Wing Hong Street,

Cheung Sha Wan,

Kowloon, Hong Kong

[phone]

[phone]

www.optoma.com.hk

China

5F, No. 1205, Kaixuan Rd.,

Changning District

Shanghai, 200052, China

[phone]

[phone]

www.optoma.com.cn
