Product Type	5x2 HDMI Matrix Switcher Wall Plate
Model	WP-5VH2
Brand	Kramer
Dimensions (H x W x D)	1.75 x 7.0 x 4.2 in (4.4 x 17.8 x 10.7 cm) approx.
Weight	0.9 lbs (0.4 kg) approx.
Power Supply	5V DC, 2A (included)
Input Ports	5 x HDMI (Type A female)
Output Ports	2 x HDMI (Type A female)
Video Resolution	Up to 4K@60Hz (4:4:4)
HDCP Support	HDCP 2.2
Control Interface	Front panel buttons, IR remote, RS-232, Ethernet
Switching Type	Matrix (any input to any output)
Audio Support	LPCM 7.1, Dolby TrueHD, DTS-HD
Operating Temperature	0°C to 40°C (32°F to 104°F)
Mounting	Wall plate (standard US 1-gang)
Included Accessories	Power adapter, IR remote, mounting screws
Cleaning Instructions	Wipe with a dry, soft cloth. Do not use liquid cleaners.
Safety	CE, FCC, RoHS compliant
Repairability	No user-serviceable parts. Contact Kramer support for service.

Frequently Asked Questions - WP-5VH2 Kramer

What is the maximum video resolution supported by the WP-5VH2?

The WP-5VH2 supports video resolutions up to 4K@60Hz (4:4:4) for the highest quality signal.

Does the WP-5VH2 support HDCP?

Yes, it supports HDCP 2.2 ensuring compatibility with protected content.

How many inputs and outputs does the WP-5VH2 have?

It has 5 HDMI inputs and 2 HDMI outputs, allowing a 5x2 matrix configuration.

Can I control the WP-5VH2 remotely?

Yes, it can be controlled via IR remote, RS-232, or Ethernet for flexible integration.

What audio formats are supported?

It supports LPCM 7.1, Dolby TrueHD, and DTS-HD high-definition audio.

How do I clean the WP-5VH2?

Use a dry, soft cloth to wipe the surface. Avoid liquid cleaners or abrasive materials.

Is the WP-5VH2 wall-mountable?

Yes, it fits a standard US 1-gang wall box for flush mounting.

What power supply does the device require?

It requires a 5V DC, 2A power adapter, which is included.

Can I use the WP-5VH2 for 4K HDR content?

Yes, it supports 4K@60Hz with 4:4:4 chroma subsampling, suitable for HDR.

How do I switch inputs on the device?

You can switch inputs using the front panel buttons, IR remote, RS-232 commands, or via the web interface over Ethernet.

USER MANUAL WP-5VH2 Kramer

Step 1: Check what's in the box

WP-5VH2 Wall Plate

Power adapter (12V DC)

1 Quick start guide

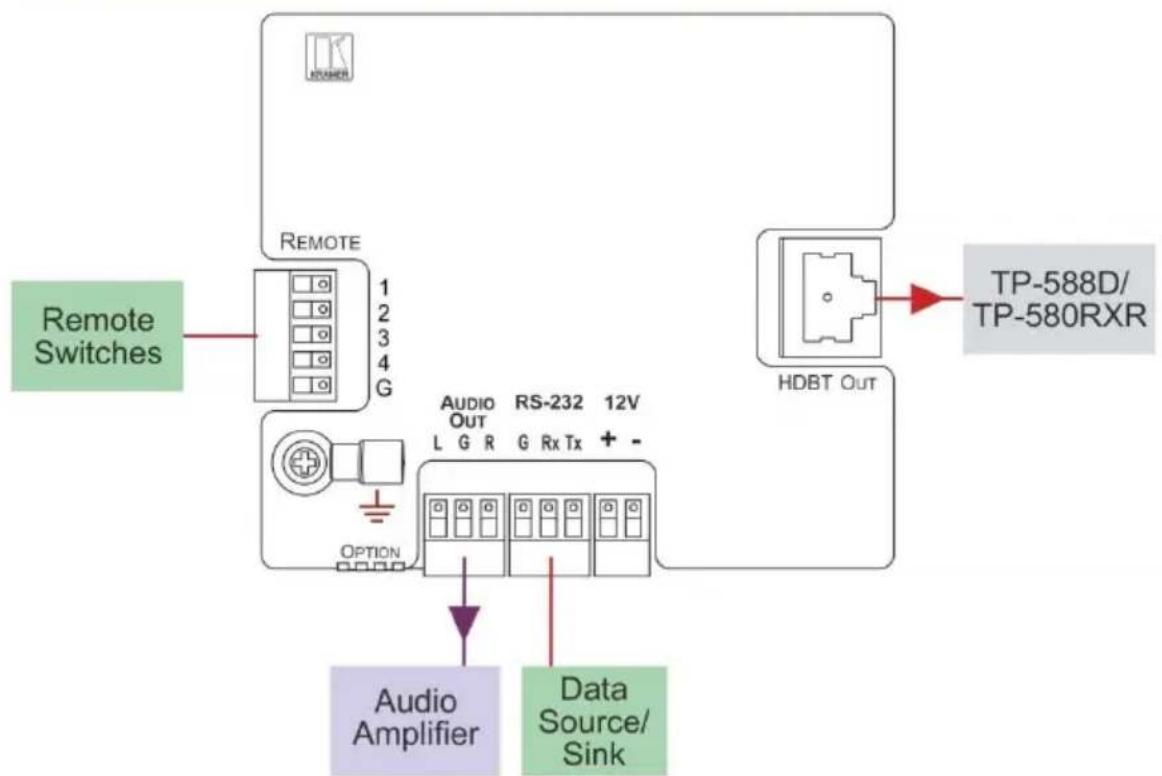

Step 2: Connect the outputs

Always switch off the power to all devices before connecting them to your WP-5VH2.

For optimum performance we recommend the Kramer BC-HDKat6a (CAT 6 23 AWG) and BC-HDKat7a23 (CAT 7 23 AWG) cable. These specially built cables significantly outperform regular CAT 5/ CAT 6/CAT 7a cables.

Step 3: Set the DIP-switches

#	Feature	Function	Switch State
1	Video Input Selection Mode	Selects manual or auto input selection	On—Manual switchingOff—Auto switching
2	Video Auto Selection Mode	Selects priority or last connected mode	On—Priority mode, (HDMI, VGA)Off—Last connected
3	Audio Selection Mode	Selects manual or auto audio switching mode	On—Manual switchingOff—Auto switching
4	Audio Input Priority	Sets the audio signal selection priority	On	DIP-switch 3 On: Analog audio input
				DIP-switch 3 Off: HDMI>Analog priority
			Off	DIP-switch 3 On: HDMI audio input
				DIP-switch 3 Off: Analog>HDMI priority

DIP-switch 2 Status	DIP-switch 1 Auto Switching (Off)	DIP-switch 1 Manual Switching (On)
Off—Last connected	When two sources are connected the last one connected gets priority	Manual video input selection
On—Priority	When two sources are connected the active source is selected according to the predefined priority	Manual video input selection

Step 4: Connect the power

Provide power to the WP-5VH2 over PoE using the PSE-1 or connect the power adapter to the WP-5VH2 and plug the adapter into the mains electricity.

Step 5: Install the WP-5VH2

Mount the device in a suitable wall box.

We recommend that you open two holes in the top and two holes in the bottom of the wall box to assist in cooling the wall plate, (apart from any others opened to allow cable access).

Step 6: Connect the inputs

Contents

1 Introduction 1

2 Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 2

2.3 Shielded Twisted Pair/Unshielded Twisted Pair 3

2.4 Recycling Kramer Products 3

3 Overview 4

3.1 About HDBaseT™ Technology 5

4 Defining the WP-5VH2 Wall Plate 6

5 Connecting the WP-5VH2 9

5.1 Connecting the Remote Control Switches 10

6 Principles of Operation 12

6.1 Input Selection 12

6.2 Signal Loss and Unplugged Cable Timeouts 12

6.3 Audio Signal Control 13

6.4 VGA Phase Shift 13

7 Operating the WP-5VH2 14

7.1 Selecting an Input Manually 14

7.2 Locking the EDID 14

7.3 Resetting the WP-5VH2 14

7.4 Analog Audio Output Volume Control 14

8 Configuring the WP-5VH2 16

8.1 Setting the Configuration DIP-switch 16

8.2 Video Switching Timeouts 17

9 Operating the WP-5VH2 Remotely Using the Embedded Web Pages 18

9.1 Browsing the WP-5VH2 Web Pages 18

9.2 The Switching Page 22

9.3 The Device Settings Page 22

9.4 The Video and Audio Settings Page 25

9.5 The Authentication Page 26

9.6 The EDID Page 27

9.7 The About Us Page 29

10 Wiring the Twisted Pair RJ-45 Connectors 30

11 Technical Specifications 31

11.1 Default IP Parameters 32

11.2 Default Logon Credentials 32

11.3 Supported Resolutions 32

12 Default EDID 34

12.1 HDMI 34

12.2 PC-UXGA 36

13 Protocol 3000 37

13.1 Kramer Protocol 3000 Syntax 37

13.2 Kramer Protocol 3000 Commands 40

Figures

Figure 1: WP-5VH2 Wall Plate Front Panel 6

Figure 2: WP-5VH2 Wall Plate Rear Panel 8

Figure 3: Connecting the WP-5VH2 Wall Plate 9

Figure 4: Remote Switches Terminal Block 10

Figure 5: The Configuration DIP-switch 16

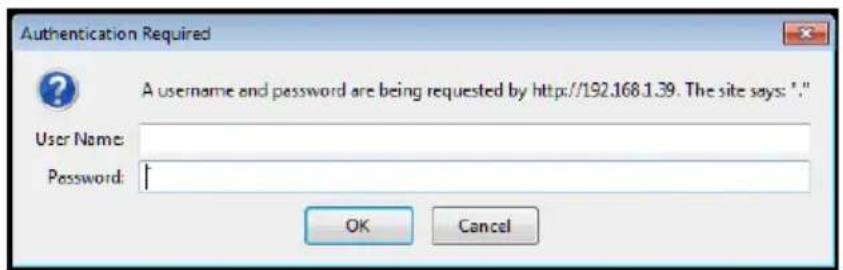

Figure 6: Entering Logon Credentials 18

Figure 7: The Default Page 19

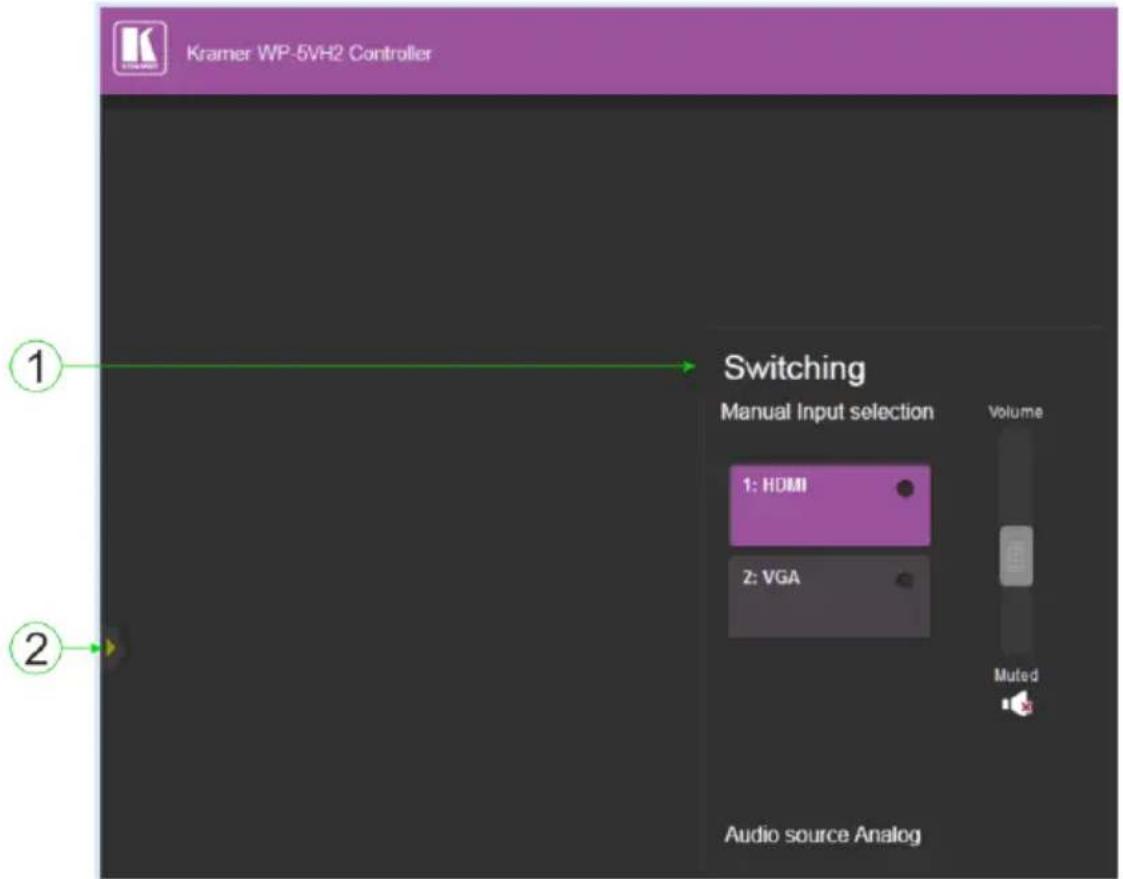

Figure 8: The Main Switching Page 20

Figure 9: The Switching Page 22

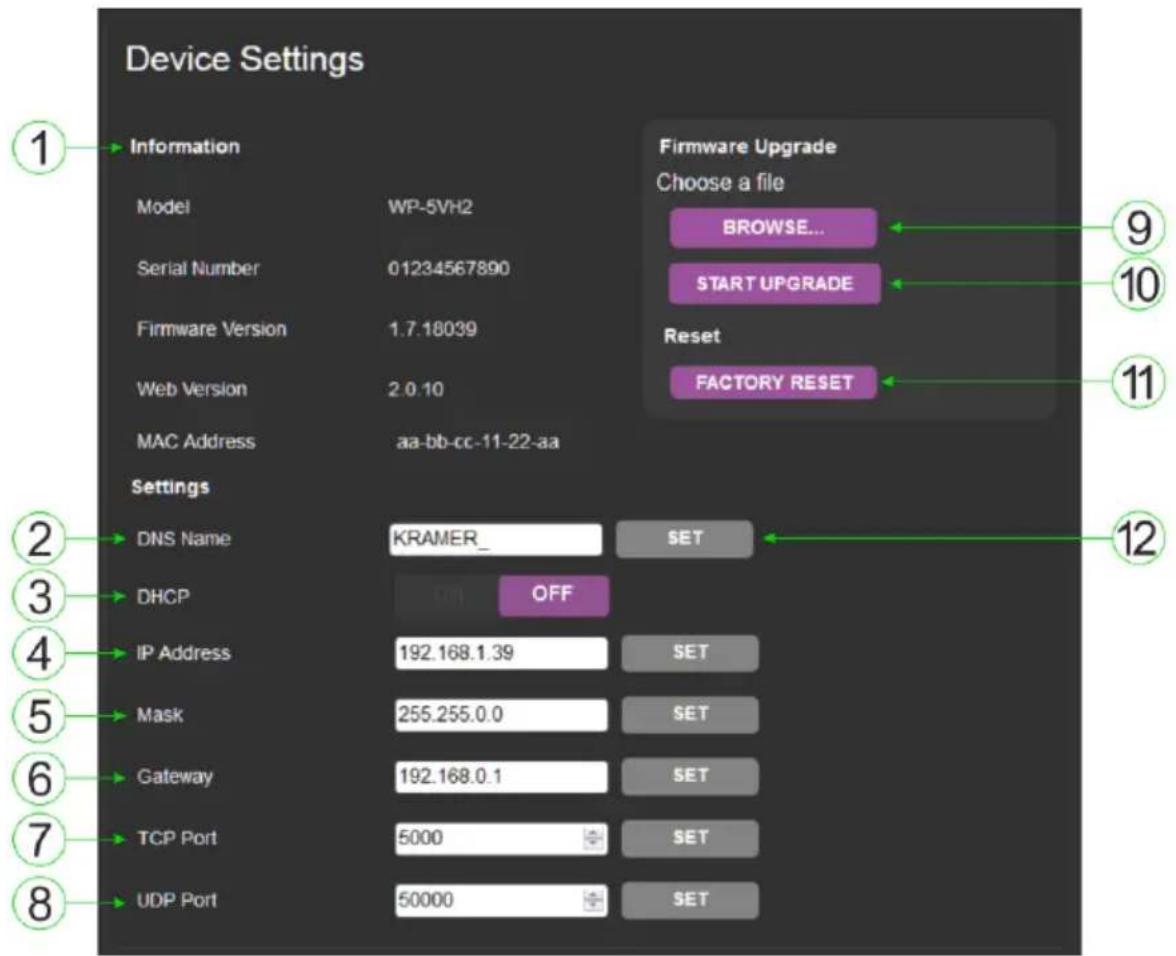

Figure 10: The Device Settings Page 23

Figure 11: The Video and Audio Settings Page 25

Figure 12: The Authentication Page 26

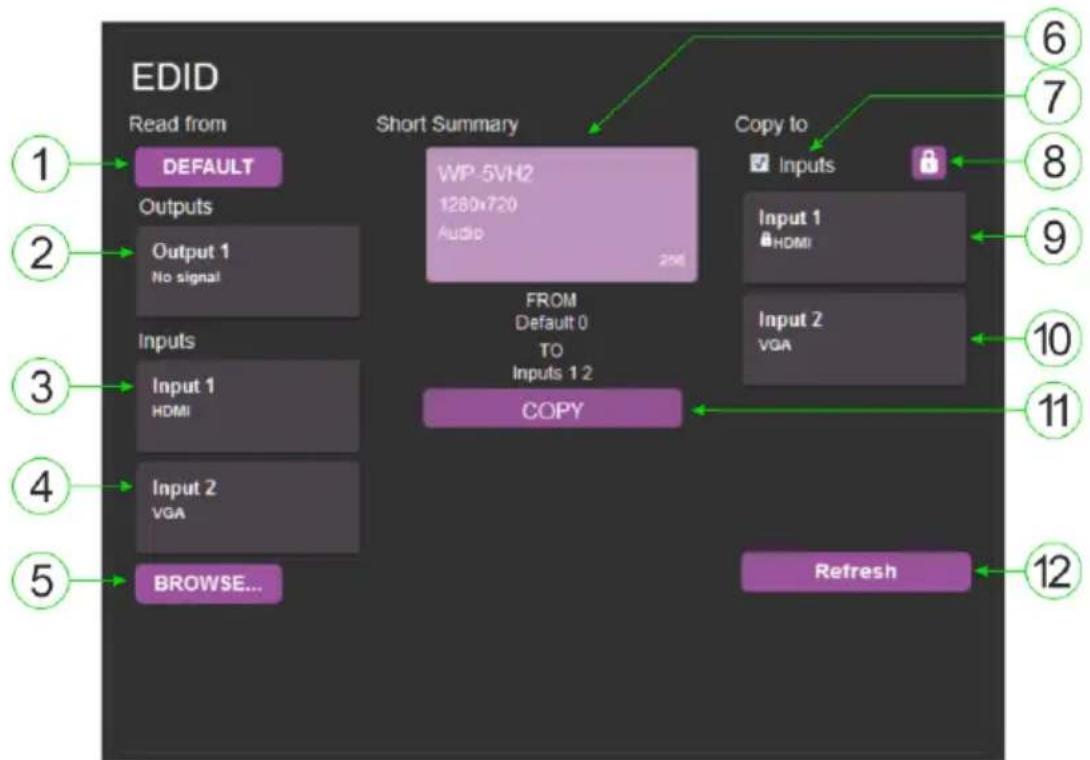

Figure 13: The EDID Page 28

Figure 14: The About Us Page 29

Figure 15: TP Pinout Wiring 30

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better!

Our 1,000-plus different models now appear in 14 groups that are clearly defined by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Video Products; GROUP 12: Digital Signage; and GROUP 13: Audio, and GROUP 14: Collaboration.

Thank you for purchasing the Kramer WP-5VH2 Wall Plate which is ideal for:

• Display systems requiring simple, automatic input selection
  • Multimedia and presentation source selection
  • Video distribution in hotel rooms and schools

2 Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for possible future shipment
• Review the contents of this user manual

Go to http://www.kramerav.com/downloads/WP-5VH2 to check for up-to-date user manuals, application programs, and to check if firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

• Use only good quality connection cables (we recommend Kramer high-resolution, high-quality cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables)
• Do not secure the cables in tight bundles or roll the slack into tight coils
• Avoid interference from neighboring electrical appliances that may adversely influence signal quality
• Position your Kramer WP-5VH2 away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution: There are no operator serviceable parts inside the unit

Warning: Use only the Kramer Electronics power supply that is provided with the unit

Warning: Disconnect the power and unplug the unit from the wall before installing

2.3 Shielded Twisted Pair/Unshielded Twisted Pair

Kramer engineers have developed special twisted pair cables to best match our digital twisted pair products; the Kramer BC-HDKat6a (CAT 6 23 AWG) HDBaseT certified, and the Kramer BC-DGKat7a23 (CAT 7a 23 AWG) cables. These specially built cables significantly outperform regular CAT 6 and CAT 7a cables.

2.4 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected and recycled. To comply with the WEEE Directive, Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer's recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

3 Overview

The WP-5VH2 accepts an HDMI and PC graphics video input, an Ethernet signal, serial data, and an unbalanced stereo audio input (which is embedded into the output signal), and transmits the signal via HDBaseT (Twisted Pair) cable to a compatible receiver (for example, the TP-588D or the TP-580RXR). The

WP-5VH2 is a PoE (Power over Ethernet) receiver and can be powered by a compatible PoE provider, (for example, the PSE-1).

The WP-5VH2 provides a range of up to 130m (427ft) in normal mode for 1080p@60Hz @36bpp, and up to 100m (328ft) for 4K @30Hz when using

BC-HDKat6a cables. When using an extended range receiver, the range is up to 180m (590ft) for 1080p@60Hz @24bpp. To use the WP-5VH2 in extended range mode you must edit the EDID to limit the resolution to 1080p @60Hz.

For optimum range and performance, use Kramer's BC-HDKat6a and BC-DGKat7a23 shielded twisted pair (STP) cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges.

In particular the WP-5VH2 features:

• Support for 4K, (a data rate of up to 10.2Gbps)
• Automatic input selection based on priority selection or last connected input
- Manual input selection
• Automatic live input detection based on video clock presence
• Automatic analog audio detection and embedding
- Power over Ethernet which passes electrical power along with data over Ethernet cabling. This allows a single cable to provide both data connection and electrical power to compatible devices
• Control via Kramer Protocol 3000 and embedded Web pages over a LAN
- HDTV support
• HDMI with Deep Color, x.v.Color™ and 3D

• HDCP compliancy—works with sources that support HDCP repeater mode
- I-EDIDPro™ Kramer Intelligent EDID Processing™ – Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems
- A lockable EDID
- Remote control via contact-closure switches
• Equalization and reclocking of the data
• Support for digital audio formats
• Availability in US and European versions

3.1 About HDBaseT™ Technology

HDBaseT™ is an advanced, all-in-one connectivity technology (supported by the HDBaseT Alliance). It is particularly suitable in the ProAV – and also the home – environment as a digital networking alternative, where it enables you to replace numerous cables and connectors by a single LAN cable used to transmit, for example, uncompressed, full high-definition video, audio, IR, as well as various control signals.

The products described in this user manual are HDBaseT certified.

4 Defining the WP-5VH2 Wall Plate

Figure 1 defines the front panel of the WP-5VH2.

Figure 1: WP-5VH2 Wall Plate Front Panel

#	Feature	Function
1	HDMI LED	When HDMI is selected:Lights orange when external audio is selected.Lights green when embedded audio is selectedWhen HDMI is not selected the LED does not light
2	PC Graphics LED	When PC input is selected:Lights orange when external audio is selected.Lights green when there is no audioWhen PC is not selected the LED does not light
3	ON LED	The LED indicates the following:Lights green—power is provided by a power adapterLights orange—power is provided by PoE
4	Reset Button	Short press to reset the device, long press (5 seconds) to reset the device to factory default parameters
5	PC IN Input Connector	Connect to the PC graphics source, (for example, a laptop)
6	HDMI IN Input Connector	Connect to an HDMI source, (for example, a Blu-ray disk player)
7	ETHERNET RJ-45 TP Connector	Connect to the LAN
8	AUDIO IN 3.5mm Mini Jack	Connect to the unbalanced, stereo audio source, (for example, the audio output of the laptop)

Figure 2 defines the rear panel of the WP-5VH2.

Figure 2: WP-5VH2 Wall Plate Rear Panel

#	Feature	Function
1	REMOTE 5-pin Terminal Block	Connect to the remote, contact-closure switches for remote control, (see Section 5.1)
2	AUDIO OUT 3-pin Terminal Block	Connect to the unbalanced, stereo audio acceptor, (for example, an audio amplifier)
3	HDBT OUT RJ-45 TP Connector	Connect to a compatible HDBT TP switcher or receiver (for example, the TP-588D/TP-580Rxr)
4	Earth Terminal	Connect to the common ground (optional)
5	OPTION 4-way DIP-switch	Switches for setting the device behavior, (see Section 8.1)
6	RS-232 3-pin Terminal Block	Connect to the PC via RS-232 to transfer data
7	12V DC Connector	Connect to the supplied power adapter. Not needed on the WP-5VH2 if there is a PoE provider over HDBaseT

5 Connecting the WP-5VH2

Switch off the power to all devices before connecting them to your WP-5VH2. After connecting your WP-5VH2 connect the power to other devices.

Figure 3: Connecting the WP-5VH2 Wall Plate

To connect the WP-5VH2 as illustrated in Figure 3:

1. Connect an HDMI source, (for example, a Blu-ray disk player) to the HDMI input.
2. Connect a PC graphics source, (for example, a laptop) to the PC In input.
3. Connect an unbalanced stereo audio source, (for example, the audio output from the laptop) to the AUDIO IN 3.5mm mini jack.

4. Connect the Ethernet LAN to the Ethernet RJ-45 connector.

5. Connect the HDBT OUT RJ-45 connector on the rear panel of the WP-5VH2 to an HDBT-compatible receiver (for example, the TP-588D or TP-580Rxr).

6. Connect the AUDIO OUT 3-pin terminal block on the rear panel of the WP-5VH2 to the unbalanced, stereo audio acceptor, (for example, a power amplifier with speakers).

7. Connect the REMOTE, 5-way terminal block to momentary, contact-closure switches, (see Section 5.1).

8. If the device is not connected to a PoE provider, connect the power adapter to the WP-5VH2 and to the mains power, (not shown in Figure 3).

Note: All LED supplies include a current limiting resistor and are designed to work with any standard LED.

5.1 Connecting the Remote Control Switches

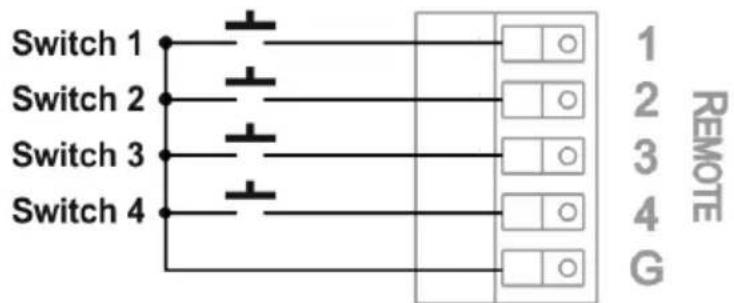

You can connect remote, momentary-contact contact-closure switches to the terminal block on the rear panel of the WP-5VH2 to control the device.

Figure 4 illustrates the connections from the terminal block to the contact-closure switches.

Figure 4: Remote Switches Terminal Block

#	Feature	Function
1	Input selection/VGA phase shift switch	Short press—Input toggleLong press—Adjusts the VGA phase shift, (see Section 6.4)
2	Step-in switch	Activates the step-in function if relevant
3	Analog audio output volume increase control, (see Section 7.4)	Short press—Increases the volume one stepLong press—Increases the volume from 0% to 100% in 10 seconds
4	Analog audio output volume decrease control, (see Section 7.4)	Short press—Decreases the volume one stepLong press—Decreases the volume from 100% to 0% in 10 seconds
G	Ground	Connect to the common side of the switches

6 Principles of Operation

The WP-5VH2 selects video and audio inputs based on the rules described below.

6.1 Input Selection

The video mode selection is set by the DIP-switches (see Section 8.1) to either of the following modes:

• Manual
  • Auto—Last connected or priority mode

In manual mode you select an input using either the remote input selection switches or the Web-page interface and switching occurs whether or not there is a live signal present on the input.

In auto mode, the switching selection is performed based on either last connected or priority input.

In last connected mode the WP-5VH2 selects the input based on which input was connected last. If the signal on this input is subsequently lost for any reason, the input with a live signal and which was also the last connected is selected automatically.

In priority mode, when the input sync signal is lost for any reason, the input with a live signal and next in priority is selected automatically. This priority is configurable; the default setting is HDMI > PC.

Note: In both last connected and priority modes, manually selecting an input using the remote input selection switches overrides the last-connected automatic selection.

6.2 Signal Loss and Unplugged Cable Timeouts

In both last connected and priority modes, when the input signal sync is lost (but the cable is not removed) there is a default delay of five seconds (not applicable to

the PC input) before another input is automatically selected. When an input cable is removed, there is a delay before automatic switching takes place.

Both timeouts are configurable, (see Section 8.1).

Note: Analog audio is not transmitted when there is no display connected. If a display is connected analog audio is output even in the absence of a video signal.

6.3 Audio Signal Control

The Option DIP-switches 3 and 4 (see Section 8.1) control the manner in which audio is handled.

The following table describes which audio signal is embedded in the output.

Selected Video Input	HDMI Embedded Audio Detected	Analog Audio Detected	DIP-switch 3	DIP-switch 4	Audio on HDBT Output
VGA	N/A	Yes	N/A	N/A	Analog audio
VGA	N/A	No	N/A	N/A	No audio
HDMI	N/A	N/A	Manual	Embedded	Embedded audio
HDMI	N/A	N/A	Manual	Analog	Analog audio
HDMI	Yes	No	Auto	N/A	Embedded audio
HDMI	Yes	Yes	Auto	Embedded	Embedded audio
HDMI	Yes	Yes	Auto	Analog	Analog audio
HDMI	No	Yes	Auto	N/A	Analog audio
HDMI	No	No	Auto	N/A	No audio

Note: The default timeout for audio switching when the input signal is lost is five seconds. This can be changed using either P3000 commands or the Web pages.

6.4 VGA Phase Shift

To minimize phase on the input VGA signal, the VGA sampling phase can be shifted using a remote, contact-closure switch connected to the 1 and G pins of the Remote terminal block. Each long press steps the phase shift up one step, starting from 0 and going to 31. When set to 31, another long press steps the shift to 0.

7 Operating the WP-5VH2

Powering up the WP-5VH2 recalls the last settings from the non-volatile memory, (that is, the configuration of the device when it was powered down).

7.1 Selecting an Input Manually

Any of the following methods can be used to select an input:

• Protocol 3000 command
• Remote contact-closure switch
• Web pages

7.2 Locking the EDID

To prevent the stored EDID (either default or read from a device) from being overwritten, either send a Protocol 3000 command or use the Web pages to lock the EDID.

Note: Do not power up the display before locking the EDID or the EDID from the display is stored.

7.3 Resetting the WP-5VH2

To perform a soft reset of the WP-5VH2:

• Briefly press the Reset button.
  The device resets

To reset the WP-5VH2 to factory default parameters:

• Press and hold the Reset button for five seconds.
  The device is reset to factory default parameters

7.4 Analog Audio Output Volume Control

The analog audio output volume can be controlled using remote, contact-closure switches connected to pins 3 and 4 of the Remote terminal block, (see Section 5.1). For volume control using the Web pages, see Section 9.1.

The up/down volume steps per press are detailed in the table below.

Ramp	Volume Reading	Volume (dB)
1	100	0
1	99	-0.5
1	98	-1.0
1	97	-1.5
1	96	-2.0
1	...	(0.5 steps)
1	12	-44.0
1	11	-44.5
1	10	-45.0
1	9	-45.5
2	...	(2.0 steps)
2	8	-47.0
2	7	-49.0
2	6	-51.0
2	5	-53.0
2	4	-55.0
2	3	-57.0
2	2	-59.0
2	1	-61.0
2	0	-63.0

8 Configuring the WP-5VH2

8.1 Setting the Configuration DIP-switch

The 4-way dip-switch provides the ability to configure a number of device functions. A switch that is down is on; a switch that is up is off. By default, all the switches are up (off).

Figure 5: The Configuration DIP-switch

#	Feature	Function	DIP-switch
1	Manual/Auto Switching	Selects either manual or auto input switching	On—Manual switchingOff—Auto switching
2	Priority/Last Connected Switching	Selects either priority or last connected input switching	On—Priority switchingOff—Last connected switchingDefault video input priority is HDMI > Analog
3	Manual/Auto Audio Switching	Selects either manual or auto audio input selection	On—Manual switchingOff—Auto switching
4	Analog/HDMI Audio Priority Switching	Selects either the analog or the HDMI audio input as priority	On	DIP-switch 3 On: Analog audio input
				DIP-switch 3 Off: HDMI>Analog priority
			Off	DIP-switch 3 On: HDMI audio input
				DIP-switch 3 Off: Analog>HDMI priority

The following table describes the switching priorities defined by DIP-switches 1 and 2.

DIP-switch 2 Status	DIP-switch 1 Auto Switching (Off)	DIP-switch 1 Manual Switching (On)
Off—Last Connected	When two sources are connected the last one connected gets priority	Manual video input selection
On—Priority	When two sources are connected the active source is selected according to the pre-defined priority	Manual video input selection

8.2 Video Switching Timeouts

When the WP-5VH2 is configured for auto switching, the timeouts before a new input is automatically selected can be changed as shown in the table below.

	Signal Loss, Power Present	Signal and Power Loss
Default Timeout	10 seconds	0 seconds

Note: The minimum value for "Signal Loss, Power Present" is five seconds.

9 Operating the WP-5VH2 Remotely Using the Embedded Web Pages

The WP-5VH2 can be operated remotely using the embedded Web pages. The Web pages are accessed using a Web browser and an Ethernet connection.

Before attempting to connect:

• Ensure that your browser is supported (see Section 11)
- Ensure that JavaScript is enabled

9.1 Browsing the WP-5VH2 Web Pages

Note: In the event that a Web page does not update correctly, clear your Web browser's cache by pressing CTRL+F5.

To browse the WP-5VH2 Web pages:

1. Open your Internet browser.
2. Type the IP number of the device in the Address bar of your browser.

Note: If authentication is enabled, the following window appears (Figure 6) and you must enter the valid username and password to access the Web pages. For default authentication details, see Section 11.2.

Figure 6: Entering Logon Credentials

Following a successful logon, the screen shown in Figure 7 is displayed.

Figure 7: The Default Page

#	Item	Description
1	Switching Details	Displays the current video and audio switching status and the current audio volume
2	Left Hand Side Panel Hide/Reveal Button	Click to reveal the left hand side page panel

Click the Reveal button to open the left hand side page panel.

The Switching page appears as shown in Figure 8.

Figure 8: The Main Switching Page

The areas of the main switching page are described in the following table.

#	Item	Description
1	Page Selection Panel	Click one of the buttons to select a page
2	Video Input Switching Selection	Click one of the buttons to select a video input
3	Page Selection Panel Hide/Reveal Button	Click the arrow to open or close the page selection panel
4	Upload/Save Configuration Area	Click one of the buttons to save or retrieve a configuration, (see Section 9.1.1)
5	Audio Volume Controls	Use the slider and mute button to control the audio volume
6	Audio Selection Indication	Indicates the source of the audio that is currently on the output

There are six Web pages described in the following sections:

• Switching (see Section 9.2)
• Device Settings (see Section 9.3)
• Video and Audio Settings (see Section 9.4)
• Authentication (see Section 9.5)
• EDID (see Section 9.6)
• About Us (see Section 9.7)

9.1.1 The Upload/Save Configuration Facility

The Upload/Save Configuration facility (see item 4 in Figure 8) lets you retrieve and save a configuration.

To upload a configuration:

1. Click the Upload button.
   The File Upload browser window appears.
2. Browse to the required file and press Open.
   The configuration is retrieved and the success message is displayed.

To save the current configuration:

1. Click the Save button.
   The Save Configuration success message is displayed.

2. Do either of the following:

3. Click Download to either open the file or save it to the required location —OR—

4. Click OK to complete the procedure

9.2 The Switching Page

The Switching page lets you select a video input manually and adjust the audio volume.

Figure 9: The Switching Page

#	Item	Description
1	Live Signal Indicator	Indicates whether or not there is a live signal on either of the inputs
2	HDMI Button	Click to select the HDMI input
3	VGA Button	Click to select the VGA input
4	Audio source Indicator	Indicates the source of the audio that is transmitted on the output
5	Volume Slider	Click and slide up and down to increase or decrease the audio output volume
6	Mute Button	Click to mute or unmute the output audio

9.3 The Device Settings Page

The Device Settings page lets you:

• View some of the device characteristics, (for example, model and Web version)
• Edit IP settings, (for example, name and IP address)
• Upgrade the firmware
• Reset the device to factory default settings

Note: After making any change to the parameters on the Device Settings page, you must power cycle the device to activate the changes.

Figure 10: The Device Settings Page

#	Item		Description
1	Information Section		Displays information regarding the device
2	DNS name		The DNS name of the device. To set a new name, enter the new alphanumeric name and click Set. (For restrictions regarding the name, see Section 11.2)
3	DHCP Buttons		Click ON to turn DHCP on; click OFF to turn DHCP off
4	IP address		The IP address of the device. To set a new IP address, enter the new valid IP address and click Set
5	Mask		The network mask of the device. To set a new mask, enter the new valid mask and click Set
6	Gateway		The network gateway for the device. To set a new network gateway, enter the new valid gateway and click Set
7	TCP Port		The TCP port number of the device. To set a new TCP port number, enter the new valid port number or use the spin controls and click Set
8	UDP Port		The UDP port number of the device. To set a new UDP port number, enter the new valid port number or use the spin controls and click Set
9	Firmware upgrade Section	BROWSE button	Click to open a window to browse to the new firmware file
10		START UPGRADE button	Click to start the upgrade process following the selection of the new firmware file
11	Factory Reset Button		Click to reset the device to factory default parameters. After the success message is displayed, power cycle the device
12	Set Button		Click to store a changed parameter.Note: If you do not click the Set button, the new parameter is not stored

To upgrade the firmware:

1. Click the Browse button.

The Windows Browser opens.

1. Browse to the required file.
2. Select the required file and click Open.

The firmware file name is displayed in the Firmware Upgrade page.

1. Click Start Upgrade.

The firmware file is loaded and a progress bar is displayed.

Do not interrupt the process or the WP-5VH2 may be damaged.

1. When the process is complete reboot the device.

The firmware is upgraded.

To reset the WP-5VH2 to factory default parameters:

1. Click the Factory reset button.

The confirmation message is displayed.

1. Click OK to continue or Cancel to exit the procedure.

2. Click OK.

The progress message is displayed.

On completion, the success message is displayed.

1. Click OK.

9.4 The Video and Audio Settings Page

The Video and Audio Settings page lets you modify the video, audio and timeout parameters.

Figure 11: The Video and Audio Settings Page

#	Item	Description
1	Video selection mode Indicator	Indicates the current video selection mode; manual, auto, or auto last connected
2	Video auto switching priority Buttons	Click either the HDMI or VGA buttons to select the priority selection when in auto mode
3	Audio selection mode Indicator	Indicates the current audio selection; manual, auto, or auto last connected
4	Current selectionAudio Indicator	Indicates the current audio selection
5	HDCP Support (on HDMI input) Buttons	Not supported—HDCP encrypted content is not passedFollow output—HDCP support is dictated by the display
6	Delay switching upon signal loss for (leave 5V on) Boxes	Sets the delay for video and audio before switching (in auto mode) because of a signal loss on the currently selected input. Value in seconds
7	Delay switching input upon cable unplug for Boxes	Sets the delay for video and audio before switching (in auto mode) because the currently selected input cable is unplugged. Value in seconds
8	Delay power off 5V upon signal loss for Box	Sets the delay for turning off the 5V output because of a signal loss on the currently selected input. Value in minutes

Note: When enabling or disabling HDCP, disconnect and reconnect the HDMI cable between the source and the WP-5VH2.

9.5 The Authentication Page

The Authentication page lets you assign or change logon authentication details.

Figure 12: The Authentication Page

#	Item	Description
1	Activate Security Button	Click to enable/disable security settings. When enabled, the valid username and password must be provided to allow Web page access`1234

#	Item		Description
2	Change Password	Current Password box	Enter the current password
3		New Password box	Enter the new password, (up to 15 printable ASCII characters)
4		Retype New Password box	Retype the new password
5	CHANGE button		Click CHANGE to save the new authentication details

9.6 The EDID Page

The EDID page lets you copy EDID data to either or both of the inputs from the following sources:

• Output
• Input
• Default EDID
  • EDID data file

From this page you can also lock the EDID on each input independently.

Note: Do not power up the display before locking the EDID or the EDID from the display is stored.

Figure 13: The EDID Page

Note: The display is not updated automatically when the status of an EDID changes on the device caused by outputs being exchanged. Click Refresh to update the display, (see item 11 in the following table).

#	Item		Description
1	Read from Area	DEFAULT EDID button	Click to read the default EDID
2		Output 1 button	Click to read the EDID from output 1
3		Input 1 button	Click to read the EDID from input 1 (HDMI)
4		Input 2 button	Click to read the EDID from input 2 (VGA)
5		BROWSE button	Click to open the file browser to select an EDID file on your computer
6	Short Summary Information Area		Displays the current election of EDID source, destination, video resolution, audio availability, and status
7	Copy to Area	Inputs selection box	Check to select both inputs
8		Lock button	Locks the EDID on the currently selected input
9		Input 1 button	Click to select input 1 as the destination (HDMI)
10		Input 2 button	Click to select input 2 as the destination (VGA)
11	COPY Button		Click to copy the EDID from the selected source to the selected destination
12	Refresh Button		Click to refresh the display

To copy EDID data from a source to one or both inputs:

1. Click the source button from which to read the EDID (default, output, input, or EDID file).
   The button changes color and the EDID summary information reflects the selection and EDID data.

2. Click a destination input, or select both inputs by checking the Inputs checkbox.

All selected input buttons change color and the EDID summary information reflects the selection and EDID data.

1. Click the Copy button.

The “EDID was copied” success message is displayed and the EDID data is copied to the selected input(s).

1. Click OK.

9.7 The About Us Page

The WP-5VH2 About Us page displays the Web page version and Kramer Electronics Ltd company details.

Figure 14: The About Us Page

10 Wiring the Twisted Pair RJ-45 Connectors

When using STP cable, connect/solder the cable shield to the RJ-45 connector shield. Figure 15 defines the TP pinout using a straight pin-to-pin cable with RJ-45 connectors.

EIA /TIA 568B

PIN	Wire Color
1	Orange / White
2	Orange
3	Green / White
4	Blue
5	Blue / White
6	Green
7	Brown / White
8	Brown
Pair 1	4 and 5
Pair 2	1 and 2
Pair 3	3 and 6

Figure 15: TP Pinout Wiring

Warning: Using a TP cable that is incorrectly wired will cause permanent damage to the device

11 Technical Specifications

INPUTS:	Video:	1 HDMI on an HDMI connector1 VGA on a 15-pin HD (F) connector
	Audio:	1 Unbalanced stereo audio 1V RMS (nominal) on a 3.5mm mini jack
OUTPUTS:	1 HDBaseT on an RJ-45 connector1 Unbalanced stereo audio 1V RMS (nominal) on a 3.5mm mini jack
PORTS:	1 RS-232 3-pin terminal block
CONTROLS:	Remote switches for input switching and volume control, reset switch
STANDARDS:	HDMI with Deep Color, x.v.ColorTM and 3DHDCP—works with sources that support HDCP repeater modeHDBT certified
MAXIMUM ANALOG AUDIO LEVELS:	2.8V pp
THD:	-85dBu
SNR:	0.03%
SUPPORTED WEB BROWSERS:	Windows 7 and higher:Internet Explorer (32/64 bit) version 11Firefox version 30Chrome version 35MAC:Chrome version 35Firefox version 27Safari version 7Android OS:Chrome version 35iOS:Chrome version 35Safari version 7
MAXIMUM TRANSMISSION DISTANCE:	180m (590ft) up to 1080p @60Hz @24bpp in extended mode130m (430ft) up to 1080p @60Hz @36bpp in normal mode
POWER CONSUMPTION:	12V DC, 850mA
OPERATING TEMPERATURE:	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:	-40° to +70°C (-40° to 158°F)
HUMIDITY:	10% to 90%, RHL non-condensing
COOLING:	Convection
ENCLOSURE TYPE:	Aluminium
DIMENSIONS:	11.43cm x 3.8cm x 11.43cm (4.5" x 1.5" x 4.5") W, D, H
WEIGHT:	0.39kg (0.86lbs) approx.
SHIPPING WEIGHT:	0.68kg (1.5lbs) approx.
ENVIRONMENTAL REGULATORY COMPLIANCE:	Complies with appropriate requirements of RoHs and WEEE
VIBRATION:	ISTA 1A in carton (International Safe Transit Association)
COMPLIANCE STANDARDS:	CE
INCLUDED ACCESSORIES:	Power adapter
WARRANTY:	7 years parts and labor

11.1 Default IP Parameters

Parameter	Values	Default
Device Name	Any alphanumeric string up to 14 chars (can include hyphen, but not at the beginning or end)	KRAMER_
DHCP	ON/OFF	OFF
IP Address	Any valid IP address	192.168.1.39
Mask	Any valid network mask	255.255.0.0
Gateway	Any valid gateway address	192.168.0.1
TCP Port	0 to 65535	5000
UDP Port	0 to 65535	50000

11.2 Default Logon Credentials

Parameter	Values
Name	Admin
Password	Admin

11.3 Supported Resolutions

11.3.1 HDMI

Resolution	Refresh Rate (Hz)
640x480p	85Hz; 75Hz; 72Hz; 60Hz; 59.95Hz
720x480p	60Hz
720x480i	30Hz
720x576p	50Hz
800x600p	85Hz; 75Hz; 72Hz; 60Hz
848x480p	60Hz
852x480p	60Hz
1024x768p	85Hz; 75Hz; 70Hz; 60Hz
1152x864p	75Hz
1280x768p	60Hz
1280x800p	60Hz
1280x960	60Hz
1280x1024p	75Hz; 60Hz
1360x768p	60Hz
1366x768	60Hz; 50Hz
1400x1050p	60Hz
1440x900p	60Hz
1600x900p	60Hz
1600x1200p	60Hz
1680x1050p	60Hz
1920x1080p	50Hz; 60Hz; 30Hz; 24Hz;
1920x1080i	50Hz; 60Hz;
3840x2160	30Hz
4096x2160	30Hz

11.3.2 VGA

Resolution	Refresh Rate
640x480p	60Hz
720x480p	60Hz
800x600p	60Hz
848x480p	60Hz
1024x768p	60Hz
1152x864	75Hz
1280x720p	60Hz; 50Hz
1280x768	60Hz
1280x800	60Hz
1280x960p	60Hz
1280x1024p	60Hz
1360x768	60Hz;
1366x768	60Hz; 50Hz
1400x1050	60Hz
1440x900	60Hz
1920x1080p	60Hz
1920x1200	60Hz; 50Hz

12 Default EDID

Each input on the WP-5VH2 is loaded with a factory default EDID.

12.1 HDMI

Monitor

Model name...... WP-5VH2

Manufacturer..... KMR

Plug and Play ID..... KMR1200

Serial number...... n/a

Manufacture date...... 2015, ISO week 255

Filter driver...... None

EDID revision...... 1.3

Input signal type...... Digital

Color bit depth...... Undefined

Display type...... RGB color

Screen size.... 520 x 320 mm (24.0 in)

Power management...... Standby, Suspend, Active off/sleep

Extension blocs..... 1 (CEA-EXT)

DDC/Cl..... n/a

Color characteristics

Default color space..... Non-sRGB

Display gamma...... 2.20

Red chromaticity..... Rx 0.674 - Ry 0.319

Green chromaticity..... Gx 0.188 - Gy 0.706

Blue chromaticity...... Bx 0.148 - By 0.064

White point (default).... Wx 0.313 - Wy 0.329

Additional descriptors... None

Timing characteristics

Horizontal scan range.... 30-83kHz

Vertical scan range..... 56-76Hz

Video bandwidth..... 170MHz

CVT standard...... Not supported

GTF standard...... Not supported

Additional descriptors... None

Preferred timing...... Yes

Native/preferred timing.. 1280x720p at 60Hz (16:10)

Modeline...... "1280x720" 74.250 1280 1390 1430 1650 720 725 730 750 +hsync +vsync

Standard timings supported

720 x 400p at 70Hz - IBM VGA

720 x 400p at 88Hz - IBM XGA2

640 x 480p at 60Hz - IBM VGA

640 x 480p at 67Hz - Apple Mac II

640 x 480p at 72Hz - VESA

640 x 480p at 75Hz - VESA

800 x 600p at 56Hz - VESA

800 x 600p at 60Hz - VESA

800 x 600p at 72Hz - VESA

800 x 600p at 75Hz - VESA

832 x 624p at 75Hz - Apple Mac II

1024 x 768i at 87Hz - IBM

1024 x 768p at 60Hz - VESA

1024 x 768p at 70Hz - VESA

1024 x 768p at 75Hz - VESA

1280 x 1024p at 75Hz - VESA

1152 x 870p at 75Hz - Apple Mac II

1280 x 1024p at 75Hz - VESA STD

1280 x 1024p at 85Hz - VESA STD

1600 x 1200p at 60Hz - VESA STD

1024 x 768p at 85Hz - VESA STD

800 x 600p at 85Hz - VESA STD

640 x 480p at 85Hz - VESA STD

1152 x 864p at 70Hz - VESA STD

1280 x 960p at 60Hz - VESA STD

EIA/CEA-861 Information

Revision number...... 3

IT underscan...... Supported

Basic audio...... Supported

YCbCr 4:4:4.... Supported

YCbCr 4:2:2...... Supported

Native formats...... 1

Detailed timing #1..... 1920x1080p at 60Hz (16:10)

Modeline...... "1920x1080" 148.500 1920 2008 2052 2200 1080 1084 1089 1125 +hsync +vsync

Detailed timing #2..... 1920x1080i at 60Hz (16:10)

Modeline...... "1920x1080" 74.250 1920 2008 2052 2200 1080 1084 1094 1124 interlace +hsync

+vsync

Detailed timing #3..... 1280x720p at 60Hz (16:10)

Modeline...... "1280x720" 74.250 1280 1390 1430 1650 720 725 730 750 +hsync +vsync

Detailed timing #4..... 720x480p at 60Hz (16:10)

Modeline...... "720x480" 27.000 720 736 798 858 480 489 495 525 -hsync -vsync

CE audio data (formats supported)

LPCM 2-channel, 16/20/24 bit depths at 32/44/48 kHz

CE video identifiers (VICs) - timing/formats supported

1920 x 1080p at 60Hz - HDTV (16:9, 1:1)

1920 x 1080i at 60Hz - HDTV (16:9, 1:1)

1280 x 720p at 60Hz - HDTV (16:9, 1:1) [Native]

720 x 480p at 60Hz - EDTV (16:9, 32:27)

720 x 480p at 60Hz - EDTV (4:3, 8:9)

720 x 480i at 60Hz - Doublescan (16:9, 32:27)

720 x 576i at 50Hz - Doublescan (16:9, 64:45)

640 x 480p at 60Hz - Default (4:3, 1:1)

NB: NTSC refresh rate = (Hz*1000)/1001

CE vendor specific data (VSDB)

IEEE registration number. 0x000C03

CEC physical address..... 1.0.0.0

Maximum TMDS clock..... 165MHz

CE speaker allocation data

Channel configuration.... 2.0

Front left/right..... Yes

Front LFE...... No

Front center...... No

Rear left/right...... No

Rear center...... No

Front left/right center.. No

Rear left/right center... No

Rear LFE...... No

Report information

Date generated...... 31/12/2014

Software revision..... 2.60.0.972

Data source...... File

Operating system...... 6.1.7601.2.Service Pack 1

Raw data

00,FF,FF,FF,FF,FF,FF,00,2D,B2,00,12,01,01,01,01,FF,18,01,04,80,34,20,78,EA,B3,25,AC,51,30,B4,26,

10,50,54,FF,FF,80,81,8F,81,99,A9,40,61,59,45,59,31,59,71,4A,81,40,01,1D,00,72,51,D0,1E,20,6E,28,

55,00,07,44,21,00,00,1E,00,00,00,FF,00,35,30,35,2D,38,30,33,30,35,30,31,30,30,00,00,00,FC,00,57,

50,2D,35,56,48,32,00,00,00,00,00,00,00,00,00,00,FD,00,38,4C,1E,53,11,00,0A,20,20,20,20,20,20,01,AF,

02,03,1B,F1,23,09,07,07,48,10,05,84,03,02,07,16,01,65,03,0C,00,10,00,83,01,00,00,02,3A,80,18,71

38,2D,40,58,2C,45,00,07,44,21,00,00,1E,01,1D,80,18,71,1C,16,20,58,2C,25,00,07,44,21,00,00,9E,01,

1D,00,72,51,D0,1E,20,6E,28,55,00,07,44,21,00,00,1E,8C,0A,D0,8A,20,E0,2D,10,10,3E,96,00,07,44,21,

00,00,18,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,47

12.2 PC-UXGA

Monitor

Model name...... WP-5VH2

Manufacturer..... KMR

Plug and Play ID..... KMR1200

Serial number...... n/a

Manufacture date...... 2015, ISO week 255

Filter driver...... None

EDID revision...... 1.5

Input signal type...... Analog 0.700,0.000 (0.7V p-p)

Sync input support..... Separate, Composite, Sync-on-green

Display type..... RGB color

Screen size.... 520 x 320 mm (24.0 in)

Power management...... Standby, Suspend, Active off/sleep

Extension blocs...... None

DDC/Cl..... n/a

Color characteristics

Default color space..... sRGB

Display gamma.... 2.20

Red chromaticity..... Rx 0.674 - Ry 0.319

Green chromaticity..... Gx 0.188 - Gy 0.706

Blue chromaticity..... Bx 0.148 - By 0.064

White point (default).... Wx 0.313 - Wy 0.329

Additional descriptors... None

Timing characteristics

Horizontal scan range.... 30-83kHz

Vertical scan range..... 56-76Hz

Video bandwidth..... 170MHz

CVT standard...... Not supported

GTF standard...... Not supported

Additional descriptors... None

Preferred timing...... Yes

Native/preferred timing.. 1280x720p at 60Hz (16:10)

Modeline...... "1280x720" 74.250 1280 1390 1430 1650 720 725 730 750 +hsync +vsync

Standard timings supported

720 x 400p at 70Hz - IBM VGA

720 x 400p at 88Hz - IBM XGA2

640 x 480p at 60Hz - IBM VGA

640 x 480p at 67Hz - Apple Mac II

640 x 480p at 72Hz - VESA

640 x 480p at 75Hz - VESA

800 x 600p at 56Hz - VESA

800 x 600p at 60Hz - VESA

800 x 600p at 72Hz - VESA

800 x 600p at 75Hz - VESA

832 x 624p at 75Hz - Apple Mac II

1024 x 768i at 87Hz - IBM

1024 x 768p at 60Hz - VESA

1024 x 768p at 70Hz - VESA

1024 x 768p at 75Hz - VESA

1280 x 1024p at 75Hz - VESA

1152 x 870p at 75Hz - Apple Mac II

1280 x 1024p at 75Hz - VÉSA STD

1280 x 1024p at 85Hz - VESA STD

1600 x 1200p at 60Hz - VESA STD

1024 x 768p at 85Hz - VESA STD

800 x 600p at 85Hz - VESA STD

640 x 480p at 85Hz - VESA STD

1152 x 864p at 70Hz - VESA STD

1280 x 960p at 60Hz - VESA STD

Raw data

00,FF,FF,FF,FF,FF,FF,00,2D,B2,00,12,01,01,01,01,FF,18,01,04,6E,34,20,78,EE,B3,25,AC,51,30,B4,26,

10,50,54,FF,FF,80,81,8F,81,99,A9,40,61,59,45,59,31,59,71,4A,81,40,01,1D,00,72,51,D0,1E,20,6E,28,

55,00,07,44,21,00,00,1E,00,00,00,FF,00,35,30,35,2D,38,30,33,30,35,30,31,30,30,00,00,00,FC,00,57,

50,2D,35,56,48,32,00,00,00,00,00,00,00,00,00,FD,00,38,4C,1E,53,11,00,0A,20,20,20,20,20,20,00,BE

13 Protocol 3000

The WP-5VH2 can be operated using serial commands from a PC, remote controller or touch screen using the Kramer Protocol 3000.

This section describes:

• Kramer Protocol 3000 syntax (see Section 13.1)
• Kramer Protocol 3000 commands (see Section 13.2)

13.1 Kramer Protocol 3000 Syntax

13.1.1 Host Message Format

Start	Address (optional)	Body	Delimiter
#	Destination_id@	Message	CR

13.1.1.1 Simple Command

Command string with only one command without addressing:

Start	Body	Delimiter
#	Command SP Parameter_1,Parameter_2,...	CR

13.1.1.2 Command String

Formal syntax with commands concatenation and addressing:

Start	Address	Body	Delimiter
#	Destination_id@	Command_1 Parameter1_1,Parameter1_2,...|Command_2 Parameter2_1,Parameter2_2,...|Command_3Parameter3_1,Parameter3_2,...|...	CR

13.1.2 Device Message Format

Start	Address (optional)	Body	delimiter
~	Sender_id@	Message	CR LF

13.1.2.1 Device Long Response

Echoing command:

Start	Address (optional)	Body	Delimiter
~	Sender_id@	Command SP [Param1,Param2 ...] result	CR LF

CR= Carriage return (ASCII 13 = 0x0D)

= Line feed (ASCII 10 = 0x0A )

13.1.3 Command Terms

Command

A sequence of ASCII letters ('A'-'Z', 'a'-'z' and '-'').

Command and parameters must be separated by at least one space.

Parameters

A sequence of alphanumeric ASCII characters ('0'-9', 'A'-Z', 'a'-z' and some special characters for specific commands). Parameters are separated by commas.

Message string

Every command entered as part of a message string begins with a message

starting character and ends with a message closing character.

Note: A string can contain more than one command. Commands are separated by a pipe ( ' |' ) character.

Message starting character

'#' – For host command/query

'\~' – For device response

Device address (Optional, for K-NET)

K-NET Device ID followed by '@'

Query sign

'?' follows some commands to define a query request.

Message closing character

CR- For host messages; carriage return (ASCII 13)

CRLF – For device messages; carriage return (ASCII 13) + line-feed (ASCII 10)

Command chain separator character

When a message string contains more than one command, a pipe ( 'l' ) character separates each command.

Spaces between parameters or command terms are ignored.

13.1.4 Entering Commands

You can directly enter all commands using a terminal with ASCII communications software, such as HyperTerminal, Hercules, etc. Connect the terminal to the serial or Ethernet port on the Kramer device. To enter CR press the Enter key.

( LF is also sent but is ignored by command parser).

For commands sent from some non-Kramer controllers, (for example, Crestron) some characters require special coding (such as, /X##). Refer to the controller manual.

13.1.5 Command Forms

Some commands have short name syntax in addition to long name syntax to allow faster typing. The response is always in long syntax.

13.1.6 Chaining Commands

Multiple commands can be chained in the same string. Each command is delimited by a pipe character ("|"). When chaining commands, enter the message starting character and the message closing character only once, at the beginning of the string and at the end.

Commands in the string do not execute until the closing character is entered. A separate response is sent for every command in the chain.

13.1.7 Maximum String Length

64 characters

13.2 Kramer Protocol 3000 Commands

The following table lists the Protocol 3000 commands that the WP-5VH2 supports. For a full description of the commands, see the Kramer Protocol 3000 document available from http://www.kramerelectronics.com.

Note: The WP-5VH2 can only receive commands from a device, (for example, an HDBT transmitter) via the HDBaseT link, and only at 9600bps.

Command	Description
#	Protocol handshaking
AUD-EMB?	Get audio in video embedding status
AUD-LVL	Set/get audio level in specific amplifier stage
AUD-SIGNAL?	Get audio input signal status
AV-SW-MODE?	Get auto-switch mode
AV-SW-TIMEOUT	Set/get video auto-switch timeout
BUILD-DATE?	Read device build date
CPEDID	Copy EDID data from the output to the input
DEL	Delete user file
DIR	List files in device
DISPLAY?	Get output HPD status
ETH-PORT	Set/get Ethernet port protocol
FACTORY	Reset to factory default configuration
FCT-MAC	Set MAC address
FCT-MODEL	Set model name
FCT-SN	Set serial number
FORMAT	Format file system
FPGA-VER?	Get current FPGA version
FS-FREE?	Get file system free space
GEDID	Read EDID data
GET	Get file
HDCP-MOD	Set/get HDCP mode
HDCP-STAT?	Get HDCP signal status
HELP	Get command list
LDEDID	Write EDID data to input
LDFW	Load new firmware
LOAD	Load new Transwitch firmware
LOCK-EDID	Lock last read EDID
LOGIN	Set/get protocol permission
LOGOUT	Cancel current permission level
MODEL?	Read device model
MUTE	Set/get audio mute
NAME	Set/get machine (DNS) name
NAME-RST	Reset machine name to factory default (DNS)
NET-DHCP	Set/get DHCP mode
NET-GATE	Set/get gateway IP
NET-IP	Set/get IP address
NET-MAC?	Get MAC address
NET-MASK	Set/get subnet mask
PASS	Set/get Password
PRIORITY	Set/get priority for all channels
PROT-VER?	Get device protocol version
RESET	Reset device
ROUTE	Set/get layer routing
SECUR	Start/Stop Security
SIGNAL?	Get input signal lock status
SN?	Read device serial number
UPGRADE	Execute firmware upgrade
VERSION?	Read device firmware version
VMUTE	Set/get video on output mute

Command - #		Command Type - System-mandatory
Command Name		Permission	Transparency
Set:	#	End User	Public
Get:	-	-	-
Description		Syntax
Set:	Protocol handshaking	#CR
Get:	-	-
Response
~
Parameters
Use to validate the Protocol 3000 connection and get the machine number
Command - AUD-EMB		Command Type - Common
Command Name		Permission	Transparency
Set:	AUD-EMB	End User	Public
Get:	AUD-EMB?	End User	Public
Description		Syntax
Set:	Set audio in video embedding status	#AUD-EMB SP in, out, status CR
Get:	Get audio in video embedding status	#AUD-EMB? SP in, out CR
Response
Set/Get: ~ nn@AUD-EMB SP in, out, status CR LF
Parameters
in - audio input to be embedded number (1... max number of inputs)out - video output to embed into number (1 .. max number of outputs)status - embedded (ON), or not (OFF) status
Response Triggers
Response is sent to the com port from which the Set (before execution)/Get command was receivedAfter execution, response is sent to all com ports if AUD-EMB was set by any other external control device (button press, device menu and similar)
Notes
Command - AUD-LVL		Command Type - Audio
Command Name		Permission	Transparency
Set:	AUD-LVL	End User	Public
Get:	AUD-LVL?	End User	Public
Description		Syntax
Set:	Set audio level in specific amplifier stage	#AUD-LVL _SP stage, channel, volume _CR
Get:	Get audio level in specific amplifier stage	#AUD-LVL? _SP stage, channel _CR
Response
~nn@AUD-LVL _SP stage, channel, volume _CR LF
Parameters
stage - 'IN, 'OUT' or numeric value of present audio processing stageFor example: '1' for input level, '2' for outputchannel - input or output numbervolume - audio parameter in Kramer units, minus sign precedes negative values.++ increase current value,-- decrease current value
Response Triggers
Notes
Command - AUD-SIGNAL		Command Type - Audio
Command Name		Permission	Transparency
Set:	-	-	-
Get	AUD-SIGNAL?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get audio input signal status	# AUD-SIGNAL? SP inp_id CR
Response
~ nn@ AUD-SIGNAL SP inp_id, status CR LF
Parameters
Inp_id - input number (1 .. max input number)status - 0 - OFF (no signal)1 - ON (signal present
Response Triggers
After execution, response is sent to the com port from which the Get was receivedResponse is sent to all com ports if audio status state was changed on any input
Notes
Command - AV-SW-MODE		Command Type - System
Command Name		Permission	Transparency
Set:	AV-SW-MODE	End user	Public
Get:	AV-SW-MODE?	End user	Public
Description		Syntax
Set:	Set input auto switch mode (per output)	# AV-SW-MODE _SP layer,output_id,mode _CR
Get:	Get input auto switch mode (per output)	# AV-SW-MODE? _SP layer,output_id _CR
Response
~ nn@AV-SW-MODE _SP layer,output_id,mode _CR LF
Parameters
layeroutput_id- 1....num of system outputsmode- 0-manual1-priority switch2-last connected switch
Response Triggers
Notes
Command - AV-SW-TIMEOUT		Command Type - System
Command Name		Permission	Transparency
Set:	AV-SW-TIMEOUT	End User	Public
Get:	AV-SW-TIMEOUT?	End User	Public
Description		Syntax
Set:	Set auto switching timeout	#AV-SW-TIMEOUTSPaction,time_outCR
Get:	Get auto switching timeout	#AV-SW-TIMEOUT?SRaction_CR
Response
~nn@AV-SW-TIMEOUTSPaction,time_outCR
Parameters
action- 0-on video signal loss timeout1-on new video signal detected switch timeout2-on audio signal loss timeout3-on audio signal detected switch timeouttimeout-timeoutin seconds
Response Triggers
Notes
Command - BUILD-DATE		Command Type - System-mandatory
Command Name		Permission	Transparency
Set:	-	-	-
Get:	BUILD-DATE?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get device build date	#BUILD-DATECR
Response
~nn@BUILD-DATESPdateSPtimeCRLF
Parameters
date - Format: YYYY/MM/DD where YYYY = Year, MM = Month, DD = Day time - Format: hh:mm:ss where hh = hours, mm = minutes, ss = seconds
Response Triggers
Notes
Command - CPEDID		Command Type - System
Command Name		Permission	Transparency
Set:	CPEDID	End User	Public
Get:	-	-	-
Description		Syntax
Set:	Copy EDID data from the output to the input EEPROM	#CPEDID _SP src_type, src_id, dst_type,dest_bitmap _CR
Get:	-	-
Response
~nn@CPEDID _SP src_stg, src_id, dst_type, dest_bitmap _CR LF
Parameters
src_type - EDID source type (usually output) (see Section 13.2.1 EDID Source)src_id - number of chosen source stage (1.. max number of inputs/outputs)dst_type - EDID destination type (usually input) (see Section 5.12 EDID Source)dest_bitmap - bitmap representing destination IDs. Format: XXXX...X, where X is hex digit. The binary form of every hex digit represents corresponding destinations. Setting ‘1’ says that EDID data has to be copied to this destination
Response Triggers
Response is sent to the com port from which the Set was received (before execution)
Notes
Destination bitmap size depends on device properties (for 64 inputs it is a 64-bit word)Example: bitmap 0x0013 means inputs 1,2 and 5 are loaded with the new EDID

Command - DIR		Command Type - File System
Command Name		Permission	Transparency
Set:	DIR	Administrator	Public
Get:	-	-	-
Description		Syntax
Set:	List files in device	#DIRCR
Get:	-	-
Response
Multi Line:~nr@DIRCR LFfile_name TAB file_size SP bytes SP ID SP file_id CR LFTAB free_size SP bytes CR LF
Parameters
file_name - name of filefile_size - file size in bytes. A file can take more space on device memoryfile_id - internal ID for file in file systemfree_size - free space in bytes in device file system
Response Triggers
Notes
Command - DISPLAY?		Command Type - System
Command Name		Permission	Transparency
Set:	-	-	-
Get	DISPLAY?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get output HPD status	#DISPLAY?SP out_idCR
Response
~ hn@DISPLAYSP out_id,status CR LF
Parameters
out_id - output numberstatus - HPD status according to signal validation
Response Triggers
After execution, response is sent to the com port from which the Get was receivedResponse is sent after every change in output HPD status ON to OFFResponse is sent after every change in output HPD status OFF to ON and ALL parameters (new EDID, etc.) are stable and valid
Notes
Command - ETH-PORT		Command Type - Communication
Command Name		Permission	Transparency
Set:	ETH-PORT	Administrator	Public
Get:	ETH-PORT?	End User	Public
Description		Syntax
Set:	Set Ethernet port protocol	#ETH-PORT _SP portType, ETHPort_CR
Get:	Get Ethernet port protocol	#ETH-PORT? _SP portType _CR
Response
~nn@ ETH-PORT _SP portType, ETHPort_CR LF
Parameters
portType - TCP/UDPETHPort - TCP/UDP port number
Response Triggers
Notes

Command - FCT-MAC		Command Type - Ethernet (Secret)
Command Name		Permission	Transparency
Set:	FCT-MAC	Factory	Internal
Get:	-	-	-
Description		Syntax
Set:	Set MAC address	#FCT-MACSPmac_addressCR
Get:	-	-
Response
~nn@FCT-MACSPmac_addressSPOKCR LF
Parameters
mac_address - Unique MAC address. Format: XX-XX-XX-XX-XX where X is a hex digit
Response Triggers
Notes
Command - FCT-MODEL		Command Type - System (Secret)
Command Name		Permission	Transparency
Set:	FCT-MODEL	Factory	Internal
Get:	-	-	-
Description		Syntax
Set:	Set model name	#FCT-MODELSPmodel_nameCR
Get:	-	-
Response
~nn@FCT-MODELSPmodel_nameSPOKCR LF
Parameters
model_name - String of printable ASCII chars (up to 19 chars)
Response Triggers
Notes
Used where a single firmware file is adaptable for many devices, but the user needs to know (by protocol) which specific model is used
Command - FCT-SN		Command Type - System-mandatory (Secret)
Command Name		Permission	Transparency
Set:	FCT-SN	Factory	Internal
Get:	-	-	-
Description		Syntax
Set:	Set serial number	#FCT-SNSPserial_numberCR
Get:	-	-
Response
~nn@FCT-SNSPserial_numberSPOKCR LF
Parameters
serial_number - 11 decimal digits
Response Triggers
Notes
For new products with 14 digit serial numbers, use only the last 11 digits
Command - FORMAT		Command Type - File System
Command Name		Permission	Transparency
Set:	FORMAT	Administrator	Public
Get:	-	-	-
Description		Syntax
Set:	Format file system	#FORMATCR
Get:	-	-
Response
~nn@FORMATSPOKCR LF
Parameters
Response Triggers
Notes
Response could take some time (seconds) until formatting completes
Command - FPGA-VER?		Command Type - System
Command Name		Permission	Transparency
Set:	-	-	-
Get:	FPGA-VER?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get current FPGA version	#FPGA-VER?SPidCR
Response
~nr@FPGA-VERSPid, expected_ver, actual_verCR LF
Parameters
id - FPGA idexpected_ver - expected FPGA version for current firmwareactual_ver - actual FPGA version
Response Triggers
Notes
Command - FS-FREE?		Command Type - File System
Command Name		Permission	Transparency
Set:	-	-	-
Get:	FS-FREE?	Administrator	Public
Description		Syntax
Set:	-	-
Get:	Get file system free space	#FS-FREE?CR
Response
~nn@FS_FREESPFree_sizeCR LF
Parameters
free_size - free size in device file system in bytes
Response Triggers
Notes
Command - GEDID		Command Type - System
Command Name		Permission	Transparency
Set:	GEDID	Administrator	Public
Get:	GEDID?	End User	Public
Description		Syntax
Set:	Set EDID data from device	#GEDID _SP stage, stage_id _CR
Get:	Get EDID support on certain input/output	#GEDID? _SP stage, stage_id _CR
Response
Set:Multi-line response:~nn@GEDID _SP stage,stage_id,size _CR LFEDID_data _CR LF~nn@GEDID _SP stage,stage_id _SP OK _CR LFGet:~nn@GEDID _SP stage,stage_id,size _CR LF
Parameters
stage - input/output, (see Section 13.2.1 EDID Source)stage_id - number of chosen stage (1.. max number of inputs/outputs)size - EDID data size. For Set, size of data to be sent from device, for Get, 0 means no EDID support
Response Triggers
Response is sent to the com port from which the Set (before execution) / Get command was received
Notes
For Get, size=0 means EDID is not supportedFor old devices that do not support this command, ~nn@ ERR 002 _CR LF is received
Command -GET		Command Type - File System
Command Name		Permission	Transparency
Set:	-	-	-
Get:	GET	Administrator	Public
Description		Syntax
Set:	-	-
Get:	Get file	#GETSPfile_nameCR
Response
Multi-line:~nn@GETSPfile_name, file_sizeSPREADYCR LFcontents~nn@GETSPfile_nameSPOKCR LF
Parameters
file_name - name of file to get contentscontents - byte stream of file contentsfile_size - size of file (device sends it in response to give user a chance to get ready)
Response Triggers
Notes
Command - HDCP-MOD		Command Type - System
Command Name		Permission	Transparency
Set:	HDCP-MOD	Administrator	Public
Get:	HDCP-MOD?	End User	Public
Description		Syntax
Set:	Set HDCP mode	#HDCP-MOD SP inp_id,mode CR
Get:	Get HDCP mode	#HDCP-MOD? SP stage_id CR
Response
Set / Get: ~nn @HDCP-MOD SP stage_id,mode CR LF
Parameters
inp_id - input number (1.. max number of inputs)mode - HDCP mode
Response Triggers
Response is sent to the com port from which the Set (before execution) / Get command was receivedResponse is sent to all com ports after execution if HDCP-MOD was set by any other external control device (button press, device menu and similar) or HDCP mode changed
Notes
Set HDCP working mode on the device input:HDCP supported - HDCP_ON [default]HDCP not supported - HDCP OFFHDCP support changes following detected sink - MIRROR OUTPUT
Command - HDCP-STAT		Command Type - System
Command Name		Permission	Transparency
Set:	-	-	-
Get:	HDCP-STAT?	End User	Public
Description		Syntax
Set:	None	-
Get:	Get HDCP signal status	#HDCP-STAT?SPstage,stage_idCR
Response
Set / Get: ~nn@HDCP-STATSPstage,stage_id,modeCR LF
Parameters
stage – input/outputstage_id - number of chosen stage (1.. max number of inputs/outputs)actual_status - signal encryption status - valid values ON/OFF
Response Triggers
Response is sent to the com port from which the Set (before execution) / Get command was receivedResponse is sent to all com ports after execution if HDCP-STAT was set by any other external control device (button press, device menu and similar) or HDCP mode changed
Notes
Command - HELP		Command Type - System-mandatory
Command Name		Permission	Transparency
Set:	-	-	-
Get:	HELP	End User	Public
Description		Syntax
Set:	-	-
Get:	Get command list or help for specific command	2 options:1. #HELPCR2. #HELPSPcommand_nameCR
Response
1. Multi-line: ~nn@Device available protocol 3000 commands: CR LF command SP command... CR LFTo get help for command use: HELP (COMMAND_NAME) CR LF2. Multi-line: ~nn@HELPSPcommand: CR LF description CR LF USAGE: usage CR LF
Parameters
Response Triggers
Notes
Command - LDEDID		Command Type - System
Command Name		Permission	Transparency
Set:	LDEDID	End User	Public
Get:	-	-	-
Description		Syntax
Set:	Write EDID data from external application to device	Multi-step syntax (see following steps)
Get:	None	None
Communication Steps (Command and Response)
Step 1: #LDEDID _SP dst_type, dest_bitmask, size, safe_mode _CR Response 1: ~nn@LDEDID _SP dst_type, dest_bitmask, size, safe_mode _SP READY _CR LF or~nn@LDEDID _SP ERRnn _CR LF Step 2: If ready was received, send EDID DATAResponse 2: ~nn@LDEDID _SP dst_type, dest_bitmask, size, safe_mode _SP OK _CR LF or~nn@LDEDID _SP ERRnn _CR LF
Parameters
dst_type - EDID destination type (usually input) (see Section 13.2.1 EDID Source)dest_bitmask - bitmap representing destination IDs. Format: 0x******, where * is ASCII presentation of hex digit. The binary presentation of this number is a bit mask for destinations. Setting '1' means EDID data has to be copied to this destinationsize - EDID data sizesafe_mode - 0 - Device accepts the EDID as is without trying to adjust1 - Device tries to adjust the EDIDEDID_DATA - data in protocol packets
Response Triggers
Response is sent to the com port from which the Set (before execution)
Notes
When the unit receives the LDEDID command it replies with READY and enters the special EDID packet wait mode. In this mode the unit can receive only packets and not regular protocol commands. If the unit does not receive correct packets for 30 seconds or is interrupted for more than 30 seconds before receiving all packets, it sends timeout error ~nn@LDEDID _SP ERR01 _CR LF and returns to the regular protocol mode. If the unit received data that is not a correct packet, it sends the corresponding error and returns to the regular protocol mode.
Command - LDFW		System - Packets
Command Name		Permission	Transparency
Set:	LDFW	Internal SW	Public
Get:	-	-	-
Description		Syntax
Set:	Load new firmware file	Step 1: #LDFWSPsizeCRStep 2: If ready was received, sendFIRMWARE_DATA
Get:	-	-
Response
Response 1: ~nn@LDFWSFsizeSPREADYCRLF or ~nn@LDFWSFERRnnCRLFResponse 2: ~nn@LDFWSFsizeSPOKCRLF
Parameters
size - size of firmware data that is sentFIRMWARE_DATA - HEX or KFW file in protocol packets (seeSection 4)
Response Triggers
Notes
In most devices firmware data is saved to flash memory, but the memory does not update until receiving the “UPGRADE” command and is restarted. Use this command in dedicated SW application
Command - LOAD		Command Type - System - Packets
Command Name		Permission	Transparency
Set:	LOAD	Administrator	Public
Get:	-	-	-
Description		Syntax
Set:	Load file to device	# LOAD_SP file_name, size_CR
Get:	-	-
Response
Data sending negotiation:* Device -~01@ LOAD_SP file_name, size_SP READY CR_LF * End User (+Device)-Send file in Protocol Packets* Device -~01@ LOAD_SP file_name, size_SP OK CR_LF
Parameters
file_name - name of file to save on device size - size of file data that is sent.
Response Triggers
Notes
Response
~nr@LOCK-EDIDSPinput_id,lock_modeCR LF
Parameters
input_id - 1mun.... of system inputslock mode locks EDID -unlocks EDID, 1/ON -OFF /0 -
Response triggers
Notes

Response

~nr @LOCK-EDID SP input_id,lock_mode CR LF

Parameters

input_id - 1mun.... of system inputslock mode locks EDID -unlocks EDID, 1/ON -OFF /0 -

Response triggers

Notes

Response

~nr @LOCK-EDID SP input_id,lock_mode CR LF

Parameters

input_id - 1mun.... of system inputslock mode locks EDID -unlocks EDID, 1/ON -OFF /0 -

Response triggers

Notes

Command - LOGIN		Command Type - Authentication
Command Name		Permission	Transparency
Set:	LOGIN	Not Secure	Public
Get:	LOGIN?	Not Secure	Public
Description		Syntax
Set:	Set protocol permission	# LOGIN_SP login_level, password_CR
Get:	Get current protocol permission level	# LOGIN_? CR
Response
Set: ~nn@ LOGIN_SP login_level, password SP OK CR LFor~nn@ LOGIN_SP ERR SP 004 CR LF(if bad password entered)Get: ~nn@ LOGIN_SP login_level CR LF
Parameters
login_level-level of permissions required (End User or Admin)password-predefined password (by PASS command). Default password is an empty string
Response Triggers
Notes
For devices that support security, LOGIN allows to the user to run commands with an End User or Administrator permission levelIn each device, some connections can be logged in to different levels and some do not work with security at allConnection may logout after timeoutThe permission system works only if security is enabled with the “SECUR” command
Command - LOGOUT		Command Type - Authentication
Command Name		Permission	Transparency
Set:	LOGOUT	Not Secure	Public
Get:	-	-	-
Description		Syntax
Set:	Cancel current permission level	#LOGOUTCR
Get:	-	-
Response
~nn@LOGOUTSPOKCR LF
Parameters
Response Triggers
Notes
Logs out from End User or Administrator permission levels to Not Secure
Command - MODEL?		Command Type - System-mandatory
Command Name		Permission	Transparency
Set:	-	-	-
Get:	MODEL?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get device model	#MODEL?CR
Response
~nn@MODELSPmodel_nameCRLF
Parameters
model_name - String of up to 19 printable ASCII chars
Response Triggers
Notes
Command - MUTE		Command Type - Audio
Command Name		Permission	Transparency
Set:	MUTE	End User	Public
Get:	MUTE?	End User	Public
Description		Syntax
Set:	Set audio mute	#MUTE _SP channel,mute_mode _CR
Get:	Get audio mute	#MUTE? _SP channel _CR
Response
~nn@MUTE _SP channel, mute_mode _CR LF
Parameters
channel - output numbermute_mode - 0 or OFF / 1 or ON
Response Triggers
Notes
Command - NAME		Command Type - System (Ethernet)
Command Name		Permission	Transparency
Set:	NAME	Administrator	Public
Get:	NAME?	End User	Public
Description		Syntax
Set:	Set machine (DNS) name	#NAMESPmachine_nameCR
Get:	Get machine (DNS) name	#NAME?CR
Response
Set: ~nn@NAMESPmachine_nameSPOKCR LF
Get: ~nn@NAME?SPmachine_nameCR LF
Parameters
machine_name - String of up to 14 alpha-numeric chars (can include hyphen, not at the beginning or end)
Response Triggers
Notes
The machine name is not the same as the model name. The machine name is used to identify a specific machine or a network in use (with DNS feature on)
Command - NAME-RST		Command Type - System (Ethernet)
Command Name		Permission	Transparency
Set:	NAME-RST	Administrator	Public
Get:	-	-	-
Description		Syntax
Set:	Reset machine (DNS) name to factory default	#NAME-RSTCR
Get:	-	-
Response
~nr@NAME-RSTSPOKCR LF
Parameters
Response Triggers
Notes
Factory default of machine (DNS) name is “KRAMER_” + 4 last digits of device serial number
Command - NET-DHCP		Command Type - Communication
Command Name		Permission	Transparency
Set:	NET-DHCP	Administrator	Public
Get:	NET-DHCP?	End User	Public
Description		Syntax
Set:	Set DHCP mode	#NET-DHCPSPmodeCR
Get:	Get DHCP mode	#NET-DHCP?CR
Response
Set: ~nn@ NET-DHCPSPmodeSPOKCR LF
Get: ~nn@ NET-DHCPSPmodeCR LF
Parameters
mode - 0 - Do not use DHCP. Use the IP set by the factory or using the IP set command1 - Try to use DHCP. If unavailable, use IP as above
Response Triggers
Notes
Connecting Ethernet to devices with DHCP may take more time in some networksTo connect with a randomly assigned IP by DHCP, specify the device DNS name (if available) using the command “NAME”. You can also get an assigned IP by direct connection to USB or RS-232 protocol port if availableFor proper settings consult your network administrator
Command - NET-GATE		Command Type - Communication
Command Name		Permission	Transparency
Set:	NET-GATE	Administrator	Public
Get:	NET-GATE?	End User	Public
Description		Syntax
Set:	Set gateway IP	#NET-GATE _SP ip_address _CR
Get:	Get gateway IP	#NET-GATE? _CR
Response
Set: ~nr@NET-GATE _SP ip_address _SP OK _CR LF
Get: ~nr@NET-GATE _SP ip_address _CR LF
Parameters
ip_address - format: xxx.xxx.xxx.xxx
Response Triggers
Notes
A network gateway connects the device via another network and maybe over the Internet. Be careful of security problems. For proper settings consult your network administrator
Command - NET-IP		Command Type - Communication
Command Name		Permission	Transparency
Set:	NET-IP	Administrator	Public
Get:	NET-IP?	End User	Public
Description		Syntax
Set:	Set IP address	#NET-IP _SP ip_address _CR
Get:	Get IP address	#NET-IP? _CR
Response
Set: ~nn@ NET-IP _SP ip_address _SP OK _CR LF
Get: ~nn@ NET-IP _SP ip_address _CR LF
Parameters
ip_address - format: xxx.xxx.xxx.xxx
Response Triggers
Notes
For proper settings consult your network administrator
Command - NET-MAC?		Command Type - Communication
Command Name		Permission	Transparency
Set:	-	-	-
Get:	NET-MAC?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get MAC address	#NET-MAC?CR
Response
~nn@NET-MACSPmac_addressCRLF
Parameters
mac_address - Unique MAC address. Format: XX-XX-XX-XX-XX where X is hex digit
Response Triggers
Notes
Command - NET-MASK		Command Type - Communication
Command Name		Permission	Transparency
Set:	NET-MASK	Administrator	Public
Get:	NET-MASK?	End User	Public
Description		Syntax
Set:	Set subnet mask	#NET-MASK _SP net_mask _CR
Get:	Get subnet mask	#NET-MASK? _CR
Response
Set: ~nn@NET-MASK _SP net_mask _SP OK _CR LFGet: ~nn@NET-MASK _SP net_mask _CR LF
Parameters
net_mask - format: xxx.xxx.xxx.xxx
Response Triggers
The subnet mask limits the Ethernet connection within the local networkFor proper settings consult your network administrator
Notes
Command - PASS		Command Type - Authentication
Command Name		Permission	Transparency
Set:	PASS	Administrator	Public
Get:	PASS?	Administrator	Public
Description		Syntax
Set:	Set password for login level	#PASS _SP login_level, password _CR
Get:	Get password for login level	#PASS? _SP login_level _CR
Response
~nn@PASS _SP login_level, password _SP OK _CR LF
Parameters
login_level - level of login to set (End User or Administrator).password - password for the login_level. Up to 15 printable ASCII chars
Response Triggers
Notes
The default password is an empty string
Command - PRIORITY		Command Type - System
Command Name		Permission	Transparency
Set:	PRIORITY	Administrator	Public
Get:	PRIORITY?	Administrator	Public
Description		Syntax
Set:	Set input priority	# PRIORITY _SP layer,PRIORITY1, PRIORITY2...PRIORITYn _CR
Get:	Get input priority	# PRIORITY?layer _CR
Response
~ nn@ PRIORITY _SP layer,PRIORITY1, PRIORITY2... PRIORITYn _CR LF
Parameters
layerPRIORITY1 - priority of first inputPRIORITYn- priority of input n
Response Triggers
Notes
WP-577VH – layer parameter is not used
Command - PROT-VER?		Command Type - System-mandatory
Command Name		Permission	Transparency
Set:	-	-	-
Get:	PROT-VER?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get device protocol version	#PROT-VER?CR
Response
~nn@PROT-VERSP3000:versionCR LF
Parameters
Version - XX.XX where X is a decimal digit
Response Triggers
Notes
Command - RESET		Command Type - System-mandatory
Command Name		Permission	Transparency
Set:	RESET	Administrator	Public
Get:	-	-	-
Description		Syntax
Set:	Reset device	#RESETCR
Get:	-	-
Response
Parameters
Response Triggers
Notes
To avoid locking the port due to a USB bug in Windows, disconnect USB connections immediately after running this command. If the port was locked, disconnect and reconnect the cable to reopen the port.

Notes

Command -ROUTE		Command Type - Routing
Command Name		Permission	Transparency
Set:	ROUTE	End User	Public
Get:	ROUTE?	End User	Public
Description		Syntax
Set:	Set layer routing	#ROUTE _SP layer,dest,src _CR
Get:	Get layer routing	#ROUTE? _SP layer,dest _CR
Response
~nr@ROUTE _SP layer,dest,src _CR LF
Parameters
layerdest- * - ALLx - disconnect, otherwise destination idsrc - source id
Response Triggers
Notes
This command replaces all other routing commands.
Command - SECUR		Command Type - Authentication
Command Name		Permission	Transparency
Set:	SECUR	Administrator	Public
Get:	SECUR?	Not Secure	Public
Description		Syntax
Set:	Start/stop security	#SECURSPsecurity_modeCR
Get:	Get current security state	#SECUR?CR
Response
Set: ~nr@SECURSPsecurity_modeSPOKCR LF
Get: ~nr@SECURSPsecurity_modeCR LF
Parameters
security_mode – 1/ON - enables security, 0/OFF - disables security
Response Triggers
Notes
The permission system works only if security is enabled with the “SECUR” command
Command - SIGNAL		Command Type - System
Command Name		Permission	Transparency
Set:	-	-	-
Get	SIGNAL?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get input signal lock status	#SIGNAL?SPinp_idCR
Response
~nr@SIGNALSPinp_id,statusCR LF
Parameters
inp_id - input numberstatus - lock status according to signal validation
Response Triggers
After execution, a response is sent to the com port from which the Get was receivedResponse is sent after every change in input signal status ON to OFF, or OFF to ON
Notes
Command - SN?		Command Type - System-mandatory
Command Name		Permission	Transparency
Set:	-	-	-
Get:	SN?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get device serial number	#SN?CR
Response
~nn@SNSPserial_numberCRLF
Parameters
serial_number - 11 decimal digits, factory assigned
Response Triggers
Notes
For new products with 14 digit serial numbers, use only the last 11 digits
Command - UPGRADE		Command Type - System
Command Name		Permission	Transparency
Set:	UPGRADE	Administrator	Internal
Get:	-	-	-
Description		Syntax
Set:	Perform firmware upgrade	#UPGRADE CR
Get:	-	-
Response
~nn@UPGRADE SP OK CR LF
Parameters
Response Triggers
Notes
Not necessary for some devicesFirmware usually uploads to a device via a command like LDFWReset the device to complete the process
Command - VERSION?		Command Type - System-mandatory
Command Name		Permission	Transparency
Set:	-	-	-
Get:	VERSION?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get firmware version number	#VERSION?CR
Response
~nn@VERSIONSPfirmware_versionCR LF
Parameters
firmware_version - XX.XX.XXXX where the digit groups are: major.minor.build version
Response Triggers
Notes
Command - VMUTE		Command Type - Video
Command Name		Permission	Transparency
Set:	VMUTE	End User	Public
Get:	VMUTE?	End User	Public
Description		Syntax
Set:	Set enable/disable video on output	#VMUTE _SP output_id, flag _CR
Get:	Get video on output status	#VMUTE? _SP output_id, SP _CR
Response
Set / Get: ~nn@ VMUTE _SP output_id, flag _CR LF
Parameters
output_id - 1....num of system outputsflag - 0 - disable video on output1 - enable video on output2 - blank video
Response Triggers
Notes

13.2.1 EDID Source

Number	Value
0	Input
1	Output
2	Default EDID

13.2.2 Signal Validation

Number	Value
0	Signal or sink is not valid
1	Signal or sink is valid
2	Sink and EDID is valid

LIMITED WARRANTY

The warranty obligations of Kramer Electronics for this product are limited to the terms set forth below:

What is Covered

This limited warranty covers defects in materials and workmanship in this product.

What is Not Covered

This limited warranty does not cover any damage, deterioration or malfunction resulting from any alteration, modification, improper or unreasonable use or maintenance, misuse, abuse, accident, neglect, exposure to excess moisture, fire, improper packing and shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature. This limited warranty does not cover any damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Kramer Electronics to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product. This limited warranty does not cover cartons, equipment enclosures, cables or accessories used in conjunction with this product.

Without limiting any other exclusion herein, Kramer Electronics does not warrant that the product covered hereby, including, without limitation, the technology and/or integrated circuit(s) included in the product, will not become obsolete or that such items are or will remain compatible with any other product or technology with which the product may be used.

How Long Does this Coverage Last

Seven years as of this printing; please check our Web site for the most current and accurate warranty information.

Who is Covered

Only the original purchaser of this product is covered under this limited warranty. This limited warranty is not transferable to subsequent purchasers or owners of this product.

What Kramer Electronics will do

Kramer Electronics will, at its sole option, provide one of the following three remedies to whatever extent it shall deem necessary to satisfy a proper claim under this limited warranty:

1. Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and labor to complete the repair and restore this product to its proper operating condition. Kramer Electronics will also pay the shipping costs necessary to return this product once the repair is complete.

2. Replace this product with a direct replacement or with a similar product deemed by Kramer Electronics to perform substantially the same function as the original product.

3. Issue a refund of the original purchase price less depreciation to be determined based on the age of the product at the time remedy is sought under this limited warranty.

What Kramer Electronics will not do Under This Limited Warranty

If this product is returned to Kramer Electronics or the authorized dealer from which it was purchased or any other party authorized to repair Kramer Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re-installation of this product from or into any installation. Kramer Electronics will not be responsible for any costs related to any setting up this product, any adjustment of user controls or any programming required for a specific installation of this product.

How to Obtain a Remedy under this Limited Warranty

To obtain a remedy under this limited warranty, you must contact either the authorized Kramer Electronics reseller from whom you purchased this product or the Kramer Electronics office nearest you. For a list of authorized Kramer Electronics resellers and/or Kramer Electronics authorized service providers, please visit our web site at www.kramerelectronics.com or contact the Kramer Electronics office nearest you.

In order to pursue any remedy under this limited warranty, you must possess an original, dated receipt as proof of purchase from an authorized Kramer Electronics reseller. If this product is returned under this limited warranty, a return authorization number, obtained from Kramer Electronics, will be required. You may also be directed to an authorized reseller or a person authorized by Kramer Electronics to repair the product.

If it is decided that this product should be returned directly to Kramer Electronics, this product should be properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization number will be refused.

Limitation on Liability

THE MAXIMUM LIABILITY OF KRAMER ELECTRONICS UNDER THIS LIMITED WARRANTY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE PAID FOR THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

TO THE MAXIMUM EXTENT PERMITTED BY LAW, THIS LIMITED WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF KRAMER ELECTRONICS CANNOT LAWFULLY DISCLAIM OR EXCLUDE IMPLIED WARRANTIES UNDER APPLICABLE LAW, THEN ALL IMPLIED WARRANTIES COVERING THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY TO THIS PRODUCT AS PROVIDED UNDER APPLICABLE LAW.

IF ANY PRODUCT TO WHICH THIS LIMITED WARRANTY APPLIES IS A "CONSUMER PRODUCT" UNDER THE MAGNUSON-MOSS WARRANTY ACT (15 U.S.C.A. §2301, ET SEQ.) OR OTHER APPLICABLE LAW, THE FOREGOING DISCLAIMER OF IMPLIED WARRANTIES SHALL NOT APPLY TO YOU, AND ALL IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR THE PARTICULAR PURPOSE, SHALL APPLY AS PROVIDED UNDER APPLICABLE LAW.

Other Conditions

This limited warranty gives you specific legal rights, and you may have other rights which vary from country to country or state to state.

This limited warranty is void if (i) the label bearing the serial number of this product has been removed or defaced, (ii) the product is not distributed by Kramer Electronics or (iii) this product is not purchased from an authorized Kramer Electronics reseller. If you are unsure whether a reseller is an authorized Kramer Electronics reseller, please visit our Web site at www.kramerelectronics.com or contact a Kramer Electronics office from the list at the end of this document.

Your rights under this limited warranty are not diminished if you do not complete and return the product registration form or complete and submit the online product registration form. Kramer Electronics thanks you for purchasing a Kramer Electronics product. We hope it will give you years of satisfaction.

For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found.

We welcome your questions, comments, and feedback.

Web site: www.kramerelectronics.com

E-mail: [e-mail]

SAFETY WARNING

Disconnect the unit from the power supply before opening and servicing

P/N: 2900-300512

Rev: 2
