TP-DCDC-4824-HP - Power Supply Tycon Systems - Free user manual and instructions

Product Type	DC-DC Converter Power Supply
Brand	Tycon Systems
Model	TP-DCDC-4824-HP
Input Voltage	48V DC (36-60V range)
Output Voltage	24V DC (adjustable ±5%)
Output Current	1.5A (continuous)
Output Power	36W
Efficiency	85% typical
Protection	Overcurrent, overvoltage, short circuit, thermal
Dimensions (L x W x H)	4.5 x 3.0 x 1.2 inches (114 x 76 x 30 mm)
Weight	0.5 lbs (225 g)
Mounting	DIN rail or panel mount (bracket included)
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Cooling	Convection (fanless)
Isolation	1500V DC input to output
Safety Standards	UL 60950-1, EN 62368-1
EMC Compliance	FCC Part 15 Class B, EN 55032
Warranty	3 years
Maintenance	Periodic cleaning with dry cloth; no user-serviceable parts

Frequently Asked Questions - TP-DCDC-4824-HP Tycon Systems

What is the input voltage range for the TP-DCDC-4824-HP?

The input voltage range is 36-60V DC, with a nominal input of 48V DC.

What is the output voltage and current?

The output is 24V DC at 1.5A continuous, delivering up to 36W of power.

Can I use this converter with a 12V battery?

No, this model is designed specifically for 48V input systems. Using a lower voltage will not allow proper operation.

Is the output voltage adjustable?

Yes, the output voltage can be adjusted approximately ±5% via a trim potentiometer on the unit.

What protection features does it have?

It includes overcurrent, overvoltage, short circuit, and thermal protection to safeguard the converter and connected devices.

Can it be mounted on a DIN rail?

Yes, the unit comes with a DIN rail clip for easy mounting on standard 35mm rails.

What is the operating temperature range?

The operating temperature range is -20°C to +60°C (-4°F to 140°F).

How do I connect the input and output wires?

Use the screw terminals marked 'INPUT' for the 48V source (observe polarity) and 'OUTPUT' for the 24V load. Tighten screws to 0.5 Nm.

Is the unit isolated?

Yes, it provides 1500V DC isolation between input and output, ensuring safety and noise reduction.

What should I do if the unit overheats?

Ensure adequate ventilation and that the ambient temperature is within limits. The thermal protection will shut down the unit until it cools.

USER MANUAL TP-DCDC-4824-HP Tycon Systems

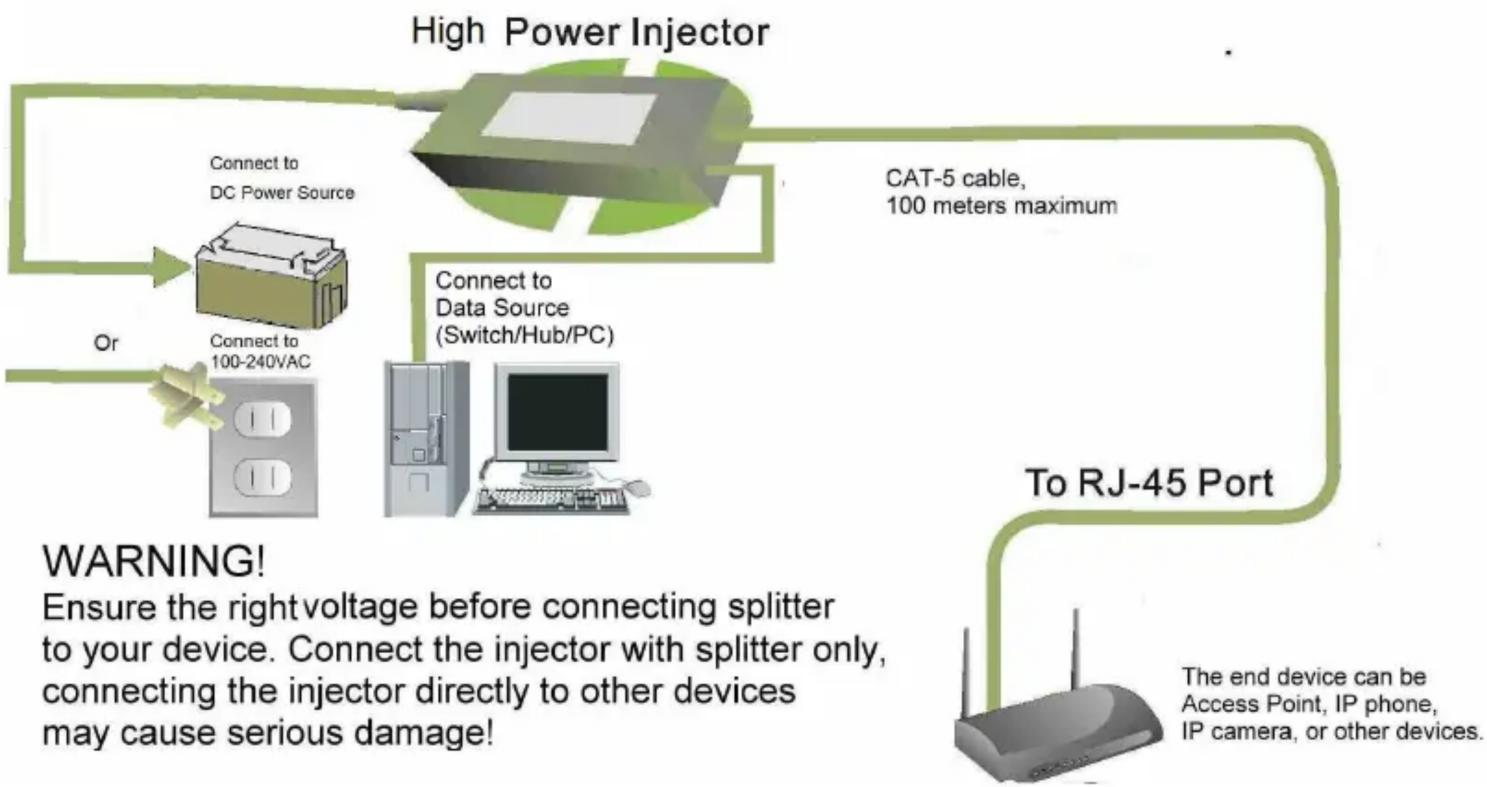

Application of POE (Power over Ethernet)

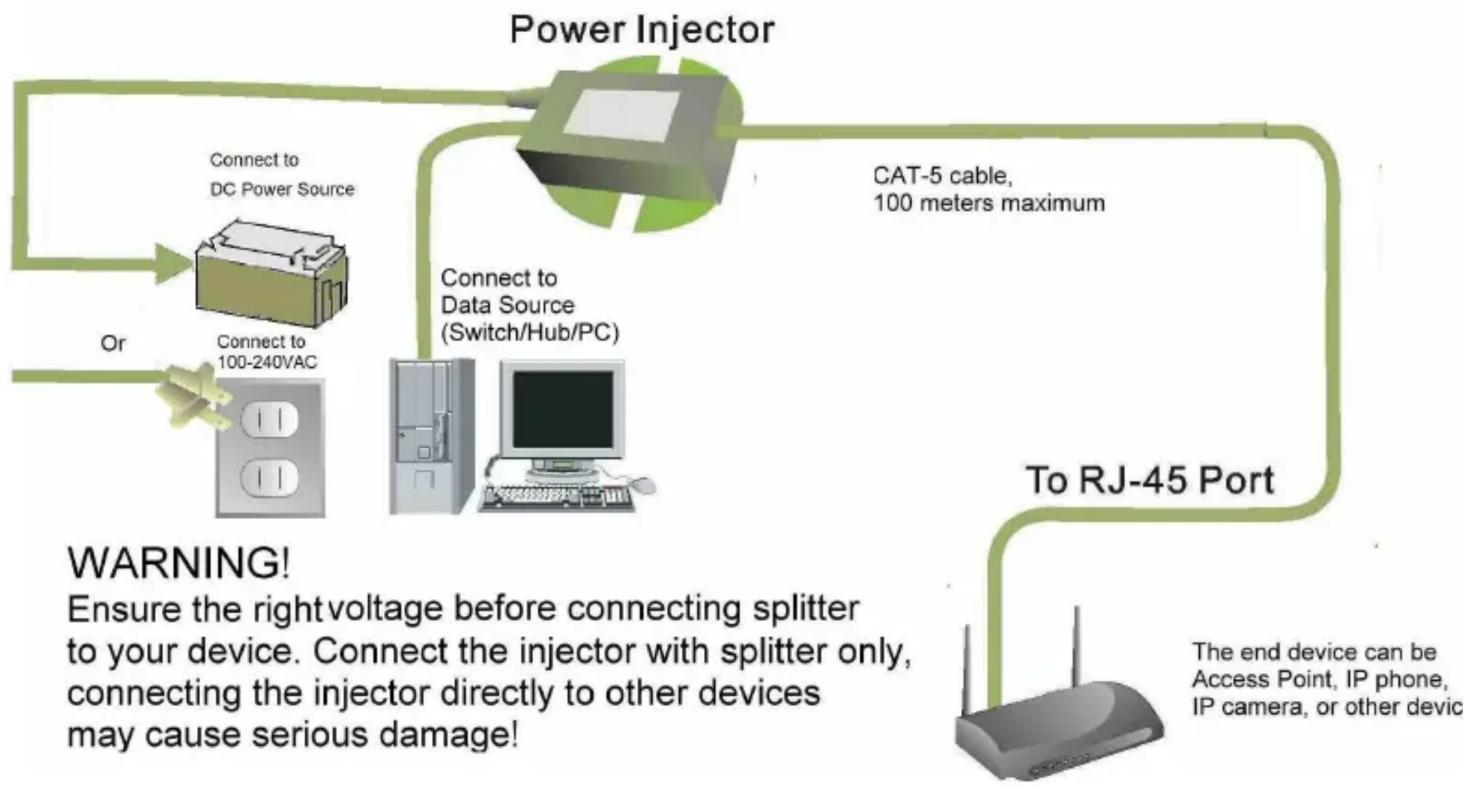

Application of POE (Power over Ethernet)
